WOLF DESIGN GU IDE

Contents

Ovens and Warming Drawers . . . . . . . . . . . . . . . . . . . 3

Cooktops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Ranges and Rangetops . . . . . . . . . . . . . . . . . . . . . . . 53

Outdoor Grills . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Cooktop Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Pro Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Shipping Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Wolf Warranties . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

MODEL SO30U

Features and specifications are subject to change at any time without notice. Visit wolfappliance.com/specs for the most up-to-date information.

IMPORTANT NOTE: Throughout this guide, dimensions in parentheses are millimeters unless otherwise specified.

Wolf Built-In Ovens 3

wolfappliance.com/specs

L Series Ovens. Since their introduction a few short years ago, Wolf L series electric ovens have taken the culinary

world by storm—and not just for their stylish cobalt blue interior and 10 cooking modes. Thanks to a Wolf innovation called dual convection, the L series delivers faster, more consistent results for baking, roasting, broiling—even drying fruits. Wolf L series ovens are crafted of stainless steel in framed and unframed door styles with tubular handles.

KEY FEATURES

• Dual convection: two fans for even heat distribution.

• Ten cooking modes, including the bake stone and

dehydration kits for precise, easy-to-use control.

• Rotating control panel.

• Full-extension bottom rack for easier access to foods.

• Spring and damper door hinge for quiet, effortless

opening and closing of the door.

L SERIES OVENS

SO30F

30" (762) SINGLE FRAMED

DO30F

30" (762) DOUBLE FRAMED

SO30U

30" (762) SINGLE UNFRAMED

DO30U

30" (762) DOUBLE UNFRAMED

SO36U

36" (914) SINGLE UNFRAMED

Wolf Built-In Ovens 4

24" (610)

EHIND FRAME

271/2"

(699)

/16"

(716)

28"

(711)

/8"

(759)

(610)

CONDUIT

CHANNEL

PEN OVEN DOOR

TOP VIEW

(76)

203/4"

(527)

11/4"

(32)

17/8"

(48)

17/8"

(

48)

RIGHT SIDE VIEW

/16"

(662)

NSIDE

SIDE TRIM

24" (610)

BEHIND FRAME

243/8"

(619)

355/8"

(905)

24"

(610)

23" (584)

INSIDE

SIDE TRIM

CONDUIT

CHANNEL

OPEN OVEN DOOR

TOP VIEW

341/8"

(867)

3311/16"

(870)

(76)

173/4"

(451)

11/4"

(32)

17/8"

(48)

17/8"

(48)

RIGHT SIDE VIEW

L Series Ovens

30" (762) SINGLE OVENS

36"

(914) SINGLE OVEN

Wolf Built-In Ovens 5

(1270)

297/8"

(759)

24" (

610)

BEHIND FRAME

24"

(610)

OPEN OVEN DOOR

CONDUIT CHANNEL

TOP VIEW

/16"

(

716)

28"

(711)

(

76)

/4"

(

527)

11/4"

(32)

17/8"

(48)

17/8"

(

48)

IGHT SIDE VIEW

/2"

(1232)

INSIDE

IDE TRIM

wolfappliance.com/specs

L Series Ovens

30" (762) DOUBLE OVENS

Interior Specifications

INTE RIOR CAPACITY CU FT (L)

30" (762) Oven 4.5 (127) 36" (914) Oven 4.4 (125)

INTE RIOR DIMENSIONS WHD

30" (762) Oven 25" (635) 161/2" (419) 19" (483) 36" (914) Oven 30" (762) 131/4" (337) 19" (483)

Wolf Built-In Ovens 6

E Series Ovens. The newest addition to the Wolf built-in oven family is a true partner, helping to create great meals

with ease, as well as adding a striking design feature to the kitchen. Smart technology gives the E series 10 cooking modes, with Wolf’s innovative dual convection in single ovens and in the upper unit of double ovens. E series ovens can be installed flush with cabinets for a contemporary, integrated look. Wolf E series ovens are crafted of stainless steel in framed and unframed door styles with tubular handles.

E SERIES OVENS

MODEL SO30-2U/S-TH

KEY FEATURES

• Dual convection: two fans for even heat distribution.

• Ten cooking modes, including the bake stone and

dehydration kits for precise, easy-to-use control.

• Full-extension bottom rack for easier access to foods.

• Balanced door hinge system for smooth opening and

closing of the door.

SO30-2F/S-TH

30" (762) SINGLE FRAMED

DO30-2F/S-TH

30" (762) DOUBLE FRAMED

SO30-2U/S-TH

0" (762) SINGLE

NFRAMED

DO30-2U/S-TH

30" (762) DOUBLE UNFRAMED

Wolf Built-In Ovens 7

233/4" (603)

BEHIND FRAME

277/8"

(

708)

281/4"

(718)

/8"

(759)

/4"

(603)

CONDUIT CHANNEL

OPEN OVEN DOOR

TOP VIEW

(559)

11/4"

(32)

(25)

17/8"

(48)

17/8"

(48)

RIGHT SIDE VIEW

/16"

(687)

297/8"

(759)

25/8"

(67)

233/4" (603)

BEHIND FRAME

503/8"

(1280)

491/2"

(1257)

281/4"

(718)

297/8"

(759)

233/4"

(603)

OPEN OVEN DOOR

TOP VIEW

25/8"

(67)

22"

(559)

11/4"

(32)

1" (25)

17/8"

(48)

17/8"

(48)

RIGHT SIDE VIEW

297/8"

(759)

CONDUIT

CHANNEL

wolfappliance.com/specs

E Series Ovens

30" (762) SINGLE OVENS

30" (762) DOUBLE OVENS

Interior Specifications

INTE RIOR CAPACITY CU FT (L)

30" (762) Oven 4.5 (127)

INTE RIOR DIMENSIONS WHD

30" (762) Oven 25" (635) 161/2" (419) 19" (483)

Wolf Built-In Ovens 8

DIMENSION WILL VARY*

43/4" (121) TYPICAL*

36" (914)

FLOOR TO

COUNTERTOP

*Dimension must accommodate height of oven trim.

NOTE: Location of electrical supply within opening may require additional cabinet depth. Dashed line represents profile of unit.

281/2" (724)

OPENING WIDTH

273/16"

(691)

OPENING

HEIGHT

24" (610) min

OPENING DEPTH

(127)

(102)

FRONT VIEWSIDE VIEW

Planning Information

STANDARD INSTALLATION

For ease of installation, Wolf recommends using 33" (838) wide cabinets with 30" (762) ovens and 39" (991) wide cabinets with the 36" (914) L series oven. You will need a minimum 24" (610) of usable cabinet depth. The cabinet must be able to support 250 lbs (113 kg) for a single oven and 400 lbs (181 kg) for a double oven.

The oven has a face trim on all four sides and will overlap stiles and rails. Refer to the chart for overlap dimensions.

Oven Trim Overlap

OVEN TRIM L SERIES E SERIES

Top Overlap Bottom Overlap Side Overlap

/16" (5)

/8" (3)

/4" (19)

/8" (16)

/8" (3)

/4" (19)

30" (762) L Series and E Series Single Oven

STANDARD INSTALLATION

FLUSH INSET INSTALLATION (E SERIES ONLY)

For E series ovens, a flush inset installation requires the oven to be recessed into the cabinet. A minimum 25" (635) deep cabinet is needed if you want the front of the oven to be flush with surrounding cabinetry.

ELECTRICAL REQUIREMENTS

The single oven requires a separate, grounded 4-wire 240/208 V AC, 60 Hz, 30 amp service with its own circuit breaker. The double oven requires a separate, grounded 4-wire 240/ 208 V AC, 60 Hz, 50 amp service with its own circuit breaker. 30" (762) single ovens have a 4' (1.2 m) conduit, the 36" (910) single oven has a 3' (.9 m) conduit and double ovens have a 5' (1.5 m) conduit. Total amps for single ovens is 21 and for double ovens, 37.

Wolf Built-In Ovens 9

67" (1702)

TYPICAL*

495/8"

(1260)

OPENING

HEIGHT

281/2" (724)

OPENING WIDTH

(127)

(102)

24" (610) min

OPENING DEPTH

*Dimension must accommodate height of oven trim.

NOTE: Location of electrical supply within opening may require additional cabinet depth. Dashed line represents profile of unit.

FRONT VIEWSIDE VIEW

36" (

914)

LOOR TO

COUNTERTOP

/2" (876)

OPENING WIDTH

241/16"

(611)

OPENING

HEIGHT

(127)

(102)

73/4" (197)

YPICAL*

IMENSION WILL VARY*

(610) min

OPENING DEPTH

*Dimension must accommodate height of oven trim.

NOTE: Location of electrical supply within opening may require additional cabinet depth. Dashed line represents profile of unit.

FRONT VIEWSIDE VIEW

wolfappliance.com/specs

36" (914) L Series Single Oven

STANDARD INSTALLATION

30" (762) L Series and E Series Double Oven

STANDARD INSTALLATION

Wolf Built-In Ovens 10

273/16"

(691)

PENING

HEIGHT

281/2"

(

724) min

FLUSH INSET

HEIGHT

281/2" (724)

PENING WIDTH

25" (

635) min

ABINET DEPTH

303/8" (772) min

FLUSH INSET WIDTH

/8"(

22)

TOP CLEAT

/16" (11)

PLATFORM*

IDE CLEATS

243/4"

(629) min

FLUSH INSET

DEPTH

1" (

25)

*Platform must support 250 lbs (113 kg).

NOTE: Location of electrical supply within opening may require additional cabinet depth. Dashed line represents profile of unit.

FRONT VIEWSIDE VIEW

TOP VIEW

1" (25)

SIDE CLEATS

(127)

(102)

30" (762) E Series Single Oven

FLUSH INSET INSTALLATION

Wolf Built-In Ovens 11

495/8"

(1260)

OPENING

HEIGHT

5015/16"

(1294) min

FLUSH INSET

HEIGHT

281/2" (724)

OPENING WIDTH

25" (

635) min

ABINET DEPTH

303/8" (772) min

FLUSH INSET WIDTH

/8"(22) T

OP CLEAT

/16" (11)

PLATFORM*

IDE CLEATS

243/4"

(629) min

FLUSH INSET

DEPTH

1" (

25)

*Platform must suppor t 400 lbs (181 kg).

NOTE: Location of electrical supply within opening may require additional cabinet depth. Dashed line represents profile of unit.

FRONT VIEWSIDE VIEW

TOP VIEW

1" (25)

SIDE CLEATS

(127)

(102)

67" (1702)

TYPICAL

wolfappliance.com/specs

30" (762) E Series Double Oven

FLUSH INSET INSTALLATION

Wolf Built-In Ovens 12

24" (

610) min

PENING DEPTH

*Platform must suppor t 250 lbs (113 kg).

NOTE: Location of electrical supply within oven opening may require additional cabinet depth.

FRONT VIEWSIDE VIEW

285/8" (727)

WARMING DRAWER

OPENING WIDTH

281/2" (724)

VEN OPENING WIDTH

MICROWAVE

OPENING

273/16"

(

691)

11/2" (38)

min

91/8" (232)

/4" (19)

min

PLATFORM*

(127)

(102)

30" (762) L Series and E Series Single Oven

STANDARD INSTALLATION WITH MICROWAVE AND WARMING DRAWER

Wolf Built-In Ovens 13

25" (

635) min

CABINET DEPTH

303/8" (772) min

FLUSH INSET WIDTH

IDE CLEATS

243/4"

(

629) min

LUSH

NSET

EPTH

(25)

*Platform must suppor t 250 lbs (113 kg).

NOTE: Location of electrical supply within oven opening may require additional cabinet depth. Dashed line represents profile of unit.

FRONT VIEWSIDE VIEW

TOP VIEW

105/8"

(270)

FLUSH INSET

HEIGHT

91/8" (232)

OPENING HEIGHT

1" (25) PLATFORM

285/8" (727)

WARMING DRAWER

OPENING WIDTH

17" (

432)

OPENING

HEIGHT

181/2" (

470)

LUSH INSET

EIGHT

271/2" (699)

STANDARD MICROWAVE

OPENING WIDTH

281/2" (724)

E SERIES OVEN

OPENING WIDTH

/16" (17) T

OP CLEAT

/16" (14)

PLATFORM*

1" (25)

SIDE CLEATS

(127)

(102)

273/16"

(691)

OPENING

HEIGHT

281/8"

(714) min

FLUSH INSET

HEIGHT

/16" (43) PLATFORM

wolfappliance.com/specs

30" (762) E Series Single Oven

FLUSH INSET INSTALLATION WITH STANDARD MICROWAVE AND WARMING DRAWER

Wolf Design Guide 14

25" (

635) min

CABINET DEPTH

303/8" (772) min

FLUSH INSET WIDTH

IDE CLEATS

243/4"

(

629) min

LUSH

NSET

EPTH

(25)

*Platform must suppor t 250 lbs (113 kg).

NOTE: Location of electrical supply within oven opening may require additional cabinet depth. Dashed line represents profile of unit.

FRONT VIEWSIDE VIEW

TOP VIEW

105/8"

(270)

FLUSH INSET

HEIGHT

91/8" (232)

OPENING HEIGHT

1" (25) PLATFORM

285/8" (727)

WARMING DRAWER

OPENING WIDTH

187/8" (

479)

OPENING

HEIGHT

201/8"

(

511)

LUSH INSET

HEIGHT

271/2" (699)

CONVECTION MICROWAVE

OPENING WIDTH

281/2" (724)

E SERIES OVEN

OPENING WIDTH

/2" (

13)

OP CLEAT

/16" (14)

PLATFORM*

1" (25)

SIDE CLEATS

(127)

(102)

273/16"

(691)

OPENING

HEIGHT

281/8"

(714) min

FLUSH INSET

HEIGHT

15/8" (41) PLATFORM

30" (762) E Series Single Oven

FLUSH INSET INSTALLATION WITH CONVECTION MICROWAVE AND WARMING DRAWER

Wolf Built-In Ovens 15

273/16"

(691)

OPENING

EIGHT

281/8"

(714) min

FLUSH INSET

HEIGHT

281/2" (724)

E SERIES OVEN

OPENING WIDTH

25" (

635) min

ABINET DEPTH

303/8" (772) min

FLUSH INSET WIDTH

281/2" (724)

DRAWER MICROWAVE

OPENING WIDTH

/8"(

22)

TOP CLEAT

/16" (14)

PLATFORM*

/8" (16) PLATFORM

IDE CLEATS

243/4"

(

629) min

LUSH

NSET

EPTH

11/4" (

32)

OR MICROWAVE

1" (25) F

OROVEN

ND WARMING

DRAWER

*Platform must suppor t 250 lbs (113 kg.

NOTE: Location of electrical supply within oven opening may require additional cabinet depth. Dashed line represents profile of unit.

FRONT VIEWSIDE VIEW

TOP VIEW

143/4" (375)

OPENING

HEIGHT

153/8"

(391)

FLUSH INSET

HEIGHT

1" (25)

SIDE CLEATS

105/8"

(270)

FLUSH INSET

HEIGHT

91/8" (232)

OPENING HEIGHT

1" (25) PLATFORM

285/8" (727)

WARMING DRAWER

OPENING WIDTH

(127)

(102)

wolfappliance.com/specs

30" (762) E Series Single Oven

FLUSH INSET INSTALLATION WITH DRAWER MICROWAVE AND WARMING DRAWER

Wolf Microwave Ovens 16

Microwave Ovens. As true cooking instruments, Wolf microwave ovens have features that make fast meals better

meals. Wolf offers both a roomy, powerful standard microwave and a convection model that can microwave, broil and cook in three convection modes. Stainless steel trim kits are available through your authorized Wolf dealer to match L series and E series ovens. Drawer microwave models can be conveniently located undercounter, in a corner or below a Wolf E series oven. They are designed to match the trim style of E series ovens and can be installed in a standard or flush inset application.

DRAWER MICROWAVES

MODEL MWD30-2U/S

KEY FEATURES

• Large-capacity interior.

• Built-in or freestanding option for design versatility

(except drawer models).

• Sensor cooking to monitor and adjust settings.

• Warming feature for gentle heating.

MWD24-2U/S

24" (610) UNFRAMED

MWD30-2U/S

30" (762) UNFRAMED

CONVECTION MICROWAVE

MWC24

L SERIES TRIM

MWC24

E SERIES TRIM

STANDARD MICROWAVE

MW24

L SERIES TRIM

MW24

E SERIES TRIM

MWD30-2F/S

30" (762) FRAMED

Wolf Microwave Ovens 17

/8" (594)

BEHIND FRAME

151/4"

(387)

/8" (606)

219/16" (

548)

149/16"

(370)

233/8"

(594)

/8" (

606)

POWER

ORD

CHANNEL

11/4"

(32)

411/16"

(119)

13/4"

(44)

161/2"

(419)

233/8" (594)

BEHIND FRAME

151/4"

(387)

297/8" (759)

281/8" (714)

POWER

CORD

CHANNEL

11/4"

(

32)

411/16"

(

119)

(

51)

149/16"

(370)

233/8"

(594)

161/2"

(419)

297/8" (759)

wolfappliance.com/specs

Drawer Microwaves

24" (610) MICROWAVE

30" (762) MICROWAVE

Wolf Microwave Ovens 18

/8"(905) FOR 36" TRIM

297/8"(759) FOR 30" TRIM

243/4" (

629)

REESTANDING WIDTH

147/8"

(378)

REE-

TANDING

EIGHT

197/8"

(505)

RIM

HEIGHT

(

483)

297/8"(

759)

RIM

/8"(683) FOR 27" TRIM

243/4" (629)

REESTANDING WIDTH

/8"

(

378)

REE-

STANDING

EIGHT

197/8"

(505)

RIM

HEIGHT

19" (483)

297/8" (759)

30" (762) TRIM WIDTH

24" (

610)

REESTANDING WIDTH

133/8"

(340)

FREE-

STANDING

HEIGHT

181/4"

(464)

TRIM

HEIGHT

19" (483)

24" (610)

REESTANDING WIDTH

133/8"

(340)

FREE-

STANDING

HEIGHT

181/4"

(464)

TRIM

HEIGHT

19" (483)

297/8"(759) FOR 30" TRIM

267/8"(683) FOR 27" TRIM

Convection Microwave

L SERIES TRIM

Standard Microwave

L SERIES TRIM

E SERIES TRIM

Wolf Microwave Ovens 19

wolfappliance.com/specs

Planning Information

olf drawer microwave ovens can be installed in a

W standard or flush inset application. A flush inset installation requires the microwave to be recessed into the cabinet. Refer to the illustrations on the following pages for minimum cabinet dimensions for your specific installation. The cabinet must be able to support 125 lbs (57 kg).

In standard applications, the drawer microwave trim will overlap stiles and rails and will match the overlaps of E series ovens. Refer to the chart for overlap dimensions.

Interior Specifications

INTE RIOR CAPACITY CU FT (L)

171/8" ( 161/8" ( 185/8" (

28)

42)

57)

435)

410)

473)

Drawer Microwave 1.0 ( Convection Microwave 1.5 ( Standard Microwave 2.0 (

INTE RIOR DIMENSIONS WHD

Drawer Microwave 173/8" ( Convection Microwave 161/8" ( Standard Microwave 173/8" (

441)

410)

441)

57/8" ( 95/8" (

101/2" (

149)

244)

267)

Wolf convection and standard microwave ovens can be used freestanding or built-in with optional trim kit available through your authorized Wolf dealer. For local dealer information, visit the find a showroom section of our website, wolfappliance.com.

In a freestanding application, allow 2" (51) of airflow space on the top, rear and both sides. Built-in opening dimensions accommodate air flow space.

In built-in applications, convection and standard microwaves with trim kit will overlap stiles and rails and will match the overlaps of L series and E series ovens. Refer to the chart for overlap dimensions.

Microwave Trim Overlap

DRAWE R MICROWAVE 24" MODEL 30" MODELS

Top Overlap Bottom Overlap Side Overlap 1" (25)

27" (686) E SER IES TRIM CONV ECTI ON STANDAR D

Top Overlap Bottom Overlap Side Overlap

30" (762) L AND E SERIES TRIM CONV ECTI ON STANDAR D

Top Overlap Bottom and Side Overlap

36" (914) L SER IES TRIM CONVEC TION STANDARD

Top Overlap Bottom and Side Overlap

/8" (10)

/8" (3)

/16" (21)

/8" (16)

/4" (6)

/16" (21)

/16" (8) NA

/16" (21) NA

/8" (10)

/4" (19)

/16" (11)

/16" (21)

/16" (21

/16" (11)

/16" (21)

/8" (3)

ELECTRICAL REQUIREMENTS

Wolf microwave ovens require a separate, grounded 120 V AC, 60 Hz power supply. The service should have its own 15 amp circuit breaker. A grounded 3-prong receptacle should be located within reach of the power cord.

Wolf Microwave Ovens 20

31/2"(

89) x

2"(

51)

ANTI-TIP BLOCK

Dashed line represents profile of unit.

FRONT VIEWSIDE VIEW

24" (610) min

ABINET DEPTH

36" (

914)

FLOOR TO

OUNTERTOP

231/2" (597) min

OPENING DEPTH

2" (51)

143/4" (375)

OPENING

HEIGHT

221/8" (

562)

OPENING WIDTH

PLATFORM

31/2"(89) x 2"(51)

ANTI-TIP BLOCK

Dashed line represents profile of unit.

FRONT VIEWSIDE VIEW

25" (635) min

CABINET DEPTH

36" (914)

FLOOR TO

COUNTERTOP

SIDE CLEATS

243/4"

(629) min

FLUSH INSET

DEPTH

11/4" (32)

TOP VIEW

143/4" (375)

OPENING

HEIGHT

19/16" (38)

153/4"

(400)

FLUSH INSET

HEIGHT

243/8" (619)

FLUSH INSET WIDTH

221/8" (562)

OPENING WIDTH

11/8" (29)

SIDE CLEATS

/8" (10) PLATFORM

/8" (16)

TOP CLEAT

24" (610) Drawer Microwave

STANDARD INSTALLATION

FLUSH INSET INSTALLATION

Wolf Microwave Ovens 21

31/2"(

89) x

2"(

51)

ANTI-TIP BLOCK

Dashed line represents profile of unit.

FRONT VIEWSIDE VIEW

24" (610) min

ABINET DEPTH

36" (

914)

FLOOR TO

OUNTERTOP

231/2" (597) min

OPENING DEPTH

2" (51)

143/4" (375)

OPENING

HEIGHT

/2" (724)

PENING WIDTH

PLATFORM

31/2"(89) x 2"(51)

ANTI-TIP BLOCK

Dashed line represents profile of unit.

FRONT VIEWSIDE VIEW

25" (635) min

CABINET DEPTH

36" (914)

FLOOR TO

COUNTERTOP

SIDE CLEATS

243/4" (629) min

FLUSH INSET

DEPTH

11/4" (32)

TOP VIEW

143/4" (375)

OPENING

HEIGHT

19/16" (38)

153/4"

(400)

FLUSH INSET

HEIGHT

303/8" (772)

FLUSH INSET WIDTH

281/2" (724)

OPENING WIDTH

1"(25)

SIDE CLEATS

/8"(10) PLATFORM

/8"(16) TOP CLEAT

wolfappliance.com/specs

30" (762) Drawer Microwave

STANDARD INSTALLATION

FLUSH INSET INSTALLATION

Wolf Microwave Ovens 22

FRONT VIEWSIDE VIEW

36" (

914)

LOOR TO

OUNTERTOP

201/8" (511) min

OPENING DEPTH

PENING WIDTH

251/4" (

641)

OR 27" TRIM

/2" (

699)

OR 30" TRIM

/8" (

854)

FOR 36" TRIM

/8" (

479)

OPENING

HEIGHT

Dashed line represents profile of unit.

FRONT VIEWSIDE VIEW

36" (914)

FLOOR TO

COUNTERTOP

20" (508) min

OPENING DEPTH

OPENING WIDTH

251/4" (641) FOR 27" TRIM 271/2" (699) FOR 30" TRIM

17" (432)

OPENING

HEIGHT

Dashed line represents profile of unit.

Convection Microwave

BUILT-IN INSTALLATION WITH TRIM

Standard Microwave

BUILT-IN INSTALLATION WITH TRIM

Wolf Warming Drawers 23

wolfappliance.com/specs

Warming Drawers. Wolf warming drawers are designed to take care of prepared foods until it’s time to serve them.

You can adjust the temperature, keeping moist foods moist and crisp foods crisp. Warming drawers are ideal for proofing dough. Stainless steel drawer fronts are available to match the look of Wolf L series and E series built-in ovens, sealed burner rangetops and outdoor grills. The integrated drawer front allows for a custom wood panel and handle. Model WWD30O, approved for outdoor installations, is ideal for any outdoor kitchen.

STAINLESS STEEL DRAWER FRONTS

L SERIES

TUBULAR HANDLE

E SERIES

MODEL WWD30 WITH L SERIES DRAWER FRONT

KEY FEATURES

• Model WWD30O is CSA approved for outdoor

applications.

• 850-watt heating element with temperature control

range of 80°F (25°C) to 200°F (95°C).

• Spacious 1.5 cu ft (42 L) interior capacity.

• Preset, four-hour automatic shutoff.

• Hidden electronic touch controls for sleek appearance.

• Ball-bearing drawer glides for smooth, full extension.

• UL approved for warming towels.

• Accessory six-piece container set available.

TUBULAR HANDLE FRAMED

PRO HANDLE 1" THICK

INTEGRATED

CUSTOM PANEL

UBULAR HANDLE

UNFRAMED

PRO HANDLE 2" THICK

PRO HANDLE 2" THICK (36" WIDE)

Wolf Warming Drawers 24

223/4" (578)

281/4" (718)

(229)

103/8"

(264)

211/2"

(546)

/4"

(19)

/4" (19)

297/8" (759)

357/8" (911)

Drawer Front Options

olf stainless steel and integrated drawer fronts allow for

W many design options, but the warming drawer itself will be the same for all applications.

When installing a Wolf warming drawer in combination with an L series or E series built-in oven, you may choose the stainless steel drawer front to match the trim and handle of your oven.

The E series 2" (51) thick drawer front with pro handle, in 30" (762) and 36" (914) widths, is designed to be installed below a sealed burner rangetop or outdoor gas grill, so the panel aligns properly with the front of the rangetop or grill.

Keep in mind, overall dimensions for the warming drawer remain the same, even though the drawer front may be wider to match a Wolf 36" (914) wide oven, sealed burner rangetop or outdoor grill.

OVERALL DIMENSIONS

Interior Specifications

INTE RIOR CAPACITY CU FT (L)

Warming Drawer 1.6 (45)

INTE RIOR DIMENSIONS WHD

Warming Drawer 25" (635) 6" (152) 18" (943)

Stainless Steel Drawer Front

L SERIES AB

Tubular Handle

E SERIES AB

/8" (22) 31/2" (89)

Tubular Handle 11/8" (29) 31/2" (89) Pro Handle 11/8" (29) 31/2" (89) Pro Handle (2" thick) 21/8" (54) 41/2" (114)

Dimensions may vary ±1/8" (3).

Integrated Drawer Front

CUSTOM PANEL WHD

Typical 297/8" (759) 103/8" (264)

/4" (19)

Wolf Warming Drawers 25

wolfappliance.com/specs

Planning Information

he warming drawer must be installed with a Wolf

T stainless steel or integrated drawer front available through your authorized Wolf dealer. For local dealer information, visit the find a showroom section of our website, wolfappliance.com. Specific installation instructions are included with the drawer front.

For all installations, the warming drawer must be fully enclosed, top and bottom.

The warming drawer platform must be able to support 200 lbs (91 kg). The platform must be a minimum of 1" (25) above the toe kick to allow for the warming drawer trim which overlaps

/8" (16) on all four sides.

The warming drawer with E series drawer front can be installed in a standard, recessed or flush inset application. For a standard installation, the drawer collar and front panel sit proud of the cabinet face frame. A recessed installation requires the cabinetry be recessed by

/16" (5) so the collar is flush with the cabinet face frame but the drawer front will sit proud. A flush inset installation requires the drawer collar and front panel be recessed to be flush with surrounding cabinetry. Refer to illustrations on the following pages for minimum cabinet dimensions for your specific installation.

ELECTRICAL REQUIREMENTS

The warming drawer requires a separate, grounded 120 V AC, 60 Hz power supply. The service should have its own 15 or 20 amp circuit breaker, and a grounded 3-prong receptacle should be located within reach of the power cord and flush with the back wall.

Wolf Warming Drawers 26

2"(

51) x

2"(

51)

ANTI-TIP BLOCK

DIMENSION WILL VARY*

*Dimension must accommodate height of anti-tip block and drawer face overlap.

NOTE: Location of electrical supply within opening may require additional cabinet depth. Dashed line represents profile of unit.

FRONT VIEWSIDE VIEW

24" (610) min

ABINET DEPTH

/8" (

727)

PENING WIDTH

LATFORM

91/8" (

232)

OPENING HEIGHT

103/8"

(264)

/2"

(597)

YPICAL

36" (914)

FLOOR TO

COUNTERTOP

L Series, E Series and Integrated Drawer Front

STANDARD INSTALLATION

Wolf Warming Drawers 27

2"(51) x 2"(51)

NTI-TIP BLOCK

DIMENSION WILL VARY*

231/2"

(597)

TYPICAL

*Dimension must accommodate height of anti-tip block and drawer face overlap.

NOTE: Dimensions provided allow for

/4" (6) reveal for proper air flow. Location of electrical supply within opening may require additional

cabinet depth. Dashed line represents profile of unit.

FRONT VIEWSIDE VIEW

24" (

610) min

CABINET DEPTH

303/8" (

772)

FLUSH INSET WIDTH

285/8" (727)

PENING WIDTH

/8" (22) PLATFORM

/8" (22) TOP AND SIDE CLEATS

36" (914)

FLOOR TO

COUNTERTOP

107/8" (276)

FLUSH INSET

HEIGHT

91/8" (232)

PENING HEIGHT

SIDE CLEATS

24 (

610) min

LUSH INSET

DEPTH

(

25)

OP VIEW

wolfappliance.com/specs

E Series and Integrated Drawer Front

FLUSH INSET INSTALLATION

MODEL CT30I/S

Wolf Induction Cooktops 29

wolfappliance.com/specs

Induction Cooktops. Ultrafast. Exceptionally energy efficient. Induction cooking has been popular among European

chefs and homeowners for decades. Now Wolf leads the way in bringing this remarkable technology to North American kitchens. Its secret is magnetism. Electromagnetic elements cause iron and magnetic stainless cookware to heat up instantly and with perfectly distributed heat. Heat generation stops the instant you turn off the element or remove the pan. The cooktop’s surface remains cool. Your kitchen stays cooler too. Framed induction cooktops have stainless steel trim. Unframed models have no trim and can be mounted flush with the countertop.

KEY FEATURES

• Ceran glass-ceramic surface for scratch resistance

and easy cleaning.

• True simmer on select elements prevents scorching.

• Melt setting on select elements for gentle heat.

• Induction elements heat cookware, not the glass, for

a cooler, safer cooking surface.

INDUCTION COOKTOPS

CT15I/S

15" (381) FRAMED

CT30IU

30" (762) UNFRAMED

CT30I/S

30" (762) FRAMED

CT36I/S

36" (914) FRAMED

CT36IU

36" (914) UNFRAMED

Wolf Induction Cooktops 30

31/2" (

89)

11/4" (32)

/8" (22)

ALL SIDES

ERM BOX

21" (533)

15"

(381)

30" (762)

31/2" (89)

11/4" (32)

/8" (22)

ALL SIDES

ERMINAL BOX

(533)

(914)

31/2" (89)

11/4" (32)

/8" (

22)

ALL SIDES

TERMINAL BOX

(533)

30" (762)

4" (102)

11/4" (32)

/8" (22)

ALL SIDES

TERMINAL BOX

21" (533)

36" (914)

4" (102)

11/4" (32)

/8" (22)

ALL SIDES

TERMINAL BOX

21" (533)

Induction Cooktops

15" (381) FRAMED

30" (762) FRAMED

30" (762) UNFRAMED

36" (914) FRAMED

36" (914) UNFRAMED

Maximum Element Power Watts

15" (381 ) INDUCTION COOKTOP

83/4" (220) 1800 /3000 boost 63/4" (171) 1200

30" (762 ) INDUCTION COOKTOP

(2) 83/4" (220) 1800 /3000 boost

63/4" (171) 1200 51/2" (140) 1200

36" (914 ) INDUCTION COOKTOP

11" (280) 3000 / 4000 boost

(2) 83/4" (220) 1800 /3000 boost

63/4" (171) 1200 51/2" (140) 1200

Wolf Electric Cooktops 31

wolfappliance.com/specs

Electric Cooktops. Behind that sophisticated, minimalist exterior (available either with stainless steel trim or in our

trimless design) there lurks a high-performance cooking instrument fairly begging to be put through its paces. All the elements feature a true simmer setting that hold sauces and stews below the boiling point. One element includes an even lower one-touch melt setting. 30-inch and 36-inch electric cooktops are available in framed and unframed models. Framed electric cooktops have stainless steel trim. Unframed models can be mounted flush with the countertop.

ELECTRIC COOKTOPS

MODEL CT36E/S

KEY FEATURES

• Ceran glass-ceramic surface for scratch resistance

and easy cleaning.

• True simmer on select elements prevents scorching.

• Melt setting on select elements for gentle heat.

• Dual and triple heating zones to customize heat for

pans of all sizes.

• High-frequency pulsation technology for more even

heating.

• Bridge-zone element to create a larger cooking area.

CT15E/S

15" (381) FRAMED

CT30EU

30" (762) UNFRAMED

CT30E/S CT30E-208/S

30" (762) FRAMED

CT36EU

36" (914) UNFRAMED

CT36E/S

36" (914) FRAMED

Wolf Electric Cooktops 32

11/4" (32)

/8" (22)

LL SIDES

33/4" (96)

CONDUIT

21" (

533)

15"

(381)

30" (762)

21" (533)

11/4" (32)

/8" (22)

LL SIDES

33/4" (

96)

ONDUIT

36" (914)

11/4" (

32)

/8" (22)

LL SIDES

33/4" (96)

CONDUIT

21" (

533)

30" (762)

41/4" (108)

11/4" (32)

/8" (22)

ALL SIDES

CONDUIT

21" (533)

36" (914)

41/4" (108)

11/4" (32)

/8" (22)

ALL SIDES

CONDUIT

21" (533)

Electric Cooktops

15" (381) FRAMED

30" (762) FRAMED

30" (762) UNFRAMED

36" (914) FRAMED

36" (914) UNFRAMED

Maximum Element Power Watts

15" (381 ) ELECTRIC COOKTOP

10" (254) Triple 900 /1800 / 2500 61/2" (165) Single 1200

30" (762 ) ELECTRIC COOKTOP

10" (254) Triple 900 /1800 / 2500 10" (254) Triple (CT30E-208/S) 900 /1800 / 2300

(2) 8" (203) Single 1800

61/2" (165) Single 1200 Singles with Bridge—8" (203) x 17" (432) 4400

36" (914 ) ELECTRIC COOKTOP

12" (305) Triple 1050/ 2200/ 2700 9" (229) Dual 700 /2200

(2) 8" (203) Single 1800

61/2" (165) Single 1200 Singles with Bridge—8" (203) x 17" (432) 4400

Wolf Induction and Electric Cooktops 33

wolfappliance.com/specs

Planning Information

or ease of installation, Wolf recommends using 33" (838)

F wide cabinets with 30" (762) cooktops and 39" (991) cabinets with 36" (914) cooktops.

A minimum height clearance of 6 the top of the countertop to any combustible surface directly below the cooktop.

Unframed induction and electric cooktops can be mounted flush with the top of the countertop or as a frameless installation sitting on top of the countertop surface. In either installation the cooktop cut-out dimensions are the same. If the cooktop is to be mounted flush with the countertop, a recessed area surrounding the cooktop cut-out must be provided.

IMPORTANT NOTE: Flush mount installations are intended

for granite, solid surface or stone countertop surfaces only.

/4" (159) is required from

ELECTRICAL REQUIREMENTS

Induction and electric cooktops ship with a 4' (1.2 m) flexible conduit and require a separate, grounded 3-wire 240/208 V AC, 60 Hz electrical supply. A 20 amp service with its own circuit breaker is required for 15" (381) cooktops, 40 amp for 30" (762) cooktops and 50 amp for 36" (914) cooktops. Electric cooktop model CT30E-208/S requires a 208 V AC, 60 Hz electrical supply with 40 amp service.

Wolf Induction and Electric Cooktops 34

36" (914)

LOOR TO

COUNTERTOP

30" (762) min

OUNTERTOP

TO COMBUSTIBLE

MATERIALS

SEE COUNTERTOP

CUT-OUT BELOW

133/8" (340)

CUT-OUT

WIDTH

COUNTERTOP CUT-OUT

FRONT

191/4" (489)

CUT-OUT

DEPTH

21/2" (64) min

2" (51) TO

COMBUSTIBLE*

2" (51) TO

COMBUSTIBLE*2" (51)*

SIDE

CABINET

(330)

max

*Minimum clearance from cooktop cut-out to combustible materials up to 18" (457) above countertop.

NOTE: Application shown allows for installation of two 15" (381) modules side by side.

15" (381)

15"

(381)

41/2"

(

114

)

18" (

457) min

15" (381) Framed Cooktop

STANDARD INSTALLATION

Wolf Induction and Electric Cooktops 35

18" (457) min

36" (914)

FLOOR TO

COUNTERTOP

(762) min

COUNTERTOP

O COMBUSTIBLE

ATERIALS

30-INCH OVEN OPENING

41/2"

(

114

)

10" (254)

31/2" (89)

EE COUNTERTOP

UT-OUT BELOW

33/4"

(95)

min

2" (51) T

OMBUSTIBLE

2" (51) T

OMBUSTIBLE

*2" (51) *

IDE

ABINET

(330)

max

283/8" (721)

CUT-OUT WIDTH

COUNTERTOP CUT-OUT

FRONT

191/4" (489)

CUT-OUT

DEPTH

21/2" (64) min

*Minimum clearance from cooktop cut-out to combustible materials up to 18" (457) above countertop.

NOTE: Electrical location applies only to installation with built-in oven.

wolfappliance.com/specs

30" (762) Framed Cooktop

STANDARD INSTALLATION

Wolf Induction and Electric Cooktops 36

18" (457) min

36" (914)

LOOR TO

COUNTERTOP

30" (762) min

OUNTERTOP

TO COMBUSTIBLE

MATERIALS

36-INCH OVEN OPENING

41/2"

(

114

)

10" (254)

31/2" (89)

SEE COUNTERTOP

CUT-OUT BELOW

343/8" (873)

CUT-OUT WIDTH

COUNTERTOP CUT-OUT

FRONT

191/4" (489)

CUT-OUT

DEPTH

21/2" (64) min

33/4"

(95)

min

2" (51) T

COMBUSTIBLE

2" (51) T

COMBUSTIBLE

*2" (51) *

SIDE

CABINET

13" (330)

max

*Minimum clearance from cooktop cut-out to combustible materials up to 18" (457) above countertop.

NOTE: Electrical location applies only to installation with built-in oven.

36" (914) Framed Cooktop

STANDARD INSTALLATION

Wolf Induction and Electric Cooktops 37

18" (457) min

36" (914)

FLOOR TO

COUNTERTOP

30" (762) min

COUNTERTOP

O COMBUSTIBLE

ATERIALS

30-INCH OVEN OPENING

41/2"

(

114

)

10" (254)

31/2" (89)

EE COUNTERTOP

UT-OUT BELOW

283/8" (721)

CUT-OUT WIDTH

COUNTERTOP CUT-OUTRECESS FOR FLUSH INSTALLATION

FRONT

193/8" (492)

CUT-OUT

DEPTH

27/16" (62) min

211/8" (537)

RECESS

FOR FLUSH

INSTALLATION

19/16"

(40)

(

102)min

2" (51) T

OMBUSTIBLE

2" (51) T

OMBUSTIBLE

*2" (51)*

IDE

CABINET

13" (330)

max

*Minimum clearance from cooktop cut-out to combustible materials up to 18" (457) above countertop.

NOTE: Electrical location applies only to installation with built-in oven.

/16"

(8)

/8"

(22) max

COUNTERTOP

PROFILE

15/16" (33)

RADIUS

/16" (11) RADIUS

301/8" (765)

RECESS FOR FLUSH INSTALLATION

wolfappliance.com/specs

30" (762) Unframed Cooktop

FLUSH INSTALLATION

Wolf Induction and Electric Cooktops 38

18" (457) min

36" (914)

LOOR TO

COUNTERTOP

(762) min

OUNTERTOP

TO COMBUSTIBLE

ATERIALS

36-INCH OVEN OPENING

41/2"

(

114

)

10" (254)

31/2" (89)

SEE COUNTERTOP

CUT-OUT BELOW

343/8" (873)

CUT-OUT WIDTH

COUNTERTOP CUT-OUTRECESS FOR FLUSH INSTALLATION

FRONT

193/8" (492)

CUT-OUT

DEPTH

27/16" (62) min

211/8" (537)

RECESS

FOR FLUSH

INSTALLATION

19/16"

(40)

(

102)min

2" (51) TO

COMBUSTIBLE*

2" (51) TO

COMBUSTIBLE*2" (51)*

IDE

ABINET

13" (330)

max

*Minimum clearance from cooktop cut-out to combustible materials up to 18" (457) above countertop.

NOTE: Electrical location applies only to installation with built-in oven.

/16"

(8)

/8"

(22) max

COUNTERTOP

PROFILE

15/16" (33)

RADIUS

/16" (11) RADIUS

361/8" (918)

RECESS FOR FLUSH INSTALLATION

36" (914) Unframed Cooktop

FLUSH INSTALLATION

Wolf Gas Cooktops 39

wolfappliance.com/specs

Gas Cooktops. Just looking at a Wolf gas cooktop can make your heart beat faster. Then, use it just once, and feel

the real passion ignite. Dual-stacked, sealed burners place infinite control in your hands—from highest searing heat to the merest breath of flame. This latter precision feature we call true simmer. Pasta sauce or fish stew can simmer for hours without boiling or scorching. Sealed burners make sloshes and spills a snap to clean up. Gas cooktops are crafted of stainless steel and can be ordered in natural or LP gas.

GAS COOKTOPS

MODEL CT30G

KEY FEATURES

• Dual-stacked, sealed burners for precise control and

easy cleanup.

• Flame recognition and automatic reignition for safety

and ease of use.

• Btu from 300 to 15,000 for tasks from melting to

searing (12,000 on a 15" gas cooktop).

• True simmer setting on all burners prevents scorching.

• Illuminated, cool-to-touch knobs for user-friendly

comfort.

CT15G/S

15" (381)

CT30G

30" (762)

CT36G

36" (914)

Wolf Gas Cooktops 40

/8" (22)

ALL SIDES

4" (102)

(

533)

15"

(381)

(

762)

/8" (22)

ALL SIDES

4" (102)

21" (533)

(914)

/8" (22)

ALL SIDES

4" (102)

(533)

Gas Cooktops

15" (381) COOKTOP 30" (762) COOKTOP 36" (914) COOKTOP

Wolf Gas Cooktops 41

wolfappliance.com/specs

Planning Information

or ease of installation, Wolf recommends using 33" (838)

F wide cabinets with 30" (762) gas cooktops and 39" (991) cabinets with 36" (914) cooktops.

Burner Rating Btu (kW) Btu (kW)

15" (381 ) GAS COOKTOP H IGH SIMMER

Medium 12,000 (3.5) 800 (.2) Small 9,200 (2.7) 300 (.1)

(2) Small 9,200 (2.7) 300 (.1)

36" (914 ) GAS COOKTOP H IGH SIMMER

(3) Small 9,200 (2.7) 300 (.1)

AS COOKTOP HIGH S IMMER

(762 ) G

Large 15,000 (4.4) 800 (.2) Medium 12,000 (3.5) 800 (.2)

ELECTRICAL AND GAS REQUIREMENTS

Gas cooktops require a separate, grounded 120 V AC, 60 Hz power supply. The service should have its own 15 amp circuit breaker, and a grounded 3-prong receptacle should be located within reach of the 6' (1.8 m) power cord.

A gas supply line of

/4" rigid pipe must be provided to the

cooktop. If local codes permit, a certified, 3' (.9 m) long,

/2" or3/4" ID flexible metal appliance connector is recom-

mended to connect the cooktop to the gas supply line.

Wolf gas cooktops are designed to operate on natural gas at 5" (12.5 mb) WC pressure or LP gas at 10" (25 mb) WC pressure. The minimum line pressure is 7" (17.5 mb) WC for natural gas and 11" (27.4 mb) WC for LP gas. The maximum gas supply pressure to the regulator should never exceed 14" (34.9 mb) WC, .5 psi (3.5 kPa).

Wolf natural gas cooktops will function up to an altitude of 10,250' (3124 m) without any adjustment. LP gas cooktops will function up to 8,600' (2621 m) without adjustment. If the installation exceeds these elevations, contact your authorized Wolf dealer for a high altitude conversion kit.

Wolf Gas Cooktops 42

36" (914)

FLOOR TO

COUNTERTOP

(762) min

COUNTERTOP

O COMBUSTIBLE

ATERIALS

EE COUNTERTOP

UT-OUT BELOW

14" (356)

CUT-OUT

WIDTH

COUNTERTOP CUT-OUT

FRONT

191/4" (489)

CUT-OUT

DEPTH

21/2" (64) min

7" (178) T

OMBUSTIBLE

7" (178) T

OMBUSTIBLE

IDE

ABINET

(330)

max

*Minimum clearance from cooktop cut-out to combustible materials up to 18" (457) above countertop.

NOTE: Application shown allows for installation of two 15" (381) modules side by side.

15" (381)

15"

(381)

(

102

)

18" (457) min

(127)

LOCATION OF GAS

AND ELECTRICAL

EXTENDS ON FLOOR

21/2"

(64)*

15" (381) Gas Cooktop

STANDARD INSTALLATION

Wolf Gas Cooktops 43

18" (457) min

36" (914)

FLOOR TO

COUNTERTOP

(762) min

COUNTERTOP

O COMBUSTIBLE

ATERIALS

30-INCH OVEN OPENING

(

102

)

10" (254)

31/2" (89)

EE COUNTERTOP

UT-OUT BELOW

33/4"

(95)

min

9" (229) T

OMBUSTIBLE

9" (229) T

OMBUSTIBLE

21/2"

(64)*

IDE

ABINET

(330)

max

29" (737)

CUT-OUT WIDTH

COUNTERTOP CUT-OUT

FRONT

191/4" (489)

CUT-OUT

DEPTH

21/2" (64) min

*Minimum clearance from cooktop cut-out to combustible materials up to 18" (457) above countertop.

NOTE: Gas and electrical location applies only to installation with built-in oven.

wolfappliance.com/specs

30" (762) Gas Cooktop

STANDARD INSTALLATION

Wolf Gas Cooktops 44

(

102

)

18" (457) min

36" (914)

FLOOR TO

COUNTERTOP

30" (762) min

COUNTERTOP

O COMBUSTIBLE

ATERIALS

36-INCH OVEN OPENING

10" (254)

31/2" (89)

EE COUNTERTOP

CUT-OUT BELOW

35" (889)

CUT-OUT WIDTH

COUNTERTOP CUT-OUT

FRONT

191/4" (489)

CUT-OUT

DEPTH

21/2" (64) min

33/4"

(95)

min

9" (229) TO

COMBUSTIBLE

9" (229) TO

COMBUSTIBLE

IDE

ABINET

(330)

max

*Minimum clearance from cooktop cut-out to combustible materials up to 18" (457) above countertop.

NOTE: Gas and electrical location applies only to installation with built-in oven.

21/2"

(64)*

36" (914) Gas Cooktop

STANDARD INSTALLATION

Wolf Integrated Modules 45

wolfappliance.com/specs

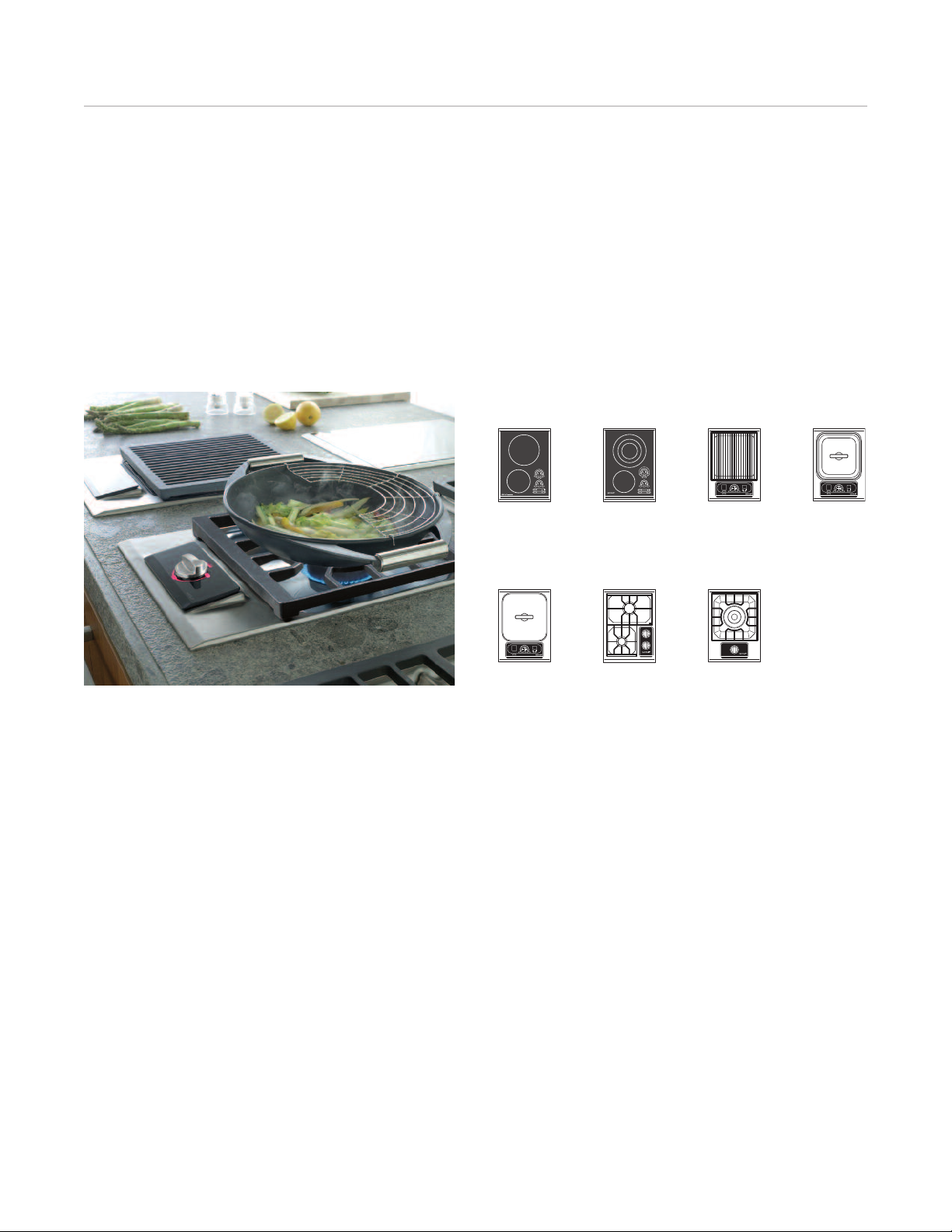

Integrated Modules. Passion for cooking reaches new dimensions with our 15-inch integrated modules. Seven

models cover the gamut of cooking methods, from searing to deep frying to induction. Combine modules à la carte–style to create a truly custom cooktop. Turn any countertop into a cooking area. Even add specialty functions alongside an existing cooktop or range. Low-profile grates, dual-stacked burners, deep spill pans and illuminated controls allow these modules to integrate perfectly with their larger counterparts and deliver equal performance. Integrated modules are crafted of stainless steel or have stainless steel trim.

INTEGRATED MODULES

MODELS IG15/S AND IM15/S

KEY FEATURES

• Induction cooktop: Iron and other magnetic cookware

heat instantly, while the cooktop surface stays cool.

• Electric cooktop: Two elements operate with high-fre-

quency pulsation technology for consistent heating.

• Electric grill: Two 1,400-watt elements ensure precise

control in front and rear zones for year-round grilling.

• Electric steamer: Powerful 2,600-watt heating element

steam cooks meats, vegetables and grains beautifully.

CT15I/S

INDUCTION C

OOKTOP

IF15/S

ELECTRIC FRYER

CT15E/S

ELECTRIC COOKTOP

CT15G/S

GAS COOKTOP

IG15/S

ELECTRIC GRILL

IM15/S

MULTI-FUNCTION COOKTOP

IS15/S

ELECTRIC S

TEAMER

• Electric fryer: Fried foods emerge crisp and light, due

to precise control of the 2,600-watt heating element.

• Gas cooktop: Equipped with the same dual-stacked

burners as our larger cooktops; 300–12,000 Btu range.

• Multi-function cooktop: The 22,000 Btu burner concen-

trates its flame in precisely the right spot for stir-frying.

Wolf Integrated Modules 46

/8" (22)

ALL SIDES

4" (102)

21" (533)

15"

(381)

(533)

15"

(381)

61/4" (

159)

/2" (13)

IDES

1" (25)

FRONT / BACK

/2" (13)

SIDES

1" (25)

FRONT / BACK

71/2" (191)

(152)

DRAIN

OUTLET

21" (533)

15"

(381)

71/2" (191)

/2" (13)

SIDES

1" (

25)

FRONT / BACK

(

152)

RAIN

OUTLET

21" (533)

(381)

/2" (13)

SIDES

1" (25)

FRONT / BACK

5" (127)

21" (533)

15"

(381)

31/2" (89)

11/4" (32)

/8" (

22)

ALL SIDES

ERM BOX

(

533)

15"

(

381)

11/4" (32)

/8" (22)

LL SIDES

33/4" (96)

CONDUIT

21" (

533)

(381)

Integrated Modules

INDUCTION COOKTOP

ELECTRIC FRYER

ELECTRIC COOKTOP

ELECTRIC GRILL ELECTRIC STEAMER

GAS COOKTOP MULTI-FUNCTION COOKTOP

Wolf Integrated Modules 47

21/2"

(64) min

191/4"

(489)

CUT-OUT

DEPTH

CUT-OUT WIDTH

14"

(356)

MODULE CUT-OUT

WIDTH

FRONT OF COUNTERTOP

wolfappliance.com/specs

Planning Information

hen multiple cooktops or modules are installed side by

W side, the dimensions provided in the chart are derived by adding 1

/4" (32) additional space for each additional unit, to give you the total countertop cut-out width. Dimensions include the optional filler strip available through your authorized Wolf dealer. For local dealer information, visit the find a showroom section of our website, wolfappliance.com.

Refer to specifications on the following pages for specific installation requirements and limitations for each integrated module. Review specific installation instructions for product-to-product capabilities. Installation specifications for induction and electric cooktops can be found on page 34 and for the gas cooktop on page 42.

IMPORTANT NOTE: Wolf does not recommend the use of

downdraft ventilation with the grill, steamer or fryer modules.

ELECTRICAL REQUIREMENTS

Wolf electric modules have a 4' (1.2 m) conduit and require a separate, grounded 3-wire 240 /208 V AC, 60 Hz, 15 amp service (20 amp for electric grill) with its own circuit breaker. Gas modules require a separate, grounded 120 V AC, 60 Hz, 15 amp service with its own circuit breaker and grounded 3-prong receptacle located within reach of the 6' (1.8 m) power cord.

When multiple cooktops or modules are installed side by side, each unit must have its own separate electrical supply.

GAS REQUIREMENTS

A gas supply line of3/4" rigid pipe must be provided to the gas module. If local codes permit, a certified, 3' (.9 m) long,

/2" or3/4" ID flexible metal appliance connector is recom-

mended to connect the module to the gas supply line.

Multiple Cooktops

COUN TERTOP CUT-OUT WIDT H

2 Modules 291/4" (743) 3 Modules 441/2" (1130) 4 Modules 593/4" (1518) 30" (762) Cooktop / Module 441/4" (1124) 30" (762) Cooktop / 2 Modules 591/2" (1511) 36" (914) Cooktop / Module 501/4" (1276)

Countertop cut-out.

When multiple gas cooktops or modules are installed next to one another, they can receive their gas supply from a common line. However, each unit must have its own regulator installed between the mainline and the cooktop or module.

Wolf gas modules are designed to operate on natural gas at 5" (12.5 mb) WC pressure or LP gas at 10" (25 mb) WC pressure. The minimum line pressure is 7" (17.5 mb) WC for natural gas and 11" (27.4 mb) WC for LP gas. The maximum gas supply pressure to the regulator should never exceed 14" (34.9 mb) WC, .5 psi (3.5 kPa).

Wolf Integrated Modules 48

36" (

914)

FLOOR TO

COUNTERTOP

30" (762) min

COUNTERTOP

TO COMBUSTIBLE

MATERIALS

SEE COUNTERTOP

CUT-OUT BELOW

14" (356)

CUT-OUT

WIDTH

COUNTERTOP CUT-OUT

FRONT

191/4" (489)

CUT-OUT

DEPTH

21/2" (64) min

7" (178) TO

COMBUSTIBLE*

7" (178) TO

COMBUSTIBLE*2" (51)*

SIDE

CABINET

(330)

*Minimum clearance from cooktop cut-out to combustible materials up to 18" (457) above countertop.

NOTE: Application shown allows for installation of two 15" (381) modules side by side.

15" (381)

15"

(381)

61/4"

(

159

)

18" (457) min

Electric Grill

STANDARD INSTALLATION

Wolf Integrated Modules 49

15" (381)

15"

(381)

123/8"

(314)

131/2"

(343)

123/8"

(314)

36" (

914)

FLOOR TO

COUNTERTOP

30" (762) min

COUNTERTOP

TO COMBUSTIBLE

MATERIALS

SEE COUNTERTOP

CUT-OUT BELOW

14" (356)

CUT-OUT

WIDTH

COUNTERTOP CUT-OUT

FRONT

191/4" (489)

CUT-OUT

DEPTH

21/2" (64) min

7" (178) TO

COMBUSTIBLE*

7" (178) TO

COMBUSTIBLE*2" (51)*

SIDE

CABINET

(330)

*Minimum clearance from cooktop cut-out to combustible materials up to 18" (457) above countertop.

NOTE: Application shown allows for installation of two 15" (381) modules side by side.

18" (457) min

75/8"

(194)

DRAIN

OUTLET

(152)

DRAIN

OUTLET

wolfappliance.com/specs

Electric Steamer

STANDARD INSTALLATION

DRAIN CONNECTION OPTIONS

The5/8" (16) outlet from the steamer valve will accept a drain hose that must flow downward to, and tie into, an existing sink drain. A separate drain with a freefall may also be installed, or a heat-resistant receptacle may be placed under the drain outlet for drainage.

The steamer module must be installed at least 15" (381) from a Wolf fryer module. Contact between water and hot oil may cause burns from steam and hot oil.

Wolf Integrated Modules 50

15" (381)

15"

(381)

123/8"

(314)

75/8"

(194)

DRAIN

OUTLET

131/2"

(343)

123/8"

(314)

(152)

36" (

914)

FLOOR TO

COUNTERTOP

30" (762) min

COUNTERTOP

TO COMBUSTIBLE

MATERIALS

SEE COUNTERTOP

CUT-OUT BELOW

14" (356)

CUT-OUT

WIDTH

COUNTERTOP CUT-OUT

FRONT

191/4" (489)

CUT-OUT

DEPTH

21/2" (64) min

7" (178) TO

COMBUSTIBLE*

7" (178) TO

COMBUSTIBLE*2" (51)*

SIDE

CABINET

(330)

*Minimum clearance from cooktop cut-out to combustible materials up to 18" (457) above countertop.

NOTE: Fryer module must be installed in base cabinet with access to valve at bottom of unit to drain oil into heat-resistant receptacle. Application shown allows for installation of two 15"

(381) modules side by side.

18" (457) min

DRAIN

OUTLET

Electric Fryer

STANDARD INSTALLATION

DRAIN CONNECTION

The fryer module must be installed in a base cabinet with access to the manual valve at the bottom of the unit to drain oil into a heat-resistant receptacle.

The fryer module must be installed at least 15" (381) from any open-flame cooking device or a Wolf steamer module. The open flame may cause ignition of oil, and contact between water and hot oil may cause burns.

Wolf Integrated Modules 51

36" (

914)

FLOOR TO

COUNTERTOP

30" (762) min

COUNTERTOP

TO COMBUSTIBLE

MATERIALS

SEE COUNTERTOP

CUT-OUT BELOW

14" (356)

CUT-OUT

WIDTH

COUNTERTOP CUT-OUT

FRONT

191/4" (489)

CUT-OUT

DEPTH

21/2" (64) min

7" (178) TO

COMBUSTIBLE*

7" (178) TO

COMBUSTIBLE*

SIDE

CABINET

(330)

*Minimum clearance from cooktop cut-out to combustible materials up to 18" (457) above countertop.

NOTE: Application shown allows for installation of two 15" (381) modules side by side.

15" (381)

15"

(381)

(

102

)

18" (457) min

(127)

LOCATION OF GAS

AND ELECTRICAL

EXTENDS ON FLOOR

21/2"

(64)*

wolfappliance.com/specs

Multi-Function Cooktop

STANDARD INSTALLATION

MODEL DF606F

Wolf Dual Fuel Ranges 53

wolfappliance.com/specs

Dual Fuel Ranges. Discover a new world of cooking—the best of two worlds, actually—with a Wolf dual fuel range.

Topside, gas cooking in all its glory, with the fine control of dual-stacked, sealed burners and options that include the remarkable French top. Below, that marvel of culinary technology, the Wolf convection electric oven. Its two fans and four heating elements let you select from 10 cooking modes so you can choose the one precisely suited to the dish you’re preparing. Ovens are self-cleaning. With a variety of range widths to choose from, kitchens large and small become gateways to the exciting new world of dual fuel cooking. All models are constructed of stainless steel and can be ordered in natural or LP gas.

KEY FEATURES

• Dual-stacked, sealed burners for precise control and

easy cleanup.

• Patented digital oven control knob.

• Dual convection: two fans for even heat distribution.

• Ten cooking modes, including the bake stone and

dehydration kits for precise, easy-to-use control.

• Flame recognition and automatic reignition for safety

and ease of use.

• Full-extension bottom rack for easier access to foods.

• Spring and damper door hinge for quiet, effortless

opening and closing.

CONFIGURATIONS

762)

30" (

DF304

36" (914)

DF366

DF364C

1219)

48" (

DF486C

DF486G

DF484CG

DF484DG

1527)

60" (

DF606DG

DF606F

DF606CG

DF604CF

DF364G

DF484F

DF604GF

Wolf Dual Fuel Ranges 54

297/8" (759)

/8"

(937)

HEIGHT TO

COOKING

SURFACE*

357/8" (911)

/8"

(937)

HEIGHT TO

COOKING

SURFACE*

477/8" (1216)

367/8"

(

937)

HEIGHT TO

COOKING

SURFACE*

601/8" (1527)

407/8"

(1035)

RISER

457/8"

(1165)

10"

RISER

557/8"

(1419)

20"

RISER

47" (1194)

261/8" (664)

25" (635)

241/8" (613)

271/2" (699)

91/4"

(235)

291/2" (749)

*LEGS AND CASTERS ALLOW FOR

HEIGHT ADJUSTMENT UP TO 39"(991)

357/8"

(911)

367/8"

(937)

HEIGHT TO

COOKING

SURFACE*

Dual Fuel Ranges

30" (762) RANGE

60" (1527) RANGE

36" (914) RANGE 48" (1219) RANGE

SIDE VIEW—ALL RANGES

Wolf Dual Fuel Ranges 55

wolfappliance.com/specs

Planning Information

vailable in four widths, Wolf dual fuel ranges are

A designed to fit a 30" (762), 36" (914), 48" (1219) or 60

/4"

(1530) opening.

IMPORTANT NOTE: When installing against a combustible

surface, a minimum 10" (254) riser is required for a 36" (914) dual fuel range with charbroiler or griddle and all 48" (1219) and 60" (1524) models. Follow all minimum clearances to combustible surfaces shown in the installation illustrations on the following pages.

It is recommended that you use a Wolf pro ventilation hood or hood liner with the dual fuel range. If the range is to be installed without ventilation, a 36" (914) minimum clearance, 44" (1118) for charbroiler, from countertop to combustible materials above the range is required. Refer to page 101 for pro ventilation.

Oven Specifications

INTE RIOR CAPACITY CU FT (L)

18" (457) Oven 2.5 (71) 30" (762) Oven 4.5 (127) 36" (914) Oven 5.4 (153)

INTE RIOR DIMENSIONS WHD

18" (457) Oven 14" (356) 161/2" (419) 19" (483) 30" (762) Oven 25" (635) 161/2" (419) 19" (483) 36" (914) Oven 30" (762) 161/2" (419) 19" (483)

ELECTRICAL AND GAS REQUIREMENTS

Wolf dual fuel ranges have a terminal block that allows for a 3-wire or 4-wire installation. A separate, grounded 240/208 V AC, 60 Hz electrical supply is required with its own circuit breaker. Single oven ranges require a 30 amp service, and a 50 amp service is required for ranges with double ovens. Total amps are 21 for single oven ranges and 42.5 for double oven ranges.

A gas supply line of

/4" rigid pipe must be provided to the

range. If local codes permit, a certified, 3' (.9 m) long,

/2" or3/4" ID flexible metal appliance connector is recom-

mended to connect the range to the gas supply line.

Wolf dual fuel ranges are designed to operate on natural gas at 5" (12.5 mb) WC pressure or LP gas at 10" (25 mb) WC pressure. The minimum line pressure is 7" (17.5 mb) WC for natural gas and 11" (27.4 mb) WC for LP gas. The maximum gas supply pressure to the regulator should never exceed 14" (34.9 mb) WC, .5 psi (3.5 kPa).

Wolf natural gas ranges will function up to an altitude of 10,250' (3124 m) without any adjustment. LP gas ranges will function up to 8,600' (2621 m) without adjustment. If the installation exceeds these elevations, contact your authorized Wolf dealer for a high altitude conversion kit.

Burner Rating Btu (kW) Btu (kW)

SURFAC E BURNERS HIGH S IMMER

Large 15,000 (4.4) 950 (.3)

(1) Small 9,200 (2.7) 325 (.1)

OPTI ONAL FEATURES NATURA L LP

Infrared Charbroiler 16,000 (4.7) 16,000 (4.7) Infrared Griddle 15,000 (4.4) 13,000 (3.8) Double Griddle 30,000 (8.8) 26,000 (7.6) French Top 15,000 (4.4) 15,000 (4.4)

Wolf Dual Fuel Ranges 56

13" (330)

ELECTRICAL

30" (762)

OPENING WIDTH

31/4" (83)

81/2"

(216)

10" (254)

GAS

30" (

762)

TO 36" (

914)

TO BOTTOM OF

ENTILATION HOOD

*Minimum clearance from rough opening to combustible materials up to 18" (457) above countertop. **36"

(914) minimum clearance from counter top to combustible materials without ventilation hood.

NOTE: For island installations, 12" (305) minimum clearance from back of range to combustible rear wall above counter top.

6" (

152)

OMBUSTIBLE

6" (

152)

OMBUSTIBLE

18" (457) min

36" (914)

FLOOR TO

COUNTERTOP

367/8"

(937) TO

COOKING SURFACE

(

330)

(76)

LOCATION OF GAS AND

ELECTRICAL EXTENDS

ON FLOOR

SIDE

ABINET

30" (762) Dual Fuel Range

INSTALLATION

Wolf Dual Fuel Ranges 57

19" (483)

ELECTRICAL

36" (914)

OPENING WIDTH

31/4" (83)

81/2"

(216)

15" (381)

GAS

30" (

762)

TO 36" (

914)

TO BOTTOM OF

ENTILATION HOOD

*Minimum clearance from rough opening to combustible materials up to 18" (457) above countertop. **36"

(914) minimum clearance, 44" (1118) for charbroiler, from countertop to combustible materials without ventilation hood.

NOTE: For island installations, 12" (305) minimum clearance from back of range to combustible rear wall above counter top.

6" (

152)

OMBUSTIBLE

6" (

152)

OMBUSTIBLE

18" (457) min

36" (914)

FLOOR TO

COUNTERTOP

367/8"

(937) TO

COOKING SURFACE

(

330)

(76)

LOCATION OF GAS AND

ELECTRICAL EXTENDS

ON FLOOR

SIDE

ABINET

wolfappliance.com/specs

36" (914) Dual Fuel Range

INSTALLATION

Wolf Dual Fuel Ranges 58

13" (330)

ELECTRICAL

48" (1219)

OPENING WIDTH

24" (610)

31/4" (83)

10" (254)

GAS

30" (

762)

TO 36" (

914)

TO BOTTOM OF

ENTILATION HOOD

*Minimum clearance from rough opening to combustible materials up to 18" (457) above countertop. **36"

(914) minimum clearance, 44" (1118) for charbroiler, from countertop to combustible materials without ventilation hood.

NOTE: For island installations, 12" (305) minimum clearance from back of range to combustible rear wall above counter top.

6" (

152)

OMBUSTIBLE

6" (

152)

OMBUSTIBLE

18" (457) min

36" (914)

FLOOR TO

COUNTERTOP

367/8"

(937) TO

COOKING

SURFACE

(330)

max

(76)

LOCATION OF GAS AND

ELECTRICAL EXTENDS

ON FLOOR

IDE

ABINET

48" (1219) Dual Fuel Range

INSTALLATION

Wolf Dual Fuel Ranges 59

13" (330)

ELECTRICAL

601/4" (

1530)

PENING WIDTH

31" (787)

31/4" (83)

10" (254)

GAS

30" (762) TO36" (914)

O BOTTOM OF

VENTILATION HOOD

*Minimum clearance from rough opening to combustible materials up to 18" (457) above countertop. **36"

(914) minimum clearance, 44" (1118) for charbroiler, from countertop to combustible materials without ventilation hood.

NOTE: For island installations, 12" (305) minimum clearance from back of range to combustible rear wall above counter top.

6" (152) TO

COMBUSTIBLE*

6" (152) TO

COMBUSTIBLE*

18" (457) min

36" (914)

LOOR TO

COUNTERTOP

367/8"

(937) TO

COOKING SURFACE

13" (

330)

(76)

LOCATION OF GAS AND

ELECTRICAL EXTENDS

ON FLOOR

SIDE

CABINET

wolfappliance.com/specs

60" (1527) Dual Fuel Range

INSTALLATION

Wolf Sealed Burner Rangetops 60

Sealed Burner Rangetops. Wolf sealed burner rangetops incorporate all the gas cooking features of a Wolf dual fuel

range. Customize your rangetop with your preferred combination of burners (from four to six), infrared griddle or charbroiler, or the remarkable French top. Compared with conventional electric elements, the infrared elements of the charbroiler and griddle are a revelation. They preheat almost instantly, distribute heat more evenly and deliver fast temperature recovery after food is placed on the surface. All sealed burner rangetop models are constructed of stainless steel and can be ordered in natural or LP gas.

CONFIGURATIONS

30" (

762)

36" (

914)

48" (

1219)

MODEL SRT364C

KEY FEATURES

• Dual-stacked, sealed burners for precise control and

easy cleanup.

• Optional configurations including: infrared charbroiler,

griddle and French top.

• Flame recognition and automatic reignition for safety

and ease of use.

• Signature red or black control knobs with infinite

control.

SRT304

SRT366

SRT364C

SRT364G

SRT486C

SRT486G

SRT484CG

SRT484DG

SRT484F

Wolf Sealed Burner Rangetops 61

297/8" (759)

81/2" (216)

O COOKING

SURFACE

357/8" (

911)

81/2" (216)

TO COOKING

URFACE

477/8" (1216) 261/8" (664)

121/2"

(318)

RISER

171/2"

(445)

10"

RISER

271/2"

(699)

20"

RISER

281/2" (724)

81/2" (216)

TO COOKING

SURFACE

71/2"

(191)

91/4"

(235)

241/8" (613)

wolfappliance.com/specs

Sealed Burner Rangetops

30"

(762) RANGETOP

36" (914) RANGETOP

48" (1219) RANGETOP

SIDE VIEW—ALL RANGETOPS

Wolf Sealed Burner Rangetops 62

Planning Information

vailable in three widths, Wolf sealed burner rangetops

A are designed to fit a 30" (762), 36" (914) or 48" (1219) opening.

The platform must be able to support 200 lbs (91 kg) for a 30" (762) rangetop, 250 lbs (113 kg) for a 36" (914) rangetop and 300 lbs (136 kg) for a 48" (1219) rangetop. The platform must include a cut-out at the right rear for gas supply and electrical connections.

IMPORTANT NOTE: When installing against a combustible

surface, a minimum 5" (127) riser is required for model SRT366, and a minimum 10" (254) riser is required for 36" (914) and 48" (1219) sealed burner rangetops with a charbroiler or griddle. Follow all minimum clearances to combustible surfaces shown in the installation illustrations on the following pages.

It is recommended that you use a Wolf pro ventilation hood or hood liner with the sealed burner rangetop. If the rangetop is to be installed without ventilation, a 36" (914) minimum clearance, 44" (1118) for charbroiler, from countertop to combustible materials above the rangetop is required. Refer to page 101 for pro ventilation.

A downdraft can be used with models SRT304 and SRT366. An accessory trim kit is necessary for this installation. Contact your authorized Wolf dealer for details.

ELECTRICAL AND GAS REQUIREMENTS

Wolf sealed burner rangetops require a 110/120 V AC, 50/ 60 Hz electrical supply to operate the electronic ignition system. The 6' (1.8 m) power cord is equipped with a 3-prong, grounded plug for protection against shock hazard. The service should have its own 15 amp circuit breaker.

A gas supply line of

/4" rigid pipe must be provided to the

rangetop. If local codes permit, a certified, 3' (.9 m) long,

/2" or3/4" ID flexible metal appliance connector is recom-

mended to connect the rangetop to the gas supply line.

Wolf sealed burner rangetops are designed to operate on natural gas at 5" (12.5 mb) WC pressure or LP gas at 10" (25 mb) WC pressure. The minimum line pressure is 7" (17.5 mb) WC for natural gas and 11" (27.4 mb) WC for LP gas. The maximum gas supply pressure to the regulator should never exceed 14" (34.9 mb) WC, .5 psi (3.5 kPa).

Wolf natural gas rangetops will function up to an altitude of 10,250' (3124 m) without any adjustment. LP gas rangetops will function up to 8,600' (2621 m) without adjustment. If the installation exceeds these elevations, contact your authorized Wolf dealer for a high altitude conversion kit.

Burner Rating Btu (kW) Btu (kW)

SURFAC E BURNERS HIGH S IMMER

Large 15,000 (4.4) 950 (.3)

(1) Small 9,200 (2.7) 325 (.1)

OPTI ONAL FEATURES NATURA L LP

Infrared Charbroiler 16,000 (4.7) 16,000 (4.7) Infrared Griddle 15,000 (4.4) 13,000 (3.8) Double Griddle 30,000 (8.8) 26,000 (7.6) French Top 15,000 (4.4) 15,000 (4.4)

Wolf Sealed Burner Rangetops 63

30" (

762)

OPENING WIDTH

30" (

762)

TO 36" (

914)

TO BOTTOM OF

ENTILATION HOOD

*Minimum clearance from rough opening to combustible materials up to 18" (457) above countertop. **36"

(914) minimum clearance from counter top to combustible materials without ventilation hood.

NOTE: For island installations, 12" (305) minimum clearance from back of rangetop to combustible rear wall above counter top.

6" (

152)

OMBUSTIBLE

6" (

152)

OMBUSTIBLE

18" (457) min

36" (914)

FLOOR TO

COUNTERTOP

16" (

406)

PLATFORM

TOP VIEW

16"

(406)

(102)

K W

GAS AND ELECTRICAL

THROUGH BOTTOM OF

PLATFORM

13" (

330)

PLATFORM

71/2" (191)

OPENING

EIGHT

wolfappliance.com/specs

30" (762) Sealed Burner Rangetop

INSTALLATION

Wolf Sealed Burner Rangetops 64

36" (

914)

OPENING WIDTH

30" (

762)

TO 36" (

914)

TO BOTTOM OF

ENTILATION HOOD

*Minimum clearance from rough opening to combustible materials up to 18" (457) above countertop. **36"

(914) minimum clearance, 44" (1118) for charbroiler, from countertop to combustible materials without ventilation hood.

NOTE: For island installations, 12" (305) minimum clearance from back of rangetop to combustible rear wall above counter top.

6" (

152)

OMBUSTIBLE

6" (

152)

OMBUSTIBLE

18" (457) min

36" (914)

FLOOR TO

COUNTERTOP

16" (

406)

PLATFORM

TOP VIEW

16"

(406)

(102)

K W

GAS AND ELECTRICAL THROUGH BOTTOM OF

PLATFORM

LATFORM

13" (330)

LATFORM

71/2" (

191)

OPENING

HEIGHT

36" (914) Sealed Burner Rangetop

INSTALLATION

Wolf Sealed Burner Rangetops 65

48" (

1219)

OPENING WIDTH

30" (

762)

TO 36" (

914)

TO BOTTOM OF

ENTILATION HOOD

*Minimum clearance from rough opening to combustible materials up to 18" (457) above countertop. **36"

(914) minimum clearance, 44" (1118) for charbroiler, from countertop to combustible materials without ventilation hood.

NOTE: For island installations, 12" (305) minimum clearance from back of rangetop to combustible rear wall above counter top.

6" (

152)

OMBUSTIBLE

6" (

152)

OMBUSTIBLE

18" (457) min

36" (914)

FLOOR TO

COUNTERTOP

PLATFORM

16" (

406)

GAS AND ELECTRICAL

THROUGH BOTTOM OF

PLATFORM

TOP VIEW

16"

(406)

(102)

K WA

13" (

330)

PLATFORM

71/2" (191)

OPENING

EIGHT

wolfappliance.com/specs

48" (1219) Sealed Burner Rangetop

INSTALLATION

Wolf Gas Ranges 66

Gas Ranges. More than seven decades in the crucible of restaurant kitchens have perfected the form, function and

sheer durability of our gas ranges. These precision instruments are as noteworthy for their range of sizes and features as for their exhilarating performance. Standard features include an infrared broiler and convection baking. Dual brass burners go from extremely low flame for simmering to furnace-like 16,000 Btu heat for searing. Options include infrared griddle, charbroiler and the innovative French top. All gas range models are constructed of stainless steel and can be ordered in natural or LP gas.

CONFIGURATIONS

30" (

762)

48" (

1219)

60" (

1527)

MODEL R364G

KEY FEATURES

• Gas convection oven for even heat distribution.

• Dual brass burners delivering 500 to 16,000 Btu.

• Infrared broiler with ultrafast preheating.

• Flame recognition and automatic reignition for safety

and ease of use.

• Porcelain-coated, cast-iron grates for easy cleaning

and durability.

R304

36" (914)

R366

R364C

R364G

R488

486C

R486G

R484CG

R484DG

R484F

R606DG

R606F

R606CG

R604CF

R604GF

• Signature red or black control knobs with infinite

control.

Wolf Gas Ranges 67

30" (762)

(940)

HEIGHT TO

COOKING

SURFACE

36" (914)

(940)

HEIGHT TO

COOKING SURFACE

48" (

1219)

(

940)

EIGHT TO COOKING SURFACE

60" (1524)

36" (914)

37" (940)

HEIGHT TO

COOKING SURFACE

21/2"

(64)

241/2" (622)

251/4" (641)

LEGS AND CASTERS ALLOW

1" (25) HEIGHT ADJUSTMENT

433/8" (1102)

463/4"

(1187)

10"

RISER

563/4"

(1441)

20"

RISER

271/4" (692)

91/4"

(235)

283/8" (721)

413/4"

(1060)

RISER

wolfappliance.com/specs

Gas Ranges

30" (762) RANGE

60" (1527) RANGE

36" (914) RANGE 48" (1219) RANGE

SIDE VIEW—ALL RANGES

Wolf Gas Ranges 68

Planning Information

olf gas ranges come in 30" (762), 36" (914), 48" (1219)

W and 60" (1524) widths.

IMPORTANT NOTE: A minimum 5" (127) riser is required

when installing a gas range against a combustible surface. A minimum 10" (254) riser is required when installing a gas range with a charbroiler or griddle against a combustible surface. Follow all minimum clearances to combustible surfaces shown in the installation illustrations on the following pages.

It is recommended that you use a Wolf pro ventilation hood or hood liner with the gas range. If the range is to be installed without ventilation, a 36" (914) minimum clearance, 44" (1118) for charbroiler, from countertop to combustible materials above the range is required. Refer to page 101 for pro ventilation.

Oven Specifications

INTE RIOR CAPACITY CU FT (L)

18" (457) Oven 2.5 (71) 30" (762) Oven 4.4 (125) 36" (914) Oven 5.5 (156)

INTE RIOR DIMENSIONS WHD

18" (457) Oven 131/2" (343) 185/8" (473) 17" (432) 30" (762) Oven 24" (610) 185/8" (473) 17" (432) 36" (914) Oven 30" (762) 185/8" (473) 17" (432)

ELECTRICAL AND GAS REQUIREMENTS

Wolf gas ranges require a 110/120 V AC, 50/60 Hz electrical supply to operate the electronic ignition system. The 6' (1.8 m) power cord is equipped with a 3-prong, grounded plug for protection against shock hazard. The service should have its own 15 amp circuit breaker.

A gas supply line of

/4" rigid pipe must be provided to the

range. If local codes permit, a certified, 3' (.9 m) long,

/2" or3/4" ID flexible metal appliance connector is recom-

mended to connect the range to the gas supply line.

Wolf gas ranges are designed to operate on natural gas at 5" (12.5 mb) WC pressure or LP gas at 10" (25 mb) WC pressure. The minimum line pressure is 7" (17.5 mb) WC for natural gas and 11" (27.4 mb) WC for LP gas. The maximum gas supply pressure to the regulator should never exceed 14" (34.9 mb) WC, .5 psi (3.5 kPa).

Wolf natural and LP gas ranges will function up to 10,250' (3124 m) in altitude without any adjustment. If the installation is above 10,250' (3124 m), contact your authorized Wolf dealer for a high altitude conversion kit.

Burner Rating Btu (kW) Btu (kW)

SURFAC E BURNERS HIGH S IMMER

4–8 Burners 16,000 (4.7) 500 (.1)

OPTI ONAL FEATURES BTU (KW)

Infrared Charbroiler 16,000 (4.7) Infrared Griddle 18,000 (5.3) Double Griddle 36,000 (10.6) French Top 15,000 (4.4)

OVEN BURNERS BTU (KW)

18" (457) Oven Burner 18,000 (5.3) 30" (762) / 36" (914) Oven Burner 30,000 (8.8) Infrared Broiler 18,000 (5.3)

Wolf Gas Ranges 69

301/4" (

768)

PENING WIDTH

30" (762) TO36" (914)

O BOTTOM OF

VENTILATION HOOD

*Minimum clearance from rough opening to combustible materials up to 18" (457) above countertop. **36"

(914) minimum clearance from counter top to combustible materials without ventilation hood.

NOTE: For island installations, 12" (305) minimum clearance from back of range to combustible rear wall above counter top.

6" (152) TO

COMBUSTIBLE*

6" (152) TO

COMBUSTIBLE*

18" (

457) min

36" (

914)

LOOR TO

COUNTERTOP

12"

(305)5"(127)

2" (51)

37" (940)

TO COOKING

SURFACE

13" (

330)

(76)

LOCATION OF GAS AND

ELECTRICAL EXTENDS

ON FLOOR

SIDE

CABINET

12"

(305)

10" (254)

73/4" (197)

53/4"

(146)

wolfappliance.com/specs

30" (762) Gas Range

INSTALLATION

Wolf Gas Ranges 70

361/4" (

921)

PENING WIDTH

30" (762) TO36" (914)

O BOTTOM OF

VENTILATION HOOD

*Minimum clearance from rough opening to combustible materials up to 18" (457) above countertop. **36"

(914) minimum clearance, 44" (1118) for charbroiler, from countertop to combustible materials without ventilation hood.

NOTE: For island installations, 12" (305) minimum clearance from back of range to combustible rear wall above counter top.

6" (152) TO

COMBUSTIBLE*

6" (152) TO

COMBUSTIBLE*

18" (

457) min

36" (

914)

LOOR TO

COUNTERTOP

12"

(305)

10" (254)

12"

(305)5"(127)

2" (51)

37" (940)

TO COOKING

SURFACE

13" (

330)

(76)

LOCATION OF GAS AND

ELECTRICAL EXTENDS

ON FLOOR

SIDE

CABINET

73/4" (197)

53/4"

(146)

36" (914) Gas Range

INSTALLATION

Wolf Gas Ranges 71

481/4" (

1226)

PENING WIDTH

30" (762) TO36" (914)

O BOTTOM OF

VENTILATION HOOD

*Minimum clearance from rough opening to combustible materials up to 18" (457) above countertop. **36"

(914) minimum clearance, 44" (1118) for charbroiler, from countertop to combustible materials without ventilation hood.

NOTE: For island installations, 12" (305) minimum clearance from back of range to combustible rear wall above counter top.

6" (152) TO

COMBUSTIBLE*

6" (152) TO

COMBUSTIBLE*

18" (

457) min

36" (

914)

LOOR TO

COUNTERTOP

12" (305)26" (660)

12"

(305)5"(127)

2" (51)

73/4" (197)

53/4"

(146)

37" (940)

TO COOKING

SURFACE

13" (

330)

(76)

LOCATION OF GAS AND

ELECTRICAL EXTENDS

ON FLOOR

SIDE

CABINET

wolfappliance.com/specs

48" (1219) Gas Range

INSTALLATION

Wolf Gas Ranges 72

601/4" (

1530)

PENING WIDTH

30" (762) TO36" (914)

O BOTTOM OF

VENTILATION HOOD

*Minimum clearance from rough opening to combustible materials up to 18" (457) above countertop. **44"

(1118) minimum clearance from counter top to combustible materials without ventilation hood.

NOTE: For island installations, 12" (305) minimum clearance from back of range to combustible rear wall above counter top.

6" (152) TO

COMBUSTIBLE*

6" (152) TO

COMBUSTIBLE*

18" (

457) min

36" (

914)

LOOR TO

COUNTERTOP

12"

(305)

10" (254)

12"

(305)5"(127)

2" (51)

37" (940)

TO COOKING

SURFACE

13" (

330)

(76)

LOCATION OF GAS AND

ELECTRICAL EXTENDS

ON FLOOR

IDE

ABINET

73/4" (197)

53/4"

(146)

60" (1527) Gas Range

INSTALLATION

Wolf Gas Rangetops 73

wolfappliance.com/specs

Gas Rangetops. Dual brass burners of the Wolf gas rangetops define power and control—from ultrahigh 16,000 Btu

for boiling and searing to a low 500 Btu for simmering. Slide pots smoothly from burner to burner on the heavy-duty grates. The infrared elements of the charbroiler and griddle preheat quickly and deliver superior heat distribution and fast temperature recovery after food is placed on the surface. All gas rangetop models are constructed of stainless steel and can be ordered in natural or LP gas.

CONFIGURATIONS

36" (

914)

48" (

1219)

MODEL RT484CG

KEY FEATURES

• Optional configurations including: infrared charbroiler,

griddle and French top.

• Dual brass burners delivering 500 to 16,000 Btu.

• Flame recognition and automatic reignition for safety

and ease of use.

• Porcelain-coated, cast-iron grates for easy cleaning

and durability.

RT366

RT364C

RT364G

RT488

RT486C

RT486G

RT484CG

RT484DG

RT484F

• Signature red or black control knobs with infinite

control.

Wolf Gas Rangetops 74

36" (914)

101/2" (267)

O COOKING

SURFACE

48" (1219)

20" (508)

/2"

ISER

271/4" (692)

23/4" (70)

101/2" (267)

TO COOKING

SURFACE

91/2"

(241)

(51)

241/2" (622)

251/4" (641)

Gas Rangetops

36"

(914) RANGETOP

48" (1219) RANGETOP

SIDE VIEW—ALL RANGETOPS

Wolf Gas Rangetops 75

wolfappliance.com/specs

Planning Information

he platform must be able to support 250 lbs (113 kg) for

T a 36" (914) rangetop and 300 lbs (136 kg) for a 48" (1219) rangetop. The platform must include a cut-out at the center rear for gas supply and electrical connections.

IMPORTANT NOTE: In non-island applications, a riser is

required when installing a gas rangetop against a combustible surface. Follow all minimum clearances to combustible surfaces shown in the installation illustrations.

It is recommended that you use a Wolf pro ventilation hood or hood liner with the gas rangetop. If the rangetop is to be installed without ventilation, a 36" (914) minimum clearance, 44" (1118) for charbroiler, from countertop to combustible materials above the rangetop is required. Refer to page 101 for pro ventilation.

Burner Rating Btu (kW) Btu (kW)

SURFAC E BURNERS HIGH S IMMER

4–8 Burners 16,000 (4.7) 500 (.1)

OPTI ONAL FEATURES

Infrared Charbroiler 16,000 (4.7) Infrared Griddle 18,000 (5.3) Double Griddle 36,000 (10.6) French Top 15,000 (4.4)

ELECTRICAL AND GAS REQUIREMENTS

Wolf gas rangetops require a 110 /120 V AC, 50/60 Hz electrical supply to operate the electronic ignition system. The 6' (1.8 m) power cord is equipped with a 3-prong, grounded plug for protection against shock hazard. The service should have its own 15 amp circuit breaker.

A gas supply line of

/4" rigid pipe must be provided to the

rangetop. If local codes permit, a certified, 3' (.9 m) long,

/2" or3/4" ID flexible metal appliance connector is recom-

mended to connect the range to the gas supply line.

Wolf gas rangetops are designed to operate on natural gas at 5" (12.5 mb) WC pressure or LP gas at 10" (25 mb) WC pressure. The minimum line pressure is 7" (17.5 mb) WC for natural gas and 11" (27.4 mb) WC for LP gas. The maximum gas supply pressure to the regulator should never exceed 14" (34.9 mb) WC, .5 psi (3.5 kPa).

Wolf natural and LP gas rangetops will function up to 10,250' (3124 m) in altitude without any adjustment. If the installation is above 10,250' (3124 m), contact your authorized Wolf dealer for a high altitude conversion kit.

Wolf Gas Rangetops 76

361/4" (

921)

OPENING WIDTH

30" (762) TO36" (914)

O BOTTOM OF

VENTILATION HOOD

*Minimum clearance from rough opening to combustible materials up to 18" (457) above countertop. **36"

(914) minimum clearance, 44" (1118) for charbroiler, from countertop to combustible materials without ventilation hood.

NOTE: For island installations, 12" (305) minimum clearance from back of rangetop to combustible rear wall above counter top.

6" (152) TO

COMBUSTIBLE*

6" (152) TO

COMBUSTIBLE*

18" (

457) min

36" (

914)

LOOR TO

COUNTERTOP

13" (330)

max

8" (203) 14" ( 356)

PLATFORM

TOP VIEW

(203)

3" (76)

K W

/2"

(13)

91/2" (

241)

PENING

EIGHT

LATFORM

PLATFORM

GAS AND ELECTRICAL

THROUGH BOTTOM OF

PLATFORM

36" (914) Gas Rangetop

INSTALLATION

Wolf Gas Rangetops 77

481/4" (

1226)

OPENING WIDTH

30" (762) TO36" (914)

O BOTTOM OF

VENTILATION HOOD

*Minimum clearance from rough opening to combustible materials up to 18" (457) above countertop. **36"

(914) minimum clearance, 44" (1118) for charbroiler, from countertop to combustible materials without ventilation hood.

NOTE: For island installations, 12" (305) minimum clearance from back of rangetop to combustible rear wall above counter top.

6" (152) TO

COMBUSTIBLE*

6" (152) TO

COMBUSTIBLE*

18" (

457) min

36" (

914)

LOOR TO

COUNTERTOP

13" (330)

max

16" (406) 14" (356)

GAS AND ELECTRICAL

THROUGH BOTTOM OF

PLATFORM

TOP VIEW

16"

(406)

(76)

K W

/2"

(13)

91/2" (

241)

PENING

EIGHT

LATFORM PLATFORM

wolfappliance.com/specs

48" (1219) Gas Rangetop

INSTALLATION

MODEL OG36

Wolf Outdoor Gas Grills 79

wolfappliance.com/specs

Outdoor Gas Grills. Taste what happens when a heritage of professional cooking moves from the kitchen to the patio.

Like their indoor counterparts, Wolf outdoor grills are precision instruments. Constructed of heavy-duty stainless steel, the 30-inch, 36-inch and 42-inch grills have powerful burners every five inches for even heat distribution. An electric rotisserie with infrared burner produces succulent poultry and roasts. Grill models can be built in or used on a cart for portable convenience. The 25,000 Btu burner module can be built into an outdoor kitchen and the side burner attached to a cart. All grills and modules can be ordered in natural or LP gas.

KEY FEATURES

• Stainless steel hexagonal grates provide more heat

contact to food for even grilling.

• Sear zone (excluding OG30): 25,000 Btu direct heat

sears meats faster and deeper to seal in juices.

• Each 25,000 Btu burner is individually contained to

control heat independently.

• Two-position rotisserie maintains proper distance from

the infrared burner.

• Three-position warming rack conveniently stows away

when not in use.

• Signature red or black control knobs with infinite

control.

OUTDOOR GRILLS AND MODULES

OG30

30" (762) GRILL

BM13

BURNER MODULE

OG36

36" (914) GRILL

SB13

SIDE BURNER

(CART ONLY)

OG42

42" (1067) GRILL

Wolf Outdoor Gas Grills 80

27"

(686)

OVERALL

HEIGHT

30" (762)

OVERALL WIDTH

103/4" (273)

OVERALL

HEIGHT

13" (330)

OVERALL

WIDTH

27"

(686)

OVERALL

HEIGHT

36" (914)

OVERALL WIDTH

27"

(686)

OVERALL

HEIGHT

42" (1067)

OVERALL WIDTH

30" (762)

OVERALL DEPTH

121/2" (318)

TO GRILLING

SURFACE

273/4" (705)

21/2"

(64)

CLEARANCE

FOR OPEN

HOOD

30" (762)

OVERALL DEPTH

273/4" (705)

Outdoor Grills and Modules

30"

(762) GRILL

42" (1067) GRILL

36" (914) GRILL

BURNER MODULE AND SIDE BURNER

SIDE VIEW—ALL GRILLS

Wolf Outdoor Gas Grills 81

wolfappliance.com/specs

Planning Information

or portable applications, Wolf grill carts are designed

F specifically to fit each outdoor grill model.

Wolf outdoor grills and the burner module are designed for easy placement into a built-in enclosure. For outdoor grills, installation in a combustible enclosure require an insulating liner. For the burner module, an insulting liner is not required. The enclosure should be built according to specifications for your specific installation, found on the following pages. If the burner module is installed next to an outdoor grill, a minimum of 2" (51) is required between units.

Optional stainless steel accessory doors and drawers are available for built-in applications.

Grill carts, insulating liners, accessory doors and drawers are available through your authorized Wolf dealer. For local dealer information, visit the find a showroom section of our website, wolfappliance.com.

Burner Rating Btu (kW)

OUTD OOR GRILLS

Grill Burners 25,000 (7.3) Rotisserie Burner (OG30) 14,000 (4.1) Rotisserie Burner (OG36 / OG42) 16,000 (4.7)

OUTD OOR MODULES

Burner Module 25,000 (7.3) Side Burner 25,000 (7.3)

ELECTRICAL AND GAS REQUIREMENTS

Wolf outdoor gas grills require a 120 V AC electrical supply with GFCI protection to operate the rotisserie motor. The power supply cord is equipped with a 3-prong, grounded plug for protection against shock hazard. The service should have its own 15 amp circuit breaker.

A gas supply line of

/4" rigid pipe must be provided to the

outdoor grill. If local codes permit, a certified, 3' (.9 m)

long,

/2" or3/4" ID flexible metal appliance connector is

recommended to connect the grill to the gas supply line.

Wolf outdoor gas grills are designed to operate on natural gas at 5" (12.5 mb) WC pressure or LP gas at 10" (25 mb) WC pressure. The minimum line pressure is 7" (17.5 mb) WC for natural gas and 11" (27.4 mb) WC for LP gas. The maximum gas supply pressure to the regulator should never exceed 14" (34.9 mb) WC, .5 psi (3.5 kPa).

Wolf Outdoor Gas Grills 82

WIDTH

MAX DOOR/DRAWER CLEARANCE 22" (559).

24" (610)

TO GRILL

PLATFORM

361/2"

(927)

273/4" (705)

12"

(305)

(76)

203/4"

(527)

19"

(483)

/4" (19)

11/4" (32)

Outdoor Grill Accessories

GRILL CARTS

Grill Cart

WIDTH

Model CART30 30" (762) Model CART36 36" (914) Model CART42 42" (1067)

ACCESSORY DOORS

Accessory Doors

WIDTH AB

18" (457) Single Door 18" (475) 161/4" (413) 30" (762) Double Doors 30" (762) 281/4" (718) 36" (914) Double Doors 36" (914) 341/4" (870) 42" (1067) Double Doors 42" (1067) 401/4" (1022)

Wolf Outdoor Gas Grills 83

20"

(508)

/4" (19)

187/8"

(479)

30" (762)

285/8" (727)

203/4"

(527)

203/4"

(527)

20"

(508)

/4" (19)

19"

(483)

13" (330)

12" (305)

115/16"

(287)

257/8"

(657)

/4" (19)

91/2"

(241)

30" (762)

27" (686)

wolfappliance.com/specs

Outdoor Grill Accessories

30" (762) ACCESSORY DRAWER

13" (330) DRAWERS (2- OR 3-DRAWER UNIT)

30" (762) DRAWER / DOOR UNIT

Wolf Outdoor Gas Grills 84

36"

(914)

OPENING WIDTH

TOP VIEW

FRONT VIEW

113/4"

(298)

OPENING

HEIGHT

6"(152) min TO

NON-COMBUSTIBLE

SIDE SURFACES

6"(152) min TO

NON-COMBUSTIBLE

SIDE SURFACES

OPENING WIDTH

FOR ACCESSORY DOORS

OR DRAWERS

OPENING

HEIGHT

1" (25) min

241/4"

(616)

OPENING

DEPTH

21/2" (64) min TO

NON-COMBUSTIBLE REAR SURFACES

OUNTERTOP

VERHANG

OPENING

FOR GRILL

/16"

(21)

13"

(330)

31/2"

(89)

4"(1 02)

(152)

36"

(914)

OPENING WIDTH

TOP VIEW

FRONT VIEW

125/8" (321)

OPENING

HEIGHT

OPENING WIDTH

FOR ACCESSORY DOORS

OR DRAWERS

26"

(660)

OPENING

DEPTH

OPENING

HEIGHT

12" (305) min T

COMBUSTIBLE REAR SURFACES

12" (305) min T

COMBUSTIBLE

SIDE SURFACES

12" (305) min T

COMBUSTIBLE

SIDE SURFACES

1" (25) min

COUNTERTOP

VERHANG

OPENING

FOR LINER

/16"

(21)

103/4"

(273)

(127)

23/4" (70)

KNOCKOUT FOR

AS SUPPLY

Outdoor Grills

NON-COMBUSTIBLE ENCLOSURE

COMBUSTIBLE ENCLOSURE WITH LINER

Opening Width

NON- COMB USTI BLE ENCLOSURE W

Model OG30 281/2" (724) Model OG36 341/2" (876) Model OG42 401/2" (1029)

COMB USTI BLE ENCLOSURE W

Model OG30 331/2" (851) Model OG36 391/2" (1003) Model OG42 451/2" (1156)

Optional Opening

ACCESSORY DOORS WH

18" (457) Single 161/4" (413) 19" (483) 30" (762) Double 281/4" (718) 19" (483) 36" (914) Double 341/4" (870) 19" (483) 42" (1067) Double 401/4" (1022) 19" (483)

ACCESSORY DRAWERS WH

30" (762) Single 271/4" (692) 93/4" (248) 13" (330) Double 121/8" (308) 19" (483) 13" (330) Triple 121/8" (308) 19" (483) 30" (762) Double with Door 291/4" (743) 19" (483)

Wolf Outdoor Gas Grills 85

(178)

(76)

(203)

36"

(914)

12"

(305)

OPENING

WIDTH

FRONT VIEW

10"(254)

OPENING

HEIGHT

6"(152) min TO

NON-COMBUSTIBLE

SIDE SURFACES

6"(152) min TO

NON-COMBUSTIBLE

SIDE SURFACES

241/4"

(616)

OPENING

DEPTH

COUNTERTOP

OVERHANG

OPENING

ODULE

/16"

(14)

TOP VIEW

21/2" (64) min T

O NON-COMBUSTIBLE

REAR SURFACES

wolfappliance.com/specs

Burner Module

NON-COMBUSTIBLE OR COMBUSTIBLE ENCLOSURE

MODEL CTWH30

Wolf Cooktop Ventilation 87

wolfappliance.com/specs

Cooktop Ventilation Hoods. Behind the sculpted lines of Wolf cooktop ventilation hoods, there’s a lot of hard-nosed

functional thinking. Brilliant halogen lighting illuminates your cooking surface. Powerful multi-speed blowers whisk away smoke and odors. Five-layer mesh filters can be removed easily for cleaning. Wall-mount and island hoods are crafted of stainless steel.

KEY FEATURES

• Internal, in-line or remote blower options.

• Telescopic chimney flue fits 8' to 9' ceilings; available

flue extension for 10' ceilings.

• Front-mounted controls with LED indicators.

• Heat sentry to automatically turn unit on when heat is

sensed and to adjust blower speed.

• Delay-off feature to automatically turn unit off.

• Stainless steel filter cover with dishwasher-safe

aluminum mesh filter.

COOKTOP HOODS

CTWH30

30" (762) WALL

CTWH36

36" (914) WALL

IH4227

42" (1067) ISLAND

Wolf Cooktop Ventilation 88

67/8"

(

175)

/2" (775)

481/2" (1232)

191/8" (486)

(762)

41/2" (114)

min

(457) 1

(305)

(533)

19/16"

(40)

(152)

18" (457) 12"

(305)

191/8" (486)

3211/16" (830)

507/8" (1292)

357/16" (900)

811/16"

(221)

45/16" (110)

min

21" (533)

91/4"

(235)

19/16"

(40)

339/16" (853)

471/16" (1195)

42" (1067)

27" (686)

195/16" (491)

5" (127)

min

91/4"

(235)

19/16"

(40)

18" (457) 12"

(305)

Cooktop Hoods

30" (762) WALL HOOD

36" (914) WALL HOOD

42" (1067) ISLAND HOOD

Wolf Cooktop Ventilation 89

wolfappliance.com/specs

Planning Information

olf cooktop ventilation hoods are recommended for use

W with Wolf induction, electric and gas cooktops and integrated modules. These hoods have a telescopic chimney flue that allows you to reach a ceiling height of 8' (2.4 m) to 9' (2.7 m). A flue extension to accommodate 10' (3 m) ceilings is available through your authorized Wolf dealer.

Wall and island hoods are shipped without the blower assembly. Internal, in-line and remote blowers are available through your authorized Wolf dealer. For local dealer information, visit the find a showroom section of our website, wolfappliance.com.

The blower will vary in size and is dictated by the cooking unit, the volume of air that needs to be moved and the length of the duct run. Refer to ventilation recommendations on pages 109–110. These hoods have an 8" (203) round duct with vertical discharge.

Consult a qualified HVAC professional for specific installation and ducting applications.

ELECTRICAL REQUIREMENTS

Wolf cooktop wall and island hoods require a separate, grounded 120 V AC, 60 Hz power supply. The service should have its own 15 amp circuit breaker.

Wolf Cooktop Ventilation 90

8' (2.4 m) TO9' (2.7 m)

FLOOR TO

EILING HEIGHT

21" (

533)

DEPTH OF HOOD

30" (762) OR357/16" (900)

WIDTH OF HOOD

481/2" (1232)

/8" (

1292)

MAXIMUM

HEIGHT OF HOOD

301/2" (775)

/16" (

830)

MINIMUM

HEIGHT OF HOOD

4" (102)

(152)

LOCATION OF

ELECTRICAL

24" (610) TO 30" (762)

O COUNTERTOP

*8' (2.4 m) ceilings will not allow for 30" (762) max height above countertop. Based on 36" (914) countertop, 8' (2.4 m) ceiling will allow for max height of 29

/2" (749) for CTWH30 and 275/16" (694) for CTWH36.

Cooktop Wall Hood

INSTALLATION

Wolf Cooktop Ventilation 91

8' (2.4 m) TO9' (2.7 m)

LOOR TO

CEILING HEIGHT

27" (

686)

DEPTH OF HOOD

42" (

1067)

IDTH OF HOOD

471/16" (

1195)

AXIMUM

EIGHT OF HOOD

339/16" (

853)

INIMUM

EIGHT OF HOOD

24" (610) TO30" (762)

TO COUNTERTOP

*8' (2.4 m) ceilings will not allow for 30" (762) max height above countertop. Based on 36" (914) countertop, 8' (2.4 m) ceiling will allow for max height of 26

/16" (672).

OCATION OF ELECTRICAL

THROUGH TOP OF HOOD

wolfappliance.com/specs

Cooktop Island Hood

INSTALLATION

Wolf Cooktop Ventilation 92

Low-Profile Hoods. Behind the contemporary lines of the new cooktop low-profile hoods, there’s a lot of hard-nosed

functional thinking. Brilliant halogen lighting illuminates your cooking surface. Powerful multi-speed blowers whisk away smoke and odors. Wall-mount and island hoods are constructed of heavy-duty stainless steel with a sleek black glass control panel.

LOW-PROFILE HOODS

MODEL CTEWH36I

KEY FEATURES

• Internal, in-line or remote blower options.

• Telescopic flue fits 8' to 9' ceilings.

• Models with an internal blower can be used in a non-

ducted application with a recirculating filter.

• Front-mounted controls with digital indicator.

• Heat sentry to automatically turn unit on when heat is

sensed and to adjust blower speed.

• Delay-off feature to automatically turn unit off.

CTEWH30I

30" (762) WALL

CTEIH42I

42" (1067) ISLAND

CTEWH36(I)

36" (914) WALL

CTEWH45(I)

45" (1143) WALL

• Stainless steel filter cover with dishwasher-safe

aluminum mesh filter.

Wolf Cooktop Ventilation 93

227/8" (581)

31/8" (79)

23/8" (60)

14" (356)

97/8"

(251)

113/4"

(298)

283/8" (721)

40" (1016)

42" (1067) 215/8" (549)

303/4" (781)

40" (1016)

227/8" (581)

31/8" (79)

43/4" (121)

14" (356)

97/8"

(251)

215/8" (549)

/8" (511)

31/8" (

79)

57/8" (149)

/8" (467)

107/8"

(

276)

97/8"

(

251)

291/8" (

740)

411/2" (1054)

(762), 36"(914) A

45" (

1143)

IDTHS

173/4"

(451)

31" (

788)

483/4" (1238)

/8" (511)

31/8" (

79)

77/8" (200)

/2" (648)

107/8"

(

276)

173/4"

(451)

wolfappliance.com/specs

Low-Profile Hoods

WALL HOODS

ECIRCULATING APPLICATION

ISLAND HOOD

RECIRCULATING APPLICATION

Wolf Cooktop Ventilation 94

Planning Information

olf cooktop low-profile hoods are recommended for

W use with Wolf induction, electric and gas cooktops and integrated modules. These hoods have a telescopic flue that allows you to reach a ceiling height of 8' (2.4 m) to 9' (2.7 m) with a finished look.

Low-profile wall and island hoods are available with an internal blower. Wall hood models CTEWH36 and CTEWH45 will require an in-line or remote blower assembly, available through your authorized Wolf dealer. For local dealer information, visit the find a showroom section of our website, wolfappliance.com.

Cooktop low-profile hoods with an internal blower can be used in a non-ducted application with a recirculating filter. In this installation, kitchen air is purified through filters and returned as clean air into the room. A recirculation kit available through your authorized Wolf dealer is required.

ELECTRICAL REQUIREMENTS

Wolf low-profile wall and island hoods require a separate, grounded 110/120 V AC, 60 Hz power supply. The service should have its own 15 amp circuit breaker.

Consult a qualified HVAC professional for specific installation and ducting applications.

Wolf Cooktop Ventilation 95

8' (2.4 m) TO 9' (2.7 m)

FLOOR TO

CEILING HEIGHT

173/4"

(451)

EPTH OF HOOD

30" (

762),

36" (

914)

45" (1143)

IDTH OF HOOD

291/8" (

740)

411/2" (

1054)

HEIGHT OF HOOD

LOCATION OF

LECTRICAL

24" (610) TO 30" (762)

O COUNTERTOP

15"

(

381)

(127)

wolfappliance.com/specs

Low-Profile Wall Hood

INSTALLATION

Wolf Cooktop Ventilation 96

8' (2.4 m) TO9' (2.7 m)

LOOR TO

CEILING HEIGHT

215/8" (549)

EPTH OF HOOD

42" (1067)

WIDTH OF HOOD

/4" (718)

411/2" (

1054)

HEIGHT

F HOOD

24" (610) TO 30" (762)

TO COUNTERTOP

OCATION OF ELECTRICAL

THROUGH TOP OF HOOD

Low-Profile Island Hood

INSTALLATION

Wolf Cooktop Ventilation 97

wolfappliance.com/specs

Downdraft Ventilation. The cooktop downdraft unit rises from the countertop to whisk away odors and smoke into

the easy-to-clean, five-layer mesh filter and can be lowered beneath the countertop when not in use. Downdrafts integrate perfectly with framed induction and electric cooktops, gas cooktops and some integrated modules, they can also be installed with certain sealed burner rangetop models. Downdrafts are constructed of heavy-duty stainless steel.

DOWNDRAFTS

MODEL DD30

KEY FEATURES

• Internal, in-line or remote blower options.

• Remote-mounted controls with LED indicators.

• Delay-off feature to automatically turn unit off.

• Stainless steel filter cover with dishwasher-safe

aluminum mesh filter.

DD30I / DD30R

30" (762)

DD45I / DD45R

45" (1143)

DD36I / DD36R

36" (914)

Wolf Cooktop Ventilation 98

23/8"

(

60)

(762)

91/16"

(230)

/4"

(667)

11/2" (38)

DEPTH OF CHIMNEY

(914)

/4"

(819)

23/8"

(

60)

91/16"

(230)

11/2" (38)

DEPTH OF CHIMNEY

451/2"

(1156)

/4"

(

1048)

23/8"

(60)

91/16"

(230)

11/2" (38)

DEPTH OF CHIMNEY

Downdrafts

30" (762) DOWNDRAFT

36" (914) DOWNDRAFT

Planning Information

Wolf downdraft systems can be used with Wolf induction, electric and gas cooktops, except unframed models. They can also be used with some integrated modules but are not recommended for use with the electric grill, steamer and fryer modules. A downdraft can also be used with sealed burner rangetop models SRT304 and SRT366. An accessory trim kit is necessary for this installation. Contact your authorized Wolf dealer for details.

IMPORTANT NOTE: To install a downdraft with a Wolf

cooktop, you must allow for a minimum 25 counter space from front to back. A countertop with a raised lip or backsplash may not allow enough space for proper installation.

Installation of the remote-mounted control module must be within 10' (3 m) of the downdraft assembly and a minimum of 4" (102) from the outer edge of cooktop element or burner.

Downdraft models DD30I, DD36I and DD45I include a 500 CFM internal blower. In-line and remote blower assemblies are available for models DD30R, DD36R and DD45R through your authorized Wolf dealer. For local dealer information, visit the find a showroom section of our website, wolfappliance.com.

/8" (638) flat

45" (1143) DOWNDRAFT

The blower will vary in size and is dictated by the cooking unit, the volume of air that needs to be moved and the length of the duct run. Refer to ventilation recommendations on pages 109–110.

Downdrafts with an internal blower have a 3 (254) duct and for remote blower models, a 3

/4" (83) x 10"

/4" (83) x 14"

(356) duct. All downdrafts have an adjustable discharge.

Consult a qualified HVAC professional for specific installation and ducting applications.

ELECTRICAL REQUIREMENTS

Wolf downdraft ventilation systems require a separate, grounded 120 V AC, 60 Hz power supply. The service should have its own 15 amp circuit breaker, and a grounded 3-prong receptacle should be located within reach of the 2

/2' (.8 m) power cord. Certain installations may require that the electrical supply be placed in an adjacent cabinet.

Wolf Cooktop Ventilation 99

" (

638) min

FLAT COUNTERTOP

/16

" (197)

24"min (610)

CABINET DEPTH

" (64) min

EDGE OF

COOKTOP

TO WALL

(181)

" (64) min

" (70)

COOKTOP CUT-OUT

WIDTH

(

489)

(686), 33"(838) OR 42"(1067)

DOWNDRAFT CUT-OUT

(638) min

FLAT

COUNTERTOP

(

76) min

TO CONTROL

MODULE

COUNTERTOP CUT-OUT (TOP VIEW)

/16

(745)

30" (762) rec

FLAT COUNTERTOP

/16

(745)

(191)

" (692) min

CABINET DEPTH

(181)

(

686) OR

(

838)

DOWNDRAFT CUT-OUT

" (70)

30" (762) OR 36" (914)

WIDTH OF RANGETOP

(762) rec

FLAT

COUNTERTOP

24"

(610) min*

COUNTERTOP CUT-OUT (TOP VIEW)

3" (76) min

TO CONTROL

MODULE

19" (483)

PLATFORM DEPTH

" (

64) min

EDGE OF

RANGETOP

TO WALL

*Additional depth may be required if rangetop is to be installed flush with cabinet face

wolfappliance.com/specs

Downdrafts

INSTALLATION WITH COOKTOP INSTALLATION WITH SEALED BURNER RANGETOP

MODEL PWC362418

Wolf WWD30, SRT486G Design Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
