Wolf WEG24D Specifications
GRIDDLES & CHARBROILERS
WEG SERIES
HEAVY DUTY ELECTRIC GRIDDLE
Model WEG36D
SPECIFICATIONS
Heavy duty electric griddle, Wolf Model No. _____________.
Stainless steel front and sides. 13" cooking height on 4"
adjustable legs. 1⁄2" thick polished steel griddle plate. Tubular
incoloy elements and one snap action thermostat for every
12” of griddle width. Thermostats adjust from 200° to 450° F.
Stainless steel 4" back and tapered side splashes. 31⁄8" wide
front grease trough empties into large capacity grease drawer.
Available in 208V, 240V, 50/60 Hz, 1 or 3 phase. 480V, 50/60
Hz, 3 phase.
NSF listed. UL listed. UL listed to Canadian safety standards.
Energy Star rated.
SPECIFY VOLTAGE WHEN ORDERING.
Item # C.S.I. Section 11420
WEG24D 24" w x 24" d griddle plate
WEG36D 36" w x 24" d griddle plate
WEG48D 48" w x 24" d griddle plate
WEG60D 60" w x 24" d griddle plate
WEG72D 72" w x 24" d griddle plate
STANDARD FEATURES
Stainless steel front, sides and 4" adjustable legs. ■
■1⁄2" thick polished steel griddle plate.
13" cooking height on 4" adjustable legs. ■
Two solid sheathed tubular incoloy heating elements, one ■
snap action thermostat and cycling light per each 12"
griddle width. Thermostats adjust from 200° to 450°F.
Stainless steel 3" back and tapered side splashes. ■
3 ■1⁄8" wide front grease trough empties into a large capacity
grease drawer. 60" and 72" models have two grease
drawers.
Available in 208V or 240V, 50/60 Hz, 1 or 3 phase power ■
supply. 480V, 50/60 Hz, 3 phase power supply.
WEG36D, WEG48D, WEG60D and WEG72D models are ■
Energy Star rated.
One year limited parts and labor warranty. ■
OPTIONAL FE ATURES
Stainless steel stand with marine edges and casters.
a divisi on of IT W Food Equ ipmen t Group LLC
P.O. Box 696 ■ Louisville, KY 40201 ■ Toll-free: 1-800-814-2028 ■ Local: 502-778-2791 ■ Quote & Order Fax: 1-800-444-0602
F36989 (06/10)

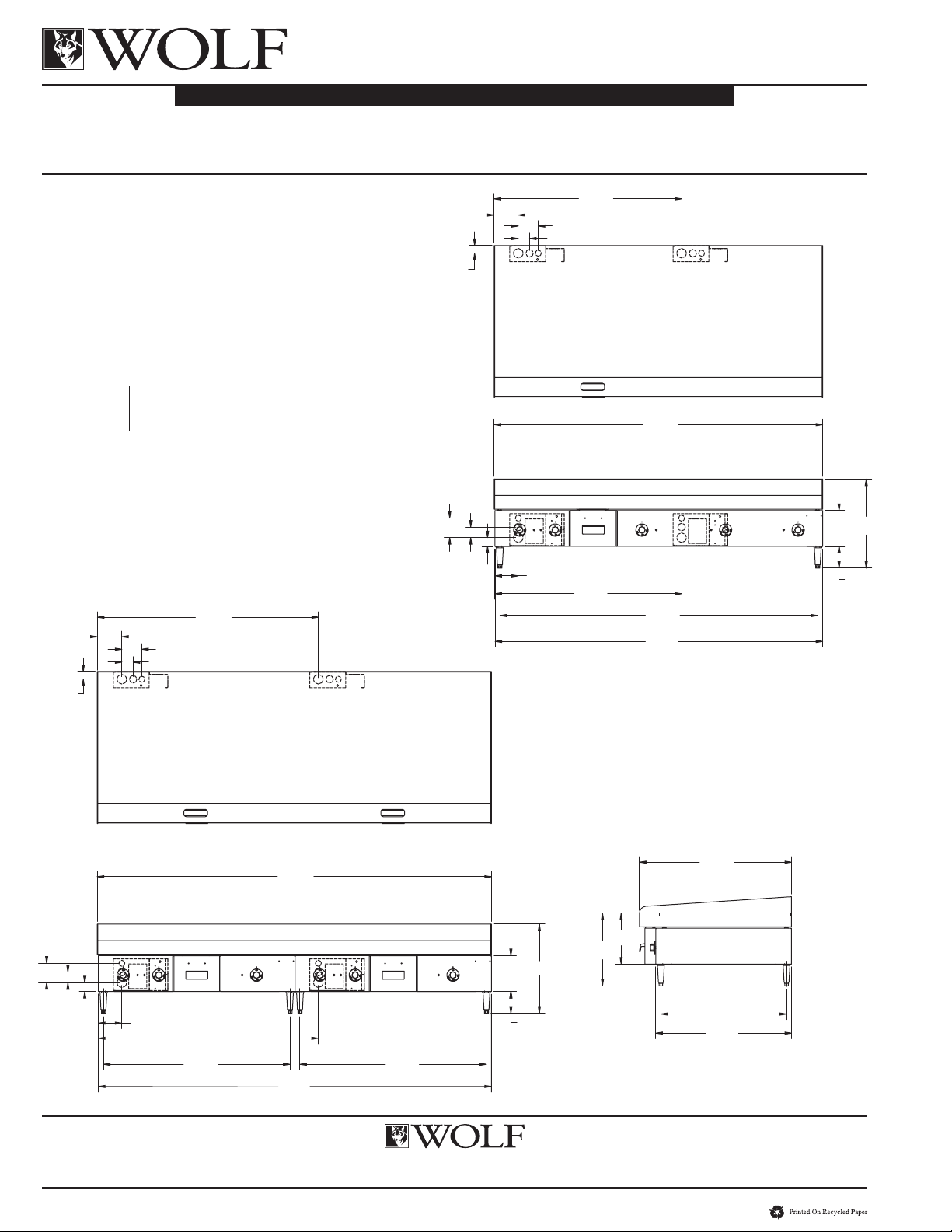

GRIDDLES & CHARBROILERS
4.11
22.09
23.91
3.97
6.57
16.29
1.26
1.19
24.05
1.33
4.26
2.50
1.19
9.32
13.29
27.65
22.97
24.79
NOTE:
1.09, 0.88 & 1.38 Ø KNOCKOUTS IN BACK
AND BOTTOM FOR CONDUIT ENTRANCE
WEG24D
SIDE VIEW
ALL SIZES
WEG SERIES
HEAVY DUTY ELECTRIC GRIDDLE

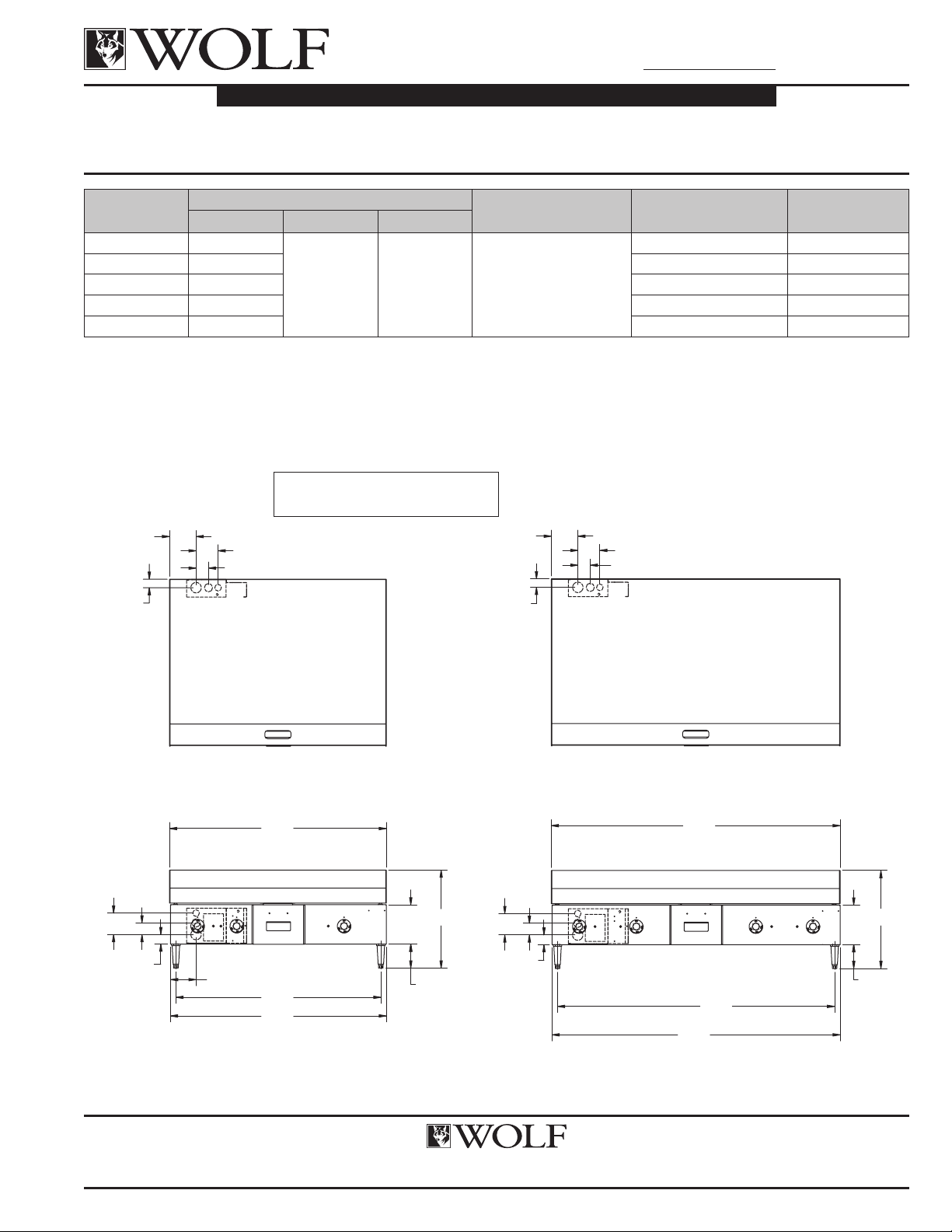

ELECTRICAL CHARACTERISTICS
STANDARD VOLTAGES – 208 VOLTS OR 240 VOLTS 50/60 Hz. – SINGLE OR THREE PHASE
480 VOLTS 50/60 Hz. – THREE PHASE ONLY
3 PHASE LOADING
KW
PER
KW PER PHASE
PER CONN.
X-Y Y-Z X-Z X Y Z X Y Z X Y Z VOLT VO LT
208 VOLT 240 VOLT 480 VOLT 208 240
MODEL
NO.
TOTAL
CONN.
KW
TOTAL
CONN
WEG24D 10.8 10.8 5.4 0.0 5.4 45.0 26.0 26.0 39.0 22.5 22.5 19.5 11.3 11. 3 51.9 45.0
WEG36D 16.2 16.2 5.4 5.4 5.4 45.0 45.0 45.0 39.0 39.0 39.0 19.5 19.5 19.5 77. 9 67. 5
WEG48D 21.6 21.6 10. 8 5.4 5.4 68.7 68.7 45.2 59.5 59.5 39.0 29.8 29.8 19.5 103.9 90.0
WEG60D** 2 7.0
WEG72D* 32.4
*Model WEG60D and WEG72D require two separate electrical connections and services.
16.2 5.4 5.4 5.4 45.0 45.0 45.0 39.0 39.0 39.0 19.5 19.5 19.5 7 7.9 6 7.5
10.8 5.4 0.0 5.4 45.0 26.0 26.0 39.0 22.5 22.5 19.5 11. 3 11. 3 51. 9 45.0
16.2 5.4 5.4 5.4 45.0 45.0 45.0 39.0 39.0 39.0 19.5 19.5 19.5 7 7.9 6 7.5
16.2 5.4 5.4 5.4 45.0 45.0 45.0 39.0 39.0 39.0 19.5 19.5 19.5 7 7.9 6 7.5
NOMINAL AMPS PER LINE WIRE CONN.*
3 PHASE 1 PHASE
P.O. Box 696 ■ Louisville, KY 40201 ■ Toll-free: 1-800-814-2028 ■ Local: 502-778-2791 ■ Quote & Order Fax: 1-800-444-0602
F36989 (06/10)
a divisi on of IT W Food Equ ipmen t Group LLC
NOTE: In line w ith its p olicy to continually imp rove its products, Wolf re ser ves the ri ght to cha nge mate rials and spe cica tions without n otice.
