Wolf W302210i, W362210, W362210i, W422210, W482210 Owner's Manual
PRO SERIES VENTILATION
Part Lists & Exploded Views

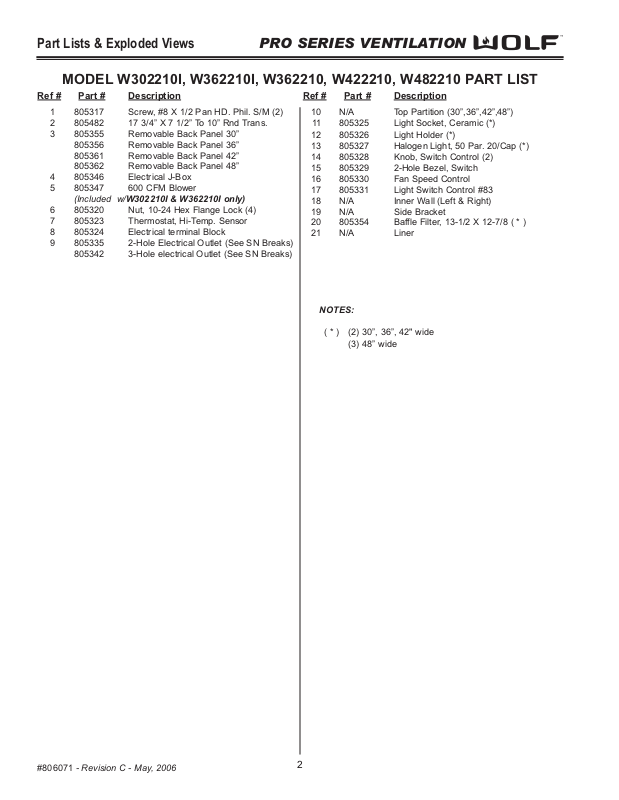

MODEL W302210I, W362210I, W362210, W422210, W482210 PART LIST
Ref # Part # Description
1 805317 Screw, #8 X 1/2 Pan HD. Phil. S/M (2)
2 805482 17 3/4” X 7 1/2” To 10” Rnd Trans.
3 805355 Removable Back Panel 30”
805356 Removable Back Panel 36”
805361 Removable Back Panel 42”
805362 Removable Back Panel 48”
4 805346 Electrical J-Box
5 805347 600 CFM Blower
(Included w/W302210I & W362210I only)
6 805320 Nut, 10-24 Hex Flange Lock (4)
7 805323 Thermostat, Hi-Temp. Sensor
8 805324 Electrical terminal Block
9 805335 2-Hole Electrical Outlet (See SN Breaks)
805342 3-Hole electrical Outlet (See SN Breaks)
Ref # Part # Description
10 N/A Top Partition (30”,36”,42”,48”)
11 805325 Light Socket, Ceramic (*)
12 805326 Light Holder (*)
13 805327 Halogen Light, 50 Par. 20/Cap (*)
14 805328 Knob, Switch Control (2)
15 805329 2-Hole Bezel, Switch
16 805330 Fan Speed Control
17 805331 Light Switch Control #83
18 N/A Inner Wall (Left & Right)
19 N/A Side Bracket
20 805354 Baffle Filter, 13-1/2 X 12-7/8 ( * )
21 N/A Liner
NOTES:
( * ) (2) 30”, 36”, 42" wide
(3) 48” wide
2
#806071 - Revision C - May, 2006
Part Lists & Exploded Views
PRO SERIES VENTILATION
MODEL W302210I, W362210I, W362210, W422210, W482210 EXPLODED VIEW
3
#806071 - Revision C - May, 2006
NOTE: 600 CFM internal blower included with models.W302210I & W362210I only.
Internal blower not included with models W362210, W422210, W482210, must use remote blower (not included).
1
2
3
19
12
13
11
10
17
14
4
7
9
8
21
18
16
15
5
6
20
