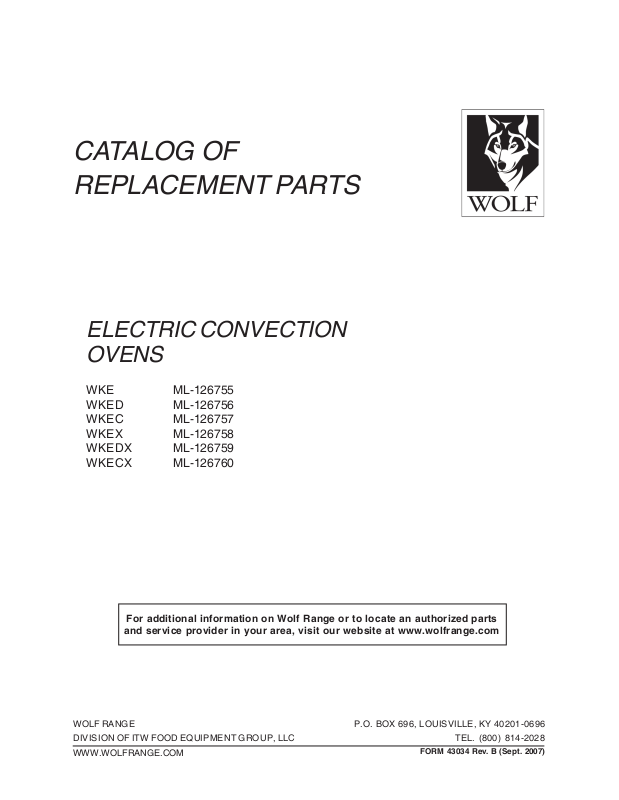

CATALOG OF
REPLACEMENT PARTS
ELECTRIC CONVECTION
OVENS
WKE ML-126755
WKED ML-126756
WKEC ML-126757
WKEX ML-126758
WKEDX ML-126759
WKECX ML-126760
For additional information on Wolf Range or to locate an authorized parts
and service provider in your area, visit our website at www.wolfrange.com
WOLF RANGE
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.WOLFRANGE.COM
P.O. BOX 696, LOUISVILLE, KY 40201-0696
TEL. (800) 814-2028
FORM 43034 Rev. B (Sept. 2007)
Page 2
ELECTRIC CONVECTION OVENS REPLACEMENT PARTS
1 - 2
3
5 - 6 - 7
8
9
11 - 12
10
30
29
28
27
4
New
Old
13
14 THRU 17
18 THRU 21
22-23-24
31
32
26
25
PL-56206-A1
OVEN
(LH SIDE)
- 2 -
Page 3
ELECTRIC CONVECTION OVENS REPLACEMENT PARTS
OVEN
(LH SIDE)
ILLUS. PART NO. NAME OF PART AM T.
PL-56206-A1
1 00-424141-00002 Top (SST) (WKE, WKED, WKEC) ............................................................................................... 1
2 00-424229-00002 Top (SST) (WKEX, WKEDX, WKECX) ........................................................................................1
3 00-421799-00001 Top – Front ................................................................................................................................. 1
4 00-339337-00001 Stud – Locating (With Stacking Kit Only) ................................................................................... 2
5 00-353484-00001 Plate – Retainer .......................................................................................................................... 2
6 SC-053-46 Mach. Screw 1/4-20 x 3/4 Truss Hd. (SST) ................................................................................. 4
7 NS-038-08 Lock Nut 1/4-20 x 1 Hex Hd. ........................................................................................................4
8 00-347080-00002 Bearing – Door Shaft ................................................................................................................. 2
9 00-353482-00001 Spacer ........................................................................................................................................2
10 00-353483-00001 Plate – Upper Door Bearing ....................................................................................................... 2
11 00-499302-00001 Panel – Outer (SST) (LH) (WKE, WKED, WKEC) (New Style) .............................................1
12 00-499303-00001 Panel – Outer (SST) (LH) (WKEX, WKEDX, WKECX) (New Style) ...................................... 1
13 00-423842-000G1 Seal – Vertical Door (LH & RH) ..................................................................................................1
14 00-342141-00001 Rack – Support (LH) (WKE, WKED, WKEC) .............................................................................. 1
15 00-342141-00002 Rack – Support (RH) (WKE, WKED, WKEC) .............................................................................. 1
16 00-424833-00001 Rack – Support (LH) (WKEX, WKEDX, WKECX) ....................................................................... 1
17 00-424833-00002 Rack – Support (RH) (WKEX, WKEDX, WKECX) ....................................................................... 1
18 00-426648-000G1 Cavity – Side Assy. (LH) (WKE, WKED, WKEC) ........................................................................ 1
19 00-426920-000G1 Cavity – Side Assy. (LH) (Porcelain) (WKEX, WKEDX, WKECX) .............................................. 1
20 00-426648-000G2 Cavity – Side Assy. (RH) (WKE, WKED, WKEC) ....................................................................... 1
21 00-426920-000G2 Cavity – Side Assy. (RH) (Porcelain) (WKEX, WKEDX, WKECX) ............................................. 1
22 00-499299-000G1 Trim – Bottom (W/Access Door) (New Style) (Incls. Items 23 & 24) ...........................1
23 00-499297-00001 Access Door (New Style) ...................................................................................................... 1
24 00-425199-00001 Fastener – Nylon (Push-In) ........................................................................................................ 2
25 00-424865-00001 Cover – Trim ...............................................................................................................................1
26 00-357507-00001 Seal – Horizontal Door (301/2 Lg.) (Top or Bottom) ....................................................................2
27 SC-115-51 Mach. Screw 10-32 x 1/2 Phil. Truss Hd. .................................................................................. 4
28 00-497585-00001 Strike Plate (New Style) (Mounted on Upper “C” Channel) ......................................... 2
29 00-423848-00001 Shim – Door Strike (Old Style) ..................................................................................................AR
30 NS-038-03 Lock Nut Special 10-32 .............................................................................................................. 4
31 00-425433-00001 Fan – Clip .................................................................................................................................... 1
32 00-424940-00002 Fan – Cooling (230 V.) ............................................................................................................... 1
00-424142-00002 Panel – Outer (SST) (LH) (WKE, WKED, WKEC) (Old Style) ..................................................... 1
00-424230-00002 Panel – Outer (SST) (LH) (WKEX, WKEDX, WKECX) (Old Style) ............................................. 1
00-423766-000G1 Trim – Bottom (W/Access Door) (Old Style) (Incls. Items 23 Old Style & 24) ........................... 1
00-423758-00001 Access Door (Old Style) ............................................................................................................ 1
00-347545-00001 Roller Ball Door Latch (Old Style)............................................................................................... 2
00-423847-00001 Strike Plate (Old Design) (Mounted to Doors) ............................................................................ 2
00-346357-00001 Thermostat – Hi Limit (Thermodisc) ........................................................................................... 1
00-357919-00001 Flexible Door Seal Kit (Incls. Items 13 & 26) .............................................................................. 1
- 3 -
Page 4
ELECTRIC CONVECTION OVENS REPLACEMENT PARTS
1
24-25
26-27-28
20-21-22
23
16 THRU 19
15
14
13
9
10 - 11
12
5 - 6
7 - 8
3
4
2
37
36
29-30
31-32
38-39
33
34-35
PL-56207-A
OVEN
(RH SIDE)
New
RH CAVITY SIDE
- 4 -
Page 5
ELECTRIC CONVECTION OVENS REPLACEMENT PARTS
OVEN
(RH SIDE)
ILLUS. PART NO. NAME OF PART AM T.
PL-56207-A
1 00-426839-000G1 Back – Panel Assy. ................................................................................................................... 1
2 00-423289-000G1 Motor Mount ................................................................................................................................1
3 00-411289-00004 Spacer – Fan Housing................................................................................................................ 4
4 SC-120-15 Mach. Screw 1/4-20 x 4 Rd. Hd. .................................................................................................4
5 00-411136-00004 Cover – Fan (60 Hz.) ................................................................................................................. 1
6 00-411136-00003 Cover – Fan (50 Hz.) ................................................................................................................. 1
7 00-415780-00003 Wheel – Blower (60 Hz.) ...........................................................................................................1
8 00-415780-00005 Wheel – Blower (50 Hz.) ...........................................................................................................1
9 00-358516-00002 Motor
10 WS-029-46 Washer ....................................................................................................................................... 4
11 NS-046-86 Nut Assy. 5/16-18 KEPS Hex ........................................................................................................ 4
12 00-358723-00001 Spacer – Steel ............................................................................................................................ 2
13 SC-113-65 Cap Screw 5/16-18 x 11/4 Hex Hd. ............................................................................................... 4
14 WS-029-46 Washer ....................................................................................................................................... 4
15 FE-002-52 Connector – Conduit 3/8 TS (90 Deg.) ........................................................................................ 1
16 FE-006-05 Lock Nut 1/2 ................................................................................................................................. 1
17 00-414540-00B35 Conduit 3/8 x 35 Lg. ..................................................................................................................... 1
18 00-342285-00001 Bushing – Plastic ........................................................................................................................ 2
19 FE-002-03 Connector – Conduit 3/8 TS Straight............................................................................................ 1
20 00-411496-000F1 Switch – Micro ...........................................................................................................................1
21 NS-038-08 Lock Nut 1/4-20 Hex .................................................................................................................... 2
22 WS-029-49 Washer ....................................................................................................................................... 2
23 00-425324-00001 Bracket – Door Switch ............................................................................................................... 1
24 00-411265-00011 Rack Assy. (WKE, WKED, WKEC) ........................................................................................... AR
25 00-411265-00010 Rack Assy. (WKEX, WKEDX, WKECX) .................................................................................... AR
26 00-426635-00001 Element – (2000 W.) (208 V.) .....................................................................................................6
27 00-426635-00002 Element – (2000 W.) (240 V.) .....................................................................................................6
28 00-426635-00003 Element – (2000 W.) (480 V.) .....................................................................................................6
29 00-357036-00002 Oven Lamp (40 W.) (250 V.) ...................................................................................................... 2
30 00-357036-00003 Oven Lamp Lens (Glass) ........................................................................................................... 2
31 00-353589-00001 Probe (WKED, WKEDX) ..............................................................................................................1
32 00-920883-00003 Probe (WKEC, WKECX) ..............................................................................................................1
33 00-417856-00001 Lug – Grounding (With Set Screw) ........................................................................................... 1
34 00-424250-00002 Panel – Exterior (RH) (WKE, WKED, WKEC) .............................................................................. 1
35 00-424251-00002 Panel – Exterior (RH) (WKEX, WKEDX, WKECX) ...................................................................... 1
36 00-341564-00003 Handle ......................................................................................................................................... 1
37 00-426804-000G1 Vent Slide Assy. (Incls. Item 36) ................................................................................................ 1
38 00-499278-00001 Probe Guard (New Style) ...................................................................................................... 1
39 SD-032-07 Screw, 10-24 x ½ Hex Hd. ........................................................................................................ 2
00-355154-00002 Pan – Drip (WKE, WKED, WKEC) ............................................................................................... 1
00-355154-00004 Pan – Drip (WKEX, WKEDX, WKECX) ........................................................................................ 1
00-423832-00001 Cover – Light (Metal) .................................................................................................................. 2
1
/2 Hp. (2 Speed) (240 V., 50/60 Hz.) ............................................................................... 1
- 5 -
Page 6
ELECTRIC CONVECTION OVENS REPLACEMENT PARTS
1 THRU 4
5-6
7
34
8-9
12-13
14 THRU 17
10-11
33
34
23
24
30
18
25-26
28-29
27
19
20
21-22
31
32

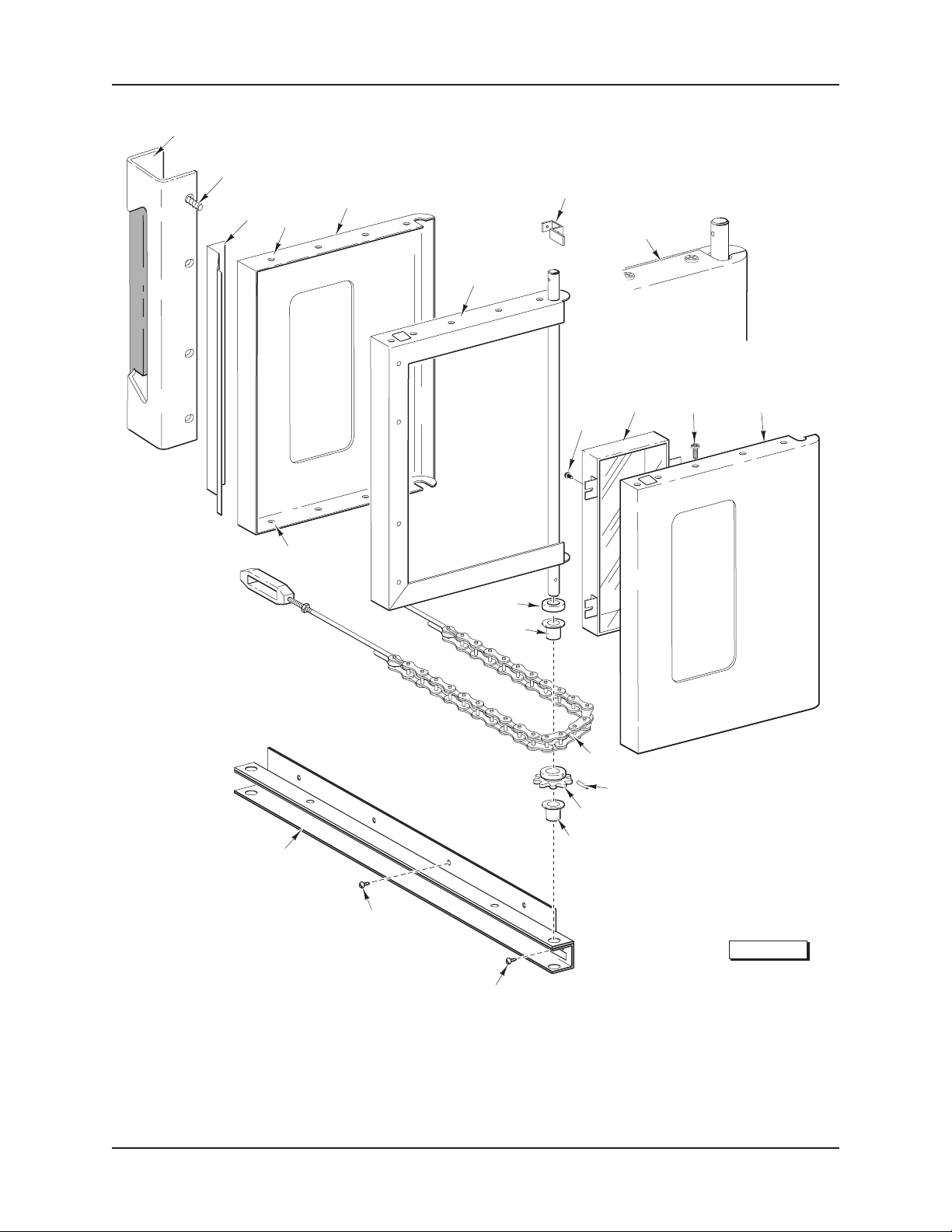

DOOR ASSEMBLY
(SIMULTANEOUSLY OPENING DOORS)
- 6 -
PL-55983-A
Page 7
ELECTRIC CONVECTION OVENS REPLACEMENT PARTS
DOOR ASSEMBLY
(SIMULTANEOUSLY OPENING DOORS)
ILLUS. PART NO. NAME OF PART AM T.
PL-55983-A
1 00-356562-00001 Handle – Door ............................................................................................................................. 1
2 00-356563-00001 Grip – Front ................................................................................................................................ 1
3 00-356563-00002 Grip – Rear ................................................................................................................................. 1
4 SC-113-98 Mach. Screw 10-24 x
5 SC-041-01 Cap Screw 1/4-20 x 3/4 Hex Hd. (SST) ........................................................................................4
6 WL-019-37 Lockwasher 1/4 Light ..................................................................................................................4
7 00-356550-00001 Latch – Friction ........................................................................................................................... 1
8 00-421913-00002 Shell – Outer Door (RH) (W/O Window) .................................................................................... 1
00-421913-00004 Shell – Outer Door (LH) (W/O Window) ....................................................................................1
9 00-421913-00001 Shell – Outer Door (RH) (W/Window) ....................................................................................... 1
00-421913-00003 Shell – Outer Door (LH) (W/Window) ........................................................................................ 1
10 00-421904-000G1 Frame Assy. – Door (LH) ........................................................................................................... 1
11 00-421905-000G1 Frame Assy. – Door (RH) ...........................................................................................................1
12 00-424163-00001 Lever – Door Switch .................................................................................................................. 1
13 SD-034-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd., Type T ........................................................... 1
14 00-499289-000G1 Door Assy. (LH) (W/Window) (Chain Doors) (New Style) ...............................................1
00-424730-00001 Door Assy. (LH) (W/Window) (Chain Doors) (Old Style) ..........................................................1
15 00-499289-000G2 Door Assy. (LH) (W/O Window) (Chain Doors) (New Style) ........................................... 1
00-424730-00002 Door Assy. (LH) (W/O Window) (Chain Doors) (Old Style) ...................................................... 1
16 00-499290-000G1 Door Assy. (RH) (W/Window) (Chain Doors) (New Style) ...............................................1
00-424731-00001 Door Assy. (RH) (W/Window) (Chain Doors) (Old Style) ......................................................... 1
17 00-499290-000G2 Door Assy. (RH) (W/O Window) (Chain Doors) (New Style) ...........................................1
00-424731-00002 Door Assy. (RH) (W/O Window) (Chain Doors) (Old Style) ...................................................... 1
18 SD-034-62 Self-Tapping Screw 10-32 x 1/2 Hex Washer Hd., Type T ........................................................ 4
19 00-358534-00001 Window Assy. ............................................................................................................................ 1
20 SD-034-22 Mach. Screw 10-32 x 1/2 Phil. Pan Hd. ....................................................................................... 9
21 00-358532-00001 Shell – Inner Door (RH & LH) (W/Window) ................................................................................ 1
22 00-358533-00003 Shell – Inner Door (RH & LH) (W/O Window) ............................................................................1
23 00-343143-00002 Washer ....................................................................................................................................... 2
24 00-347080-00002 Bearing – Door Shaft ................................................................................................................. 2
25 00-343608-00002 Door Chain & Turnbuckle Assy. ................................................................................................. 2
26 00-352667-00001 Cable – Door Stop ...................................................................................................................... 1
27 PS-004-11 Spiral Pin 3/16 x 11/4 Heavy ........................................................................................................... 2
28 00-342166-00001 Sprocket – Door Shaft................................................................................................................ 2
29 SC-047-28 Set Screw 1/4-28 x 3/8 Hex Hdls., Cup Pt. ................................................................................... 2
30 00-347080-00002 Bearing – Door Shaft ................................................................................................................. 2
31 SC-022-40 Mach. Screw 1/4-20 x 3/4 Phil. Flat Hd. ........................................................................................ 4
32 SC-113-90 Mach. Screw 1/4-20 x 3/4 Hex Hd. ............................................................................................... 2
33 00-499300-000G1 Channel – Door Sill Weldment (New Style) ....................................................................... 1
00-357846-00001 Channel – Door Sill Weldment (Old Style) ..................................................................................1
34 SC-117-73 Mach. Screw 10-32 x 5/8 ...................................................................................................................................................................................................... 2
1
/2 Hex Washer Hd. ................................................................................ 3
- 7 -
Page 8
ELECTRIC CONVECTION OVENS REPLACEMENT PARTS
Old Style
Mounted to
Door
1
2-3
4-5-6
4
New
Mounted to Upper
“C” Channel
See Page 2
7-8
9-10
6
29
5
11-12
13 THRU 16
5
6
30
18
17
New
19
20-21
32
22
23
24
31
28
27
26
25

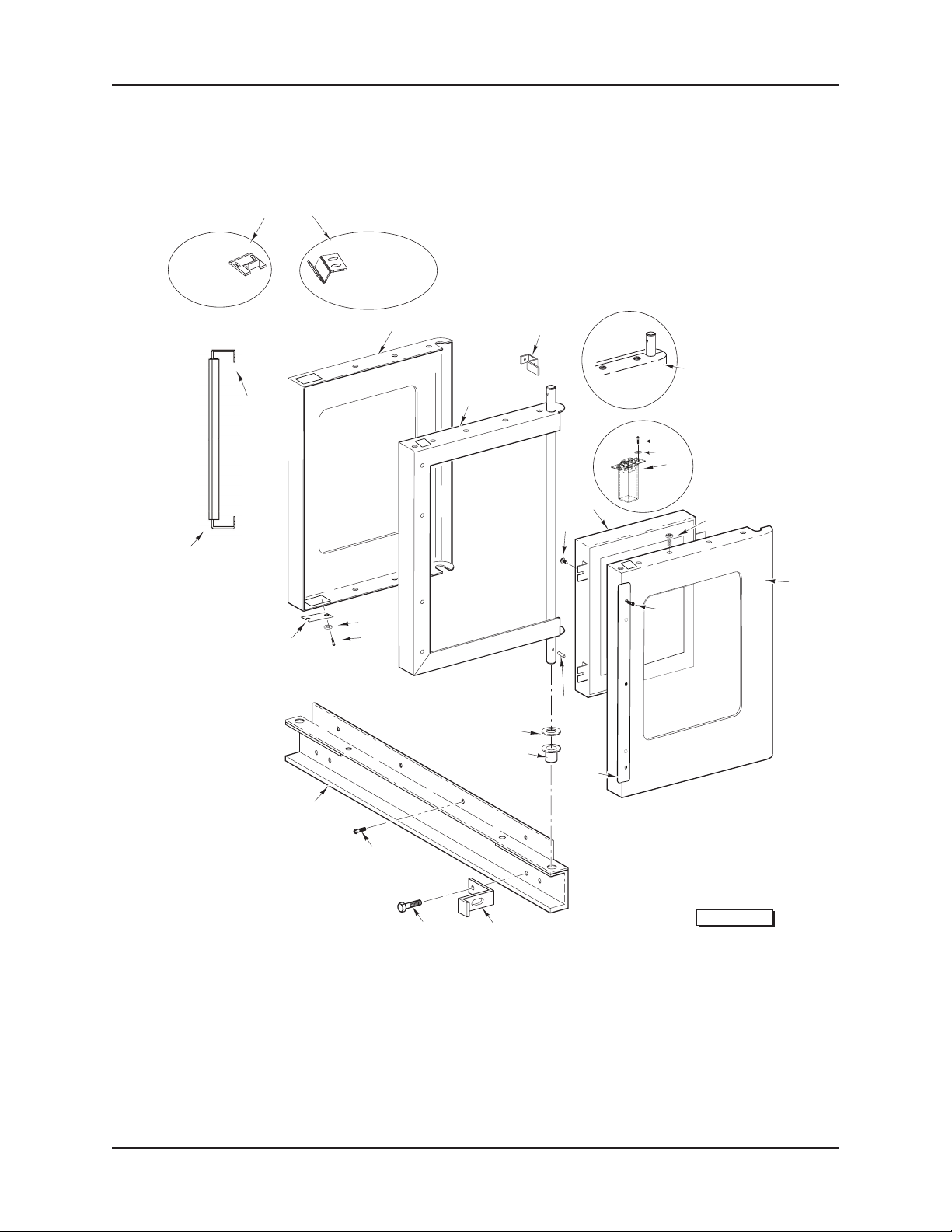

DOOR ASSEMBLY
(INDEPENDENTLY OPENING DOORS)
PL-55984-A1
- 8 -
Page 9
ELECTRIC CONVECTION OVENS REPLACEMENT PARTS
DOOR ASSEMBLY
(INDEPENDENTLY OPENING DOORS)
ILLUS. PART NO. NAME OF PART AM T.
PL-55984-A1
1 00-357929-00001 Handle – Door (Black) ................................................................................................................1
2 SC-041-01 Cap Screw 1/4-20 x 3/4 Hex Hd. (SST) ........................................................................................2
3 WL-019-37 Lockwasher 1/4 Light ..................................................................................................................2
4 00-497585-00001 Strike Plate (New Style) (Attaches to Upper “C” Channel) (See Pg. 2) ...................... 2
5 SC-117-73 Screw......................................................................................................................................... 4
6 WL-019-35 Lockwasher ............................................................................................................................... 4
7 00-358600-00001 Shell – Outer Door (RH & LH) (W/Window) ............................................................................... 1
8 00-358600-00002 Shell – Outer Door (RH & LH) (W/O Window) ........................................................................... 1
9 00-421905-000G1 Frame Assy. – Door (RH) ...........................................................................................................1
10 00-421904-000G1 Frame Assy. – Door (LH) ........................................................................................................... 1
11 00-424163-00001 Lever – Door Switch .................................................................................................................. 1
12 SD-034-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd., Type T ........................................................... 1
13 00-499285-000G1 Door Assy. (LH) (W/Window) (Independent Doors) (New Style) .................................. 1
14 00-499285-000G2 Door Assy. (LH) (W/O Window) (Independent Doors) (New Style) .............................. 1
15 00-499286-000G1 Door Assy. (RH) (W/Window) (Independent Doors) (New Style) .................................. 1
16 00-499286-000G2 Door Assy. (RH) (W/O Window) (Independent Doors) (New Style) .............................. 1
17 SD-034-62 Self-Tapping Screw 10-32 x 1/2 Hex Washer Hd., Type T ........................................................ 4
18 00-358534-00001 Window Assy. ............................................................................................................................ 1
19 SD-034-22 Mach. Screw 10-32 x 1/2 Phil. Pan Hd. ....................................................................................... 8
20 00-358532-00001 Shell – Inner Door (RH & LH) (W/Window) ................................................................................ 1
21 00-358533-00003 Shell – Inner Door (RH & LH) (W/O Window) ............................................................................1
22 PS-004-11 Spiral Pin 3/16 x 11/4 Heavy ........................................................................................................... 1
23 00-347080-00002 Bearing – Door Shaft ................................................................................................................. 1
24 00-343143-00002 Washer ....................................................................................................................................... 2
25 00-499263-00001 Door Stop (New Style) ...........................................................................................................1
26 SC-113-90 Mach. Screw 1/4-20 x 3/4 Hex Hd. ............................................................................................... 2
27 SC-022-40 Mach. Screw 1/4-20 x 3/4 Phil. Flat Hd. ........................................................................................ 4
28 00-499262-00001 Channel – Door Sill Weldment (New Style) .......................................................................1
29 00-499264-00001 Cover, Cutout .......................................................................................................................... 1
30 00-497586-00001 Roller Latch (New Style) ....................................................................................................... 2
31 00-357837-00001 Door End Seal (LH Door)............................................................................................................ 1
32 SC-113-78 Mach. Screw .............................................................................................................................. 3
00-423847-00001 Strike – Door (Old Style) (Mounted on Door) ............................................................................. 1
00-358529-00005 Door Assy. (LH) (W/Window) (Independent Doors) (Old Style) ............................................... 1
00-358529-00006 Door Assy. (LH) (W/O Window) (Independent Doors) (Old Style) ........................................... 1
00-358530-00003 Door Assy. (RH) (W/Window) (Independent Doors) (Old Style)............................................... 1
00-358530-00004 Door Assy. (RH) (W/O Window) (Independent Doors) (Old Style) ...........................................1
00-424158-00001 Door Stop (Old Style) .................................................................................................................. 1
00-357846-00001 Channel – Door Sill Weldment (Old Style) ..................................................................................1
00-347545-00001 Roller Ball Door Latch (Old Style) (Mounted on “C” Channel) ................................................... 1
00-423848-00001 Shim – Door Strike .................................................................................................................... AR
NOTE: When ordering items 7 or 8 for an old style oven, 2 of part 499264-1, 4 of part SC-117-73 and
4 of part WL-019-35 are also needed.
- 9 -
Page 10
ELECTRIC CONVECTION OVENS REPLACEMENT PARTS
1
14
19
18
17
20
15
16
13
12
WKEC/WKECX WKE/WKED
WKEX/WKEDX
2
3
4
5
6
7 THRU 10
11
PL-56208-A

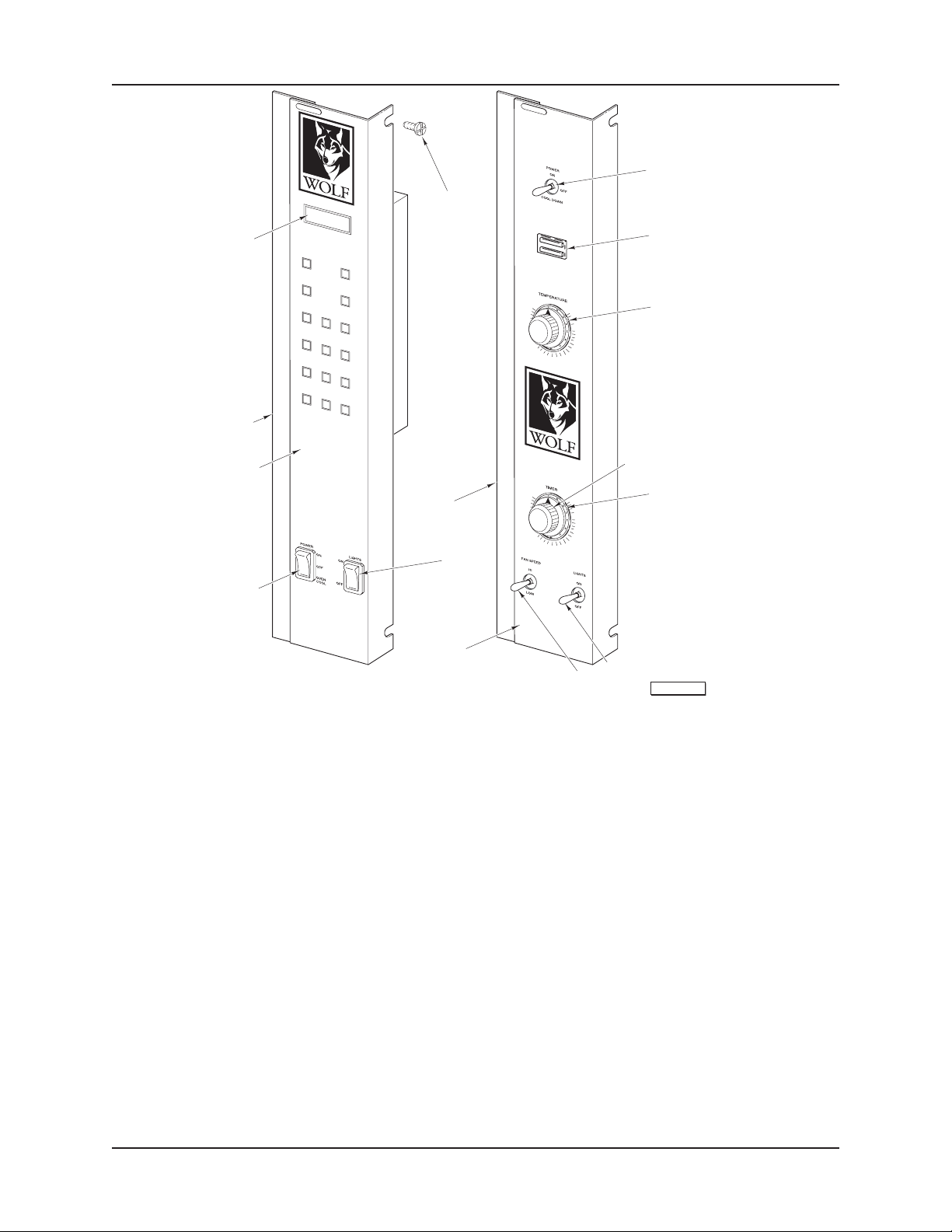

CONTROL PANEL
ILLUS. PART NO. NAME OF PART AM T.
PL-56208-A
1 00-340324-00008 Switch (Hold) ............................................................................................................................. 1
2 00-354575-00001 Light – Indicator (On/Heat) (200-240 V.) ................................................................................... 1
3 00-411242-00001 Knob ........................................................................................................................................... 1
4 00-353613-00002 Controller – Temperature (SS) (500 Deg.) (WKED, WKEDX ..................................................... 1
5 00-411506-00003 Thermostat (Prior to 02/2001) (WKE, WKEX) ............................................................................ 1
6 00-411242-00001 Knob ........................................................................................................................................... 1
7 00-411690-00002 Timer (240 V.) (1 Hr.) (60 Hz.) ...................................................................................................1
8 00-411690-00004 Timer (240 V.) (5 Hr.) (60 Hz.) ...................................................................................................1
9 00-411690-00005 Timer (240 V.) (1 Hr.) (50 Hz.) ...................................................................................................1
10 00-411690-00006 Timer (240 V.) (5 Hr.) (50 Hz.) ................................................................................................... 1
11 00-340324-00012 Switch (S.P.S.T.) ........................................................................................................................ 1
12 00-340324-00009 Switch (D.P.D.T.) ........................................................................................................................ 1
13 00-426826-00001 Overlay – Panel (WKE, WKEX) .................................................................................................. 1
00-426857-00001 Overlay – Panel (WKED, WKEDX) ............................................................................................. 1
14 SD-037-02 Self-Tapping Screw 10-16 x 1/2 Hex Washer Hd., Type AB ...................................................... 3
15 00-358628-00002 Switch – Rocker (2 Position) ..................................................................................................... 1
16 00-358628-00001 Switch – Rocker (3 Position) ..................................................................................................... 1
17 00-426931-00001 Overlay – Control Panel ............................................................................................................. 1
18 00-499301-000G1 Panel – Control Weldment .......................................................................................................... 1
19 00-424846-00001 Controller (Watlow #734) ........................................................................................................... 1
20 00-499296-000G1 Panel – Control Weldment (WKE, WKED, WKEX, WKEDX) ....................................................... 1
00-411499-00003 Buzzer (230 V.).......................................................................................................................... 1
00-423918-00001 Electronic Beeper ....................................................................................................................... 1
- 10 -
Page 11
ELECTRIC CONVECTION OVENS REPLACEMENT PARTS
12
13
14
1
2
15
25
24
23
22
11
16
17
18
10
9
19
8
20
21
3
4
5
6
7
WKEC/WKECX WKE/WKED
WKEX/WKEDX
PL-56209

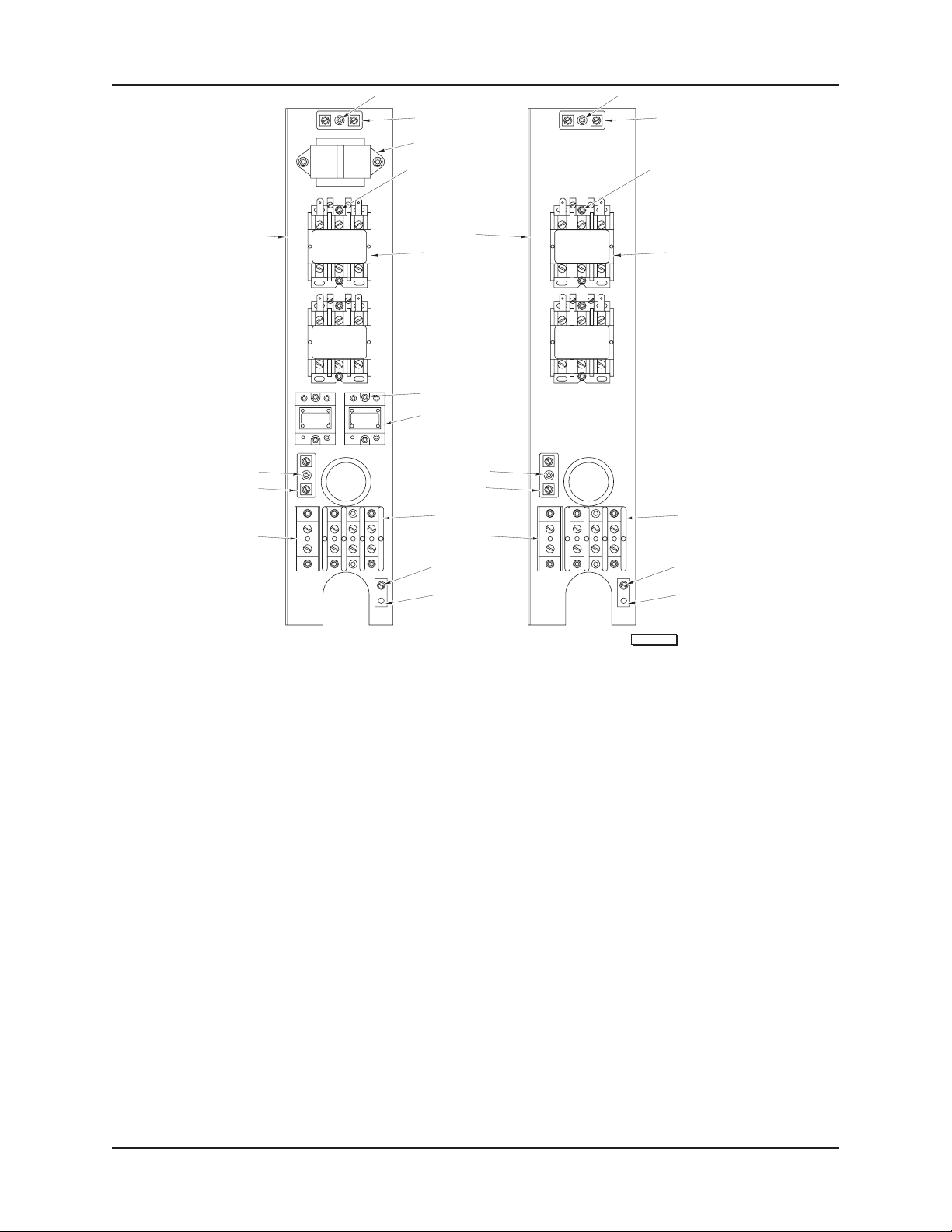

ELECTRICAL COMPONENT PANEL
ILLUS. PART NO. NAME OF PART AM T.
PL-56209
1 SD-034-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd., Type T ........................................................... 1
2 00-417934-000G1 Block – Porcelain Assy............................................................................................................... 1
3 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT ...................................................... 4
4 00-411497-000C5 Contactor (3 Pole) ...................................................................................................................... 2
5 00-410472-00008 Terminal Block............................................................................................................................. 1
6 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT ...................................................... 1
7 00-417856-00001 Lug – Grounding (With Set Screw) ........................................................................................... 1
8 00-410472-00009 Block – Terminal (1 Pole) ............................................................................................................1
9 00-417934-000G1 Porcelain – Block Assy............................................................................................................... 1
10 SD-034-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd., Type T ........................................................... 1
11 00-422155-00001 Component Panel ....................................................................................................................... 1
12 SD-034-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd., Type T ........................................................... 1
13 00-417934-000G1 Porcelain – Block Assy............................................................................................................... 1
14 00-421758-000G2 Transformer (208-240 V.) ......................................................................................................... 1
15 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT ...................................................... 4
16 00-411497-000C5 Contactor (3 Pole) ...................................................................................................................... 2
17 SD-034-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd., Type T ........................................................... 4
18 00-821875-00002 Relay – Solid State (50 Amp.) .................................................................................................... 2
19 00-410472-00008 Terminal Block............................................................................................................................. 1
20 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex Washer Hd., Type TT ...................................................... 1
21 00-417856-00001 Lug – Grounding (With Set Screw) ........................................................................................... 1
22 00-410472-00009 Block – Terminal (1 Pole) ............................................................................................................ 1
23 00-417934-000G1 Porcelain – Block Assy............................................................................................................... 1
24 SD-034-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd., Type T ........................................................... 1
25 00-422155-00001 Component Panel ....................................................................................................................... 1
00-411500-00015 Transformer (480V-240V) ......................................................................................................... 1
00-427081-00001 Mounting Bracket (480V Transformer) ..................................................................................... 1
00-427082-00001 Cover (480V Transformer) ........................................................................................................ 1
- 11 -
Page 12
ELECTRIC CONVECTION OVENS REPLACEMENT PARTS
RECOMMENDED SPARE PARTS
PART NO. NAME OF PART AM T.
00-353589-00001 Probe (D-Model) ......................................................................................................................... 1
00-340324-00009 DPDT Switch Fan Speed Toggle ................................................................................................ 1
00-340324-00012 SPST Switch Lights Toggle ........................................................................................................ 1
00-358628-00002 Rocker Switch Lights ................................................................................................................. 1
00-424940-00002 Cooling Fan (240V) .................................................................................................................... 1
00-353613-00002 Temperature Control D-Model .................................................................................................... 1
00-411242-00001 Control Knob ............................................................................................................................... 1
00-411690-00002 Timer (1 Hr) (240V) ....................................................................................................................1
00-411499-00003 Buzzer ........................................................................................................................................ 1
00-411496-000F1 Door Switch ...............................................................................................................................1
00-346357-00001 High Limit .................................................................................................................................... 1
00-411497-000C5 Contactor (3-Pole) ...................................................................................................................... 1
00-340324-00008 Toggle Switch, ON/OFF .............................................................................................................. 1
00-411500-00013 Transformer (240V/24V) (40VA) .............................................................................................. 1
FE-023-55 Fuse Holder ................................................................................................................................1
FE-019-40 Fuse (15-amp) ............................................................................................................................ 1
00-426635-00001 Element (208V) ........................................................................................................................... 1
00-426635-00002 Element (240V) ........................................................................................................................... 1
00-426635-00003 Element (480V) ........................................................................................................................... 1
00-821875-00002 Relay (SST) (50-amp) ................................................................................................................1
00-920883-00003 Temperature Probe Computer .................................................................................................... 1
00-424846-00001 Computer Controller (Watlow) ................................................................................................... 1
00-358516-00002 Blower Motor (2-speed) (1/3 HP) .............................................................................................. 1
00-358628-00001 ON/OFF Cool Down Switch Computer ...................................................................................... 1
00-357036-00002 Oven Lamp Assy. ....................................................................................................................... 1
00-411506-00003 KX Thermostat (WKE, WKEX) .................................................................................................... 1
00-497585-00001 Strike Plate (New Style) (Mounted on “C” Channel) ...................................................... 2
00-423847-00001 Door Strike (Old Style) (Mounted on Doors) .............................................................................. 1
00-497586-00001 Roller Latch (New Style) (Mounted on Doors) ................................................................. 2
00-347545-00001 Roller Latch (Old Style) (Mounted on “C” Channel) ...................................................................1
- 12 -
Loading...
