DDuuaall FFuueell--33 SSeerriieess
Parts List with Exploded Views
2

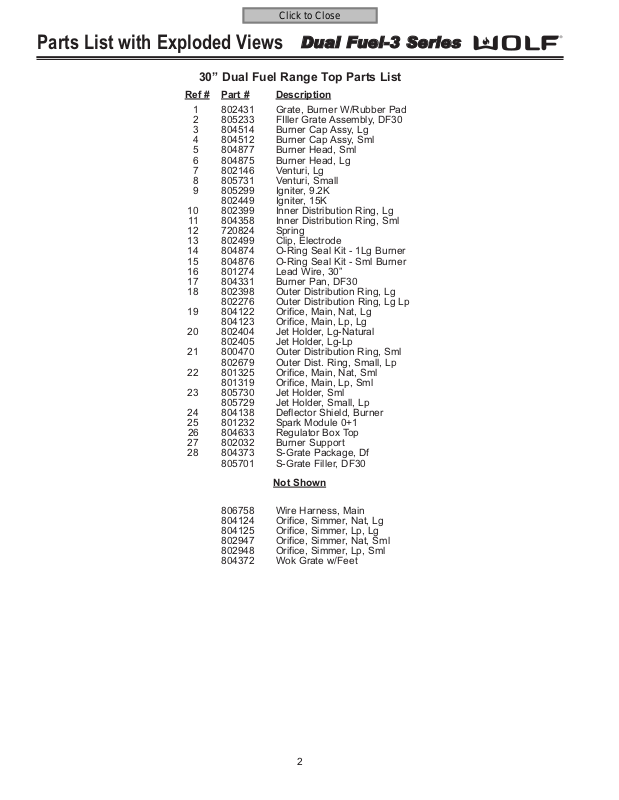

30” Dual Fuel Range Top Parts List
Ref #
Part # Description
1 802431 Grate, Burner W/Rubber Pad
2 805233 FIller Grate Assembly, DF30
3 804514 Burner Cap Assy, Lg
4 804512 Burner Cap Assy, Sml
5 804877 Burner Head, Sml
6 804875 Burner Head, Lg
7 802146 Venturi, Lg
8 805731 Venturi, Small
9 805299 Igniter, 9.2K
802449 Igniter, 15K
10 802399 Inner Distribution Ring, Lg
11 804358 Inner Distribution Ring, Sml
12 720824 Spring
13 802499 Clip, Electrode
14 804874 O-Ring Seal Kit - 1Lg Burner
15 804876 O-Ring Seal Kit - Sml Burner
16 801274 Lead Wire, 30”
17 804331 Burner Pan, DF30
18 802398 Outer Distribution Ring, Lg
802276 Outer Distribution Ring, Lg Lp
19 804122 Orifice, Main, Nat, Lg
804123 Orifice, Main, Lp, Lg
20 802404 Jet Holder, Lg-Natural
802405 Jet Holder, Lg-Lp
21 800470 Outer Distribution Ring, Sml
802679 Outer Dist. Ring, Small, Lp
22 801325 Orifice, Main, Nat, Sml
801319 Orifice, Main, Lp, Sml
23 805730 Jet Holder, Sml
805729 Jet Holder, Small, Lp
24 804138 Deflector Shield, Burner
25 801232 Spark Module 0+1
26 804633 Regulator Box Top
27 802032 Burner Support
28 804373 S-Grate Package, Df
805701 S-Grate Filler, DF30
806758 Wire Harness, Main
804124 Orifice, Simmer, Nat, Lg
804125 Orifice, Simmer, Lp, Lg
802947 Orifice, Simmer, Nat, Sml
802948 Orifice, Simmer, Lp, Sml
804372 Wok Grate w/Feet
Not Shown
Click to Close
Page 2
Parts List with Exploded Views
3
DDuuaall FFuueell--33 SSeerriieess
30” Dual Fuel Range Top Exploded View
Click to Close
1
2
3
6
3
7
9
10
12
13
14
4
5
4
6
8
9
11
10
28
3
6
3
7
7
15
10
14
16
17
15
14
18
19
20
24
25
21
22
23
19
20
27
14
18
19
20
26
Page 3
DDuuaall FFuueell--33 SSeerriieess
Parts List with Exploded Views
4
30” Dual Fuel Range Cavity and Side Parts List
804069 Wire Harness 30/36 Oc-Pod, Df
804071 Wire Harness, Pod To Knob Df
802328 Wire Harness, Meat Probe Df
804685 Spacer, 0.5” Hinge Pocket
801554 Hard Fiber Flat Washer, Black
802420 Hinge, Adjustable
801949 Pizza Peel
803816 Lamp Bulb
805732 Shoulder Screw (Bull Nose)
801554 Hard Fiber Flat Washer
807438 Shield, Control Board - DF
Ref # Part #
Description
1 802424 Outer Side Panel, Lf 30
2 802073 Inner Side, Left
3 802023 Island Trim, 30
4 802425 Outer Side Panel, Rt 30
5 802074 Inner Side, Right
6 800307 Oven Light
7 800942 Switch, Probe
8 800943 Cover, Probe Switch
9 805795 Retainer, Hinge, DF
10 807052 Power Relay Board, Df
11 807048 Control Board
12 802421 Pan Extrusion
13 800950 Transformer
14 802257 Door Latch, Motorized
15 802097 Plate, Control Board
16 805795 Retainer, Hinge, DF
17 801122 Pan, Broiler Element
18 800304 Catalyst, Smoke
19 801120 Element, Broil 30"
20 800701 Convection Assy, Cw
21 800306 Sensor, Temperature
22 802157 Caster, Leveling Assy
23 800529 Meat Probe
24 802309 Front Leg Weldment, Lower
25 802396 Front Leg Bolt Assy
26 804152 Element, Bake 2200 Watt
27 803859 Stone, Pizza
28 800735 Rack, Pizza Stone
29 806523 Screw, Shoulder, 8-18
30 802017 Skirt, 30”
31 804339 Rack, Oven Bent
32 804338 Rack, Oven Flat
33 806520 Guide, Rack Rt, DF
34 802898 Convection Baffle Assembly
35 806519 Guide, Rack Lt, DF
36 804712 Broiler Pan, Accessory Package
37 802035 Cover Meat Probe Access
38 802321 Leveling Leg, Cosmetic Upper
39 804807 Oven Trim, R 30
40 802462 Oven Trim, Lt 30
41 804302 Bake Pan Assy, Lg
42 804172 Skirt Shield, 30
43 806064 Leg Bolt Pad, Front
44 806063 Leg Bolt, Front
45 806929 Gasket, Cavity, 30DF
46 806933 Gasket Short, Cavity 30df
47 805780 Mica Washer w/o Adhesive
48 800699 Convection Assy, Ccw
Not Shown
805242 Caster, Skirt Assy-Right 3.25
805243 Caster, Skirt Assy-Left 3.25
805244 Caster, Skirt Assy-Right 3.75
805245 Caster, Skirt Assy-Left 3.75
805246 Caster, Skirt Assy-Right 4.25
805247 Caster, Skirt Assy-Left 4.25
805248 Caster, Skirt Assy-Right 4.75
805249 Caster, Skirt Assy-Left 4.75
803379 8-18x1/2” Screw , Retainer Clip
Click to Close
Page 4
Parts List with Exploded Views
5
DDuuaall FFuueell--33 SSeerriieess

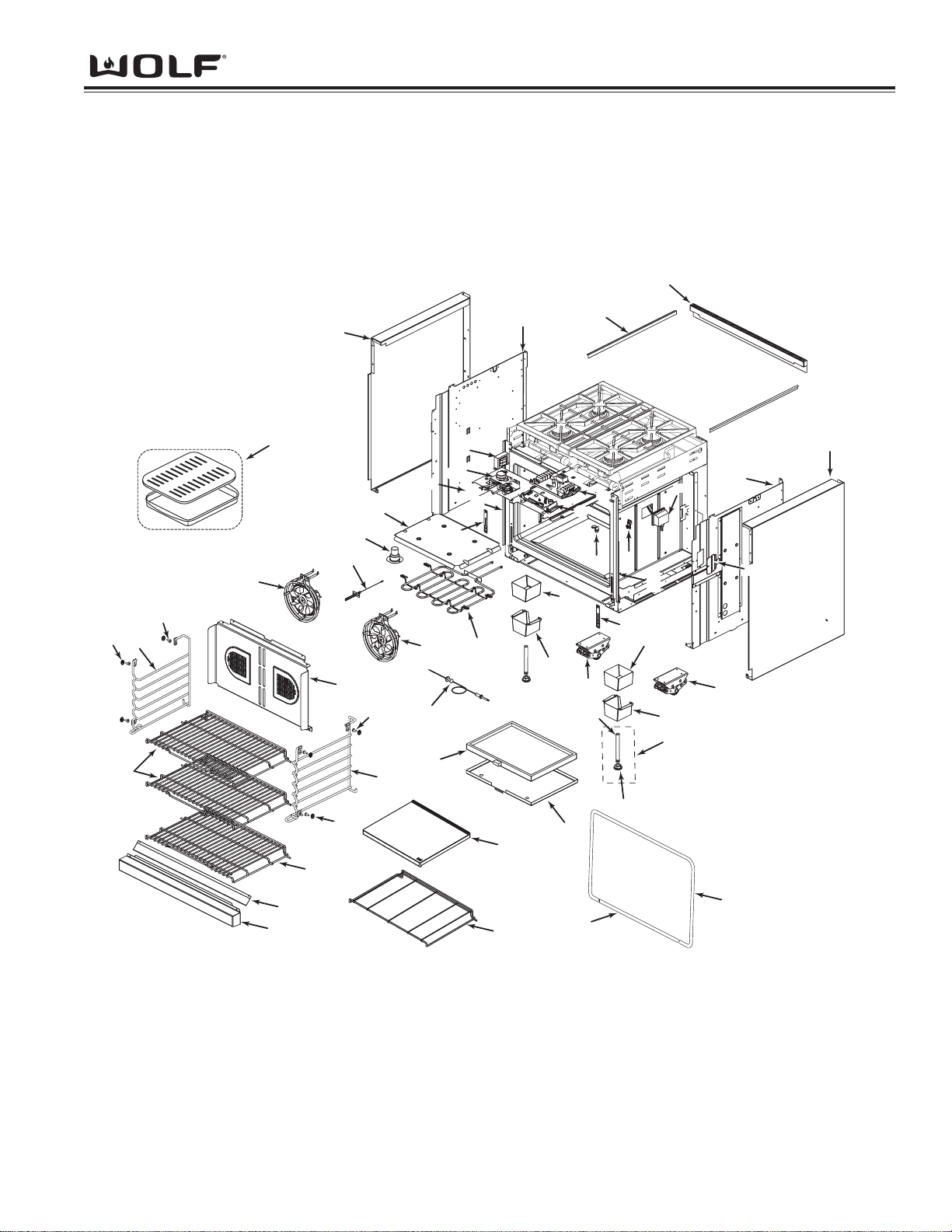

30” Dual Fuel Range Cavity and Side Exploded View
Click to Close
3
47
32
35
29
48
36
1
34
21
18
29
17
33
23
20
15
26
16
14
13
40
19
25
38
12
4
10
11
7
8
9
22
44
6
39
38
24
25
5
37
22
2
30
42
31
47
43
41
27
45
28
46
Page 5
DDuuaall FFuueell--33 SSeerriieess
Parts List with Exploded Views
6
30” Dual Fuel Range Door Parts List
Not Shown
803273 Pin, Pilot
Ref # Part # Description
1 804396 8-32x .375 Set Screw
2 802062 Handle End Cap, Left
3 802273 Dual Fuel Logo
4 802063 Handle Bar, 30df
5 802061 Handle End Cap, Right
6 802429 Reinforcement Bracket, Door
7 804361 Bracket, Glass Pack Retainer
8 802044 Door Baffle, 30df
9 802244 Bracket, Door Liner, 30df
10 802330 Striker Plate, Door
11 804077 Insulation, Outer Door, 30df
12 804089 Insulation, side Hinge, 30df
13 804087 Insulation, Inner Door, 30df
14 802150 Hinge, Hydraulic
15 802149 Hinge, Spring
16 802395 Large Glass Packet Assy.
17 806924 Weldment, Door Liner 30"/48"
18 800523 Left Door Rack Guide Assy 30"
19 800522 Right Door Rack Guide Assy 30"
20 802274 Door Skin, 30DF
NOTE: 802273 Logo (Ref#3) will need to be ordered when ordering door parts requiring disassembly of 30” door.
NOTE: 30” Door Assy - Special Order Only. Call Factory Parts or Customer Service
Click to Close
Page 6
Parts List with Exploded Views
7
DDuuaall FFuueell--33 SSeerriieess

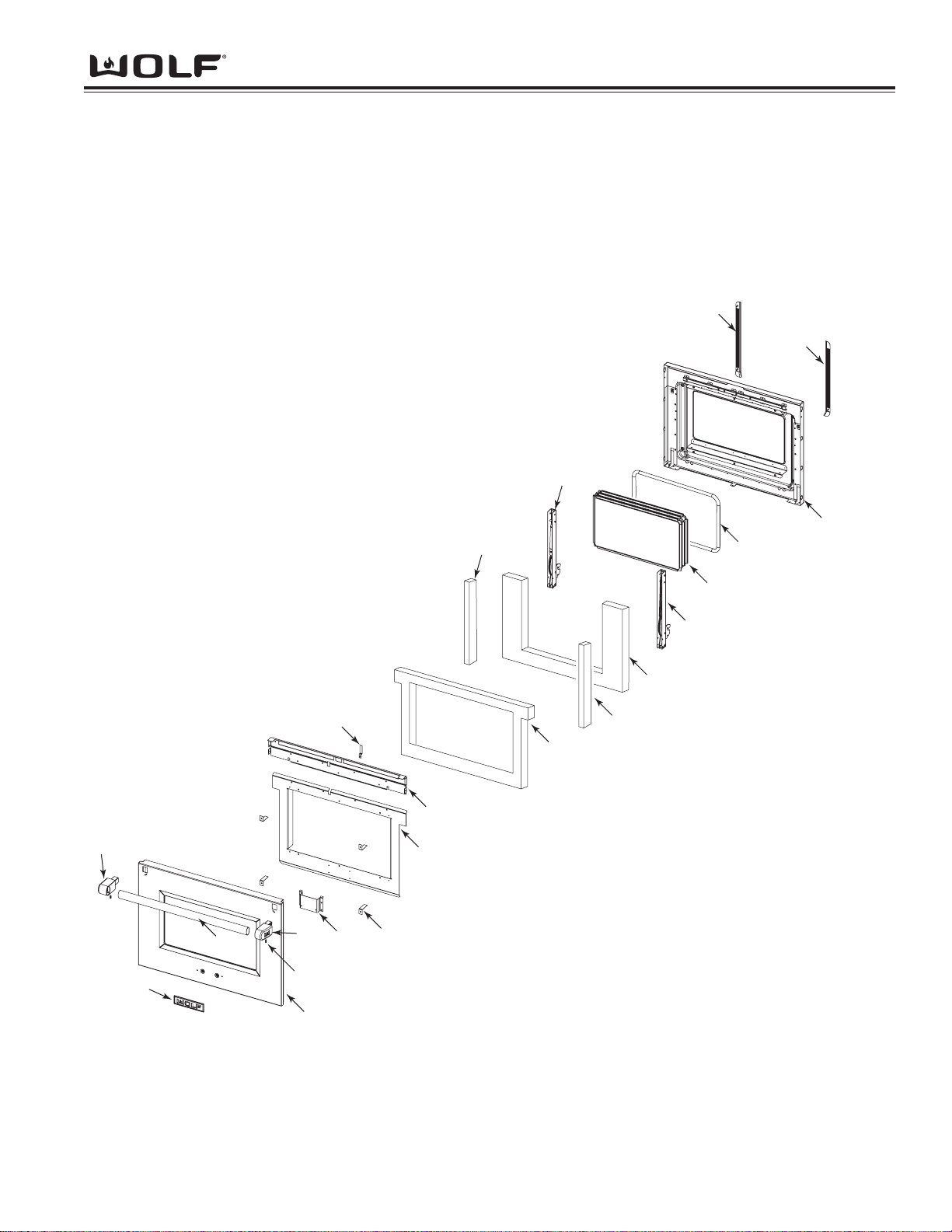

30” Dual Fuel Range Door Exploded View
Click to Close
18
19
14
17
12
15
13
10
11
9
2
5
4
3
6
1
8
7
12
23
16
20
Page 7
DDuuaall FFuueell--33 SSeerriieess
Parts List with Exploded Views
8
30” Dual Fuel Range Bull Nose and Manifold Parts List
Ref # Part # Description
1 802107 Burner Knob, Red
804141 Burner Knob, Black
2 801542 8-18x3/8” Screw Type B H/W/Hd
3 802238 Oven Selector Knob, Red
802239 Oven Selector Knob, Black
4 804137 Knob Insert, Nyliner
5 804639 Burner Knob, Bezel, Platinum
802082 Burner Knob, Bezel, Chrome
804637 Burner Knob, Bezel, Brass
6 804642 Function Selector Bezel, Platinum
802081 Function Selector Bezel 30/36, Crm
804640 Function Selector Bezel 30/36, Brass
7 730239 Screw, #8X3/8” Mod. Truss Hd
8 804067 Indicator Light, 2v LED
9 805293 Bumper, Door, Df
10 802014 Bull Nose Weldment, Df304
11 804325 Gas Manifold, 2 Valve 30
12 802240 Selector Switch, Df
13 802018 Burner Valve, Df - Ng
802400 Burner Valve, Df - LP
807141 Valve Switch
14 804349 Valve, 9.2k Burner, Df Ng
804356 Valve, 9.2k Burner, Df LP
807141 Valve Switch
15 803177 Flex Tubing Service Kit, 3/16”x23”
16 803176 Flex Tubing Service Kit, 1/4”x24”
17 802439 Manifold Screw
18 805732 10-16x1/2x .070 Shoulder Screw
19 802088 Gas Line, DF304
20 802475 Regulator Box, Bottom
21 804149 Adapter, .50 X .50 pipe
22 801097 Regulator, Gas Valve, Convertible
23 804310 Bracket Manifold Support
24 806827 ECH Assembly, Single
25 803178 Flex Tubing Service Kit, 1/4”x12”
26 803180 Flex Tubing Service Kit, 3/16”x12”
Not Shown
804071 Wire Harness, Pod To Knob Df
Click to Close
Page 8
Parts List with Exploded Views
9
DDuuaall FFuueell--33 SSeerriieess

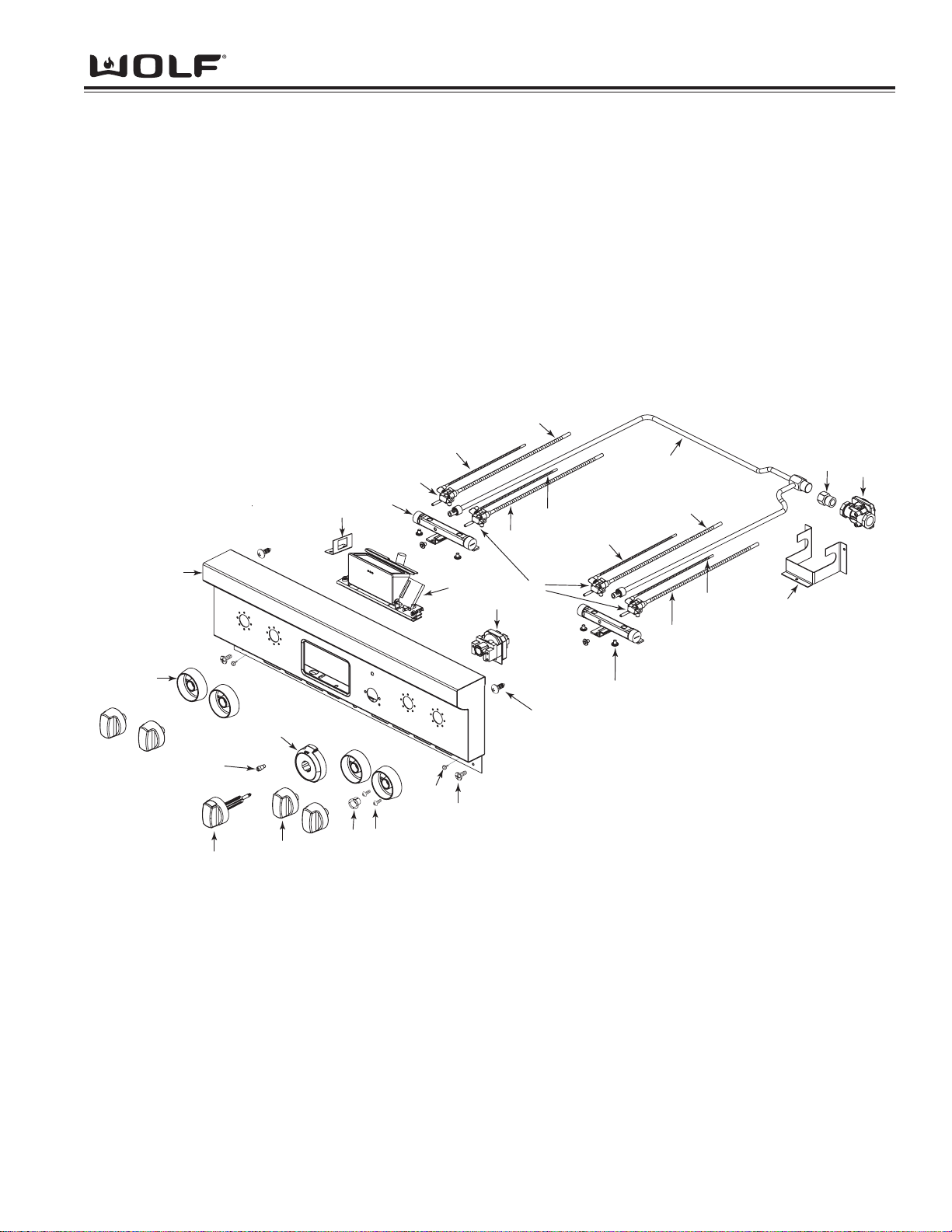

30” Dual Fuel Range Manifold Exploded View
Click to Close
16
15
14
11
23
10
5
6
8
2
3
1
4
24
12
9
7
25
26
15
13
17
18
19
25
16
26
20
21
22
Page 9
DDuuaall FFuueell--33 SSeerriieess
Parts List with Exploded Views
10
30” Dual Fuel Range Rear and Riser Parts List
Ref # Part # Description
1 802023 Island Trim, 30
2 804607 Riser Front Panel 30 x 5
3 804165 Riser Support Beam Lt/Rt 5
4 802484 Riser Support Beam Center
5 804608 Riser Back Panel 30 X 5
6 804610 Riser Front Panel 30 X 10
7 804161 Riser Support Beam Lt/Rt 10
8 804313 Riser Support Beam 10 Cntr
9 804611 Riser Back Panel 30 X 10
10 804616 Riser, Shelf 30”
11 802483 Riser, Support Beam, 20” Lt/Rt
12 804061 Riser Support Beam, 20 Cntr
13 804615 Riser, Back Panel 30 X 20
14 804150 Street Elbow, .50 Black Pipe
15 804188 Pipe, .50 X 8 Lg Black
16 719033 Union, .5 Black Pipe
17 804187 Pipe, .50 X 15 Black
18 802377 Fan Mounting Bracket
19 801457 Elbow - 1/2” Npt X 1/2” Npt
20 804189 Nipple, .50 X 2.5 Lg Black Pipe
21 802435 Hat Bracket, Terminal Block
22 802391 Large Oven Vent, Back
23 806809 Back panel, Insulation 30 DF
24 802375 Air Dam, Cooling
25 802376 Back Panel
26 804180 Panel, Terminal Block Access
27 802013 Convection Fan Shroud
28 804101 Limiter, Thermo
29 802401 Channel, Exhaust
30 801143 Cooling Fan, Lower
31 804614 Riser, Front Panel 30 x 20
Not Shown
806758 Wire Harness, Main w/Terminal Block
766593 Angle, Wall Brace
Click to Close
Page 10
Parts List with Exploded Views
11
DDuuaall FFuueell--33 SSeerriieess

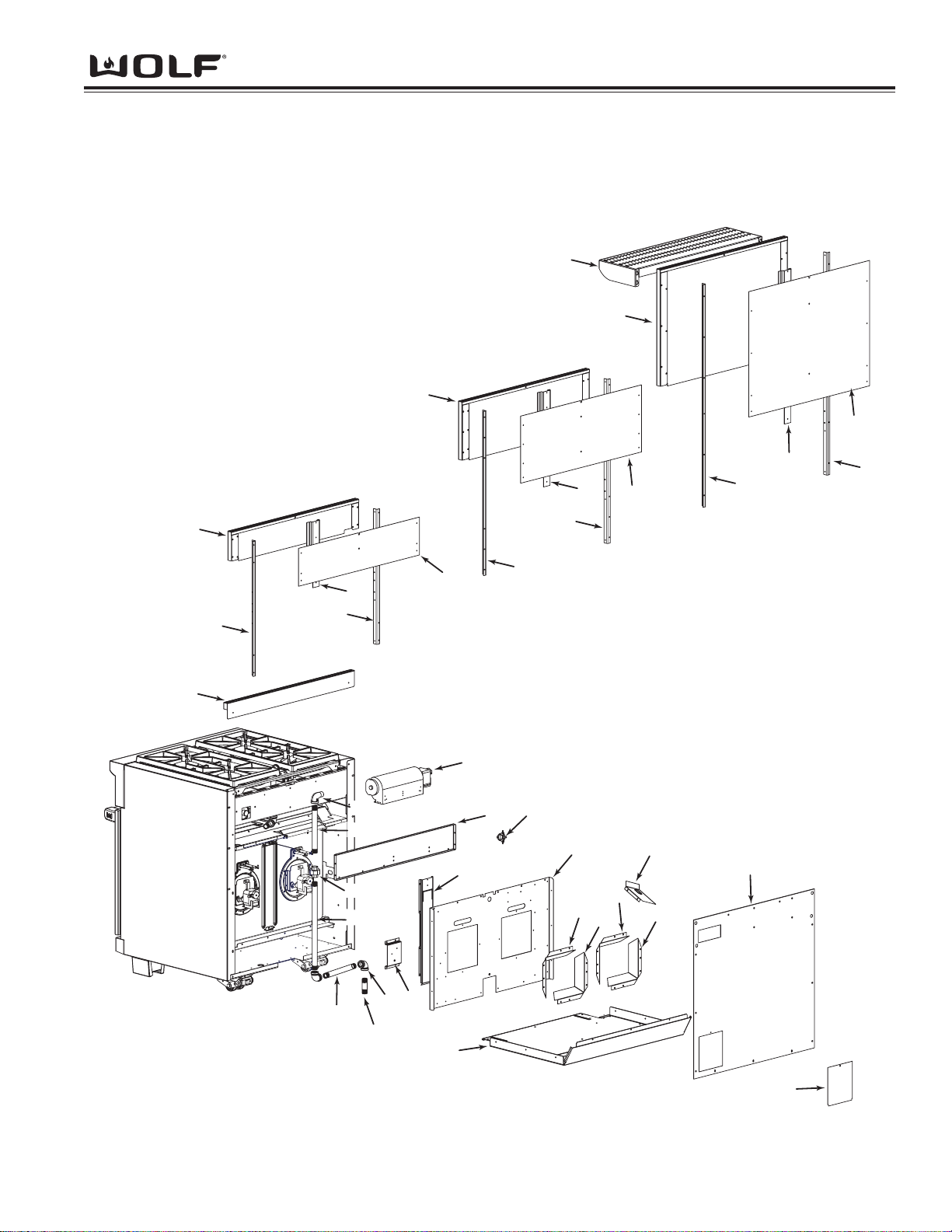

30” Dual Fuel Range Rear and Riser Exploded View
Click to Close
10
31
6
13
12
8
2
5
4
3
1
3
30
14
15
22
16
17
7
18
7
28
23
27
27
9
29
27
27
11
25
11
15
20
19
21
24
26
