Wolf DD30I Installation Manual

INSTALLATION GUIDE

Downdraft Ventilation

Contents

Important Note

Wolf Downdraft Ventilation . . . . . . . . . . . . . . . . . . . . . . 3

Installation Considerations . . . . . . . . . . . . . . . . . . . . . . 4

Downdraft Specifications . . . . . . . . . . . . . . . . . . . . . . . 5

Downdraft Installation . . . . . . . . . . . . . . . . . . . . . . . . . 9

Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Features and specifications are subject to change at any time
without notice. Visit wolfappliance.com/specs for the most
up-to-date information.

Throughout this guide, dimensions in parentheses are millime­ters unless otherwise specified.

o ensure the safe and efficient use of Wolf equipment,

T
please take note of the following types of highlighted
information throughout this guide:

IMPORTANT NOTE highlights information that is
especially important.

CAUTION signals a situation where minor injury or product
damage may occur if instructions are not followed.

WARNING states a hazard that may cause serious injury or
death if precautions are not followed.

Wolf Downdraft Ventilation 3

RATING PLATE

wolfappliance.com/specs

Downdraft Installation

IMPORTANT NOTE: T

his installation must be completed
by a qualified installer or Wolf authorized service center
technician.

Read this entire installation guide prior to installation and
save for the local inspector’s reference. The homeowner
should keep this installation guide for future reference.

Any questions or problems regarding the installation
should be directed to your dealer or Wolf Appliance, Inc.
at 800-332-9513. You can also visit our website,
wolfappliance.com.

This appliance must be installed in accordance with
National Electrical Codes, as well as all state, municipal
and local codes. The correct voltage, frequency and
amperage must be supplied to the appliance from a dedi­cated, grounded circuit which is protected by a properly
sized circuit breaker or time delay fuse. The proper
voltage, frequency, and amperage ratings are listed on the
product rating plate.

Record the model and serial numbers before installing the
downdraft ventilation system. Both numbers are listed on
the rating plate, located above the blower housing on the
front side of the downdraft, below the countertop. Refer
to the illustration below.

Wolf Downdraft

Model Number

Serial Number

Location of rating plate.

Installation Considerations 4

Before You Start

Proper installation is the responsibility of the installer.

•

Product failure due to improper installation is not
covered under the Wolf warranty. Refer to the down­draft ventilation use & care guide for warranty details,
or visit our website, wolfappliance.com.

• Check with local utilities for electrical codes that apply

in your area. Local codes vary. Installation, electrical
connections and grounding must comply with applica­ble codes. In the absence of local codes, this appli­ance should be installed in accordance with National
Electrical Code ANSI/NFPA 70-1990 or latest edition.

• This appliance must be properly grounded. Refer to

electrical requirements on page 8.

• Make sure you have the tools and materials necessary

for proper installation.

• Any required service must be performed by a Wolf

authorized service center.

Installation Considerations

olf downdraft systems can be used with all Wolf induc-

W
tion, electric and gas cooktops, except unframed models.
Wolf downdraft systems cannot be used with the steamer
or fryer module and are not recommended for use with the
electric grill module. A downdraft can also be used with
sealed burner rangetop models SRT304 and SRT366.
An accessory trim kit is necessary for this installation.
Contact your authorized Wolf dealer for details.

Wolf downdraft ventilation systems can be mounted in an
island, peninsula or standard wall location.

Wolf downdraft model DD30 will fit most 30" (762) wide
cabinets, model DD36 will fit most 36" (914) wide cabinets
and model DD45 will fit most 45
It is recommended that oversized cabinets be used for
easier installation. The cabinet back may need to be
removed.

1

/2" (1156) wide cabinets.

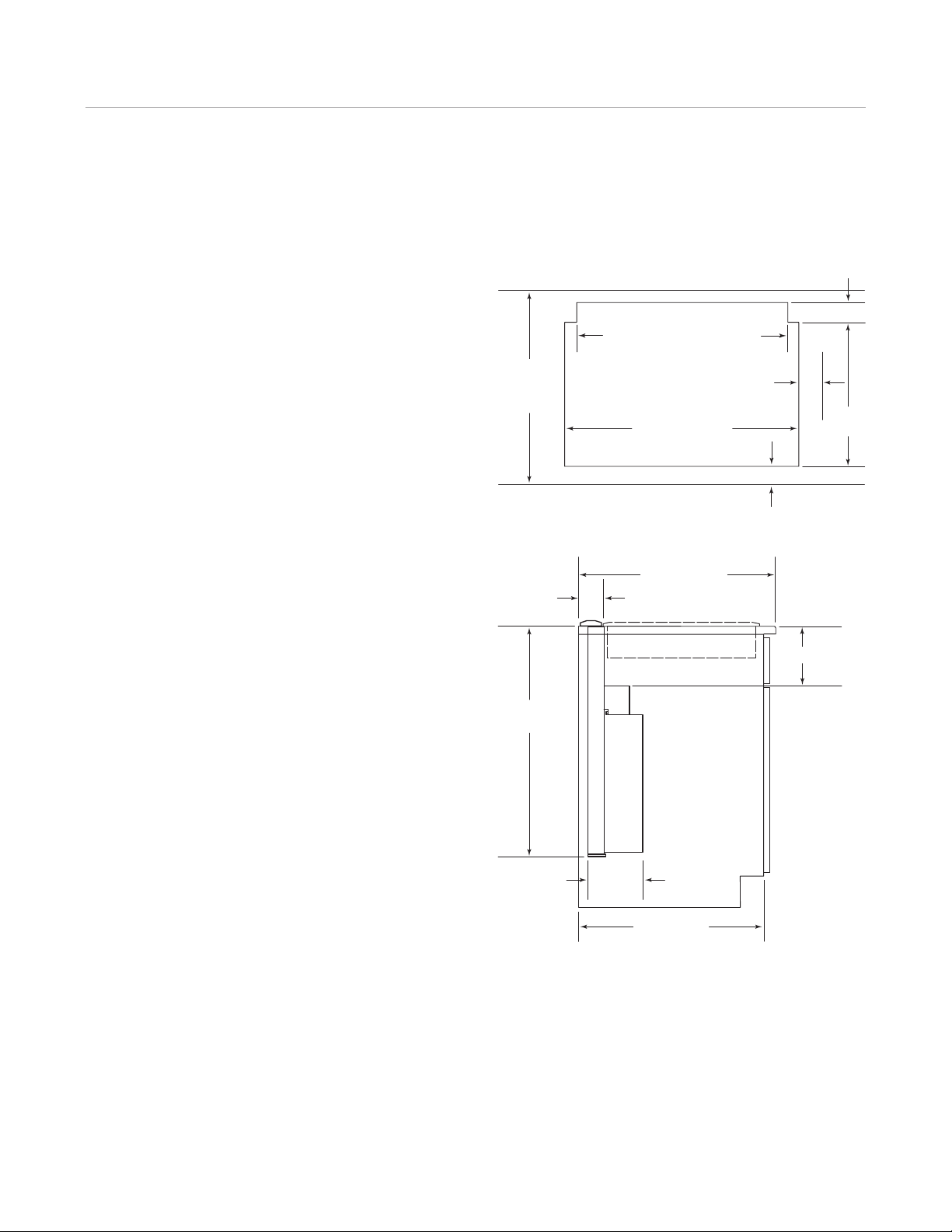

Downdraft Specifications 5

23/8"

(60)

30"

(

762)

91/16"

(

230)

261/4"

(667)

11/2" (

38)

DEPTH OF CHIMNEY

36"

(914)

321/4"

(819)

23/8"

(60)

91/16"

(230)

11/2" (38)

DEPTH OF CHIMNEY

451/2"

(1156)

411/4"

(1048)

23/8"

(60)

91/16"

(230)

11/2" (38)

DEPTH OF CHIMNEY

wolfappliance.com/specs

Overall Dimensions

MODELS DD30I AND DD30R

MODELS DD36I AND DD36R

MODELS DD45I AND DD45R
