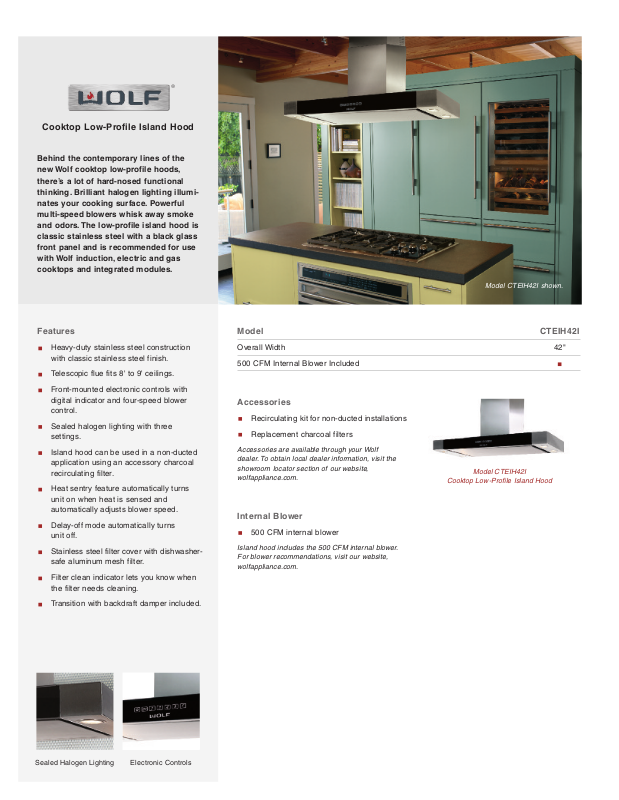

Wolf CTEIH42I User Manual
Cooktop Low-Profile Island Hood
Behind the contemporary lines of the
new Wolf cooktop low-profile hoods,
there’s a lot of hard-nosed functional
thinking. Brilliant halogen lighting illuminates your cooking surface. Powerful
multi-speed blowers whisk away smoke
and odors. The low-profile island hood is
classic stainless steel with a black glass
front panel and is recommended for use
with Wolf induction, electric and gas
cooktops and integrated modules.
Model CTEIH42I shown.
Features
Heavy-duty stainless steel construction
with classic stainless steel finish.
Telescopic flue fits 8' to 9' ceilings.
Front-mounted electronic controls with
digital indicator and four-speed blower
control.
Sealed halogen lighting with three
settings.
Island hood can be used in a non-ducted
application using an accessory charcoal
recirculating filter.
Heat sentr y feature automatically turns
unit on when heat is sensed and
automatically adjusts blower speed.
Delay-off mode automatically turns
unit off.
Stainless steel filter cover with dishwashersafe aluminum mesh filter.
Filter clean indicator lets you know when
the filter needs cleaning.
Transition with backdraft damper included.
Model CTEIH42I
Overall Width 42"
500 CFM Internal Blower Included
Accessories
Recirculating kit for non-ducted installations
Replacement charcoal filters
Accessories are available through your Wolf
dealer. To obtain local dealer information, visit the
showroom locator section of our website,
wolfappliance.com.
Model CTEIH42I
Cooktop Low-Profile Island Hood
Internal Blower
500 CFM internal blower
Island hood includes the 500 CFM internal blower.
For blower recommendations, visit our website,
wolfappliance.com.
Sealed Halogen Lighting
Electronic Controls
8' TO 9'
(2.4 m – 2.7 m)
FLOOR TO
CEILING HEIGHT
24" TO 30"
(610 – 762)
TO
COUNTERTOP
42" (1067)
OVERALL WIDTH
281/4" (718)
TO
411/2" (1054)
OVERALL
HEIGHT
LOCATION OF
ELECTRICAL
ON CEILING
T
HROUGH TOP
O
F HOOD
215/8" (549)
OVERALL DEPTH
Cooktop Low-Profile Island Hood
227/8"
(581)
31/8" (79)
21/8" (54)
TO
151/2" (394)
107/8"
(
276)
121/8"
(
308)
281/4" (718)
T
O
411/2" (
1054)
O
VERALL
H
EIGHT
42" (
1067)
O
VERALL WIDTH
215/8" (
549)
O
VERALL DEPTH
Overall Dimensions
Specifications
Exterior Finish Classic Stainless Steel
Overall Width 42"
Height (excluding chimney) 31/8"
Min Height (including chimney) 281/4"
Max Height (full extension) 411/2"
Overall Depth 215/8"
Bottom of Hood to Countertop 24" to 30"
Discharge Vertical
Duct Size 6" Round
Electrical Requirements 110/120 V AC
60 Hz, 15 amp dedicated circuit
Shipping Weight 92 lbs
nit dimensions may vary by ±
U
1
/8"
Installation Specifications
.
Installation Notes
Island hood includes a 500 CFM internal
blower. For blower recommendations, visit our
website, wolfappliance.com.
Cooktop low-profile hoods are recommended
for use with Wolf induction, electric and gas
cooktops and integrated modules. For Wolf
ranges and rangetops, a pro ventilation hood
is recommended.
Complete installation specifications can be
found on our website, wolfappliance.com.
Dimensions in parentheses are in
millimeters unless otherwise specified.
