BEAR VARIMIXER
GR10
GR20plus
112010
ORDRE NR.: 00121
For the processing of vegetables and salads,
as well as potatoes, fruit, bread, cheese and nuts.
OpERAtIng InstRuctIOns
VEgEtABlE cuttER
GB
Page 2
2
1
3
2
2
gR10
STO P
STA RT
gR20plus

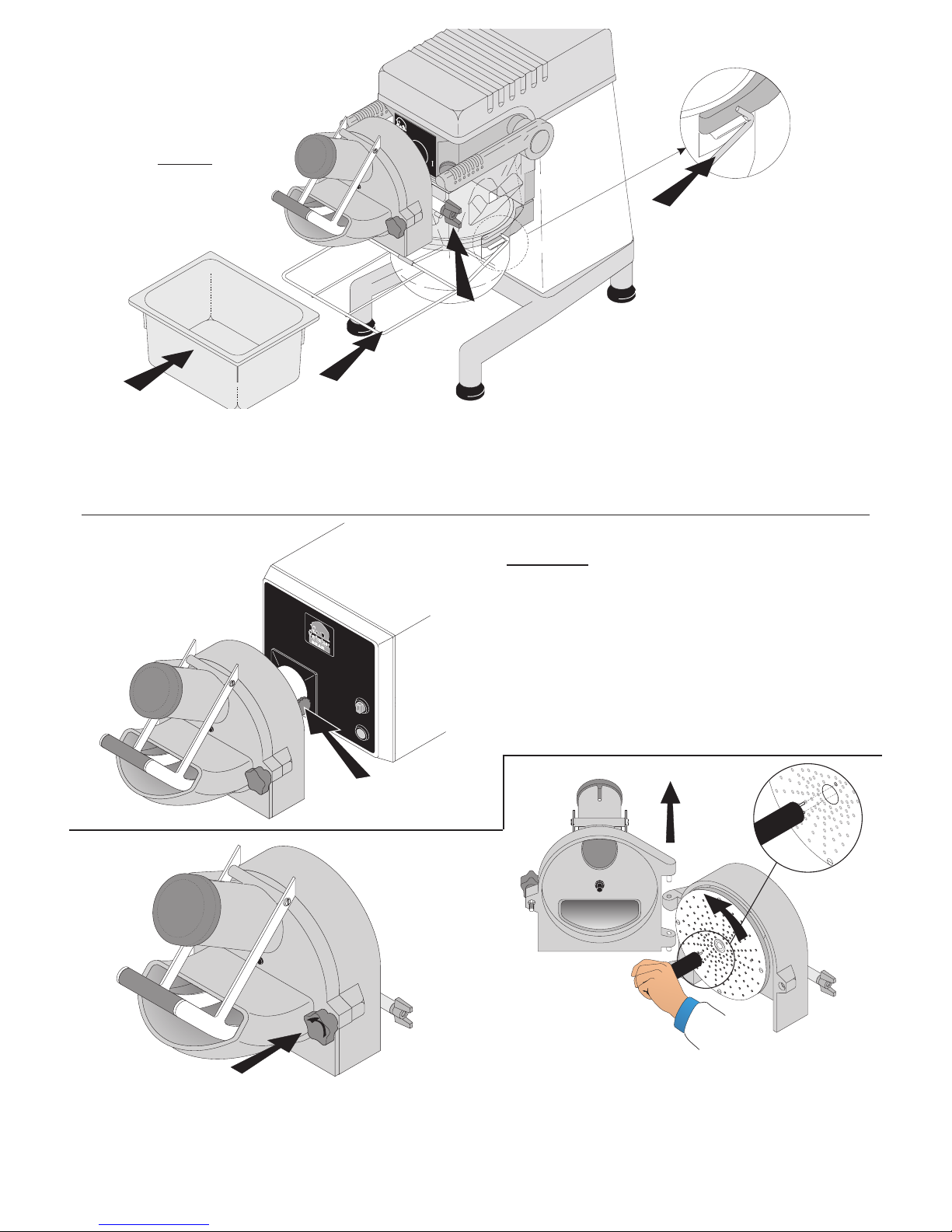

gR10 can be used for 10 L mixers provided with attachment drive. When the mixer is in off position, mount the vegetable
cutter on the attachment drive of the mixer, and tighten the thumbscrew (see arrow 1). In order to place the vegetable cutter correctly, it might be necessary to turn it a little bit backwards and forwards. The holder for the receiving tray is put up
behind the handles of the bowl (see arrow 2), where after the receiving tray (see arrow 3) can be put under the vegetable
cutter. (Receiving tray and holder are extra equipment).
gR20plus can be used for mixers from 20 L to 100 L provided attachment drive. When the mixer is in off position,
mount the vegetable cutter on the attachment drive of the
mixer, and tighten the thumbscrew. In order to place the
vegetable cutter correctly, it might be necessary to turn it
a little bit backwards and forwards.
When cleaning the vegetable cutter or when the cutting
disc is to be exchanged, open the front part by turning the
thumbscrew counter-clockwise. For safety reasons the
cutting disc stands still when the front part is opened.
Anyhow the front part must only be opened
when the mixer is stopped.
When the front part is open, it can be lifted off in order to
make cleaning easier.
The cutting disc can be taken out by turning it a little bit
counter-clockwise rst.
Page 3
3
1
234
56 7
8910 11
12 13 14 15
1 1119.401 ................holder for 6 discs (H)
2 1130.126 ................shredding disc (p) parmesan
3 1130.121 ................shredding disc R1,5 1,5mm
4 1130.122 ................shredding disc R2 2mm
5 1130.123 ................shredding disc R3 3mm
6 1130.124 ................shredding disc R5 5mm
7 1130.125 ................shredding disc R9 9mm
8 1130.101 ................slicing disc s1 1mm
9 1130.102 ................slicing disc s2 2mm
10 1130.103 ................slicing disc s3 3mm
11 1130.105 ................slicing disc s5 5mm
12 1130.111 ................julienne disc J2 2x2mm
13 1130.112 ................julienne disc J4 4x4mm
14 1130.113 ................julienne disc J6 6x6mm
15 1130.114 ................julienne disc J8 8x8mm, french fries

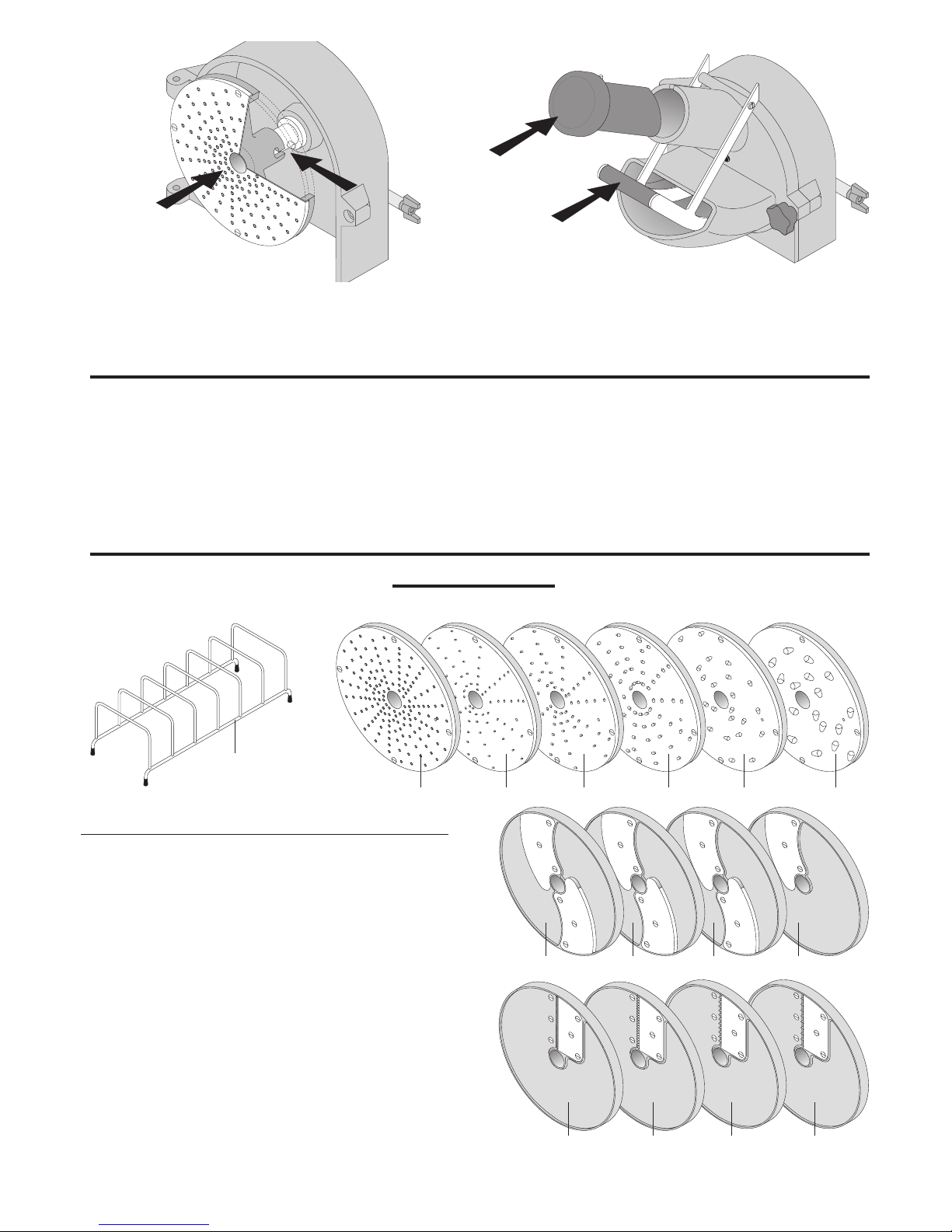

Mount the new cutting disc on the shaft, but ensure that
the bayonet hole catches the dowel of the shaft so that
the cutting disc is placed correctly. Close the front part
and tighten the thumbscrew (clockwise).
IMpORtAnt !
In order to avoid accidents and harm, always use the
original plunger - never hands or anything else.
cHOIcE OF dIscs:
clEAnIng: For cleaning only use running water. Do not use detergents, as these will destroy the lubricants of the
bearings. Do not use dish washer as this will reduce consider ably the life of the vegetable cutter !!!
gEnERAllY: On the 10 L and 20 L mixers the vegetable cutter is working best in high speed. There fore the speed
should be set to max. (5). On the other mixers, 30 L to 100 L, the speed of the mixer does not inuence
the speed of the vegetable cutter, so these mixers should run in low speed. Deep frozen food must not
be put into the vegetable cutter.
FIg.nO. ORdER nO. dEscRIptIOn:
Page 4
4
A/s WOdscHOW & cO.
Industrisvinget 6
DK-2605 Brøndby
Denmark
Phone: 43 44 22 88
Telefax: 43 43 12 80
[email protected]
www.wodschow.dk

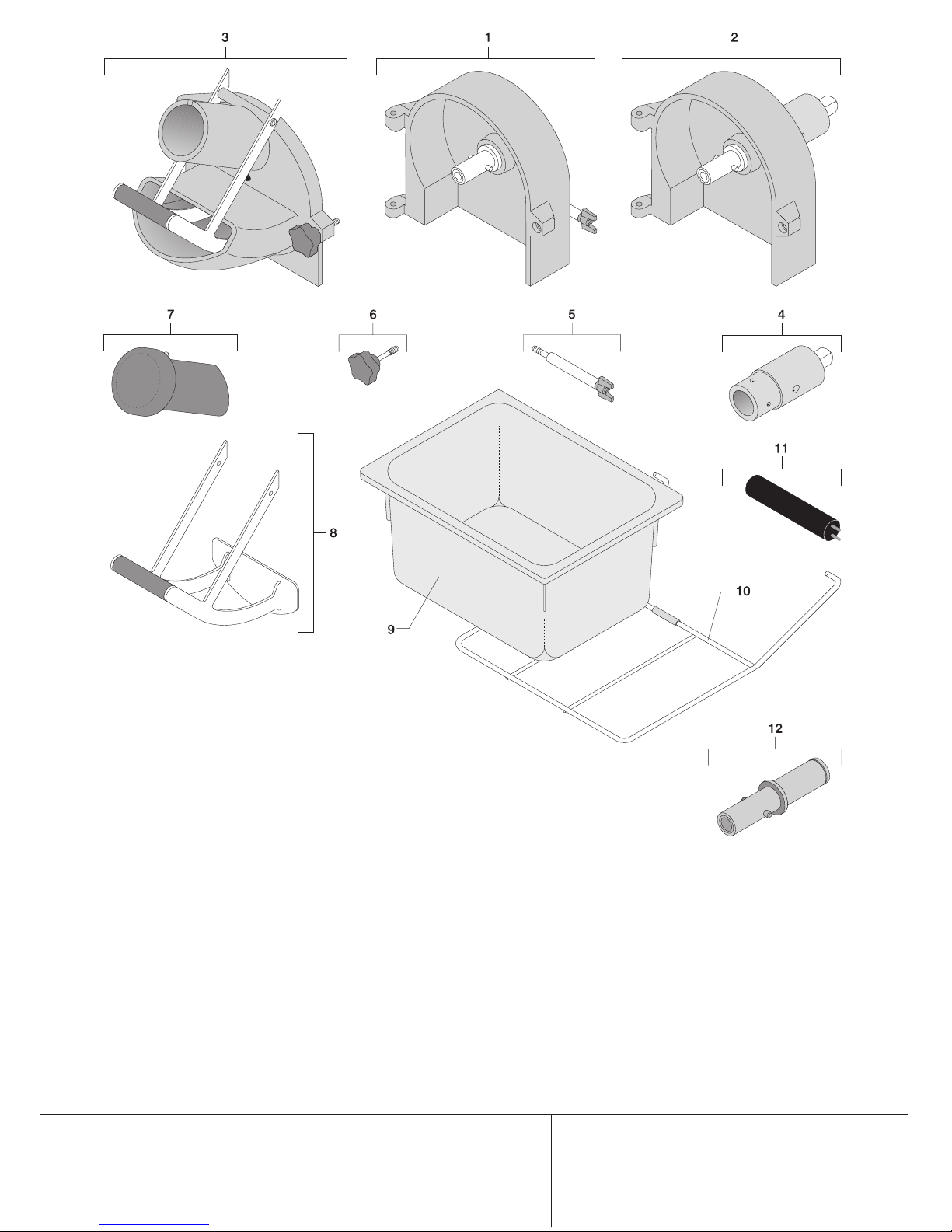

1 1130.011 ................rear part gR10 complete
2 1130.013 ................ rear part gR20plus complete
3 1130.031 ................ front part complete
4 1130.028 ................ rear bearing housing compl. gR20plus
5 1130.026 ................ thumbscrew gR10
6 1130.085 ................ thumbscrew, front part
7 1130.033 ................ plunger, loose
8 1130.036 ................ plunger, xed
9 1130.401 ................ receiving bowl, only for gR10
10 1130.411 ................ holder for receiving bowl, only for gR10
11 1130.403 ................ Auxiliary key for discs
12 1130.021 ................ Drive shaft
FIg.nO. ORdER nO. dEscRIptIOn:
