WMF Bistro easy 8300 Operating Instructions
41
WMF COFFEE MACHINES
Operating Instructions
WMF BISTRO easy
Series
8300
Edition 6 – Printed in 03.08
Item-No.
33 2191 7000
42
Congratulations on the purchase of your
WMF COFFEE MACHINE.
Its advanced technology, long service life,
economy and above all, the quality of the
coffee will delight you.
No-one likes reading operating instructions.
Please do so anyway!
You will get more pleasure from your
WMF COFFEE MACHINE afterwards and
will find it was worth it after all!
In your own interest, please follow all
safety and cautionary instructions. This
will help to avoid accidents and technical
malfunctions.
Never entrust the machine to anyone who
is not familiar with the operating
instructions.
Keep these operating instructions near the
machine. This will allow your operating
personnel easy access to information at any
time, and will enable them to take the
appropriate action should any technical
malfunctions occur.
43
CONTENTS
1 Machine features and components .................................................................................................. 45
2 General description........................................................................................................................... 46
3 Warnings............................................................................................................................................ 47
4 Safety instructions............................................................................................................................. 48
5 Technical data ................................................................................................................................... 49
6 Conditions for Installation and Operation ..................................................................................... 50
7 Operation ........................................................................................................................................... 51
7.1 Starting the machine.................................................................................................................... 51
7.2 Filling the coffee beans hopper ................................................................................................... 51
7.3 Preparing to dispense milk .......................................................................................................... 52
7.4 Adjusting the height of the combination spout............................................................................ 53
7.5 Preparing coffee........................................................................................................................... 53
7.5.1 Coffee beverages (Espresso, Café Crème etc.)................................................................. 54
7.5.2 Coffee beverages with added milk (White Coffee, Cappuccino, Latte
Macchiato,etc.) ............................................................................................................................ 55
7.5.3 Manual input ..................................................................................................................... 56
7.5.4 Quantity selection ............................................................................................................. 56
7.6 Hot water dispensing ................................................................................................................... 57
7.7 Coffee grouts container ............................................................................................................... 58
7.8 Display of quantities dispensed................................................................................................... 60
7.9 Sales systems............................................................................................................................... 61
7.10 Switching off the machine........................................................................................................... 62
8 Settings ............................................................................................................................................... 62
8.1 Setting the milk froth quality....................................................................................................... 63
8.2 Setting quantities ......................................................................................................................... 64
9 Care of the machine .......................................................................................................................... 65
9.1 Daily cleaning.............................................................................................................................. 65
9.1.1 Cleaning the machine........................................................................................................ 66
9.1.2 Cleaning the combination spout........................................................................................ 67
9.2 General cleaning.......................................................................................................................... 70
10 Error messages and displays............................................................................................................ 71
10.1 Error messages............................................................................................................................. 71
10.2 Error messages for the operator................................................................................................... 72
10.3 Information for the operator ........................................................................................................ 73
11 WMF customer service..................................................................................................................... 74
12 Liability.............................................................................................................................................. 74
13 HACCP cleaning concept ................................................................................................................. 76
44
O
I
Off
On
Cleaning
Accounting/programming
1
2
8
3
4
5
6
9
10
12
13
11
7
45
1 Machine features and components
1
Coffee beans hopper
2
Manual input/cleaning duct
3
Key switch
4
Beverage keys
5
Hose device
6
Combination spout
7
Drip tray, removable
8
Display
9
Setting keys
10
Milk frother key
11
Hot water key
12
Hot water spout
13
Grouts container

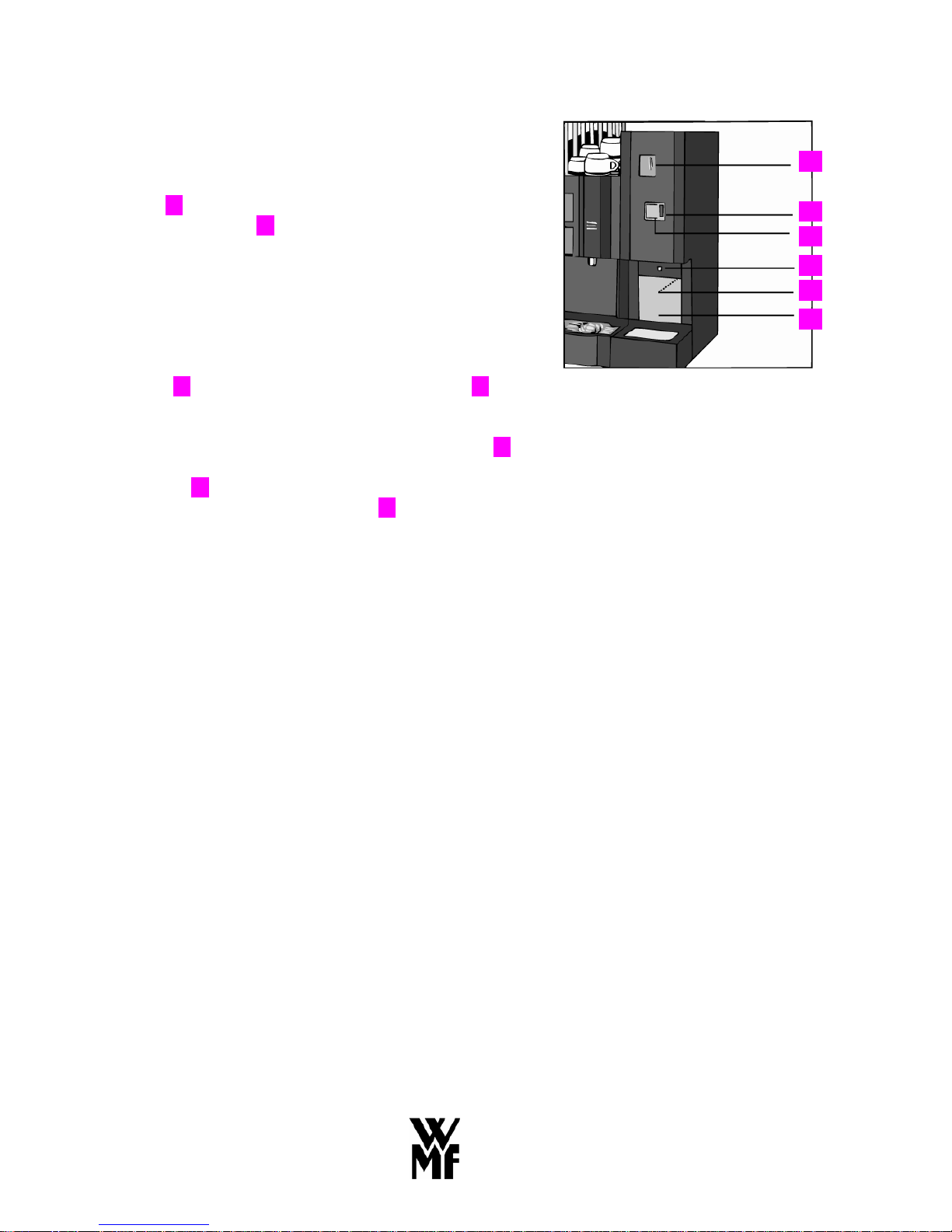

The following numbers only appear on illustrations in the
text:
14
Coin slot
15
Coin return chute
16
Coin return button
17
Control indicator “ON”
18
On/Off switch (inside coin box)
19
Lockable coin box
46
2 General description
The WMF Bistro easy coffee machine is a fully
automatic single-cup machine for making Espresso,
Café Crème, Cappuccino, White Coffee and Latte
Macchiato. Hot water dispensing is also possible.
Both coffee beans and ground coffee can be used,
coffee beans via the grinders and ground coffee via
the manual input.
All the coffee and milk drinks are dispensed via a
specially designed combination spout, which also
enables perfect milk froth and hot milk to be
prepared.
Each portion is freshly brewed at the touch of a
button to guarantee high quality for your beverages.
Take it easy!
47
3 Warnings
Maximum machine safety is an integral WMF product characteristic to which we pay particular
attention.
In spite of all our safety precautions however, every machine is potentially hazardous if not
operated properly.
This is why – for your own safety – we have summarised the warnings below and highlighted
them in grey throughout the instruction manual.
Please also follow the “Safety Instructions” on page 48.
For your own safety,
please observe the following
instructions at all times:
Connection of the machine to site services and starting up
for the first time must only be carried out by WMF
customer service technicians.
All maintenance and repair work must only be carried
out by WMF customer services, using original parts.
In no circumstances should the safety devices fitted be
tampered with.
Caution! Scalding hazard!
In the dispensing area for coffee 6 and hot water 12 there
is a scalding hazard. Take care when the spout is raised:
always make sure a cup is in position before dispensing
any beverage.
Caution! Health hazard!
Follow the instructions on the pack when using the
cleaning product. The cleaner is corrosive. Cleaning fluid
flows out of the combination spout 6 while cleaning is in
progress.
For machines with no drain connection, a container
(capacity at least 1.4 litres) must be put in place to collect
the cleaning fluid safely.
Caution! Scalding hazard!
Never reach under the spouts while cleaning is in
progress.
Caution! Injury hazard!
When the machine is on, never put your hand into the
coffee beans hopper or brewer dispensing area.
48
4 Safety instructions
General notes
1. At the end of the working day always ensure that the shut-off device on the water pipe
supplying the machine is closed and the main power switch to which the machine is
connected is switched off and/or the plug is removed from the socket.
2. The component-tested safety devices fitted prevent inadmissible pressure and temperature rise
in the boiler. If the safety valve is activated, the machine should be switched off immediately
at the customer’s main switch. Switch off the machine if a boiler malfunction occurs.
Contact the WMF customer service department and do not switch the machine on again until
the fault has been remedied.
3. This machine is not for use out of doors. In case of freezing the machine should be drained
beforehand to prevent frost damage.
3. Never spray the machine with a hose. Steam cleaners, steam-jet cleaners and similar
equipment must not be used to clean the machine. Clean the surface by wiping with a damp
cloth, or use products from our WMF care range.
4. The unit must stand safe at a ground level, on a horizontal and stable base.
Machine shutdown – holidays
1. If the machine is to be shut down for an extended period, a general clean should be carried out
beforehand and the grouts container must be emptied. If there is any risk of freezing, the
machine should be drained beforehand to prevent frost damage. In such cases, call in the
WMF customer service personnel in good time.
2. After several weeks of shutdown for holidays, we recommend that the fully automatic cleaning
program be run at least twice before the machine is started up again.
Hot water boiler data - see rating plate
The hot water boiler complies with the Pressure Equipment Directive 97/23/EC - Category 1,
Module A.
The hot water boiler is subject to neither notification nor licensing. Each hot water boiler is
subjected to hydrostatic tests before delivery to the customer.
The owner / operator of such plants must ensure that the safety facilities are carefully serviced and
inspected.
The machine / unit complies with all the relevant regulations.
The owner / operator must ensure that the electrical equipment and systems are in safe working
order.
This device is subject of the directive on waste electrical and electronic equipment
(WEEE/EU directive) and may not be disposed of as domestic waste.
49
Preventive measures to avoid consequential machine damage
Any technical devices, particularly large fully automatic machines, are a potential source of
danger when operated without supervision.
We therefore recommend that the operator takes appropriate action to prevent damage, for
instance installing a suitable water detector in the site water supply line.
If the local water has a carbonate hardness of more than 5° (German hardness), a WMF water
filter must be installed in the supply line to the machine.
Maintenance intervals depend on how heavily the machine is used and on local water
conditions, and should be fixed by agreement with your service engineer. Even in the case of
light use, maintenance should be carried out at least once a year and the water filter, if fitted,
should be replaced.
5 Technical data
Rated power * 3.3 kW
Hourly output **
Espresso
Café Crème
200 cups
140 cups
Hot water output, total
18 l/h
Coffee beans hoppers
each 1.1 kg
Electricity supply *
1/N/PE ~ 50 Hz/230 V
External dimensions
Width
Height with coffee beans hopper
Depth
450 mm
724 mm
550 mm
Empty weight
approx. 61 kg
Continuous sound pressure level (Lpa)***
< 70 dB (A)
Subject to technical change without notice.
* See rating plate for special versions. The figures quoted refer to the basic version.
** The hourly outputs indicated are GUIDELINES and depend, among other things, on the quantity of ground
coffee, type of coffee, fineness, brewing temperature, brewing aperture size, brewing pressure, water hardness
and general condition of the machine (e.g. limescale, connections, power, water, sequence, wear, etc.)
*** The A-weighted mean sound pressure level Lpa (slow) and Lpa (impulse) at the operator’s workplace is
below 70 dB(A) in every operating mode.
50
6 Conditions for Installation and Operation
The machine operator must arrange for the site preparatory work. This should be carried out by
approved contractors in accordance with general and local regulations. WMF customer service
technicians are only permitted to connect up the machine to the prepared connections. They are
not authorised to carry out plumbing or wiring work on site and will not be responsible for such
work!
Rated power 3.3 kW
Connecting cable, site supply*
3 x 1.52
Fuse, site supply
1 x 16 A
Mains voltage tolerance
230 V + 6 % - 10 %
Power cut < 50 ms does not affect machine operation
Water supply line
TW 15 (min. DN 6 or 1/4") with main shutoff valve
and dirt filter installed by customer, 0,2 MPa flow
pressure at 2 l/min, max. 0,6 MPa
Water quality
If the local water has a carbonate hardness over 5° a
WMF water filter must be fitted in the supply line.
Water drain line
Hose, DN 19, minimum gradient 2 cm/m
Ambient temperature
+ 5°C to + 35°C (drain water system in case of frost)
Max. humidity
80 % rel. humidity without dewing. Do not spray
machine with water. Do not use machine out of
doors!
Installation clearance
For operating, service and safety reasons the machine
should be installed with clearance of not less than 50
mm from the back and sides from the building or nonWMF components.
A clear height of 1100 mm from the top of the
supporting surface should be ensured. The height of
the supporting surface from the floor surface should be
not less than
700 mm and not more than 900 mm.
If the machine connections are to be routed down
through the counter, remember to also allow space for
the connections. These may restrict the available space
below the machine.
Water filter installation dimensions
W x H x D
Standard: 250 x 500 x 400 mm
Jumbo: 290 x 670 x 420 mm
* The on-site electrical system must comply with IEC 364. An e.l.c.b. switch with 30 mA rated fault current to
EN 61008 should be installed upstream of the unit for increased safety. An earthed socket outlet must be installed
near the unit for one-phase connection. A 5-pole CEE/CEKON socket outlet to EN 60309 must be installed for
three-phase connection. If the mains power cable of this unit is damaged, it must be replaced by our customer
service engineer or a similarly qualified person. If the machine is permanently connected on site, a disconnecting
device (master switch) to EN 60947 acting on all poles and with a contact gap of at least 3 mm must be installed
upstream. The disconnecting device is also recommended for flexible connection. The mains power cable must not
be allowed to come into contact with hot parts of the machine. Master switch and socket outlet are part of the on site installation. The machine must not be installed with permanent on-site connection when mounted on a trolley.
51
7 Operation
7.1 Starting the machine
Before the machine is started up, the main shutoff valve in
the fresh water supply line must be opened and the main
electrical switch supplying the machine must be turned on.

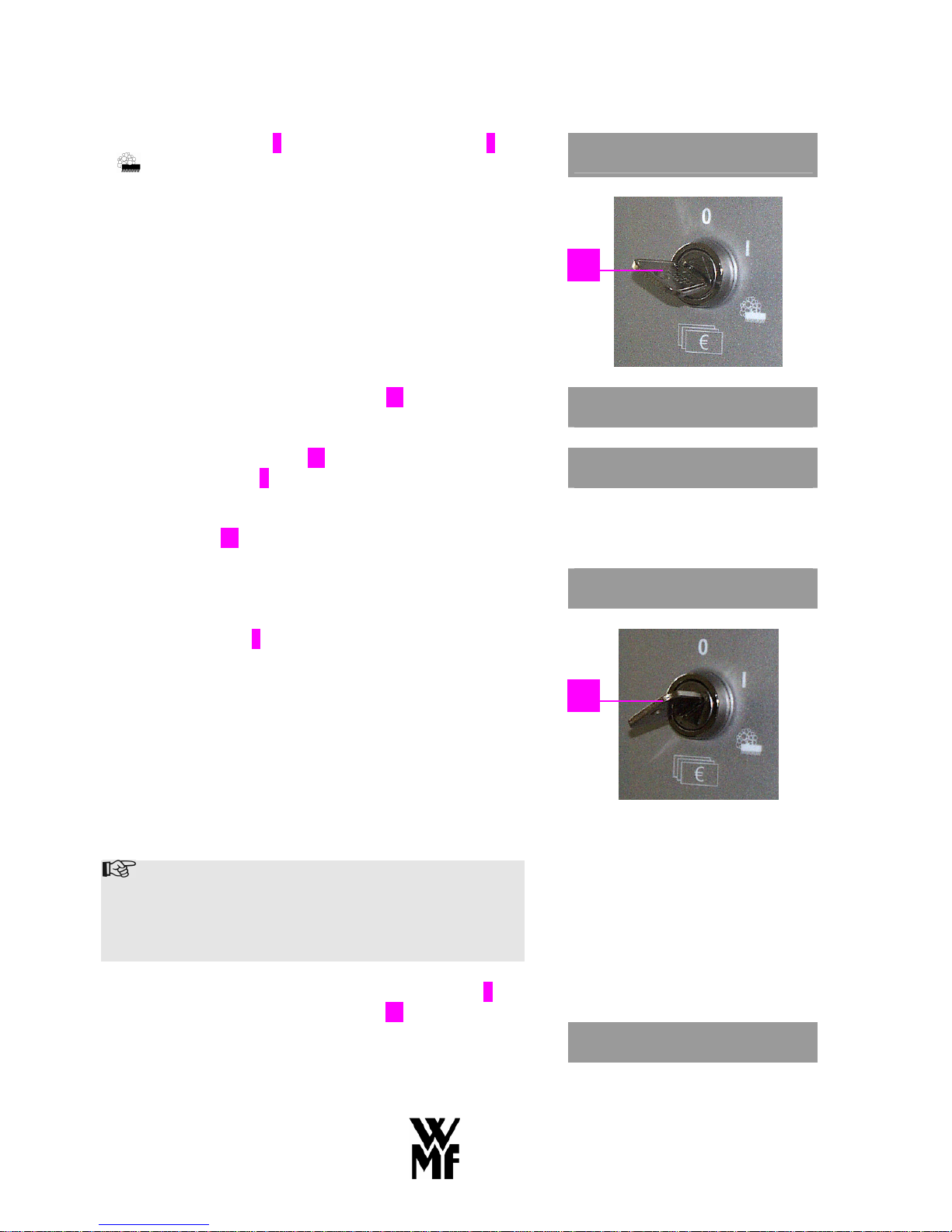

Turn the key switch 3 to position “I” (On).
The machine is now switched on and will heat up to
operating temperature (about 12 minutes).
During the heating-up phase the display alternately shows
the following:
LOCKED 11:21
20.04. ^
--Warm up--
When the machine has warmed up, the display shows the
following message:
READY
Pre-sel 01
11:21
20.04.
“READY”: The machine is ready for use.
“11:21”: Current time.
“20.04”: Current date.
“Pre-sel 01”: Only one brew is carried out for
each key press.
See page 56,
7.5.4 Quantity selection.
7.2 Filling the coffee beans hopper
To fill the coffee beans hopper 1 remove the hopper lid and
fill the hopper with coffee beans. Then replace the lid to
close the hopper. Each coffee beans hopper has a capacity
of approx. 1.1 kg.
52
It is important to refill the coffee beans hopper 1 before it
is completely empty, to ensure correct operation of the
coffee machine.
Special version (‘empty’ message):
A display 8 requests you to refill the coffee beans hopper 1.
Refill
coffee beans left!
Coffee dispensing is disabled when the coffee beans
hopper 1 is empty.
Refill
coffee beans right!
Simply refill the hopper with coffee beans and the message
will disappear.
7.3 Preparing to dispense milk
In order to dispense coffee beverages with milk from the
machine, the milk container (e.g. the Tetra Pak as shown
here) has to be connected to the combination spout 6 of the
machine by the milk intake hose.
If this is not the case, proceed as follows:
The milk intake hose has a plastic connector on one end
(bottom left in the picture) and a metal nozzle on the other
end (top right in the picture).
Insert the connector of the milk intake hose into the
connection provided on the underside of the combination
spout 6. Then push the milk intake hose into the guide on
the underside of the combination spout 6, to fasten the milk
intake hose to the combination spout 6.
6
Loading...
