WIZNET WIZ630WI User Manual

WIZ630wi User Manual

(Version 0.93)

For more information, please visit our website at http://www.wiznet.co.kr

Certification Information

CE for Class B ITE

INFORMATION TO THE USER

Hereby, WIZnet. Declares that this WIZ630wi is in compliance with the essential requirements and other relevant provisions of directive 1999/5/EC.

WARNING: This is a class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

FCC for Class B ITE

INFORMATION TO THE USER

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits a re designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no Guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures

:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

Connecting the Web page of WIZ610wi

 Some items may be not supported depending on the version.

Web address

 Open a web browser on user’s PC. Input the default IP address of WIZ630wi, “192.168.16.254” and

click Enter.

Web Login

 A pop up will request user to input User ID and Password  User ID: admin / Password: admin

 The system’s basic information, as shown below, will appear if successfully authenticated.

Type Description

F/W Version

System Up Time

Operation Mode

Internet Configuration

Local Network

Ethernet Port Status

The firmware version of WIZ630wi is displayed.

System up time displayed.

System operation mode displayed.

Information of the external network is displayed.

Information of the Local network is displayed.

Link of LAN Port status is displayed.

Wireless Specifications

Type Description

Wireless Standard IEEE802.11b/g/n

USA: 2.400 ~ 2.483GHz

Frequency Range

Operating Channels

Europe: 2.400 ~ 2.483GHz Japan: 2.400 ~ 2.497GHz China: 2.400 ~ 2.483GHz

USA/Canada: 11(1 ~ 11) Major Europe Countries: 13(1 ~ 13) France: 4(10 ~ 13) Japan: 14 for 802.11b(1 ~ 14), 13 for 802.11g(1 ~ 13) Korea/China: 13(1 ~ 13)

Output Power

(Tolerance(+/-1dBm)

Receive Sensitivity

Data Rates

Modulation Type

Operation Distance

802.11b: 9.88dBm@11Mbps

802.11g: 7.44dBm@54Mbps

802.11n(20MHz): 8.08dBm@72Mbps

802.11n(40MHz): 4.83dBm@150Mbps

802.11b: -89dBm@11Mbps

802.11g: -74dBm@54Mbps

802.11n(20MHz): -70dBm@72Mbps

802.11n(40MHz): -66dBm@150Mbps

802.11b: 1,2,5.5,11Mbps

802.11g: 6,9,12,18,24,36,48,54Mbps

802.11n(20MHz): 7,14.5,21.5,28.5,43.5,57.5,65,72Mbps

802.11n(40MHz): 29.5,86.5,115,130,144,150Mbps

11g: OFDM(64QAM, 16QAM, QPSK, BPSK) 11b: DSS(CCK, DQPSK, DBPSK)

802.11b Outdoor: 150m@11Mbps, 300m@1Mbps Indoor: 30m@11Mbps, 100m@1Mbps

802.11g Outdoor: 50m@54Mbps, 300m@6Mbps Indoor: 30m@54Mbps, 100m@6Mbps

802.11n Outdoor: 30m@150Mbps, 250m@7Mbps Indoor: 20m@150mbps, 100m@7Mbps

Dimension 33mm X 43mm X 4.5mm

1. Operation mode

 User can select the operation mode.  The default setting of WIZ630wi is AP Mode. (DHCP Server Enabled)

Access Point (Bridge)

In this mode, all Ethernet ports and wireless interface are bridged together. Wired/Wireless interface

has the same IP address space with its top mesh. DHCP Server function is disabled and WIZ630wi

does not assign an IP. Wireless (LAN Port included) sending periodic Broadcast Packet to Station and

maintains a connection with Station.

Gateway (Router)

Operate in router mode. Interfaces are separated into WAN I/F (Top Internet Business Network), LAN

I/F (Sub Private Network: 192.168.16.xxx), Wireless I/F (Sub Private Network: 192.168.16.xxx). Port # 0

will be assigned to the WAN Port. WIZ630wi periodically sends Broadcast Packet to Sub-LAN (LAN

Port included) and maintains connection with Station.

Client (Station)

Wireless I/F is assigned as WAN Port and all Ethernet Ports are bound to LAN Port. Set the profile and

the WIZ630wi is automatically connected to the AP when re-booting in the future. Devices that are

connected through the LAN port are assigned a private IP. WIZ630wi periodically sends PING Packet

to AP Gateway and maintains connection with AP.

AP-Client mode

Wireless I/F is assigned as WAN Port and all Ethernet Ports are bound to LAN Port. This mode is

similar to Station mode, however the difference is that the Wireless I/F will operate as client with AP

simultaneously. WIZ630wi periodically sends Broadcast Packet to Sub-LAN (LAN Port included) and

maintains connection with Station.

ad-hoc mode

This mode is similar to Gateway mode. The Wireless I/F operates as ad-hoc and connects to Station

Point-to-Point. There is no communication between the LAN Port and Wireless I/F (ad-hoc).

WAN  ad-hoc: OK

WAN  LAN: OK

ad-hoc  ad-hoc: OK

ad-hoc  LAN: No Communication

2. Internet Setting

3.1 Internet connection setting

 Select the internet service type and WIZ630wi can connect to the internet  If users would like to access to Internet, Gateway Mode should be selected.

Type Description

Select the communication ways for Internet’s connection

WAN Connection

Type

Host Name

Mac Clone

- Static(Fixed IP)

- DHCP (Auto config)

- PPPoE

Settings about module’s host name

Some ISPs require that you register a MAC address. Users can directly enter MAC address or use the MAC Clone function.

Type Description

User should choose DHCP Mode when the user connects to the internet service such as FTTH, cable modems, VDSL, IP-ADSL.

DHCP(Auto

config)

Static IP setting window. If user receives static IP from ISP, user should set the Fixed IP .

Static(Fixed IP)

PPPoE(ADSL)

Input the network information that got from ISP (such as IP, Subnet, Gateway, DNS)

-. User Name: Setting the User Name received from ISP

-. Password: Password assigned by the internet service company

-. Operation Mode: This mode is used for re-connecting when connection is bad.

3.2 Local network setting

 WIZ630wi internal IP setting, DHCP server setting and DHCP.

Type Description

IP Address

Subnet Mask

MAC Address

DHCP Server

Start IP Address

End IP Address

Subnet Mask

Primary DNS Server

Secondary DNS Server

Lease Time

Statically Assigned

Enter the module’s IP. (Basic Value : 192.168.16.254 )

Enter the module’s Subnet Mask .

MAC Address of module’s LAN port (Wireless included). (Read Only)

Decide whether the module’s DHCP server will be used.

Set the start IP address that will be assigned from the DHCP server

Set the end IP address that will be assigned from the DHCP server.

Enter the value of subnet mask.

Enter the primary DNS server address.

Enter the secondary DNS server.

Enter the lease time when IP address is assigned.

Maximum of three IP can be statically assigned when IP address is assigned.

3.3 DHCP Client Information

 The IP information that is assigned from the DHCP server is shown.

Type Description

Host name

Mac Address

IP Address

Expires in

Client’s host name is shown

Client’s MAC address is shown.

Client’s IP address is shown.

The usable time of client’s IP address is shown.

3.4 VPN setting

 This section will explain on VPN packet settings.

Type Description

L2TP Pass-through

IPSec Pass-through

PPTP Pass-through

Enable : VPN L2TP packet is passed through WAN. Disable : VPN L2TP packet is not passed through WAN. (Default value)

Enable : VPN IPSec packet is passed though WAN. Disable : VPN IPSec packet is not passed through WAN. (Default value)

Enable : VPN PPTP packet is passed through WAN. Disable : VPN PPTP packet is not passed through WAN. (Default value)

3.5 Static Routing Setting

 User can modify the routing table at static routing settings.  We do not recommend any modification.

Type Description

Destination

Range

Netmask

Gateway

Interface

Enter the Target IP address or network address.

Select whether the routing table is HOST or NETWORK

If Range is NETWORK, enter subnet mask.

Enter the gateway address to be passed when communicating with target.

Select whether the target is LAN or WAN.

3. Wireless setting

Basic settings

 This chapter is about basic setting for wireless LAN.

Type Description

Radio On/Off

Network Mode

SSID

Channel

Broadcast Network

Name

AP Isolation

MBSSID AP Isolation

Decide radio on/off of wireless AP function.

11b/g/n mixed mode: 802.11b/g/n are supported. 11b/g mixed mode: 802.11b/g are supported. 11b only: only 802.11b is supported. 11g only: only 802.11g is supported. 11n only: only 802.11n is supported

Enter the name of the wireless network.

Select the channel that composes the wireless network.

AP or Wireless network status can be checked by notifying the SSID to the wireless device. AP cannot be searched if this function is disabled.

The communication between stations that are connected to the identical SSID is blocked.

The communication between stations that are connected to different SSID is blocked.

Type Description

Operation Mode

Channel Bandwidth

Guard Interval

MCS

RDG

Extension Channel

STBC

A-MSDU

Auto Block ACK

Decline BA Request

HT Disallow TKIP

HT TxStream

HT RxStream

Decide whether the PHY mode is going to be Mixed Mode or Green Field Mode.

Fix bandwidth channel to 20MHz. . Use 40MHz as bandwidth in case connection with wireless station that supports 11n channel bonding.

Long: 800nsec, Short: 400nsec

Control link rate. Set link rate to auto considering any interruptions.

The wireless performance can be improved using Reverse Direct Grant, 11n’s RDG technology.

Setting for the other 20MHz area when channel bandwidth is set to 40MHz.

STBC is supported when the value of MCS is 0-7.

Decide whether numerous MSDUs inside one MPDU will transmit.

Decide whether Block ACK will be transmitted automatically.

Decide whether user wants to decline Block ACK request.

Decide whether to operate in 802.11g, if using TKIP.

Setting for number of Tx antennas of 2T2R system.

Setting for number of Rx antennas of 2T2R system.

4.1 Advanced Wireless Settings

 This chapter is about higher-level setting for wireless LAN

Type Description

BG Protection

Beacon Interval

DTIM

Fragmentation

Threshold

Setting for wireless communication when using both 11b and 11g LAN cards. Recommended for automatic settings in general.

Controls the interval of sending beacon. The setting range is 20~999 and 100ms is usually used

Controls the data rate of beacon being sent. The setting range is 1~255 and 1ms is usually used.

When a data that is larger than the threshold size, it is fragmented and sent. Smaller threshold size may enable more stable wireless communication; however the maximum speed is lower. Smaller threshold size is recommended in case of many interruptions from surrounding signals. The setting range is 256~2346.

When a data that is larger than the threshold size, it can be sent RTS/CTS. Smaller

RTS Threshold

Tx Power

Short Preamble

Short Slot

Tx Burst

Pkt_Aggregate

Country Code

WMM

APSD

DLS

WMM Parameter

Multicast-to-

Unicast

threshold size may enable more stable wireless communication; however the maximum speed is lower. Smaller threshold size is recommended in case of more wireless stations are connected at the same time. The setting range is 1~2347.

Controls the range of wireless radio being sent. The range of wireless radio being sent gets larger as the value is larger.

If user enables Short Preamble, performance might slightly improve. However, the compatibility with wireless LAN card when connecting could decrease. It is recommended to disable Short Preamble for best compatibility.

The performance of wireless station connected to 11g can be improved by enabling Short Slot. However, it is recommended to disable Short Slot if there is a wireless station with unstable connection.

The wireless speed can be maximized by enabling this function. However, it is recommended to disable this function for stable connection when numerous stations are connected together.

Numerous packets can be transmitted in one MPDU by enabling this function.

Setting for country code. Example: KR(Republic of Korea), US(United State), FCC(Europe), JP(Japan), FR(France), ES(Spain)

Decide to whether or not use WMM function.

Decide to whether or not use Power Saving Mode.

Decide whether or not use DLS (Direct Link Setup) function.

If WMM is enabled, set the value for WMM Parameter.

Decide whether or not use Multicast function.

4.2 Wireless Security

 This chapter is about settings for wireless network security.

SSID choice

Security Mode

Access Policy

Add a station MAC

Type Description

If multiple SSID are in use, choose the corresponding SSID for security.

Select security mode.

Disable : Access Control function will be disabled.. Allow Listed : allows communication with listed MAC client. Reject Listed: blocks communication with listed MAC client.

Enter the client’s MAC address for controlling.

4.3.1. Wireless Security setting

 Authentication settings

Type Description

OPENWEP

SHAREDWEP

WEPAUTO

WPA-PSK

WPA2-PSK

WPAPSKWPA2PSK

WPA

WPA2

WPA1WPA2

802.1x

All users are authorized.

Users only with correct network key are authorized.

OPEN/SHARED Mode is selected automatically.

WPA certified standard with improved security.

Improved WPA certified standard

Both WPZ-PSK and WPZ2-PSK are supported.

WPA certified standard including 802.1x.

Improved WPA certified standard.

Both WPA and WPA2 are supported.

Radius authentication through WEP Key.

4.3.2. Wireless Authentication Setting

Encryption Type Description

WEP64

WEP128

TKIP

AES

TKIP/AES

SHARED/ WEPAUTO/802.1x

WPA/WPA2/ WPA-PSK/ WPA2-PSK/ WPA1WPA2/ WPAPSKWPA2PSK

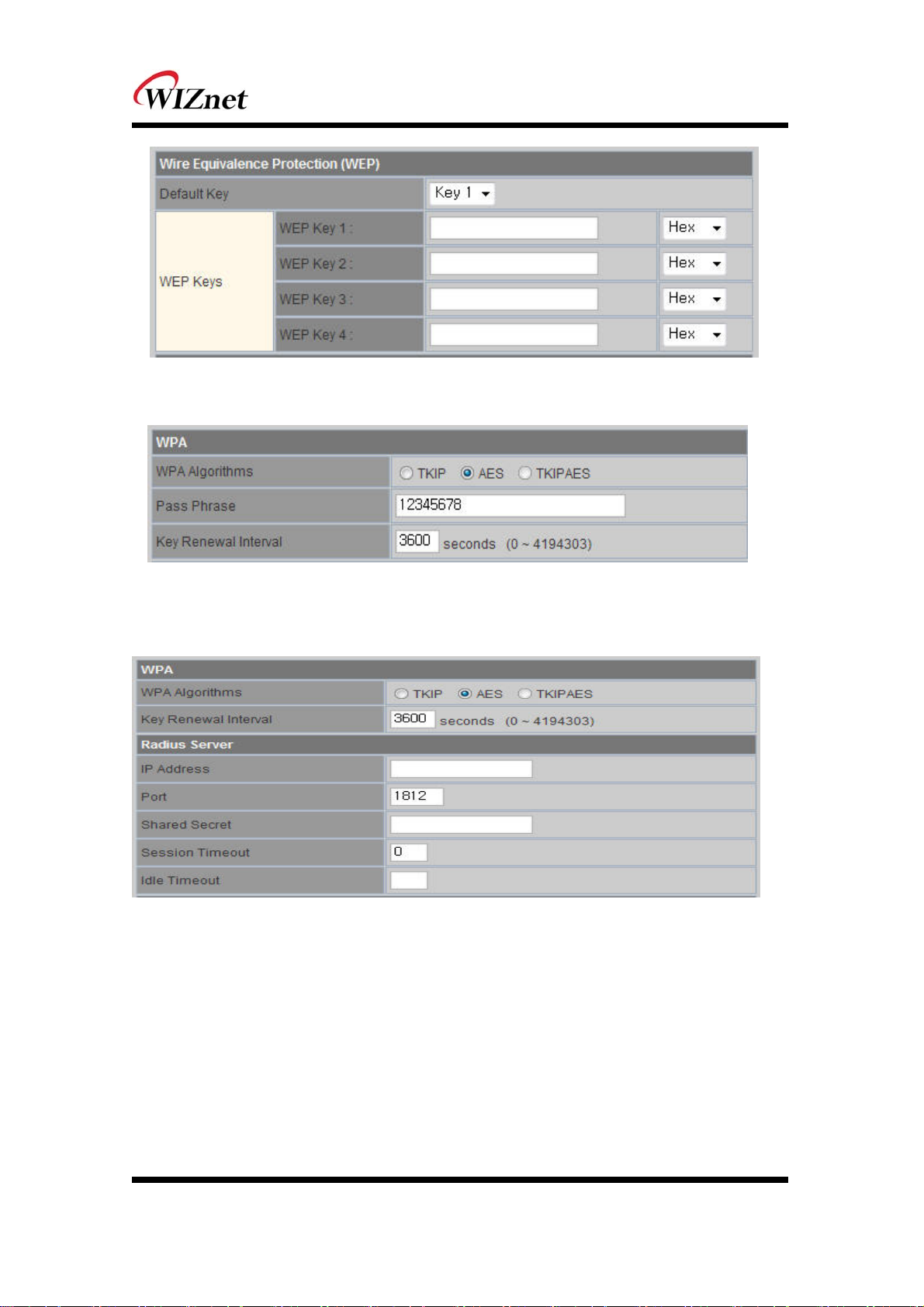

5.3.2.1. WEP

 Enter key for WEP64 or WEP128 network.  Use either character string or hex character when entering key.  Select 1~4 for ‘Default Key..  Enter at least one WEP Key.

The entered WEP key is used for connection from wireless terminal



WEP encryption algorithm is used with 64bit key.

WEP encryption algorithm is used with 128 bit key.

More complex encryption algorithm than WEP Is used.

New encryption algorithm is used.

Support TKIP/AES simultaneously

5.3.2.2. TKIP/AES authentication

 Enter at least 8 characters of character string for the network key value.

5.3.2.3. Wireless 802.1x authentication

 Enter the value for linking with the Radius Server.  The values related to the Radius Server are provided by the internet service company.

4.3 WDS Setting

 Connection with different AP is possible with WDS (Wireless Distribution System) function.  Maximum of four APs can connect through WDS function.  2 APs must use the same channel and authentication / encryption method.

Type Description

Disable

Lazy Mode

Bridge Mode

Repeater Mode

WDS function is not used. (Default disable)

Do not register the MAC of AP to be connected. Connect the AP’s MAC to the registered AP. AP function is provided.

Register the MAC of AP to be connected. Connect the registered MAC to the AP. AP function is not provided.

Register the MAC of AP to be connected. Connect the registered MAC to the AP. AP function is provided. (The performance of WDS is best in Repeater Mode.)

4.4 WPS Setting

 The WDS function enables easier wireless network setting..

Item Description

WPS

WPS Current Status

WPS Configured

WPS SSID

WPS Auth Mode

WPS Encryp Type

WPS Default Key Index

WPS Key(ASCII)

AP PIN

WPS Mode

Enable / Disable WPS.

Shows whether WPS is used or not for the connection with station.

Shows whether WPS is configured or not.

Shows the SSID connected to the station.

Shows the authentication used with WPS.

Shows the Encryption used with WPS.

Shows the default key ID used with WPS.

Shows the WPS Key.

Shows the PIN value used when connecting to station.

Select PIN or PBC.

4.5 Wireless network status

 The status of the station that is connected to WIZ630wi is shown.  The surrounding wireless AP’s status are shown..

Type Description

Channel

SSID

BSSID

Security

Signal

W-Mode

Type

Channel information of AP

SSID of AP

MAC address of AP

Encryption method of AP

Signal strength with AP

Wireless mode of AP

Network Type of finding AP In: Infrastructure, Ad: ad-hoc

4.6 AP Wireless Statistics

 The Statistics of wireless communication is shown.

Type Description

Tx Success

Tx Retry Count

Tx Fail after retry

RTS Successfully Receive CTS

RTS Fail To Receive CTS

Frames Receive Successfully

Frames Received With CRC Error

SNR

Number of successfully transmitted frames

Number of retransmitted frames

Number of failed frames

Number of frames that successfully received CTS

Number of frames that failed to receive CTS

Number of frames successfully received

Number of frames that failed due to CRC error

Receiving signal strength

4. Serial to LAN(Wired and Wireless)

 Individual settings for serial #1 / serial #2 are possible.  Set the serial parameters for serial to wireless (ethernet) function.  Set two channels (Main connection, Aux connection) for each serial port  Setting management of Serial #1 and #2 (Main connection, Aux connection)

5.1 Main Connection settings

Type Description

Status

Protocol

Mode

Server IP

Server Port

Reconnect Interval

Connection

Baud rate

Enable checked : Serial to LAN is used. Enable un-check: Serial to LAN is not used.

Protocol used in Serial to LAN communication

-TCP

-UDP

Serial to LAN operation mode. ( Client Mode recommended)

- Server : waits for connection.

- Client : connected to the remote server of WIZ630wi

- Mixed : not recommended

Enter the IP address for WIZ630wi setting.

Enter the port number for remote serial data server host PC.

Interval of TCP reconnection.

WIZ630wi의 Serial LAN의 connection Type( TCP Only) System Bootup : connected to the remote server upon bootup. Serial Data In : once serial data comes in, connect to remote server. (end connection after inactive time)

Select the serial communication speed.

Databits

Parity

Stopbits

FlowControl

Select the databits.

Select the method for parity check.

Select the stopbits.

Select the method for flow control. (Option: none, Xon/Xoff, RTS/CTS)

5.2 Aux Connection Settings

Type Description

Status

Protocol

Mode

Server IP

Server Port

Select whether to enable serial port or not.

Protocol used in Serial to LAN communication.

Select Server or Client Mode.

Enter the IP address for WIZ630wi setting.

Enter the port number for remote serial data server host PC.

5.3 Packing Condition (Incoming serial data packing condition)

Type Description

Time

Size

Character

Inactivity Time:

H/W CMD switch

Data packing until the set time and then sent to server after the set time.

Data packing until the set size and then sent to the server.

Data packing until the set character and then sent to the server.

TCP/IP connection is discontinued if there is neither serial data nor network data during the set time.

-. Enable/Disable the H/W CMD switch pin.

-. H/W CMD switch pin is the switch for sending commands from CPU to WIZ630wi.

5.4 Ethernet Data Tagging Option

This option is used to help serial device to identify who is the received serial data’s source: the

received serial data comes from Main Port or Aux Port.

Type Description

Status

Main Port

Aux Port

Enable or disable this option (Checked : Enable, Un-Check : Disable)

Before sending data from Main port to serial port, WIZ630wi added a TAG in the front of payload. For example: In-come LAN Data : “abcdegf” Output data to Serial Port : “!MAIN!abcdegf”

Before sending data from Aux port to serial port, WIZ630wi added a TAG in the front of payload. For example: In-come LAN Data : “abcdegf” Output data to Serial Port : “!AUX!abcdegf”

5. Firewall settings

 Only work at the Gateway Mode

6.1 DMZ

 Enable/Disable DMZ function  A DMZ allows a single computer on your LAN to expose ALL of its unused ports to the Internet.

When doing this, the exposed computer is no longer behind the firewall.

 Sometimes TCP/IP applications require very specialized IP configurations that are difficult to set up

or are not supported by your router. In this case, placing your computer in the DMZ is the only

way to get the application working.

Type Description

DMZ Settings

DMZ IP Address

Disable/Enable DMZ

Input the IP address that you would like to expose all of its unused ports to the Internet

6.2 Port forwarding

When a computer on the internet sends data to the external IP address of the router (WIZ630wi), the

router (WIZ630wi) needs to know what to do with the data. Port Forwarding simply tells the WIZ630wi

which computer on the local area network to send the data to. When you have port forwarding rules

set up, your router takes the data off of the external IP address:port number and sends that data to an

internal IP address:port number. Port Forwarding rules are created per port. So a rule set up for port

53 will only work for port 53.

Type Description

Port Forwarding

IP Address

Service Port

Protocol

Internal Port

Disable/Enable Port Forwarding

Internal IP address

External ports range

Supports TCP and UDP

Internal port

6.3 Packet filtering

 WIZ630wi can accept or block Internet packets according to pre-defined MAC or IP address  First, please do basic settings

Type Description

Source MAC

Dest IP Address

Source IP Address

Protocol

Dest Port Range

Source Port Range

Action

Pre-defined source MAC address for MAC filtering function

Destination IP address

Source IP address

Supports TCP, UDP, ICMP

Destination port range

Source port range

Enable/Disable MAC/IP/Port filtering function

6.4 Contents filtering

 Used to block certain websites (IP or domain names)

Type Description

Block all the websites whose domain is the input text

URL Filter

Host Filter

For example, if you input “sex”, the websites like www.sex.com

www.sexgood.com

domain name contains the input text, please use Host Filter function

Block all the websites whose domain name contains the input text. For example, if you input “game”, the websites like www.hangame.com, www.hangame.co.kr are blocked

is not blocked. If you would like to block all the websites whose

is blocked. But

6.5 System Security

 Defense of external attack.

Type Description

Remote management

Telnet management

Ping from WAN Filter

Broadcast Storm filter

Block Port Scan

Block SYN Flood

Settings about accessing methods from WAN to WIZ630wi’s embedded web server

Settings about accessing methods from WAN to WIZ630wi’s telnet

Disable/Enable the WIZ630wi’s Ping response

Block/Accept the Broadcast packets

Block WIZ630wi’s port-scan function

Block SYN flood

6. Managements

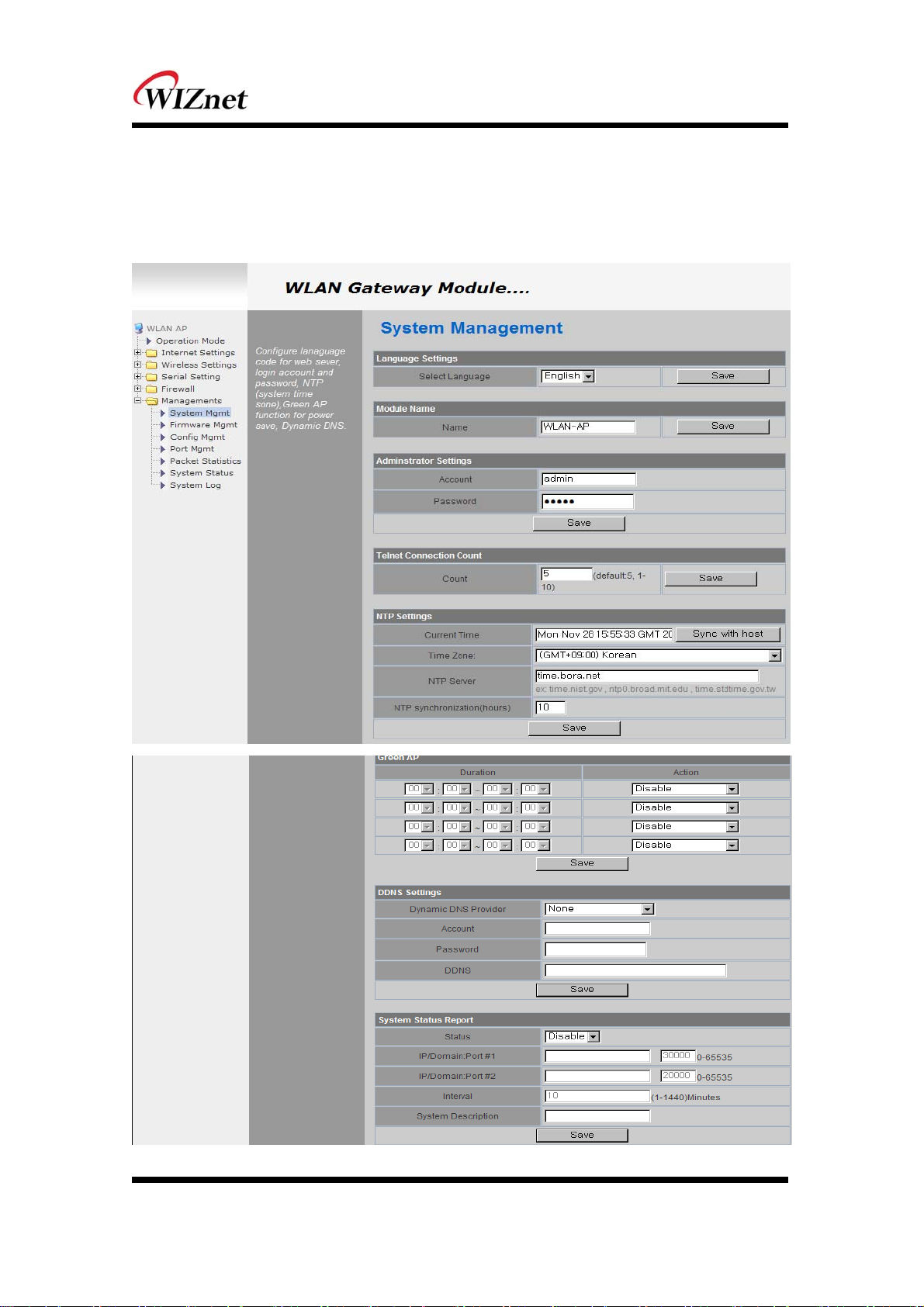

7.1 System Management

Type Description

Language

Administrator

NTP

Green AP

DDNS

Provider

Account

Password

DDNS

Select language in the list

Pre-defined ID/Password for webpage or Telnet login

Set NTP server

Low power consumptive AP

Once the DDNS server registers yours MAC address, your device can connect to the internet regardless of your address. DDNS service can be provided by DynDNS, freeDNS, zoneedit, no-ip. To use DynDNS, users should go to www.dyndns.org to create user name and domain name. And then, set related configurations by using WIZ630wi’s webpage. Similarly, to use freeDNS zoneedit, or no-ip,users should go to their homepage first to create user name and domain name. And then, set related configurations by using WIZ630wi’s webpage.

DynDNS, freeDNS, zoneedit, no-ip

ID for DDNS.

Password for DDNS

Host name for DDNS

7.2 Firmware

 Upgrade firmware and bootloader. Now WIZ630wi doesn’t support upgrading by Remote URL.

7.3 Config Settings

 Save the setting value of WIZ630wi to the PC,

Type Description

Export Settings

Import Settings

Logo Export Settings

Logo Import Settings

Load Factory Defaults

Reboot

The setting files from the PC file are applied to the module.

The system’s setting information is saved as a file in the PC.

User’s company logo file is saved in the PC.

User’s company logo from the PC is applied to the system. ( GIF file size : 10K , 126x42)

Change the module’s setting to default setting.

Reboots the system.

7.4 Port Setting

 Settings about wired port. In case of Gateway Mode, WAN port is set here  In case of Gateway Mode, it is better to use the default WAN port number (Port #0)  If you are not administrator, we do not recommend you do this change.

Type Description

WAN Port Select the WAN Port in case of Gateway Mode.

Port #0 Enable / Disable Port #0.

Port #1 Enable / Disable Port #1.

Port #2 Enable / Disable Port #2.

Port #3 Enable / Disable Port #3.

Port #4 Enable / Disable Port #4.

7.5 Packet Statistics

 System Statistics shows the system’s memory information and system’s data transmission size.

Type Description

Memory Total System Memory Size

Memory left System Free Memory

Rx Packet Rx Packets counts

Rx Byte Rx Bytes Counts

Tx Packet Tx Packet Counts

Tx Byte Tx Bytes Counts

7.6 System Status

 System Status shows the status of the system, status of the system’s network information, and the link status of

LAN port.

Type Description

F/W Version Shows the firmware version. System Up Time Shows the system up time. Operation Mode Shows the operation mode currently being used.

Internet Configuration Shows the internet configuration information.

Local Network Shows the local network information.

7.7 System Log

 The operation history of WIZ630wi can be checked by using System Log.  If the system log exceeds 24Kbyte, more recent log record are added..

7. Client(Station) Mode setting

 WIZ630wi works as a WiFi client(station) which is always paired with a WiFi AP.  Users can take Client Mode as an opposite of Gateway Mode

8.1 Client Mode Setting

Type Description

Client(Station) Client mode setting

Ping Option Send Ping data to top connected AP by using any time unit

IP Address If IP is 0.0.0.0, send Ping data to top connected AP.

Interval Ping Interval setting ( time unit: second)

8.2 Profile

 Shows the profile of the connected AP. The profile information can be manually input. By using

“Site Survey”, it is very convenient to find and connect with an AP.

Administration of maximum of two AP is possible after adding to profile

  The module automatically connects to the active AP (selected AP) upon booting

Type Description

Profile Profile Name

SSID SSID of AP to be connected

Channel

Authentication Authentication method of AP to be connected.

Encryption Encryption method of AP to be connected.

Network Type Select AP / ad-hoc.

Channel information of AP to be connected. Channel information is needed only when

connecting with ad-hoc.

Important Notice

WIZnet reserves the right to make corrections, modifications, enhancements, improvements and other

changes to its products and services at any time, and to discontinue any product or service without

notice. Customers should obtain the latest relevant information before placing orders, and should

verify that such information is current and complete. All products are sold subject to WIZnet’s terms

and conditions of sale, supplied at the time of order acknowledgment. Information relating to device

applications, and the like, is intended as suggestion only and may be superseded by updates. It is the

customer’s responsibility to ensure that their application meets their own specifications. WIZnet makes

no representation and gives no warranty relating to advice, support or customer product design.

WIZnet assumes no responsibilities or liabilities for the use of any of its products, conveys no license

or title under any patent, copyright or mask work rights to these products, and makes no

representations or warranties that these products are free from patent, copyright or mask work

infringement, unless otherwise specified.

WIZnet products are not intended for use in life support systems/appliances or any systems where

product malfunction can reasonably be expected to result in personal injury, death, severe property

damage or environmental damage. WIZnet customers using or selling WIZnet products for use in such

applications do so at their own risk and agree to fully indemnify WIZnet for any damages resulting

from such use.

All trademarks are the property of their respective owners.

FCC Certification Requirements

Caution : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

This device complies with Part 15 of the FCC rules. Operation is subject to following

Two conditions: 1. this device may not cause harmful interference and 2. This device

Must accept any interference received including interference that may cause undesired

Operation of this device.

The changes or modifications not expressly approved by the party responsible for

Compliance could void the user’s authority to operate the equipment.

To comply with the FCC RF exposure compliance requirements, this device and its antenna

Must not be co-located or operating to conjunction with any other antenna or transmitter,

Except if installed in compliance with FCC Multi Transmitter procedures.

To inherit the modular approval, the antennas for this transmitter must be installed to

provide A separation distance of 20cm from all persons and must not be co-located or

operating in Conjunction with any other antenna or transmitter.

Note: This equipment has been tested and found to comply with the limits for a Class B

digital device, Pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable Protection against harmful interference in a

residential installation. This equipment generates Uses and can radiate radio frequency

energy and, if not installed and used in accordance With the instructions, may cause harmful

interference to radio communications.

However, There is no guarantee that interference, Will not occur in a particular installation.

If this equipment Does cause harmful interference to radio or television reception, which can

be determined by turning The equipment off and on, the user is encouraged to try to

correct the interference by one or More of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an Outlet on a circuit different from that to which the

receiver is connected.

To OEM Installer

1. FCC ID on the final system must be labeled with “Contains FCC ID: XR2WIZ630WI” and

“Contains transmitter Module FCC ID: XR2WIZ630WI “

2. In the user manual, final system integrator must ensure that there is no instruction

provided in the user Manual to install or remove the transmitter module.

3. Transmitter module must be installed used in strict accordance with the

Manufacturer’s instructions as described in the user documentation that comes with the

product.The user manual of the final host system must contain the following statements:

This device complies with Part 15 of the FCC rules. Operation is subject to following

Two conditions: 1. this device may not cause harmful interference and 2. This device

Must accept any interference received including interference that may cause undesired

operation of this device.

The changes or modifications not expressly approved by the party responsible for

Compliance could void the user’s authority to operate the equipment.

To comply with the FCC RF exposure compliance requirements, this device and its antenna

must not Be co-located or operating to conjunction with any other antenna or transmitter,

except if installed In compliance with FCC Multi Transmitter procedures.

To inherit the modular approval, the antennas for this transmitter must be installed to

provide a Separation distance of at least 20cm from all persons and must not be co-located

or operating in Conjunction with any other antenna or transmitter.

Note:

The buyer of the module who will incorporate this module into his host must submit the

final product to the Manufacturer of the module and the MANUFACTURER OF THE MODULE

WILL VERIFY that the product Is incorporated in host equipment in a way that is represented

by the testing as shown in the test report.

Note:

The module is used AP, Gateway, Household. (except PC.)

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled

environment. This device and its antenna must not be co-located or operating in

conjunction with any other antenna or transmitter.

“To comply with FCC RF exposure compliance requirements, this grant is applicable to only

Mobile Configurations. The antennas used for this transmitter must be installed to provide a

separation distance of at least 20 cm from all persons and must not be co-located or

operating in conjunction with any other antenna or transmitter.”

Manual Information To the End User

The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show In this manual.

WIZNET WIZ630WI User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
