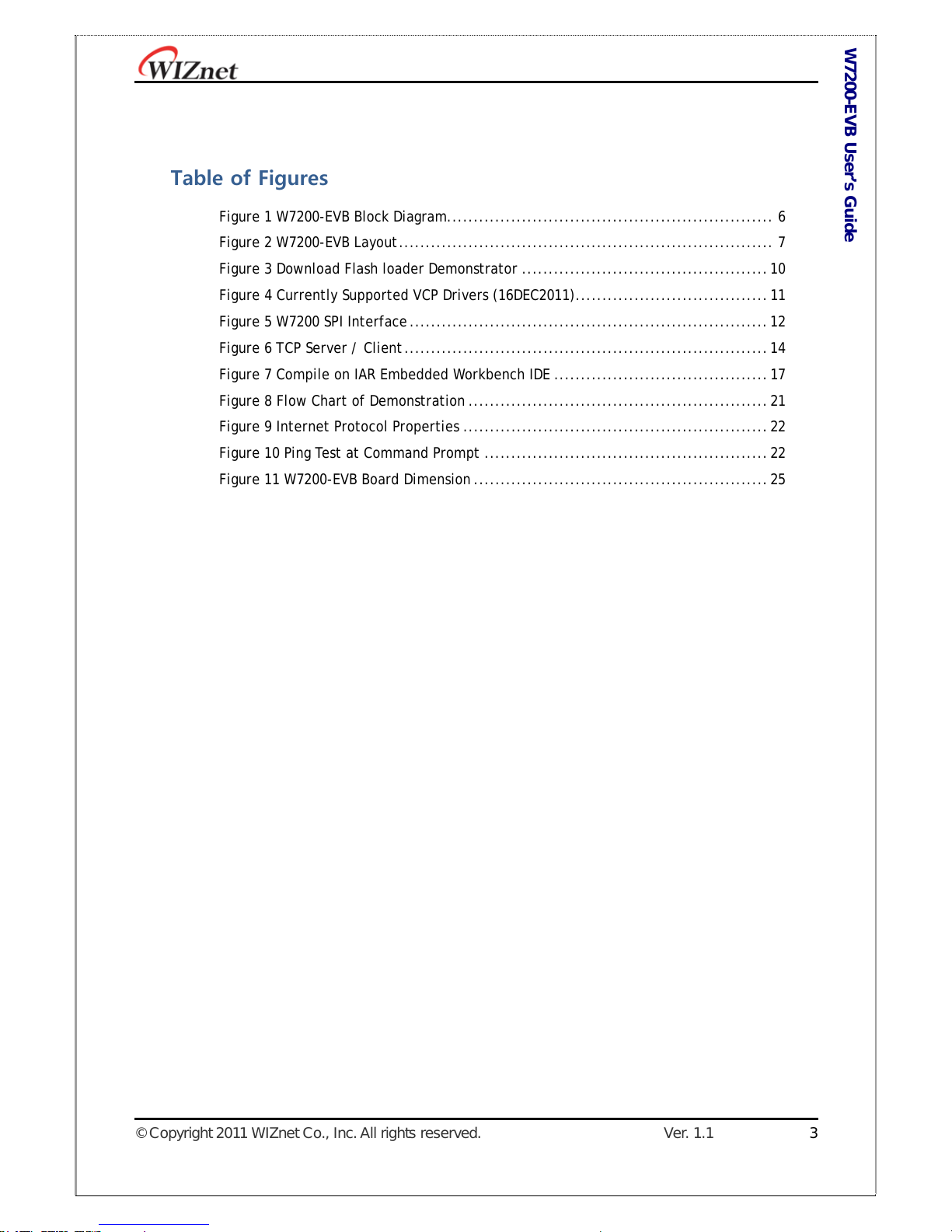

Table of Figures

Figure 1 W7200-EVB Block Diagram............................................................. 6

Figure 2 W7200-EVB Layout ...................................................................... 7

Figure 3 Download Flash loader Demonstrator .............................................. 10

Figure 4 Currently Supported VCP Drivers (16DEC2011) .................................... 11

Figure 5 W7200 SPI Interface ................................................................... 12

Figure 6 TCP Server / Client .................................................................... 14

Figure 7 Compile on IAR Embedded Workbench IDE ........................................ 17

Figure 8 Flow Chart of Demonstration ........................................................ 21

Figure 9 Internet Protocol Properties ......................................................... 22

Figure 10 Ping Test at Command Prompt ..................................................... 22

Figure 11 W7200-EVB Board Dimension ....................................................... 25

W7200-EVB User’s Guide

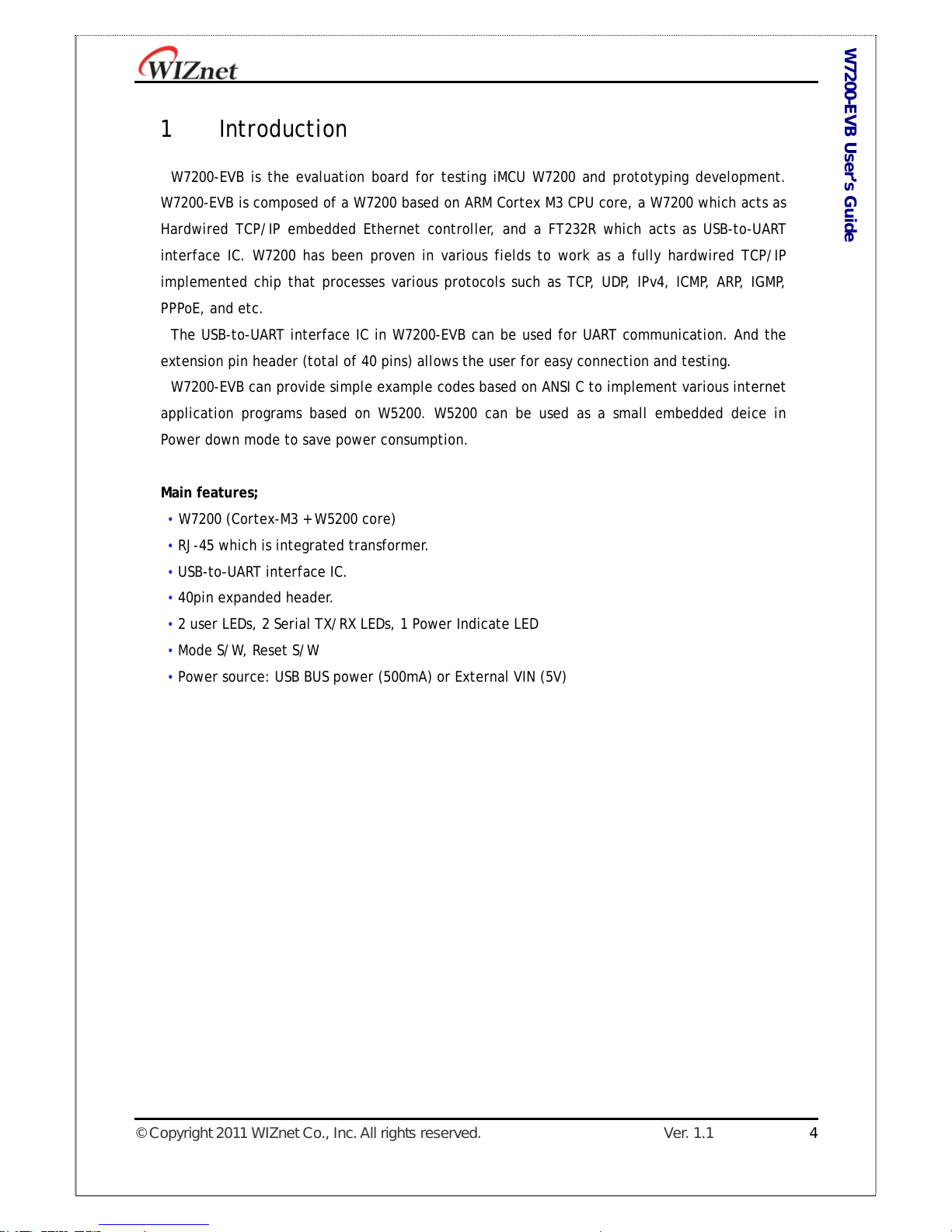

1 Introduction

W7200-EVB is the evaluation board for testing iMCU W7200 and prototyping development. W7200-EVB is composed of a W7200 based on ARM Cortex M3 CPU core, a W7200 which acts as Hardwired TCP/IP embedded Ethernet controller, and a FT232R which acts as USB-to-UART interface IC. W7200 has been proven in various fields to work as a fully hardwired TCP/IP implemented chip that processes various protocols such as TCP, UDP, IPv4, ICMP, ARP, IGMP, PPPoE, and etc.

The USB-to-UART interface IC in W7200-EVB can be used for UART communication. And the extension pin header (total of 40 pins) allows the user for easy connection and testing.

W7200-EVB can provide simple example codes based on ANSI C to implement various internet application programs based on W5200. W5200 can be used as a small embedded deice in Power down mode to save power consumption.

Main features;

• W7200 (Cortex-M3 + W5200 core)

• RJ-45 which is integrated transformer.

• USB-to-UART interface IC.

• 40pin expanded header.

• 2 user LEDs, 2 Serial TX/RX LEDs, 1 Power Indicate LED

• Mode S/W, Reset S/W

• Power source: USB BUS power (500mA) or External VIN (5V)

W7200-EVB User’s Guide

2 Specification

Table 1 List of Items Contained in the EVB

Item Description Remark MCU W7200 (STM32F103CB + W5200) USB-to-Serial Converter On board USB-to-UART interface IC, USB bus power FT232RQ Ethernet On board RJ-45 which is integrated transformer - LED User LED 2Ea Serial Status LED 2Ea - Button Reset Switch 1Ea Program Enable Switch 1Ea - Expansion Port MCU port expansion 2.54mm Pitch PCB 28mm * 52mm Size -

W7200-EVB User’s Guide

3 W7200-EVB Block Diagram

The block diagram is shown below.

Cortex-M3

W7200

USB-to-UART

interface IC

PROG. Switch

RESET

Switch

USER

LED 1/2

UART

GPIO

RJ-45

Mini-USB B type

(Power, Programming)

TCP/IP Core

MAC

PHY

W5200

GPIO

Figure 1 W7200-EVB Block Diagram

W7200-EVB User’s Guide

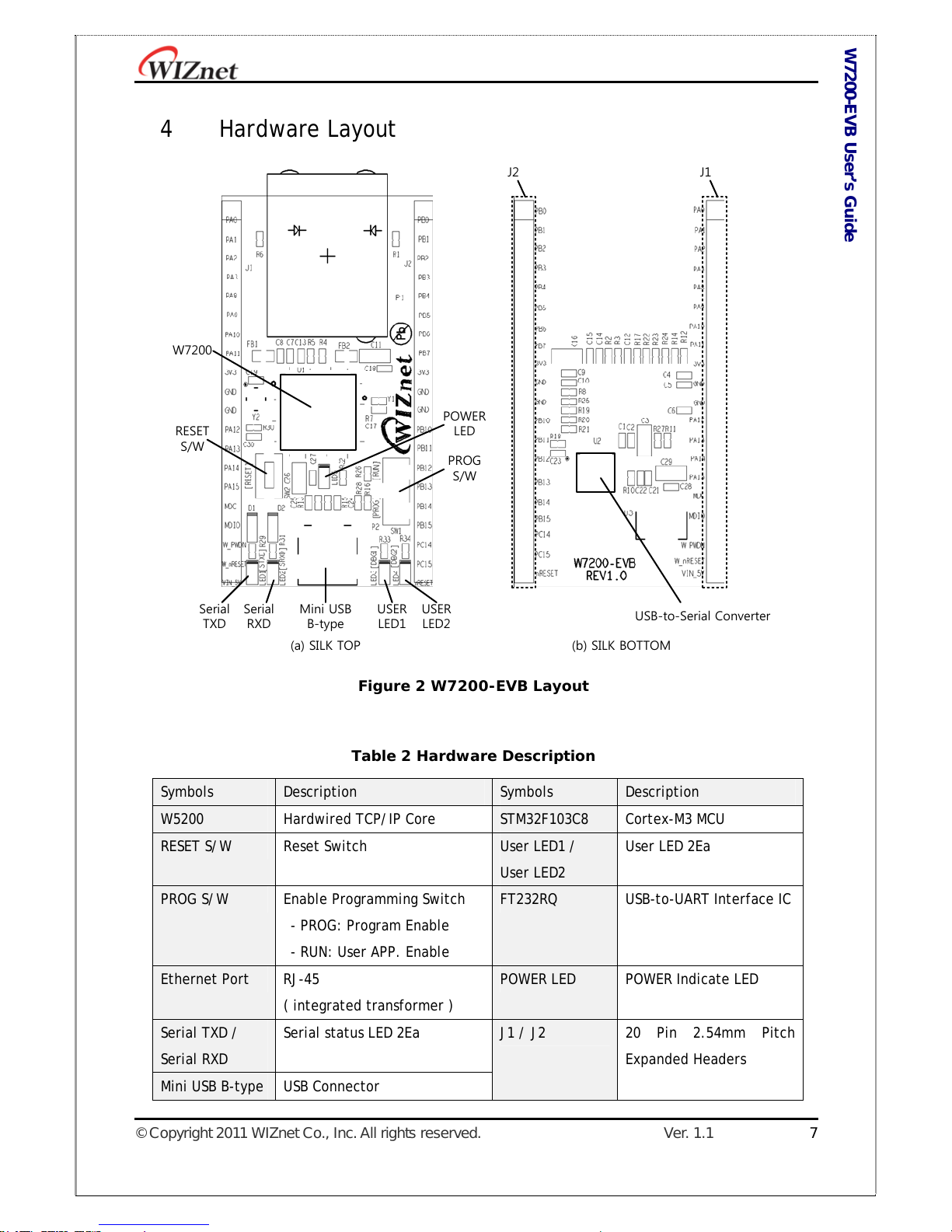

4 Hardware Layout

W7200

RESET

S/W

POWER

LED

PROG

S/W

Serial

TXD

Serial

RXD

Mini USB

B-type

USER LED1

USER LED2

J2 J1

USB-to-Serial Converter

(a) SILK TOP (b) SILK BOTTOM

Figure 2 W7200-EVB Layout

Table 2 Hardware Description

Symbols Description Symbols Description W5200 Hardwired TCP/IP Core STM32F103C8 Cortex-M3 MCU RESET S/W Reset Switch User LED1 /

User LED2

User LED 2Ea

PROG S/W Enable Programming Switch

- PROG: Program Enable

- RUN: User APP. Enable

FT232RQ USB-to-UART Interface IC

Ethernet Port RJ-45

( integrated transformer )

POWER LED POWER Indicate LED

Serial TXD / Serial RXD

Serial status LED 2Ea

J1 / J2 20 Pin 2.54mm Pitch

Expanded Headers

Mini USB B-type USB Connector

W7200-EVB User’s Guide

5 Expansion Port Interface

The expansion port has 2.54mm Pitch Pin-Header Hole.

Note.

1. Some of the expanded pin headers are shared by on board peripherals.

2. Refer to W7200’s datasheet for more detailed information about alternative functions of

pin header

Table 3 Expanded pin header

J1 Alternative Functions Shared by

J2 Alternative Functions Shared by

PA0

WKUP/ USART2_CTS/ ADC12_IN0/ TIM_CH1_ETR

- PB0

ADC12_IN8/ TIM3_CH3

LED3

PA1

USART2_RTS/ ADC12_IN1/ TIM_CH2

- PB1

ADC12_IN9/ TIM3_CH4

LED4

PA2

USART2_TX/ ADC12_IN2/ TIM_CH3

- PB2 BOOT1 -

PA3

USART2_RX/ ADC12_IN3/ TIM_CH4

- PB3 JTDO -

PA8

USART1_CK/ TIM1_CH1/MCO

- PB4 JNTRST -

PA9

UART1_TX/ TIM1_CH2

- PB5 I2C1_SMBAI -

PA10

UART1_RX/ TIM1_CH3

- PB6

I2C1_SCL/ TIM4_CH1

-

PA11

UART1_CTS/ CANRX/ USBDM/ TIM1_CH4

- PB7

I2C1_SDA/ TIM4_CH2

-

3V3 - - 3V3 - - GND - - GND - - GND - - GND - -

W7200-EVB User’s Guide

PA12

UART1_RTS/ CANTX/ USBDP/ TIM1_ETR

- PB10

I2C2_SCL/ USART3_TX

-

PA13 JTMS/SWDIO - PB11

I2C2_SDA/ USART3_RX

-

PA14 JTCK/SWCLK - PB12

SPI2_NSS/ I2C2_SMBAI/ USART3_CK/ TIM1_BKIN

-

PA15 JTDI - PB13

SPI2_SCK/ USART3_CTS/ TIM1_CH1N

-

MDC - - PB14

SPI2_MISO/ USART3_RTS/ TIM1_CH2N

-

MDIO - - PB15

SPI2_MOSI/ TIM1_CH3N

-

W_PW DN

- -

PC14 OSC32_IN -

W_nRE SET

- -

PC15 OSC32_OUT -

VIN_5V External VIN (5V) - nRESET

- -

W7200-EVB User’s Guide

6 Development environment

6.1 IDE

The IAR Embedded Workbench for ARM IDE is currently supported. (Other IDE tools for ARM IDE will be supported as like Keil.) The W5200E01-M3 software package is released the version of IAR Embedded Workbench for ARM 5.41. Refer to IAR’s own documentation on how to use it.

The W5200E01-M3 software package contains various examples for using W5200

6.2 Install Flash loader Demonstrator

Flash Loader demonstrator is used to program for W5200E01-M3.

Note:

Refer to UM0462 User manual at www.st.com for more detailed information about STM32F103xx Flash Loader demonstrator

- Download: UM0462 Flash loader demonstrator

http://www.st.com/internet/mcu/product/216817.jsp

Click “Design Support” -> SW DEMOS (Bottom end of page)

Figure 3 Download Flash loader Demonstrator

6.3 USB-to-UART interface IC Driver

When the mini-USB is connect to USB-equipped Windows computer, the Device Manager will properly installed USB-to-Serial driver. If USB-to-Serial adaptor not works as expected, you can download the USB-to-Serial driver at www.ftdichip.com.

Note:

Refer to Installation Guides at www.fuducguo.com more detailed information about USB-to-Serial converter.

- Download Installation Guides:

1. www.fidichip.com

2. Click “Support->Documents-> Installation Guides”

3. Download up to your operation system.

- Download Driver

1. www.fidichip.com

2. Click “Drivers->VCP Drivers”

3. Download up to your operation system.

W7200-EVB User’s Guide

Figure 4 Currently Supported VCP Drivers (16DEC2011)

W7200-EVB User’s Guide

7 W7200 SPI

Below diagram show internal SPI connection between STM32F103CB and W520 0.

Figure 5 W7200 SPI Interface

A pseudo code for read/write with SPI is shown below. Check the W5200 documentation for SPI burst mode, and how to use it.

Code 1 Pseudo code for Read with SPI interface

#define data_read_command 0x00

uint16 addr; //address : 16bits int16 data_len; //data_length :15bits uint8 data_buf[]; // array for data SpiSendData(); //send data from MCU to W5200 SpiRecvData(); //Receive data from W5200 to MCU

/* Pseudo Code for Read data of 8bit per packet */

{ ISR_DISABLE(); // Interrupt Service Routine disable CSoff(); // CS=0, SPI start

//SpiSendData

SpiSendData(((addr+idx) & 0xFF00) >> 8); //Address byte 1 SpiSendData((addr+idx) & 0x00FF); //Address byte 2

// data write command + data length upper 7bits

SpiSendData((data_read_command | ((data_len & 0x7F00) >> 8)));

// data length bottom 8bits

SpiSendData((data_len & 0x00FF));

W7200-EVB User’s Guide

SpiSendData(0); //dummy data data_buf[idx] = SpiRecvData(idx); //READ data CSon(); // CS=1, SPI end ISR_ENABLE();// Interrupt Service Routine disable }

Code 2 Pseudo code for write with SPI interface

#define data_write_command 0x80

uint16 addr; //address : 16bits int16 data_len; //data_length :15bits uint8 data_buf[]; // array for data SpiSendData(); //send data from MCU to W5200 SpiRecvData(); //Receive data from W5200 to MCU

/* Pseudo Code for Read data of 8bit per packet */

{ SpiSendData(); //send data from MCU to W5200 ISR_DISABLE(); // Interrupt Service Routine disable CSoff(); // CS=0, SPI start SpiSendData(((addr+idx) & 0xFF00) >> 8); //Address byte 1 SpiSendData((addr+idx) & 0x00FF); //Address byte 2

// data write command + data length upper 7bits

SpiSendData((data_write_command | ((data_len & 0x7F00) >> 8)));

// data length bottom 8bits

SpiSendData((data_len & 0x00FF)); SpiSendData(data_buf[idx]); CSon(); // CS=1, SPI end IINCHIP_ISR_ENABLE(); // Interrupt Service Routine disable }

W7200-EVB User’s Guide

8 Reference Firmware

• The TCP (Transmission Control Pr otocol) RFC 793 of IETF

• TCP Server / Client Loopback

The TCP protocol of W5200 supports both server mode and client mode, user can select one and use for its application. The difference between server mode and client mode are shown below.

Figure 6 TCP Server / Client

8.1 W7200 Socket API

Please refer to “Socket API for ioPlatf orm” document.

8.2 Firmware Structure

Table 4 Project Hierarchy

Directory Files Decryption USER main.c W7200-EVB main function

W5200.c, W5200.h I/O functions for W5200

W7200-EVB User’s Guide

socket.c, socket.h Socket APIs for W5200 loopback.c, loopback.h TCP, UDP Loopback Apps implementation SPI1.c STM32F103x SPI Interface initialization util.c, util.h Utilities dhcp.c, dhcp.h DHCP App implementation md5.c, md5.h md5 hash algorithm implementation for PPPoE stm32f10x_it.c Main Interrupt Service Routines system_stm32f10x.c Cortex-M3 Device Peripheral Access Layer System

CMSIS core_cm3.c

Cortex™ Microcontroller Software Interface

Standard EWARMv5.4 startup_stm32f10x_md.s STM32F10x Medium Density Devices vector table EWARMv5.4/ StdPeriph_Driver

misc.c miscellaneous firmware functions stm32f10x_bkp.c BKP firmware functions stm32f10x_flash.c FLASH firmware functions stm32f10x_gpio.c GPIO firmware functions stm32f10x_rcc.c RCC firmware functions stm32f10x_spi.c SPI firmware functions stm32f10x_tim.c TIM firmware functions stm32f10xusart.c USART firmware functions

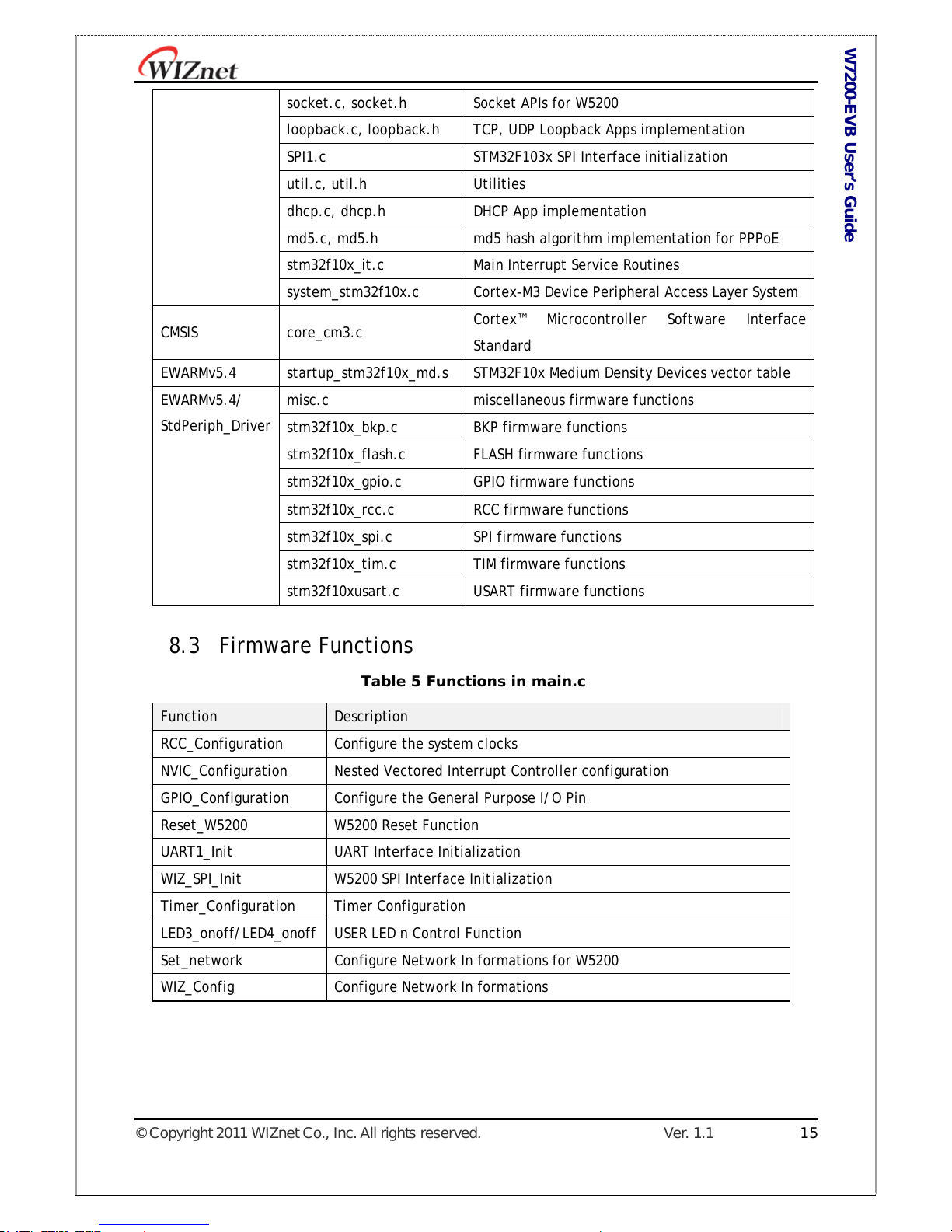

8.3 Firmware Functions

Table 5 Functions in main.c

Function Description RCC_Configuration Configure the system clocks NVIC_Configuration Nested Vectored Interrupt Controller configuration GPIO_Configuration Configure the General Purpose I/O Pin Reset_W5200 W5200 Reset Function UART1_Init UART Interface Initialization WIZ_SPI_Init W5200 SPI Interface Initialization Timer_Configuration Timer Configuration LED3_onoff/LED4_onoff USER LED n Control Function Set_network Configure Network In formations for W5200 WIZ_Config Configure Network In formations

W7200-EVB User’s Guide

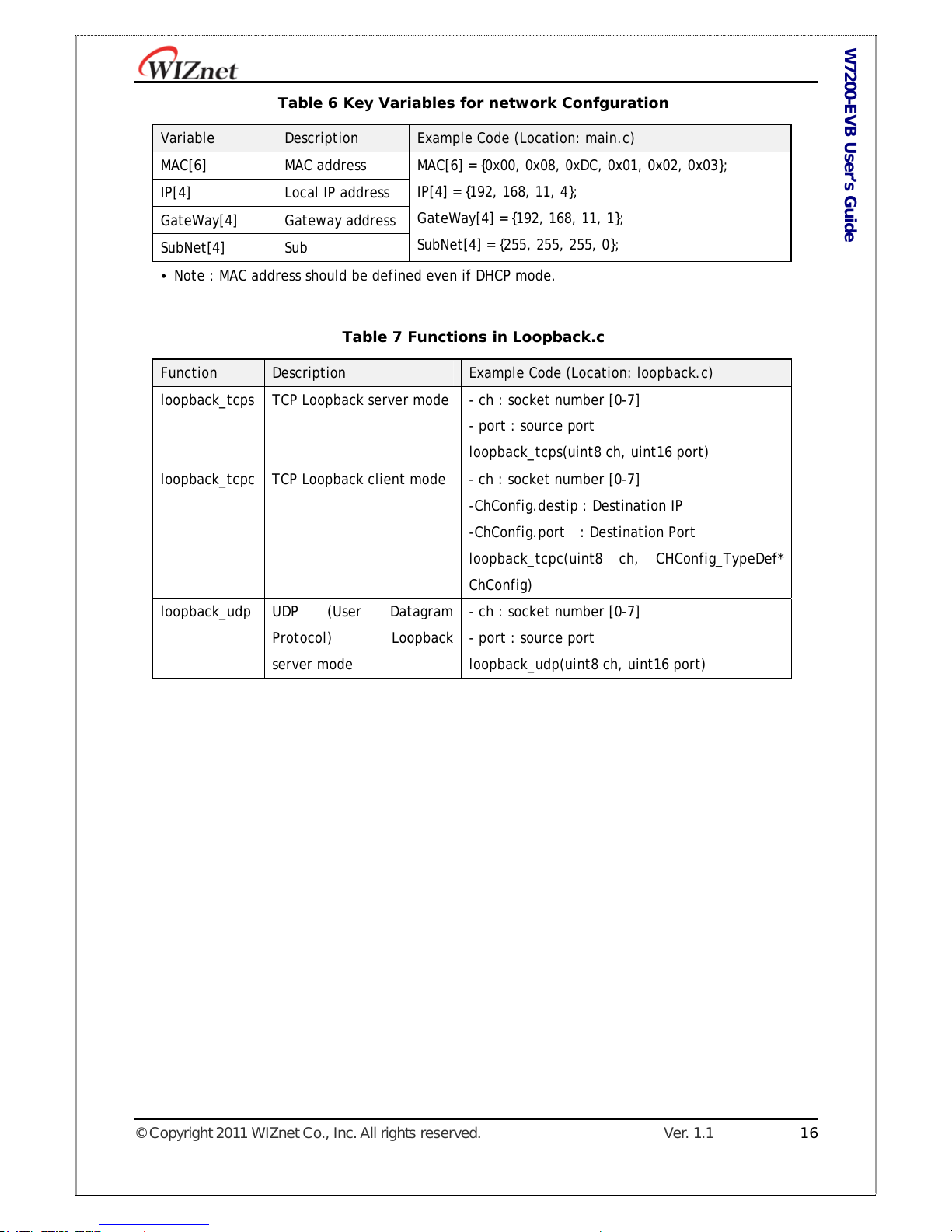

Table 6 Key Variables for network Confguration

Variable Description Example Code (Location: main.c) MAC[6] MAC address MAC[6] = {0x00, 0x08, 0xDC, 0x01, 0x02, 0x0 3};

IP[4] = {192, 168, 11, 4}; GateWay[4] = {192, 168, 11, 1}; SubNet[4] = {255, 255, 255, 0};

IP[4] Local IP address GateWay[4] Gateway address SubNet[4] Sub

• Note : MAC address should be defined even if DHCP mode.

Table 7 Functions in Loopback.c

Function Description Example Code (Location: loopback.c) loopback_tcps TCP Loopback server mode - ch : socket number [0-7]

- port : source port loopback_tcps(uint8 ch, uint16 port)

loopback_tcpc TCP Loopback client mode - ch : socket number [0-7]

-ChConfig.destip : Destination IP

-ChConfig.port : Destination Port loopback_tcpc(uint8 ch, CHConfig_TypeDef* ChConfig)

loopback_udp UDP (User Datagram

Protocol) Loopback server mode

- ch : socket number [0-7]

- port : source port loopback_udp(uint8 ch, uint16 port)

W7200-EVB User’s Guide

8.4 Firmware Build and Upload

8.4.1 Build – IAR Embedded Workbench IDE

To build and link you project choose “Make” form the “Project” menu, or press F7.

Figure 7 Compile on IAR Embedded Workbench IDE

W7200-EVB User’s Guide

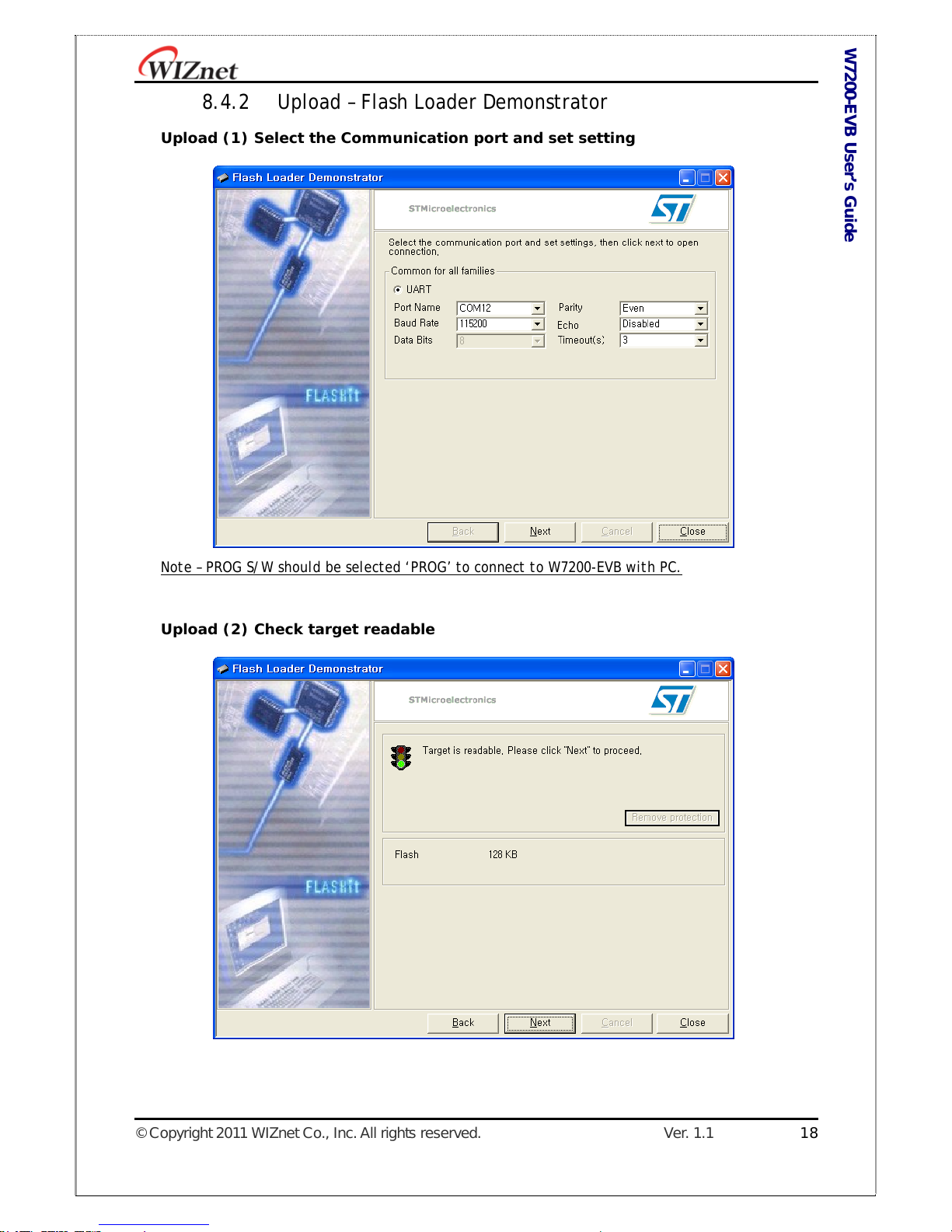

8.4.2 Upload – Flash Loader Demonstrator

Upload (1) Select the Communication port and set setting

Note – PROG S/W should be selected ‘PROG’ to connect to W7200-EVB with PC.

Upload (2) Check target readable

W7200-EVB User’s Guide

Upload (3) Select device in the target

Upload (4) Choose Binary image file in work project

Note – Binary image file’s location: …\Work\App\Debug\Exe in project directory

W7200-EVB User’s Guide

Upload (5) Select "@0x08000000" in memory address list

Upload (6) Select "Next" to upload the binart image file

Note – After finishing ‘Download’, PROG S/W should be selected ‘RUN’ to run User APP.

W7200-EVB User’s Guide

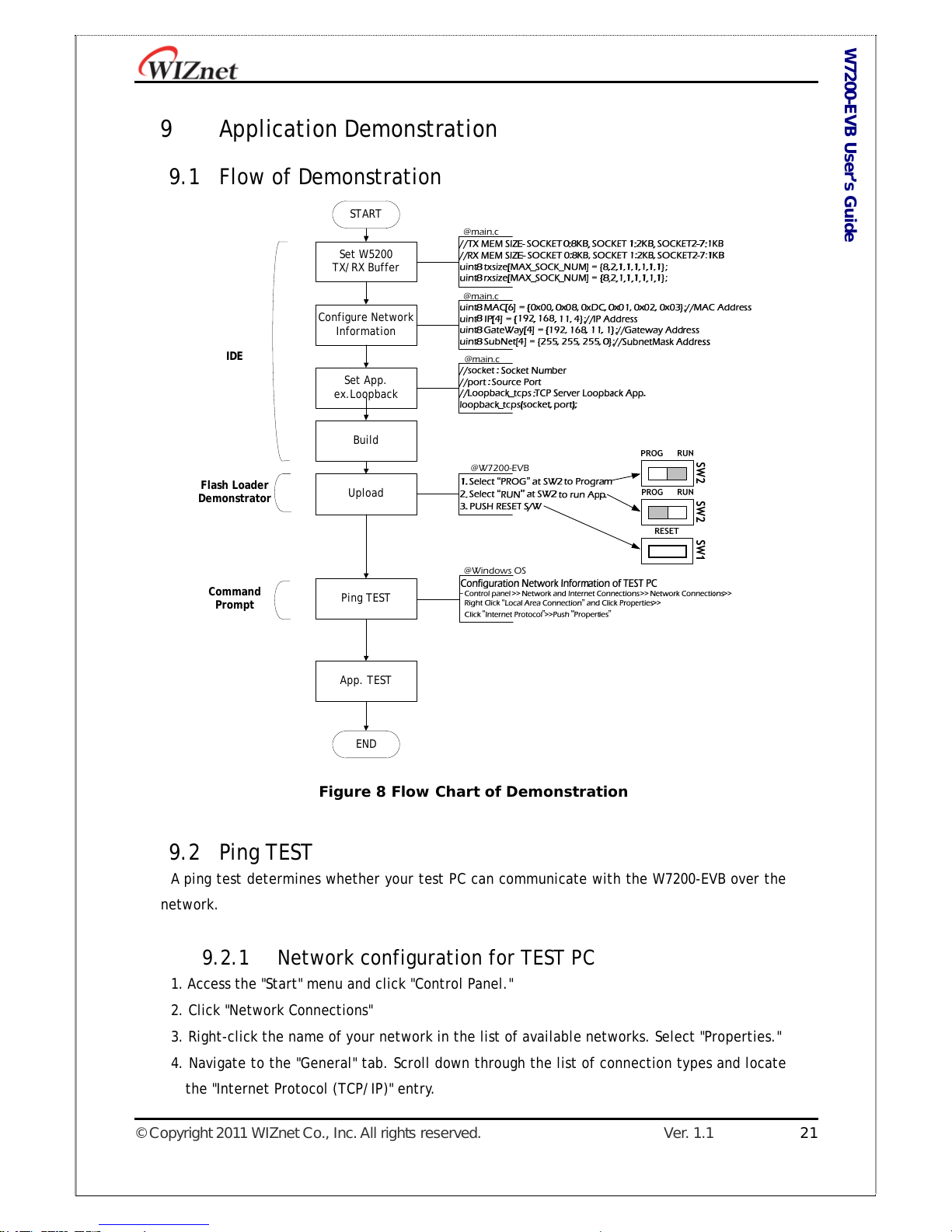

9 Application Demonstration

9.1 Flow of Demonstration

START

Set W5200

TX/RX Buffer

Configure Network

Information

Set App.

ex.Loopback

Build

Upload

Ping TEST

App. TEST

END

@main.c

IDE

Flash Loader

Demonstrator

Command

Prompt

@W7200-EVB

@Windows OS

Figure 8 Flow Chart of Demonstration

9.2 Ping TEST

A ping test determines whether your test PC can communicate with the W7200-EVB over the

network.

9.2.1 Network configuration for TEST PC

1. Access the "Start" menu and click "Control Panel."

2. Click "Network Connections"

3. Right-click the name of your network in the list of available networks. Select "Properties."

4. Navigate to the "General" tab. Scroll down through the list of connection types and locate the "Internet Protocol (TCP/IP)" entry.

W7200-EVB User’s Guide

5. Right-click the entry and select "Properties."

6. Configurate IP address, subnet mask and Default gateway as follow figure.

Figure 9 Internet Protocol Properties

9.2.2 Ping Test at Command Prompt

1. Access the “Start” in the menu, click “Run”.

2. Enter “cmd" in the "Open:" field,

3. Type “ping 192.168.11.4” (W7200-EVB IP address) in Command Prompt window

Figure 10 Ping Test at Command Prompt

9.2.3 App. Test – Loopback TEST

- AX1 : Loopback test program

- Download URL : http://www.wiznet.co.kr/UpLoad_Files/ReferenceFiles/AX1.zip

　 ■ AX1.zip : AXInstallV3.1.exe, AX1 Manual V3.1.pdf

W7200-EVB User’s Guide

Run (1) Input W7200-EVB IP and Port

Run (2) Check "Connected" message

W7200-EVB User’s Guide

Run (3) Set Data format; size and base value

Run (4) Check the status message in dialog win dow

W7200-EVB User’s Guide

10 Physical Specification

a

b

g

f

e

dd

c

Figure 11 W7200-EVB Board Dimension

Symbols Dimensions (mm)

a 28.00 b 25.40 c 52.00 d 1.30 e 1.87

f 2.54

g 1.87

W7200-EVB User’s Guide

11 Schematic

W7200-EVB schematic can be downloading at WIZnet Homepage, www.wiznet.co.kr

W7200-EVB User’s Guide

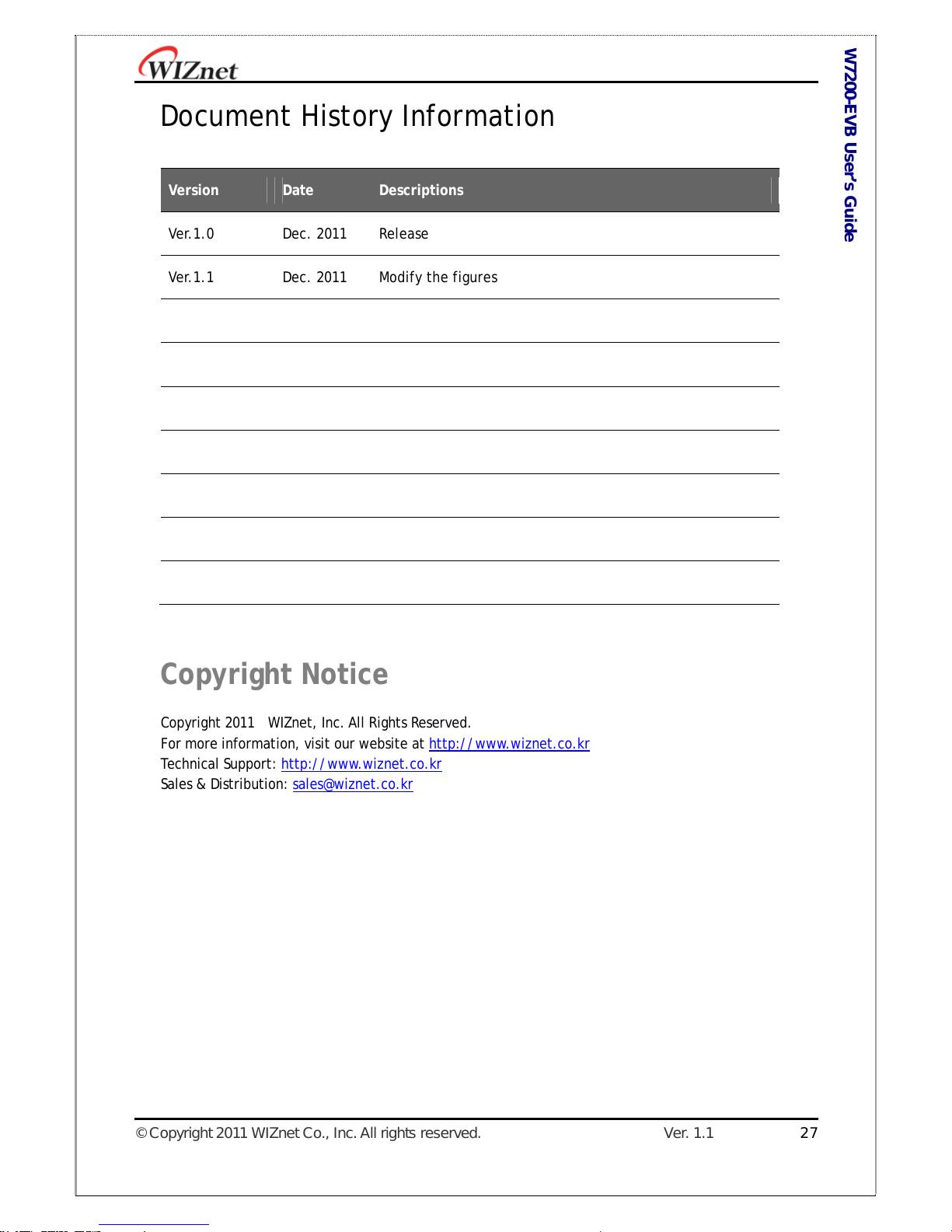

Document History Information

Version Date Descriptions

Ver.1.0 Dec. 2011 Release

Ver.1.1 Dec. 2011 Modify the figures

Copyright Notice

Wiznet W7200-EVB User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
