Wizard Ca Co Wireless Scanner, CPT-8061 User Manual

CIPHER Lab CPT -8061

Wireless Scanner

Use and Installation

Version 10.00 (or Above)

Release Date: December 12, 2007

Copyrights

CIPHER Lab CPT-8061 Wireless Scanner - Installation and Use Manual

This document is copyrighted and all rights are reserved. Printed in the United States of America. Under copyright laws, neither this documentation nor the software may be copied, photocopied, reproduced,

translated, or reduced to any electronic medium or machine-readable form, in whole or part, without the prior written consent of New Vision Information Systems, Inc. or in the manner described in the New Vision Information Systems Software License Agreement.

New Vision Information Systems, Inc. provides this documentation and software without warran ty of any kind, either implicit or expressed, including, but not limited to, the implied warranties of merchantability or fitness for a particular purpose. New Vision Information Systems, Inc. reserves the right to review this documentation and software and to make changes in content from time to time without obligation on the part of New Vision Information Systems, Inc. to provide notification of such revisions or changes.

This document contains confidential and proprietary information of New Vision Information Systems, Inc. This document is licensed by agreement and its use is subject to the terms thereof. Unauthorized copying is illegal. Unauthorized use is prohibited. Furniture Wizard™ and the Furniture Wizard logo are trademarks of New Vision Information Systems, Inc. Other trademarks are the property of their respective owners.

UNITED STATES GOVERNMENT LEGEND Use, duplication, or disclosure by the U.S. Government is subject to restrictions as set forth in the

license agreement and as provided in DFARS 227.7202-1(a) and 227.7202-3(a) (1995), DFARS

252.227.7013(c)(1)(ii) (OCT 1988), FAR 12.212(a) (1995), FAR 52.227-19, or FAR 52.227-14 (ALT III), as applicable.

Version: 10.27 Document Revision: 1.0

New Vision Information Systems, Inc. 820 Starboard Street Chula Vista, CA 91914

Phone: (619) 869-7200 Fax: (619) 869-7210

Email: support@furniturewizard.com

http://www.furniturewizard.com

Table of Contents

Introduction ................................................................................................ 1

1.1 Overview ........................................................................................................ 1

1.2 Technical Support ............................................................................................ 2

1.3 Publications .................................................................................................... 2

1.4 Using this Manual ............................................................................................ 2

1.4.1 Assumptions .......................................................................................................... 2

1.5 Guide Conventions ..................................................................................................... 3

CPT-8061 Wireless Scanner Overview ......................................................... 5

2.1 Access Point and Wireless Scanner Components ................................................... 5

2.1.1 3560 Bluetooth Access Point Receiver ....................................................................... 6

2.1.2 CPT-8061 Charging and Communication Cradle ........................................................... 6

2.1.3 CPT-8061 Bluetooth Wireless Terminal (Scanner) ......................................................... 7

2.2 Wireless Scanner – Furniture Wizard Interface ..................................................... 8

Using Wireless Scanners with Furniture Wizard .......................................... 9

3.1 Overview ........................................................................................................ 9

3.2 Loading and Configuring CIPHER Scanner Agent Software ................................... 10

3.3 Configuring Furniture Wizard for Scanner Use .................................................... 15

3.4 Using Wireless Scanners with Furniture Wizard .................................................. 20

3.5 Taking Physical Inventory - Inventory Function (Selection 1) ............................... 24

3.6 Creating an Invoice – Sales Function (Selection 2) ............................................. 27

Listing All Scanned Items ................................................................................................ 28

Transmitting Captured Data to Furniture Wizard .................................................................. 29

Changing the Item Quantity ............................................................................................ 30

3.7 Retagging Items for Sales or Markdown - Tag Floor Function (Selection 3) ............. 31

3.11 Transferring Items Between Branches - Transfer Function (Selection 4) ............... 33

3.6 Receiving Purchase Orders – Receive PO Function (Selection 5)............................ 34

Label Setup .................................................................................................................. 34

Receiving Items Using the Wireless Scanner ...................................................................... 39

Processing a Scanned Item that is not in Furniture Wizard .................................................. 39

Listing All Scanned Items ............................................................................................... 41

Reconciling Received Items ............................................................................................ 42

Received Items with No Associated Purchase Order ............................................................ 43

Processing Received Items ............................................................................................. 43

“Keyboard-less” Receiving Functions ................................................................................ 46

3.8 Performing Stock Checks – Stock Check Function (Selection 7)............................. 53

Appendix A: Installation and Configuration .............................................. 55

4.1 Overview ...................................................................................................... 55

4.2 Installing the Required Hardware ..................................................................... 56

4.2.1 Preparing CPT-8061 Scanner Units ........................................................................... 56

4.2.2 Installing and Configuring Access Point .................................................................... 58

4.2.2 Access Point Receiver Functions .............................................................................. 58

4.2.4 Installation and Configuration Procedures ................................................................. 59

4.3 Uploading Firmware Updates to Scanners .......................................................... 66

4.4 Pairing Wireless Scanners with Access Point ....................................................... 71

4.5 Configuring Wireless Scanners ......................................................................... 73

4.5.1 Subnet Mask Setting ............................................................................................. 76

4.5.2 Local IP Address Setting ......................................................................................... 77

4.5.3 Gateway IP Address Setting .................................................................................... 78

4.5.4 DNS Server Setting ............................................................................................... 78

4.5.5 Server IP Setting .................................................................................................. 79

4.5.6 Server Port Address Setting .................................................................................... 80

Appendix B: Settings Worksheet / Miscellaneous ..................................... 81

5.1 Overview ...................................................................................................... 81

5.2 Settings Worksheet ........................................................................................ 82

Section 1 - Current Local Area Network Settings ................................................................ 82

Section 2 - Access Point Settings ..................................................................................... 82

Section 2a - Additional Access Point Settings ..................................................................... 83

Section 3 - CIPHER Scanner and Agent Port Settings .......................................................... 84

5.3 CIPHER Lab Kernel Update Procedur es .............................................................. 85

5.4 Furniture Wizard Firmware Update Procedures ................................................... 90

5.5 Optimizing the Furniture Wizard Database ......................................................... 94

Introduction

1.1 Overview

Furniture Wizard offers a complete network-based, bar-code scanning solution utilizing the CIPHER Lab CPT-8061 Wireless Terminal (refe rred to as a “wireless scanner” throughout this manual). Using this hand-held scanner and Furniture Wizard’s customized price tags, you can capture and mana ge your inventory and sales data with unparalleled ease. The state-ofthe-art Bluetooth wireless communications technology built into this sophisticated scanner allow s you to easily transmit t he captured information to Furniture Wizard. For instance, you can receive purchased inventory into stock without touching your computer, or you can check the in-stock status for a floor item right when a customer asks without having to leave the customer’s side. You can store a running total of items for a customer and automatically transfer the list to a sales invoice, all while helping your customer to shop.

With our bar-coding solution, taking inventory couldn’t get easier — simply point the scanner at the labeled item and then scan it. Furniture Wizard automatically updates your inventory with the captured data in t he sc anne r . Simil arly, you can retag items for sales or markdown in a flash. The scanner stores a list of items you picked, and Furniture Wizard uses that data to quickly generate new tags and update your records.

This guide will help you perform the installation and configuration tasks required to use the CIPHER Lab CPT-8061 wireless scanner with your Furniture Wizard software. It also includes detailed instructions on how to perform each inventory and sales function with your scanner.

1.2 Technical Support

Furniture Wizard provides world-class support. Please contact us at: New Vision Information Systems

820 Starboard Street Chula Vista, California 91914 Phone: (619) 869-7200 Fax: (619) 869-7210 support@furniturewizard.com

1.3 Publications

Your Furniture Wizard CD-ROM contains Acrobat PDF versions of all of Furniture Wizard’s documentation. The files are located in the Documentation subdirectory. Please contact your Furniture Wizard representative to order hard copies of publications.

For more complete documentation on Furniture Wizard’s many powerful features, please see this m anual’s big brother, the Furniture Wizard User Guide (Furniture_Wizard_User_Guide.pdf).

1.4 Using this Manual

1.4.1 Assumptions

To successfully install and configure the components required for prop er operation of the wireless scanner solution, you must have acces s to, or know the fo ll owing settin gs for the local area network used in conjunction with Furniture Wizard in your operations:

 DNS Server  IP Address  Default Gateway  Subnet Mask

T o use the Bluetooth scanner fu nctions, you should al so possess a ba sic understanding of the inventory and sales functions in the Furniture Wizard software.

2 Furniture Wizard CPT-8061 Wireless Scanner Use and Installation v10

1.5 Guide Conventions

The following information provides a formatting key to help identify information as you navigate through this Guide:

Example Purpose

Click OK.

Within procedural (“how-to”) text, boldface words are characters you type or elements you can click. Within overview or conceptual text, bolded words may simply represent concepts that have been highlighted to emphasize their relative importance.

Go to the Add User page. Within procedural text, numbered steps denote

actions that should be followed in sequence.

Click Save to save your work.

Click Cancel to exit without saving.

Within procedural text, bulleted text denotes available options. Within overview or conceptual text, bulleted text also denotes supporting information that is subordinate to the major topic being discussed in the Guide.

The light bulb icon denotes a helpful tip.

The information icon denotes reference material.

The note icon indicates definitions or considerations that help you understand the related task.

Introduction 3

CPT-8061 Wireless

Scanner Overview

2.1 Access Point and Wireless Scanner Components

Before use the Furniture Wizard wireless scanner solution, it is important to understand the individual components that comprise the system. Every component performs an important data collection or communication task; each must be properly installed and configured so they can successfully “talk” with each other. The Furniture Wizard wireless scanner solution consists of the following components:

 3560 Bluetooth Access Point Receiver  CPT-8061 Charging and Communication Cradle  CPT-8061 Bluetooth Wireless Terminal (Scanner)

2.1.1 3560 Bluetooth Access Point Receiver

To use CI PHER Lab CPT-8061wireless scanners with Furniture Wizard, you must have a 3560 Access Point receiver connected to your network . One 3560 can accommodate up to seven scanners. The primary purpose of the unit is to receive Bluetooth transmissions from the hand-held wireless scanners and then send the captured inventory or sales data to the Furniture Wizard software.

Figure 1: 3560 Access Point

Bluetooth Receiver

The Access Point itself connects to a local area network using a standard RJ45 Ethernet cable. New Vision Information Systems does not supply this cable with the Access Point unit.

2.1.2 CPT-8061 Charging and Communication Cradle

Cradle Used for Communications

Figure 2:

and Battery Charging

6 Furniture Wizard CPT-8061 Wireless Scanner Use and Installation v10

2.1.3 CPT-8061 Bluetooth Wireless Terminal (Scanner)

The CIPHER Lab CPT-8061 Bluetooth Wireless Terminal (“wireless scanner”) is the heart of the Furniture W izard wireless scanning solution. It is an easy-to-use hand held unit you will use to capture, and then transmit bar-code inventory and sales data, via a wireless Bluetooth interface, to the 3560 Bluetooth Access Point receiver. Access Point then passes this data on to the Furniture software, which in turn automatically updates the appropriate inventory and sales forms.

(5) To scan a bar-coded item and

capture data, point the top of the scanner towards the inventory item and press the yellow Scan key underneath the information window. The red button lights up when the unit is in the scanning process, and beeps when it completes scanning.

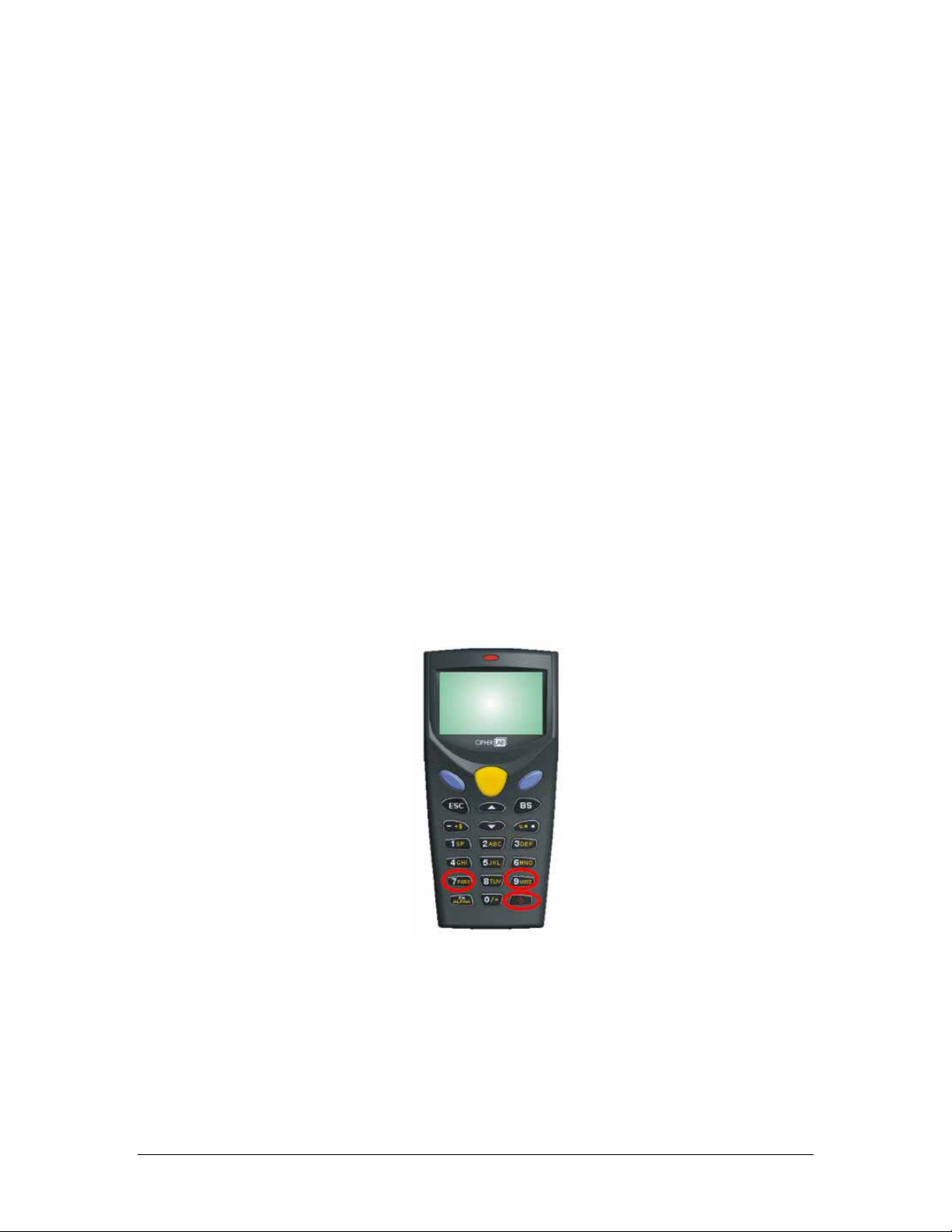

Figure 3: CIPHER Lab CPT-8061

Bluetooth Wireless Terminal (Scanner)

(2) Information window displays menus

containing configuration and scanner function selections.

(4) Use the yellow Scan key to scan

and capture data from bar-coded items.

(3) After using the keypad to select

menu options, press one of the blue Enter keys to complete the selection.

(1) Power Key

(6) Press the FN Alpha function key

and the 0 (zero) key at the same time when transmitting captured

to Furniture Wizard.

data

(7) When scanner is not in use, place

the bottom of the sca nner in t he Charging cradle. When directed, you will place the scanner into the cradle to upload interface software required for its proper operation

Introduction

2.2 Wireless Scanner – Furniture Wizard Interface

The following diagram illustrates how the CIPHER Labs CPT-8061 wireless scanner, Access Point and Furniture Wizard connect and interact with each other:

Figure 4: Wireless Scanner - Furniture Wizard Interface

8 Furniture Wizard CPT-8061 Wireless Scanner Use and Installation v10

Using Wireless Scanners

with Furniture Wizard

3.1 Overview

The Furniture Wizard bar-code scanning solution utilizes the CIPHER Lab CPT-8061 hand-held scanner and Furniture Wizard’s customized tags and allows capture of inventory and sales data with unparalleled ease. The Bluetooth wireless communications technology built into the scanner allows you to easily transmit the captured information to Furniture Wizard.

This section contains detailed instructions on how to perform each of the inventory and sales functions by scanning an item’s bar code with your CP T-8061 wireless scanner an d tr a ns m it t in g the information to Furniture Wizard.

Important Note!!!

Prior to using the CIPHER Lab CPT-8061 hand-held scanner with the F urniture Wizard software, the necessary hardware and software components must be properly installed and configured. If your components have not been delivered pre-configured from

Furniture Wizard, you must first complete all of the installation and configuration steps outlined in Appendix A: Installation and Configuration! Contact Furniture Wizard

Technical Support if you need further assistance or have questions about the configuration status of your wireless scanner components.

Regardless of the configuration status of your components, you must first complete the tasks outlined in Section 3.2: Loading and Configuring the CIPHER Scanner Agent Software and Section 3.3 Configuring Furniture Wizard for Scanner Use before any scanners are used with Furniture Wizard in your operations.

3.2 Loading and Configuring CIPHER Scanner Agent Software

Furniture Wizard Software has created software called the CIPHER Scanner Agent that allows a user to define “ports” that will be associated with each CP T-8061 scanner being used in conjunction with Furniture Wizard. These ports collect scanner-specific information that has been received by Access Point for use by Furniture Wizard. The CIPHER Scanner Agent must be loaded and configured in the following manner:

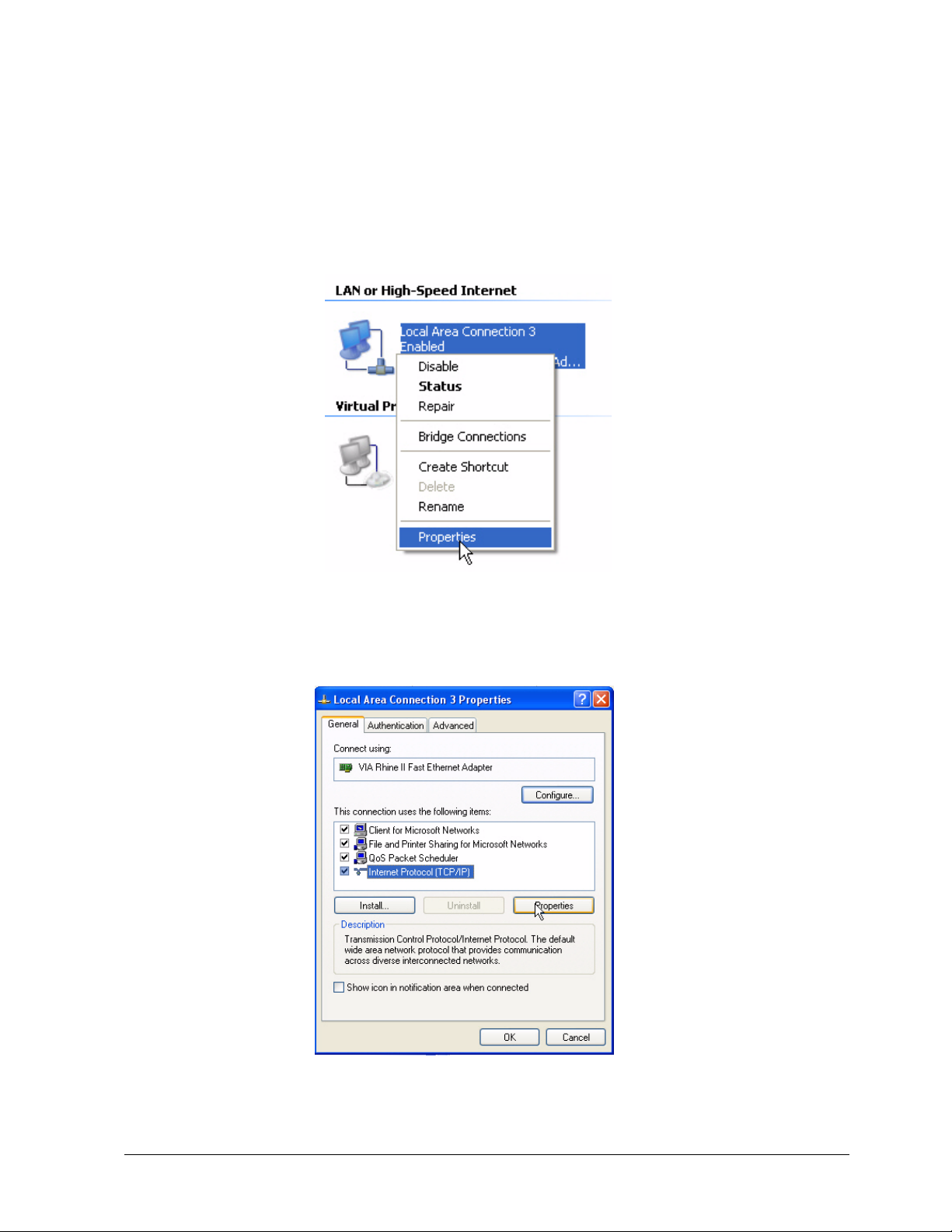

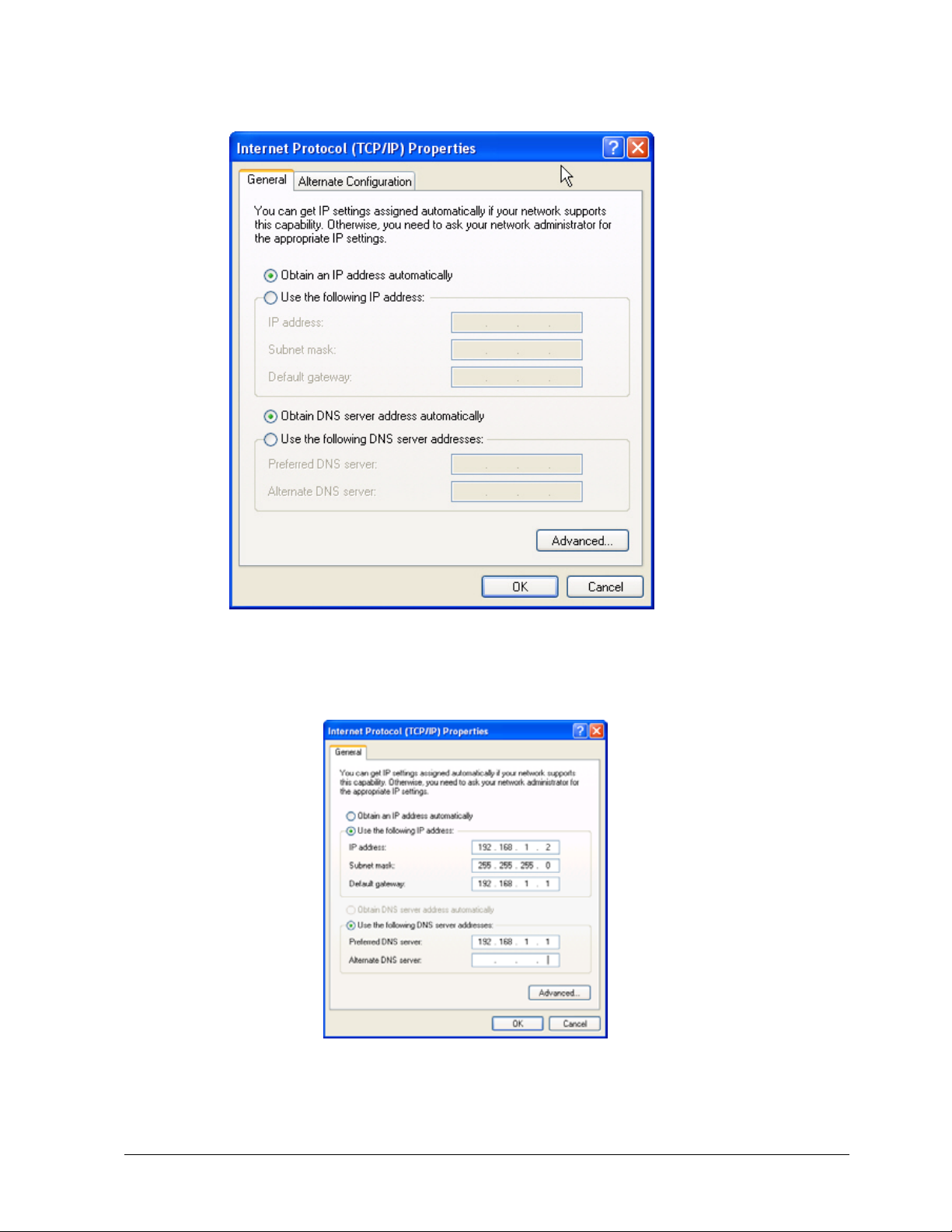

1. Verify and record the IP Address of the PC on which the CIPHER Scanner Agent is being loaded. To do this, access the Internet Protocol (TCP/IP) Properties page. Refer to the Appendix section for more details.

Manually record the IP Address of the PC on which the CIPHER Scan ner Agent is being loaded in Section 3 (entitled “CIPHER Scanner Agent Ports”) of the Settings Worksheet.

2. Log into the Furniture Wizard Support site and click the Download

WirelessScanner_Setup_xx.exe link. The following dialog is displayed:

Figure 5: File Download Dialog

3. Click Run and download WirelessScanner_Setup_219.exe to the server. This is a zipped file that contains CIPHER Scan Agent and associated files. It is fa irly large and takes several minutes to download using a high speed Internet connection.

4. Once the software has been downloaded on to the PC, click Run to launch the Wireless Scanner Setup program.

5. When the Cipher Agent Install Shield dialog appears, click Next, click I accept the terms in the license agreement, and then click Next again.

10 Furniture Wizard CPT-8061 Wireless Scanner Use and Installation v10

Figure 10: Cipher Agent Install Shield Dialog (Second Screen)

6. When the next Cipher Agent Install Shield dialog appears, enter the user name and organization, specify the user for which the application is being installed, and then click Next.

Figure 11: Cipher Agent Install Shield Dialog (Third Screen)

7. When the final Cipher Agent Install Shield dialog appears, click Install to begin installation of the Cipher Scanner Agent and associated files. When all f iles are installed, click Finish.

Chapter 3: Using Wireless Scanners with Furniture Wizard

Figure 12: Cipher Agent Install Shield Dialog (Final Screen)

8. After the CIPHER Scanner Agent has been completed loaded, double-click the CIPHE R Scanner Agent icon on the desktop, or launch it from the Programs menu.

Figure 13: CIPHER Scanner Agent Icon

9. After the CIPHER Scanner Agent launches, select Manage Scanner Ports Lists from the File menu.

12 Furniture Wizard CPT-8061 Wireless Scanner Use and Installation v10

Figure 14: Ma n age Scanner Port Lists - CIPH E R Scanner Agent

10. When the Manage Scanner Port Lists function appears, click Add to add new scanner ports.

Figure 15: Manage Scanner Port List - Add New Port Address

Chapter 3: Using Wireless Scanners with Furniture Wizard

11. For each wireless scanner that will be used with Furniture Wizard, define a unique port number using the Enter in New Port Address function. Each port number that is defined must have a value between 1024 and 32500. This port wi l l be assigned to sp ecific scanners later in this chapter. If you have multiple scanners configured for you by Furniture Wizard, refer to the notes that came with your scanner as to what ports they have already been configured to use. When finished entering a scanner port, click OK. When finished defining all scanner port numbers, click OK in the Manage Scanner Port List function.

Manually record the port numbers you created in the CIPHER Scanner Agent in Section 3 of the Settings Worksheet (entitled “CIPHER Scanner Agent Ports”). You will need to assign a unique port number to each

CPT-8061 wireless scanner when configuring them later in this chapter!

12. The CIPHER Scanner Agent Status function displays the status of each port; it specifies if the port is idle or waiting for a connection from a wireless scanner. To exit this function, click Exit on the File menu.

Figure 16: CIPHER Scanner Agent Status Functio n

Optimizing and backing up the Furniture Wizard database is a critical task that mu st be performed on a daily basis. However, you must exist the Cipher Scanner

Agent software or set the agent to “Sleep” before you run the Optimize All or Optimize Data functions in Furniture Wizard, or back up your data!!

14 Furniture Wizard CPT-8061 Wireless Scanner Use and Installation v10

3.3 Configuring Furniture Wizard for Scanner Use

You must now enable scanner use in Furniture Wizard. This section covers how to configure the Furniture Wizard software to use captured data collected from the wireless scanners. To do this, complete the following tasks:

2. Launch Furniture Wizard. When in the Main Menu, double-click the Furniture Wizard logo to access the Setup & Registration function.

Figure 17: Furniture Wizard Main Menu

Double-click the “Wizard”

Chapter 3: Using Wireless Scanners with Furniture Wizard

3. After double-clicking the Furniture Wizard icon on the Main Menu, the Setup &

Registration function is displayed:

Figure 18: Setup & Regist rat ion Fu nction

Click Advanced Setup

4. When in the Setup & Registration function, click Advanced Setup. Click OK when the warning message is displayed to access the Advance Setup function:

Figure 19: Advanced Setup Function

Click Extended Preferences

16 Furniture Wizard CPT-8061 Wireless Scanner Use and Installation v10

5. When in the Advanced Setup function, click Extended Preferences. The following screen is displayed:

Figure 20: Ext ended Preferences Function

Click Scanners tab

6. When in the Extended Preferences function, click the Scanners tab. The following function is displayed:

Figure 21: Ext ended Preferences Function - Sca nners tab

Chapter 3: Using Wireless Scanners with Furniture Wizard

7. When in the Scanners tab in the Extended Preferences fun cti on, do the following:

 Cipher Scanner 8061 - Select the check box to enable use of the CIPHER Labs

CPT-8061 wireless scanner with Furniture Wizard.

 Cipher Auto Inventory - Select the check box to enable use of the CPT-8061

scanner Auto Inventory functionality in Furniture Wizard.

 Cipher Auto Orders - Select the check box to enable use of the CPT-8061 scanner

Auto Orders functionality in Furniture Wizard.

 Cipher Auto Tag Floor - Select the check box to enable use of the CPT-8061

scanner Auto Tag Floor functionality in Furniture Wizard.

 Cipher Auto Transfers - Select the check box to enable use of the CPT-8061

scanner Auto Transfers functionality in Furniture Wizard.

 Cipher Auto Rec PO’s - Select the check box to enable use of the CPT-8061 scanner

Auto Receive Purchase Orders functionality in Furniture Wizard.

8. When finished selected each of the check boxes related to CPT-8061 scanner processing in Furniture Wizard, click Edit Cipher Users List to access the following function:

Figure 22: Cipher User List Function

18 Furniture Wizard CPT-8061 Wireless Scanner Use and Installation v10

9. Use the Cipher User List function to define the users who are able to operate the Wireless scanners in your operation. For each user, enter the following information:

 User Name - Enter the name of the user.  Password - Specify up to a five digit numeric password fo r this user.

This is the password they will use to log on to the Firmw a re menu on the CPT-8061 scanner. Do not use alpha characters - they are too difficult to enter into the scanner. The passwords must be unique; no 2 accounts may have

 Location - Select the location (Showroom or Warehouse) in which the user

can operate the scanner, or leave the field blank to allow operation in all locations.

10. When finished entering all wireless scanner users, exit each of the forms to return back to the Furniture Wizard main menu.

Congratulations!!!

You have successfully completed all of the tasks required to install and configure Access Point and the CPT-8061 wireless scanners so they can operate with Furniture Wizard. You can now proceed to Section 3.4 “Using Wireless Scanners with Furniture Wizard” to learn how to use hand-held scanners to capture and transmit inventory and sales data to Furniture Wizard.

Chapter 3: Using Wireless Scanners with Furniture Wizard

3.4 Using Wireless Scanners with Furniture Wizard

This section contains detailed instructions on how to perform each inventory and sales function with your CPT-8061 wireless scanner.

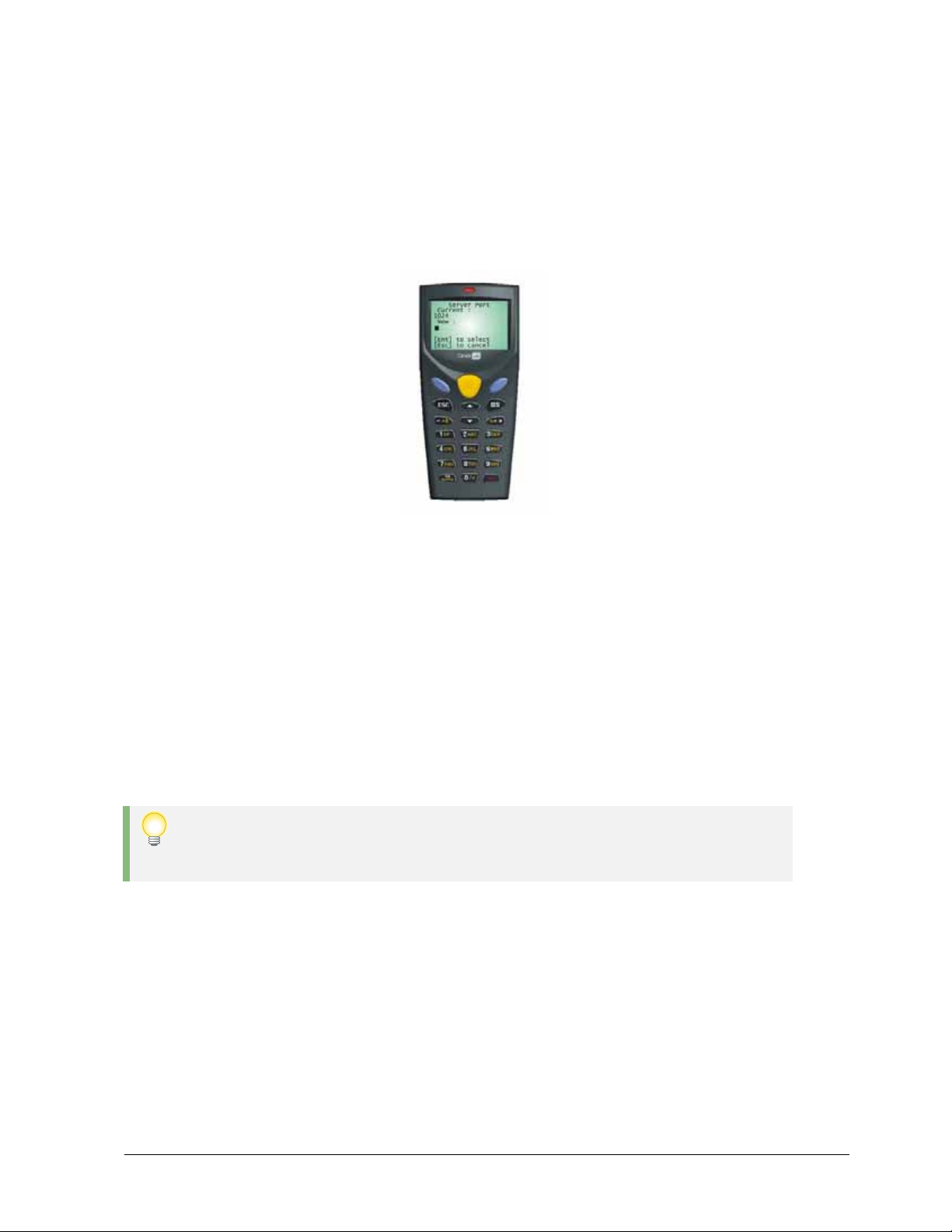

Figure 23: CPT-8061 Wireless Scanner

To use the CPT-8061 wireless scanner with Furniture Wizard, do the following:

1. Press the <Power> key to turn the scanner on. The Welcome to Scan-It banner appears in the information window. After approximately 30 seconds, the Scanner Password function (Figure 25) appears in the display window.

<Power> Key

Figure 24: Welcome Message

2. To log on to the Main Menu, enter your assigned password at Enter In User Password, followed by the

key .

20 Furniture Wizard CPT-8061 Wireless Scanner Use and Installation v10

Figure 25: Scanner Pas swo rd Function

3. After entering your password, the Main Menu is displayed in the scanner information window:

Figure 26: Firmware Main Menu

Chapter 3: Using Wireless Scanners with Furniture Wizard

The Firmware Main Menu contains a series of options that allow you to perform the following functions:

 1 Inventory - Allows you to take a physical inventory by pointing the scanner at

each labeled item and capturing the associated data. The inventory balances in Furniture Wizard are then automatically updated with the captured data.

 2 Sale - Allows you to store a running total of items for a customer and

automatically transfer the captured list to a sales invoice.

 3 Tag Floor - Allows you to retag items for sales or markdown. The scanner stores

a list of items you picked, and Furniture Wizard uses that data to quickly generate new tags.

 4 Transfer - Allows you to transfer items from one branch to another.  5 Receive PO - Allows you to Receive Purchase Orders.  6 Teach - Allows you to “ t e a c h ” Fu r n i t ur e W i z a r d t o associate your internally-assigned

bar codes for specific inventory items to the UPC (Universal Product Code) codes assigned by manufacturers to the items. This allows you to directly scan the manufacturer’s bar code labels when receiving purchased items.

 7 Stock Check – Allows you to perform “hands-free” inventory stock checks in

Furniture Wizard simply by scanning the labels on an item.

 8 Configure - Allows you to perform scanner configuration tasks that are detailed

and completed in Appendix A: Installation and Configuration.

 9 Utilities - Contains utilities that are used on an infrequent basis.

4. Each of the Wireless Scanner menu functions is explained in detail in the sections that follow. In general, you will perform the following tasks to select, perform and complete a Firmware menu function:

 Select the desired function on the Firmware menu, followed by the

key.

 To scan a bar-coded item and capture data, point the top of the scanner towards the

bar code label on item, and then press the yellow Scan key beneath the in formation window. The red button above the screen lights up when the scanner is in th e process of capturing data, and it beeps when it completes the data capture.

 After you have completed scanning of all desired inventory items, simultaneously

press the <FN Alpha> and <0> keys to transmit the captured data to Furniture Wizard.

Make sure you simultaneously press the <FN Alpha> and <0> keys at the same time while transmitting the captured data to Furniture Wizard! Failure to press <FN Alpha> at time of data transmission places the scanner in alpha mode, which cause s only a portion of the captured data to be properly transmitted to Furniture Wizard!

22 Furniture Wizard CPT-8061 Wireless Scanner Use and Installation v10

Figure 27: Transmitting Capture Dat a to Fu r nit ure W izard

Simultaneously Pre ss <FN Alpha> + <0>

 After the captured data has been transmitted by the scanner, it automatically

appears in the appropriate Furniture Wizard form. As directed, complete any remaining data entry tasks.

Chapter 3: Using Wireless Scanners with Furniture Wizard

3.5 Taking Physical Inventory - Inventory Function

(Selection 1)

The Inventory function in the scanner Main Menu (Selection 1) allows you to take a physical inventory by pointing the scanner at each labeled it em and capturing the associated data. After the captured data has been transmitted to Furniture Wizard, the inventory balances are automatically updated and adjusted accordingly.

Important Note!!!

Although you can scan several hundred items, in practice you should only scan a limited group of items at one time. For example, you might scan one area of the warehouse and then transmit the data. You can then append a group of items to the current inventory session.

To select, perform and complete this function, do the follow in g :

1. After logging on to the scanner, press <1> (Inventory), followed by the

2. T o scan a bar-coded item and capture data, point the top of the scanner towards the bar code label on item (Figure 42), and then press the yellow Scan key beneath the information window, making sure the red laser light is beaming across the bar code. The red button above the information window lights up when the scanner is in the process of capturing data, and it beeps when it completes the data capture.

key.

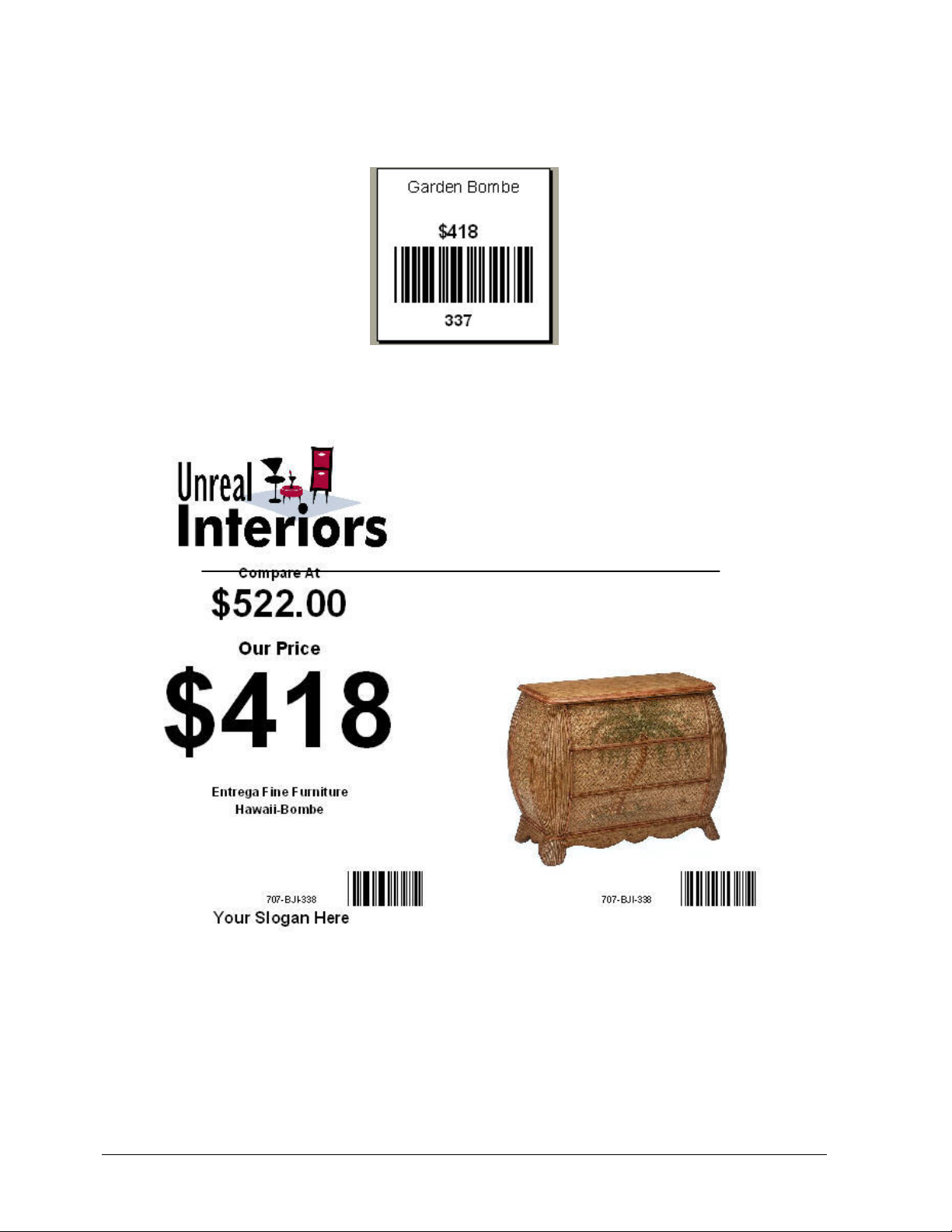

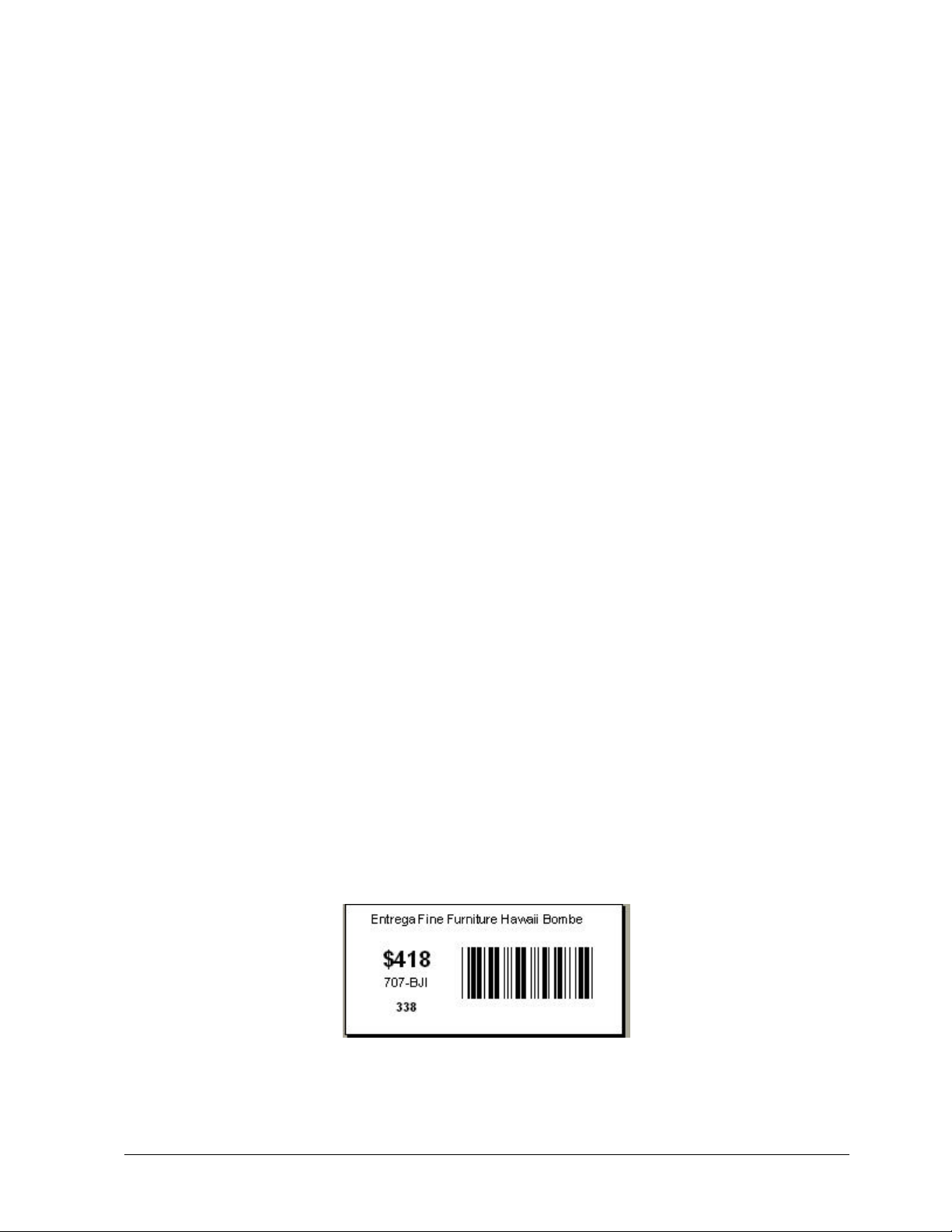

Figure 42: Small Tag

24 Furniture Wizard CPT-8061 Wireless Scanner Use and Installation v10

3. In general, the memory in the scanner unit is sufficient to store captured data for several hundred items. If you are capturing inventory data for a large number of units in a large physi cal space (for example, in a wareh ouse), transmit the captured data after compl eting the scan of a portion of the stored inventory. For example, transmit the captured data after you have completed scanning the northern section of a large warehouse, a corner section, etc.

Do Not Attempt to Scan An Entire Store or Warehouse Branch All at Once! You should do your inventory in smaller, easier to manage

segments, instead of trying to do the entire inventory branch at once. This will be easier for both you and the scanner to manage.

4. Press to view a listing of all scanned items. The total number of items scanned displays at the bottom of the scanner window.

5. To view more information about the item, press the Scroll Right key below the Backspace key to scroll right, and the Scroll Left key below the ESC key to scroll left.

6. Press to return to the single item view. The most recent item viewed is displayed. To display a different item, return to the list mode by pressing the Backspace key and use the arrow keys to select the item you want to view.

7. After you have completed scanning of all desired inventory items, simultaneously press the <FN Alpha> and <0> keys to transmit the captured data to Furniture Wizard.

8. After the scanner has transmitted the captured data, it automatically appears in the Reconcile Inventory function in Furniture Wizard (Figure 43). To complete the inventory transactions resulting from the captured data, specify the branch for which the inventory is being entered and click OK.

Figure 43: Inventory Reconciliation Form

Chapter 3: Using Wireless Scanners with Furniture Wizard

9. When using this function, Furniture Wizard also gives you the opportunity to append the scanned inventory transaction to a previous session. You would generally do this if you are performing an inventory in segments, and wish to add the transact ions scanned in a later session to those scanned in an earlier session.

 To do this, click Yes when the Append to an Existing Inventory Session dialog

box is displayed.

 If you do not wish to append the transaction to those scanned in an earlier session,

click No.

10. Clicking Show All displays all inventory scanned, while clicking Show Differences displays discrepancies.

11. Click Reconcile Report to create a report showing the quantity in stock according to Furniture Wizard, the number scanned (actual count) and any difference between the two numbers.

12. Take the necessary steps to determine the cause of the discrepancies.

13. When you have reconciled all of the data, or if you want to reconcile all except the unresolved discrepancies, do one the following:

 Select the check box next to each item you want to reconcile. Click an individual

item to select or “unselect” it.

 Click Tag All to select all items  Click UnTag All to remove all check marks.

14. Click Update Inventory to update Furniture Wizard according to the reconciliation report. Any inventory items with unresolved discrepancies will still be listed in the Inventory Reconciliation function.

15. Click Exit when finished.

26 Furniture Wizard CPT-8061 Wireless Scanner Use and Installation v10

+ 68 hidden pages

Wizard Ca Co Wireless Scanner, CPT-8061 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
