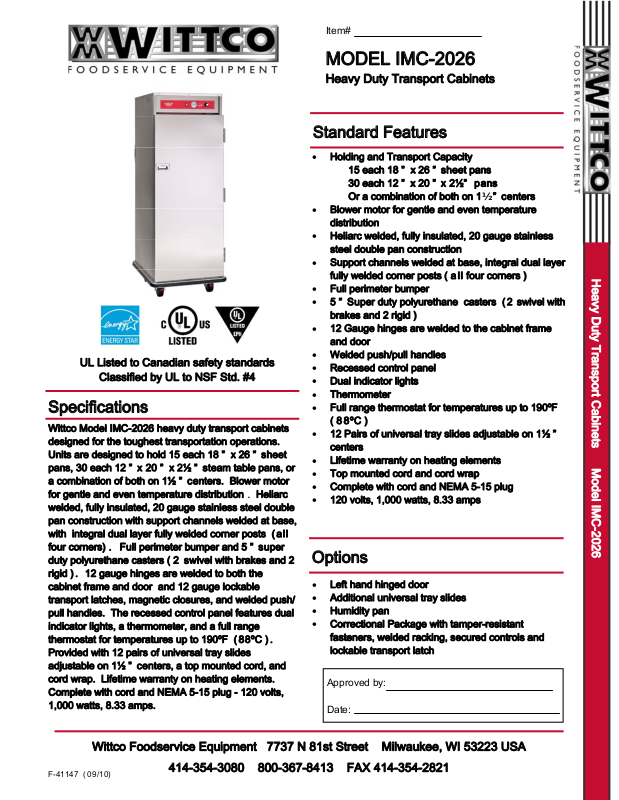

Wittco IMC-2026 Specifications
UL Listed to Canadian safety standards
Classified by UL to NSF Std. #4
Specifications
Wittco Model IMC-2026 heavy duty transport cabinets
designed for the toughest transportation operations.
Units are designed to hold 15 each 18 ” x 26 ” sheet
pans, 30 each 12 ” x 20 ” x 2½ ” steam table pans, or
a combination of both on 1½ ” centers. Blower motor
for gentle and even temperature distribution
welded, fully insulated, 20 gauge stainless steel double
pan construction with support channels welded at base,
with integral dual layer fully welded corner posts ( a l l
four corners) . Full perimeter bumper and 5 ” super
duty polyurethane casters ( 2 swivel with brakes and 2
rigid ) . 12 gauge hinges are welded to both the
cabinet frame and door and 12 gauge lockable
transport latches, magnetic closures, and welded push/
pull handles. The recessed control panel features dual
indicator lights, a thermometer, and a full range
thermostat for temperatures up to 190ºF ( 88ºC ) .
Provided with 12 pairs of universal tray slides
adjustable on 1½ ” centers, a top mounted cord, and
cord wrap. Lifetime warranty on heating elements.
Complete with cord and NEMA 5-15 plug - 120 volts,
1,000 watts, 8.33 amps.
. Heliarc
Item#
MODEL IMC-2026
Heavy Duty Transport Cabinets
Standard Features
• Holding and Transport Capacity
15 each 18 ” x 26 ” sheet pans
30 each 12 ” x 20 ” x 2½” pans
Or a combination of both on 1½ ” centers
• Blower motor for gentle and even temperature
distribution
• Heliarc welded, fully insulated, 20 gauge stainless
steel double pan construction
• Support channels welded at base, integral dual layer
fully welded corner posts ( a ll four corners )
• Full perimeter bumper
• 5 ” Super duty polyurethane casters ( 2 swivel with
brakes and 2 rigid )
• 12 Gauge hinges are welded to the cabinet frame
and door
• Welded push/pull handles
• Recessed control panel
• Dual indicator lights
• Thermometer
• Full range thermostat for temperatures up to 190ºF
(88ºC)
• 12 Pairs of universal tray slides adjustable on 1½ ”
centers
• Lifetime warranty on heating elements
• Top mounted cord and cord wrap
• Complete with cord and NEMA 5-15 plug
• 120 volts, 1,000 watts, 8.33 amps
Options
• Left hand hinged door
• Additional universal tray slides
• Humidity pan
• Correctional Package with tamper-resistant
fasteners, welded racking, secured controls and
lockable transport latch
Approved by:
Date:
Heavy Duty Transport Cabinets Model IMC-2026
Wittco Foodservice Equipment 7737 N 81st Street Milwaukee, WI 53223 USA
F-41147 ( 09/10)
414-354-3080 800-367-8413 FAX 414-354-2821
MODEL IMC-2026
Heavy Duty Transport Cabinets
Heavy Duty Transport Cabinets Model IMC-2026
F-41147 ( 09/10)
Capacity
Model No
IMC-2026 30 15
12 ” x 20 ” x2 ½ ”
Capacity
18 ” x 26 ” High Deep Wide
65 ”
1829mm
34 ”
864mm
29 ”
737mm
Shipping
Weight Volts Watts Amps
500#
227kg
120 1000 8.33
Note: In line with its policy to continually improve its products, Wittco Foodservice Equipment
reserves the right to change materials and specifications without notice.
Wittco Foodservice Equipment 7737 N 81st Street Milwaukee, WI 53223 USA
414-354-3080 800-367-8413 FAX 414-354-2821
© 2009 Wittco Foodservice Equipment
