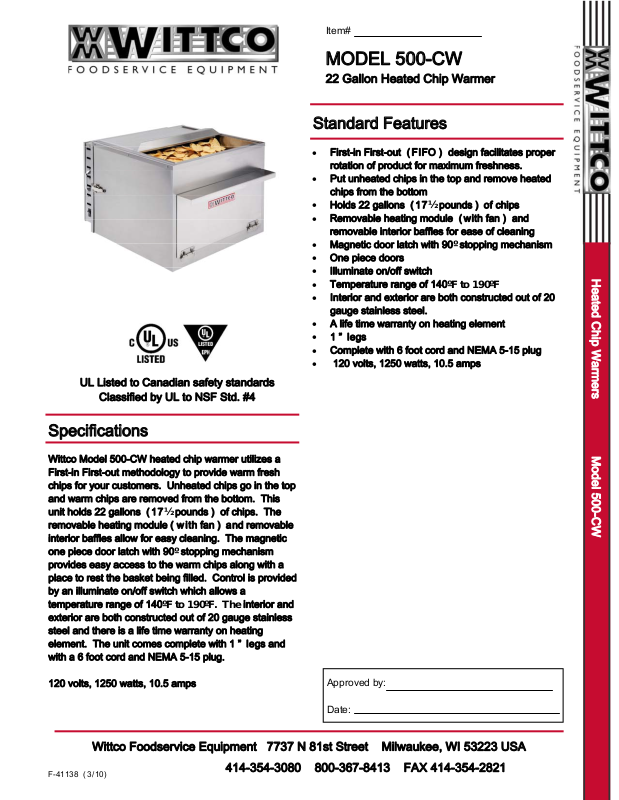

Wittco 500-CW Specifications

Item#

MODEL 500-CW

22 Gallon Heated Chip Warmer

Standard Features

• First-in First-out ( FIFO ) design facilitates proper
rotation of product for maximum freshness.

• Put unheated chips in the top and remove heated
chips from the bottom

• Holds 22 gallons ( 17½ pounds ) of chips

• Removable heating module (with fan ) and

removable interior baffles for ease of cleaning

• Magnetic door latch with 90º stopping mechanism

• One piece doors

• Illuminate on/off switch

• Temperature range of 140ºF to 190ºF

• Interior and exterior are both constructed out of 20

gauge stainless steel.

• A life time warranty on heating element

• 1” legs

• Complete with 6 foot cord and NEMA 5-15 plug

• 120 volts, 1250 watts, 10.5 amps

Heated Chip Warmers Model 500-CW

UL Listed to Canadian safety standards

Classified by UL to NSF Std. #4

Specifications

Wittco Model 500-CW heated chip warmer utilizes a
First-in First-out methodology to provide warm fresh
chips for your customers. Unheated chips go in the top
and warm chips are removed from the bottom. This

unit holds 22 gallons ( 17½ pounds ) of chips. The

removable heating module ( w ith fan ) a nd removable
interior baffles allow for easy cleaning. The magnetic

one piece door latch with 90º stopping mechanism

provides easy access to the warm chips along with a
place to rest the basket being filled. Control is provided
by an illuminate on/off switch which allows a

temperature range of 140ºF to 190ºF. The interior and

exterior are both constructed out of 20 gauge stainless
steel and there is a life time warranty on heating
element. The unit comes complete with 1 ” legs and
with a 6 foot cord and NEMA 5-15 plug.

120 volts, 1250 watts, 10.5 amps

Approved by:

Wittco Foodservice Equipment 7737 N 81st Street Milwaukee, WI 53223 USA

F-41138 ( 3/10)

Date:

414-354-3080 800-367-8413 FAX [phone]

MODEL 500-CW

22 Gallon Heated Chip Warmer

Heated Chip Warmers Model 500-CW

Model No Capacity High Deep Wide

500-CW

Note: In line with its policy to continually improve its products, Wittco Foodservice Equipment

Wittco Foodservice Equipment 7737 N 81st Street Milwaukee, WI 53223 USA

F-41138 ( 3/10)

Shipping

Weight Volts Watts Amps

22 Gallons

Or

17½ Pounds

20.25 ”

514mm

27.5 ”

699mm

25.25 ”

641mm

115#

52kg

120 1250 10.5

reserves the right to change materials and specifications without notice.

414-354-3080 800-367-8413 FAX [phone]

© 2009 Wittco Foodservice Equipment

Printed in the USA
