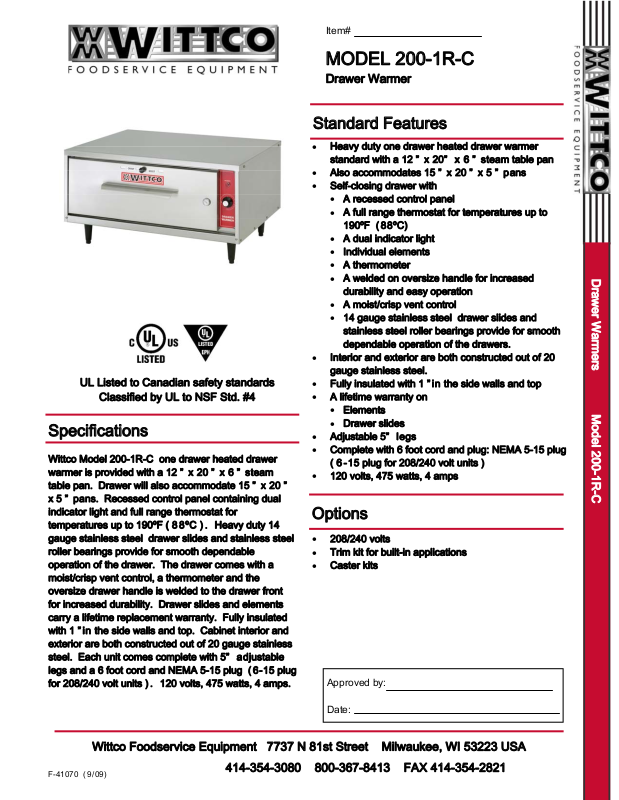

Wittco 200-1R-C Specifications
UL Listed to Canadian safety standards
Classified by UL to NSF Std. #4
Specifications
Wittco Model 200-1R-C one drawer heated drawer
warmer is provided with a 12 ” x 20 ” x 6 ” steam
table pan. Drawer will also accommodate 15 ” x 20 ”
x 5 ” pans. Recessed control panel containing dual
indicator light and full range thermostat for
temperatures up to 190ºF ( 8 8 ºC ) . Heavy duty 14
gauge stainless steel drawer slides and stainless steel
roller bearings provide for smooth dependable
operation of the drawer. The drawer comes with a
moist/crisp vent control, a thermometer and the
oversize drawer handle is welded to the drawer front
for increased durability. Drawer slides and elements
carry a lifetime replacement warranty. Fully insulated
with 1 ” in the side walls and top. Cabinet interior and
exterior are both constructed out of 20 gauge stainless
steel. Each unit comes complete with 5” a djustable
legs and a 6 foot cord and NEMA 5-15 plug ( 6 -15 plug
for 208/240 volt units ) . 120 volts, 475 watts, 4 amps.
Item#
MODEL 200-1R-C
Drawer Warmer
Standard Features
• Heavy duty one drawer heated drawer warmer
standard with a 12 ” x 20” x 6 ” steam table pan
• Also accommodates 15 ” x 20 ” x 5 ” pans
• Self-closing drawer with
• A recessed control panel
• A full range thermostat for temperatures up to
190ºF ( 88ºC)
• A dual indicator light
• Individual elements
• A thermometer
• A welded on oversize handle for increased
durability and easy operation
• A moist/crisp vent control
• 14 gauge stainless steel drawer slides and
stainless steel roller bearings provide for smooth
dependable operation of the drawers.
• Interior and exterior are both constructed out of 20
gauge stainless steel.
• Fully insulated with 1 ” in the side walls and top
• A lifetime warranty on
• Elements
• Drawer slides
• Adjustable 5” legs
• Complete with 6 foot cord and plug: NEMA 5-15 plug
( 6 -15 plug for 208/240 volt units )
• 120 volts, 475 watts, 4 amps
Options
• 208/240 volts
• Trim kit for built-in applications
• Caster kits
Approved by:
Drawer Warmers Model 200-1R-C
Wittco Foodservice Equipment 7737 N 81st Street Milwaukee, WI 53223 USA
F-41070 ( 9/09)
Date:
414-354-3080 800-367-8413 FAX 414-354-2821
MODEL 200-1R-C
Drawer Warmer
Drawer Warmers Model 200-1R-C
Model No
200-1R-C
Note: In line with its policy to continually improve its products, Wittco Foodservice Equipment
Wittco Foodservice Equipment 7737 N 81st Street Milwaukee, WI 53223 USA
F-41070 ( 9/09)
Deduct 5” (127mm) in height for
legs if using in a built-in
Capacity
Per Drawer High Deep Wide
12 ” x 20 ”x6 ”
Or
15 ” x 20 ” x5 ”
16.25 ”
413mm
22.25 ”
572mm
27.75 ”
705mm
Shipping
Weight Volts Watts Amps
84#
38kg
reserves the right to change materials and specifications without notice.
414-354-3080 800-367-8413 FAX 414-354-2821
© 2009 Wittco Foodservice Equipment
120 475 4
Printed in the USA
