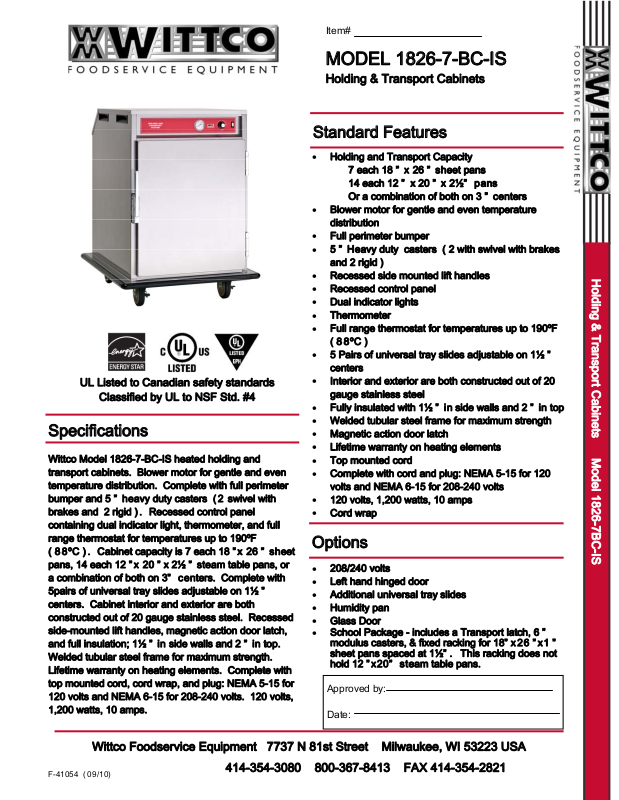

Wittco 1826-7-BC-IS Specifications
UL Listed to Canadian safety standards
Classified by UL to NSF Std. #4
Specifications
Wittco Model 1826-7-BC-IS heated holding and
transport cabinets. Blower motor for gentle and even
temperature distribution. Complete with full perimeter
bumper and 5 ” heavy duty casters ( 2 swivel with
brakes and 2 rigid ) . Recessed control panel
containing dual indicator light, thermometer, and full
range thermostat for temperatures up to 190ºF
( 8 8ºC ) . Cabinet capacity is 7 each 18 ” x 26 ” sheet
pans, 14 each 12 ” x 20 ” x 2½ ” steam table pans, or
a combination of both on 3” centers. Complete with
5pairs of universal tray slides adjustable on 1½ ”
centers. Cabinet interior and exterior are both
constructed out of 20 gauge stainless steel. Recessed
side-mounted lift handles, magnetic action door latch,
and full insulation; 1½ ” in side walls and 2 ” in top.
Welded tubular steel frame for maximum strength.
Lifetime warranty on heating elements. Complete with
top mounted cord, cord wrap, and plug: NEMA 5-15 for
120 volts and NEMA 6-15 for 208-240 volts. 120 volts,
1,200 watts, 10 amps.
Item#
MODEL 1826-7-BC-IS
Holding & Transport Cabinets
Standard Features
• Holding and Transport Capacity
7 each 18 ” x 26 ” sheet pans
14 each 12 ” x 20 ” x 2½” pans
Or a combination of both on 3 ” centers
• Blower motor for gentle and even temperature
distribution
• Full perimeter bumper
• 5 ” Heavy duty casters ( 2 with swivel with brakes
and 2 rigid )
• Recessed side mounted lift handles
• Recessed control panel
• Dual indicator lights
• Thermometer
• Full range thermostat for temperatures up to 190ºF
(88ºC)
• 5 Pairs of universal tray slides adjustable on 1½ ”
centers
• Interior and exterior are both constructed out of 20
gauge stainless steel
• Fully insulated with 1½ ” in side walls and 2 ” in top
• Welded tubular steel frame for maximum strength
• Magnetic action door latch
• Lifetime warranty on heating elements
• Top mounted cord
• Complete with cord and plug: NEMA 5-15 for 120
volts and NEMA 6-15 for 208-240 volts
• 120 volts, 1,200 watts, 10 amps
• Cord wrap
Options
• 208/240 volts
• Left hand hinged door
• Additional universal tray slides
• Humidity pan
• Glass Door
• School Package - includes a Transport latch, 6 ”
modulus casters, & fixed racking for 18” x 26 ” x 1 ”
sheet pans spaced at 1½” . This racking does not
hold 12 ” x20” steam table pans.
Approved by:
Date:
Holding & Transport Cabinets Model 1826-7BC-IS
Wittco Foodservice Equipment 7737 N 81st Street Milwaukee, WI 53223 USA
F-41054 ( 09/10)
414-354-3080 800-367-8413 FAX 414-354-2821
MODEL 1826-7-BC-IS
Holding & Transport Cabinets
Holding & Transport Cabinets Model 1826-7-BC-IS
Capacity
Model No
1826-7-BC-IS 14 7
12 ” x 20 ” x2½ ”
Note: In line with its policy to continually improve its products, Wittco Foodservice Equipment
reserves the right to change materials and specifications without notice.
Wittco Foodservice Equipment 7737 N 81st Street Milwaukee, WI 53223 USA
F-41054 ( 09/10)
Capacity
18 ” x 26 ” High Deep Wide
40 ”
1016mm
33.75 ”
857mm
29 ”
737mm
Shipping
Weight Volts Watts Amps
208#
94 kg
120 1200 10
414-354-3080 800-367-8413 FAX 414-354-2821
© 2009 Wittco Foodservice Equipment
Printed in the USA
