Wisycom MTP41SUS8 User Manual
MTP41S User Manual
Wideband Wireless
Professional Pocket
Transmitter
SN: ________________
Rev.04 (rif. FW 1.30.0P)
Date: 19 April 2018
MTP41S User Manual
2
❶
Switch to enable wireless transmission it
also indicates the battery status and
peak/mute operation (with PTT)
❷
LED to show information on RF
transmission/battery status/modulation
peek/PTT status
❸
Oled display for transmitter setup
❹
<ch>, <gain> and 3 positions <selector>
❺
Battery holder
❻
Cover (to open push side buttons)
Turn on wireless:
Move the Wireless power switch in
“I” position:
A green blinking gives you
indications on battery status.
1
Open MIC Body:
Push the side buttons and flip down the cover, to access
internal setup controls and batteries.
Turn on display:
Push <select switch> and hold it.
2
3
5
6
4
INTRODUCTION
“MTP41S is an extremely small and light pocket transmitter especially designed for professional
wireless microphone applications”
Very easy and quick to use thanks to OLED display, dedicated buttons and a joggle selector.
MTP41S benefits also of the latest Wisycom RF technology along with an enhanced robustness
against noise and inter-modulation.
Fig. 1
1.
Fig. 2
MTP41S User Manual
3
SAFETY INSTRUCTION
Read this safety instruction and the manual first
Follow all instructions and information.
Do not lose this manual.
Do not use this apparatus under the rain or near the water.
Do not install the apparatus near heaters or in hot environments, do not use outside the
operating temperature range.
Do not open the apparatus, only qualified service technician are enabled to operate on it. The
apparatus needs servicing when it is not properly working or is damaged by liquids, moisture or
other objects are fallen in the apparatus.
Use only accessories or replacement parts authorized or specified by the manufacturer.
Clean the apparatus only with dry cloths, do not use liquids.
Report the serial number and the purchasing date in front of the manual. It is needed to have
proper replacement parts or accessories from the manufacturer.
When replacement parts are needed, use only replacement parts authorized from the
manufacturer. Substitution with not authorized parts could result in electric shock, hazards or
fire.
Keep attention on all the labels with warnings or hazards on the apparatus.
MTP41S User Manual
4
Band
Range
(MHz)
Code
1 470-640 MHz
470-547
507
547-640
590
2 566-798 MHz
566-672
616
672-798
732
3 510-698 MHz
510-595
552
595-698
646
8 940-960 MHz
940-960
950
Antenna Code label
LED INDICATIONS
Led indication with LED RGB (red, green, blue) in front led (❷):
- Wireless transmission status: Green when RF transmission power is on (on power on the
device, this LED is red and become green when the RF transmission power is on).
- Battery status: green steady, slowly blinking (< 25%), quickly blinking (<12%).
- Modulation peek (if activated and the limiter is disabled): red.
- Ptt status: red if active (push to talk “pushed”).
- Limiter in action (if activated): blue.
BATTERIES
MTP41S is working with 1 AA alkaline or NiMH or Lithium batteries (select correct type on setup
controls). Battery status can be checked on internal OLED display or looking the LED status on front
❷.
BATTERY SUBSTITUTION
Open transmitter cover and insert the battery following polarity indicated.
ANTENNAS
MTP41S is supplied with a couple of antennas. According to the working band, different antenna
models can be supplied. All the models have black cap and a black label with code in white colour.
For more details see the below table.
In order to help the user to connect the correct antenna, the
display shows the antenna code during the switch on of the
transmitter and during the tuning selection after a change of
frequency range. (ex. if the user changes the frequency from 566
to 672 MHz, the display shows Ant. 732)
MTP41S User Manual
5
A
B C D
+
-
CLICK
POWERING UP
Move the wireless power switch (see Fig. 1) in “I” position to activate wireless transmission: the
front LED ❷ lights up red and then green when the RF transmission power is on (blinking when
battery is low!)
SETUP CONTROL
Open transmitter Body to access the “display and controls” area (Fig. 3):
A. Graphics Display (OLED)
B. Channel selection buttons (ch)
C. MIC gain setup buttons (gain)
D. 3 position selector (up / down / click)
Fig. 3
OLED Power UP (OLED IS IN OFF CONDITION)
Pushing down selector (click), oled turns on. A first menu with Serial Number and brand logo is
displayed, then <status> menu enters automatically.
Turn on the transmitter pushing and holding selector (click) > 2 sec, Serial Number menu is displayed
till (-/+) is selected.
OLED Power DOWN (OLED IS IN ON CONDITION)
Pushing and holding selector (click) > 2 sec, display is turned off.
Display turns off automatically after 15 sec, unless in <AUDIO> menu (with audio level < 5% from
nominal).
MTP41S User Manual
6
Preset parameters
* Depending on the Power Profile
DISPLAY MENU
STATUS
PRESET
Current / Load
Save
FACTORY/USER/PRESET1/2/3/4/5/6/7/8
USER
MENU
TUNING
AUDIO

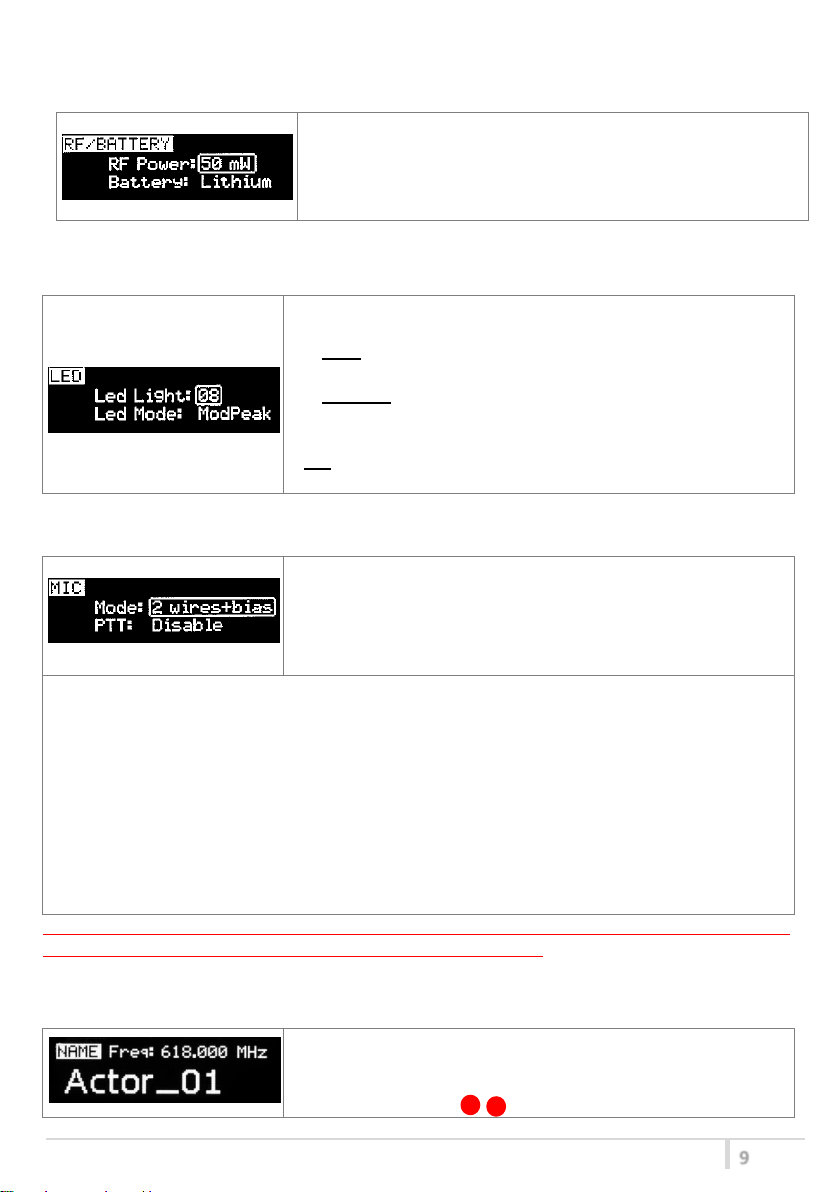

RF/Battery
LED
CH 00-59
GR 00-39
Freq
AF In Gain
AF Level
Phase 0/180
HP Filt
Noise R.
Limiter
RF Power
Battery Alkaline/NiMH/Lithium
Led Light 0÷16
Led Mode
according to the
frequency range of
the transmitter
-60 ÷ +40 dB (1dB step)
-54 ÷ +46 dBu (1dBu step)
Flat/60/80/120/170/250/400Hz
ENR-Wisy/ENC-Wisy
On/Off
10/50mW *
None/ModPeak/PTT
MIC
Name

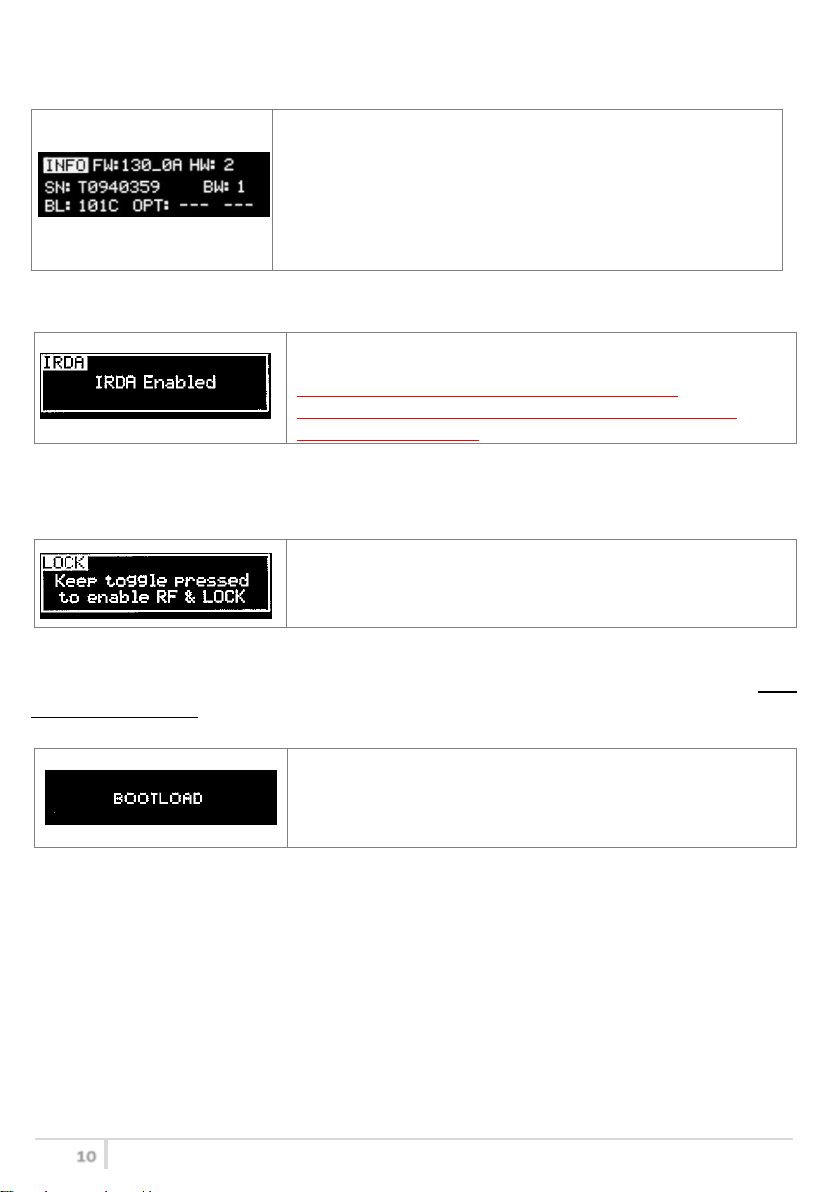

INFO
IRDA
Lock
Mode
PTT

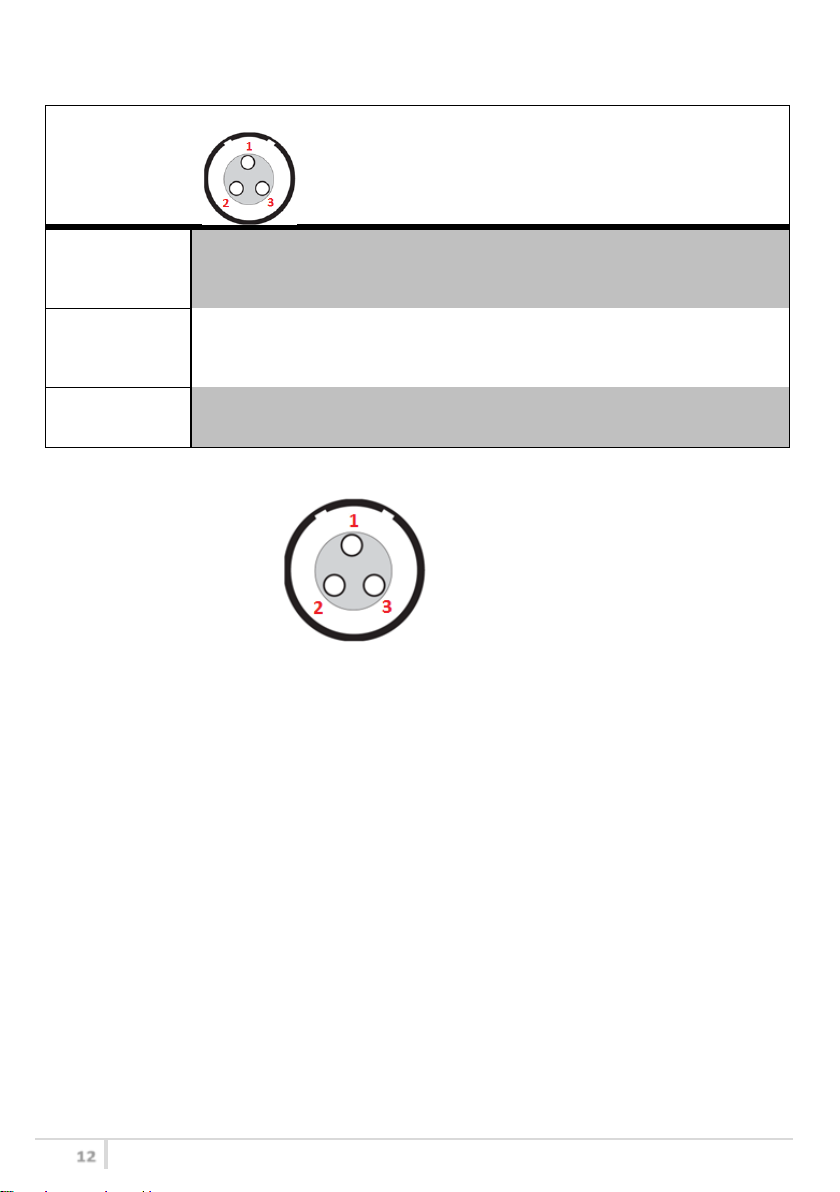

2 wires/2wires+bias/3 wires
Disable/Normal/Muting/No Data
MTP41S User Manual
7
+
-
CLICK
First one gives information of antenna to be used.
The number displayed is the center-band of the antenna to be
used.
The second menu gives indication on product:
- product id (MTP41),
- the firmware release (ex. 1.30.0A),
- the band in extended format and
- the serial number.
Keep selector pushed to hold this menu!
Major info are displayed:
- Current channel/group (i.e. CH:00 GR:39)
- Current frequency (i.e. 566.000 MHz)
- Mic gain (i.e. AF: +00dB) and high pass filter (i.e. HP:60 Hz)
- If in the top right there is “RF 50” or “RF 10”, the transmission is
active respectively at 50mW or 10mW
- On left side, the battery bar is displayed
MTP41S can recall configuration presets.
“FACTORY” recalls the Wisycom factory configuration.
“USER” recalls the user configuration (the transmitter configuration
is copied into the USER using the “save to” submenu).
All “USER” menus are not locked by default, thus this is quick way to
unlock features!
When the user changes some parameters from the PRESET
configuration (for less than frequency) an asterisk appears on the
top-right corner until a save command is executed.
Using <+/-> selector all menus can be accessed in sequence, push <click> to enter edit mode:
<+/-> to setup field
<click> again to confirm changes and exit.
exit without confirmation if no button is pressed after a few seconds time out.
<START UP> menu
These menus are displayed during power up for few seconds.
<STATUS> menu
This is the first menu displayed after power up.
<PRESET> menu
This menu can be entered by scrolling selector

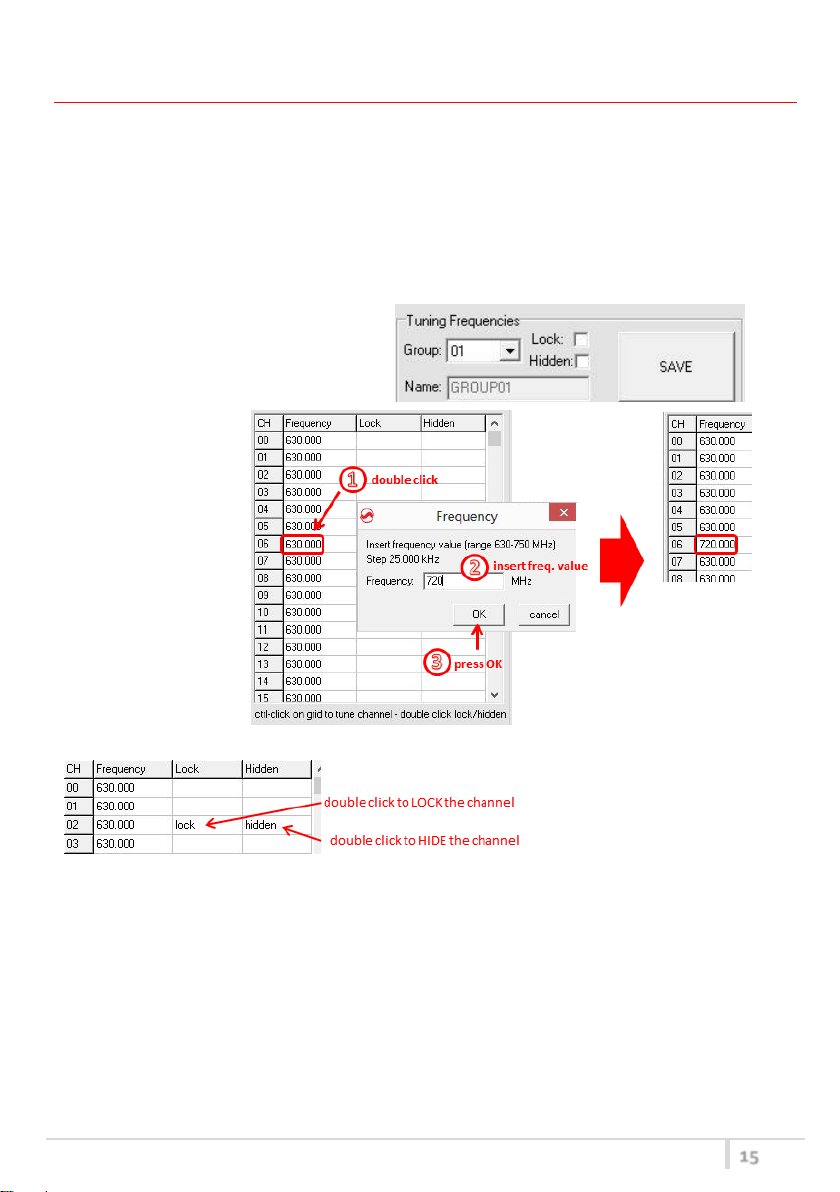

The other 8 configuration presets are user programmable thru the infrared and the PC interface (using
the programmer UPK 300/UPK
We provide the device with some preset configurations specifically designed for certain types of
microphone or applications (it’s possible to change these presets in any time using the TX manager).
All parameters can be “left unchanged”, “changed” or “changed and lock”, allowing a very flexible way
to pre-program MTP41S configuration.
Mini
or the receiver MRK950/MRK960).
MTP41S User Manual
8
In this menu current channel/group and frequencies can be setup.
The name of the group is shown on the top right of the display.
Sync group is a quick self-settable channel synchronized by receiver
(with SYNC group, on the top right of the display is shown the name
of the synchronized receiver).
Use the selector to change values (<+/->) and <click> to confirm.
Using quick channel setup buttons (<CH>), it is possible to enter
quickly in the tuning menu. Note that the menu has a different
layout (see the side image)
The sensitivity of the audio input is settable between “AF Gain”
(measured in dB) or “AF Level” (measured in dBu).
To help proper audio gain setting, an audio bar is supplied (with
maximum peak indicator) indicating the headroom to audio peak
(0 dB , nominal deviation 40KHz). Set the gain, with the maximum
input signal, avoiding the peak on the audio bar.
TRY TO SETUP TO HAVE A MAX PEAK HOLD BAR CLOSE TO -6dB.
Using quick gain setup buttons (<GAIN>), it is possible to enter
quickly in the audio gain menu. Note that the menu has a different
layout (see the side image)
The second <AUDIO> menu allows to set:
- Audio phase: 0° or 180°
Note: Since common "2-wires + bias" microphones invert the
phase, when the MIC mode of the transmitter is set to “2wires+
bias”, the phase is automatically inverted and so the complete
system (MTP4x+MIC) has 0° phase (an asterisk appear on the
display near the phase to indicate that the phase was inverted).
- High Pass Filter: applies different audio HP filter: Flat/ 60Hz/
80Hz/ 120Hz/ 170Hz/ 250Hz/ 400Hz.
The third <AUDIO> menu allows to set:
-Noise reduction:
ENR: designed for maximum noise reduction
ENC: designed for maximum audio fidelity (use this in
case of special vocal application or to remote
instruments)
-Limiter: if is set “On”, an input audio signal above the peak
threshold (up to 30 dB above peak) is not cut but attenuate,
without lost quality. The limiter acts as a variable attenuator
(thanks to the feedback system), maintaining a distortion
<3%.
When the limiter intervene, the front led turns blue.
If this parameter is set “Off”, the limiter is disable.
<TUNING> menu
This menu can be entered by scrolling selector or using quick channel setup buttons (<ch>).
<AUDIO> menu
In the AUDIO menu are shown all the audio parameters (this menu can be entered by pushing <+/->).
