WisyCom MTP40 Lite User Manual

MTP40 Lite User Manual

Wideband Wireless

Professional Pocket
Transmitter

SN: ________________

Rev.02 (rif. FW 1.10.0L)

Author: Support

Date: 22 October 2014

MTP40

MTP40 Lite User Manual

Rev.02

2

Front LED color is the same

of power switch.

2

3

5

6

4

INTRODUCTION

“MTP40

Lite

is an extremely small and light pocket transmitter especially designed for

professional wireless microphone applications”

Very easy and quick to use thanks to OLED display, dedicated buttons and a joggle selector.

MTP40 Lite benefits also of the latest Wisycom RF technology along with an enhanced
robustness against noise and inter-modulation.

Fig. 1

❶

Switch to enable wireless transmission, it
also indicates the battery status and
peak/mute operation (with PTT)

❷

In order to allow front visibility same colour
information on (1) is replicated with this LED

❸

Oled display for transmitter setup

❹

<ch>, <gain> and 3 positions <selector>

❺

Battery holder

❻

Cover (to open push side buttons)

1. Fig. 2

Turn on wireless:

Move the Wireless power switch in

“I” position: switch becomes green

(red indicate PTT/MUTE).

A green blinking gives you
indications on battery status.

1

Open MIC Body:

Push the side buttons and flip down the cover, to access
internal setup controls and batteries.

Turn on display:

Push <select switch> and hold it.

MTP40 Lite User Manual

Rev.02

3

SAFETY INSTRUCTION

 Read this safety instruction and the manual first
 Follow all instructions and information.
 Do not lose this manual.
 Do not use this apparatus under the rain or near the water.
 Do not install the apparatus near heaters or in hot environments, do not use outside the

operating temperature range.

 Do not open the apparatus, only qualified service technician are enabled to operate on it.

The apparatus needs servicing when it is not properly working or is damaged by liquids,
moisture or other objects are fallen in the apparatus.

 Use only accessories or replacement parts authorized or specified by the manufacturer.
 Clean the apparatus only with dry cloths, do not use liquids.
 Report the serial number and the purchasing date in front of the manual. It is needed to

have proper replacement parts or accessories from the manufacturer.

 When replacement parts are needed, use only replacement parts authorized from the

manufacturer. Substitution with not authorized parts could result in electric shock,
hazards or fire.

 Keep attention on all the labels with warnings or hazards on the apparatus.

LED INDICATIONS

Led indication with bi-colour led (red & green) on wireless power switch (1) and in front led (2):

- Wireless transmission status: green when RF transmission power is on.

- Battery status: green steady, slowly blinking (< 25%), quickly blinking (<12%).

- Modulation peek (if activated): red.

- Ptt status: red if active (push to talk “pushed”).

BATTERIES

MTP40 Lite is working with 2 AA alkaline or NiMH batteries (select correct type on setup
controls). Battery status can be checked on internal OLED display or looking to LED status on

power switch (see 1.1).

BATTERY SUBSTITUTION

 Open transmitter cover and insert batteries following polarity indicated.
Attention: always replace both the batteries

MTP40 Lite User Manual

Rev.02

4

POWERING UP

Move the wireless power switch (see Fig. 1) in “I” position to activate wireless transmission: a
green LED lights up (blinking when battery is low!)

SETUP CONTROL

Open transmitter Body to access the “display and controls” area (Fig. 3):

A. Graphics Display (OLED)
B. Channel selection buttons (ch)
C. MIC gain setup buttons (gain)
D. 3 position selector (up / down / click)

Fig. 3

OLED POWER UP (OLED IS IN OFF CONDITION)

Pushing down selector (click), oled turns on. A first menu with serial NO and brand logo is
displayed, then <status> menu enters automatically.

Pushing and holding selector (click) > 2 sec, serial NO menu is displayed till (-/+) is selected.

OLED POWER DOWN (OLED IS IN ON CONDITION)

Pushing and holding selector (click) > 2 sec, display is turned off.

Display turns off automatically after 15 sec, unless in <IRDA> menu or in <AUDIO> menu (with
audio level < 5% from nominal).

+

-

CLICK

A

B C D

MTP40 Lite User Manual

Rev.02

5

DISPLAY MENU

Setup menu are accessed in sequence:

MENU

STATUS

PRESET

Current

Load from

FACTORY/USER/PRESET1/2/3/4/5/6/7/8

Save to

USER

TUNING

CH 00-59

GR 00-39

Freq

G: 470.000÷566.000
H: 542.000÷640.000

I: 566.000÷686.000
L: 678.000÷798.000
K:520.000÷640.000

Name

AUDIO

AF In Gain

-20÷40 dB (1dB step)

HPass Filter

flat/60/80/120/170/250/400Hz

MIC

Mode

2 wires/2wires+bias/3 wires/

2wires&pha/2 w + bias&pha

Phase

0/180

PTT

Disable/Normal/Muting/No Data

RF Power

Power

High/Low

NOISE RED

ENC-Wisy/ENR-Wisy

OTHERS

Led Light 0-16

Led Mode None/ModPeak/PTT

Battery Alkaline/NiMH

IRDA

Lock

Preset parameters

MTP40 Lite User Manual

Rev.02

6

+

-

CLICK

Using <+/-> selector all menus can be accessed in sequence, push <click> to enter edit mode:

<+/-> to setup field
<click> again to confirm changes and exit.
exit without confirmation if no button is pressed after a few seconds time out.

<START UP> menu

These menus are displayed during power up for few seconds.

First one gives information of antenna to be used. The
number displayed is the center-band of the antenna to
be used.

Keep selector pushed to hold
this menu!

The second menu gives indication on product:
product id (MTP40), a letter which identify the
working band

G

470-566 MHz

H

542-640 MHz

I

566-686 MHz

L

678-798 MHz

K

520-640 MHz

a number which identify the hardware version, the
firmware release (110.0F), the band in extended format
and the serial number.

<STATUS> menu

This is the first menu displayed after power up.

Major info are displayed:

- Current channel/group (i.e. CH:00 GR:08)

- Current frequency (i.e. 566.075 MHz)

- Mic gain (i.e. AF: -04 dB) and high pass filter (i.e.

HP:60 Hz)

- “RF H” or “RF L” on top right if RF transmission is

on at high or low power respectively

- On bottom battery bar is displayed

<PRESET> menu

This menu can be entered by scrolling selector, or pushing at the same time both quick
channel setup buttons (<ch> & <gain>).

MTP40 Lite can recall configuration presets. “FACTORY”
recall the Wisycom factory configuration. “USER” recall

the user configuration (the transmitter configuration is

copied into the USER using the “save to” submenu). All
“USER” menus are not locked by default,

thus this is quick way to unlock features!

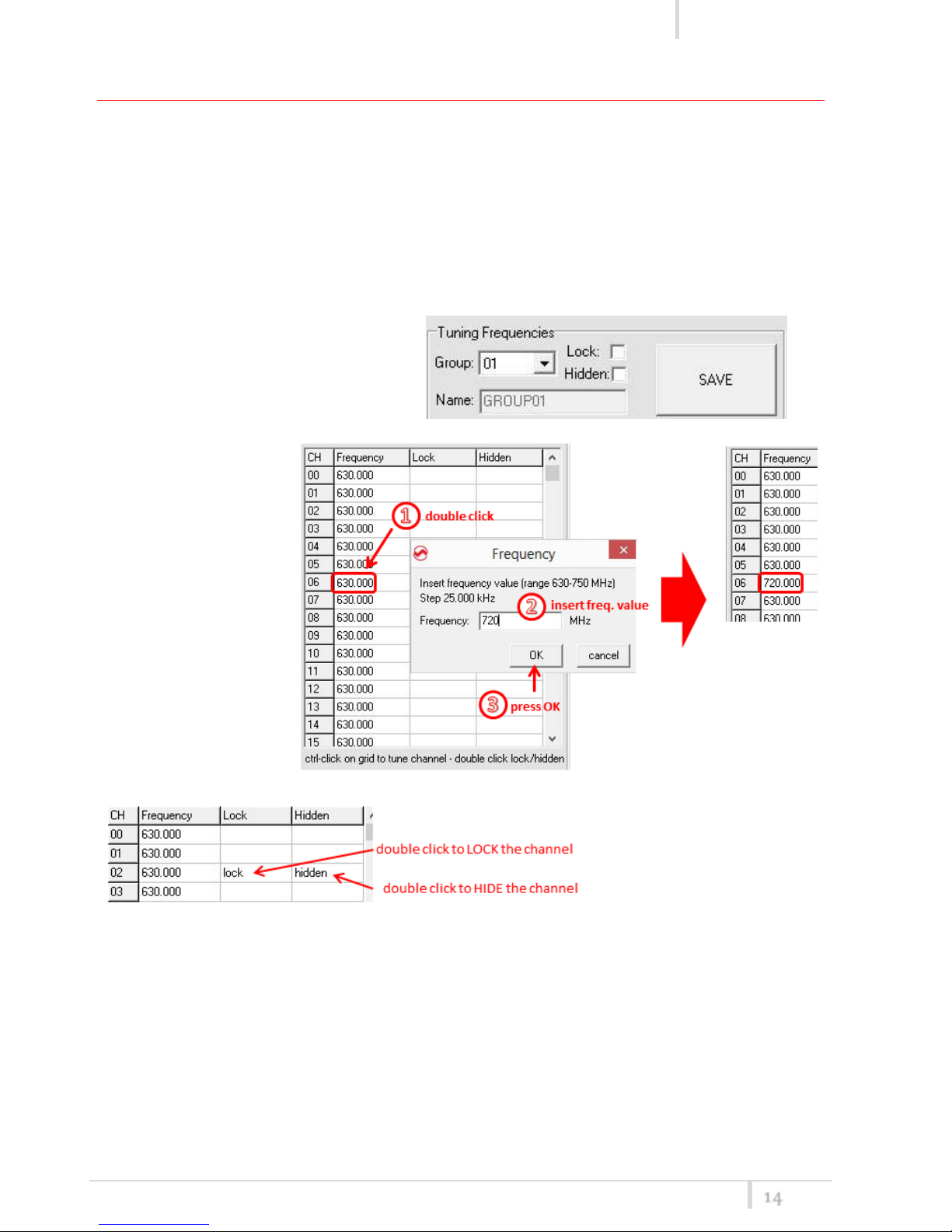

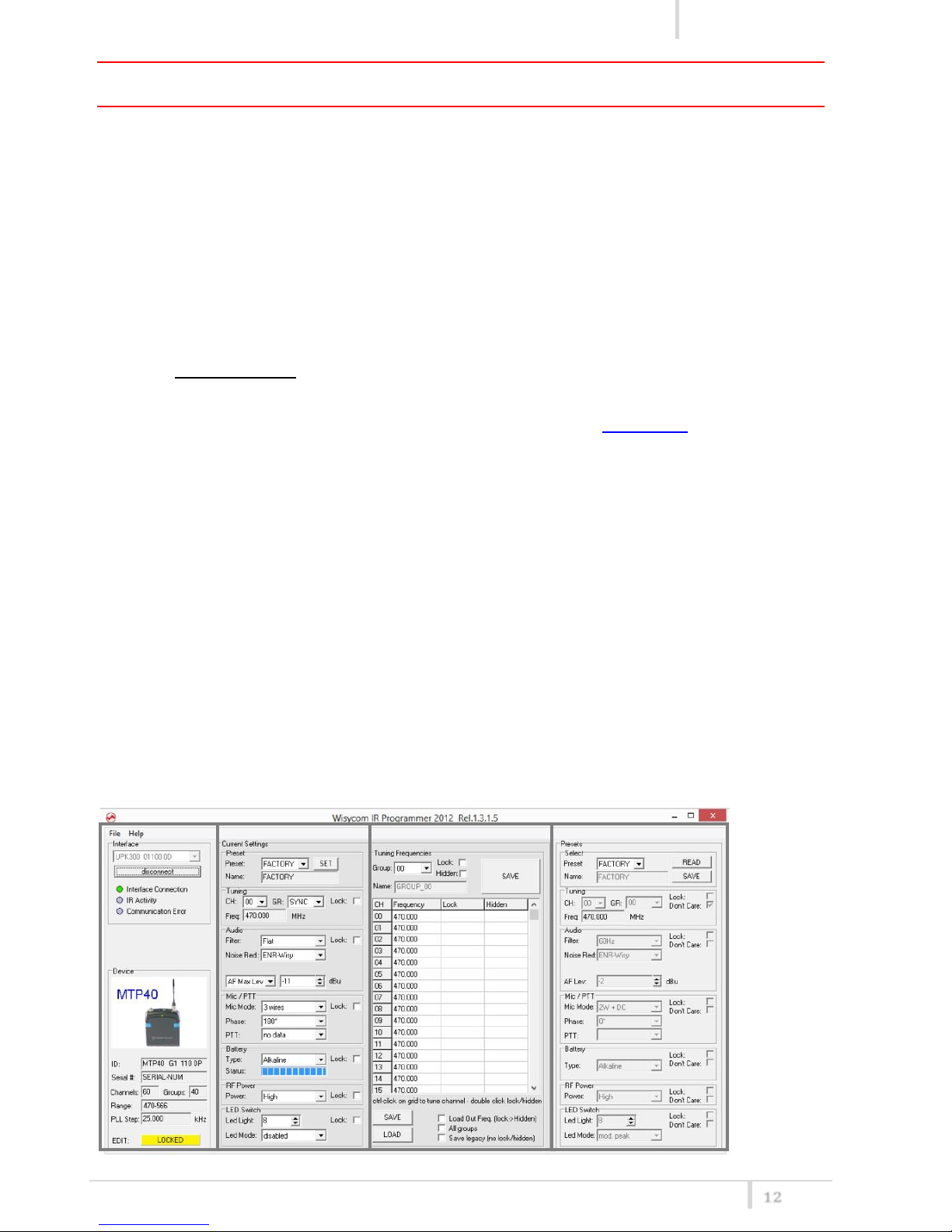

The other 8 configuration presets are user programmable thru the infrared and the

PC interface (using the programmer UPK 300 or the receiver MRK950/MRK960).

All parameters can be “left unchanged”, “changed” or “changed and lock”,

allowing a very flexible way to pre-program MTP40 Lite configuration.

MTP40 Lite User Manual

Rev.02

7

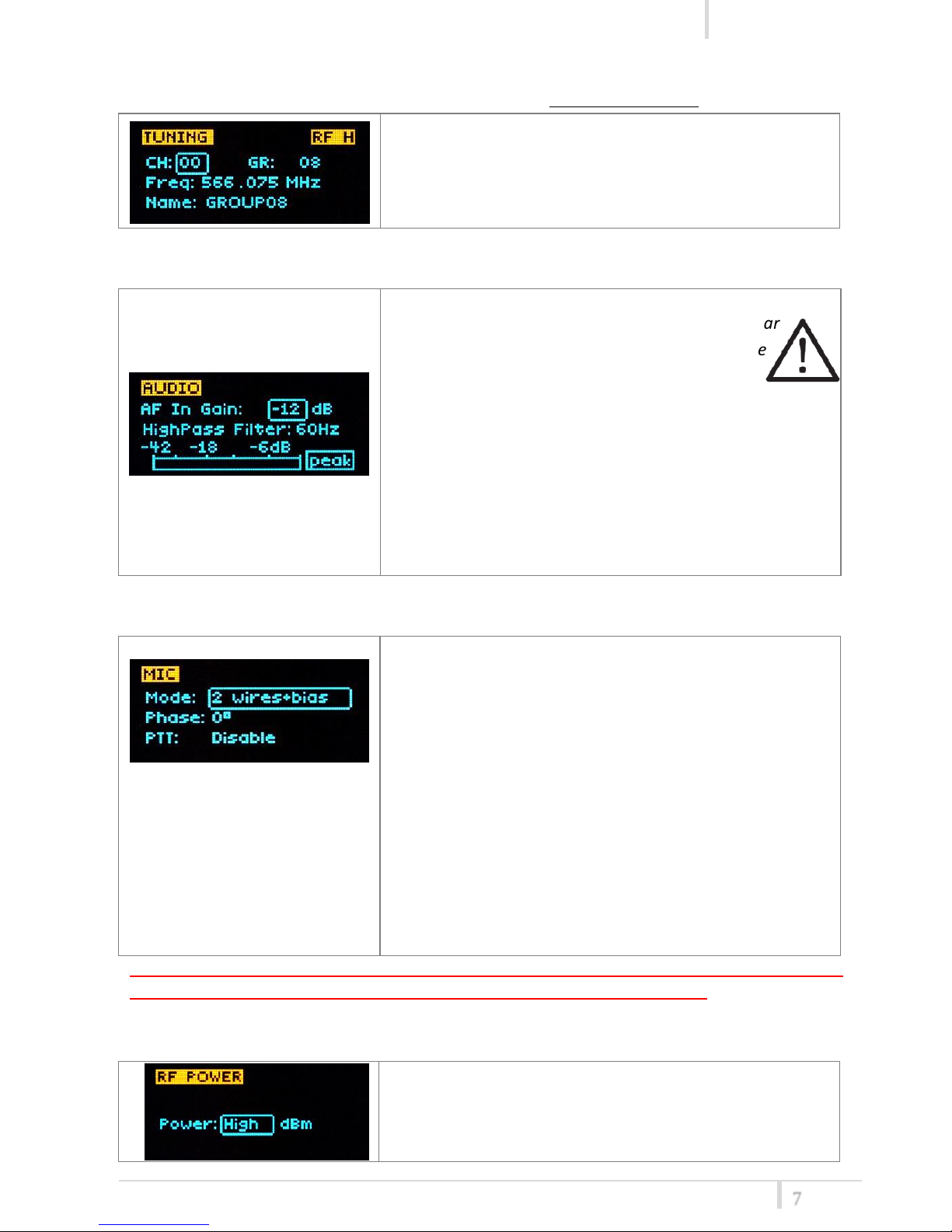

<TUNING> menu

This menu can be entered by scrolling selector or using quick channel setup buttons (<ch>).

In this menu current channel/group and frequencies can
be setup. Use the selector to change values (<+/->) and
<click> to confirm.
Sync group is a quick self-settable channel synchronized
by receiver.

<AUDIO> menu

This menu can be entered by scrolling selector or using quick gain setup buttons (<gain>).

“AF In Gain” setup to tune audio input sensitivity:

To help proper audio gain setting, an audio bar
is supplied with peak hold bar) indicating the
headroom to audio peak (0 dB).
AF gain is shown with 2 different unit of

measurements dB (gain in dB of MTP40

Lite

amplifiers) or in dBu peak.

“HighPass Filter” applies different audio HP filter:

Flat / 60Hz / 120Hz / 170Hz / 250Hz / 400Hz.

Use the selector to change values (<+/->) and <click> to
confirm.

<MIC> menu

This menu can be entered by scrolling selector.

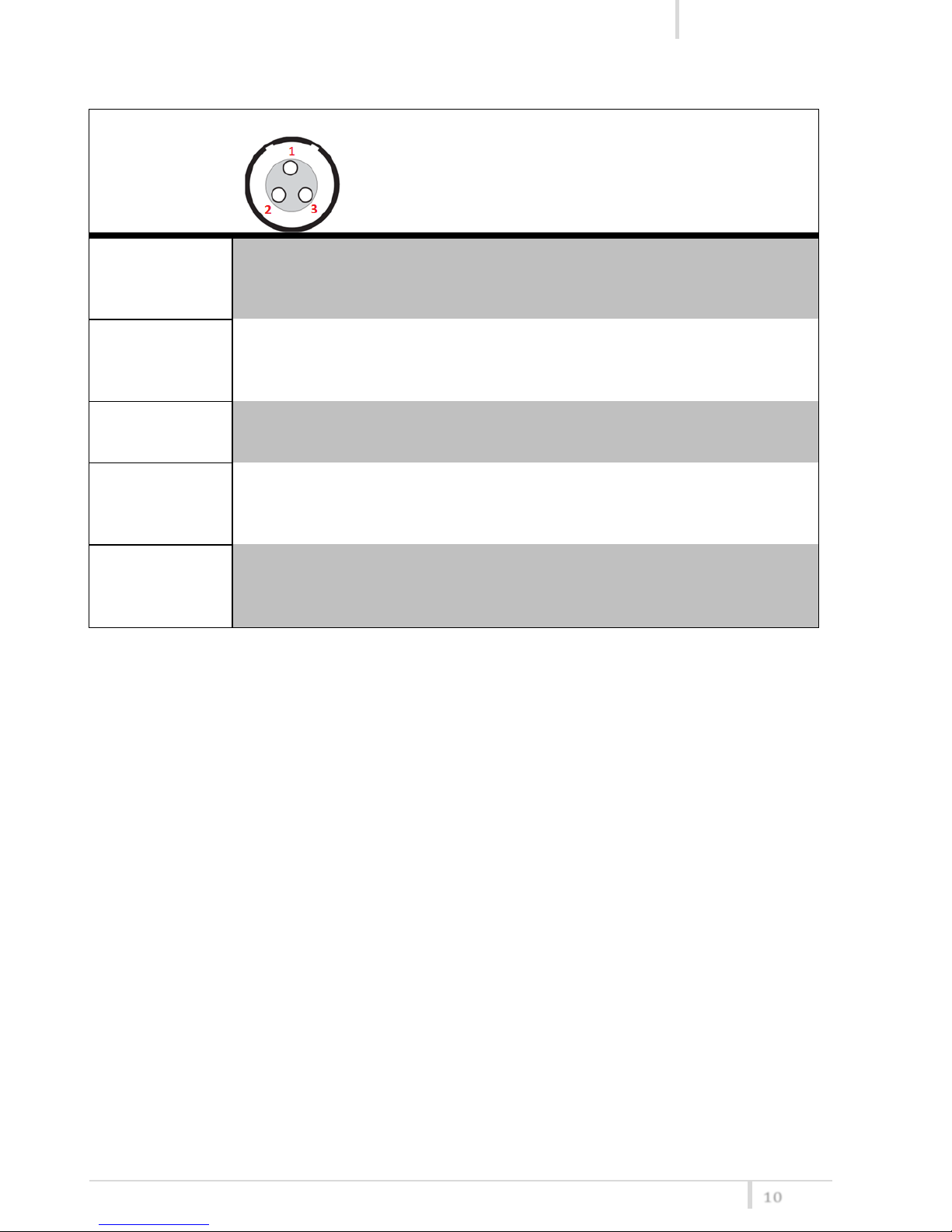

Following Mic mode can be setup (for LEMO option)

-2 wires: (PTT is possible) for external audio input

-2 wires + bias: (PTT is possible) for most 2 wires MIC

-3 wires: (no PTT) for most 3 wires MIC

-2 wires & pha: to connect a wired mic thru a 48V

adapter (PHA48)

-2 wires+bias & pha: Allow to connect a ‘2 wires + bias’ MIC

or a ‘2 wires & phantom’ MIC (with PHA48)

Additional field to setup

- Phase: is audio phase can be 0/180 deg.

- PTT operation mode:Normal (pushing make a

remote switch)/Muting (pushing mute the audio)
Use the selector to change values (<+/->) and <click> to
confirm.

NOTE: For DPA option (2 pin microdot audio connector), even if the MIC mode menu allows to
set one of the 5 MIC modes, only 2 wires or 2 wires+bias mode are possible.

<RF POWER> menu

This menu can be entered by scrolling selector.

RF power can be setup to High (50 mW ERP) or Low (10
mW ERP).
Use the selector to change values (<+/->) and <click> to
confirm.

MTP40 Lite User Manual

Rev.02

8

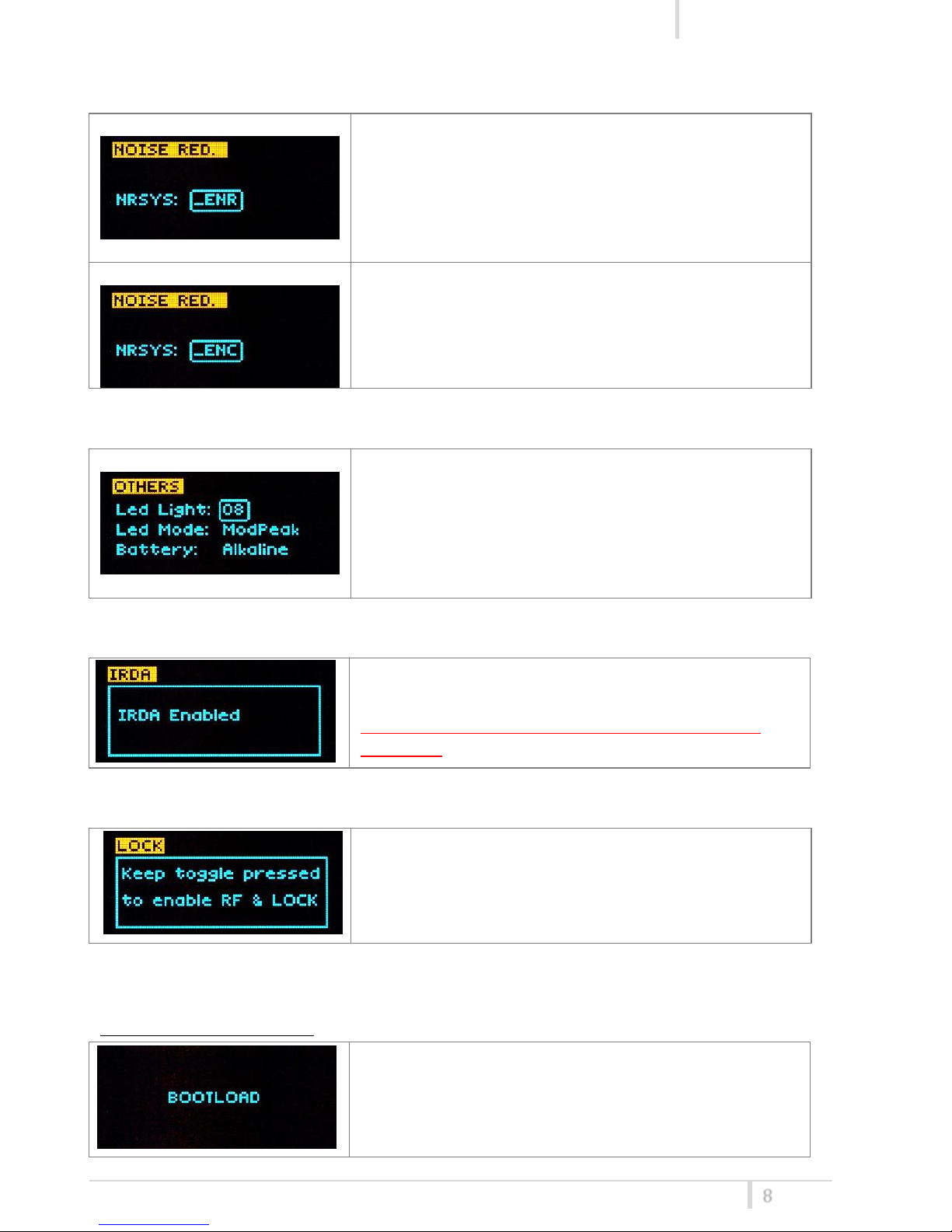

<NOISE RED> menu

This menu can be entered by scrolling selector.

MTP40 Lite supports 2 different type of “Companding
systems”

ENR: designed for maximum noise reduction

ENC: designed for maximum audio fidelity (use this in

case of special vocal application or to remote
instruments)

<OTHERS> menu

This menu can be entered by scrolling selector.

Power switch green LED brightness can be setup  LED
light. Modulation peak LED on power switch (become
RED when audio get close to saturation) can be
enabled/disabled.
Battery type can be setup in Alkaline or NiMH.

<IRDA> menu

This menu can be entered by scrolling selector.

While is this menu MIC can be connected to IRDA for
setup or firmware upgrades.

NOTE: while in this menu display is not automatically
turned off.

<LOCK> menu

This menu can be entered by scrolling selector.

Long pressing (2 sec.) selector button (click) it locks
MTP40 Lite in transmission mode.

To unlock, long pressing (2 sec.) selector button again.

<BOOTLOAD> menu

This menu can be entered only turning on the transmitter while pushing at the same time both
quick channel setup buttons (<ch> & <gain>).

Device is forced in bootloader mode to allow FIRMWARE
UPDATE.

MTP40 Lite User Manual

Rev.02

9

The following table sums up which parameters can be set and the related range settings.

MENU

PARAMETER

MEANING

RANGE SETTINGS

TUNING

CH

Channel

0 ÷ 59

GR

Group

0 ÷ 39 + SYNC GROUP

Freq

Frequency

depends on the MTP40 Lite Model:

G 470-566
H 542-640
I 566-686
L 678-798
K 520-640

AUDIO

AF In Gain

Gain of the
audio signal

depends on the mic mode setting
(ex. -40dB ÷ 40dB step of 1 dB)

High Pass Filter

High Pass filter

Flat/60/80/120/170/250/400 Hz

MIC

Mode

MIC type

’2 wires’
‘2 wires + bias’
‘3 wires’
‘2 wires & phantom’
‘2 wires + bias & phantom’

Phase

Audio signal
phase

0° or 180°

PTT Mode

It defines how
and what
information the
transmitter has
to send

Disable:when the PTT button is pushed, nothing
happen. (the transmitter sends AF+Tone
squelch)
Normal: when the PTT button is pushed, the
transmitter send a different RF signal. According
to the receiver configuration the audio can be
enabled/disable on LINE (and/or COM).
Muting: the transmitter doesn’t send the audio.
The voice is cut, it doesn’t enter to the
microphone
No Data: the transmitter sends neither tone
squelch nor battery data.

RF POWER

RF Power

RF Power

High (50 mW ERP) or
Low (10 mW ERP)

NOISE RED.

NRSYS

Noise reduction

ENR: Wisycom Extended-NR,noise optimized
ENC: Wisycom Extended-NC,voice optimized

OTHERS

Led Light

Power switch
green
brightness

0 ÷ 16

Led Mode

It defines when
the power
switch led (see
Fig. 3) has to
become RED

None: never
ModPeak: when audio get close to saturation
PTT: when the PTT button is pushed

Battery

Battery type

Alkaline or NiMH

MTP40 Lite User Manual

Rev.02

10

MIC Mode setting (only for LEMO option):

MIC Mode:

Pin out

Gain

PTT

Led Mode

’2 wires’:

1=GND
3=AF

-40/40 dB

Disable
Normal
Muting
No data

None
Mod. Peak
PTT

‘2 wires + bias’:

1=GND
3=AF+5.5V

-20/40 dB

Disable
Normal
Muting
No data

None
Mod. peak
PTT

‘3 wires’:

1=GND
2=5.5V
3=AF

-40/40 dB

Disable
No data

None
Mod. peak

‘2 wires &
phantom’:

1=GND
2=3.1V (power for
PHA48)
3=AF

-40/40 dB

Disable
No data

None
Mod. peak

‘2 wires + bias &
phantom’:

1=GND
2=3. 1V (power for
PHA48)
3=AF+5,5V

-20/40 dB

Disable
No data

None
Mod. peak

MTP40 Lite User Manual

Rev.02

11

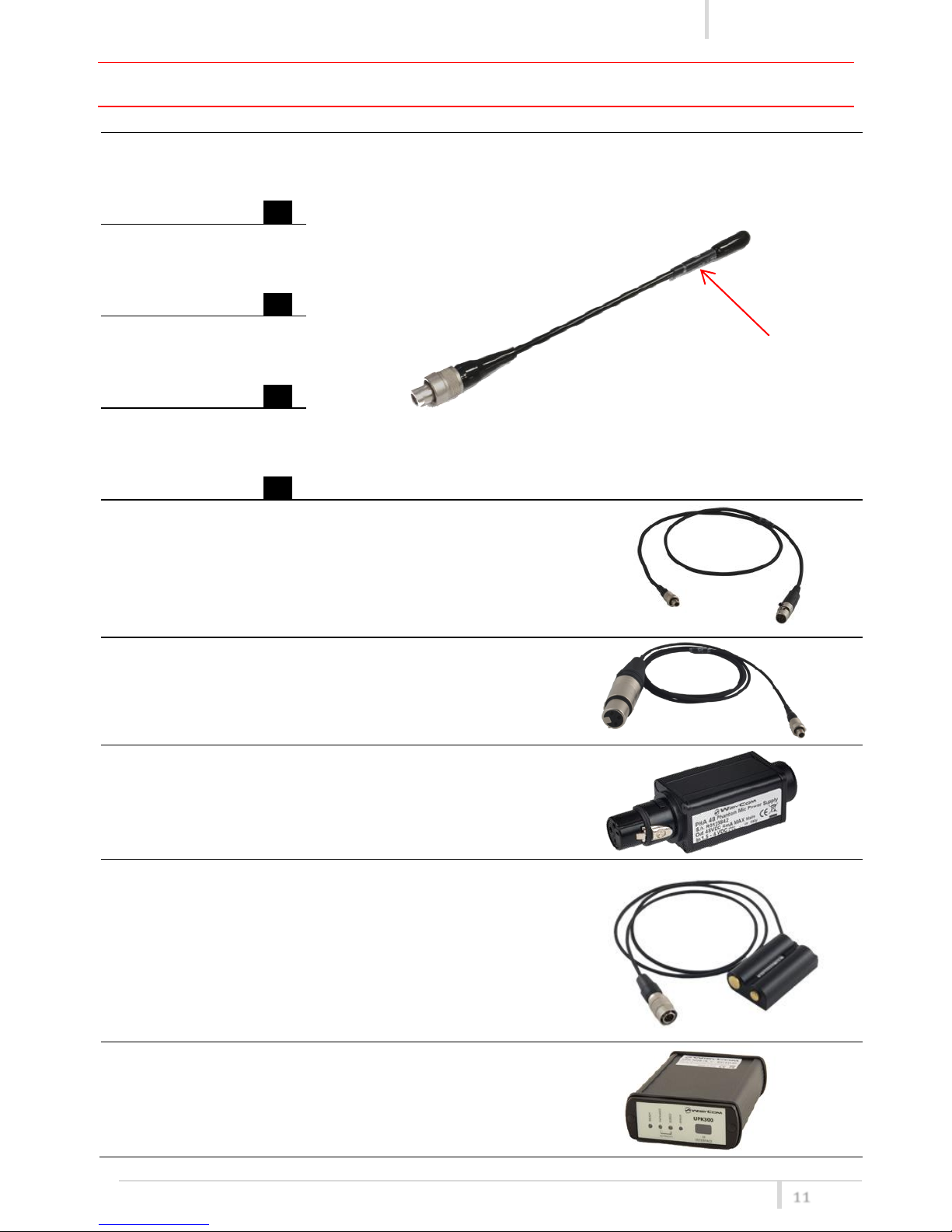

ACCESSORIES AND PARTS

AWF30-B1-507

For MTP40-X-BFG
Band 470 ÷ 566 MHz
Antenna Code label 507

AWF30-B1-590

For MTP40-X-BFH & FK
Band 542 ÷ 640 MHz
Antenna Code label 590

AWF30-B2-616

For MTP40-X-BFI
Band 566 ÷ 686 MHz
Antenna Code label 616

AWF30-B2-732

For MTP40-X-BFL
Band 678 ÷ 798 MHz
Antenna Code label 732

CAL48
Cable to connect an MTP30 (with option /PHA) or MTP40/40S
to a PHA48 to use microphone with XL3/48V connection

CAL120
AF cable (120cm), LEMO 3pole / XLR-3F connectors

PHA48

Plug-on for XLR3 Mic with 48V Phantom power.
To be used with CAL48 (connected to an MTP30/40/40S)
NEW REV2 with 4mA Phantom current!

ADT40

Power Adapter for MTP30/40/40S.
Power input: 9-18V DC feeding (internal switching regulation).
variants:
ADT40: without connector (pigtail)
ADT40X: with XLR-4pin power connector
ADT40H: with Hirose-4pin power connector
NOTE: MTP30/40/40S must have ADT option to pass thru cable

UPK300E

Infrared programming kit
(interface + software) USB interface

Antenna Code

label

MTP40 Lite User Manual

Rev.02

12

WISYCOM IR PROGRAMMER (VER. 1.3.1.1 AND ABOVE)

Wisycom IR Programmer allows to read, modify and update the MTP40 Lite device
configuration.

It is necessary to

 install Wisycom IR Programmer (version 1.3.1.1 or above)

WARNING: If it is the first installation and Wisycom USB driver has not already

installed in the PC, install the USB driver (run C:\Program Files
(x86)\Wisycom\MTP&MTH Infrared Programmer (TX)\Drivers\ DriverInstaller.exe)

 connected the programmer PK300 or the receiver MRK950/MRK960 to the PC thru

USB connection

 run the program
 enable the IRDA communication on the transmitter (see IRDA menu)

NOTE: Wisycom IR Programmer doesn’t work whit MRK950/MRK960 if it is connected to the
PC using an ethernet cable.

The Wisycom IR Programmer’s window is divided in 4 parts (see Fig. 5):

❶Interface and Device panel contains all the major information of the connected device

❷Current Settings panel shows the current configuration. Thanks the PRESET panel, a

previous saved configuration can be chosen and loaded like current setting.

❸Tuning Frequencies panel allows to handle Groups, Channels and Frequencies

❹Presets panel allows to read, change and save different configurations

❶

❷

❸

❹

MTP40 Lite User Manual

Rev.02

13

Figure 5: Wisycom IR Programmer’s window

10 different configurations are available:

• FACTORY configuration is a locked configuration: no parameter can be changed.
 USER configuration is the only configuration that can be saved using the OLED display (see

<PRESET> menu). Note: It is not possible to change the name of this configuration.

 Other 8 configurations where the user can change both the name and the values of all

parameters.

INTERFACE AND DEVICE PANEL

At the beginning, the program checks which IR devices are detected and they appears on the
Interface panel.

The user has to select the device and push <connect> button in order to open the
communication with the IR device. A picture on the top in the Interface panel help the user in

this selection showing the type of devices detected. During this process the “IR activity” led
blinks to indicate that the program wait connection’s answer from the IR device.

A successful connection is signaled with the “interface connection” green led, while a failed
connection is signaled with the “communication error” led.

Once a supported device is found, the software automatically reads all the data related to the
remote configuration, as well as the frequencies that are pre-programmed.

Firstly, in order to avoid unwanted operation, no parameters can be changes and the EDIT
button, presents on the bottom of Device panel, is yellow and set to LOCKED state. Pushing
the EDIT button, it becomes grey and sets to UNLOCKED state to indicate that the
configurations can be modified.

CURRENT SETTINGS PANEL

In the Current Settings panel the user can

 with Preset panel → load one of the 10 available configurations
 with other panels → modify all the configuration’s parameters (the same that are

changeable in the OLED display). Each parameter can be locked clicking the related
lock button, so the set value can not be changed next using the OLED display.

ATTENTION: All the modifies applied to the Current Settings panel are instantaneous: they are
applied directly to the device and save in its memory but no saved in the preset configuration.

MTP40 Lite User Manual

Rev.02

14

TUNING FREQUENCIES PANEL

With the Tuning Frequencies panel the user can select a frequencies group (0÷39) and for each
one execute the following operations:

- modify the Group’s Name

- lock and/or hidden the group

- for each channel (0 ÷59) of the selected group: change the frequency value and the

related status (locked/hidden) (in the center grid frequency)

The SAVE button, at the top of the
panel, save the changes of the group
selected (name group, lock/hidden
group).

To change a frequency
value for a specific
channel: double click
on the grid frequency

panel (row=channel’s

number), insert the
new frequency value
and press OK button.

To lock/hide a specific
channel, double click on the
grid frequency panel.

NOTE: keeping pressed the CTRL button on the keyboard and clicking the wanted
channel/group shown on the frequencies grid, the tuning process is executed. It is equivalent
to configure the Tuning in the Current Settings panel but it is easier. The device is re-tuned
immediately, so be sure that the RF power is turned off while changing frequencies with other
RF systems in use around you!

If the currently tuned channel is on the same group that is listed on the grid, the background
color of the related cell (channel) on the grid becomes yellow.

MTP40 Lite User Manual

Rev.02

15

Using the LOAD/SAVE button, at the bottom of the panel, it is possible to load/save the
frequencies for the selected group from/to a .wdf file. To save the frequencies of all the groups
click to the related button above. The legacy option save the channels without the hidden/lock
info.

MTP40 Lite User Manual

Rev.02

16

PRESETS PANEL

The Preset panel allows to manage all the 10s available configurations.
For each configuration it is possible to set the name and all the parameters value except for
FACTORY and USER configurations (see table below).

PRESETS:

NAME*

LOCK/DON’T CARE

PARAMETERS

VALUE

FACTORY

USER

√

OTHERS √ √

√

√=change is allowed

* Be careful to write a meaningful name for the preset because the name will appear on the
settings list of the device menu! Please, avoid empty names.

If a parameter is “locked”, it cannot be modified by device menu (using OLED display), while if
“don’t care” propriety is active, when the user load the configuration, the parameter’s value
doesn’t changed.

ATTENTION: Changes are applied only after a “save” action.
NOTE: “a trick” In case of the user have a locked parameter and he is in great need for modify
it, he can save the configuration to USER configuration by OLED (see PRESET menu) and then
load the USER configuration (in this way all the parameters have the lock propriety disable and
the user can modify all the parameters).

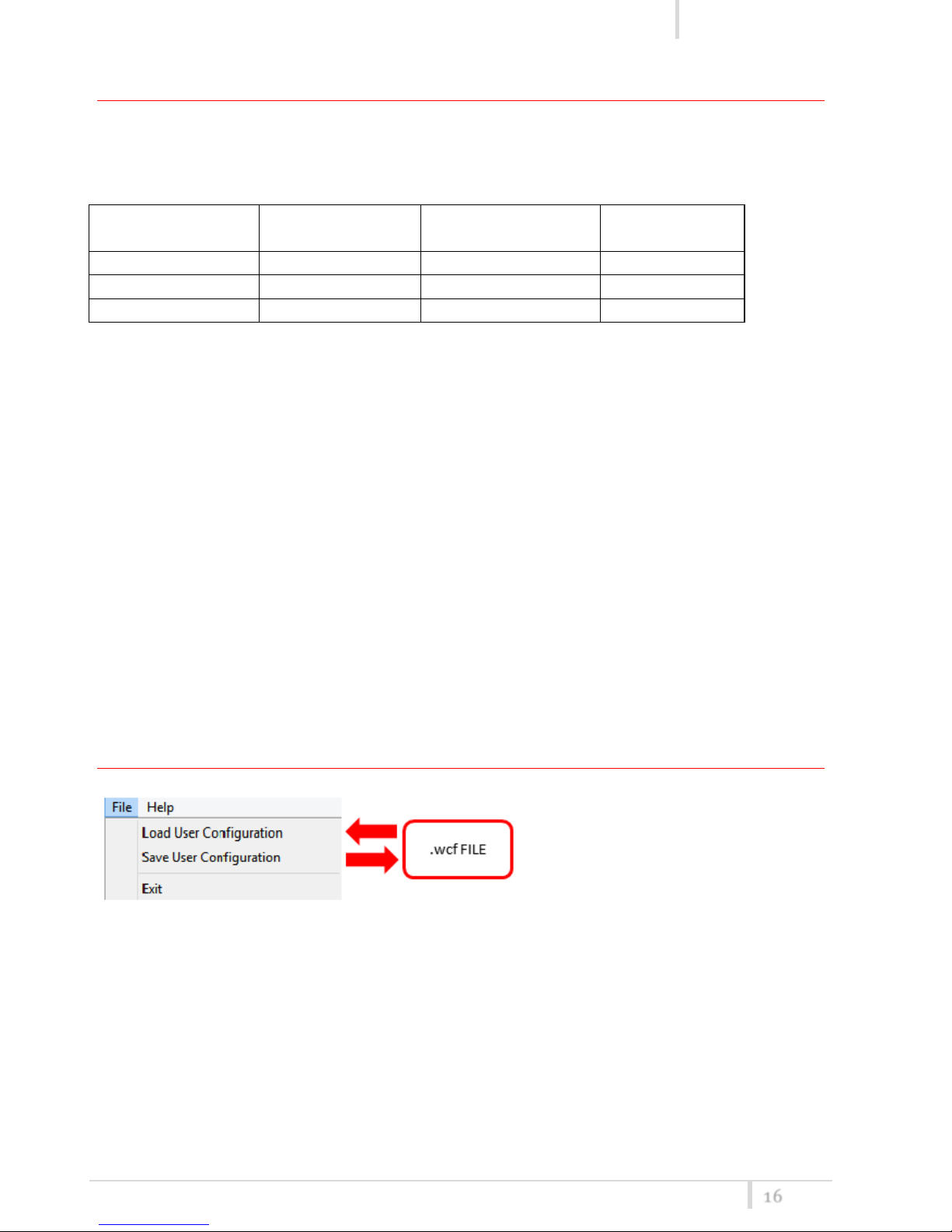

FILE MENU

Using a file menu at the top left of
the panel it is possible to load/save
all the configuration values of the
device to/from a .wcf file (Wisycom
Configuration File).

Save a .wcf file

With an infrared device correctly connected, select File->Save User Configuration and select
the destination file.

Load a .wcf file

To load a user configuration select File->Load User Configuration and select a previously saved
data file; a form will be shown, where it's possible to select which data has to be restored and
which skipped. This allow the user to load a particular configuration while keeping other data.

MTP40 Lite User Manual

Rev.02

17

TECHNICAL SPECIFICATIONS

Switchable
channels

2400 allocated by 40 groups of 60 channels (in specific frequency range), quickly
selectable with dedicated buttons

Switching
window

Up to 90 MHz, depending on band (see below code table)

Frequencies

Quartz PLL frequency synthesizer circuit (25 kHz step)

Frequency
stability

▪ ± 2,5 ppm (in the rated temperature range)
Temp.range

-10 ÷ +55 °C

Max RF power

▪ 50 mW (ERP) when high power selected
▪ 10 mW (ERP) when low power selected

Spurious
emissions

< 2 nW

Modulation

wideband FM, with 50 µs pre-emphasis

Nominal
deviation

±40 kHz (Peak deviation = ±56 kHz)

Telemetry
feature

MTP40 Lite transmits also a digitally modulated sub-carrier, suitable for:

▪tone-squelch operating

▪ remote battery monitoring

▪ optional PTT (push to talk) operation

AF input
connector

LEMO option

Configurable on ‘mic’ display menu in 5 options:

▪ ’2 wires’:
▪ ‘2 wires + bias’:
▪ ‘3 wires:
▪ ‘2 wires & phantom’
▪ ‘2 wires + bias & phantom’:

gain selectable -40 ÷ +40 (-54 dBu ÷ +26 dBu peak), no bias voltage
gain selectable -20 ÷ +40 (-54 dBu ÷ + 6 dBu peak), 5.5 V on 4k7 bias supply
gain selectable -40 ÷ +40 (-54 dBu ÷ +26 dBu peak)
gain selectable -40 ÷ +40 (-54 dBu ÷ +26 dBu peak),
gain selectable -20 ÷ +40,(-54 dBu ÷ + 6 dBu peak), 5.5 V on 4k7 bias supply

AF input level

80 dB adjustable range from -60 dBu (775 uV) to 26 dBu (15.5 V) at peak deviation (1
kHz), adjustable in 1 dB steps

Max. input level

+26 dBu (15.5 V) at clipping, +20 dBu (7.75 V) at nominal level

Noise-Reduction

ENR (Wisycom Extended-NR), with independent Attack- and Recovery-time, noise
optimized
ENC (Wisycom Extended-NC), with independent Attack- and Recovery-time, voice
optimized & with reduced pre-emphasys

AF bandwidth

▪ 45 Hz ÷ 21 KHz (3dB)
▪ 55 Hz ÷ 20 KHz (1dB)

Distortion

< 0.3 % (0.15 % typ.)

Signal-to-noise
ratio

▪ typ. 115 dB (A)

rms

with 40 kHz deviation

▪ typ. 121 dB (A)

rms

with 56 kHz deviation

Led

Led indication with bicolor led (red & green) on wireless power switch:

▪ Wireless transmission status:
GREEN on/off

▪ Battery lifetime status: GREEN - steady (> 25%)

- slowly blinking (< 25%) - quickly blinking (<12%)

▪ Modulation peek (if activated): RED

▪ Ptt status: RED if active

Display

High contrast OLED (Organic light-emitting diode) bicolor display (96 x 36 pixels)
8 step battery lifetime indication: 7 bars (100%-87%-75%-63-50%-38%-25%) and “empty
bar” quickly blinking (12% remaining)

PTT function

Pin 3 of the AF connector can be setup to an external push button

Power supply

2 AA size batteries (Alkaline, rechargeable NiMH)

MTP40 Lite User Manual

Rev.02

18

MTP40 Lite
Battery life

(2 AA alkaline)

▪ approx. 10 hours @ 50mW continuous working
▪ approx. 14 hours @ 10mW continuous working

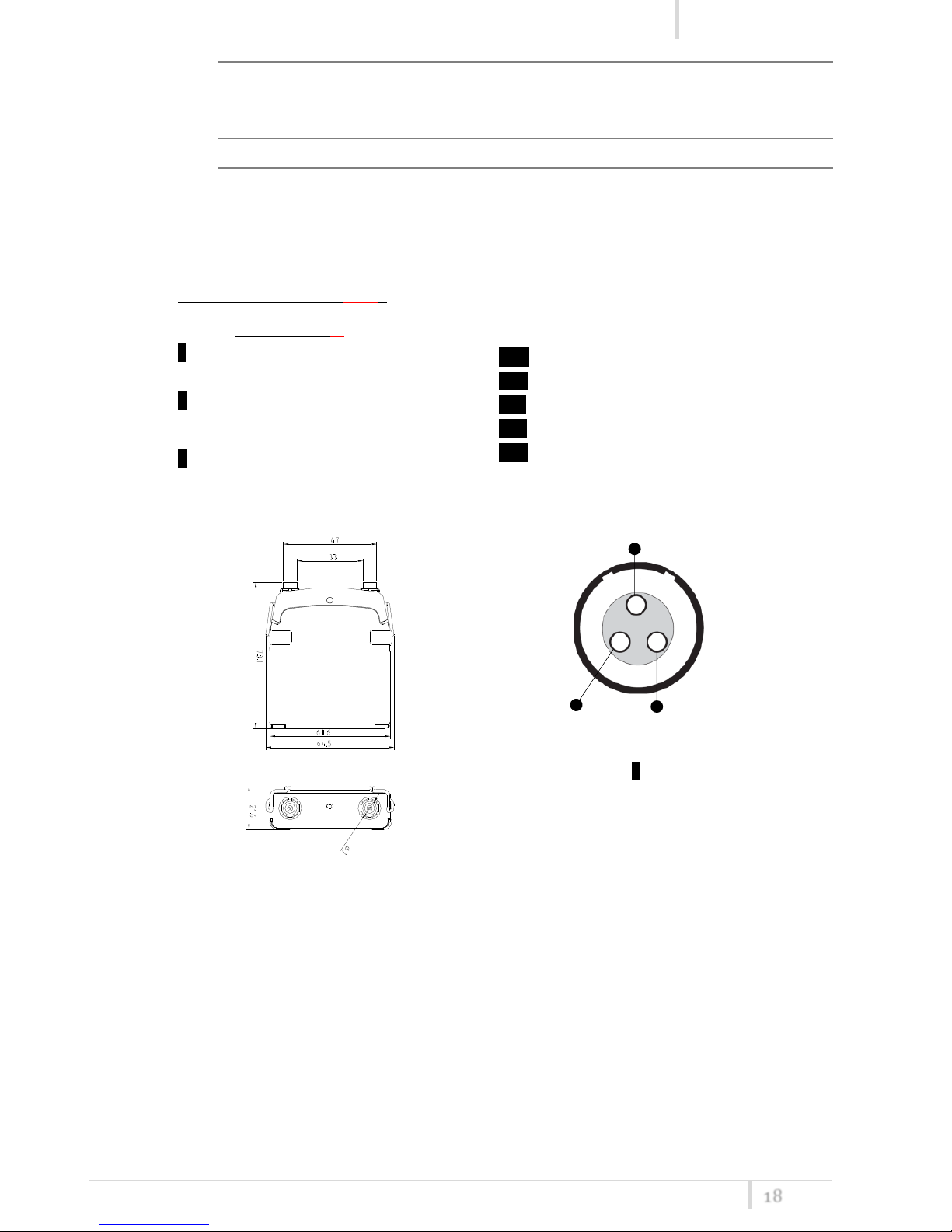

Dimensions

73 x 61 x 17.5 mm (Height-Width-Depth) without clip

Weight

Approx. 80 g. without batteries (120g with batt.)

Note: MTP40

Lite

transmitter complies with ETS 300 422

GND

5.5V

(3 wires)

AF

AF + 5.5V (2 wires)

Option L Lemo Conn.

OPTION CODE MTP40-X-YZ :

▪ AUDIO CONNECTOR (-X)

L 3 PIN LEMO CONNECTOR

(use FVB.00.303.NLAE24 on Mic)

D 2 PIN MICRODOT CONNECTOR

▪ COLOR (-Y)

B body color "matt black"

Ex. MTP40-L-BFG is 3 pins LEMO connector , matt black color and 470-566 Mhz frequency range

MTP40 Lite

▪ FREQUENCY RANGE (-Z)

FG 470-566 MHz
FH 542-640 MHz
FI 566-686 MHz
FL 678-798 MHz
FK 520-640 MHz

MTP40 Lite User Manual

Rev.02

19

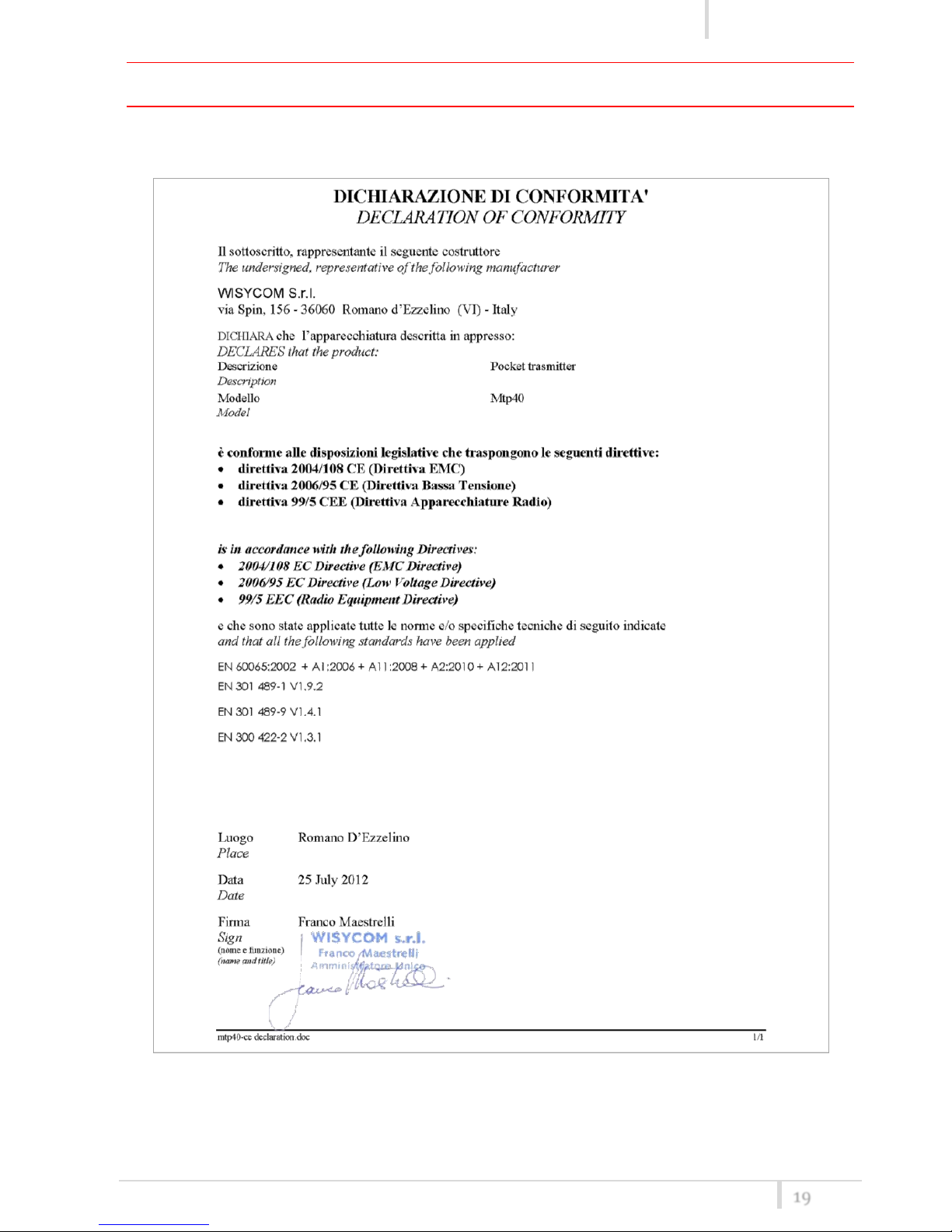

DECLARATION OF CONFORMITY

Wireless System Communications

Via Spin 156  I-36060 Romano d’Ezzelino  Italy
Tel. [phone]  Fax +39 - 0424 - 382733

www.wisycom.com  e-mail: [email protected]
