WisyCom MTP30 Quick User Manual

A

p

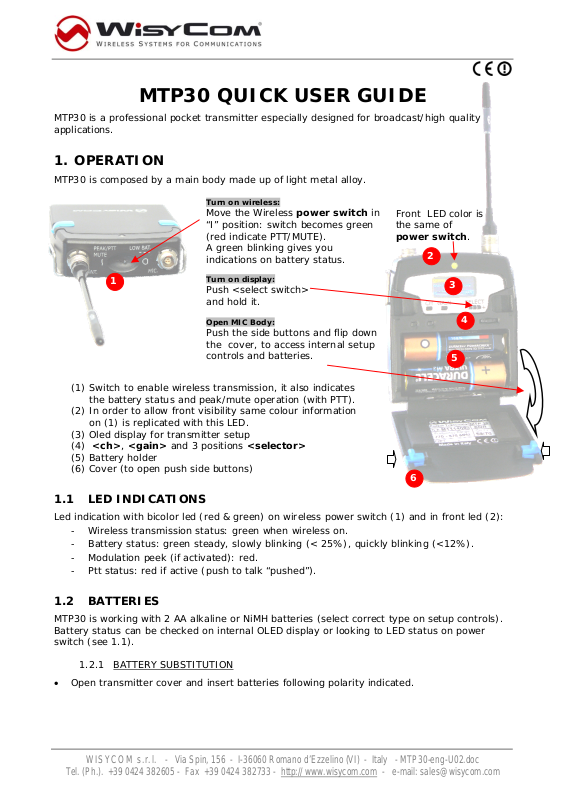

MTP30 QUICK USER GUIDE

MTP30 is a professional pocket transmitter especially designed for broadcast/high quality
applications.

1. OPERATION

MTP30 is composed by a main body made up of light metal alloy.

(1) Switch to enable wireless transmission, it also indicates
(2) In order to allow front visibility same colour information
(3) Oled display for transmitter setup

(4) <ch>, <gain> and 3 positions <selector>
(5) Battery holder
(6) Cover (to open push side buttons)

1

the battery status and peak/mute operation (with PTT).
on (1) is replicated with this LED.

Turn on wireless:

Move the Wireless power switch in
“I” position: switch becomes green
(red indicate PTT/MUTE).

green blinking gives you

indications on battery status.

Turn on display:

Push <select switch>
and hold it.

Open MIC Body:

Push the side buttons and flip down
the cover, to access internal setup
controls and batteries.

Front LED color is
the same of

ower switch.

2

3

4

5

6

1.1 LED INDICATIONS

Led indication with bicolor led (red & green) on wireless power switch (1) and in front led (2):

- Wireless transmission status: green when wireless on.

- Battery status: green steady, slowly blinking (< 25%), quickly blinking (<12%).

- Modulation peek (if activated): red.

- Ptt status: red if active (push to talk “pushed”).

1.2 BATTERIES

MTP30 is working with 2 AA alkaline or NiMH batteries (select correct type on setup controls).
Battery status can be checked on internal OLED display or looking to LED status on power
switch (see 1.1).

1.2.1 BATTERY SUBSTITUTION

 Open transmitter cover and insert batteries following polarity indicated.

WISYCOM s.r.l. - Via Spin, 156 - I-36060 Romano d’Ezzelino (VI) - Italy - MTP30-e ng - U02.doc

Tel. (Ph.). [phone] - Fax [phone] - http:// www.wisycom.com

- e-mail: [e-mail]

+

+

1.3 POWERING UP

Move the wireless power switch (3) in “I” position to activate wireless transmission: a green
LED lights up (blinking when battery is low! See 1.1)

1.4 SETUP CONTROLS

Open transmitter Body to access the
“display and controls” area (fig. 3):

A

A) Graphics Display (OLED)
B) Channel selection button (ch)
C) MIC gain setup button (gain)
D) 3 position selector (- / click / +) 

Fig. 3

CLICK

-

B

C

D

1.4.1 LED POWER UP (DISPAY IS IN OFF CONDITION)

Pushing down selector (click), oled turns on. A first menu with serial NO and brand logo is
displayed, then <status> menu enters automatically.
Pushing and holding selector (click) > 2 sec, serial NO men u is displayed till (-/+) is selected.

1.4.2 DISPLAY POWER DOWN (DISPLAY IS IN ON CONDITION)

Pushing and holding selector (click) > 2 sec, display is turned off.
Display turns off automatically after 15 sec, unless in <irda> menu or in <audio> menu (with
audio level < 5% from nominal).

1.4.3 DISPLAY MENU

Setup menu are accessed in sequence:

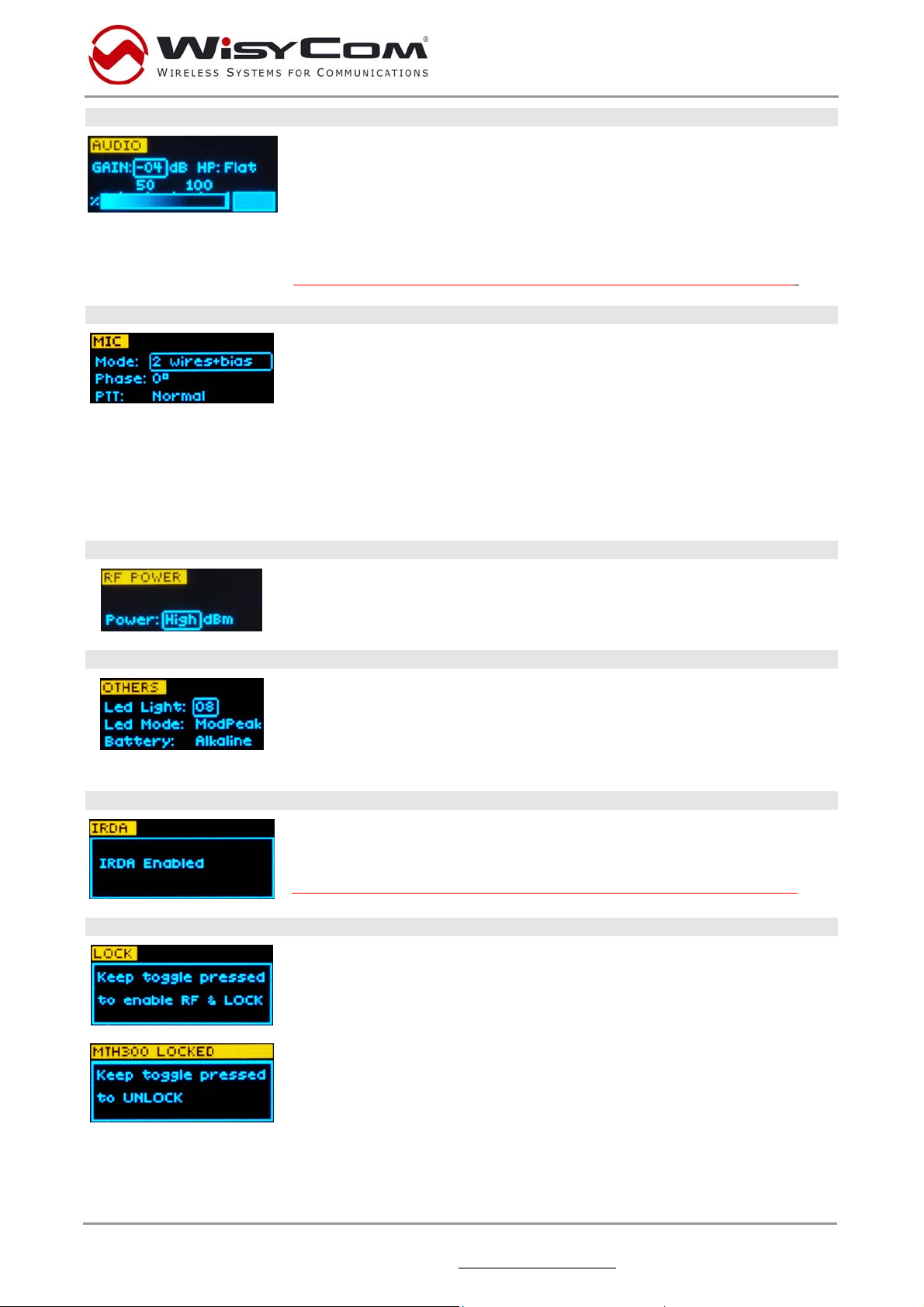

 <status>  <tuning>  <audio>  <mic>  <rf power>  <other>  <irda>  <lock> 

Using <+/-> selector all menus can be accessed in sequence, push <click> to enter edit
mode:

<+/-> to setup field

CLICK

<click> again to confirm changes and exit.

-

exit without confirmation if no button is pressed

after a few seconds time out.

1.4.3.1 <start up> menu

1.4.3.2 <status> menu

1.4.3.3 <tuning> menu

This menu is displayed during power up for few seconds:
Keep selector pushed to hold this menu. Main information are:

 Product name – software version
 Brand name
 Transmitter bandwith
 Serial No:

This is the first menu displayed after power up.
Major info are displayed:

- Current channel/group (i.e. CH:00 GR:1)

- Current frequency (i.e. 770.000 MHz)

- Mic gain (i.e. -04) and high pass filter (i.e. FLAT)

- RF active, top right label RF (if present RF is on)

This menu can be entered by scrolling selector or using quick
channel setup buttons (<ch>).
In this menu current channel/group and frequencies can be setup.
Use the selector to change values (<+/->) and <click> to confirm.
Sync group is a quick self settable channel synchronized by receiver.
