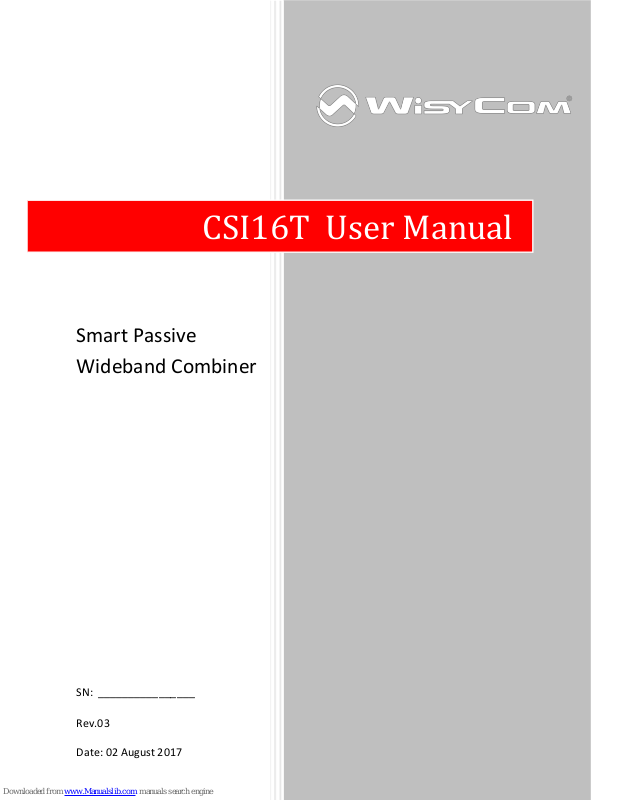

WisyCom CSI16T User Manual

SN: ________________

Rev.03

Date: 02 August 2017

CSI16T User Manual

Smart Passive
Wideband Combiner

Rev.03

CSI16T User Manual

1

INTRODUCTION

CSI16T is a passive wideband combiner designed to work up to 3W of power.

CSI16T communicates with Wisycom transmitter (i.e. MTK952N) through coaxial inputs and
allows a smart power management: combiner loss are automatically compensate on Tx side!

FEATURES

 RF combiner able to combine 16 inputs into 4/2/1 outputs
 Selectable combination thru a 3 positions selector on front panel

[16:1] or 2x [8:1] or 4x [4:1]

 Used with MTK952N permits to recover the combiner loss
 Wide band operation 470÷800MHz
 High input power up to 3W
 Selectable extra compensation in the [16:1] configuration: connected to

another combiner CSA121T, it is able to recover up to 15dB of loss

SAFETY INSTRUCTION

 Read this safety instruction and the manual first
 Follow all instructions and information.
 Do not lose this manual.
 Do not use this apparatus under the rain or near the water.
 Do not install the apparatus near heaters or in hot environments, do not use outside the

operating temperature range.

 Do not open the apparatus, only qualified service technician are enabled to operate on it.

The apparatus needs servicing when it is not properly working or is damaged by liquids,
moisture or other objects are fallen in the apparatus.

 Use only accessories or replacement parts authorized or specified by the manufacturer.
 Clean the apparatus only with dry cloths, do not use liquids.
 Report the serial number and the purchasing date in front of the manual. It is needed to

have proper replacement parts or accessories from the manufacturer.

 When replacement parts are needed, use only replacement parts authorized from the

manufacturer. Substitution with not authorized parts could result in electric shock, hazards
or fire.

 Keep attention on all the labels with warnings or hazards on the apparatus.

CSI16T User Manual

Rev.03

2

REAR AND FRONT PANEL

WARNING: ALL THE UNUSED PORTS related to the selected combination SHOULD TO BE TERMINATED

AT 50Ω (see example 4).

❶ Combiner mode

Three position selector allows to select one of the following combiner mode

 4x4->1
 16->1
 2x8->1

❷ External combiner

External combiner selector set to on (I) activates the extra compensation (only if combiner
mode is set to [16:1] configuration): connected to another combiner CSA121T, it is able to
recover up to 15dB of loss (see example 3).

❸ LED indication

Thanks to an RF meter present in the input/output ports, each port is able to detect the
presence of RF level more than 8dBm. Moreover, a special circuit is able to detect if the
external compensation is activated or not from the transmitter side.

❶

❷

❸

❹

input C

input D

input A

input B

output

DC - AC
