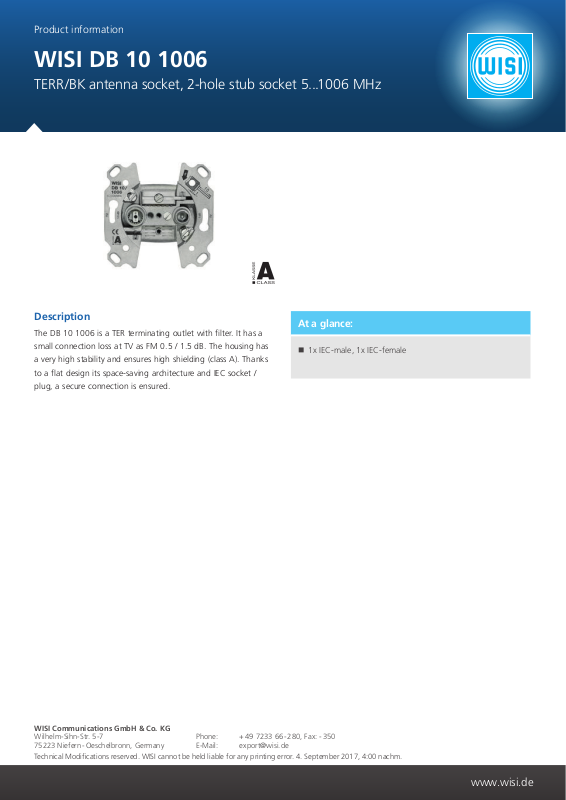

Page 1
Product information
WISI DB 10 1006
TERR/BK antenna socket, 2-hole stub socket 5...1006 MHz
Description

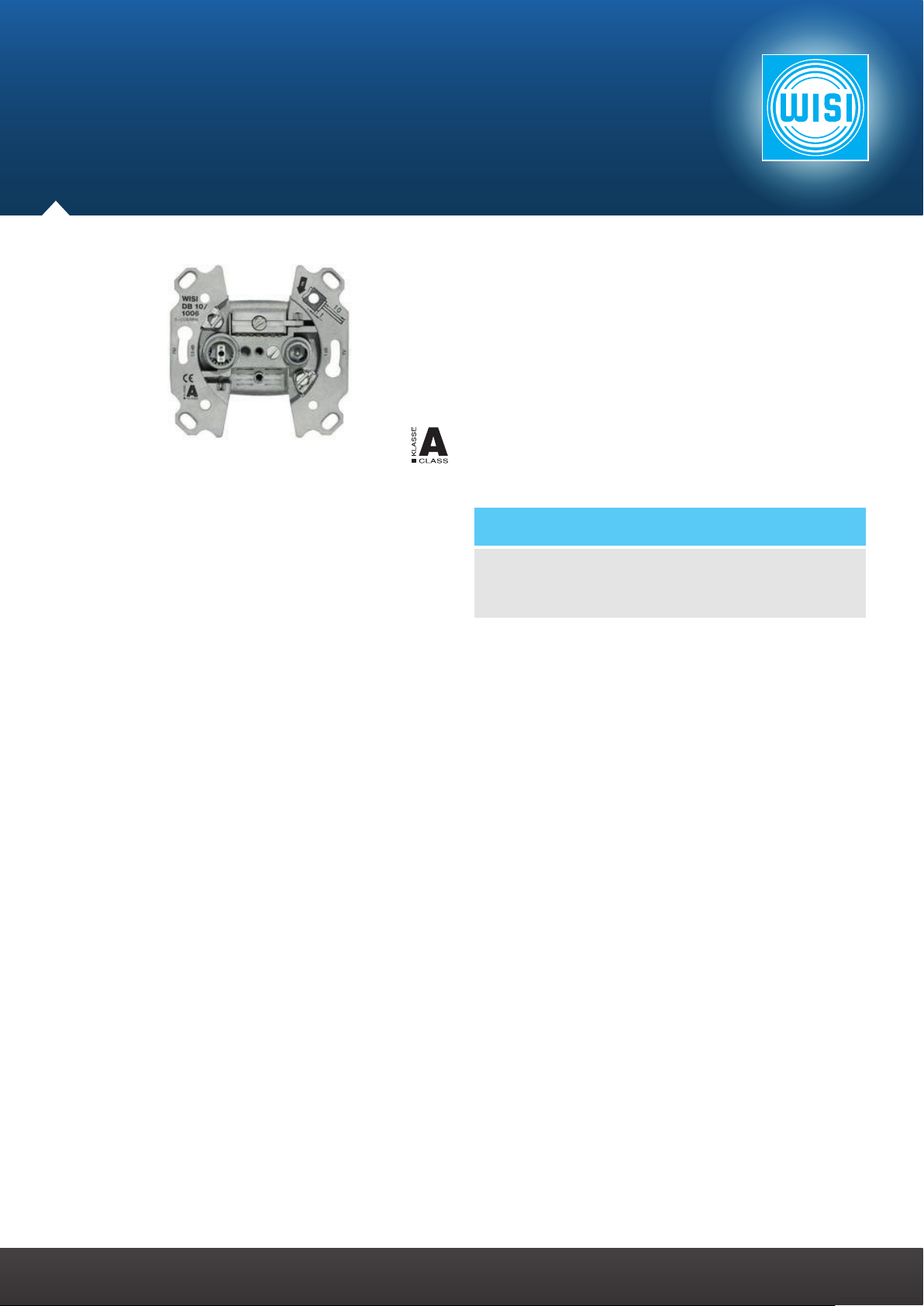

The DB 10 1006 is a TER terminating outlet with filter. It has a
small connection loss at TV as FM 0.5 / 1.5 dB. The housing has
a very high stability and ensures high shielding (class A). Thanks
to a flat design its space-saving architecture and IEC socket /
plug, a secure connection is ensured.
At a glance:
1x IEC-male, 1x IEC-female
WISI Communications GmbH & Co. KG
Wilhelm-Sihn-Str. 5-7 Phone: + 49 7233 66 - 280, Fax: - 350
75223 Niefern - Oeschelbronn, Germany E-Mail: [email protected]
Technical Modifications reserved. WISI cannot be held liable for any printing error. 4. September 2017, 4:00 nachm.
www.wisi.de
Page 2
WISI DB 10 1006
Technical data
Inputs
Frequency range 5...1006 MHz
Outputs
Frequency range TV 5...68/32...1006 MHz
Frequency range FM 87,5...108 MHz
Insertion loss TV 0.5 dB
Insertion loss FM 1.5 dB
Decoupling TV-FM ≥20 dB
Return loss TV Cat C
Return loss Input Cat B
Return loss FM Cat C
Connectors
Outer conductor clamp 7.5 mm
Inner conductor clamp 0,8...1,3 mm
IEC socket 1 pcs.
IEC-plug 1 pcs.
General data
Screening factor >85 dB (class A)
Dimensions (width x height x
depth)
Installation depth 35 mm
70 x 70 x 22 mm
Packaging data
Sales unit 10 pcs.
Dimensions (WxHxD) sales unit 212 x 148 x 78 mm
Packaging volume sales unit dm³
Gross weight sales unit 0.110 kg
Shipping unit 100 pcs.
Dimensions (WxHxD) shipping
unit
Packaging volume shipping
package
Gross weight shipping unit 0.11 kg
EAN 4010056723262
Article number 72326
Customs tariff number 85291095
mm
0.22 dm³
