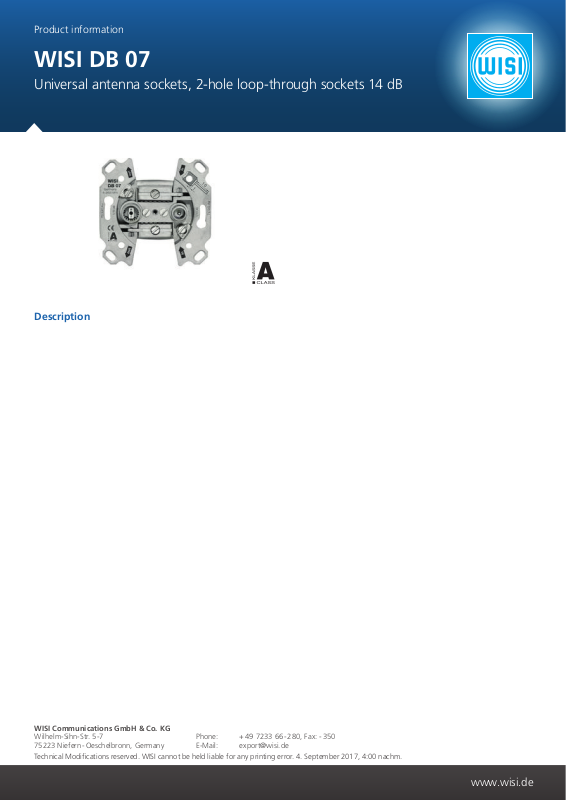

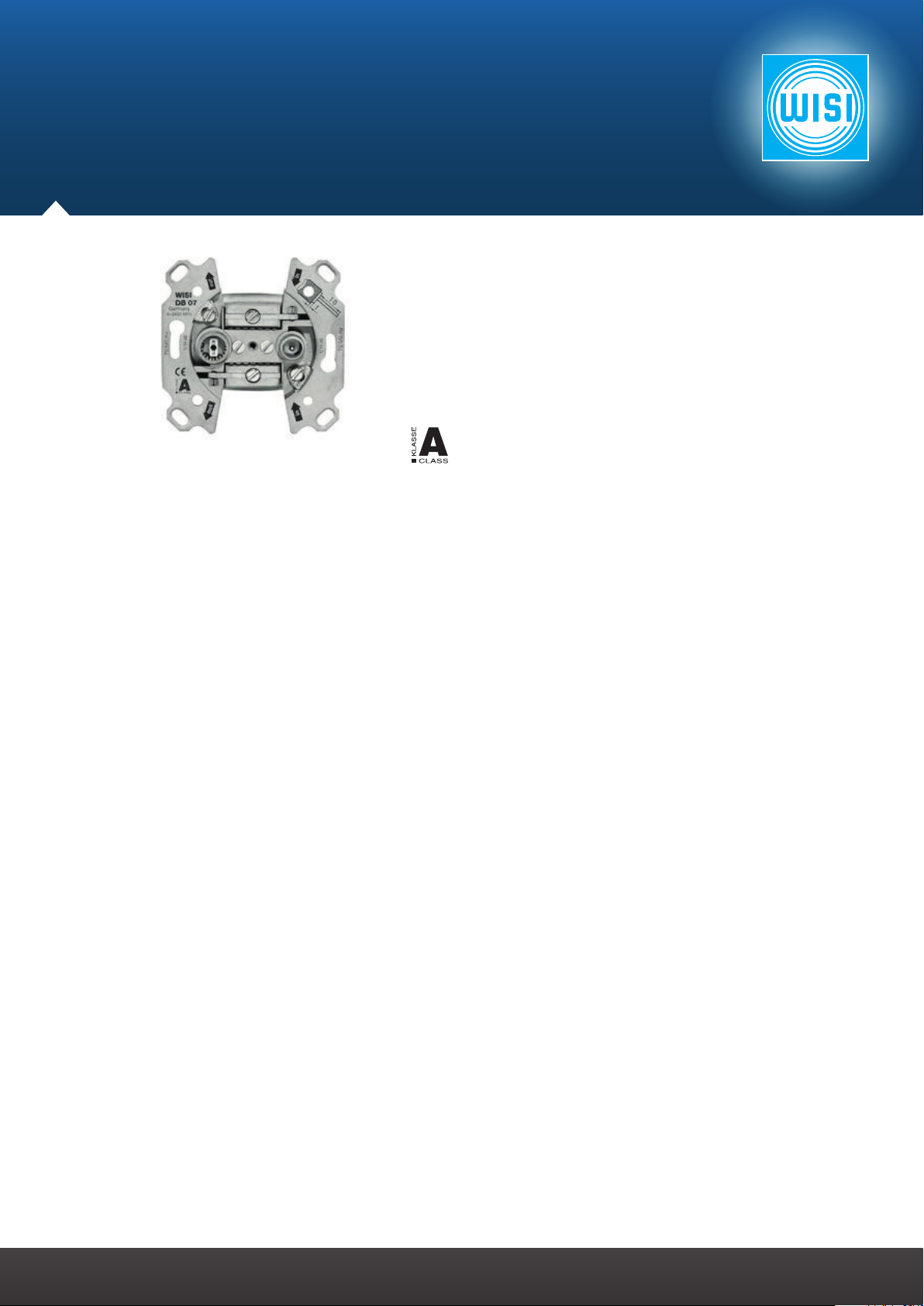

Page 1
Product information
WISI DB 07
Universal antenna sockets, 2-hole loop-through sockets 14 dB
Description
WISI Communications GmbH & Co. KG
Wilhelm-Sihn-Str. 5-7 Phone: + 49 7233 66 - 280, Fax: - 350
75223 Niefern - Oeschelbronn, Germany E-Mail: [email protected]
Technical Modifications reserved. WISI cannot be held liable for any printing error. 4. September 2017, 4:00 nachm.
www.wisi.de
Page 2
WISI DB 07
Technical data
Inputs
Frequency range 5...2400 MHz
Outputs
Frequency range TV 5...862 MHz
Frequency range FM 87,5...108 MHz
Frequency range SAT 950...2150 MHz
Insertion loss TV 14 dB
Insertion loss FM 14 dB
Insertion loss SAT 15 dB
Through loss 1 dB
Decoupling 5-40 MHz ≥40 dB (between 2 sockets / ab
10 MHz)
Decoupling 40-862 MHz ≥40 dB (between 2 boxes)
Decoupling 862-2400 MHz ≥40 dB (between 2 boxes)
Return loss TV Cat C
Return loss Input Cat B
Connectors
Outer conductor clamp 7.5 mm
Inner conductor clamp 0,8...1,3 mm
IEC socket 1 pcs.
IEC-plug 1 pcs.
General data
Screening factor >85 dB (class A)
Dimensions (width x height x
depth)
Installation depth 35 mm
70 x 70 x 22 mm
Packaging data
Sales unit 10 pcs.
Dimensions (WxHxD) sales unit 212 x 148 x 78 mm
Packaging volume sales unit dm³
Gross weight sales unit 0.116 kg
Shipping unit 100 pcs.
Dimensions (WxHxD) shipping
unit
Packaging volume shipping
package
Gross weight shipping unit 8.9 kg
EAN 4010056199630
Article number 19963
Customs tariff number 85291095
mm
2.45 dm³
