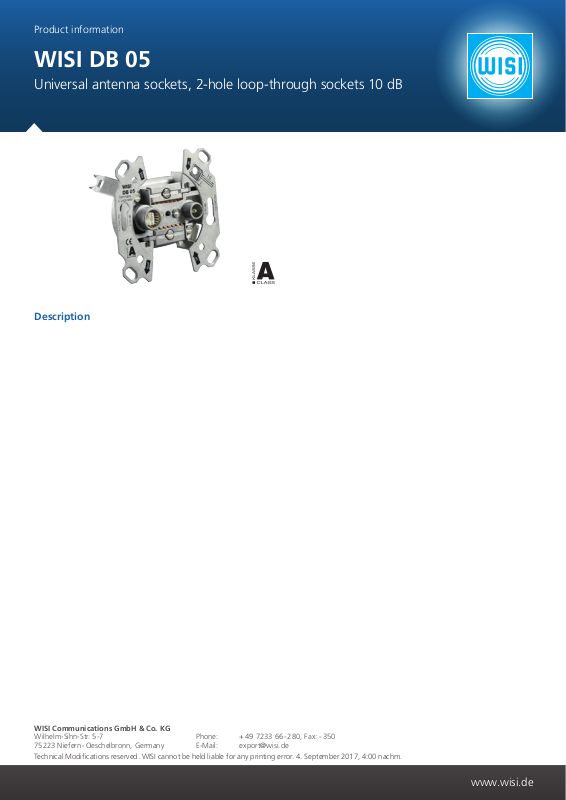

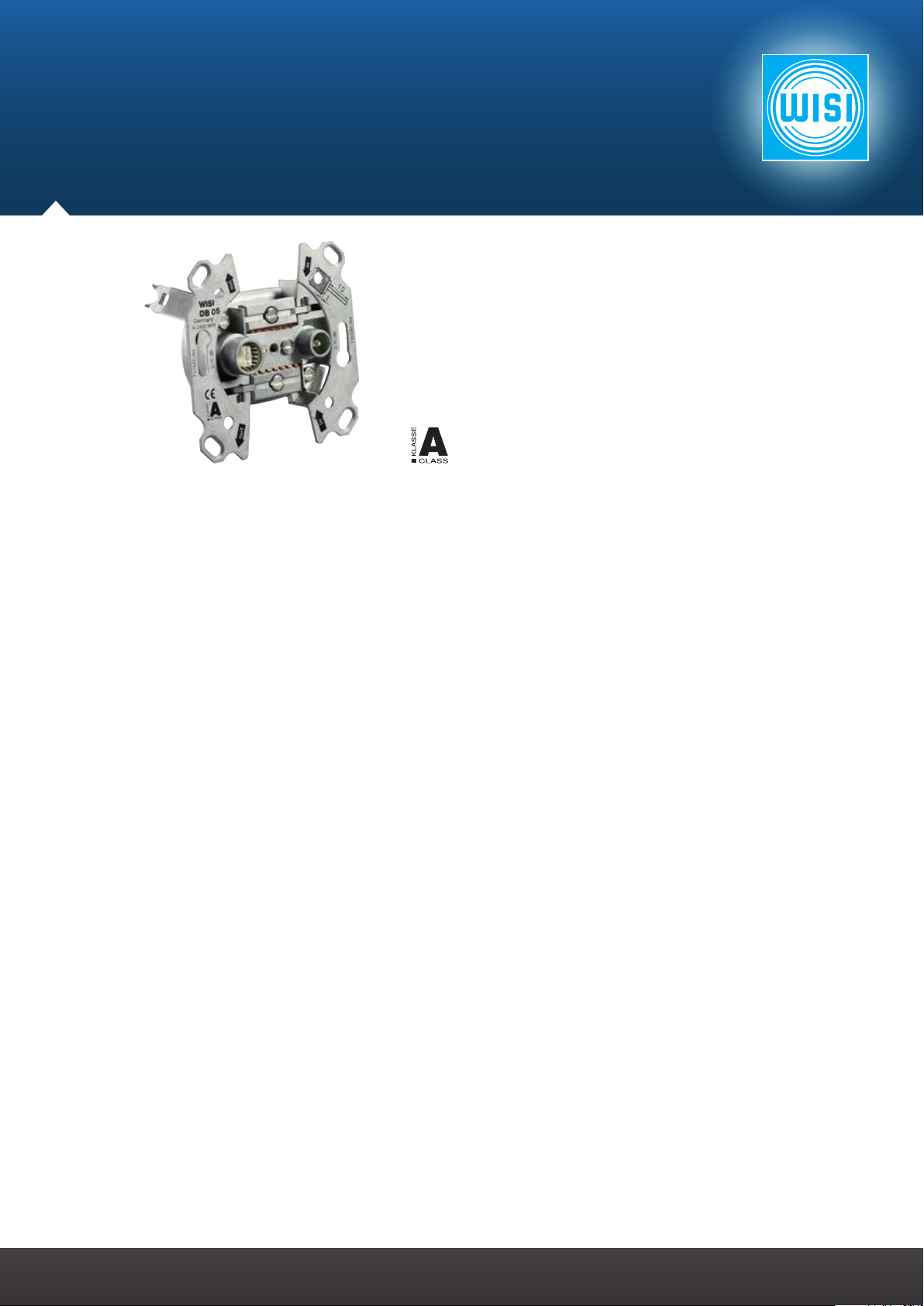

WISI DB 05
Universal antenna sockets, 2-hole loop-through sockets 10 dB
Description
WISI Communications GmbH & Co. KG
Wilhelm-Sihn-Str. 5-7 Phone: + 49 7233 66 - 280, Fax: - 350
75223 Niefern - Oeschelbronn, Germany E-Mail: [email protected]
Technical Modifications reserved. WISI cannot be held liable for any printing error. 4. September 2017, 4:00 nachm.
www.wisi.de
Page 2
WISI DB 05
Technical data
Inputs
Frequency range 5...2400 MHz
Outputs
Frequency range IEC female 5...2400 MHz
Frequency range IEC male 5...2400 MHz
Insertion loss IEC female 10 dB (±1 dB)
Insertion loss IEC male 10 dB (±1 dB)
Through loss 2,5...3,5 dB
Decoupling OUT 1 - OUT 2 ≥ 30 dB (5...2400 MHz)
Return loss subscriber ≥ 14 dB
Return loss Input ≥ 14 dB
Return loss output ≥ 14 dB
Connectors
Outer conductor clamp 2,3...5,4 mm
Inner conductor clamp 0,4...1,15 mm
IEC socket 1 pcs.
IEC-plug 1 pcs.
General data
Screening factor Class A, by EN 50083-2 (≥ 85 dB)
Dimensions (width x height x
depth)
Installation depth 35 mm
Impedance 75 Ω
70 x 70 x 22 mm
Packaging data
Sales unit 10 pcs.
Dimensions (WxHxD) sales unit 70 x 70 x 22 mm
Packaging volume sales unit 1,08 dm³
Gross weight sales unit 0,095 kg
Shipping unit 10 pcs.
Dimensions (WxHxD) shipping
unit
Packaging volume shipping
package
Gross weight shipping unit 0.115 kg
EAN 4010056199623
Article number 19962
Customs tariff number 85291095
212 x 148 x 78 mm
2.45 dm³
