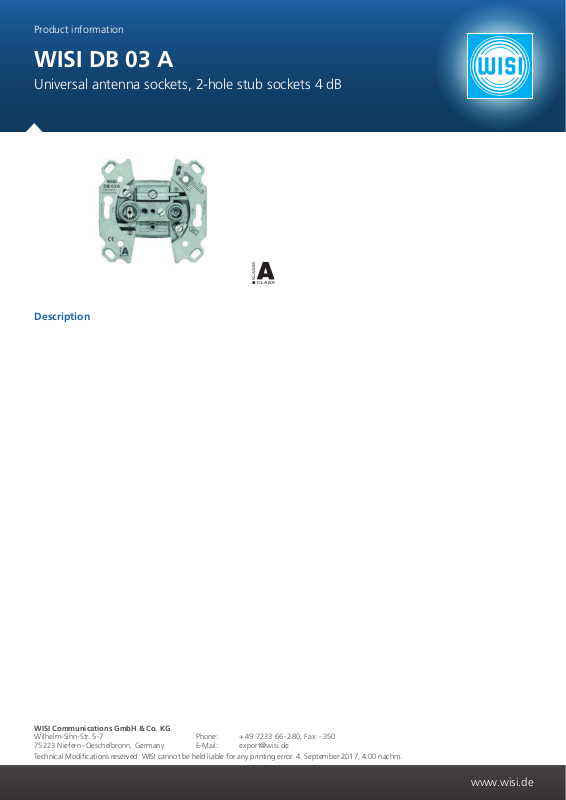

Page 1
Product information

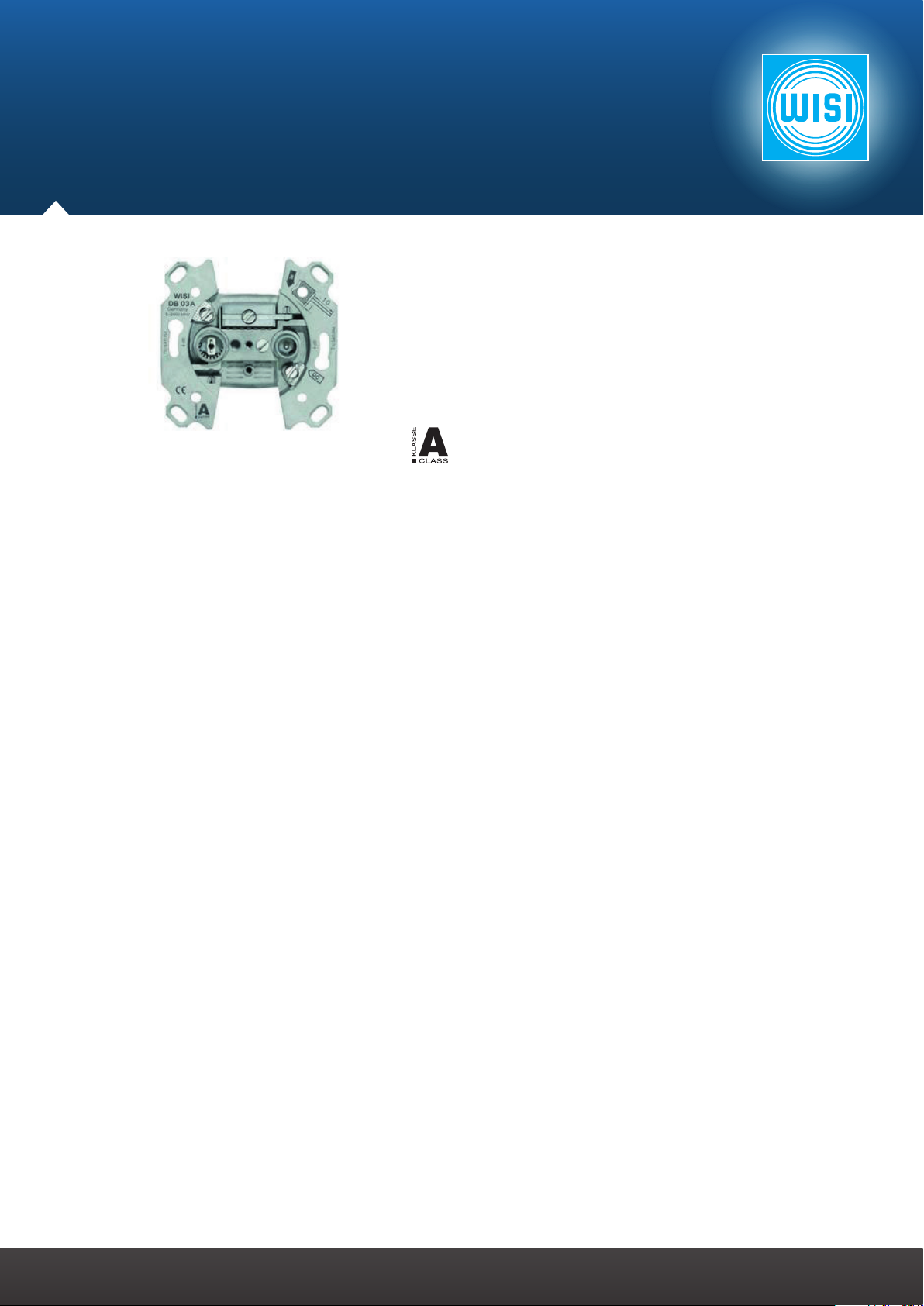

WISI DB 03 A
Universal antenna sockets, 2-hole stub sockets 4 dB
Description
WISI Communications GmbH & Co. KG
Wilhelm-Sihn-Str. 5-7 Phone: + 49 7233 66 - 280, Fax: - 350
75223 Niefern - Oeschelbronn, Germany E-Mail: [email protected]
Technical Modifications reserved. WISI cannot be held liable for any printing error. 4. September 2017, 4:00 nachm.
www.wisi.de
Page 2
WISI DB 03 A
Technical data
Inputs
Frequency range 5...2400 MHz
Outputs
Frequency range TV 5...862 MHz
Frequency range FM 87,5...108 MHz
Frequency range SAT 950...2150 MHz
Insertion loss TV 4.5 dB
Insertion loss FM 4.5 dB
Insertion loss SAT 5 dB
Decoupling 5-40 MHz >20 dB (from 15 MHz)
Decoupling 40-862 MHz >20 dB
Decoupling 862-2400 MHz >20 dB
Return loss TV Cat C
Return loss Input Cat B
Power passing 24 V DC (remote power 400 mA)
Connectors
Outer conductor clamp 7.5 mm
Inner conductor clamp 0,8...1,3 mm
IEC socket 1 pcs.
IEC-plug 1 pcs.
General data
Screening factor >85 dB (class A)
Dimensions (width x height x
depth)
Installation depth 35 mm
70 x 70 x 22 mm
Packaging data
Sales unit 10 pcs.
Dimensions (WxHxD) sales unit 212 x 148 x 78 mm
Packaging volume sales unit dm³
Gross weight sales unit 0.110 kg
Shipping unit 100 pcs.
Dimensions (WxHxD) shipping
unit
Packaging volume shipping
package
Gross weight shipping unit 0.11 kg
EAN 4010056152956
Article number 15295
Customs tariff number 85291095
mm
0.22 dm³
