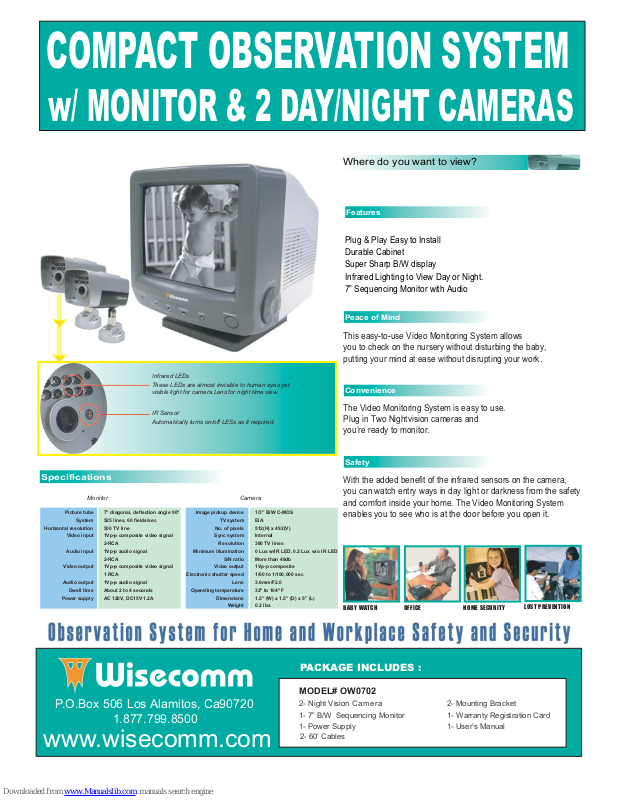

COMPACT OBSERVATION SYSTEM
w/ MONITOR & 2 DAY/NIGHT CAMERAS
Where do you want to view?
Features
Plug & Play Easy to Install
Durable Cabinet
Super Sharp B/W display
Infrared Lighting to View Day or Night.
7” Sequencing Monitor with Audio
Peace of Mind
This easy-to-use Video Monitoring System allows
you to check on the nursery without disturbing the baby,
putting your mind at ease without disrupting your work.
Infrared LEDs
These LEDs are almost invisible to human eyes yet
visible light for camera Lens for night time view.
IR Sensor
Automatically turns on/off LESs as it required.
Convenience
The Video Monitoring System is easy to use.
Plug in Two Nightvision cameras and
you’re ready to monitor.
Specifications
Monitor Camera
Picture tube 7” diagonal, deflection angle 90º
Horizontal resolution 500 TV line
System 525 lines, 60 fields/sec
Video input 1Vp-p composite video signal
Audio input 1Vp-p audio signal
Video output 1Vp-p composite video signal
Audio output 1Vp-p audio signal
Dwell time About 2 to 4 seconds
Power supply AC 120V, DC15V 1.2A
2-RCA
2-RCA
1 RCA
Image pickup device 1/3” B/W C-MOS
TV system EIA
No. of pixels 512(H) x 492(V)
Sync system Internal
Resolution 380 TV lines
Minimum illumination 0 Lux w/IR LED, 0.2 Lux w/o IR LED
Electronic shutter speed 1/60 to 1/100,000 sec
Operating temperature 32º to 104º F
S/N ratio More than 46db
Video output 1Vp-p composite
Lens 3.6mm/F2.0
Dimensions 1.5” (W) x 1.5” (D) x 5” (L)
Weight 0.2 lbs
P.O.Box 506 Los Alamitos, Ca90720
1.877.799.8500
www.wisecomm.com
Safety
With the added benefit of the infrared sensors on the camera,
you can watch entry ways in day light or darkness from the safety
and comfort inside your home. The Video Monitoring System
enables you to see who is at the door before you open it.
BABY WATCH
OFFICE
PACKAGE INCLUDES :
MODEL# OW0702
2- Night Vision Cam era
1- 7” B/W Sequencing Monitor
1- Power Supply
2- 60’ Cables
HOME SECURITY
2- Mounting Bracket
1-GWarranty Registration Card
1- User’s Manual
LOST PREVENTION
