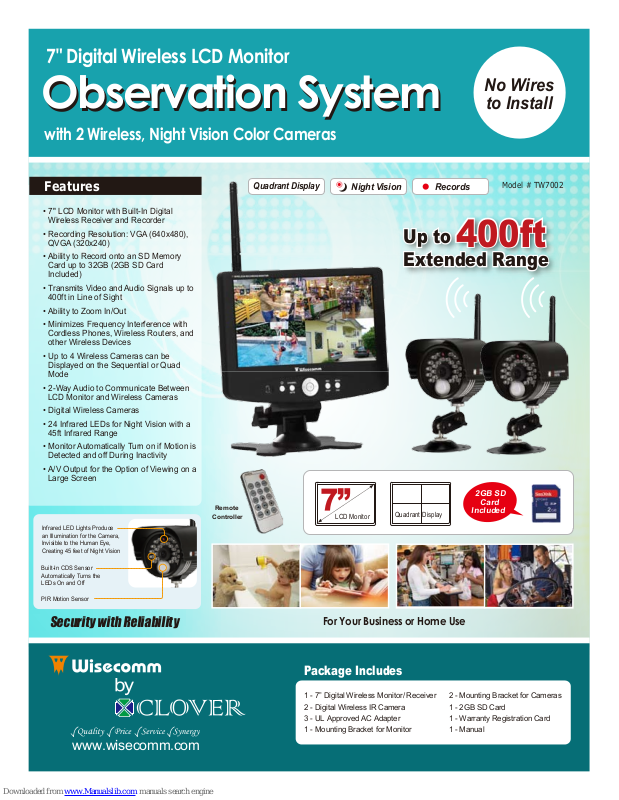

Page 1
7" Digital Wireless LCD Monitor
Observation System
Observation System
with 2 Wireless, Night Vision Color Cameras
No Wires
to Install
Features
• 7" LCD Monitor with Built-In Digital
Wireless Receiver and Recorder
• Recording Resolution: VGA (640x480),
QVGA (320x240)
• Ability to Record onto an SD Memory
Card up to 32GB (2GB SD Card
Included)
• Transmits Video and Audio Signals up to
400ft in Line of Sight
• Ability to Zoom In/Out
• Minimizes Frequency Interference with
Cordless Phones, Wireless Routers, and
other Wireless Devices
• Up to 4 Wireless Cameras can be
Displayed on the Sequential or Quad
Mode
• 2-Way Audio to Communicate Between
LCD Monitor and Wireless Cameras
• Digital Wireless Cameras
• 24 Infrared LEDs for Night Vision with a
45ft Infrared Range
• Monitor Automatically Turn on if Motion is
Detected and off During Inactivity
• A/V Output for the Option of Viewing on a
Large Screen
Infrared LED Lights Produce
an Illumination for the Camera,
Invisible to the Human Eye,
Creating 45 feet of Night Vision
Built-In CDS Sensor
Automatically Turns the
LEDs On and Off
PIR Motion Sensor
Remote
Controller
Quadrant Display
Night Vision
LCD Monitor
Records
Up to
Up to
Extended Range
Extended Range
Quadrant Display
400ft
400ft
Included
Model # TW7002
2GB SD
Card
Security with Reliability
www.wisecomm.com
For Your Business or Home Use
Package Includes
1 - 7” Digital Wireless Monitor/ Receiver
2 - Digital Wireless IR Camera
3 - UL Approved AC Adapter
1 - Mounting Bracket for Monitor
2 - Mounting Bracket for Cameras
1 - 2GB SD Card
1 - Warranty Registration Card
1 - Manual
Page 2
7" Digital Wireless LCD Monitor
Observation System
Observation System
with 2 Wireless, Night Vision Color Cameras
No Wires
to Install
LCD Monitor
Up to
Up to
Extended Range
Extended Range
Quadrant Display
400ft
400ft
Included
Remote
Controller
2GB SD
Card
Specifications
Monitor
Display Screen
Receiver Frequency
Receiver Sensitivity
Resolution (W x H)
Video Format
Video Compression
Memory Compatibility
Recording Resolution
Frame Rate
Up to Switching Dwell Time
Power Supply
Power Consumption
Size (W x H x D)
Weight
Operating Temperature
Cameras
Imaging Sensor
CMOS Total Resolution
Transmission Power
Automatic Electronic Shutter
IR LED (D x L)
IR View Distance
Environment Rating
Dimension (D x L)
Operating Temperature
Weight
Power Supply
Lens
7 inch TFT LCD Monitor
2,400 to 2,483MHz
-81dBm
480 x 234 Pixels (RGB)
AVI
MJPEG
SD Card up to 32GB
VGA/QVGA
30fps at QVGA and 15fps at QVGA
2 to 60 Seconds
12V DC, 1.25A
<10W
180 x 135 x 30mm
450g (Main Body)
0oC to 40oC Degrees Celsius
1/4-inch Color CMOS
640 x 480 Pixels
14dBm
1/60 to 1/15,000 Seconds
Φ70 x 60mm
About 15m
IP64
Φ70 x 60mm
0 to 40 Degrees Celsius
420g (main body)
12V DC, 500mA
f = 4.3mm
www.wisecomm.com
