User Manual
ver. HSH200&D1000E-001
Introduction
Guidelines for your safety
Before Using
What’s in the box?
Features at a glance
Putting on the stereo headset
Adjusting the length of necklace
How to plug-in the earphones
How to plug-out the earphones
Charging
Turning ON/OFF
Indicator light status
Pairing & Connecting
Pairing & Connecting between stereo headset and stereo dongle
[Pairing and connecting with the stereo dongle]
[Pairing and connecting with a Bluetooth mobile phone & the stereo dongle simultaneously]
Pairing & Connecting between stereo headset and another device
[Pairing with a Bluetooth device]
[Deleting the paired devices’ information of the stereo headset]
[Connecting with a Bluetooth device]
[Cutting the connection]
Pairing & Connecting between stereo dongle and another stereo headset
[Pairing and connecting stereo dongle with a Bluetooth stereo headset]
[Connecting to the latest connected Bluetooth stereo headset]
[How to change the passkey]
Using the stereo headset
Playing music
Phone call control while listening to music
Answering calls
Making calls
Transferring calls
Adjusting volume
Using the stereo dongle
Analog audio mode
USB audio mode
Specification & Certifications
Brief Specification
Certifications
Table of Contents
Introduction
wiREVO Bluetooth Stereo product series will lead you to the mobility which allows you freedom and without any
limitations and/or disturbances.
main functions of wiREVO HSH200 (Stereo Headset)
Wireless Stereo Headset
Wireless Remote Controller
Wireless Hands-free
Caller ID
main functions of wiREVO D1000 (Stereo Dongle)
Wireless stereo source (A2DP Source)
Wireless remote control (AVRCP Target)
Support both analog audio input and USB audio input
Can change passkey (PIN code)
Can adjust volume level of D1000 (in analog audio mode only)
Read this user manual carefully before using the devices.
Bluetooth Wireless Technology
wiREVO HSH200 and D1000 specially support the following Bluetooth profiles. (Profile is a set of Bluetooth
commands that the devices use to control the other devices)
wiREVO HSH200
Advanced Audio Distribution profile (A2DP)
Audio Video Remote Control profile (AVRCP)
Hands-free profile (HFP)
Headset profile (HSP)
wiREVO D1000
Advanced Audio Distribution profile (A2DP)
Audio Video Remote Control profile (AVRCP)
Limited Liability
The manufacturer, importers, and the dealers are not responsible for any accidental damages; including bodily
injury or any damage resulting from misuse or unsuitable operation by a user. The information on this manual is
prepared with the current products’ specifications. The manufacturer is adding new features to the products and
may persistently apply new technologies hereafter. All standards may be changed at any time without notice.
Introduction
Before use, read the warnings and other information in this manual.
Please check for any information on RF exposure in usage of wiREVO products. When your devices are turned on, they
transmit and receive radio frequency electromagnetic fields in the frequency range 2.402 ~ 2.480 GHz.
Your wiREVO devices are designed to operate in compliance with the RF exposure guidelines and limits that are set
by national authorities and international health agencies when used with any compatible devices.
Drive Safely
Using a mobile phone while driving creates a distraction to the driver which may increase the likelihood of an
accident.When doing the phone call while driving, keep conversations short and do not make notes or read
documents. Before answering calls consider your circumstances. Pull off to the side of road and park before making
or answering calls when driving conditions require (e.g. bad weather, high traffic density, presence of children in the
car, difficult junctions or maneuvers). Remember, driving comes first, not the call! Abide by local laws.
Do not use the stereo headset during charging.
[Stereo Headset & Stereo dongle]
Do not touch your devices and power plug with damp hands.
Do not kink or crease the power cable or place heavy objects on the power cable.
Firmly plug the adapter into the wall socket.
Unplug the adapter during electrical storms.
Do not overload a single power circuit.
Use only the supplied adapter.
Unplug adapter when it is not in use.
Immediately power off the stereo headset & stereo dongle and unplug the adapter if water or other
liquids are present.
Immediately power off the stereo headset & stereo dongle and unplug the adapter if smoke or odors
emits from the stereo headset & stereo dongle or adapter.
Guidelines for your safety
Note
Note
Keep the stereo headset & stereo dongle dry. Humidity and all types of liquids or moisture can cause
harmful interface with electronic circuits.
Do not place heavy object on the devices.
Do not use harsh chemicals, cleaning solvents, water or strong detergents to clean the devices. To clean
external surfaces, use a clean dampened cloth.
Do not use excessive force on the buttons or attempt to disassemble the devices.
Do not drop or subject the devices to impact.
Do not paint the stereo headset & stereo dongle. Paint can clog the moving parts and prevent proper operation.
Keep the stereo headset & stereo dongle away from strong magnets.
Do not disassemble or modify.
Do not dry the devices with heater or microwave.
Keep all accessories out of the reach of small children.
Reduce volume while walking, especially at pedestrian crosswalk.
Do not use earphones at high volume.
Reduce volume or stop using the stereo headset if you experience a ringing in your ears.
Do not use at high volume for continuous listening.
Keep earphone cords/necklace under control to avoid getting caught on various objects.
[Battery]
Your stereo headset & stereo dongle are equipped with a high-performance rechargeable Lithium battery each.
Observe the maintenance guidelines and your battery should give you a long service life.
Use adapter only provided and approved by the manufacturer.
Before using the devices for the first time, charge them fully.
Do not leave the devices as they are turned on when you do not use them. It may cause harmful damage to the
batteries.
The batteries are consumables and will eventually wear out.
Avoid charging in strong heat or extreme cold. Ambient room temperature is preferable. The battery has its optimum
performance at an ambient temperature (+5 ºC to +50 ºC).
Guidelines for your safety

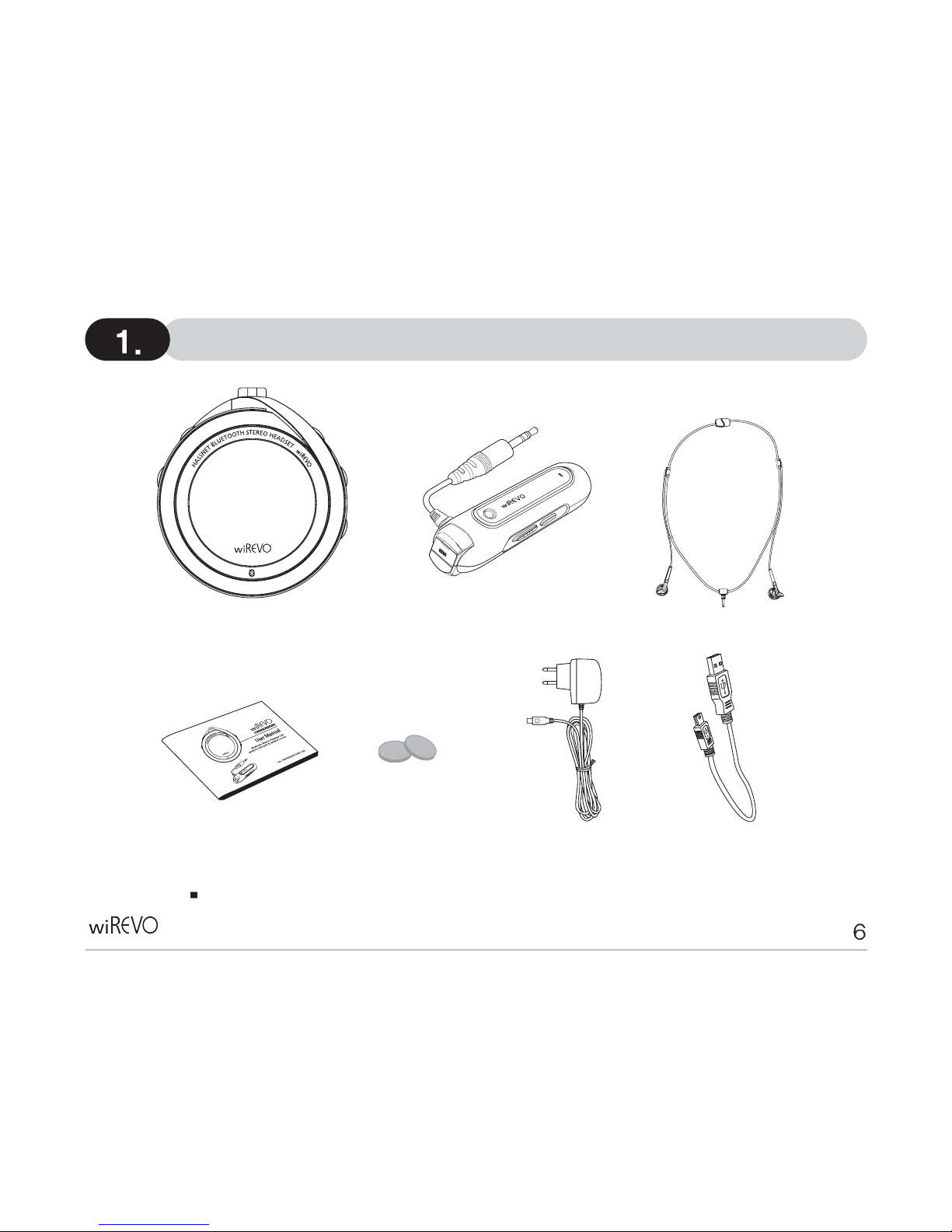

What’s in the box?
User Manual
Stereo headset wiREVO HSH200 Stereo dongle wiREVO D1000 Earphones & Necklace
Earphone Sponges Travel Adapter USB Cable
The contents are subject to change without notice and may vary from image shown.
Before Using
Front
Features at a glance
Before Using
[Stereo headset wiREVO HSH200]
Back
Side
Actual Stereo headset may vary slightly from images shown.
Features at a glance
Before Using
Features at a glance
Before Using
Actual Stereo dongle may vary slightly from images shown.

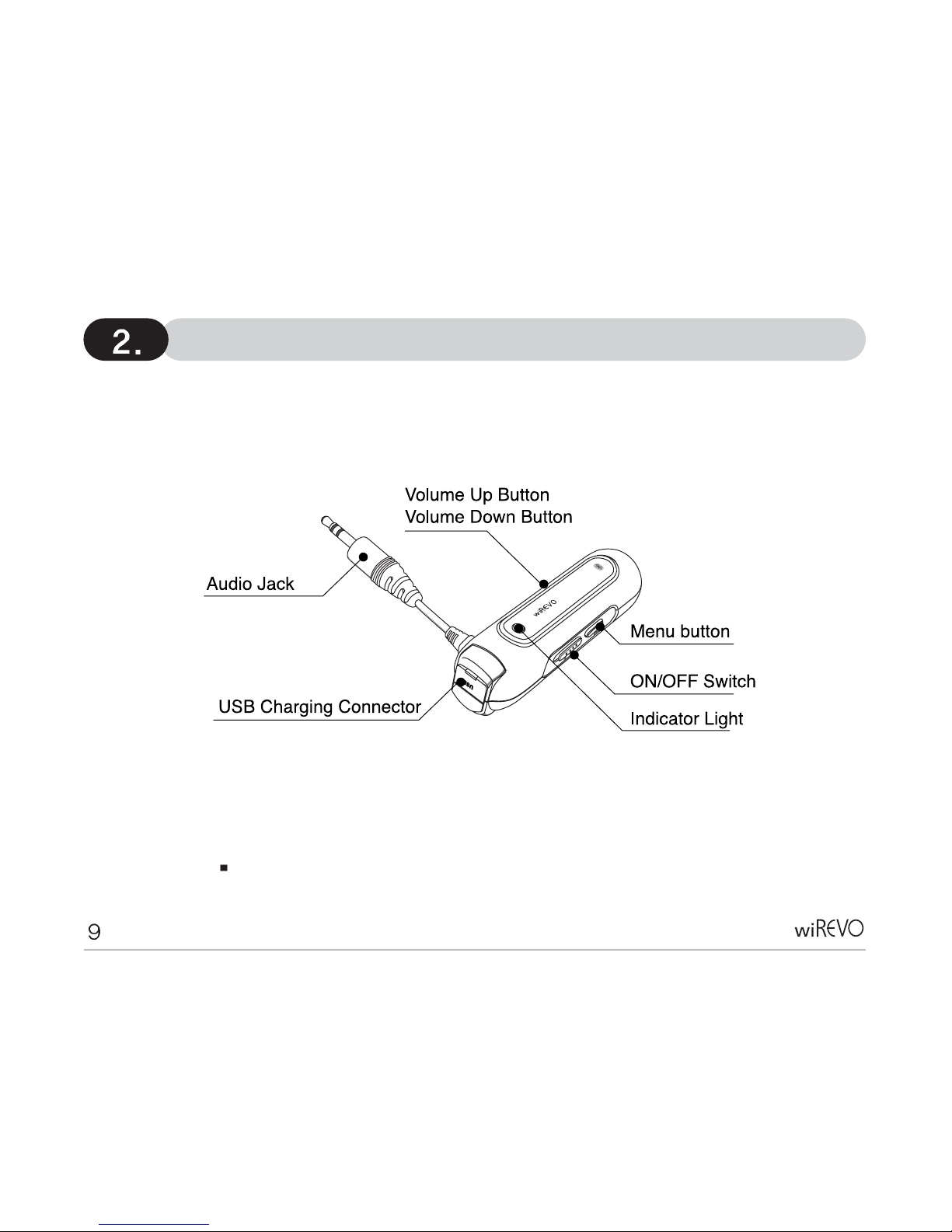

[Stereo dongle wiREVO D1000]
The necklace is designed to be untied if it is strained for your safety, however you are able to reassemble it.
Putting on the stereo headset
Before Using
Adjusting the length of necklace
Before Using
1. Hold the connection part of a necklace and push it into the direction of arrow.
2. Hold the connection part and rotate it to the direction of arrow.
How to plug-in the earphones
Before Using
How to plug-out the earphones
Before Using
1. Hold the connection part and rotate it to the direction of arrow.
2. Hold the connection part of a necklace and pull it out to the direction of arrow.
Charging
Before using the stereo headset & stereo dongle for the first time, make sure they are fully charged.
Do not leave the devices as they are turned on when you do not use them. It may cause harmful damage to the
batteries.
Connect the adapter or USB cable to the stereo headset and the indicator light will light. The indicator light in LCD
will automatically turn off when the battery is fully charged.
[Charging with Adapter]
The indicator light in LCD will automatically turn off when the battery is fully charged.
[Charging with USB Cable]
The indicator light in LCD will automatically turn off when the battery is fully charged.
Do not use the stereo headset while charging.
Before Using
Note
Stereo Headset
[Low battery indication]
When the battery needs to be recharged, the stereo headset will generate high warning tones, which are repeated
every 10 seconds.
On LCD, a warning message “Low Battery!” is displayed.
As soon as you detect the low battery you should charge the headset.
Charge the battery until the indicator turns off.
[Check battery level]
Press and hold Volume Up ( ) button and Volume Down ( ) button together. You can check the battery level on LCD.
[Charging & operation time]
Approx. under 5% charged
Approx. 5~20% charged
Approx. 20~50% charged
Approx. 50~80% charged
Approx. 80~100% charged
Low Battery!
Battery
Battery
Battery
Battery
Charging Time
With Adapter With USB cable
2..5 hrs 3hrs
Operation Time
Standby Time Talk Time Play Time
150 hrs 12 hrs 8 hrs
Charging
Before Using
Charging
Before Using

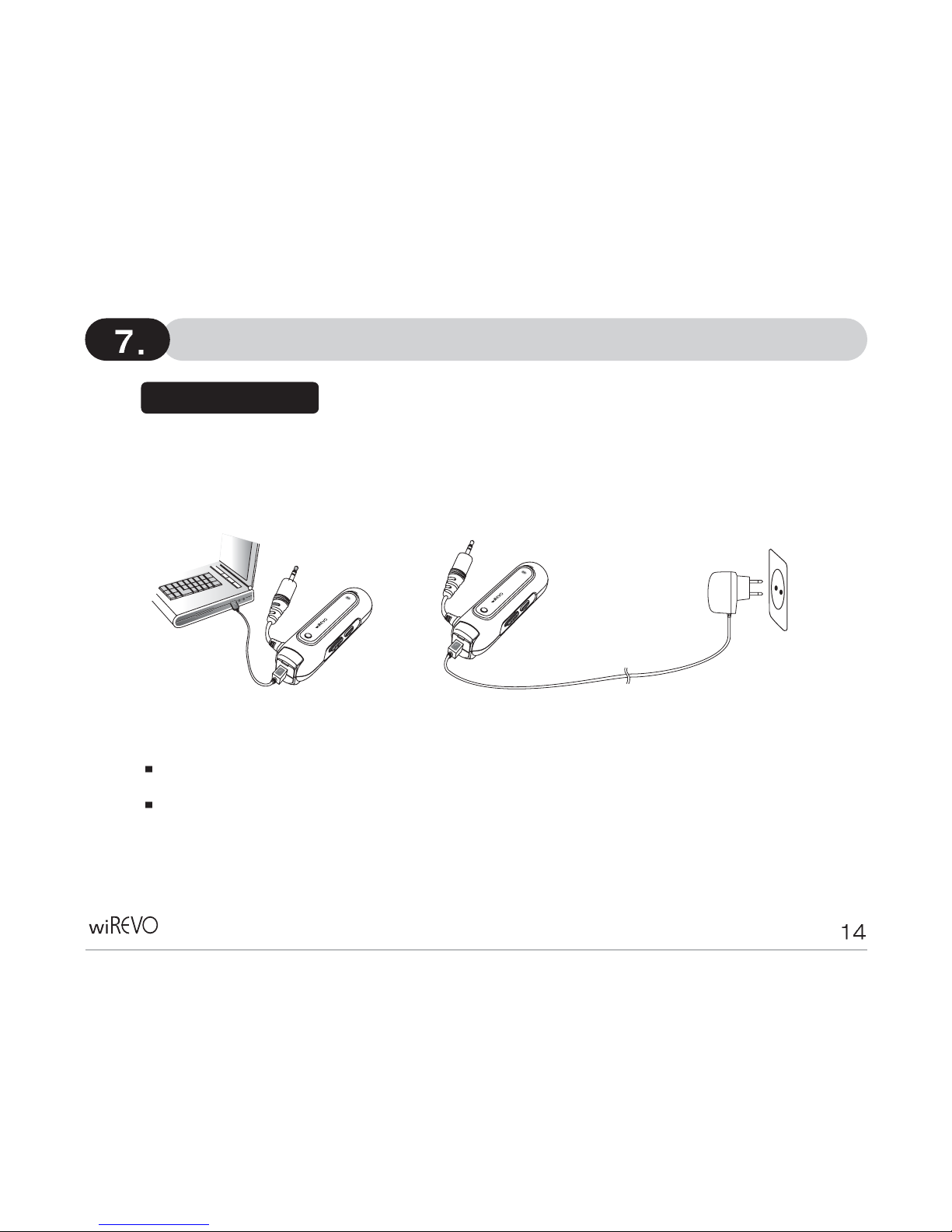

Connect the adapter or USB cable to the stereo dongle and the indicator light will be purple.
[Charging]
When the battery is fully charged, the blue indicator light will turn on if power is off, or the indicator light will display normal
operation if power is on.
[Low battery indication]
When the battery needs to be recharged, the red indicator light flashes three times every 10 seconds. While charging,
the purple indicator light will be steady on.
As soon as you detect the low battery you should charge the stereo dongle.
Stereo dongle
Charging
Before Using
Press and hold Volume Up ( ) button and Volume Down ( ) button together.
The red indicator light flashes from 1 to 4 times according to the remaining battery amount.
The more it flashes, the more the battery is remained.
[Check battery level]
[Charging & operation time]
Operation Time
Standby Time Play Time
120 hrs 8 hrs
Approx. under 5% charged
Approx. 5~20% charged
Approx. 20~50% charged
Approx. 50~80% charged
Approx. 80~100% charged
Low battery warning
Flashes once
Flashes twice
Flashes three times
Flashes four times
Charging Time
With Adapter With USB cable
2..5 hrs 2..5hrs

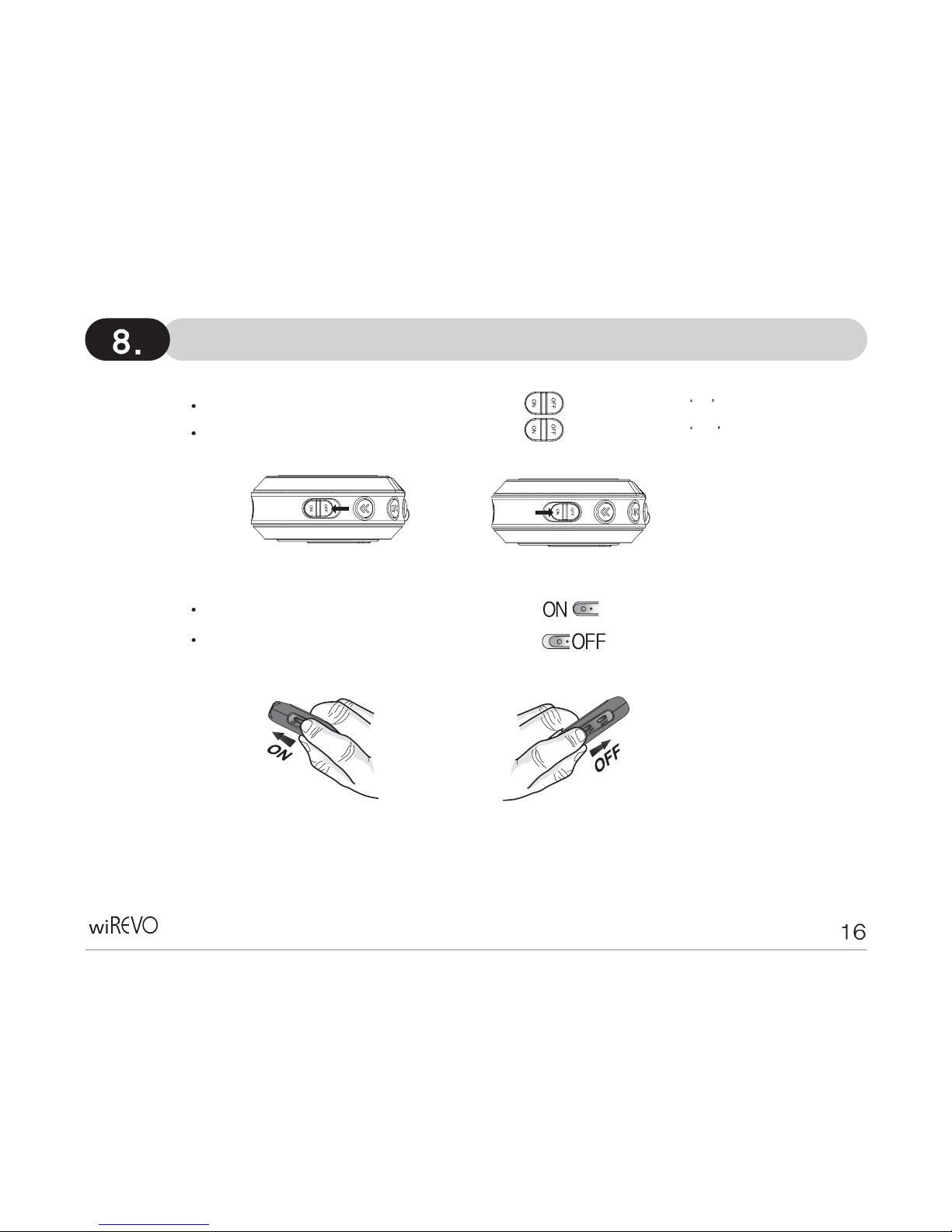

To turn on the stereo headset, push the power switch ( ) to the direction for ON .
Turning ON/OFF
Before Using
To turn off the stereo headset, push the power switch ( ) to the direction for OFF .
To turn on the stereo dongle, push the ON/OFF Switch ( ) to the direction for ‘ON’.
To turn off the stereo dongle, push the ON/OFF Switch ( ) to the direction for ‘OFF’.
Indicator light status
Before Using
Power On as USB audio mode
On pairing state [Pairing mode]
On connecting state [Connecting mode]
When waiting for connection from the peer
Bluetooth device [Connectable mode]
Blue & Purple flash in turn with one another 3 times
Power On as Analog audio mode
Indicator light status of the Stereo dongle
Red & Purple flash in turn with one another 3 times
Blue & Red flash in turn with one another
Blue flashes per 1 second
Blue flashes per 6 seconds
On connected state [Connected mode]
Blue flashes per 3 seconds
While charging
Solid purple indicator light is on
Charging is completed
Blue indicator light is on (When it’s off) or
normal operation (When it’s on)
Pairing & Connecting
between stereo headset and stereo dongle
Pairing & Connecting
[ Pairing and connecting with the stereo dongle]
1. Turn on the stereo dongle.
If the stereo dongle is used with another Bluetooth stereo headset, turn on the stereo dongle with pressing
Menu ( ) button to be ready for pairing. The blue & red indocator lights flash in turn with one another.
2. Turn on the stereo headset.
If the stereo headset is used with another Bluetooth audio device, turn on the stereo headset with
pressing Talk ( ) button to be ready for pairing. “Search me” & “wiREVO” are displayed in turn
with one another.
3. Put the stereo headset and stereo dongle close-by.
4. When the pairing and connecting are completed, on the LCD of the stereo headset, “Stereo” is displayed
and the stereo dongle’s blue indicator light will flash per 6 seconds.
5. Plug in the stereo dongle to your audio device and enjoy the music. [refer to Using the stereo dongle]
Note
Note
Pairing & Connecting
between stereo headset and stereo dongle
Pairing & Connecting
[Pairing and connecting with a Bluetooth mobile phone & the stereo dongle simultaneously]
1. Turn on the stereo headset.
If the stereo headset is used with another Bluetooth audio device, turn on the stereo headset with
pressing Talk ( ) button to be ready for pairing. “Search me” & “wiREVO” are displayed
in turn with one another.
2. Pair and connect the stereo headset with a Bluetooth mobile phone followed by the mobile phone’s user manual
for the Hands-free function.
3. Turn off the stereo headset.
4. Turn on the stereo headset with pressing Talk ( ) button.
5. Pair and connect the stereo headset with stereo dongle followed by the article
[ Pairing and connecting with the stereo dongle].
6. Connect the stereo headset with the paired mobile phone from the mobile phone.
7. Enjoy the music.
8. When the call is receiving, you can press Talk ( ) button of the stereo headset to answer it.
9. After ending the call, the music is resumed.
Note
Pairing & Connecting
between stereo headset and another device
Pairing & Connecting
[Pairing with a Bluetooth device]
Once you have paired your stereo headset with the Bluetooth device including the stereo dongle, you don’t
need to pair it again if you don’t delete all registered data from your device.
It is better to try to pair your stereo headset with the Bluetooth device close-by.
When you turn on the stereo headset, you can check the Bluetooth Device Address (ex.0008D600F097) of
your stereo headset on the LCD. You can distinguish your stereo headset from others using the unique number.
1. If the stereo headset is turned on for the first time, it will automatically be ready for pairing. In this case,
“Search me” & “wiREVO” are displayed in turn with one another for 3 minutes. [Pairable mode]
2. Prepare your Bluetooth device according to the device’s user manual on pairing.
3. Continue following the instructions in the device’s user manual.
4. The default passkey of the stereo headset is [0000].
5. When pairing has been completed, the stereo headset displays “Connect Pls” & “wiREVO” in turn with one another.
[Connectable mode]
When you use the stereo headset for the first time
Pairing & Connecting
between stereo headset and another device
Pairing & Connecting
With some Bluetooth devices, the stereo headset can be connected automatically after pairing. [Connected mode]
In this case, the stereo headset displays “Stereo”, “HandsFree” or “Headset” according to the connected service.
Note
When the stereo headset is connected with a Bluetooth audio dongle, the stereo headset will start to play
music directly [Active mode] so “Stereo” is displayed on the LCD.
Note
In pairable mode, if the stereo headset has not been paired for 3 minutes, the stereo headset displays “Pairing Fail” & “Retry Pls!”
in turn with one another. In that case, you need to turn the stereo headset off and on again to try pairing from the first step.
When you want to use your stereo headset with another device that is not the device that you paired your stereo headset with,
you will need to pair it again.
Note
When you want to use it with another Bluetooth device
When you use the stereo headset for the first time
1. Switch ON ( ) with pressing Talk ( ) button.
In this case, “Search me” & “wiREVO” are displayed in
turn for 3 minutes. [Pairable mode]
2. The following steps are the same with
You can delete the paired devices information.
Switch ON( ) with pressing Talk( ) button and Play/Pause/Stop( ) button together.
Erase Info is displayed.
After deleting the paired information, you need to do the paring process from the first step.
Note
Pairing & Connecting
between stereo headset and another device
Pairing & Connecting
[Deleting the paired devices’ information of the stereo headset]
Pairing & Connecting
between stereo headset and another device
Pairing & Connecting
[Connecting with a Bluetooth device]
To connect with your Bluetooth device, you need to pair the two devices first.
This step is not needed for the stereo dongle. With some Bluetooth devices including stereo dongle,
the stereo headset can be connected automatically after pairing without following additional process.
1. Turn on by switching ON ( ) and set it up as connectable status.
2. Connect the stereo headset with the device by any method below.
Connect by a Bluetooth device
- Connect following the instructions in the Bluetooth device s user manual.
Connect by the stereo headset
-
TToo uussee MMuussiicc PPllaayy sseerrvviiccee
, press Play/Pause/Stop ( ) button. In this case, only Music Play service is connected.
-
TToo uussee HHaannddss--ffrreeee sseerrvviiccee
, press Talk ( ) button. In this case, only Hands-free service is connected.
-
TToo uussee MMuussiicc PPllaayy sseerrvviiccee aanndd HHaannddss--ffrreeee sseerrvviiccee aatt tthhee ssaammee ttiimmee
, press and hold Play/Pause/Stop ( ) button for
2 seconds.
3. When the connection is completed [Connected mode], you can use the stereo headset for the selected service(s).
On LCD, Stereo , Headset or HandsFree is displayed.
Turn off the stereo headset by switching OFF ( ) or disconnect by the Bluetooth device.
Connect Pls & wiREVO will be displayed in turn with one another. [Connectable mode]
Some Bluetooth devices may not accept the connection from the stereo headset. Please check the user manual of
your Bluetooth device.
This stereo headset supports A2DP, AVRCP, HSP & HFP and from a Bluetooth device you can search the services
of this stereo headset and select the service to be connected. The searching, selecting and connecting process are
dependent on your Bluetooth devices.
- A2DP: Advanced Audio Distribution Profile
- AVRCP: Audio Video Remote Control Profile
- HSP: Headset Profile
- HFP: Hands-free Profile
(Profile is a set of Bluetooth commands that the devices use to control the other devices.)
In case the stereo headset is connected as A2DP and HSP/HFP at the same time.
- during the connected mode, LCD displays Stereo and
- only when the phone call is coming or dialing, LCD displays Headset , HandsFree or the phone number
of a caller.
Note
Note
Note
Pairing & Connecting
between stereo headset and another device
Pairing & Connecting
[Cutting the connection]
[Pairing and connecting the stereo dongle with a Bluetooth stereo headset]
Pairing & Connecting
between stereo dongle and another stereo headset
Pairing & Connecting
When you use the stereo dongle for the first time
It’s better to try to pair your stereo dongle with the Bluetooth stereo headset close-by.
1. If the stereo dongle is turned on for the first time, it will automatically be ready for pairing. In this case, the
blue and red indicator lights flash in turn with one another. [Pairing mode].
2. Prepare your Bluetooth stereo headset according to its user manual on pairing.
3. The stereo dongle and stereo headset will be paired and connected automatically.
4. When pairing and connecting have been completed successfully, the blue indicator light will flash
per 6 seconds. [Connected mode].
The default passkey of the stereo dongle is [0000].
To change the passkey according to your stereo headset’s one, follow the [How to change the passkey] section.
In Pairing mode, if it’s not paired for 1 minute, the indicator light will be off. In that case, you need to turn it off
and turn it on to try pairing & connecting from the first step.
Note
Pairing & Connecting
between stereo dongle and another stereo headset
Pairing & Connecting
When you want to use it with another Bluetooth stereo headset
When you want to use your stereo dongle with another Bluetooth stereo headset that isn’t the device
that you paired your stereo dongle with, you need to pair it again.
1. Switch ON ( ) with pressing and holding Menu ( ) button. In this case, the blue and red indicator lights
flash in turn with one another if it is ready to be paired. [Pairing mode]
2. The following steps are the same with
When connecting is failed, the blue indicator light will flash per 3 seconds. [Connectable mode]
In this mode, the stereo dongle is ready to accept connection from the latest connected Bluetooth
stereo headset so you may try to make connection from the stereo headset or you may turn it off and
turn it on to try pairing & connecting from the first step.
If pairing or connecting is failed, check whether the peer Bluetooth device supports A2DP and its
passkey is correct.
Note
Note
When you use the stereo dongle for the first time
Pairing & Connecting
between stereo dongle and another stereo headset
Pairing & Connecting
1. Switch ON ( ) and the stereo dongle will try to connect to the latest connected Bluetooth stereo headset
and the blue indicator light will flash per 1 second. [Connecting mode]
2. When connecting has been completed successfully, the blue indicator light will flash per 6 seconds.
3. When connecting is failed, the blue indicator light will flash per 3 seconds. [Connectable mode] In this case,
you may try to make connection from the stereo headset.
[Connecting to the latest connected Bluetooth stereo headset ]
Pairing & Connecting
between stereo dongle and another stereo headset
Pairing & Connecting
[How to change the passkey ]
1. Press and hold Menu ( ) button when it’s not connected to any Bluetooth stereo headset.
2. Purple indicator light will blink once and the indicator light will be off.
3. You need to input new 4 digits.
4. To input the number, press Volume Down ( ) button as many as the number. You can see a blue
indicator light blink whenever you press Volume Down ( ) button.
To input ‘0’, just press Volume Up ( ) button to go to the next digit.
In this case, you don’t have to press Volume Down( ) button.
5. To input the next digit, press Volume Up ( ) button. You can see a red indicator light blink.
6. If you press Volume Up ( ) button after inputting the 4th digit, the new passkey is set and saved
with two purple blinks.
Example
Passkey = 0000
: Icon for Volume Up button
Passkey = 1234
: Icon for Volume Up button
: Icon for Volume Down button
To cancel changing the passkey, press and hold Menu( ) button, then purple indicator light
will blink twice.
Note
Note
Playing music
Using the stereo headset
PLAY
Press Play/Pause/Stop ( ) button while being connected to your Bluetooth device.
Press Play/Pause/Stop ( ) button while music is stopped.
The music automatically comes back after you ended a call if you answered a call while listening to music.
PAUSE
Press Play/Pause/Stop ( ) button while listening to music.
Press Play/Pause/Stop ( ) button again to listen to the song from the paused part.
STOP
Press and hold Play/Pause/Stop ( ) button for 2 seconds while listening to music.
Press Play/Pause/Stop ( ) button again to listen to the song from the very first part.
This is dependent on the Bluetooth audio device’s function and works only when the
Bluetooth audio device supports this function.
Play the previous/next song
Press FF ( ) button while music is on to play the next song.
Press REW ( ) button while music is on to play the previous song.
Rewinding/ Fast forwarding
Press and hold FF ( ) button while music is on for fast forwarding.
Press and hold REW ( ) button while music is on for rewinding.
Note
Note
This is dependent on the Bluetooth audio device’s function and works only when the Bluetooth
audio device supports this function.
Note
The stereo dongle does not support Rewinding/ Fast forwarding.
Playing music
Using the stereo headset
Adjusting Volume
Press Volume Up ( ) button or Volume Down ( ) button to adjust the speaker volume while listening to music.
Play/Pause/Stop, Forward/Backward and Fast Forward/Rewind operations are based on the Bluetooth
profile, AVRCP. If these functions do not work correctly, check whether your Bluetooth device supports
AVRCP as well as A2DP or not.
Note
Phone call control while listening to music
Using the stereo headset
In a noisy environment, the clearance of the voice quality would be better if you hold the stereo headset
and keep the distance 10cm from your mouth.
You need to connect the stereo headset with your mobile phone and a Bluetooth audio device at the same
time for this function.
When a call is received, while the music is playing, the music will be paused automatically and you will hear the
ringing from the speaker.
You can check the caller ID on the LCD when it s connected as a hands-free profile, not a headset profile.
Answering a call while listening to music
To accept the call, press Talk ( ) button.
Rejecting a call while listening to music
To reject the call, press and hold Talk ( ) button for 2 seconds.
Available only when your stereo headset and the mobile phone are connected as Hands-free profile and
the mobile phone supports the incoming call rejecting function.
Making a call while listening to music
Press and Hold Play/Pause/Stop ( ) button for 2 seconds to stop music.
Make a call using the methods described in
4. Making calls.
Note
TIP
Answering calls
Using the stereo headset
When a call is received you will hear the ringing through the stereo headset. You can check the Caller ID
on the LCD when it s connected as a hands-free profile, not a headset profile.
Answering a call
Press the Talk ( ) button to accept the call.
To end the call, press Talk ( ) button.
Rejecting a call
To reject calls, press and hold Talk ( ) button for 2 seconds.
Available only when your stereo headset and the mobile phone are connected as Hands-free profile
and the mobile phone supports the incoming call rejecting function.
Answering the 2nd call
While on the line, if there is a 2nd call, you can hear a beep.
Press and hold the Talk ( ) button for 2 seconds to answer the call.
You can answer the 1st call - held call - by pressing and holding Talk ( ) button for 2 seconds again.
It is dependent on the mobile phone s function and is possible when the mobile phone supports
Hands-free profile.
Make sure that your stereo headset is connected with your mobile phone supports Hands-free profile.
Note
Note
Making calls
Using the stereo headset
Make sure that your stereo headset is connected to your mobile phone.
Using a mobile phone
Using the phone s keypad, dial the required number.
Send the call from the phone (Phone initiates the call).
The call will automatically transfer to the stereo headset. However, for some mobile phones, you must press
Talk ( ) button to make the call transfer to the stereo headset. Please refer to your phone s user guide.
Using redialing the last call
With your stereo headset, you can re-dial the last call dialed or received.
Press Talk ( ) button and you can see the latest call numbers on the mobile phone.
Press Talk ( ) button again.
After you hear the short beep, you will hear the dialing tones from speaker.
Some mobile phones may re-dial the last call by pressing Talk ( ) button once.
Using voice dialing
To make calls using voice dialing with your stereo headset, your mobile phone needs to support voice dialing
and the feature must be activated.
Press and hold Talk ( ) button for 2 seconds and you can hear a short beep. Voice dial as you normally
would.
It is dependent on a mobile phone s function and is possible when the mobile phone supports
Hands-free profile.
Note
Note
Transferring calls
Using the stereo headset
Adjusting volume
Using the stereo headset
To the Stereo Headset
Press Talk ( ) button during a phone call on the mobile phone.
To the Mobile Phone
Depends on the mobile phone s function. Refer to the user manual of the mobile phone.
Press Volume Up
( )
button or Volume Down
( )
button to adjust the speaker volume during a phone call.
Analog audio mode
Using the stereo dongle
Plug the stereo dongle into the audio jack of a non-Bluetooth device.
Possible function:
wireless stereo & limited wireless remote control (Play/Pause only).
Can also play/pause the audio stream by pressing Menu ( ) button.
Can adjust volume level of the stereo dongle.
1. Switch ON ( ) with pressing and holding Volume Down ( ) button until the first indicator light is on.
2. When the stereo dongle is turned on as analog audio mode, blue and purple indicator lights flash in turn with
one another 3 times before going to the normal state.
3. The stereo dongle will keep analog audio mode if you don’t change it to USB audio mode.
[How to set analog audio mode]
1. Press Volume Up ( ) button or Volume Down ( ) button to adjust the volume of the stereo
dongle while listening to music.
2. When it reaches the maximum or minimum volume level, purple indicator light flashes once.
3. You may need to adjust non-Bluetooth device’s - Computer, PDA, Mobile phone, etc. - volume level not to
be saturated.
When you do not listen to music, press and hold Menu ( ) button of the stereo dongle or do
STOP operation (press and hold Play/Pause/Stop button) of the wiREVO stereo headset to save
power consumption of both the stereo dongle and the stereo headset.
[Adjusting Volume level]
Note
USB audio mode
Using the stereo dongle
Plug the Bluetooth stereo dongle into the USB port of a non-Bluetooth device
using the USB cable supplied with the stereo dongle.
Possible function:
wireless stereo & wireless remote control (Play/Pause/Stop,Forward/Backward)
Cannot adjust volume level of the stereo dongle. Adjust non-Bluetooth device’s
volume level.
Can be charged while using.
Better audio quality compared to the Analog audio mode.
1.Switch ON ( ) with pressing and holding Volume Down ( ) button and Menu ( ) button together
until the first indicator light is on.
2. When the Bluetooth stereo dongle is turned on as USB audio mode, red and purple indicator lights flash in turn with one
another 3 times before going to the normal state.
3.The stereo dongle will keep USB audio mode if you don’t change it to analog audio mode.
When you plug the stereo dongle into the USB port of a non-Bluetooth device for the first time, it will install USB Audio
Device Drivers automatically and additional USB Driver is not needed. Installed Audio Device’s name is “wiREVO
Bluetooth Stereo Audio”. If it is not selected automatically when plugged in, you may need to select the Audio device
by manual.
[How to set USB audio mode]
Note
Model Name
Bluetooth Compliance
Frequency Range
Transmission output power
Maximum Cordless Distance
Dimension
2.402 ~ 2.480 GHz
Product Name
Item
Bluetooth 2.0 with A2DP, AVRCP, HFP and HSP
Bluetooth Stereo Headset
wiREVO HSH200
HSH200
0.25 ~ 2.5mW
30 feet (10 meters)
38phi X 15.5mm
Operating Temperature
Relative Humidity
-10 ~ 50 °C
Standby Time
0 ~ 95%
Talk Time
150 hours
Play Time
12 hours
Battery Type
8 hours
Adapter Rated input
Rechargeable Lithium battery
Adapter Rated output
D1000
Bluetooth 2.0 with A2DP and AVRCP
2.402 ~ 2.480 GHz
0.25 ~ 2.5mW
30 feet (10 meters)
17 X 60.7 X 17.9 mm
wiREVO D1000
Bluetooth Stereo dongle
-10 ~ 50 °C
0 ~ 95%
120 hours
N/A
8 hours
Rechargeable Lithium battery
AC 100 ~ 240V, 50/60Hz
DC 5.0 ~ 5.3V, 600 ~ 700mA
Standby time, Talk time and Play time are dependent on the connected devices.
Brief Specification
Specification & Certifications
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any
use of such marks by manufacturer is under license. Other trademarks and trade
names are those of their respective owners.
These products are WEEE marked according to the provisions of the Directive
2002/96/EC. Dispose of the product according to local standards and regulations.
Certifications
These products are CE marked according to the provisions of the R&TTE
Directive 1995/05/EC. These products are in compliance with the essential
requirements and other relevant provisions of Directive 1995/05/EC. For more
information please consult http://www.wirevo.com.
These devices comply with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) These devices may not cause harmful interference, and (2) these devices must
accept any interference received, including interference that may cause undesired
operation.
Specification & Certifications
Thank You.
To receive sales literature and technical assistance, please contact the following
address.
USA
support.usa@wirevo.com
Address: 2480N, First Street, Suite 100, San Jose, CA 95131-1030, USA
Visit our Web site at www.wirevo.com
Printed in Korea
Loading...
