Wiremold Electrical Systems conform to and should be
properly grounded in compliance with requirements of
the current National Code or codes administered by local
authorities.
All electrical products may represent a possible shock or
fire hazard if improperly installed or used. Wiremold
electrical products are UL listed, made for interior use in dry
locations only and should be installed in conformance
with current local and/or the National Electrical Code.

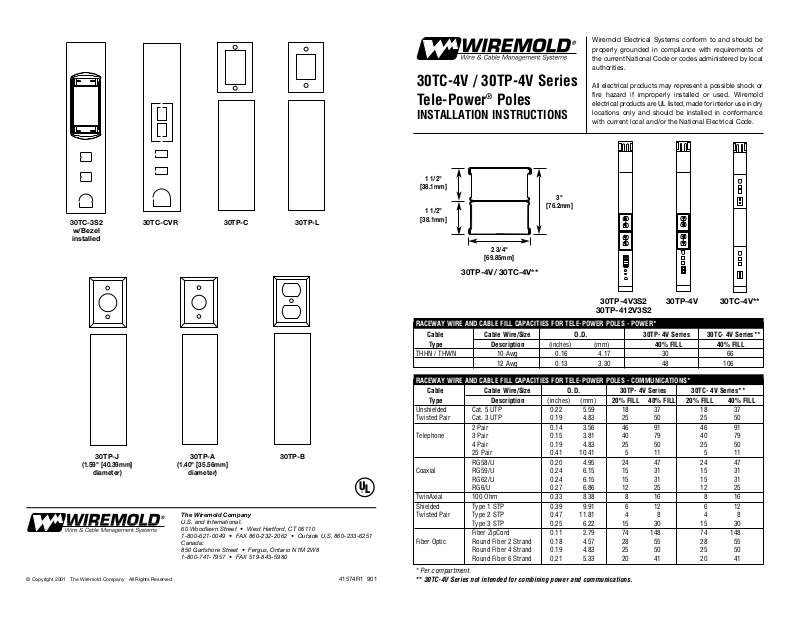

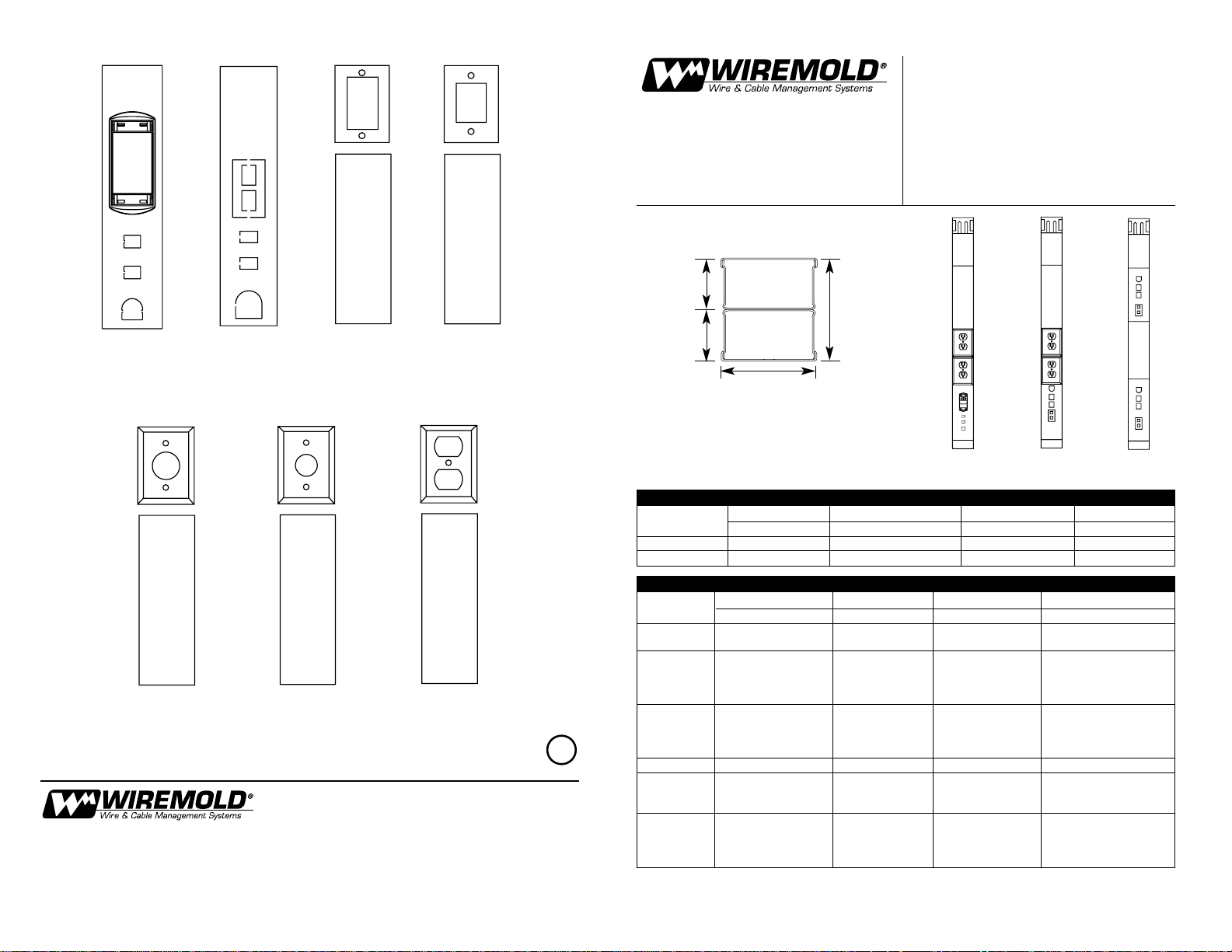

30TC-4V / 30TP-4V Series
Tele-Power
®
Poles
INSTALLATION INSTRUCTIONS
3"
[76.2mm]
30TP-C
30TP-L
30TP-J
(1.59" [40.39mm]
diameter)
30TP-A
(1.40" [35.56mm]
diameter)
30TP-B
2 3/4"
[69.85mm]
1 1/2"
[38.1mm]
1 1/2"
[38.1mm]
Cable Cable Wire/Size O.D. 30TP- 4V Series 30TC- 4V Series**
Type Description (inches) (mm) 40% FILL 40% FILL
THHN / THWN 10 Awg 0.16 4.17 30 66
12 Awg 0.13 3.30 48 106
Cable Cable Wire/Size O.D. 30TP- 4V Series 30TC- 4V Series**
Type Description (inches) (mm) 20% FILL 40% FILL 20% FILL 40% FILL
Unshielded Cat. 5 UTP 0.22 5.59 18 37 18 37
Twisted Pair Cat. 3 UTP 0.19 4.83 25 50 25 50
2 Pair 0.14 3.56 46 91 46 91
Telephone 3 Pair 0.15 3.81 40 79 40 79
4 Pair 0.19 4.83 25 50 25 50
25 Pair 0.41 10.41 5 11 5 11
RG58/U 0.20 4.95 24 47 24 47
Coaxial RG59/U 0.24 6.15 15 31 15 31
RG62/U 0.24 6.15 15 31 15 31
RG6/U 0.27 6.86 12 25 12 25
TwinAxial 100 Ohm 0.33 8.38 8 16 8 16
Shielded Type 1 STP 0.39 9.91 6 12 6 12
Twisted Pair Type 2 STP 0.47 11.81 4 8 4 8
Type 3 STP 0.25 6.22 15 30 15 30
Fiber ZipCord 0.11 2.79 74 148 74 148
Fiber Optic Round Fiber 2 Strand 0.18 4.57 28 55 28 55
Round Fiber 4 Strand 0.19 4.83 25 50 25 50
Round Fiber 6 Strand 0.21 5.33 20 41 20 41
RACEWAY WIRE AND CABLE FILL CAPACITIES FOR TELE-POWER POLES - POWER*
RACEWAY WIRE AND CABLE FILL CAPACITIES FOR TELE-POWER POLES - COMMUNICATIONS*
30TP-4V/ 30TC-4V**
* Per compartment.
** 30TC-4V Series not intended for combining power and communications.
30TC-CVR
30TC-3S2
w/Bezel
installed
The Wiremold Company
U.S. and International:
60 Woodlawn Street • West Hartford, CT 06110
1-800-621-0049 • FAX 860-232-2062 • Outside U.S. 860-233-6251
Canada:
850 Gartshore Street • Fergus, Ontario N1M 2W8
1-800-741-7957 • FAX 519-843-5980
41574R1 901
© Copyright 2001 The Wiremold Company All Rights Reserved
30TP-4V
30TP-4V3S2
30TP-412V3S2
30TC-4V**
U
®
L
Page 2

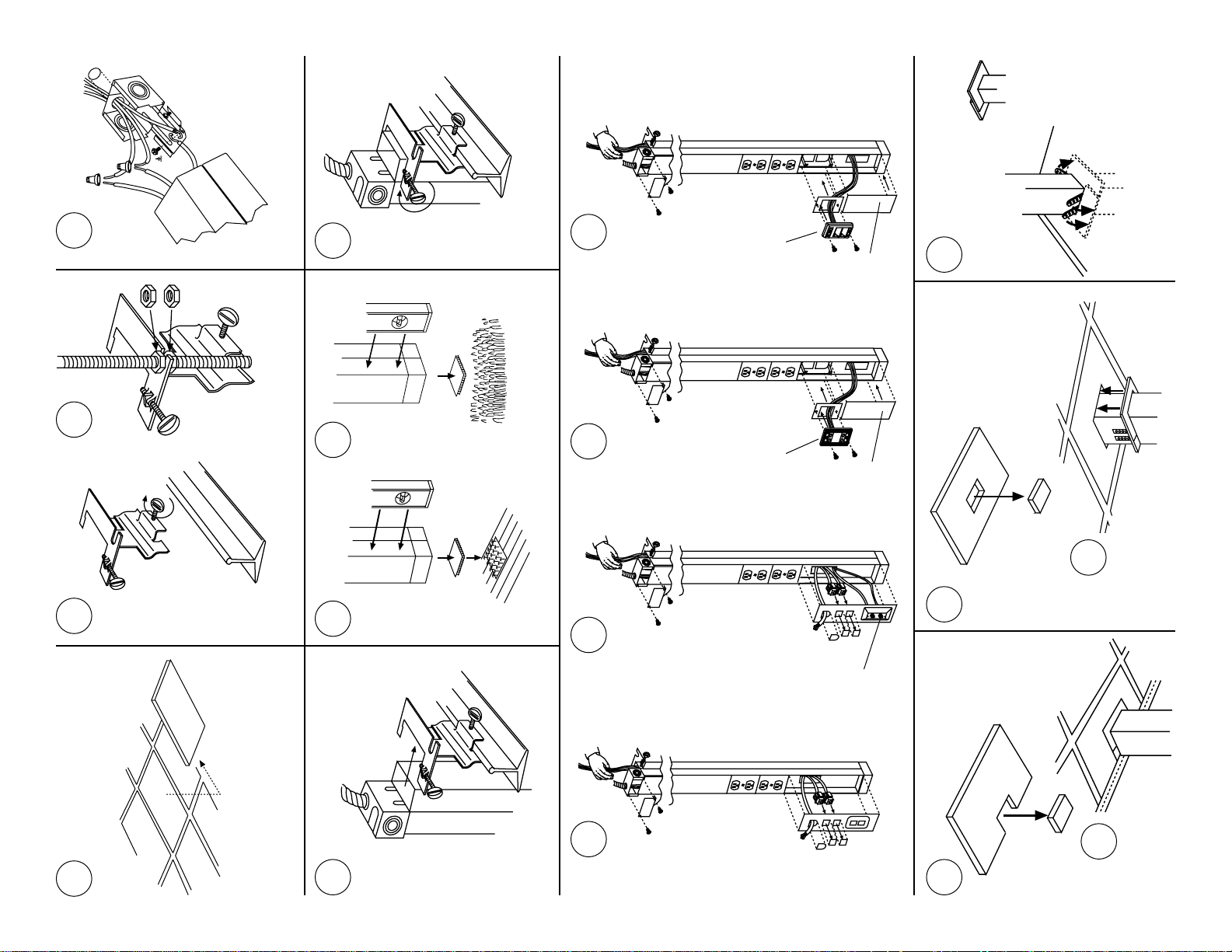

1 2a
