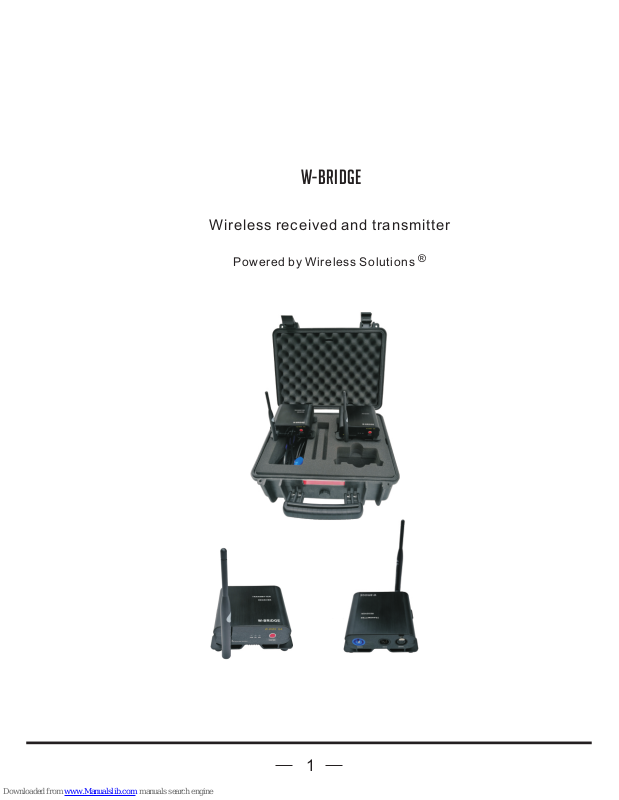

1
W-Bridge
Wireless received and transmitter
®
Powered by Wireless Solutions
2
1.BEFORE YOU BEGIN
What is included
ò1 x W-Bridge Transmitter with Quicklock system,
ò1 x W-Bridge Transmitter/receiver with Quicklock sy stem
ò2 x power cable
ò1 x Tourcase
ò1 x user manual
ò2 x 5dBi Antenna
Unpacking Instructions
Immediate ly upon receiving a fixture, carefully unpack the carton; check the contents
to ensure that all parts are present, and have been received in good con dition. Noti fy
the shipper immediately and retain packing material for inspection if any parts appear
damaged from shi pping or the carton itself shows signs of mishandling. Save the
carton and all packing materials. In the event that a fixture must be returned to the
factory, it is impor tant that the fixture be return ed in the original factory box and
packing.
AC POWER
This fixtur e has an auto-switching switch-mode power supply that can accommodate a
wide range of input voltages. The only thing necessary to do before po wering on the
unit is to make s ure the line voltage you are applying is within the range of accepted
voltages. This fixture will accommodate 240V AC 50-60 Hz.
Help preserve the environment! Ensure that this product is
recycled at the end of its life. Your supplier can give details
of local arrangements for the disposal of products.
WARNING!
keep this dev ice away from rain and moisture!
unplug mains lead before opening the housing!
WARNING!
be careful wi th your operations.with a dangerous voltage you can suffer
a dangerous electric shock when touching the wires!
For your own safety,please read this user manual carefully before you
initially start-up
3
2.INTRODUCTION
TECHNICAL SPECIFICATIONS:
lVoltage: 240V 50/60Hz
lPower: 3W
lWireless: 2 .4G
lTourcase size ( LxWxD): 410 x 342 x 204mm
MAIN FEATURES
lOne button op eration 2.4Ghz W-DMX® wireless system
lCompatible with all DMX512 compliant equipment
lFHSS (Frequ ency-Hopping Spread Spectrum) technology
lPOWERCON- compatible power input
lWireless so lution Sweden® powered
SPECIFICATIONS
lTransceiver transmit pow er: 100mW
lReceiver se nsitivity: 98dBm
lMax Operati ng Range: 400 meters (line-of-sight)
lLatency: < 5m s
lAntenna typ e: 5dBi
lUniverses ( 512 channels): 1 per transmitter, max. 12 transmitters
l The ambient temperature must always be between -5° C and + 45° C
W-DMX™ Receiver
A W-Bridge W-DMX system can have at minimum o ne receiver, and up to an unlimited
maximum num ber of receivers per universe of DMX. A receiver is required to receive
the DMX signa l transmitted wirelessly by the transmitter and outpu t it to any
downstrea m fixtures.
W-DMX™ Transceiver
A W-Bridge W-DMX system requires one tran smitter per universe of DMX, to
broadcast t he signal to any receiver. The DMX controller will norma lly be plugged
straight in t o the transmitter.
Possible configurations
The diagram s below show possible configurations. Multiple receivers may be u sed in
any possibl e configuration.
lWeight: 0.8kg per unit and 6kg In total
lDimensions: 145 x 110 x 70mm.
4
TX RX
TX
TX
RX
RX
RX
RX
3. DIAGRAM
DMX IN DMX OUTMains IN
WIR ELESS S OLUTI ON
SWE DEN
POWE R DMX
MOD E
FUNCTION
POWE RED BY
W-DMX G4
Front Panel:
Rear Panel:
1
2 3
4
5
6
7
8
1: Antenna
2: Power indicator
3: DMX indicator
4: Mode indicator
5: Function button
6: Powercon in
7: DMX in
8: DMX out
5
4. OPERATION:
LED Status Indicators
The LED statu s indicators on both the transceiver and the receiver uni ts display its
current sta tus or mode.Below, each status is described:
1. POWER LED: When lit, the power is connected.
2. DMX LED:
Transceiver Only:
• LED off: The unit is ready for you to choose the mode.
• Flashing ev ery 1.5 seconds: Transmission is off.
• Flash every 1 s econds: Transmitting, but there is no DMX signal.
• Flash every 0 .2 seconds: Searching for a receiver.
• On: Transmit ting a DMX signal.
Receiver On ly:
• Off: Not receiving.
• Flash every 1 s: Receiving, but no DMX signal.
• Flash every 0 .2s: Searching for transceiver.
• On: Receivi ng DMX signal. Receiver
3. MODE LED:
• Off: Wireless Mode 1 (Frequency 1)
• Flash: Wire less Mode 2 (Frequency 2)
• On: Wireles s Mode 3 (Frequency 3)
Setting Up W-BRIDGE Wireless unit
1. One transceiver with multiple receivers:
Power on all units. The DMX LED indicators on all units should be off (if some DMX LED
indicator s are on or are flashing, press & hold the
<FUNCTION > button until they turn off), th en press the transceivers
<FUNCTION > button again. All the receivers should flash quickly, and then all be
matched up co rrectly.
2. Multiple t ransceivers, multiple receivers; e.g. 3 groups cons isting of a
transceiv er & receiver(s) named A,B, and C:
1.) Turn power o ff of all units.
2.) Group “A” gets powered on, then follow step 1 above.
3.) Group “B” gets powered on, then follow step 1 above.
4.) Group “C” g ets powered on, then follow step 1 above.
6
Disconnecting A W-BRIDGE Wireless unit
1. Press and ho ld the transmitter <FUNCTION> button for 5 se conds.
The transmi tter will disconnect from all receivers. The DMX LED indicators on the
receivers w ill then beturned off.
2. Press and ho ld each receiver ’s <FUNC TION> button for 5 seconds.
Each receiv er will disconnect from the transmitter, and its DMX LED ind icator then
will be turne d off.
Frequency /Mode Change (Performed only on transceivers)
There are 3 different modes (frequencies) that you can m anually choose from.
They are reco gnizable by the status of the Mode LED:
• Mode 1: OFF
• Mode 2: Blink ing
• Mode 3: ON
1. To manually change the mode, hold the <FUNCTION> button f or 8 seconds until
the DMX indic ator turns off.
2. Press the <FUNCTION> button to switch between modes.
3. Press and ho ld the <FUNCTION> button for 7 seconds, and the transmitter will
begin trans mitting the DMX signal through the newly set frequency.
Set a Transcei ver to Transmit or Receive
Turn the power off, then turn it back on. Press the <FUNCTION> bu tton for 2
seconds, it w ill switch from a transmitter to receiver or a receiver to transmitter. If
during this p rocess you see the DMX indicator change, it is a transmitte r, otherwise
it is a receive r.
Point-2-Point Operation
Basic Point -2-point systems are used when you want to send wireless DMX data
from a consol e to a single receiver. As the receiver accepts all 512 DMX channels
from the tran smitter, you can easily daisy chain more fixtures by cable f rom the
fixture con nected to wireless connection.
Multipoint-2-Multipoint Operation
Up to 16 univer ses of DMX can be transmitted simultaneously using a multipoint to
multipoin t approach.All receivers in a multipoint system will listen only to the
designate d transmitter without any delays or interference from t he systems working
alongside.
Need more rec eivers?
Simply add as m any receivers as desired to the transmitter, assigning them with a
simple butt on push.
