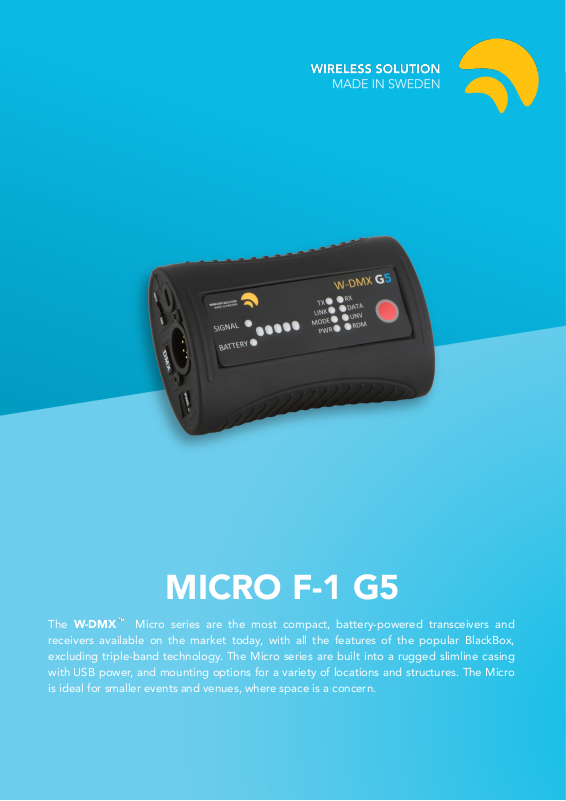

MICRO F-1 G5
The W-DMX Micro series are the most compact, battery-powered transceivers and
receivers available on the market today, with all the features of the popular BlackBox,
excluding triple-band technology. The Micro series are built into a rugged slimline casing
with USB power, and mounting options for a variety of locations and structures. The Micro
is ideal for smaller events and venues, where space is a concern.
Page 2

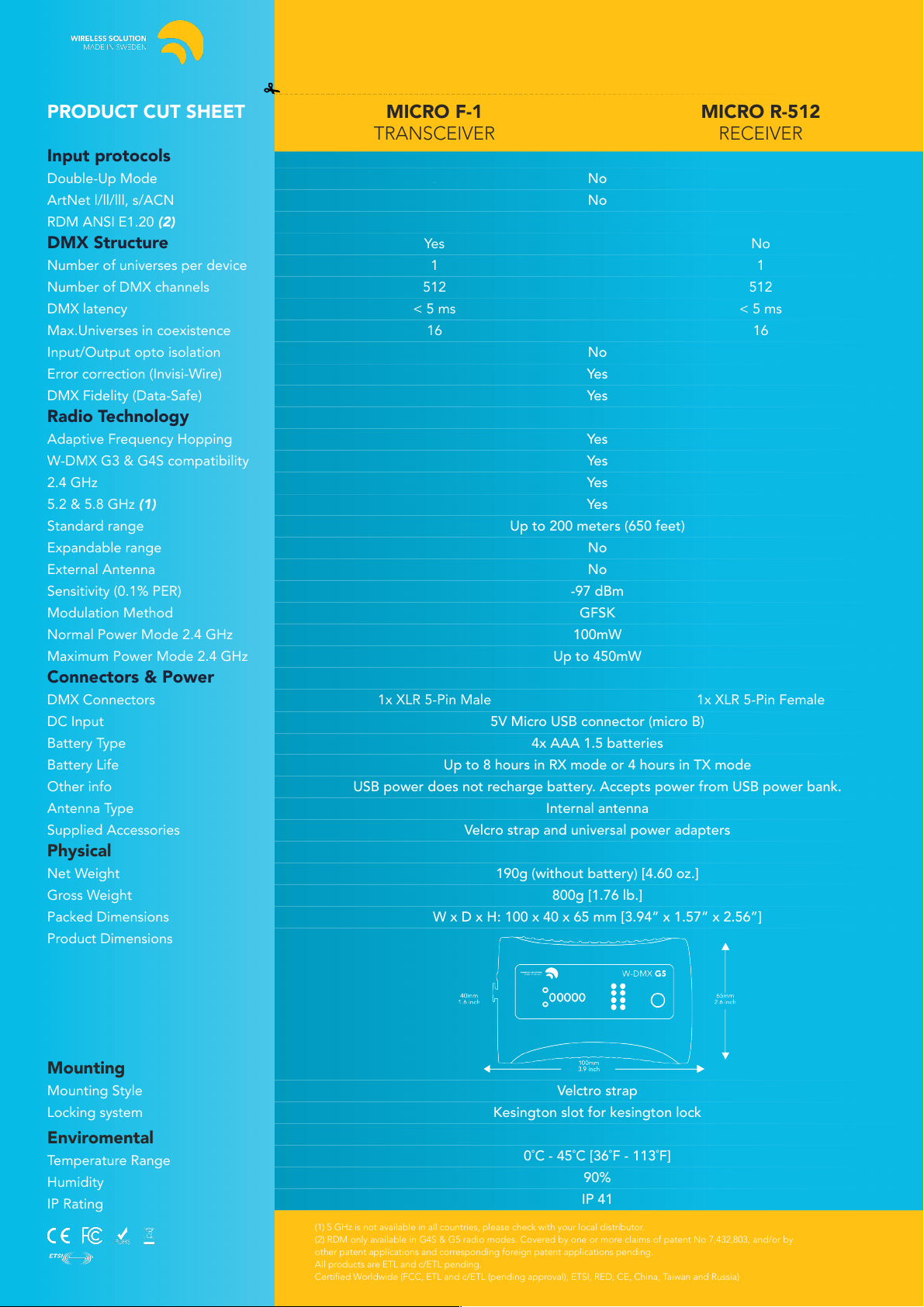

MICRO SERIES G5
PRODUCT CUT SHEET
Input protocols
Double-Up Mode
ArtNet l/ll/lll, s/ACN
RDM ANSI E1.20 (2)
DMX Structure
Number of universes per device
Number of DMX channels
DMX latency
Max.Universes in coexistence
Input/Output opto isolation
Error correction (Invisi-Wire)
DMX Fidelity (Data-Safe)
Radio Technology
Adaptive Frequency Hopping
W-DMX G3 & G4S compatibility
2.4 GHz
5.2 & 5.8 GHz (1)
Standard range
Expandable range
External Antenna
Sensitivity (0.1% PER)
Modulation Method
Normal Power Mode 2.4 GHz
Maximum Power Mode 2.4 GHz
Connectors & Power
DMX Connectors
DC Input
Battery Type
Battery Life
Other info
Antenna Type
Supplied Accessories
Physical
Net Weight
Gross Weight
Packed Dimensions
Product Dimensions
MICRO F-1
TRANSCEIVER
.
Yes
1
512
< 5 ms
16
Up to 200 meters (650 feet)
1x XLR 5-Pin Male
5V Micro USB connector (micro B)
4x AAA 1.5 batteries
Up to 8 hours in RX mode or 4 hours in TX mode
USB power does not recharge battery. Accepts power from USB power bank.
Velcro strap and universal power adapters
190g (without battery) [4.60 oz.]
W x D x H: 100 x 40 x 65 mm [3.94” x 1.57” x 2.56”]
No
No
No
Yes
Yes
Yes
Yes
Yes
Yes
No
No
-97 dBm
GFSK
100mW
Up to 450mW
Internal antenna
800g [1.76 lb.]
MICRO R-512
RECEIVER
No
1
512
< 5 ms
16
1x XLR 5-Pin Female
Mounting
Mounting Style
Locking system
Enviromental
Temperature Range
Humidity
IP Rating
Velctro strap
Kesington slot for kesington lock
0˚C - 45˚C [36˚F - 113˚F]
90%
IP 41
(1) 5 GHz is not available in all countries, please check with your local distributor.
(2) RDM only available in G4S & G5 radio modes. Covered by one or more claims of patent No 7,432,803, and/or by
other patent applications and corresponding foreign patent applications pending.
All products are ETL and c/ETL pending.
Certified Worldwide (FCC, ETL and c/ETL (pending approval), ETSI, RED, CE, China, Taiwan and Russia)
