Page 1

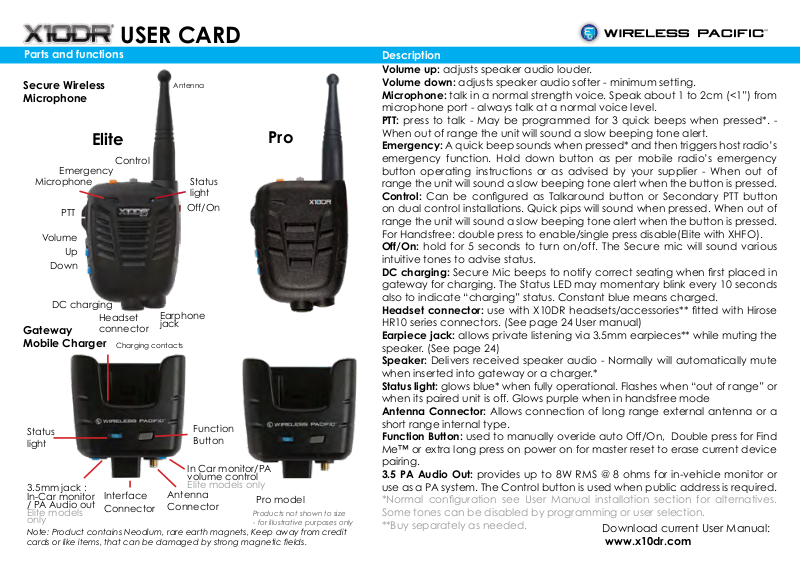

Parts and functions
USER CARD
Secure Wireless
Microphone
Elite
Emergency
Microphone
PTT
Volume
Up
Down
DC charging
Gateway
Mobile Charger
Status
light
3.5mm jack :
In-Car monitor
/ PA Audio out
Elite models
only
Note: Product contains Neodium, rare earth magnets, Keep away from credit
cards or like items, that can be damaged by strong magnetic elds.
Control
Headset
connector
Charging contacts
Interface
Connector
Antenna
Status
light
Off/On
Earphone
jack
Function
Button
In Car monitor/PA
volume control
Elite models only
Antenna
Connector
Pro
Pro model
Products not shown to size
- for illustrative purposes only
Description
Volume up: adjusts speaker audio louder.
Volume down: adjusts speaker audio softer - minimum setting.
Microphone: talk in a normal strength voice. Speak about 1 to 2cm (<1”) from
microphone port - always talk at a normal voice level.
PTT: press to talk - May be programmed for 3 quick beeps when pressed*. When out of range the unit will sound a slow beeping tone alert.
Emergency: A quick beep sounds when pressed* and then triggers host radio’s
emergency function. Hold down button as per mobile radio’s emergency
button operating instructions or as advised by your supplier - When out of
range the unit will sound a slow beeping tone alert when the button is pressed.
Control: Can be congured as Talkaround button or Secondary PTT button
on dual control installations. Quick pips will sound when pressed. When out of
range the unit will sound a slow beeping tone alert when the button is pressed.
For Handsfree: double press to enable/single press disable(Elite with XHFO).
Off/On: hold for 5 seconds to turn on/off. The Secure mic will sound various
intuitive tones to advise status.
DC charging: Secure Mic beeps to notify correct seating when rst placed in
gateway for charging. The Status LED may momentary blink every 10 seconds
also to indicate “charging” status. Constant blue means charged.
Headset connector: use with X10DR headsets/accessories** tted with Hirose
HR10 series connectors. (See page 24 User manual)
Earpiece jack: allows private listening via 3.5mm earpieces** while muting the
speaker. (See page 24)
Speaker: Delivers received speaker audio - Normally will automatically mute
when inserted into gateway or a charger.*
Status light: glows blue* when fully operational. Flashes when “out of range” or
when its paired unit is off. Glows purple when in handsfree mode
Antenna Connector: Allows connection of long range external antenna or a
short range internal type.
Function Button: used to manually overide auto Off/On, Double press for Find
Me™ or extra long press on power on for master reset to erase current device
pairing.
3.5 PA Audio Out: provides up to 8W RMS @ 8 ohms for in-vehicle monitor or
use as a PA system. The Control button is used when public address is required.
*Normal conguration see User Manual installation section for alternatives.
Some tones can be disabled by programming or user selection.
**Buy separately as needed.
Download current User Manual:
www.x10dr.com
Page 2
basic installation
XMPA Multi polarity antenna includes 5.2
meters of low loss LMR200 type coax and
terminatedwith an RP SMA male connector.
Provides optimum coverage especially in
non-line of sight situations
Mount on a vehicle roof or a roof rack using
the supplied L Bracket - clear of obstructions
in the direction you wish to predominately
XMPA Antenna
XMPA Antenna cable kit
(included* in package)
XIC-1.5 interface cable
(included in package)
Radio specific XCA adaptor
-specify type when purchasing
Connects to the rear
interface connector
on your mobile radio
Connect RED wire to vehicle’s permanent battery supply.
communicate.
Alternate installation accessories
XMAK multi-polarity antenna rack mount includes 5.2
meters of low loss LMR200 type coax and terminated N-Type
and RP SMA male connector. Provides optimum coverage
especially in non-line of sight situations.
* in some countries XMAK is supplied in lieu of XMPA.
XEC-4.5
4.5m extension cable
Use when radio is mounted remotely in vehicle trunk.
(order separately)
Installation Notes
Please refer to www.x10dr.com for installations instructions and other supporting
documents. Some radio types need minor programming or internal reconfiguration to ensure
correct X10DR operation. Refer to your mobile radio’s Service Manual for further detail.
Please also review the installation sheet available from the X10DR website.
IMPORTANT
The X10DR gateway unit has been factory set to suit many different mobile radios but for
optimum performance each gateway should be programmed to suit your particular mobile
radio.
Before installation, use the XGALA Gateway Audio Level Adjustment software tool to set the
gateway output level to the host mobile radio, so that it matches the loudness of the mobile
radio’s standard wired microphone. Additionally, the receive input level should be adjusted
so the optimum loudness audio can be heard from the handset’s speaker. If additional
gateways are connected via junction box then the levels between gateways may need to
be adjusted for optimum levels so that the audio level from another gateway is the same as
the audio coming from the host mobile radio. Refer to the Programming Software and Tools
document (download at www.x10dr.com)
