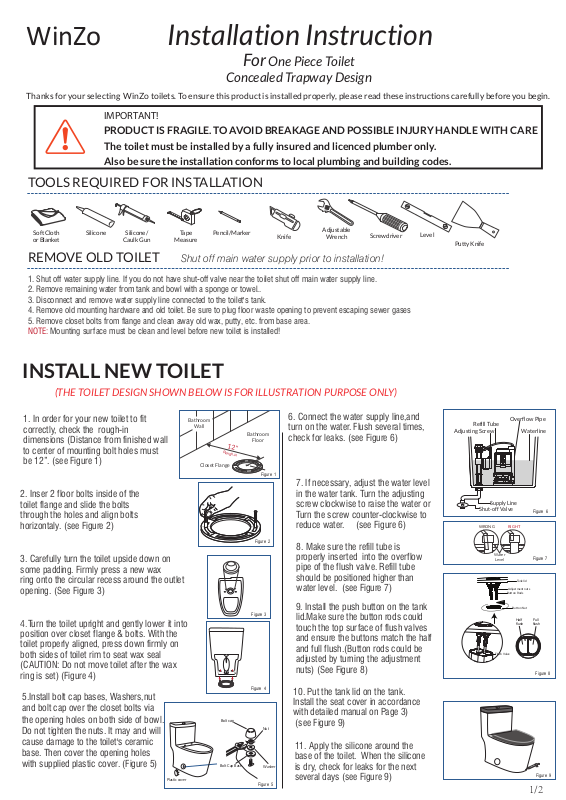

WinZo
Installation Instruction
For One Piece Toilet
Concealed Trapway Design
Thanks for your selecting WinZo toilets. To ensure this product is installed properly, please read these instructions carefully before you begin.
IMPORTANT!
PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE
The toilet must be installed by a fully insured and licenced plumber only.
Also be sure the installation conforms to local plumbing and building codes.
TOOLS REQUIRED FOR INSTALLATION
Soft Cloth
or Blanket
Silicone Silicone/
Caulk Gun
Tape
Measure
Pencil/Marker
Knife
Adjustable
Wrench
Screwdriver
REMOVE OLD TOILET Shut off main water supply prior to installation!
1. Shut off water supply line. If you do not have shut-off valve near the toilet shut off main water supply line.
2. Remove remaining water from tank and bowl with a sponge or towel..
3. Disconnect and remove water supply line connected to the toilet's tank.
4. Remove old mounting hardware and old toilet. Be sure to plug floor waste opening to prevent escaping sewer gases
5. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!
INSTALL NEW TOILET
(THE TOILET DESIGN SHOWN BELOW IS FOR ILLUSTRATION PURPOSE ONLY)
1. In order for your new toilet to fit
correctly, check the rough-in
dimensions (Distance from finished wall
to center of mounting bolt holes must
be 12”. (see Figure 1)
2. Inser 2 floor bolts inside of the
toilet flange and slide the bolts
through the holes and align bolts
horizontaly. (see Figure 2)
3. Carefully turn the toilet upside down on
some padding. Firmly press a new wax
ring onto the circular recess around the outlet
opening. (See Figure 3)
4.Turn the toilet upright and gently lower it into
position over closet flange & bolts. With the
toilet properly aligned, press down firmly on
both sides of toilet rim to seat wax seal
(CAUTION: Do not move toilet after the wax
ring is set) (Figure 4)
5.Install bolt cap bases, Washers,nut
and bolt cap over the closet bolts via
the opening holes on both side of bowl.
Do not tighten the nuts. It may and will
cause damage to the toilet's ceramic
base. Then cover the opening holes
with supplied plastic cover. (Figure 5)
Plastic cover
Bathroom
Wall
Closet Flange
12"
Rough-in
Bolt cap
Bolt Cap Base
Bathroom
Floor
Figure 2
Figure 3
Figure 4
Figure 5
6. Connect the water supply line,and
turn on the water. Flush several times,
check for leaks. (see Figure 6)
Figure 1
7. If necessary, adjust the water level
in the water tank. Turn the adjusting
screw clockwise to raise the water or
Turn the screw counter-clockwise to
reduce water. (see Figure 6)
8. Make sure the refill tube is
properly inserted into the overflow
pipe of the flush valve. Refill tube
should be positioned higher than
water level. (see Figure 7)
9. Install the push button on the tank
lid.Make sure the button rods could
touch the top surface of flush valves
and ensure the buttons match the half
and full flush.(Button rods could be
adjusted by turning the adjustment
nuts) (See Figure 8)
10. Put the tank lid on the tank.
Install the seat cover in accordance
with detailed manual on Page 3)
Nut
(see Figure 9)
11. Apply the silicone around the
base of the toilet. When the silicone
Washer
is dry, check for leaks for the next
several days (see Figure 9)
Level
Putty Knife
Refill Tube
Adjusting Screw Waterline
Shut-off Valve
Overflow Pipe
Supply Line
RIGHTWRONG
Water
Level
Adjustment nuts
Button Rods
Flush Valve
Tank lid
Button Nut
Half
flush
Figure 6
Figure 7
Full
flush
Figure 8
Figure 9
1/2
Toilet Seat Installation Instruction
Screw
Toilet seat x 1
Cover capx2 Fixing Bolt setsx2
1 2 3
Washer
Pin
Fixing base
Flex-washer
Expansion fitting
Fixing bolt sets assembly
(normally it has been assembed)
1.Insert the fixing bolt set into the
seat holes of pan.
4
4. Close the toilet seat onto pan,
adjust until the seat is located in a satisfactory
position.
2. Using a screwdriver to temporarily
tighten the bolts. (Do not full tighten).
Adjustability is required at this step
in order to position the seat in following
steps.
5 6
5.Push two release buttons to release the seat.
Carefully lift the seat so that the postion of the
seat will not shift,then firmly tighten the screws.
3.Place the seat vertically,align holes
to pins and press down insert.
6.Place the cover caps over the fixing base.
And put the toilet seat back on the pins.
2/2
