Page 1

User Manual

WINYCAM Vehicle Drive Recorder

www.winycam-eng.com

Page 2

WINYCAM LOG

1. Safety Precautions

2. Before use

2-1. Product Feature

2-2. Package

2-3. Product Parts

3. How to use

3-1. Front Camera Installation

3-2. Rear Camera Installation

3-3. GPS / TV-OUT Cable Installation

3-4. How to record

3-5. LED Operation

3-6. Voice Guide

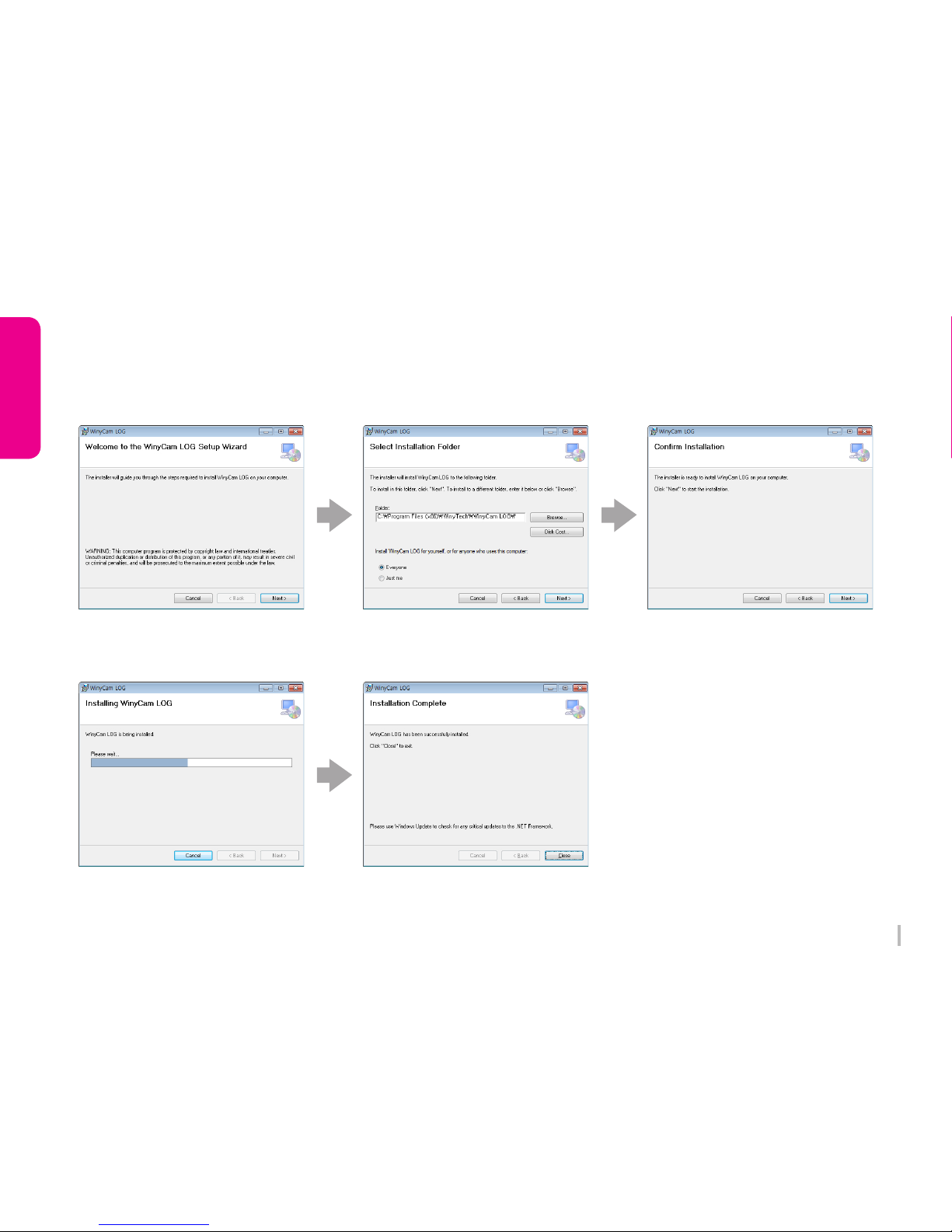

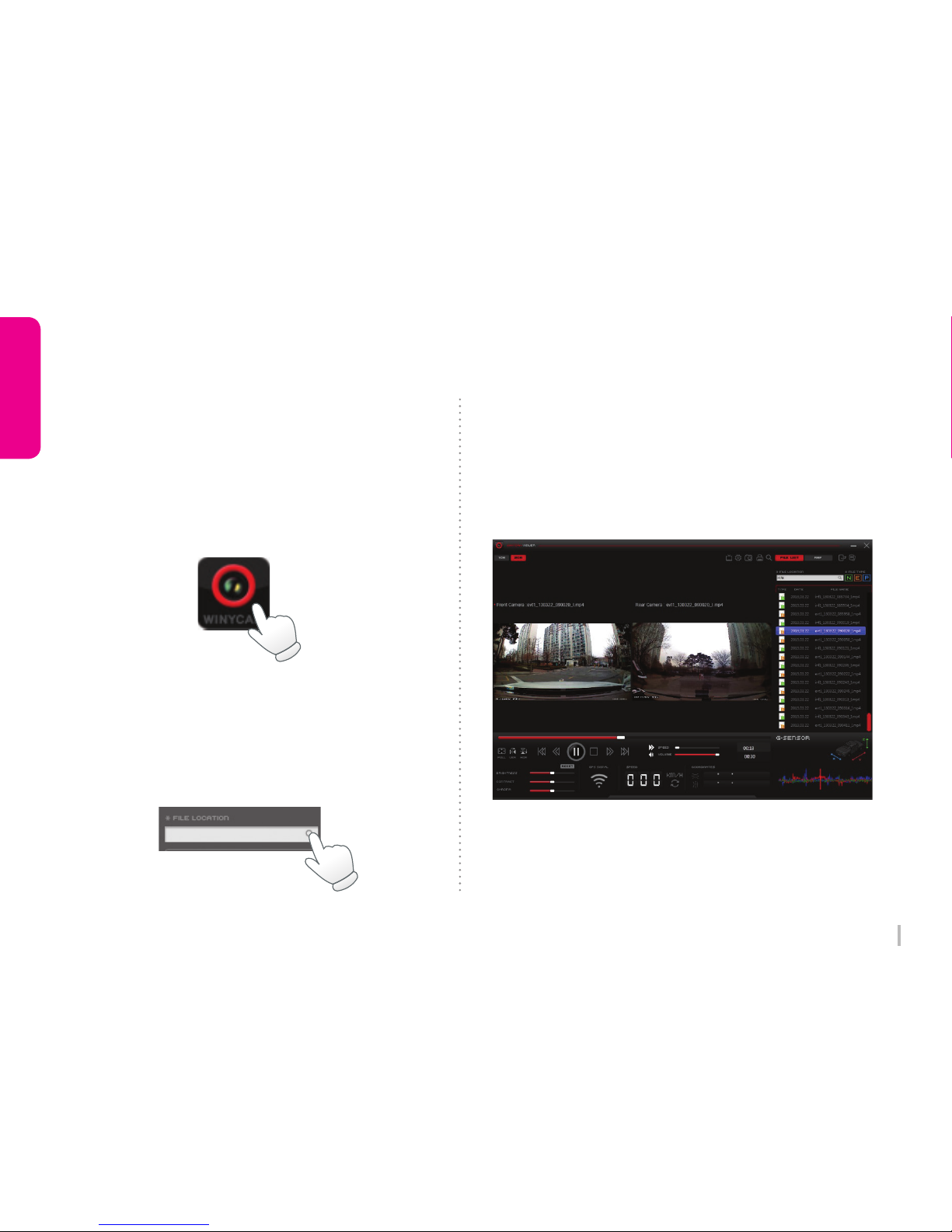

3-7. PC Original Viewer Program Installation

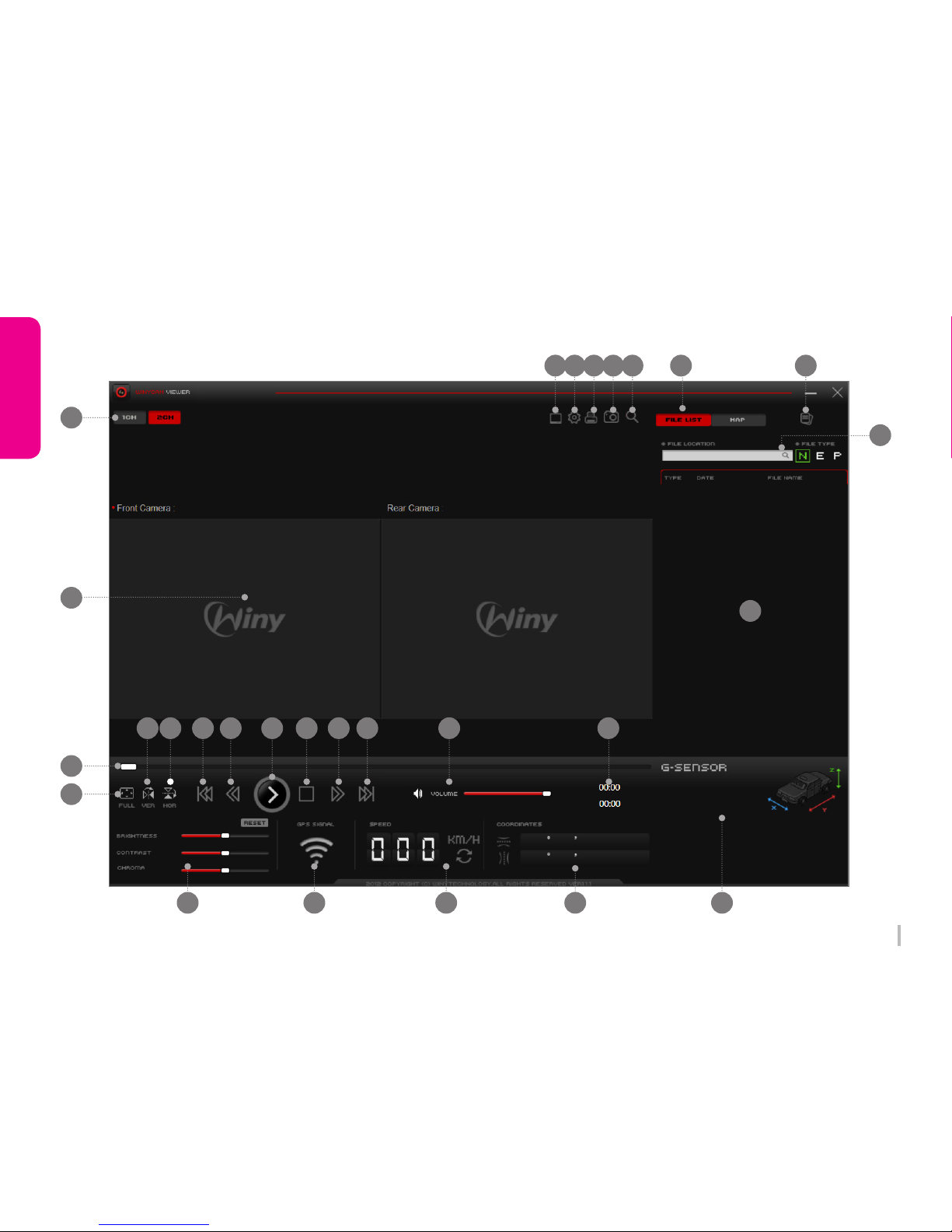

3-8. PC Original Viewer – Screen Configuration

3-8. PC Original Viewer – Viewer Configuration

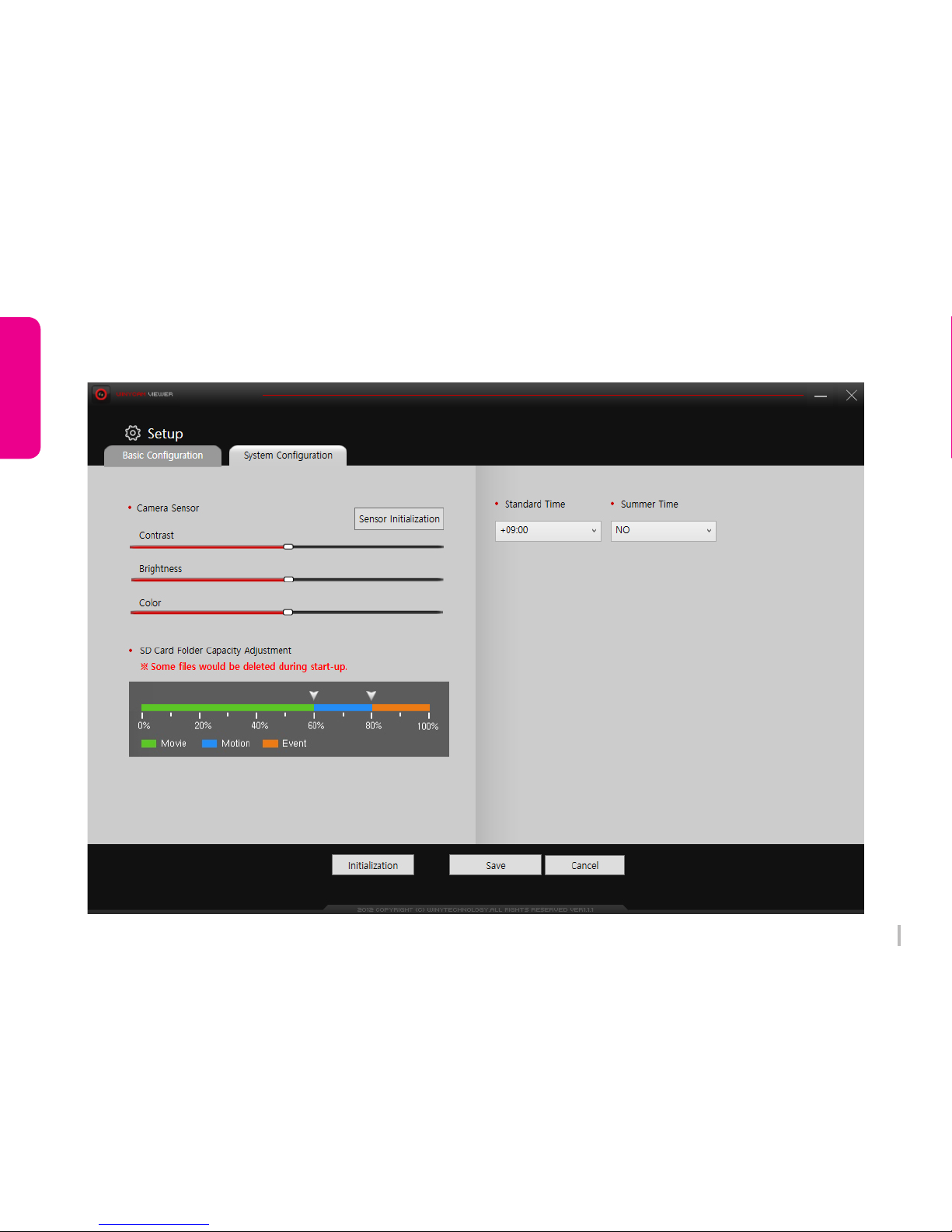

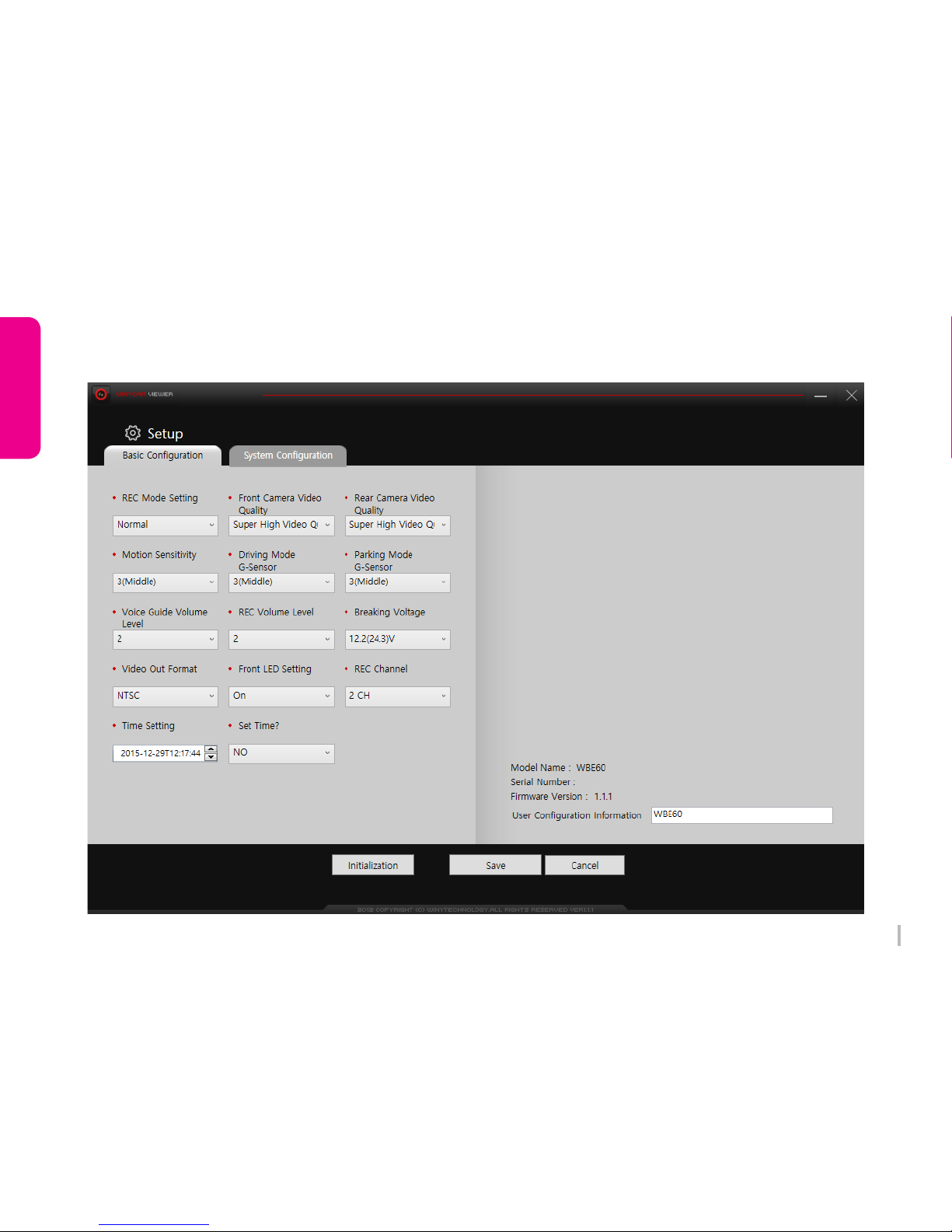

3-10. PC Original Viewer – Configuration

3-11. Configuration Default Setting

3-12. Playback (Standard video player)

3-13. Playback (PC original viewer)

3-14. Playback (TV/Can Navigation)

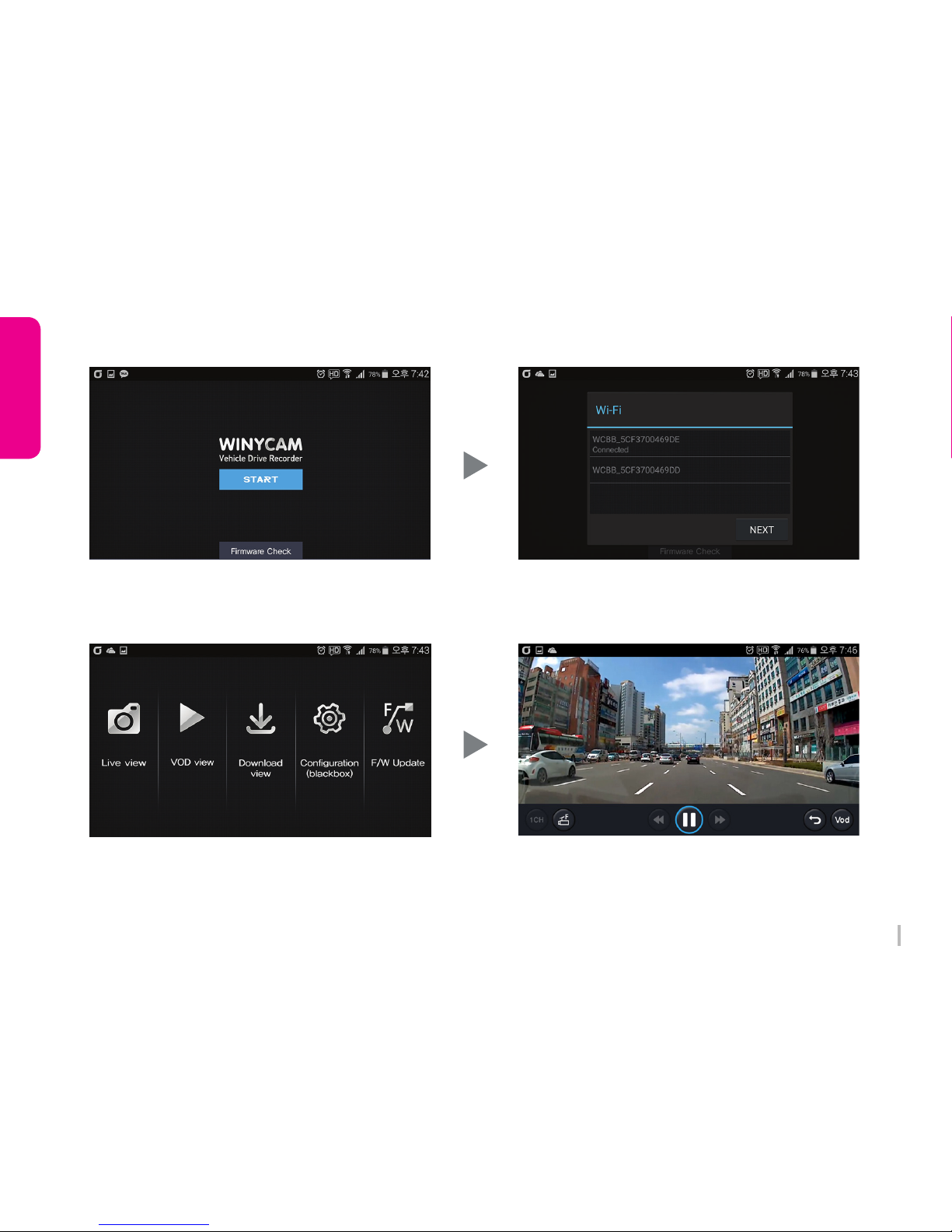

3-15. Smartphone Wi-Fi -Download

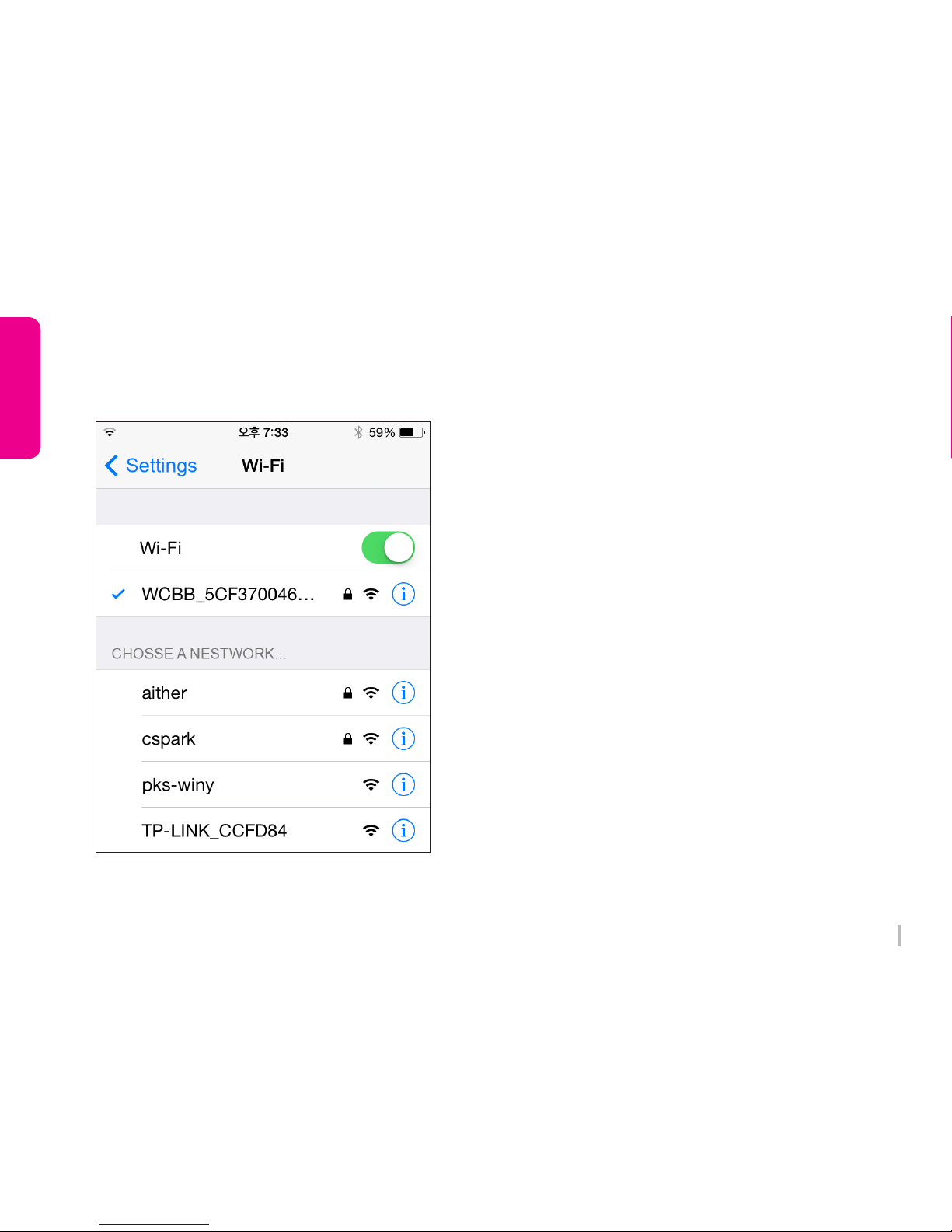

3-16. Smartphone Wi-Fi – How to set iOS

3-17. Smartphone Wi-Fi – How to use

3-18. Smartphone Wi-Fi – Variable Bitrate

3-19. To save video file on your PC

3-20. Firmware Upgrade

3-21. SD Card Format

3-22. REC Time

3-23. Specification

4. FAQ

Warranty

Contents

Page 3

WINYCAM LOG

How to use

Caution on Operation and Storage

Do not operate the product during driving. It may cause accident.

The product must be installed at a point which would not obstruct the driver’s view.

Do not allow unauthorized disassembly or alteration to the product. It may cause malfunction, and the consequent product damage will not be covered under the warranty.

If the product is damaged or power is cut off by a serious accident, the product may not be able to record such event

Always keep the windshield clean to enable clear recording.

Since the product is purpose to record video data during driving, video quality may be deteriorated when in/out the tunnel, and at night or by contrast and backlight.

Contaminated camera lens may deteriorate the video quality. Keep the lens clean.

Do not place the product under direct sunlight or inside the closed vehicle as it may cause malfunction.

Do not use chemicals or detergent to clean the product. Clean gently with soft cloth.

Use of the product at temperature below -20℃ or above 70℃

may cause malfunction or breakdown. (This caution should be applied when product is unused.)

Do not use the product in places in high temperature/humidity.

Do not exert excessive force to the product (especially to LCD buttons and to bracket) as it may cause breakdown.

Operate the product for 3-5 minutes to check for correct recording, before each use.

Extended exposure to sunlight and high temperature in the summer may cause malfunction.

Do not turn off power, or remove the SD card during firmware upgrading as it may cause malfunction.

Do not touch the cigar lighter cable with wet hand as it may cause electric shock.

Do not use a damaged cigar lighter cable as it may cause electric shock or fire.

Do not place the cigar lighter cable in near heating devices.

Do not leave the product connected to the cigar lighter if not in use for a long period of time. Remove the cable from the product.

Insert the cigar lighter securely.

Do not bend or pull the cigar lighter cable by excessive force, or place heavy objects on the cable. (It may damage the cord and as a result it may cause electric shock or fire.)

The recorded file could be deleted to make an available space for recording even if the overwriting setting is Off.

1. Safety Precautions

Safety Precautions

Page 4

WINYCAM LOG

How to use

Caution on SD Card

In order to confirm normal operation of the product, please check the image of a SD card and format it on a regular basis. (PC format needed one to two times per month)

Because an SD card is consumables, if it is used for a long time, you may lose the data or may not record due to an error, so please check it periodically.

When the product is in recording or the power is on, do not eject the SD card forcibly. It may cause a failure of the SD card and data loss.

If temperature gets too high in the vehicle, data storing may be disabled, or data may be damaged. Park your vehicle in the shade in the summer.

When identify the car's accident or damage, please keep the SD card separately. Due to overwrite, important data may be deleted.

When turn off the power of the body and remove the SD card before LED is turned off, the last recording file may not be saved, so please be careful.

When driving a car, do not remove the SD card. Make sure to remove it safely when a car is in parking or stop.

After turning on the power, make sure that it is in normal operation.

Please note that the warranty period of an SD card is six (6) months, and replace it at the time of more than six (6) months. Please purchase and use SD Card that manufacture recommended specification.

The SD card randomly purchased other than the one we provide, shall be excluded from the warranty, and we shall not take any responsibility for loss and damage of the data recorded in the SD card in any case.

Safety Precautions

Page 5

WINYCAM LOG

How to use

Thank you for purchasing LOG

This Manual contains important information about the proper use and cautions in use of the product. Please read carefully before use.

LOG is an auxiliary product to alert users for safe driving and prevent accidents, by recording video during driving. Also purpose for evidence of an accident.

LOG does not however guarantee that all accidents are recorded. Minor shock may not detect sensor to record.

WinyTechnology shall not be liable for any loss or damage to data or to the product which may be caused by accident or impact.

All rights vested in the design and software of LOG are the property of Winy Technology Co., Ltd. and protected by the Copyright Law.

LOG may change without notice for further function improvement.

This User Manual is published based on the current state of the product, and may contain typographical errors or omissions.

Contents of this User Manual may be modified, changed or supplemented without notice for further improvement.

2. Before Use

Before Use

Page 6

WINYCAM LOG

How to use

High Quality Lens and High Image Quality Resolution support

Front 5Mega Pixel / Rear 0.4 Mega Pixel image sensor Wide mega lens Front FHD(1920*1080) High Image Quality Resolution

Rear D1(720*480) High Image Quality Resolution (Front 20 + Rear 30)

Various Recording Function and Video Data Acknowledgement

Various REC - Normal, Manual, Event, Motion and auto change to Parking recording mode Recording video quality setting is available for changing.

(Super High Video Quality / High Video Quality / Normal Video Quality)

Driving records can be stored with GPS data. (optional) G sensor built-in - Event recording mode. External video output.

(real-time video image can be checked in another monitor) Flash memory back-up space – Available to boot back-up space

when the problem occur during upgrading the firmware. PC viewer program are provided to change various setting

values and map data can be checked when using GPS. (In the general video player (e.g. Windows media player), recorded video can be played)

Each capacity of a normal / event/ motion folder can be set in PC Viewer.

High Quality Voice Record and Voice Guidance

Operating instructions service by voice guidance Voice recording On/Off function and speaker output On/Off

function. High performance microphone built-in

Back-up battery and Car constant power discharge protection function

Stored recorded image safety by built-in high-capacity capacitor when power is off.

Consume less than 2.5mA when power shutdown (Based on 12V)

“ When using car constant power discharge protection functions, If user car voltage is 12V and the voltage of less than

11.8V is maintained for more than 30 seconds the product power will be shuts-off ” (Note: Shutdown time depend on the Type of Car and car condition.)

Other

Soft look and emotional design. (easy removable body) Security LED light are mounted on front body (LED Lighting

function On/Off can be set in PC viewer)

2-1. Product Feature

Before Use

Page 7

WINYCAM LOG

How to use

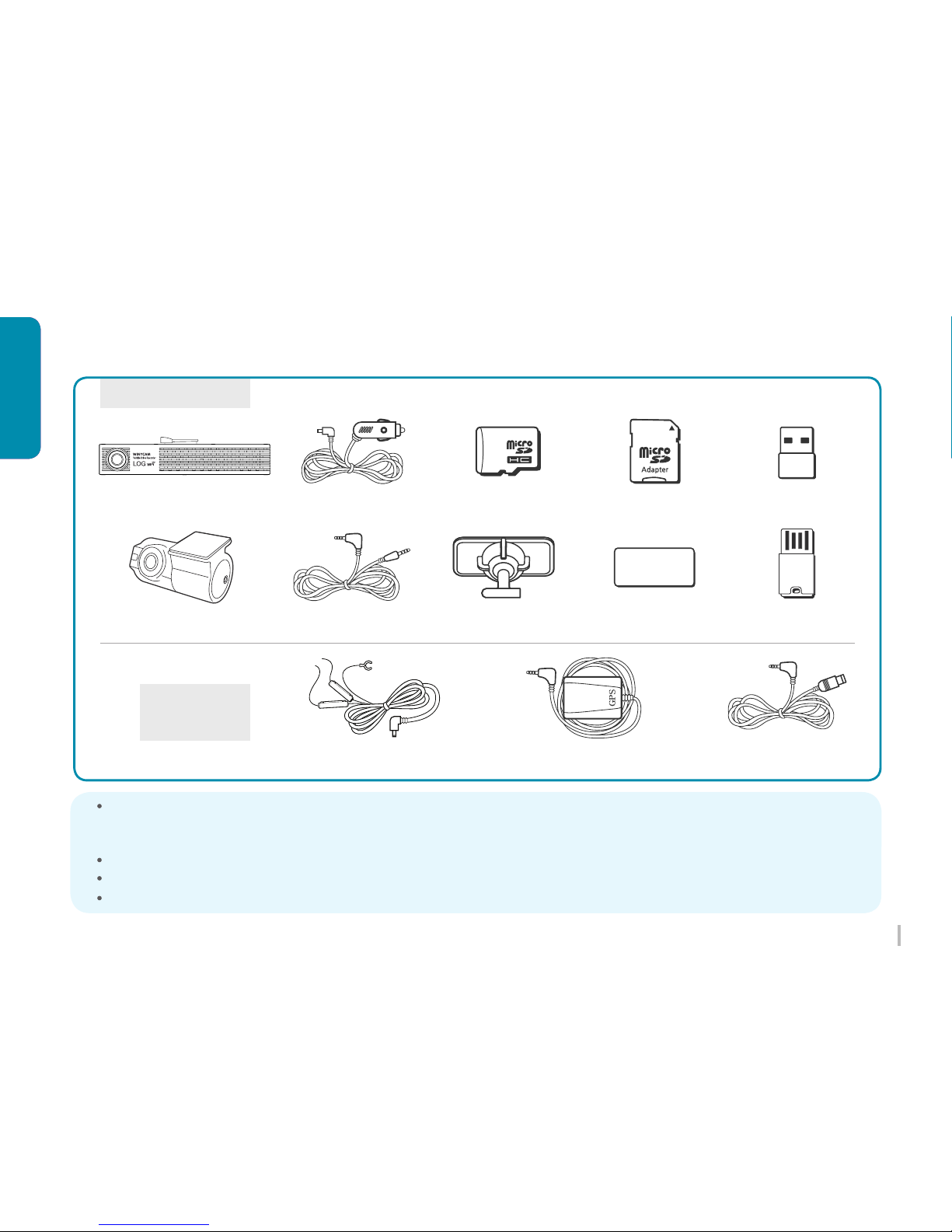

Standard Package

Option

Accessories

LOG Body

Cigar Lighter

Null Cable External GPS

Video Splitter Cable

(Y-Type)

3M tape for bracket USB Card Reader

Bracket

The viewer program is included in the micro SD card.

※Note : Please save the viewer program on your PC before using the micro SD card.

(If the viewer program is deleted in SD card, you can download from our web site.) The packaged product picture of the user manual may differ from the actual product. The video cable is optional and it is available to use after checking the PLUG Pin of Navigation AV IN. Video input type is different and check the user manual of monitor.

Micro SD card SD Card Adaptor WiFi Dongle

Rear(D1)Camera Rear Camera Video Cable

2-2. Package

Before Use

Page 8

WINYCAM LOG

How to use

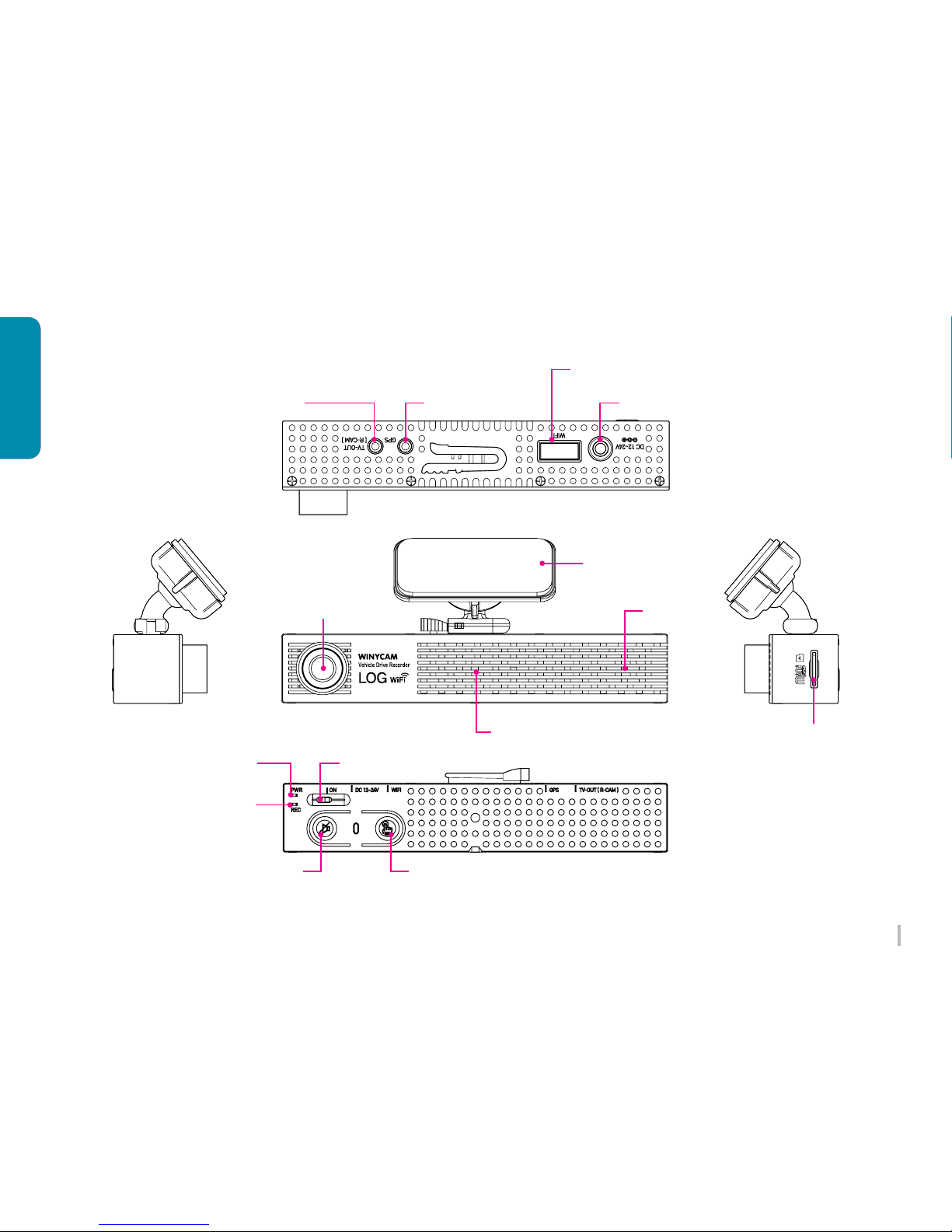

Power LED

REC LED

Bracket

Mute Urgent REC

SpeakerFront Camera

2-3. Product Parts

Before Use

Security LED

SD Card Slot

Rear Camera Jack (TV-OUT)

Power

DC Jack

Wi-Fi USB Jack

GPS Jack

Page 9

WINYCAM LOG

How to use

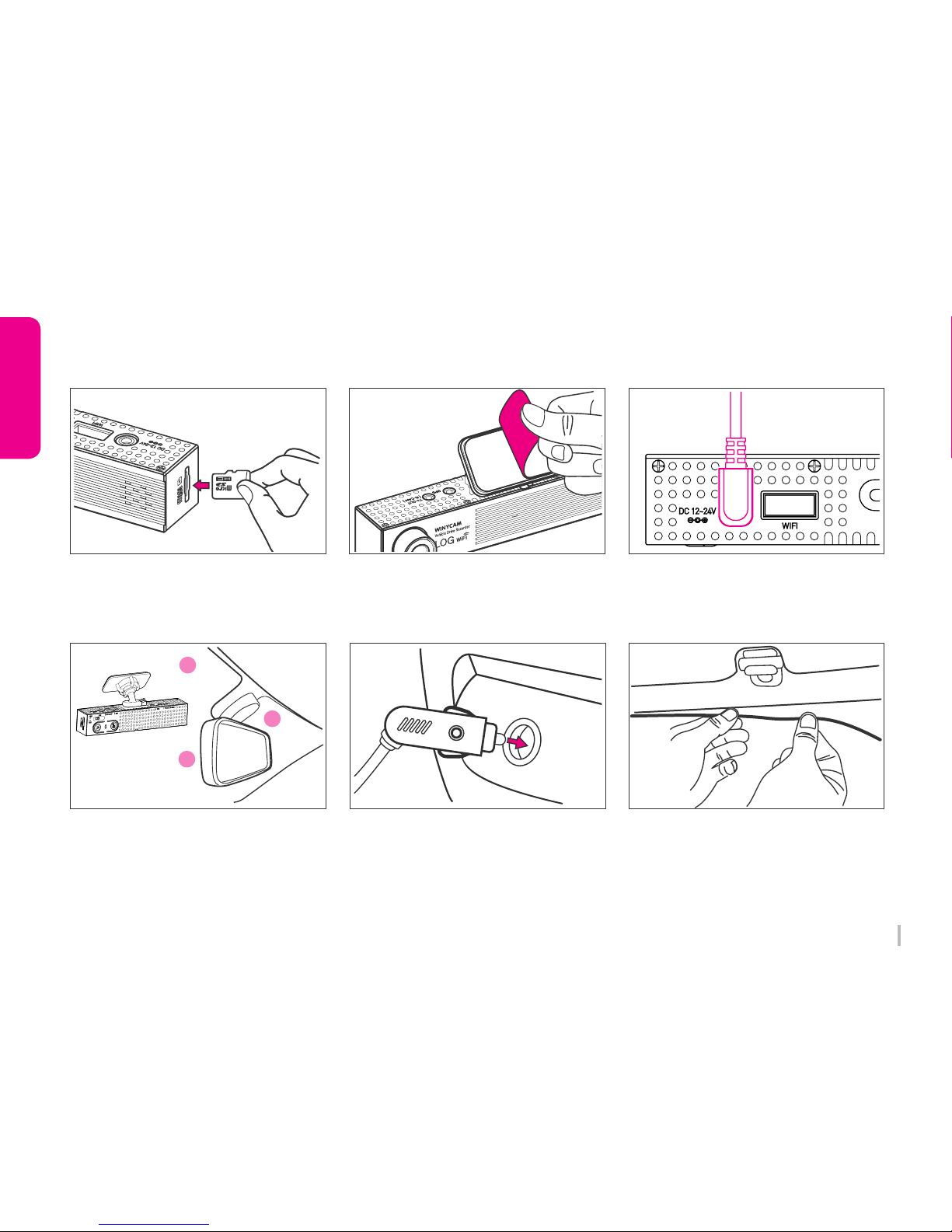

1. Insert Micro SD card to LOG SD card slot. (Check the SD card direction)

6. Arrange a power cable.

2. Remove the protect sticker.

4. Attach the Winner in place on the top of front windshield or middle o left and right of the mirror.

3. Connect Cigar lighter cable to Power connection of product.

5. Connect a Cigar lighter to a Cigar socket.

3-1. Front Camera Installation

Page 10

WINYCAM LOG

How to use

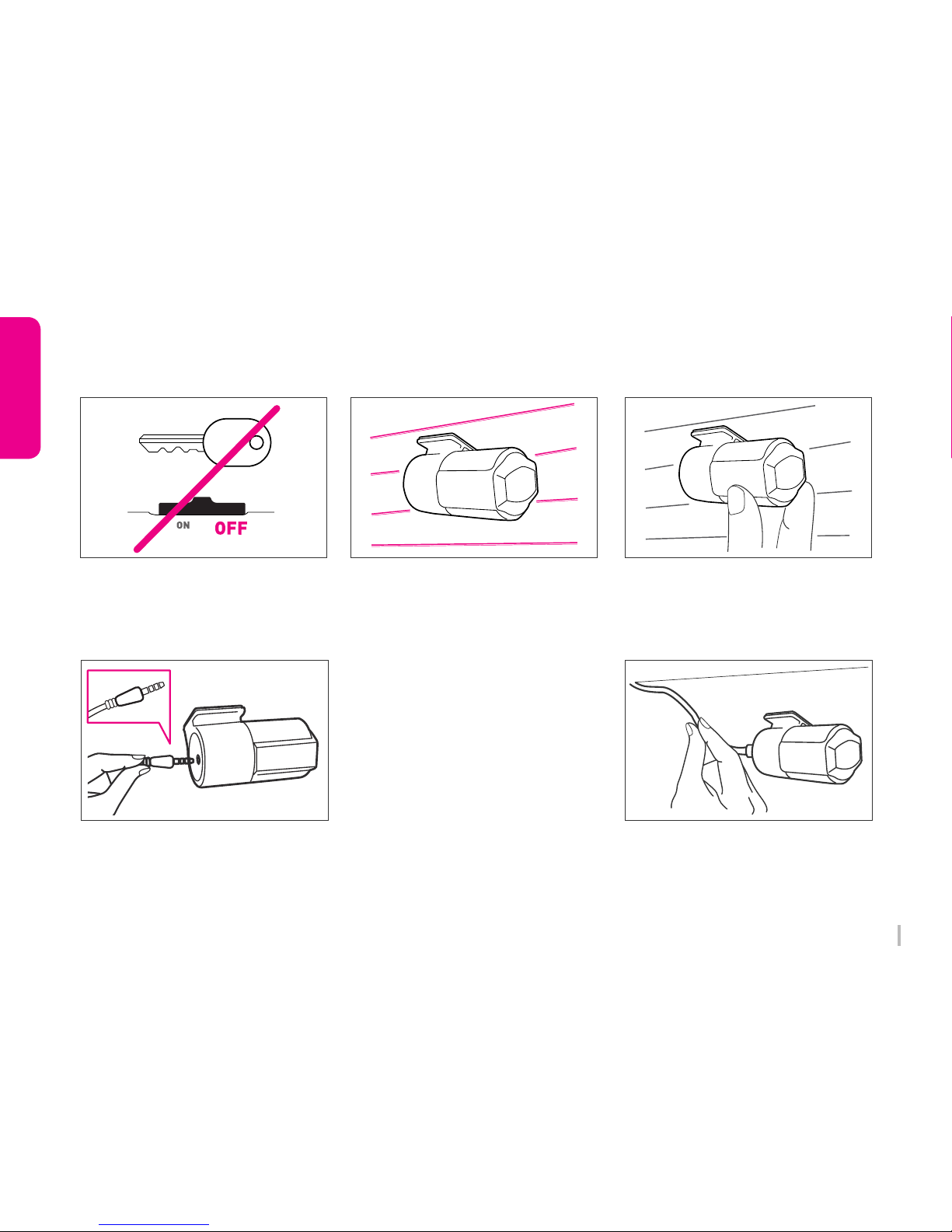

Please power off a car and LOG before installation. (Disconnect the power connection)

1. Shutdown a car battery and power

4. Connect video cable

2. Install a rear camera

5. Check an operation

3. Adjust a rear camera angle

6. Arrange a front/rear camera cable

After checking recording operation, wellarrange a cable. If you embed cable to car wall, please check cable connection. Also after embedded double-check if LOG can record properly.

Remove a protect sticker and attach a rear camera in proper location in windshield.

Connect the ( ㅡ ) shape’s rear camera cable to a rear camera connection slot and the ( ㄱ ) shape’s one to a main body.

Adjust a camera angle and fix it. To adjust the angle, the horizon is seen above the right center of the screen.

Power on LOG and check to playback a REC video correctly. (The video splitter cable has to be connected when check it with TV-OUT.)

3-2. Rear Camera Installation

Page 11

WINYCAM LOG

How to use

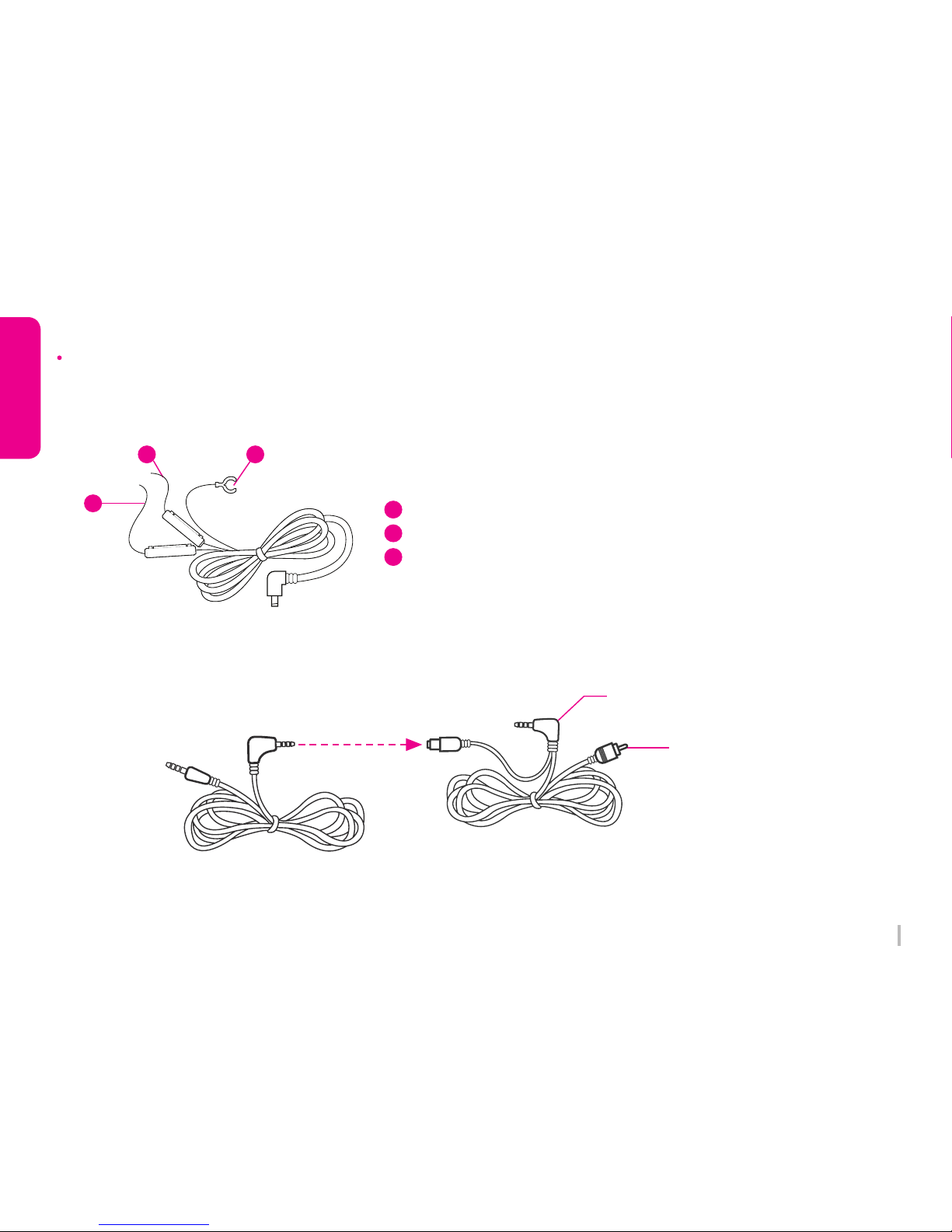

Fuse cable has 3 lines.

(When use constant power discharge protection function)

Battery Line (Red) : Connect to Emergency light ACC Line (Yellow) : Connect to Fuse Power Ground Line (Black) : GND

1. How to install a Fuse Cable

2. How to connect Video Splitter & Rear camera Cable (TV-OUT)

Fuse Cable Installation

Video Splitter Cable

(Y-Type)

Connect TV-Out terminal

TV-Out signal line

Rear camera connection cable

Page 12

WINYCAM LOG

How to use

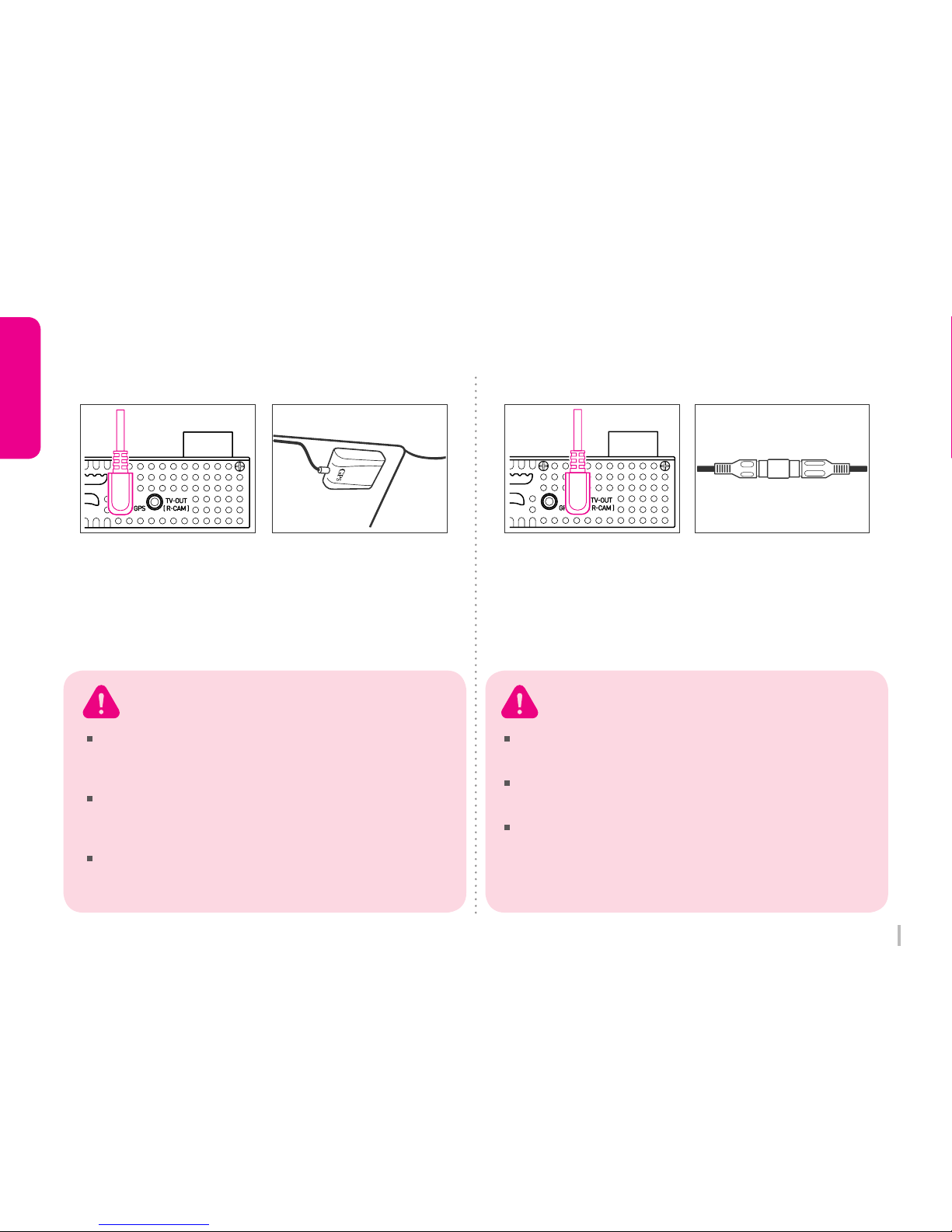

Connect External GPS to GPS connection on LOG body.

Connect a TV-Out cable to the Video splitter cable(Y-Type) on a LOG body.

(Please refer 10P)

Attach GPS module at well visual place and tidy up a cable.

Connect a TV-Out cable to AV-IN jack your car navigation.

▶ External GPS Installation ▶ TV OUT Cable Installation

When connecting to your vehicle navigation, you need an applied vehicle navigation video cable.

With a specific Car Navigation, installation may be restricted, and/or extra service charge may be incurred.

Please connect cables after checking the locations of each connection. If you misconnect them, it may cause malfunction, and we shall not take any responsibility for loss and damage by misconnect.

Caution on GPS Installation Caution on TV－OUT Connection

GPS module may be affected by main body or by other electronic devices if it is too close each other. Keep a distance as much as possible.

The receiving signal may become poor depending on the climate, satellite status and geography in the neighborhood.

The receiving signal may become poor if the windshield is heavy sun-coated or fixed with metallic materials.

3-3. GPS / TV-OUT Cable Installation

Page 13

WINYCAM LOG

How to use

1. Record : Winner is automatically boot at power on, and a constant(normal) recording starts as an initial recording mode.

2. Recording Mode : it is classified into driving recording mode and parking (motion) recording mode.

3. Recording Method : it is classified into a Constant(normal) recording, event recording, motion recording.

※ For automatic recording and manual recording methods, pleaser efer the below table.

※ 수동으로 주차모드 전환하여 녹화하다가, 다시 상시 녹화 녹화로 전환 하는 방법은 모션 대기 중에 수동 이벤트 녹화 버튼을길게 3초 누르면 됩니다.

REC

Mode

Driving

Mode

Parking

(Motion)

Mode

REC

Method

Recording

folder

Normal REC - - Normal

Event

Parking

30 / 60 / 120 sec setting

on the configuration

Event REC

Motion REC

In G-sensor detect shock

One short

press button

길게 3초 누름

Auto change to a motion REC mode. (When ACC cut off

voltage lasts 30 sec during

connecting to the fuse cable)

Before 9~15 sec,

after 10 sec

Motion detect

(Each 10 sec will be

added during constant

motion detect)

Before 6~10 sec,

after 10 sec

Motion detect

(Each 10 sec will be

added during constant

motion detect)

Before 15 sec,

after 15 sec

Event detect

Before 10 sec,

after 12 sec

Event detect

Auto REC Mode

Manual REC Mode

(Button Control)

REC Time

Normal Video Quality Super High Video Quality

3-4. How to record

Page 14

WINYCAM LOG

How to use

3-5. LED Operation

Red ON

Item

Front LED

Rear LED

REC LEDPWR LED

Booting -

1CH

2CH

Red ON Red ON

Green ON Green ON

Red ON 1.5 / OFF 1.5

Red ON 0.5 / OFF 0.5

Green ON 1.5 / OFF 1.5

Green ON 0.5 / OFF 0.5

Red/Green flashing

interval at 0.5 sec

Red/Green flashing

interval at 1.5 sec

FW update

1sec ON / 1sec OFF

0.5sec ON / 0.5sec OFF

0.25sec ON /

0.25sec OFF

0.5sec ON / 0.5sec OFF

OFF

Red flashing interval

at 0.5 sec

Green flashing

interval at 0.5 sec

Red flashing interval

at 0.5 sec

Green flashing

interval at 0.5 sec

Normal REC (N)

In detect a Shock (E)

Parking REC (P)

Parking REC standby

No micro SD Card

(including an error)

SD Card Format

Page 15

WINYCAM LOG

How to use

Situation Voice Guide

Event Occur (Alarm) “Diririring”

Remove SD card / SD card Error “Please check your SD card.”

Firmware Update Start “Firmware will be updated.”

Constant (Normal) Recording Start (In booting) “Normal Recording will begin.”

* Event Recording Start (In booting) “Event recording will now begin.”

Parking Recording start “Parking recording will now begin.”

SD Card Format Check

Recording end

“Will you format your SD card?”

“Normal recording will now end.”

SD Card Format Completion

Alarm tone in a Rear Camera disconnect

(the error for 2CH REC)

“All data has been deleted”

“Ding-Dong Ding-Dong Ding-Dong”

※ Only when event REC mode is set in the configuration, the voice guiding "event recording will start"

will announce

3-6. Voice Guide

Page 16

WINYCAM LOG

How to use

3-7. PC Original Viewer Program Installation

1. System Requirements

2. Install

Windows XP(32bit), Windows Vista(32bit), Windows7(32/64bit), Windows8(32/64bit) Pentium4 2.8GHz & RAM over 1GB. Display monitor resolution: 1024 X 768 DirectX Support (WPF)

Download the latest Winy BB Viewer from our website (http://www.winycam-eng.com) If you run “setup.exe”, Winy BB Viewer will be installed And then, installation will be continued according to the installation sequence of setup dialog box.

Page 17

WINYCAM LOG

How to use

※ Installation may take a

long time depending on PC usage environment.

2. Select file location and click “Next”

Complete installation

󱮦

1. NEXT 3. NEXT

Installing

Page 18

WINYCAM LOG

How to use

2 3 4 5 6 7

13 14 15 16 17 18 19 20 21 22

23 24 25 26 27

3-8. PC Original Viewer – Screen Configuration

Page 19

WINYCAM LOG

How to use

Item ItemFunction Function

1CH / 2CH select screen Fast-Rewind

Viewer Configuration Playback or Pause

System Configuration Stop

Print Fast-Forward

Screen Capture File Skip

Zoom Control Volume

Play List / Map Button Total File Time / Playback Time

Playback File Location Brightness / Contrast

REC file list / Map Display GPS signal condition

Playback Video Image Driving Speed

Playback Control Latitude / Longitude

Full Screen G-sensor Information

Flip Horizontal Split Image

Flip Vertical

File Skip Back

10 25

11 26

12 27

13 28

Page 20

WINYCAM LOG

How to use

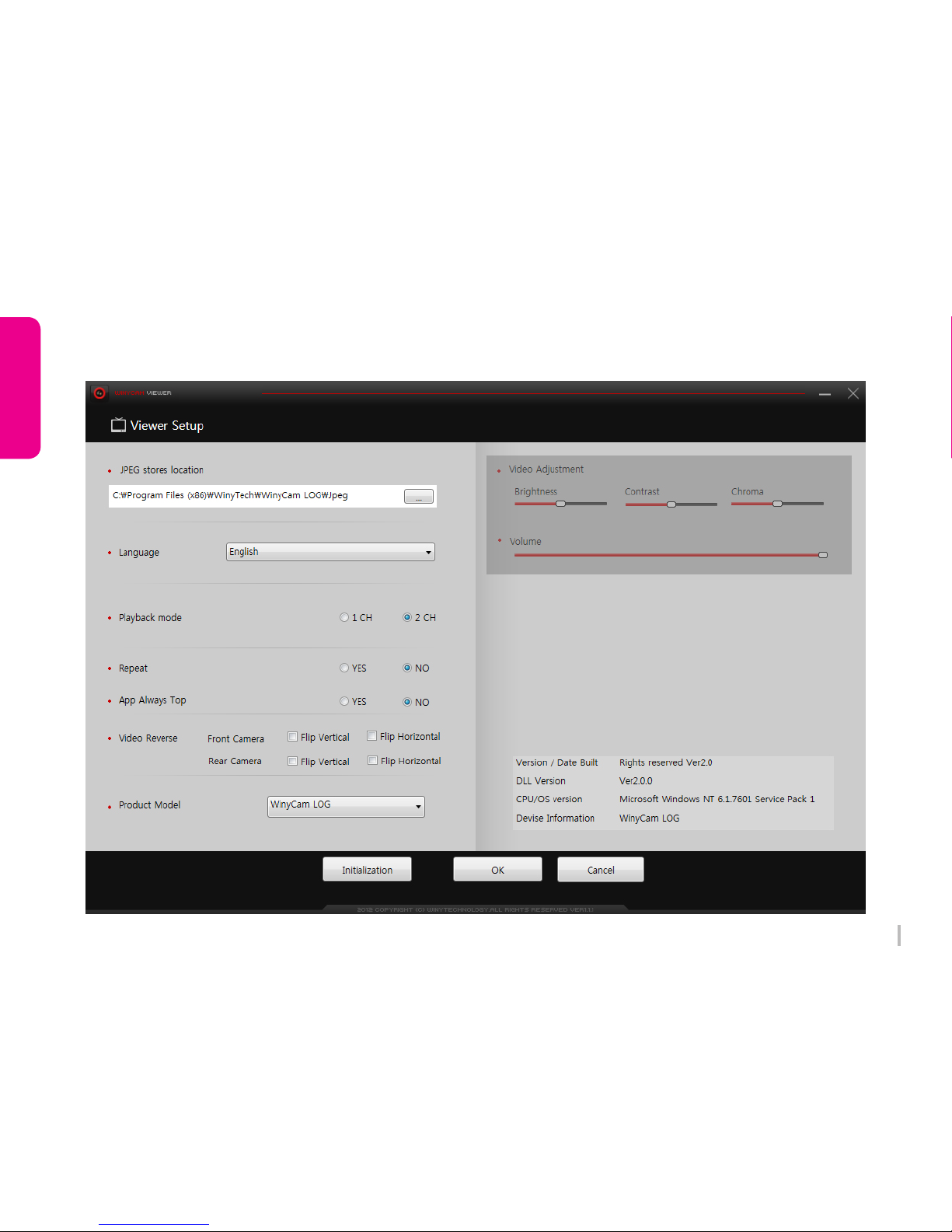

3-9. PC Original Viewer – Viewer Configuration

Page 21

WINYCAM LOG

How to use

Select language.

Select display channel.

Item Function

JPEG stores location

Language

Playback Mode

Repeat

App Always Top

Video Reverse

Product Model

Video Adjustment

Volume

Set location for captured JPEG image.

Select repeated playback.

Video can reverse from side to side and up and down

Select the model.

Select App is always the top of another window.

Control playback speed

Control recording volume level

Page 22

WINYCAM LOG

How to use

3-10. PC Original Viewer – Configuration 1

Page 23

WINYCAM LOG

How to use

Select video quality in a front camera

Select video quality in a rear camera

Item Function

REC Mode Setting

Front Camera Video Quality

Rear Camera Video Quality

Motion Sensitivity

Driving Mode G-Sensor

Parking Mode G-Sensor

Voice Guide Volume Level

REC Volume Level

Video-Out Format

Front LED Setting

REC Channel

Time Setting

Set Time?

Breaking Voltage

Select the recording mode

Select a shock sensor sensitivity level on normal mode

Select a shock sensor sensitivity level on parking mode

Select a motion sensitivity level during parking mode (Level 1 is the most sensitive)

Select voice guide volume level

Select a recording auto level

Select TV-Out format

Select front security LED function

Select a recording channel

Set the current time.

The time setting will be applied to LOG.

Select a breaking voltage for a constant power discharge production function

Page 24

WINYCAM LOG

How to use

3-10. PC Original Viewer – Configuration 2

Page 25

WINYCAM LOG

How to use

Item Function

Camera Sensor

SD Card Folder

Capacity Adjustment

Standard Time

Summer Time

Select Brightness, Chroma. Back to default value after click sensor initialization

Select the capacity of each recording mode in SD card

LOG synchronizes the time automatically according to the standard time setting with GPS

Apply a summer time.

Page 26

WINYCAM LOG

How to use

3-11. Configuration Default Setting

NTSCVideo Out Format

Voice Guide Volume Level

REC Volume Level

Parking Mode G-sensor

Driving Mode G-sensor

3(Middle)

3(Middle)Motion Sensitive level

Rear Camera Video Quality

Super High Video QualityFront Camera Video Quality

Super High Video Quality

Item ItemSetting Value Setting Value

REC Mode Setting

Camera

Sensor

Breaking Voltage

SD Card Folder

Capacity

Adjustment(%)

Normal

Color

Brightness

Middle

20Motion

Movie (normal)

12.2(24.3)V

+09:00

Event

REC Channel

Time Setting

Set Time?

Front LED Setting

2CH

PC Setting value

Contrast Middle

Standard Time

Summer Time

Page 27

WINYCAM LOG

How to use

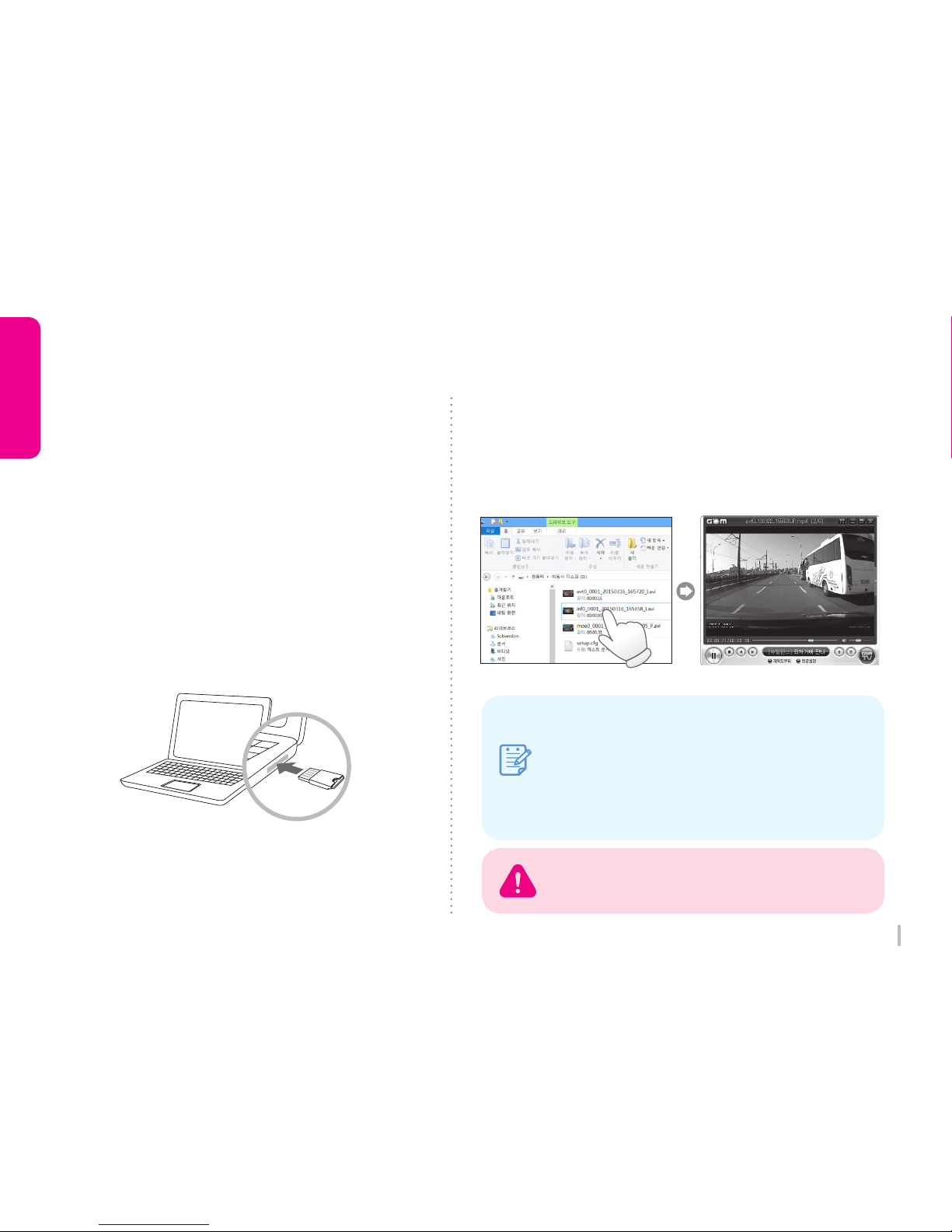

1) Remove a SD Card from Winner

Open a SD Card slot cover and press softly, then a SD Card can be removed easily.

󱮦󱮦

󱮦

3) Playback

Open a removal disc, you can see each folders. And click files to playback which is stored in each folders.

2) Connect a SD Card to PC

Insert a SD card to SD Card Reader or to adapter, and connect it to PC.

You can check only front REC when playing by standard video player.

󱮦󱮦

󱮦

infxx moexx

evtxx

GPS Information is displayed in the original viewer.

Note

: Constant(normal) record : Motion record which is detected by

motion detection sensor. (Parking mode) : Event record which is detected a shock

by shock sensor.

3-12. Playback (General video player)

Page 28

WINYCAM LOG

How to use

1~2) Same method to playback as a

general video player.

5) Playback

※ Click

N : Constant(normal) REC file list E : Event REC file list P : Parking REC file list

3) Original Viewer Program

Click icon for the original viewer

4) Find a REC file location

Click “FILE LOCATION” in original viewer on upper right. Choose file location, video file list will be shown

3-13. Playback (PC original viewer)

Page 29

WINYCAM LOG

How to use

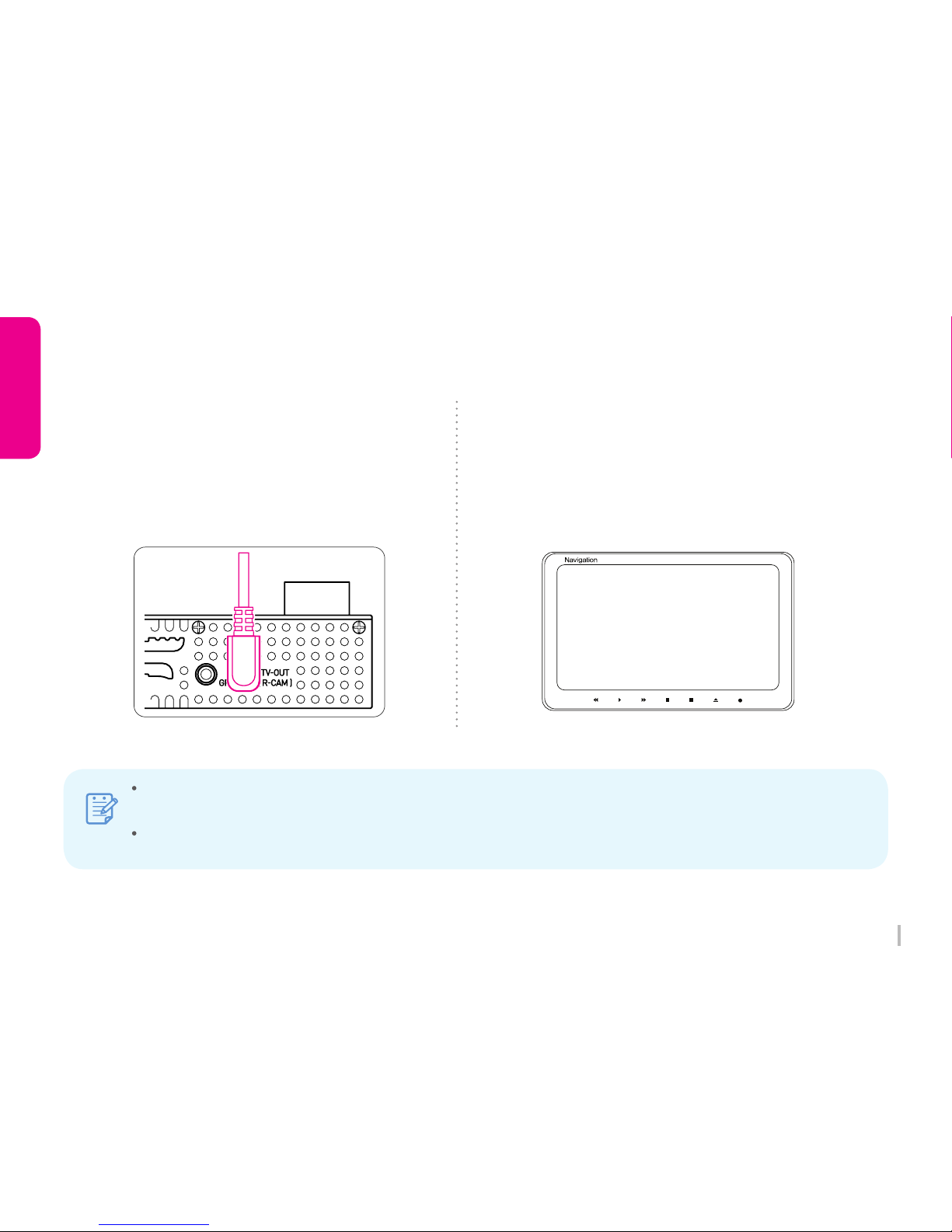

1) Connect TV Out cable

Connect TV Out cable to TV-OUT terminal on the product. Connect TV Out cable to video input terminal on the TV / Vehicle navigation. (TV Out cable : Option)

2) Set the video input mode

Set the video input mode on TV / Vehicle navigation first and playback video for real-time monitoring. Real-time recording image ONLY.

AV1(external input mode)

3-14. Playback (TV / Vehicle Navigation)

Note

Available only TV / Vehicle navigation has external input terminal. Please check the TV / Vehicle navigation supplier for an external monitor cable.

Mode change method is different for each modes, please refer user manual of TV / Vehicle navigation. If remove or insert TV Out cable during recording, recording will end and start reboot.

Page 30

WINYCAM LOG

How to use

3-15. Smartphone Wi-Fi – Download

- WINYCAM application is enabled in Android and iOS.

- Search “WINYCAM” on Google Play Store, Apple App Store.

- Real time video and playback can be delayed depending on the type of Smartphone.

- Do not use the application during driving. It may cause accident. (Please use WINYCAM application always during parking or stop.

- Wi-Fi USB Dongle is optional.

- Please check Wi-Fi signal or the setting if the application can’t search LOG for the first connection.

- When [Internet Service Check] menu is “On” on Wi-Fi setting, try again after changing to “ Off ”

- Try again after all setting on Wi-Fi “Signal Sensitivity Setting”

- Wi-Fi disconnection can occur depending on a receive sensitivity.

- Wi-Fi can be used within a 10m range

- During Wi-Fi connection, FPS can be different depending on the type of Smartphone. Auto recovery will be operated when Wi-Fi is disconnected.

WINYCAM Smart Manager Application

Before use

Android Market App Store

Page 31

WINYCAM LOG

How to use

1. Turn on Wi-Fi on the Smartphone configuration menu.

2. Select ‘

WCBB_xxx

’ network on the Wi-Fi list.

3. Press ‘Connect’ after enter the password [

00000000

]

3-16. Smartphone Wi-Fi Setting – iOS

Page 32

WINYCAM LOG

How to use

3-17. Smartphone Wi-Fi Configuration – How to use

1. Initial Screen

Wi-Fi list will be shown when pressing “START” Press “Firmware Check” and download the latest firmware.

3. Main

Select the command from the menu.

2. Wi-Fi List (Android ONLY)

Available Wi-Fi list will be displayed. Press ‘WCBB_xxx’ and “NEXT”

4. Live view

Live video shows F/R (Front/Rear video change)

Page 33

WINYCAM LOG

How to use

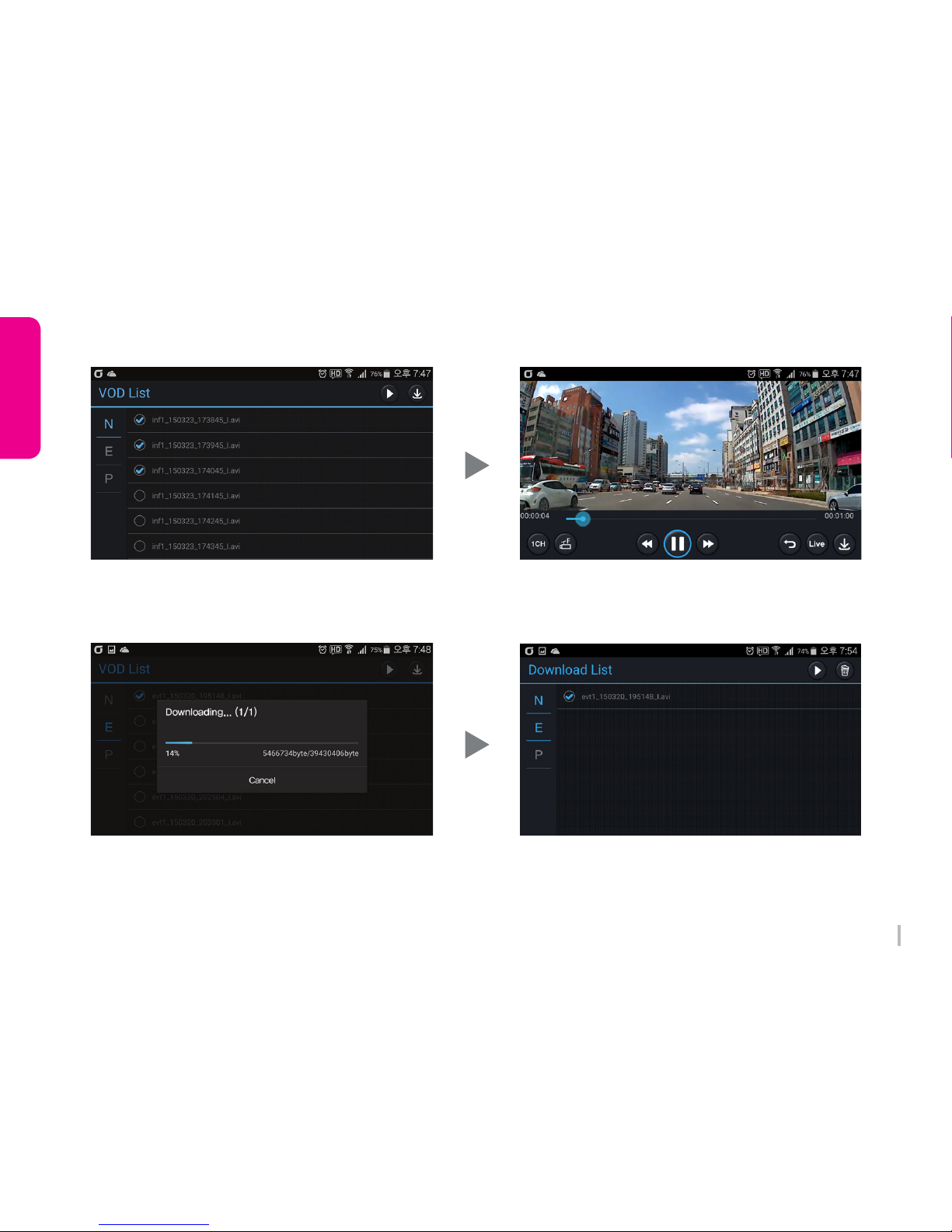

5. VOD view

Select a number of files, consecutive playback is available. REC video playback after selecting a file and press ‘Playback’ on the top

7. Download view

Select the files and press ‘Download’ on the top, then REC video can be downloaded to Smartphone. Select a number of files, consecutive download is available.

6. VOD Screen

REC video shows. Front/Rear change is available.

8. Download List

Downloaded REC file list shows. After selecting files, playback and delete REC video files are available.

Page 34

WINYCAM LOG

How to use

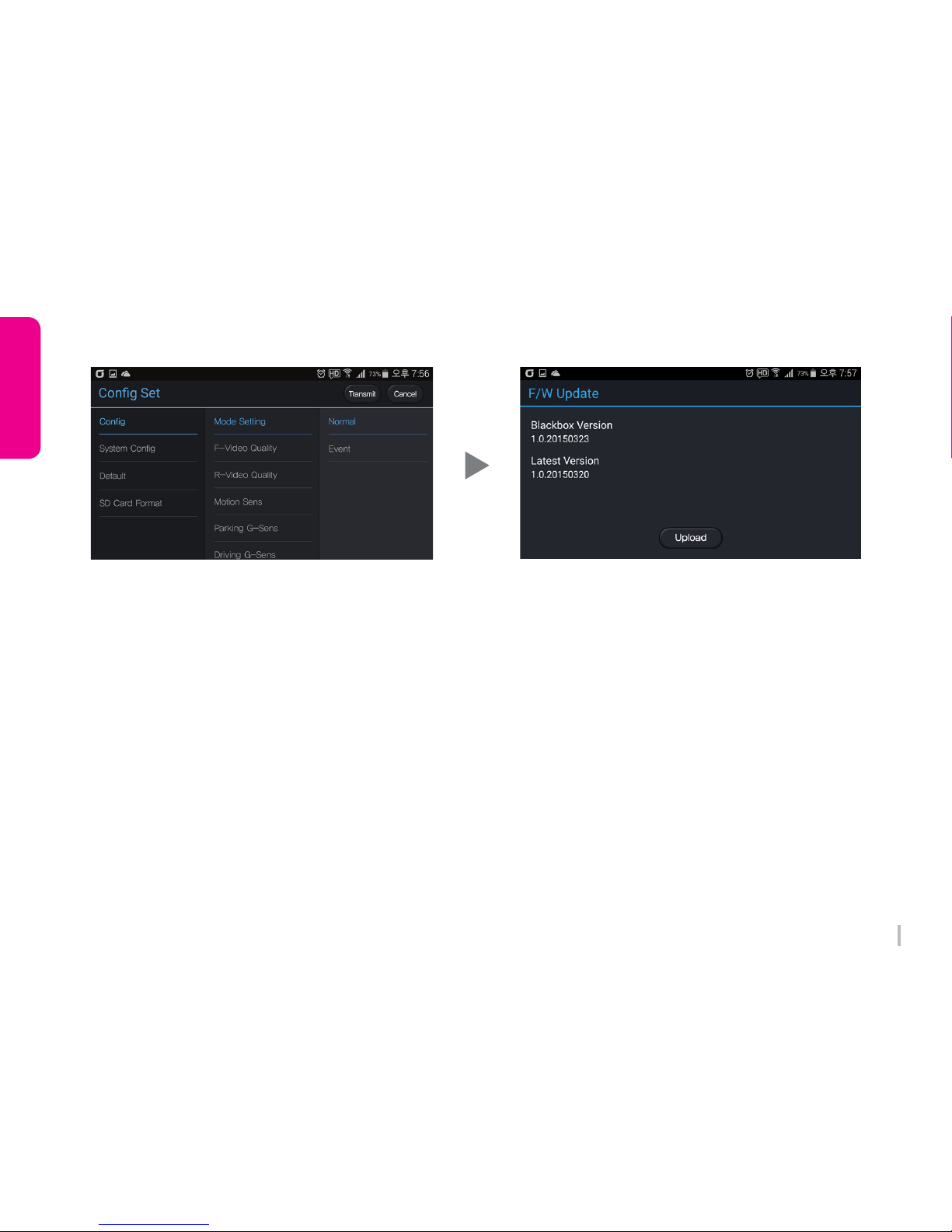

9. System Configuration (black box)

Black box configuration shows. Change or initialize the setting, please press ‘ Transmit ’ button. SD Card format is available in real time.

10. F/W Update

The device firmware version shows. Available to upgrade firmware version if the device firmware is lower than the latest one.

Page 35

WINYCAM LOG

How to use

1) Recording bitrate will change to the wifi bitrate when you connect ‘Live View’ on Wi-Fi app.

2) If you disconnect ‘Live View’, recording bitrate will change to the normal bitrate after 30 seconds.

3) When REC bitrate changes, video recording will stop and restart with “Diriring-” alarm.

* wifi bitrate: 2Mbps * normal bitrate: HD=8Mbps / FHD=11Mpbs

3-18. Smartphone Wi-Fi – Variable Bitrate

Keep the wifi bitrate.

Change to the normal bitrate after 30 seconds with “Diriring-“ alarm.

REC mode Action Function

Normal

Live View Connection

Live View Channel Change

Live View Exit

Live View Reconnection within 30

sec

Parking Mode on Live View

Parking Mode Start Within 30 sec

After Live View Disconnection

Parking Mode Start After 30 sec

After Live View Disconnection

Live View Connection

Parking

Live View Exit

Apply the wifi bitrate with “Diriring-“ alarm.

Change to the normal bitrate after 30 seconds of Live View exit without parking mode change. After that, change to the parking mode after 10 seconds.

Keep the wifi bitrate.

Change to the parking mode after 10 seconds after changing to the normal bitrate change.

Reconnect to the parking mode after applying the wifi bitrate, parking REC guidance will announce after “Diriring-” alarm.

Reconnect to the parking mode after changing to the normal bitrate after 30 seconds, parking REC guidance will announce after “Diriring-” alarm.

Page 36

WINYCAM LOG

How to use

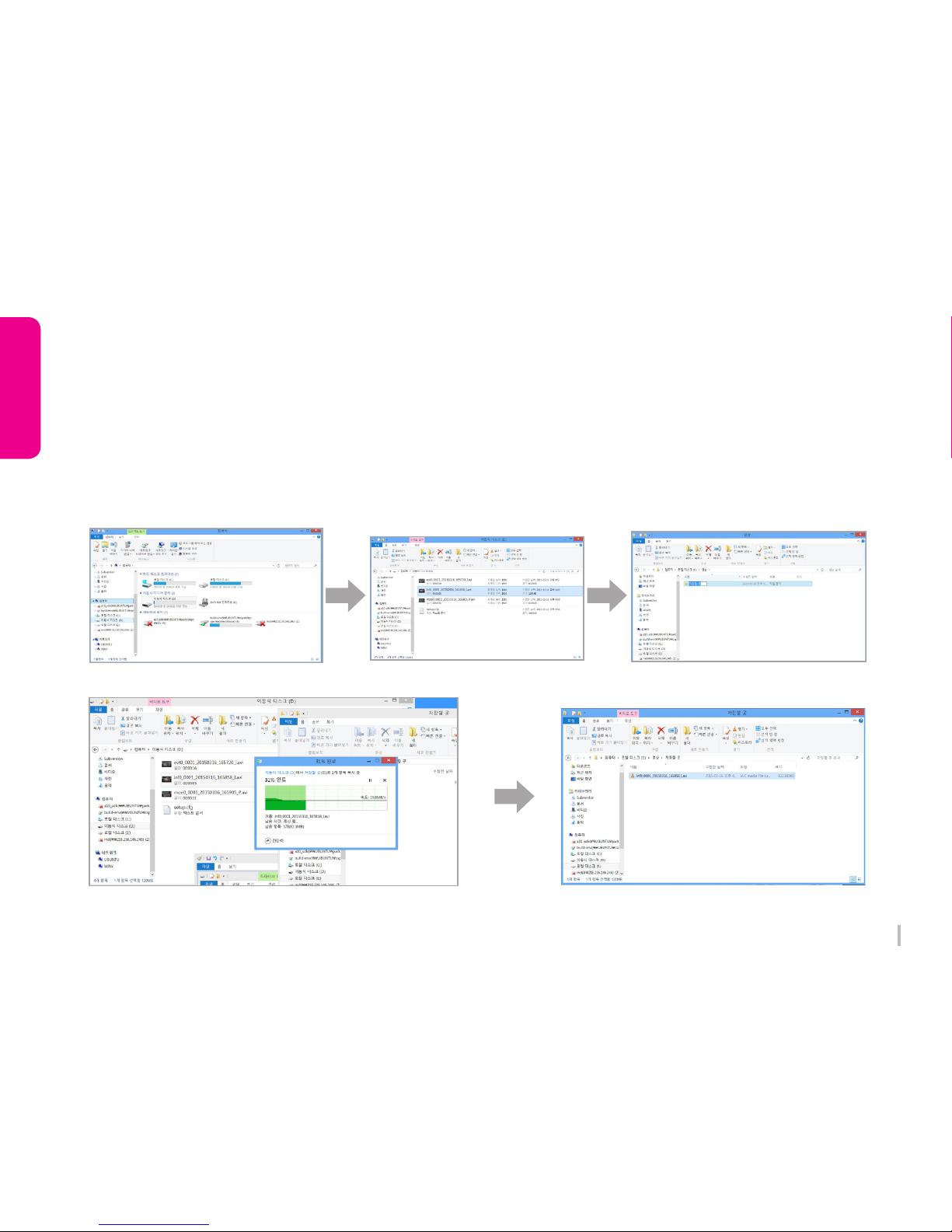

1) Enter to removal disc after insert SD card to your PC.

2) Go to the folder where recorded video files are stored.

3) Create the new folder in same location.

4) Drag the particular file to the new file to copy. (If you drag a folder, the whole folder will be copied.)

3-19. To save video file on your PC

Page 37

WINYCAM LOG

How to use

1) Remove the SD card from Winner after turning off the power completely.

2) Backup all files that are stored in the files to your PC.

3) Download the latest firmware from our website (http://www.winycam-eng.com) and copy to a SD card.

4) Insert the SD card to Winner. After power ON then firmware will be updated automatically.

5) When the firmware update is completed, Winner will be initialized and a voice guide will be announced

1. Turn on the power while pressing the “REC” button.

2. While you press “REC” button, format will start.

3. When you press “REC” button briefly within format stand-by time, the SD card will be formatted and rebooted.

※ If REC button is not pressed during the format waiting time, the format will be canceled automatically and

change to the normal recording.

3-20. Firmware Upgrade

3-21. SD card format

Firmware Update

How to format the card if the SD card has recognition error

Firmware File Format

File name will be tcc_fw_1.0_yymmdd.tar - yymmdd will change depending on year/month/date of the firmware version.

Page 38

WINYCAM LOG

How to use

▶ Default set

Note

By time : When the memory is full, the oldest file will be automatically deleted.

By mode : Total record files are stored by your setting rate on “SD card Folder Capacity Adjustment”. When memory is full on a particular recording mode, the oldest file will be automatically deleted on particular recording mode. Stored file may also be deleted.

1CH

2CH

Video

Quality

Camera

16GB 32GB

Super High Front

High Front

Normal Front

Super High Front/Rear

High Front/Rear

Normal Front/Rear

Normal

(60%)

Normal

(60%)

Motion

(20%)

Motion

(20%)

Event

(20%)

Event

(20%)

3-22. REC Time

(Unit : Minute)

191

153

306

102

183

367

122

Page 39

WINYCAM LOG

How to use

3-23. Specification

Item Item

CPU

Flash Memory

RAM

Recording Channel

Camera

Image Quality

GPS

View angel

Power Input

Battery

G-Sensor

Video Format

Video Output

Voice Recording

Voice Guidance

Video

Compression

Audio Codec

High Temperature

Cut-off

Memory

Operating

Temperature

Breaking Voltage

Storage

Temperature

Specification Specification

ARM® Cortex-A5

16MByte Serial NOR Flash

256MByte DDR3

2 Channel

Front : 5M Pixel / Rear : 0.4M Pixel

COMS image sensor

Front : FHD (1920x1080P)

Rear : D1 (720 x 480P)

External GPS Module (Option)

Front : 92(H) x 67(V) x 120(D)

Rear : 89.9(H) x 64.9(V) x 120.3(D)

DC 12V~24V

Super Capacitor

3D Shock Sensor

AVI

NTSC

Built-in high sensitive

microphone

Built-in speaker

H.264 / AVC

PCM

Yes

microSD Card

(up to 64GB opt)

-20℃ ~+70℃

OFF, 11.4V(23.1), 11.6V(23.4)

11.8V(23.7), 12.0V(24.0), 12.2V(24.3)

-20℃ ~+85℃

Page 40

WINYCAM LOG

FAQ

4. FAQ

Precaution before use

1. Please check for any defect on the product before installation. The Company shall not take responsibility for any cost or expense incurred as a result of the failure to check before installation.

2. If installation was held at a service center other than those designated by the Company, the Company shall not take a responsibility for cost or expense charged at such center.

3. If the constant power protect function is set ‘OFF’, monitoring during parking will be performed only for a certain period of time. If the vehicle battery voltage is lowered for self-protection, power to the device may be disconnected even in the Parking Mode disabling the recording.

4. The Micro SD card is a consumable. Use of an aged SD card may cause error. Please replace on a regular basis.

5. When a vehicle accident occurred, turn off power of the product immediately, remove the SD card and save the accident file on your PC. If the file is erased due to the times away, the Company shall not take responsible.

Note

1. Power is not turned on.

※ Check once again if the power cable is properly connected. If the problem is not solved, please contact manufacture.

2. The map is not shown when a video is played on a PC original viewer program.

※ Check your Internet connection. Check if your Internet Explorer is v7.0 or higher.

3. Power is connected, but LED is not lightning.

※ Check if the power cable is connected properly. Then if still LED dose not lightning, the product or the SD card may be

defective. Please contact manufacture.

4. GPS signal dose not recognize. (GPS is sold separately.)

※ GPS signal reception may be interrupted temporarily depending on the environment and locations. Drive your vehicle

to other location where GPS signal reception is abled. Please wait 3-5 minutes in the GPS signal reception area. If the signal still dose not recognized, please contact manufacture

5. The product does not recognize the SD card.

※ Remove the SD card from Winner after power OFF, and check for any foreign material or abnormality around the

connecting terminal. Format the SD card and try again. If the SD card is old, please replace to a new one.

Page 41

Warranty

1. The products are manufactured through the strict quality control and inspection process.

2. The defect occurring in normal use of user within the warranty period will be repaired free of charge.

3. If the warranty period has passed, we will repair by paid charge.

4. Please take this “Warrantee” when you request repair.

5. Please keep this “Warrantee” because we will not be able to re-issue this warrantee note.

Warranty Details (Conditions)

1. Free Service Product : 1 Year from purchase date. Micro SD Card : 6 months from purchase date (if purchase date is not confirmed, it should be counted from manufacture date of SD card.)

2. Paid Service

1) If the warranty period has passed.

2) If a failures caused by carelessness using (drop, flooding, shock, breakage, excessive operation)

3) If failures caused by natural disasters (fire, lightning, flood damage, etc.

4) Failures caused by the malfunction of power in use and connected equipment.

Model Name Product

Serial No Purchase date

Customer TEL

Address

Purchase from TEL

LOG Vehicle Drive Recorder / Rear Camera

YY MM DD

Please keep this “Warrantee” because we will not be able to re-issue this warrantee note.

Page 42

WinyTechnology Co., Ltd.

www.winycam-eng.com
