Winx 5500 User Manual

Washable HEPA Air Cleaner with
PlasmaWaveTM Technology

Model 5500

Use and Care Guide

WINIX Air Cleaner 1 Year Limited Warranty

When installed, operated and maintained according to all instructions supplied with this product,
Winix, at its option, will repair or replace the product if it fails because of a defect in material or
workmanship, as determined by Winix. If the unit is believed to be defective within the one year
warranty period, please call 1-877-MY-WINIX (699-4649) to arrange for repair. Proof of the purchase
date must be verified before any warranty work will be completed. All warranty coverage applies
for only one year from the date of purchase. This warranty will be null and void if the product is used
for purposes other than home consumer purposes.

This warranty covers only defects in material and workmanship. WINIX will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters and remote controls.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to all
instructions supplied with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than
its intended purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or
utensils other than those recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; Limitation of remedies

Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein.
Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to
one year or the shortest period allowed by law. WINIX shall not be liable for incidental or consequential
damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential
damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions
or limitations may not apply to you.

7KLVZDUUDQW\DSSOLHVRQO\ZKLOHWKLVDSSOLDQFHLVXVHGLQWKH8QLWHG6WDWHVRU&DQDGD
7KLVZDUUDQW\JLYHV\RXVSHFLILFOHJDOULJKWVDQG\RXPD\DOVRKDYHRWKHUULJKWVZKLFKYDU\IURPVWDWHWR

state.

w/ Washable HEPA and 1 Carbon Filter

Use and Care Guide

3

or incense.

4

Motor Type BLDC Motor

Air Quality Sensor

Washable HEPA Filter

Unit Dimension
Unit Weight

Winix air cleaners are simple and economical
to maintain. For optimum performance,
wash the HEPA filter every 6 months and
replace after 6 washes. Change the carbon
filter every 3 months.

5500

5500

Sleep Mode

When set on Sleep Mode, display panel
lights will dim and the unit will not go
above low fan speed to help keep the
room dark and quiet.

Replacement Filter Reset Button

Washable HEPA Filter

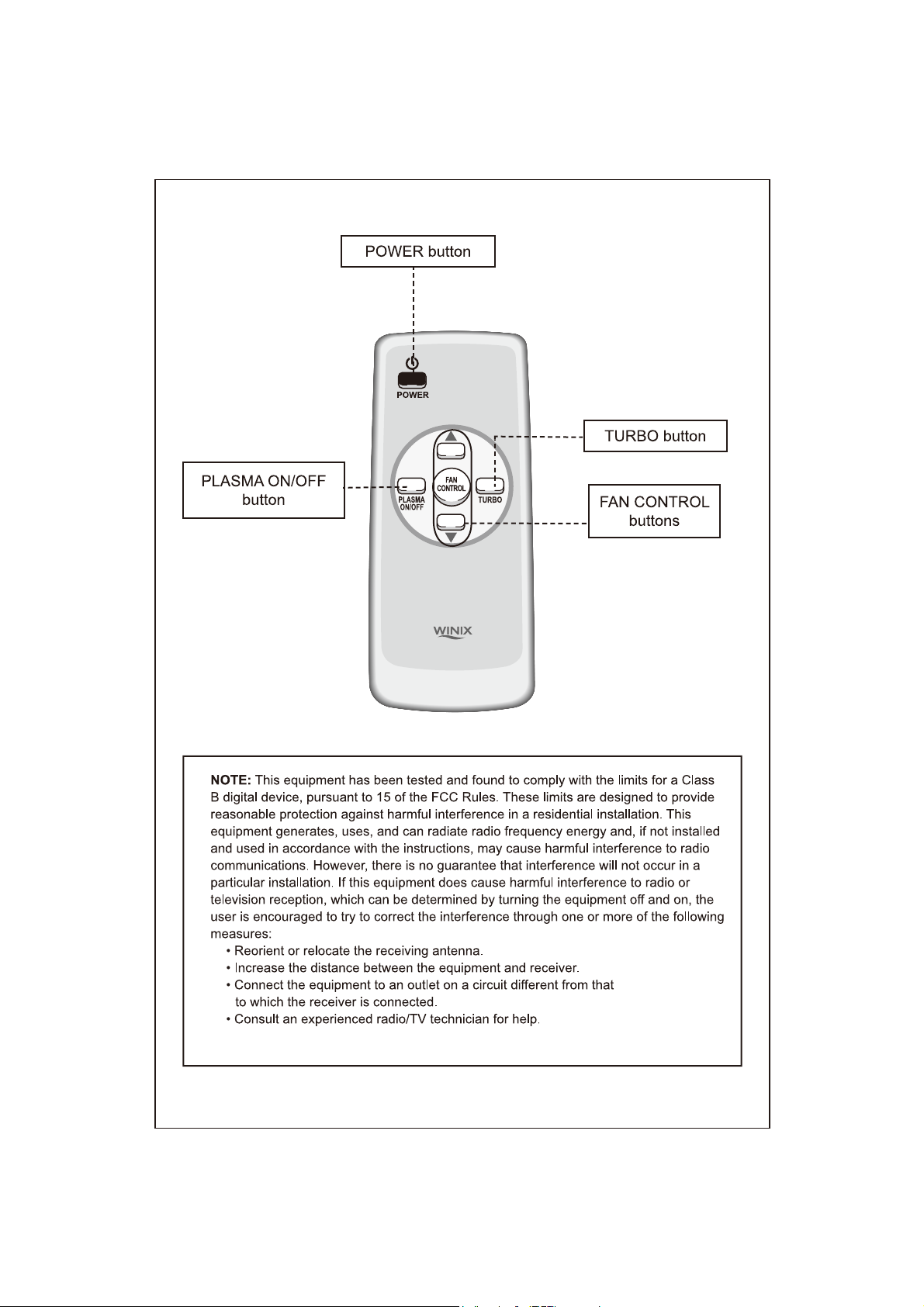

PlasmaWave™ can be turned on and off
using the remote control, however we
recommend leaving it on all the time.

Replacement Filter Indicator Light

Indicates when to replace the Washable
HEPA Filter depending on usage.

Washable HEPA Filter

5

NOTE: Follow these instructions
for best results.

Washable HEPA

Filter.

Replace the front panel

4.
by hooking the front
panel on the top of the
unit. Gently push the
bottom of panel until it
snaps into place.

sealed plastic wrap

NOTE: For the first 4 minutes after turning
the unit on, air quality indicator will flash
while the unit measures air quality.

6

indicator will illuminate when to replace
the Washable HEPA Filter.

- Auto: The unit is set to default to AUTO
mode when it is first turned on.
The sensor will automatically adjust
fan speed as needed.

- Sleep: When in SLEEP mode, the control
panel will dim and the unit will operate
quietly at the lowest fan speed.

Note: To get back into AUTO mode,
SPEED/MODE button must be pressed
on unit until AUTO light is lit.

AIR QUALITY INDICATOR

7

the SPEED/MODE button on the unit.

SLEEP MODE

When set on Sleep Mode, display panel
lights will dim and the unit will not go
above low fan speed to help keep the
room dark and quiet.

air quality. If the unit is set on automatic
operation, it will adjust fan speeds to
compensate for changes in air quality.

8

9

10

Washable HEPA Filter Cleaning

1. Turn off the unit and remove the front panel
by grasping the bottom outside edges
and pulling gently
toward you.

2. Pull out the Carbon Pre-filter and the
HEPA Filter by grasping the tabs
located on each side
of the filter.

3. Wash the HEPA filter with water only on
both sides as shown in image and leave
it to dry for 24 hours
or replace the
HEPA filter.

4.

Place the HEPA and a new Carbon Pre-filter
in the unit. Only use original
filters designed for this unit.

1/13/11

ϑ

11

Unit Cleaning

Clean outside of unit as
necessary by wiping with
a dry, soft cloth; for stub­born stains, use a warm,
damp cloth.

The REPLACEMENT FILTER INDICATOR
will signal when to replace/clean the HEPA
Filter. The clean/replacement period will vary
depending on the hours of usage, air quality
and location of the unit. Please note that the
carbon filter needs to be changed every
3 months or as needed.

There are two separate filters: Washable
HEPA and Carbon Pre Filter.
The Washable HEPA filter should normally
be washed every 1/2 year but maximum
6 times equivalent to 3 years of usage.
Then it should be replaced.
After changing/cleaning HEPA, mark the
filter at designated check boxes on filter
edge (see image below), and push reset
button on inside of unit – See number
5 instruction to the right.
For best performance, change the
Carbon Filter every three months.

To reset the filter once a new HEPA filter is installed:
a. Plug the unit back in with the front cover off
b. Turn on the unit
c. Locate the filter reset button on
the display panel
d. Press and hold the filter reset
button for 3-5 seconds. A short beep
will be heard and the light should turn off.
e. Place the front panel back on the unit
and the air cleaner is ready to use

NOTE: Do not wash and reuse Carbon Filter,
it will not work effectively.

12

Clean/Replace filters as needed.

Compressed air may also be used to blow dust that may be
clogging the sensor.

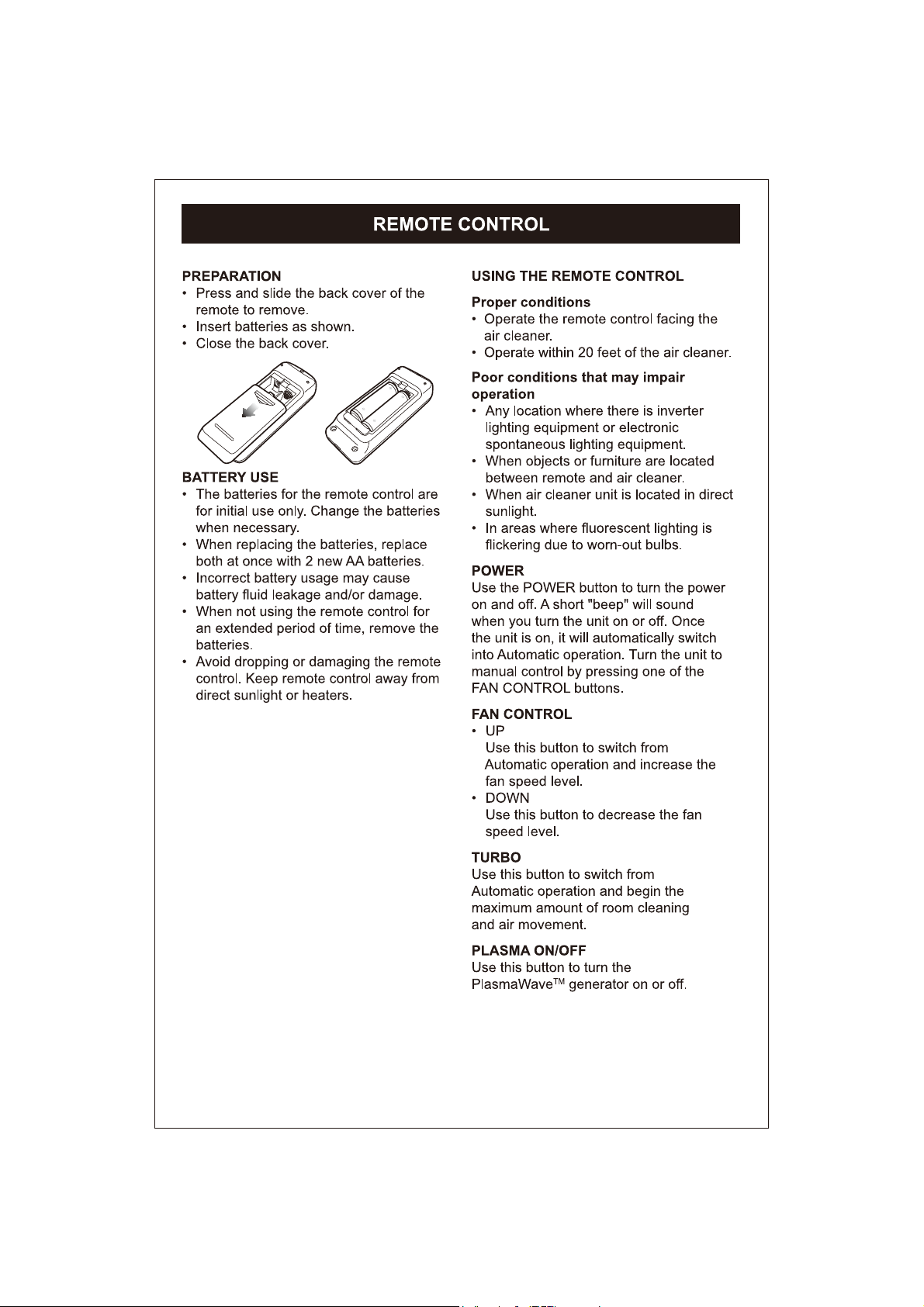

using the remote control.

The REPLACE FILTER
INDICATOR remains lit
after replacing the
Washable HEPA filter.

With the power on, press the FILTER REPLACEMENT
RESET button and hold for 5~10 seconds or until the
light turns off.
See page 10 instruction 5 for details.

13
