Wintop Electronics BT 535 User Manual

Wintop Electronics Co., Ltd

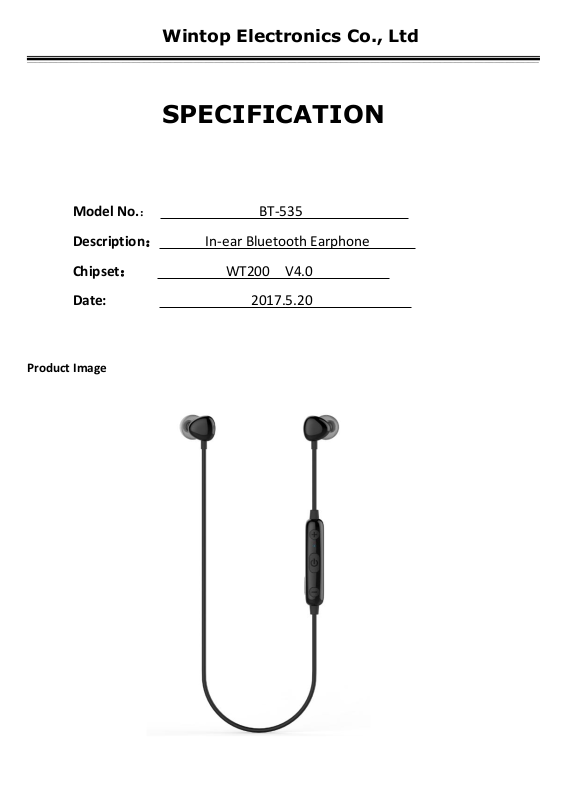

SPECIFICATION
Model No. BT-535
Description In-ear Bluetooth Earphone
Chipset WT200 V4.0
Date: 2017.5.20
Product Image
Electronics
Co.,
Ltd
Product Size
Product Materials
PC+ABS earbuds
TPE cable
PC+ABS controller
Charging port
Silicone ear cushion
Silicone “+” button
Silicone MFB button
Silicone “-” button
Electronics
Co.,
Ltd
Product Function
Parameter min Li-battery Spec. 380926
Capacity 60 mAh
Working Voltage 3.3 3.7 4.2 Volt
Working current(playing music
Working current(on talking
Standby current 1 3 mA
Charging current 60 mA
Charging time 1.2 1.5 2 H
Turn-off current 7 uA
2.Frequency Spec.
Frequency response 20 20k Hz
Max output power 5 mW
SNR:1K@0dB With IEC -88 dB
Distortion rate: 1K@0dB 0.8 %
Bluetooth receiver sensitivity -88 dBm
Working distance 10 M/360
3.MIC Spec.
type
20 mA
24 mA
max Unit remarks
Working voltage 1.8 V
Testing voltage 4.5 V
Sensitivity -39 -42 -45 dB
SensitivityAt 1khz/0.178v
Frequency range 20 20K Hz
Distortion rate:5% in shole range at 1kHz Impedance at 1kHz 16±15% ohm
Out put power 3 mw
87 90 93 dB
≤5%
Electronics
Co.,
Ltd
Model No.: BT-535
BT-535 Function/Manual
Keys
MFB
key
Function
Descrip.
On/pairing
off/connect
Call
function
Method LED flash tips
Long press MFB about 2.5 sec to turn on device when it’s in off
Then wait 12 secs it will go into pairing mode automatically
Or long press MFB button for around 8 secs, device will go into
paring mode
Long press MFB about 2.5 sec to turn off device when it’s in
standby mode
Make sure device and phone are within 1 meter for repairing it
first time
Turn on phone’s bluetooth function to select device and choose
pairing name.
Click repairing password“0000” if need
Repeat above steps if failed repairing;
Short press MFB once to answer the call
Short press MFB once to end the call when the call is on
Long press MFB for 1 sec to reject a call
continuouslyshort press MFB twice to remake the last call you’ve
called during standby mode or music is on
Voice
prompt
Blue LED flash 3 times
(Blue&red LED will flash
alternately)
Red LED flash 3 times Power off
Blue LED flashes
Power on
(paring)
Sort
connected
+/-
Play/pause
music
Voice
up/down
Previous/
next song
Play music by short press MFB once when the music is paused
Pause music by short press MFB once when the music is playing
short press “+” to make louder music
short press “-” to make lower music
long press “+” to next song
long press “-” to previous song
