Wintecronics TX67A User Manual

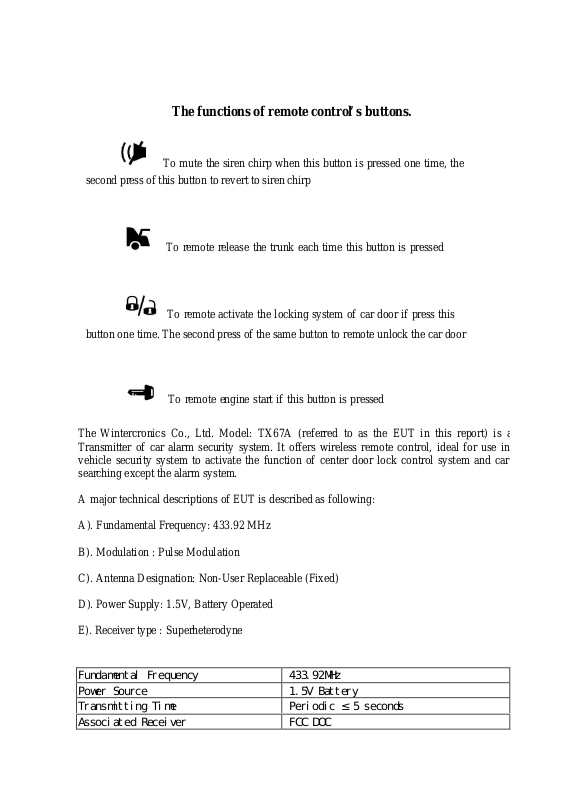

The functions of remote control’s buttons.

The Wintercronics Co., Ltd. Model: TX67A (referred to as the EUT in this report) is a

vehicle security system to activate the function of center door lock control system and car

To mute the siren chirp when this button is pressed one time, the

second press of this button to revert to siren chirp

To remote release the trunk each time this button is pressed

To remote activate the locking system of car door if press this

button one time. The second press of the same button to remote unlock the car door

To remote engine start if this button is pressed

Transmitter of car alarm security system. It offers wireless remote control, ideal for use in

searching except the alarm system.

A major technical descriptions of EUT is described as following:

A). Fundamental Frequency: 433.92 MHz

B). Modulation : Pulse Modulation

C). Antenna Designation: Non-User Replaceable (Fixed)

D). Power Supply: 1.5V, Battery Operated

E). Receiver type : Superheterodyne

Fundamental Frequency 433.92MHz
Power Source 1.5V Battery
Transmitting Time
Associated Receiver FCC DOC

Periodic ≤ 5 seconds

FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two condition.(1).this device may not cause harmful interference. (2).this

device must accept any interference received, including interference that may cause
undesired operation

Warning:
Note: This equipment has been tested and found to comply with the limits for digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, used and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference in to
radiate communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:

l Reorient or relocate the receiving antenna

l Increase the separation between the equipment and receiver.
l Connect the equipment into an outlet on a circuit different form that to which the

receiver in connected.

l Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference: and
(2) This device must accept any interference received: including interference that may
cause
undesired operation.

THE MANUFACTURER IS NOT RESPONSIBKE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT.SUCH ODIFICATIONS COULD VOID THE USER’S AUTHORITY
TO OPERATE THE EQUIPMENT.

Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modification to this equipment. Such modification could void the user’s
authority to operate the equipment.
