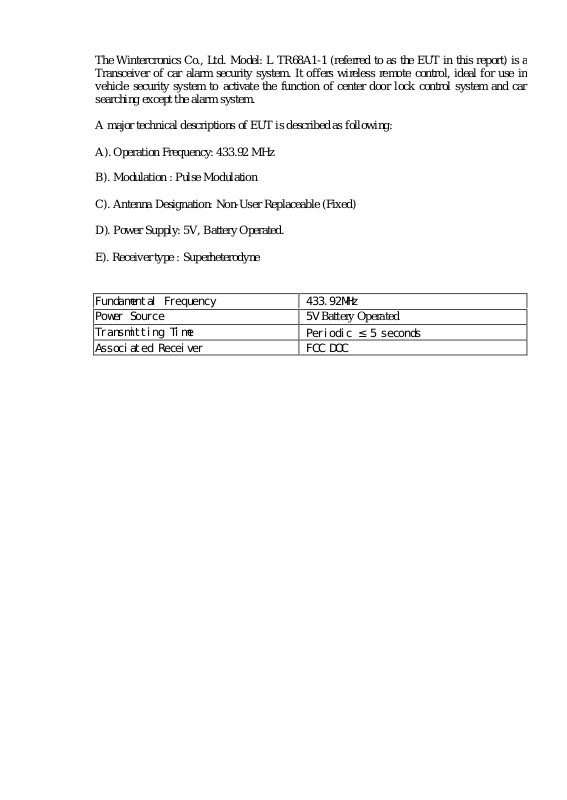

The Wintercronics Co., Ltd . Model: L TR68A1-1 (referred to as the EUT in this report) is a

Transceiver of car alarm security system. It offers wireless remote control, ideal for use in

vehicle security system to activate the function of center door lock control system and car
searching except the alarm system.

A major technical descriptions of EUT is described as following:

A). Operation Frequency: 433.92 MHz

B). Modulation : Pulse Modulation

C). Antenna Designation: Non-User Replaceable (Fixed)

D). Power Supply: 5V, Battery Operated.

E). Receiver type : Superheterodyne

Fundamental Frequency 433.92MHz
Power Source 5V Battery Operated
Transmitting Time
Associated Receiver FCC DOC

Periodic ≤ 5 seconds

L-TR68A-1

UHF TWO WAY TRANSMITTER MODULE

Product Specification

Frequency
Modulation
Receiver Sensitivity
Radiated Power
Temperature range
Power Source
Power Consumption
Data Rate
RF Freq. Tolerance

433.92MHZ
RX：AM TX：AM

-115dbm
0dbm

-30

℃ ∼

5VDC ±0.5V
RX：11 mA TX：20 mA (average)
2Kbps
+/-100K

最小

最小

+80

@ 50

@50

℃

Product Dimension Application

MODEL:L-TR68A-1

u

Wireless Meter Reading

u

Wireless Data Transceiver

u

Keyless Entry Systems

u

Wireless Security Systems

u

Battery Powered Portable Devices
