Wintecronics TR67B User Manual
If there is \unlock/ disarm command received by the main system under lock/ arm mode; the main system

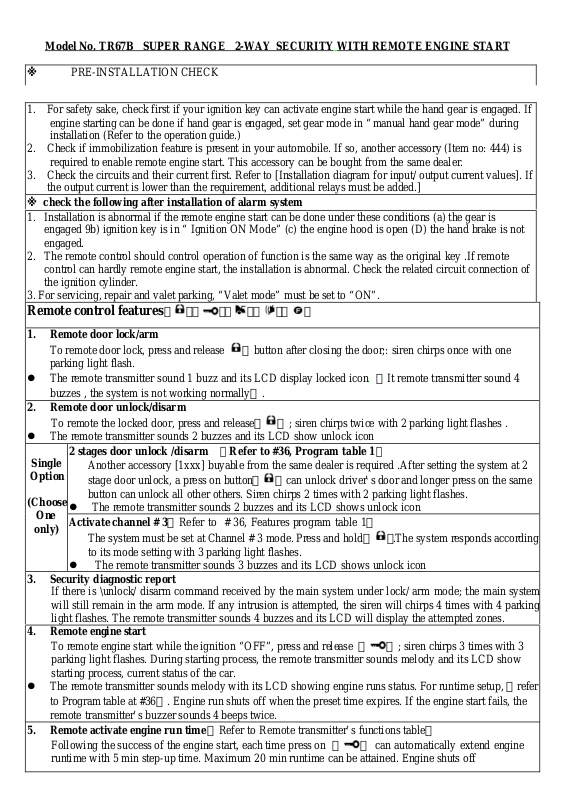

Model No. TR67B SUPER RANGE 2-WAY SECURITY WITH REMOTE ENGINE START
※
PRE-INSTALLATION CHECK
1. For safety sake, check first if your ignition key can activate engine start while the hand gear is engaged. If
engine starting can be done if hand gear is engaged, set gear mode in “manual hand gear mode” during
installation (Refer to the operation guide.)
2. Check if immobilization feature is present in your automobile. If so, another accessory (Item no: 444) is
required to enable remote engine start. This accessory can be bought from the same dealer.
3. Check the circuits and their current first. Refer to [Installation diagram for input/ output current values]. If
the output current is lower than the requirement, additional relays must be added.]
※
check the following after installation of alarm system
1. Installation is abnormal if the remote engine start can be done under these conditions (a) the gear is
engaged 9b) ignition key is in “ Ignition ON Mode” (c) the engine hood is open (D) the hand brake is not
engaged.
2. The remote control should control operation of function is the same way as the original key .If remote
control can hardly remote engine start, the installation is abnormal. Check the related circuit connection of
the ignition cylinder.
3. For servicing, repair and valet parking, “Valet mode” must be set to “ON”.
Remote control features【 】【 】
1. Remote door lock/arm
To remote door lock, press and release 】button after closing the door;: siren chirps once with one
parking light flash.
l The remote transmitter sound 1 buzz and its LCD display locked icon. 【It remote transmitter sound 4
buzzes , the system is not working normally】.
2. Remote door unlock/disarm
To remote the locked door, press and release【 】; siren chirps twice with 2 parking light flashes .
l The remote transmitter sounds 2 buzzes and its LCD show unlock icon
2 stages door unlock /disarm 【Refer to #36, Program table 1
Single
Option
(Choose
One
only)
3. Security diagnostic report
Another accessory [1xxx] buyable from the same dealer is required .After setting the system at 2
stage door unlock, a press on button【 】can unlock driver’s door and longer press on the same
button can unlock all other others. Siren chirps 2 times with 2 parking light flashes.
l The remote transmitter sounds 2 buzzes and its LCD shows unlock icon
Activate channel # 3【Refer to # 36, Features program table 1】
The system must be set at Channel # 3 mode. Press and hold 【 】.The system responds according
to its mode setting with 3 parking light flashes.
l The remote transmitter sounds 3 buzzes and its LCD shows unlock icon
【
】【 】【 】
】
will still remain in the arm mode. If any intrusion is attempted, the siren will chirps 4 times with 4 parking
light flashes. The remote transmitter sounds 4 buzzes and its LCD will display the attempted zones.
4. Remote engine start
To remote engine start while the ignition “OFF”, press and release 【 】; siren chirps 3 times with 3
parking light flashes. During starting process, the remote transmitter sounds melody and its LCD show
starting process, current status of the car.
l The remote transmitter sounds melody with its LCD showing engine runs status. For runtime setup, 【refer
to Program table at #36】. Engine run shuts off when the preset time expires. If the engine start fails, the
remote transmitter’s buzzer sounds 4 beeps twice.
5. Remote activate engine run time【Refer to Remote transmitter’s functions table】
Following the success of the engine start, each time press on 【 】 can automatically extend engine
runtime with 5 min step-up time. Maximum 20 min runtime can be attained. Engine shuts off
automatically when the runtime expires.
6. Remote engine shut off
To remote stop engine running, press and hold 【 】,can engine will shut off with 2 confirming siren
chirps and 2 parking light flashes.
l The remote transmitter sounds melody with its LCD showing engine shutoff icon and current status.
7. Remote temperature-controlled start “ON/OFF” 【Refer to Features Program table at #36, 37or
Remote transmitter’s functions table 】
To turn “ON” this remote temperature-controlled start feature, press and hold both 【 】【 】
simultaneously . Siren chirps 3 times with 3 parking light flashes. [Refer to #36 for temperature setting].
When the pre-set temperature is reached, the engine start automatically
l The remote transmitter sounds melody with LCD showing temp-start icon. To turn this feature “OFF” To
turn this feature “OFF”, press both【 】【 】simultaneously. The remote transmitter sounds melody but
its LCD does not show tem-start icon.
8. Programmed daily start-time “ON/OFF” 【Refer to Features program table at # 37】
Press and hole both【 】【 】simultaneously at the desired time of the day to make the engine
automatically start at the same time beginning the next day. Siren chirps 6 times with 6 parking light
flashes. Press and release both【 】【 】to deactivate this function.
l The remote transmitter sounds melody with its LCD showing daily start-time icon “ON” and this features
standby mode .Engine begins running immediately in this mode.。For runtime setup, refer to Program table
at # 36. Engine run shuts off when preset time expires.
When the Engine start is done, the remote transmitter sounds melody with its LCD showing current status
modes.
9. Status Check
Press button 【 】 to monitor the latest vehicle status. The parking light flashes 3 times,。
l The remote transmitter sounds melody and its LCD showing vehicle’s status.
10. Activate channel # 1 release trunk
Press and hold
released with 3 parking light flashes and siren chirps 3 times.
l The remote transmitter sounds melody showing the trunk release icon and the car’s status.
11. Remote siren /horn ON/OFF 【Refer to Features program table at # 36 or Remote transmitter’s features
table 】
Press and release 【 】to select between siren “ ON” and “OFF”.
l The remote transmitter’s LCD shows siren and music note if the siren setting is “ON” .The LCD will not
show the siren and music note if siren is set “ OFF”.
【
】to release trunk regardless of either lock/arm or unlock/disarm mode. Trunk is
12. Activate channel 2 headlight delay 【Refer to Features program table at #36】
To activate head light delay, press and hold 【 】[ Channel # 2 activated features can be programmed as
required, as in this section for 30 sec head light delay ] either in arm or disarm modes. Following 2
parking light flashes, headlight stays on 30 sec before it automatically turns off. Another press on the
same button can shut off this feature.
l Remote transmitter sounds melody and its LCD showing the car’s status.
13. Car locator/search
To locate the car, press and release both 【 】【 】 simultaneously，siren chirps 6 times with 6 parking
light flashes.
l Remote transmitter sounds melody with its LCD showing car’s status.
14. Lock/arm shock sensor by pass
While in arm mode, if the alarm is triggered by 1st stage shock sensor; the siren chirps twice with 2
nd
stage, siren starts to chirp for 20 ~ 30 sec with the parking light still flashing. In the 3 rd stage, the siren
This features is used to avoid nuisances in case of alarm from shock sensor caused by heavy truck or train
passing by or thunder’s sound. Press and release both 【 】【 】simultaneously (either the system is
Lock/arm or unlock/ disarm modes ) to make shock sensor inoperative but all alarm features still are in
standby mode.【Refer to lock/arm features】.
l The remote transmitter sounds 1 buzz with its LCD showing shock sensor and lock icons
15. Defective zoon by pass
When remote arming is activated; if there is a defective zone like the trunk being released or handbrake
not engaged, siren chirps 4 times with 2 parking light flashes. The defective zones is ignored and
bypassed. [If the defective zone is re-closed, the system enters full arm mode.]
l The remote transmitter sounds 4 buzzes with its LCD showing the defective zone
16. Alarm mode & warn away
parking light flashes (except the system is in MUTE ARM mode).
l The remote transmitter sounds 2 long beeps with its LCD showing impact icon
While in arm mode, if the alarm is triggered by 2nd stage shock sensor; the siren chirps for 15 sec along
parking light flashes (except the system is in MUTE ARM mode).
l The remote transmitter sounds long beeps for 15 sec with 2 vibrations. Its LCD shows impact icon
While in arm mode, if the door’s car is opened, trunk/hood is opened or the ACC is turned “ON”; the
siren blurts 30 sec with 60 sec parking light flashing. The start-kill takes effect.
l The remote transmitter sounds long beep with vibration for 60 sec. Its LCD shows icon of triggered zones.
※ In all above trigger modes, one press on【 】 to deactivate the alert mode. A second press on【 】to get
system into Unlock/Disarm mode.
17. Alarm trigger zone by pass with safety
For any abnormal situations like hijack mode, zone defects caused by hood/trunk open while
arming ,impact trigger or prolonged ACC “ON” while in arm mode; the engine-start is immediately killed
but siren blurts for 2 min. ( regardless of ARM or MUTE ARM),parking light flashes 2 min. Both siren
and parking light alert will stop after 2 min but the start-kill is still in effect. If the triggered zone is reclosed, the whole alarm system restores to normal arm mode.
l The remote transmitter sounds long beeps and vibrates for 60 sec.; its LCD shows “trigger icon”
18. Panic
When the ignition is “OFF”, press and hold both 【 】【】; siren chirps 3 times with 3 parking light
flashes.
l The remote transmitter sounds melody and its LCD showing car’s status..
19. Remote anti-carjack on
While the engine is running, press and hold both 【 】【】to activate remote hi-jack mode. The alarm
system undergoes 3 alert stages. In the 1st stage, the parking light flashes for 20 sec. In the 2nd stage,
siren starts to chirp for 20 ~ 30 sec with the parking light still flashing. In the 3 rd stage, the siren blurts
for 30~ 60 sec with parking light flashing and the start kill takes effect.
l The remote transmitter sounds alert with its LCD showing hijack mode icon.
To deactivate on-going carjack mode in any stage , press and release【 】
20. Anti-carjack switch
While the engine is running, press and release the anti-carjack switch (concealed near the alarm board ),
The alarm system undergoes 3 alert stages. In the 1st stage, the parking light flashes for 20 sec. In the 2
blurts for 30~ 60 sec with parking light flashing and the start kill takes effect. To deactivate on-going
carjack mode in any stage, p ress the anti-hijack switch for 5 sec.
l The remote transmitter sounds alert with its LCD showing hijack mode icon.
21. Valet mode by remote ON/OFF【Remote transmitter’s Features program table】 or 【Valet mode by
over-ride switch, refer to #37 Features program table】
Press and hold both
【
】【 】to turn the remote valet “ON” .Siren chirps 3 times with 3 parking light
flashes. The system loses all features except for lock、unlock, trunk release. While the valet “ON” mode.,
press and release
【
】【 】simultaneously to turn the valet “OFF” where all features become normal.
l The remote transmitter sounds melody with its LCD showing valet mode icon while system in valet “ON”
mode. In valet “OFF” mode, the remote transmitter sounds melody but with its LCD not showing the valet
mode icon

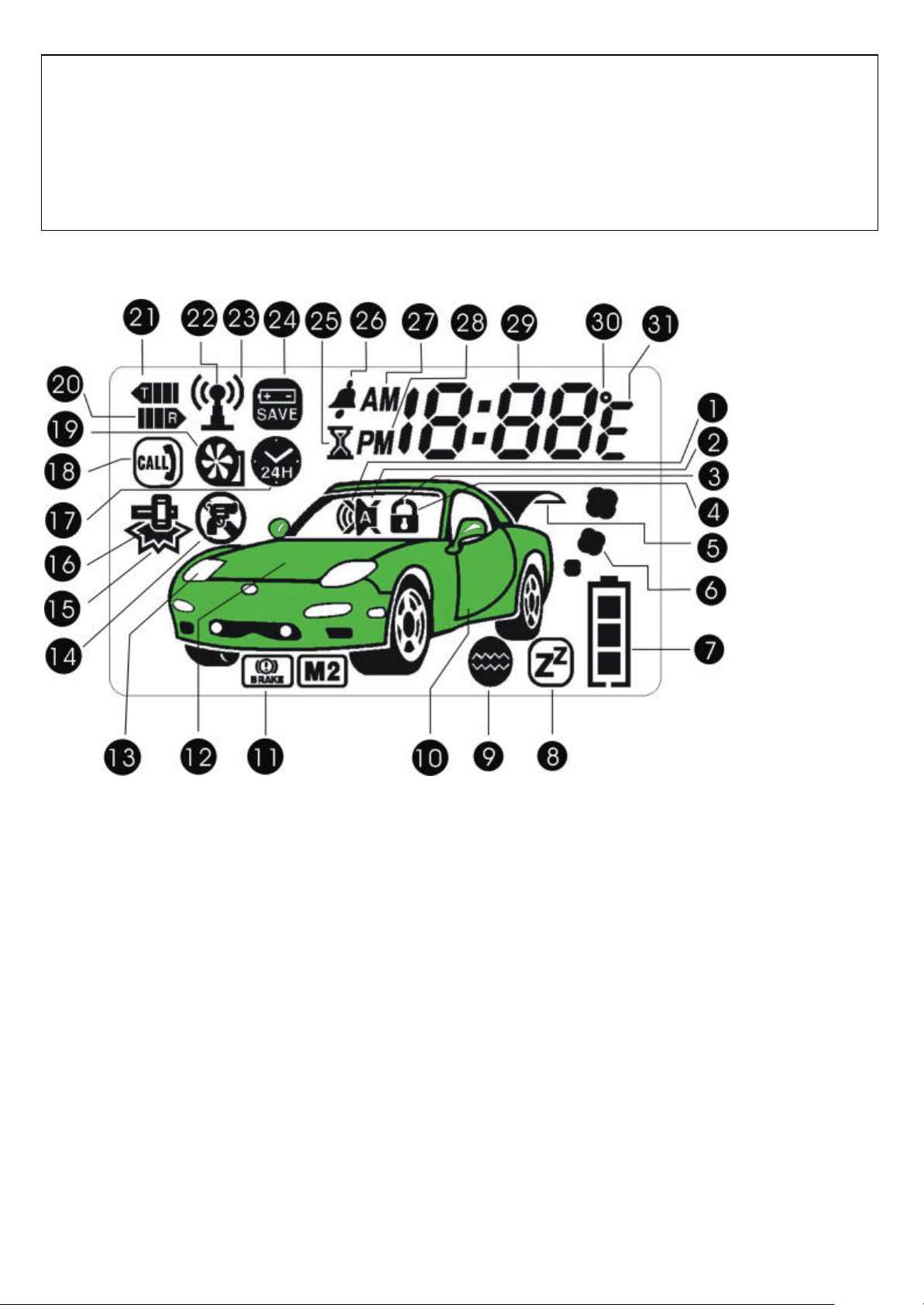

22. Feedback function massage for L C D & buzzer or vibrator【Refer to remote transmitter’s features
table】
Status feedback & confirmation signal having received transmitter’s command and successfully processed
its command, the main system will send feedback signal to the transmitter .The remote transmitter sounds
confirmation signal with its LCD showing car’s latest status.
FEATURES OF MAIN UNIT
23. Memory Learning from 4 different remotes 【Refer to # 35】
The main unit can learn coding from 4 remote transmitters.
24. Power failure memory
The main unit retains the memory of last settings if its power source is disrupted.
25. Low voltage auto engine-rest
The main unit retains the memory of last settings if its power source is disrupted.
26. Safety remote engine start/stop engine circuit
For each time of remote engine start, the main unit will perform check on related circuit. Only in perfect
condition of all switches, will the engine start.
27. Smart of engine crank circuit
Having received remote engine start signal by remote transmitter, the system will try engine starting.
Cranking will automatically terminate immediately after engine-start success.
28. Success of engine start diagnosed RPM/voltage 【Refer to the Installation Diagram, note (9)】
The main unit will diagnose the engine-start success be means of RPM or voltage sensing.
29. Valet mode by override switch 【Refer to Features Program Table, at # 37】
While valet mode ”ON”, all other functions are still operative except for the engine-start, which will not
be operable unless valet mode is switched “OFF”.
30. Auto relock [Refer to Features program table, at # 36]
After car central door unlocked, it will automatically relock it self if nobody opens the door within 15
sec.
l The remote transmitter sounds melody with its LCD showing the car’s status.
31. Safety door lock/unlock upon ignition on/off 【Refer to Features Program Table, at # 36】
The central door locking system will be activated and all doors are automatically locked if the ignition is
turned on. All doors will be unlocked immediately the ignition is turned off.
32. Remote start kill origin alarm【Refer to Installation guide, note (5)】
In case of inability to remote start your car with original immobilizer, this system feature can overcome
this problem by means of by-passing the immobilizer feature.。
33. Remote start with automatic and manual gear 【Refer to Installation diagram note (10)】
【1】Auto transmission gear: The remote transmitter is compatible with this type. The automobile must
be in free gear mode otherwise the auto remote start is not operative.
【2】Manual gear car : To enable remote engine start for this type, following steps must be done.
(a) Engage the hand brake while the engine is running
(b) Press the remote engine start button of the remote transmitter and try to complete steps (c) and (d)
within 30 sec.
(c) While the engine is still running, turn the ignition “OFF”
(d) Open the car door and re-close it. Power door lock is activated. (The engine will automatically
Stop running at the same time). All the features become operative now.
※
If there is any mistake in any of the above steps, the system can fail its remote engine start.
Loading...
