Wintecronics TR53B User Manual

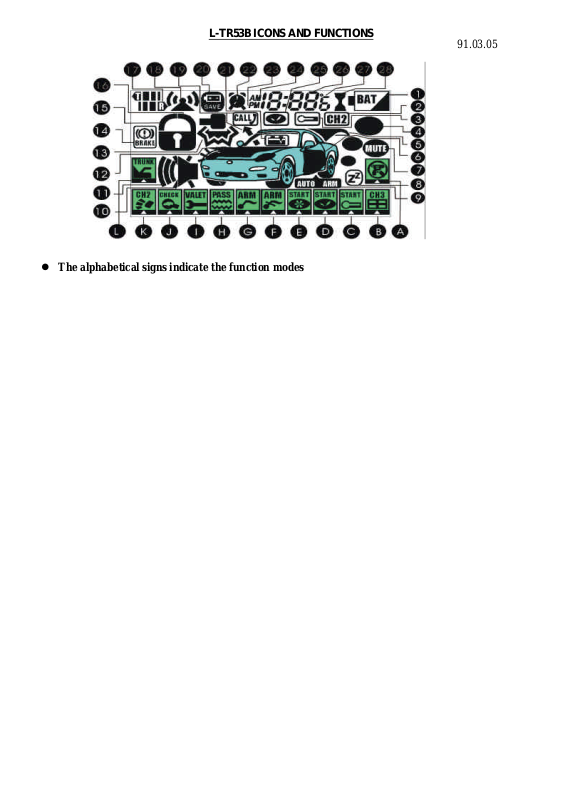

L-TR53B ICONS AND FUNCTIONS
l The alphabetical signs indicate the function modes
91.03.05
A. Remote anti-carjack mode ON/OFF
B. Remote control channel # 3 for electrical appliance
ON/OFF
C. Remote activate temp-controlled auto-start mode
ON/OFF
D. Remote activate daily auto-start time mode ON/OFF
E. Remote engine start (or) changing of run time when the
engine gets running
F. Remote activate Mute arm mode ON/OFF
G. Remote activate Audible arm mode ON/OFF
H. Remote shock sensor bypass mode ON/OFF
I. Remote activate valet mode ON/OFF
J. Remote monitor in-car temperature & status
K. Remote control channel # 2 for electrical appliance
ON/OFF
L.
Remote trunk release
l The numerical signs indicate the vehicle’s security status or other function display
1. Remote’s battery condition
2. Channel # 2 On/OFF
3. Temp-controlled auto-start mode
4. Engine run mode
5. Trunk release
6. Door open
7. Remote unit’s vibration mode
8. Valet mode
9. Auto rearm mode
10. Mute alert mode
11. Audible alert mode
12. Hood open mode
13. Impact/shock mode
14. Hand-brake disengage
15. Door lock mode
16. Door unlock mode
17. Monitor standby mode
18. Feedback confirmation (After each
command by remote unit, display of this
confirms feedback can be picked up by
remote unit . Non-display means remote
is either out-of- range or feedback is
being interfered.
19. Page out-call from car
20. Power save mode of remote(Absolute
current sleep mode of the remote, after
system is disarmed)
21. Ignition On mode
22. Alarm clock mode
23. P.M time mode
24. A.M. time mode
25. Daily auto-start time mode
26. Hour, minute, temp. display
27. Centigrade, Celsius mode
28. Count-down time mode
L-TR53B User’s manual 2 Way remote security system
l Precaution before installation
1. Read this manual carefully ahead of operation. You will find this product very versatile.
2. Park the vehicle in open space each time if the remote any of auto-engine start modes is intended .This avoids you
from being suffocated by the exhaust gas while the engine gets running.
3. For safety purpose, set your car to valet mode “ON” before sending it to workshop for serviced
4. There are many other functions .Refer to the installation manual for such extra functions that require external
accessories.
5. You are suggested to refer to the “RF Program Table” whenever you find【RF program table】in the text on the
installation manual.
l Special features:
1. Choice of function mode by cursor on screen for easiest operation ( patented features )
2. 2 Way Super-remote control /monitoring range【Effective range of approx ：800-1200 m】
3. Electronic luminescent backlight
4. Hopping code for anti-grabbing
5. Main system’s memory able to learn codes from 4 different remotes
6. Remote control of lock/unlock, arm/disarm, engine start, trunk release and etc.
7. Switch-accessed Arm/disarm for emergency
8. Selectable mode for auto/manual transmission gear with safety circuit
9. Selectable mode for gasoline and diesel engine
10. Programmable for temp-controlled auto-start
11. Programmable for daily auto start time
12. Remote monitoring of car status /in-car temperature on display
13. Display of defective zones bypass when arming
14. Display of remote shock sensor bypass
15. Smart temper report by siren when disarmed
16. Remote control electrical appliances through channel # 1,#2 , #3
17. The main system temporarily by-passes shock sensor at the moment the remote trunk release is activated
18. Remote control & switch-activated anti-carjack modes
19. Remote panic
20. Remote or manual valet mode
21. Other system’s functions accessible by software program
22. LED status indicator to assist programming and anti-theft warning
Operation guide of 2 way remote unit
This is devised for easy operation just by some
desired function just by first popping out the cursor and then moving it on to the related function Position.
fixed function
by buttons and
movable cursor means
. Users can choose the
There are total 3 buttons marked with
mode setting and the third 【Ⅲ】 button is used in popping out and moving of the cursor on to the desired function position.
※
Pre-assigned function modes by remote’s buttons
Remote’s button
Remote’s button
Remote’s button
Remote’s button
【Ⅰ】
: Press and hold this for engine-start and shutoff
【Ⅱ】
: Press and hold this for trunk release.
【Ⅰ】【Ⅱ】:
【Ⅰ】【Ⅱ】:
【Ⅰ 、Ⅱ、Ⅲ 】
Press and release both
Press and hold both
on the remote unit. The
【Ⅰ】& 【Ⅱ】
【Ⅰ】& 【Ⅱ】
simultaneously for remote panic
【Ⅰ、Ⅱ】
simultaneously for car search.
buttons are used in alarm function
※ Programmed function modes by a short press of button 【Ⅰ】
Press and release this to activate self-defined function .It is generally programmed for door lock/unlock. Other functions can also
be programmed as below：
Step 1:
Press button
button
“Audible Arm Mode ” function activated by a short press of button
Step 2:
When the cursor reaches the desired position, press and hold
and final 3 beeps . From then on, press and release button
＊ To re-define the function of button
mode will be substituted by the last definition.
【Ⅲ】
twice or more times quickly to pop up the cursor. Move the cursor to the desired position by pressing
【Ⅲ】
a number times as necessary . For example, move the cursor on to 『 』 position, if you want to have
【Ⅰ】
.
【Ⅲ】
again for 6 sec till the remote unit sounds the first 2
【Ⅰ】
to activate the selected function.
【Ⅰ】
re-do the procedure from procedure step (1) & (2).The previously-defined function
※ Self-defined functions by a short press of button 【Ⅱ】
Press and release button【Ⅱ】to activate self-defined function .It is generally programmed to assign 『 』for Mute Arm Mode.
other functions can also be programmed as below：
Step 1 ：
Press button【Ⅲ】twice or more times quickly to pop up the cursor. Move the cursor to the desired position by pressing
button【Ⅲ】a number times as necessary . For example, move the cursor on to『 』, if you want to have “ Status Check”
function activated by a short press of button【Ⅱ】.
The following 2 way remote’s function guide is based on the current cursor setting in the above passage
1. Remote arm & door lock
(a)、Shut off the engine, get off the car making sure handbrake is depressed, hood closed and all the door closed.
(b)、Press and release button【Ⅰ】 the system will lock the door and enter arm mode with 1 siren chirp and 1 parking light flash.
l The remote unit sounds melody and displays 『 』『 』icons on its screen.
(c)、Press and release button【Ⅱ】 the system will lock the door and enter arm mode with 1 siren chirp and 1 parking light flash.
l The remote unit sounds melody and displays 『 』『『 』icons on its screen which means the system is in mute arm
mode.
(e)、Defective zone report and bypass arming:
chirps or the remote unit sounds 4 beeps twice. The remote unit displays on its screen the defective zone ( like the door
unclosed yet).The system then will bypass the defective zone and can enter arm mode. When the defective zone is
corrected ( just by closing the door later ), the system immediately enters full arm mode.
(g) 、Arm delay time can be programmed ：
When arming, if the system detects defective zones, the system will sound 4 siren
( like 6 or 30 sec daily arming after door is closed) as needed.【RF program table 】
