USER’S MANUAL

LCA2200 ( Long Range Auto Monitor)

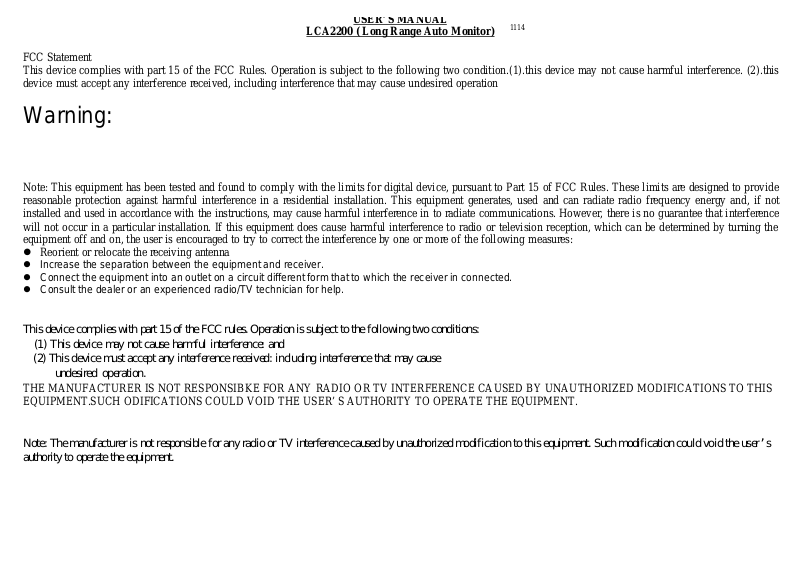

FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two condition.(1).this device may not cause harmful interference. (2).this
device must accept any interference received, including interference that may cause undesired operation

1114

Warning:

Note: This equipment has been tested and found to comply with the limits for digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, used and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference in to radiate communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

l Reorient or relocate the receiving antenna

l Increase the separation between the equipment and receiver.
l Connect the equipment into an outlet on a circuit different form that to which the receiver in connected.
l Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference: and
(2) This device must accept any interference received: including interference that may cause
undesired operation.

THE MANUFACTURER IS NOT RESPONSIBKE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT.SUCH ODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. Such modification could void the user’s
authority to operate the equipment.

Buttons’ Features:

2

ON/OFF button : Press this button to turn receiver’s power “ ON ”, pressing a few sec will turn the power “ OFF ”。

Audible / Vibration alert button: While power “ON ”; Press and hold this button one sec, a “Bi Bi” is heard to confirm the pager in beep mode without icon. Upon a second press , vibration
is felt to confirm the pager in vibration alert mode and

RESET/ Backlight button: Press this button to have backlight a few sec. During any alert, pressing of it will mute beep sound and immediately the receiver gets into a standby mode.

※

Power source for pager receiver: 1.5 V alkaline battery x 1 piece

will show up。

。

Operation Guide:

1. POWER-ON: Icons appear along with audible sound or vibration. Then receiver gets into standby mode【Note: The main system must be in the “arm mode”.】。

2. POWER-OFF : All active icons disappear following audible sound or vibration. 。

Icon Guide:

1. Unlock/disarm Mode :This shows up if the car is disarmed / unlocked. During this mode, only page-out and engine-start functions can still be operated while other functions become

invalid

2. Lock/arm Mode :This shows up if the car is locked. 15 sec later, the receiver makes a beep sound and displays to confirm that the car gets into ARM MODE.

3. Range Check Mode :This shows up during 5 min-range-check if pager can be receiving signal from the car’s transmitter immediately after LOCK MODE. This icon stays on within the

effective range for the whole 5 min duration. It will disappear either the pager is beyond effective range or 5-min range check is over.

4. Engine Run Mode: This will show up audible or vibration alert if the car’s engine is running.

5. Door Open Mode: This will show up with audible or vibration alert if the door is opened in lock / arm mode.

6. Hood Open Mode: This will show up audible or vibration alert if the hood is opened in lock / arm mode.

7. Trunk Open Mode: This will show up audible or vibration alert if the trunk is opened in lock / arm mode.

8. Light Impact Mode: This will show up audible or vibration alert if the car in lock / arm mode experiences a light impact .

9. Heavy Impact Mode: This will show up audible or vibration alert it the car in lock / arm is bumped or shaken with force.

10. Low Battery Indicator : This will show up audible or vibration alert when the pager’s battery is very low.

11. Page out Call :A person in the car can send (within effective range) a page call by pushing the button on the antenna’s case to anyone carrying the receiver. He will be alerted by sound like

telephone ring or vibration by his receiver. .

1

Other System features:

1. Modes and Audible alert: Different icons and audible alert enable car owner to monitor car’s various modes.

2. Last Status Memory: After lock mode, the receiver retains the latest car status until it receives UNLOCK report feedback . It will reset itself afterwards.

3. Page-out Call button: There is a page-out call button in the center of the circular antenna case which can be used to page a person carrying receiver in case of need.

4. When the main system of the vehicle enters “ arm mode”, the status LED on the transmitter/ antenna case blinks slowly and steadily and pulse during transmission. This acts as a warning sign

against any theft attempt.

※

Code Learning of receiver :For replacement or to have a spare receiver, follow the instruction below. Turn pager’s power “OFF” first. Then press and hold the ON/OFF button for about 5 sec
till one beep is heard when the receiver gets into 20 sec learning mode. Release the button and push the call-out button to transmitter a paging signal which will then be learned by the receiver
still active in the learning mode. The receiver will respond with a series of beeps to confirm its success of code learning.

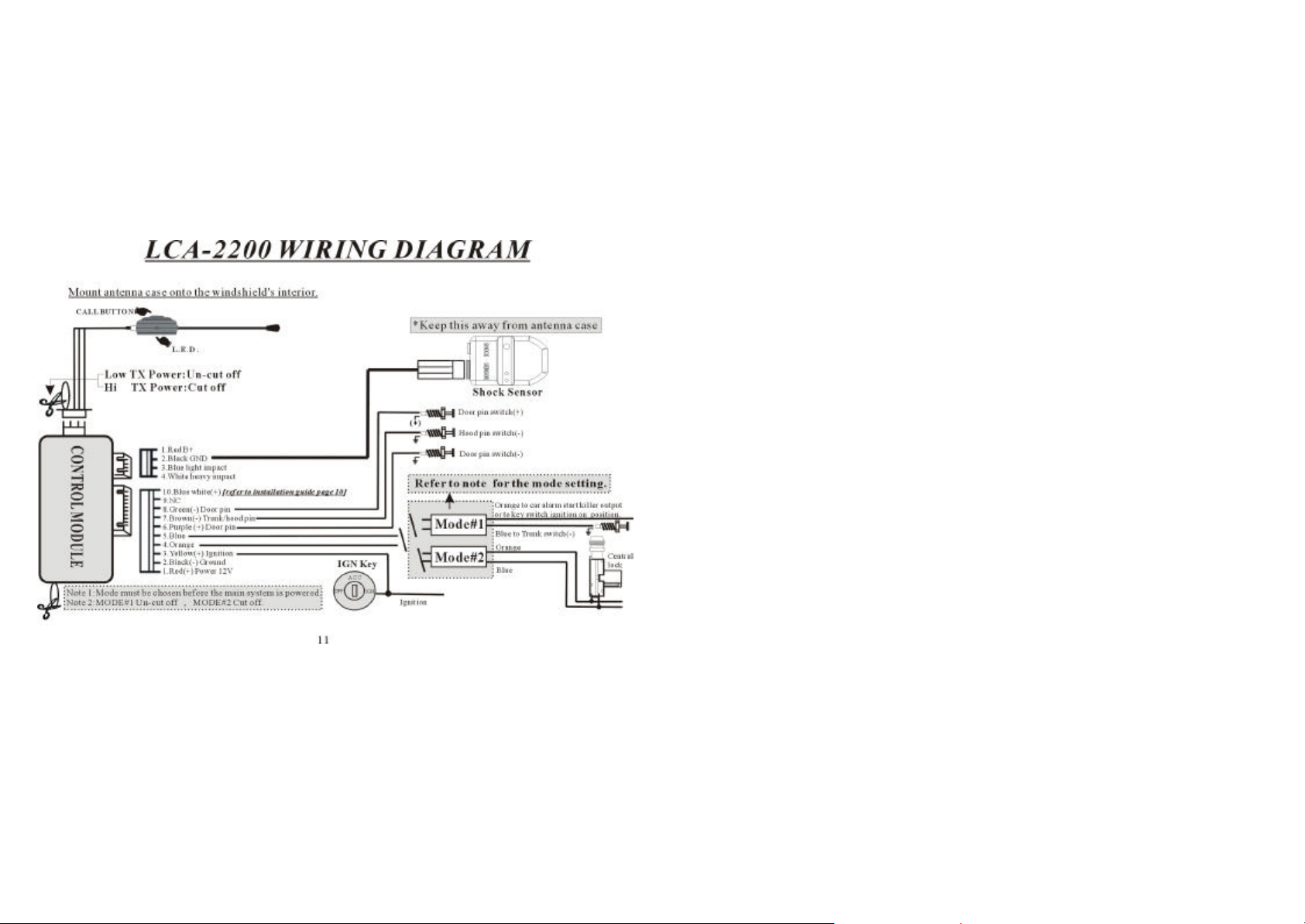

MODEL:LCA-2200 LONG RANGE VEHICLE MONITOR

INSTALLATION MANUAL

l This can be installed on any vehicle with its normal voltage of 12 Volt.
l LCA-2200 can work on any of the following 3 different circuit types of the vehicle to control “ON” and “OFF” modes of vehicle monitoring. Installation should be done according to the actual

circuit condition of the vehicle.

A Type : In this type, vehicle is installed with remote security system which has start kill output to enable main control module to operate the monitoring “ON” and “OFF” functions.

3
