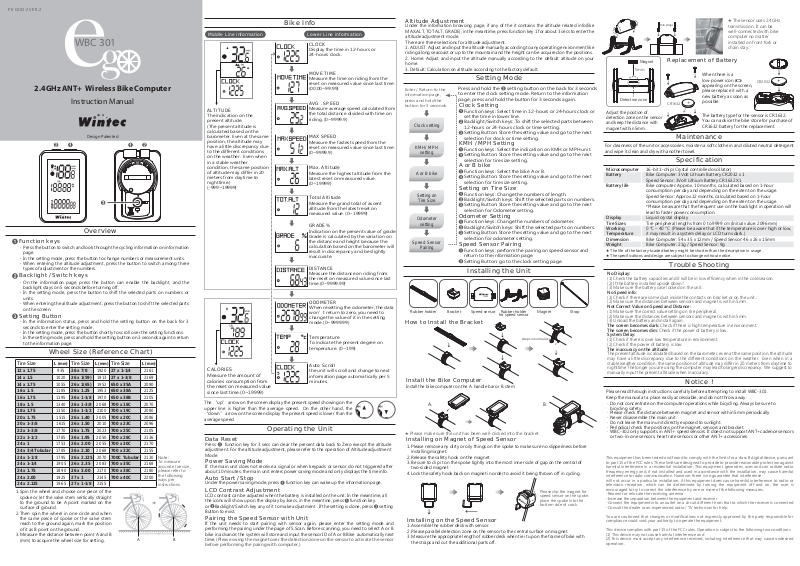

Wintecronics CA04 User Manual
PK CA02-2 VER.2
WBC 301
2.4GHz ANT+ Wireless Bike Computer
Instruction Manual
Design Patented
Overview
Function keys
‧
Press the button to switch and look through the cycling information on information
page.
‧
In the setting mode, press the button to change numbers or measurement units.
‧
When entering the altitude adjustment, press the button to switch among three
types of adjustment or the numbers.
Backlight / Switch keys
On the information page, press the button can enable the backlight, and the
‧
backlight stays on 5 seconds before turning off.
In the setting mode, press the button to shift the selected parts on numbers or
‧
units.
When entering the altitude adjustment, press the button to shift the selected parts
‧
on the screen.
Setting Button
In the information status, press and hold the setting button on the back for 3
‧
seconds to enter the setting mode.
In the setting mode, press the button shortly to scroll over the setting functions.
‧
In the setting mode, press and hold the setting button on 3 seconds again to return
‧
to the information page.
Wheel Size (Reference Chart)
Tire Size
12 x 1.75
14 x 1.5
14 x 1.75
16 x 1.5
16 x 1.75
18 x 1.5
18 x 1.75
20 x 1.75
20 x 1-3/8
22 x 1-3/8
22 x 1-1/2
24 x 1
24 x 3/4 Tubular
24 x 1-1/8
24 x 1-1/4
24 x 1.75
24 x 2.00
24 x 2.125
Spin the wheel and choose one piece of the
1.
spoke or let the valve stem vertically straight
to the ground to be A point marked on the
surface of ground.
Then spin the wheel in one circle and when
2.
the same piece of spoke or the valve stem
reach to the ground again, mark the position
of it as B point on the ground.
Measure the distance between point A and B
3.
(mm) to acquire the wheel size for setting.
L (mm)
935
1020
1055
1185
1195
1340
1350
1515
1615
1770
1785
1753
1785
1795
1905
1890
1925
1965
Tire Size
26 x 7/8
26 x 1(59)
26 x 1(65)
26 x 1.25
26 x 1-1/8
26 x 1-3/8
26 x 1-1/2
26 x 1.40
26 x 1.50
26 x 1.75
26 x 1.95
26 x 2.00
26 x 2.10
26 x 2.125
26 x 2.35
26 x 3.00
27 x 1
27 x 1-1/8
L (mm)
1920
1913
1952
1953
1970
2068
2100
2005
2010
2023
2050
2055
2068
2070
2083
2170
2145
2155
Tire Size
27 x 1-1/4
27 x 1-3/8
650 x 35A
650 x 38A
650 x 38B
700 x 18C
700 x 19C
700 x 20C
700 x 23C
700 x 25C
700 x 28C
700 x 30C
700 x 32C
700C Tubular
700 x 35C
700 x 38C
700 x 40C
L (mm)
2161
2169
2090
2125
2105
2070
2080
2086
2096
2105
2136
2170
2155
2130
2168
2180
2200
A B
Note:
To measure
accurate tire size,
please refer to
the following
ways per
instructions.
Bike Info
Lower Line informationMiddle Line information
CLOCK
Display the time in 12-hours or
24-hours clock.
MOVE TIME
Measure the time on riding from the
reset on measured value since last time.
(00:00~99:99)
AVG . SPEED
ALTITUDE
The indication on the
present altitude.
(The present altitude is
calculated based on the
barometer. Even at the same
position, the altitude may
have a little discrepancy due
to the different conditions
on the weather. Even when
in a stable weather
condition, the same position
of altitude may differ in 20
meters from daytime to
nighttime.)
(-999~19999)
Measure average speed calculated from
the total distance divided with time on
riding. (0~9999.9)
MAX SPEED
Measure the fastest speed from the
reset on measured value since last time.
(0~9999.9)
Max. Altitude
Measure the highest altitude from the
latest reset on measured value.
(0~19999)
Total Altitude
Measure the grand total of ascent
altitude from the latest reset on
measured value. (0~19999)
GRADE%
Indication on the present value of grade.
Grade is calculated by the variation on
the distance and height because the
calculation based on the barometer will
result in discrepancy and be slightly
inaccurate.
DISTANCE
Measure the distance on riding from
the reset on measured value since last
time.(0~9999.99)
ODOMETER
When resetting the odometer, the data
won’t return to zero, you need to
change the value of it in the setting
mode.(0~9999.99)
Temperature
To indicate the present degree on
temperature. (0~199)
CALORIES
Measure the amount of
calories consumption from
the reset on measured value
since last time.(0~19999)
The “up” arrow on the screen display the present speed showing on the
upper line is higher than the average speed. On the other hand, the
“down” arrow on the screen display the present speed is lower than the
average speed.
Auto Scroll
the unit will scroll and change to next
information page automatically per 5
minutes.
Operating the Unit
Data Reset
Press function key for 3 secs can clear the present data back to Zero execpt the altitude
adjustment. For the altitude adjustment, please refer to the operation of Altitude adjustment
Mode.
Power Saving Mode
If the main unit does not receive a signal or when keypads or sensor do not triggered after
about 10 minutes, the main unit enters power saving mode and only displays the time info.
Auto Start / Stop
Under the power saving mode, press function key can wake up the information page.
LCD Contrast Adjustment
LCD contrast can be adjusted when the battery is installed on the unit. In the meantime, all
the icons will show up on the display by 3secs, in the meantine, press function key.
or Backlight/Switch key any of it to make adjustment . If the setting is done, press setting
Button to exist.
Pairing the Speed Sensor with Unit
If the unit needs to start pairing with sensor again, please enter the setting mode and
performing the pairing under the page of S.Scan. Before scanning, you need to select A or B
bike in advance; the system will store and input the sensor ID of A or B Bike automatically next
time. (Please swing the magnet over the detection zone on the sensor to activate the sensor
before performing the pairng with computer.)
Altitude Adjustment
Under the information browsing page, if any of the it contains the altitude related info(like
MAX.ALT, TOT ALT, GRADE), in the meantime, press function key 1 for about 3 secs to enter the
altitude adjustment mode.
There are three selections for altitude adjustment.
1. ADJUST: Adjust and input the altitude manually according to any operating environment like
riding along seacoast or up to the mountain and the height can be acquired on the positions.
2. Home: Adjust and input the altitude manually according to the default altitude on your
home.
3. Default: Calculation on altitude according to the factory default.
Setting Mode
Enter / Return to the
information page,
press and hold the
button for 3 seconds.
Clock setting
KMH/ MPH
setting
A or B bike
Setting on
Tire Size
Odometer
setting
Speed Sensor
Pairing
Press and hold the setting button on the back for 3 seconds
to enter the clock setting mode. Return to the information
page, press and hold the button for 3 seconds again.
Clock Setting
Function keys: Select time in 12-hours or 24-hours clock or
set the time in lower line.
Backlight/Switch keys: To shift the selected parts between
12-hours or 24-hours clock or time setting.
Setting Button: Store the setting value and go to the next
selection for clock or time setting.
KMH / MPH Setting
Function keys: Select the indication on KMH or MPH unit.
Setting Button: Store the setting value and go to the next
selection for tire size setting.
A or B bike
Function keys: Select the bike A or B.
Setting Button: Store the setting value and go to the next
selection for tire size setting.
Setting on Tire Size
Function keys: Change the numbers of length.
Backlight/Switch keys: Shift the selected parts on numbers.
Setting Button: Store the setting value and go to the next
selection for Odometer setting.
Odometer Setting
Function keys: Change the numbers of odometer.
Backlight/Switch keys: Shift the selected parts on numbers.
Setting Button: Store the setting value and go to the next
selection for odometer setting.
Speed Sensor Pairing
Function keys: perform the pairing on speed sensor and
return to the information page.
Setting Button: go to the clock setting page.
Installing the Unit
Rubber holder Magnet StrapBracket Speed sensor Rubber holder
How to Install the Bracket
Install the Bike Computer
Install the bike computer on the A. handle bar or B. stem
A. B.
★ Please make sure the unit has been well-clicked into the bracket.
Installing on Magnet of Speed Sensor
1.
Please remove any dirty or oily things on the spoke to make sure no slipperiness before
installing magnet.
2.
Release the safety hook on the magnet.
3.
Be sure to clip it on the spoke tightly into the most inner side of gap on the central of
two-sided magnet．
4.
Lock the safety hook back on magnet in order to avoid it being thrown off in cycling.
Installing on the Speed Sensor
Assemble the rubber desk with sensor.
1.
Please parallel detection zone on the sensor to the central surface on magnet.
2.
Measure the appropriate length of rubber desk when tie it up on the frame of bike with
3.
the straps and cut the additional parts off.
for speed sensor
straps in normal size
Please clip the magnet for
speed sensor on the spoke,
place the spoke into the
bottom side of crack.
thin straps
Magnet
5mm
Detection zone
Adjust the position of
detection zone on the sensor
and keep the distance with
magnet within 5mm.
Replacement of Battery
When there is a
low-power icon
appearing on the screen,
please replace it with a
new battery as soon as
possible.
+
CR1632
The battery type for the sensor is CR1632.
You can advice the bike store for purchase of
CR1632 battery for the replacement.
★ The sensor uses 2.4GHz
transmission. It can be
well-connected with bike
computer no matter
installed on front fork or
chain stay.
CR2032
+
Maintenance
For cleanness of the unit or accessories, moisten a soft clothe in and diluted neutral detergent
and wipe it clean and dry with another towel.
Specification
Microcomputer
Battery
Battery life
Display
Tire Sizes
Working
Temperature
Dimension
Weight
★ The life of the factory-loaded battery might be shorter than the description in usage.
★ The specifications and design are subject to change without notice.
16-bit 1-chip (Crystal controlled oscillator)
Bike Computer: 3Volt Lithium Battery CR2032 x 1
Speed Sensor: 3Volt Lithium Battery CR1632 X1
Bike computer: Approx. 10 months, calculated based on 1-hour
consumption per day and depending on the extent on the usage.
Speed Sensor: Approx.12 months, calculated based on 1-hour
consumption per day and depending on the extent on the usage.
*Please be aware that the frequent use on the backlight in operation will
lead to faster power consumption.
Liquid crystal display
Tire peripheral lengths from 0 to 9999 cm (Initial value: 2096 mm)
0 °C – 40 °C (Please be aware that if the temperature is over high or low,
it may result in a system delay or LCD turns dark.)
Bike Computer: 54 x 35 x 12mm / Speed Sensor: 46 x 26 x 15mm
Bike Computer: 21g / Speed Sensor: 9g
Trouble Shooting
No Display:
(1) Check the battery capacities and it will be in low efficiency when in the cold season.
(2) If the battery installed upside down?
(3) Make sure the battery case locked on the unit.
No Speed info:
(1) Check if there are some dust inside the contacts on bracket or on the unit.
(2) Make sure the distances between sensors and magnet is within 5mm.
Not Correct Value on Speed and Distance:
(1) Make sure the correct value setting on tire peripheral.
(2) Make sure the distances between sensors and magnet is within 5mm.
(3) Unload the battery and install again.
The screen becomes dark: Check if there is high temperature in environment.
The screen becomes dim: Check if the power of battery is low.
System Delay:
(1) Check if there is over low temperature in environment.
(2) Check if the power of battery is low.
The inaccuracy on the altitude:
The present altitude is calculated based on the barometer, even at the same position, the altitude
may have a little discrepancy due to the different conditions on the weather. Even when in a
stable weather condition, the same position of altitude may differ in 20 meters from daytime to
nighttime The longer you are using the computer may lead to larger discrepancy. We suggest to
manually input the present altitude when inaccuracy.
Notice !
Please read through instructions carefully before attempting to install WBC-301.
Keep the manual at a place easily accessiable, and do not throw away.
‧
Do not concentrate on the computer operations while bicycling. Always be sure to
bicycling safety.
‧
Please check the distance between magnet and sensor within 5mm periodically.
‧
Never disassemble the main unit.
‧
Do not leave the main unit directly exposed to sunlight.
‧
Periodical check the positions on the magnet, sensors and bracket.
‧
WBC-302 only supports in ANT+ speed sensors. It doest not support ANT+cadence sensors
or two-in-one sensors, heart rate sensors or other ANT+ accessories.
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the installation, may cause harmful
interference to radio communication. However, there is no guarantee that interference
will not occur in a particular installation. if this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna
-Increase the separation between the equipment and receiver
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
-Consult the dealer or an experienced radio / TV technician for help
You are cautioned that changes or modifications not expressly approved by the party responsible for
compliance could void your authority to operate the equipment.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions
(1) This device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Loading...
