Wintecronics 372HAF User Manual

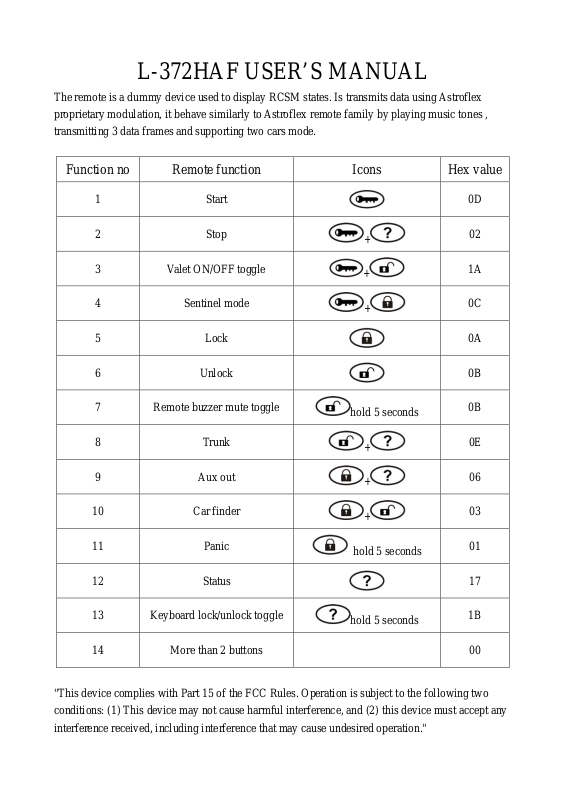

L-372HAF USER’S MANUAL

The remote is a dummy device used to display RCSM states. Is transmits data using Astroflex
proprietary modulation, it behave similarly to Astroflex remote family by playing music tones ,
transmitting 3 data frames and supporting two cars mode.

Function no Remote function Icons Hex value

1 Start

2 Stop

3 Valet ON/OFF toggle

4 Sentinel mode

5 Lock

6 Unlock

7 Remote buzzer mute toggle

8 Trunk

+

+

+

hold 5 seconds

+

0D

02

1A

0C

0A

0B

0B

0E

9 Aux out

10 Car finder

11 Panic

12 Status

13 Keyboard lock/unlock toggle

14 More than 2 buttons 00

''This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.''

+

+

hold 5 seconds

hold 5 seconds

06

03

01

17

1B


This transmitter must not be co-located or operating in conjunction with any 
other antenna or transmitter.

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
