Wintec WPL-2000 User Manual
1
SAFETY NOTES
GPS (Global Positioning System) is provided by the United States
government. Its accuracy may varies depending on special conditions
(area at war or if it is blocked). Any control by USA will affect this system
and its accuracy.
If installed on the transportation device, driver must not operate this while
driving.
GPS performance is affected when satellite coverage is degraded as near
a high-rise building, in the tunnel or under a cover.
Personal replacement of components and re-structuring of WPL-2000 is
prohibited and may result in loss of warranty.
Operation of this device is strictly prohibited in highly explosive
environment such mining, in-ight or other unauthorized area against use
of this.
Avoid exposing this at places of high temperature and humidity.
Return to original dealer immediately if it emits strange smell or fume.
Set the WPL-2000 on the place where can receive GPS signal
easily for 10 to 15 minutes if it is the first time to be used. This
procedure enables the device to gather some Almanac Data and
ensures the quicker position xed and better GPS performance.
2
WPL-2000
Auto-show Track Logger
CONTENTS
1
FEATURES
3
PRODUCT OVERVIEW
4
CONTENTS
5
INSERTING BATTERIES
7
POWER ON & POWER OFF OPERATION
8
8
11
13
15
16
37
42
FUNCTION DESCRIPTION
• MAIN MODE
• Setting Mode

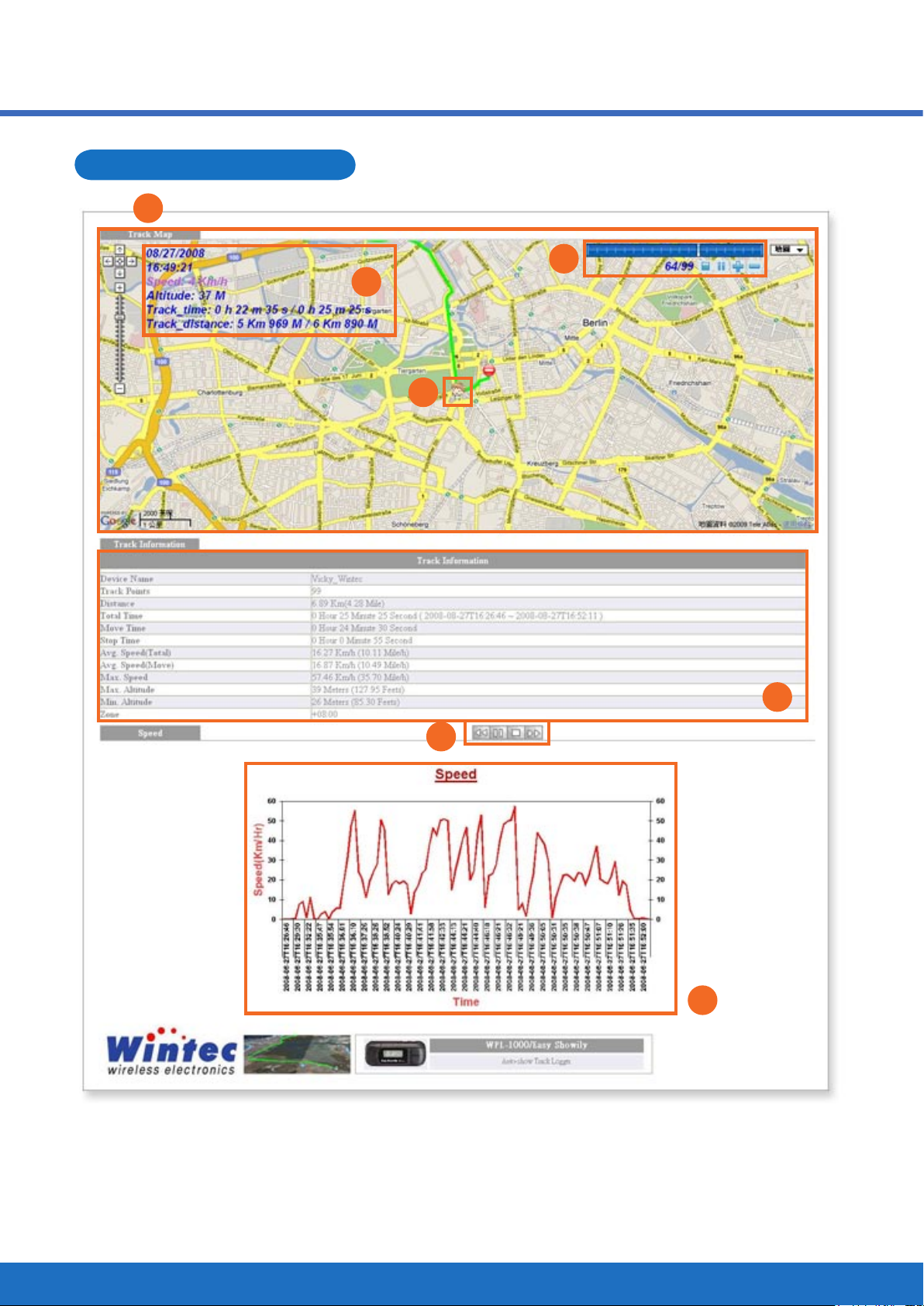

SHOWING TRACK
GOOGLE MAPS OVERVIEW

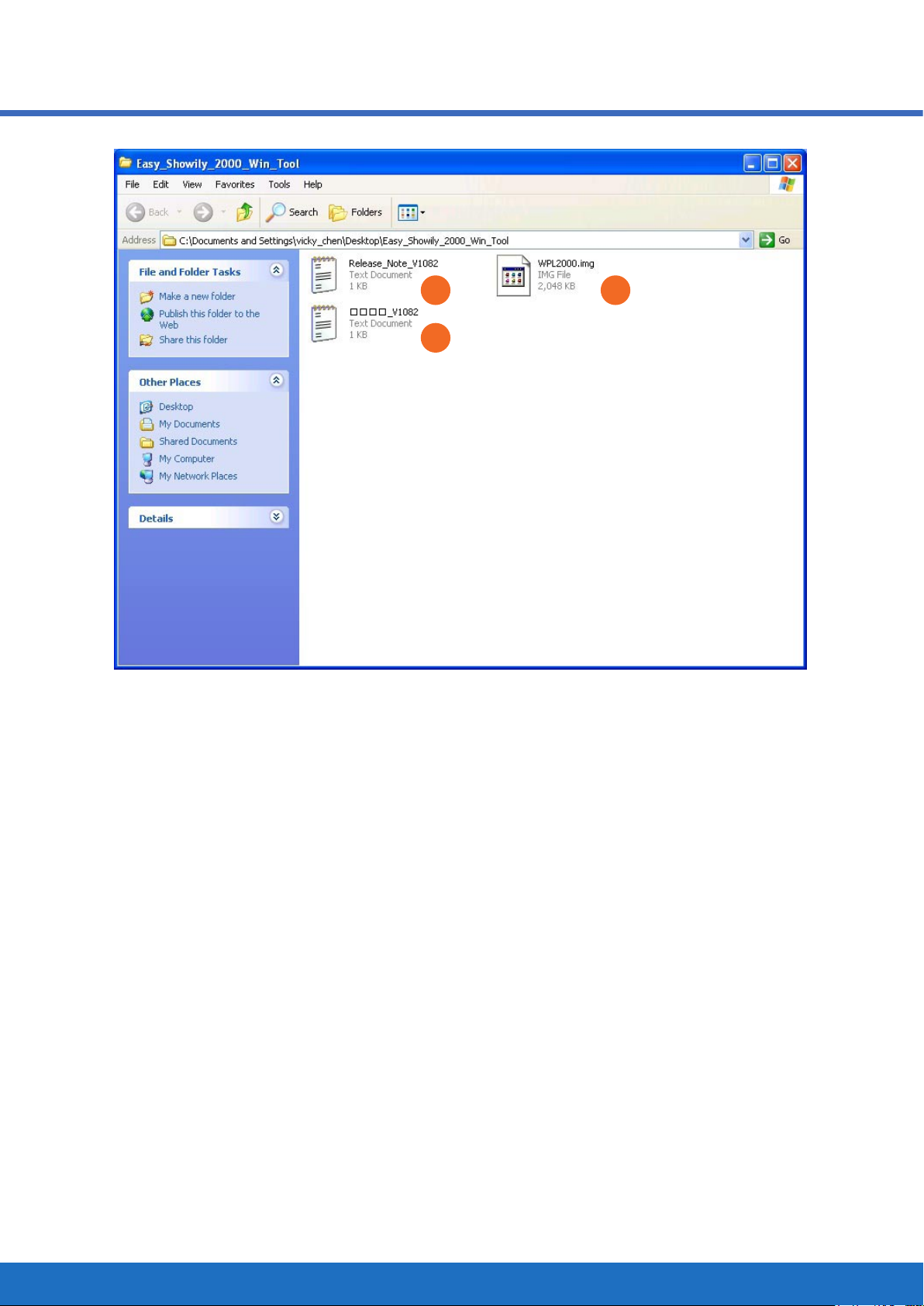

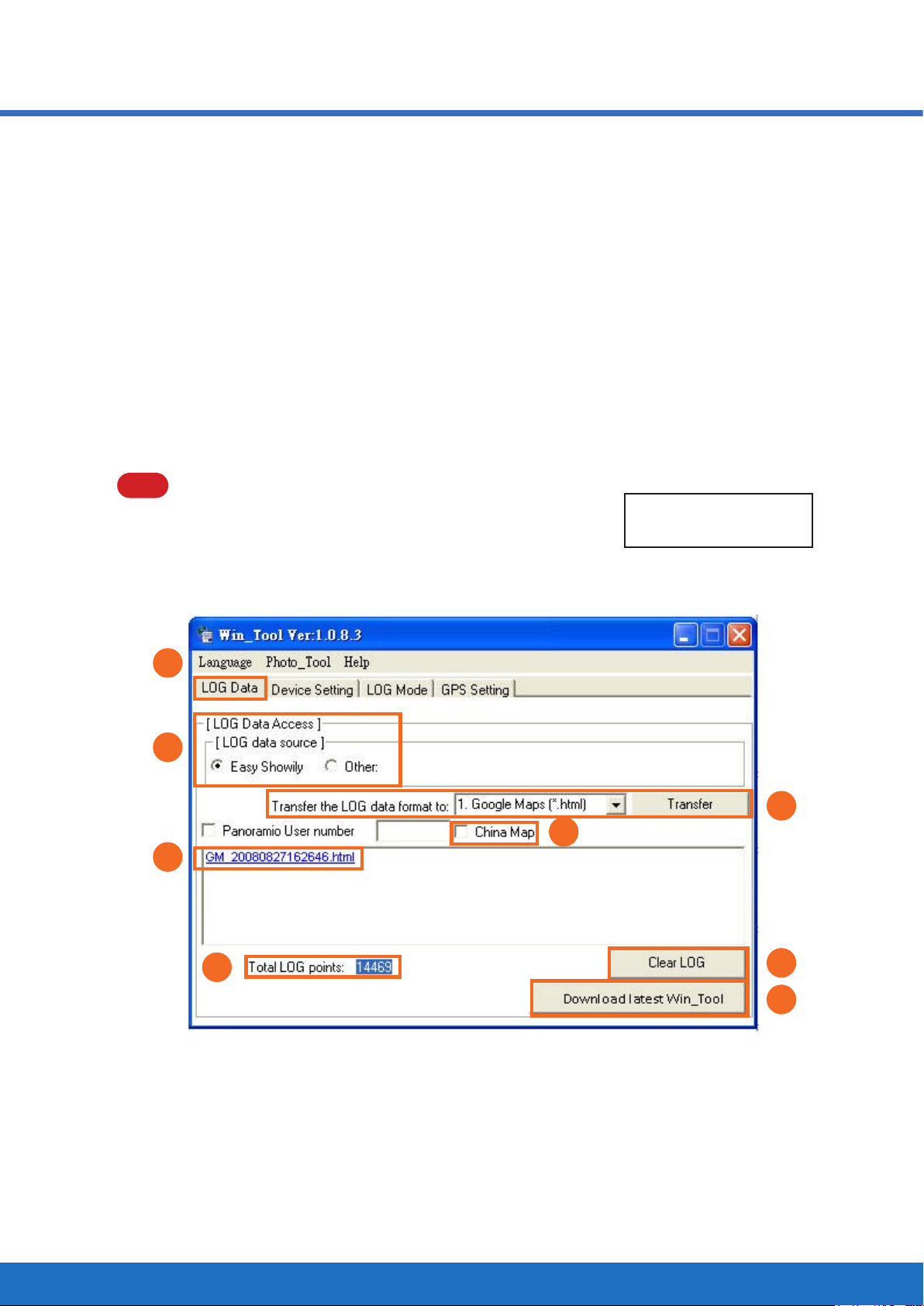

USING WIN_TOOL UTILITY

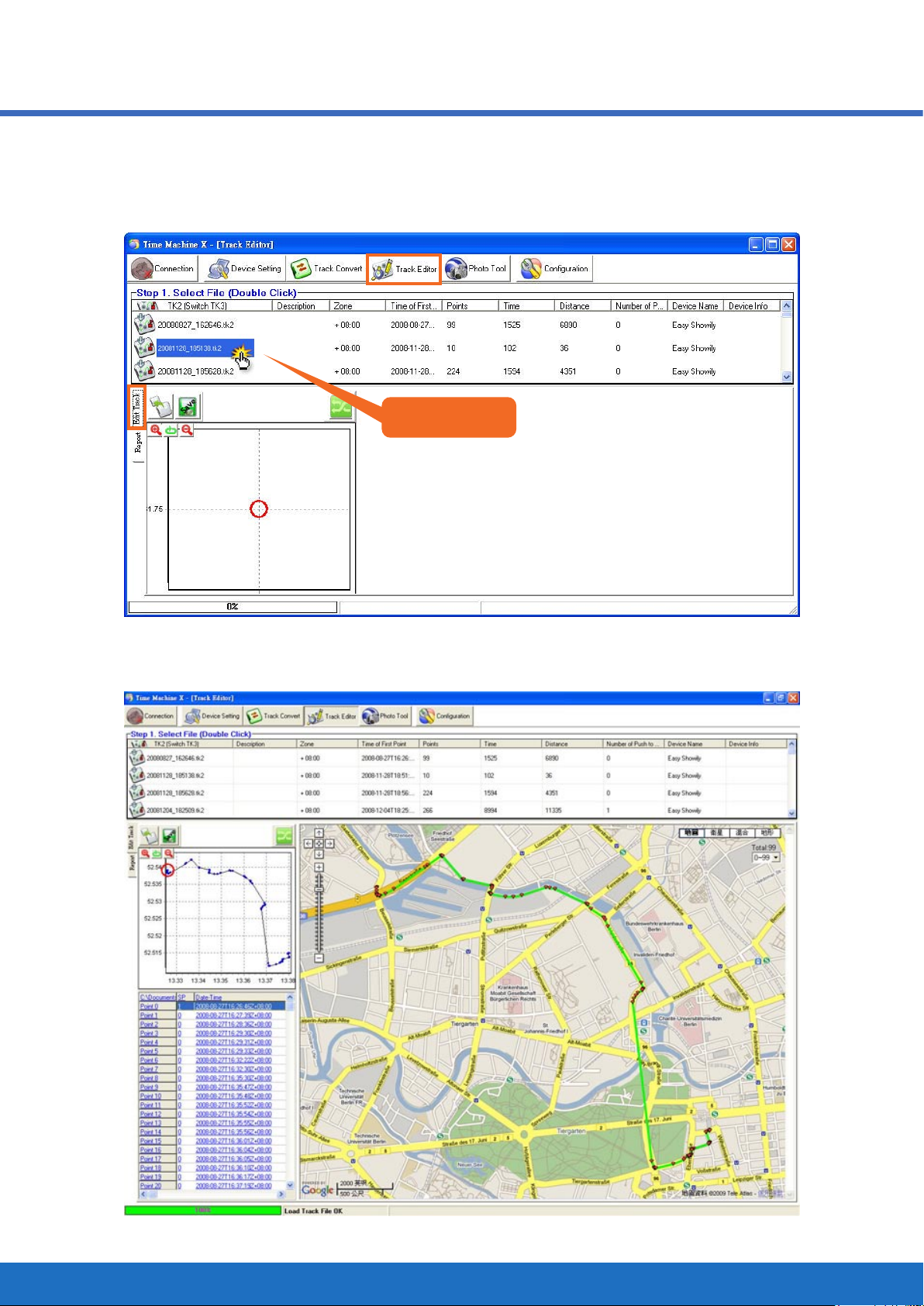

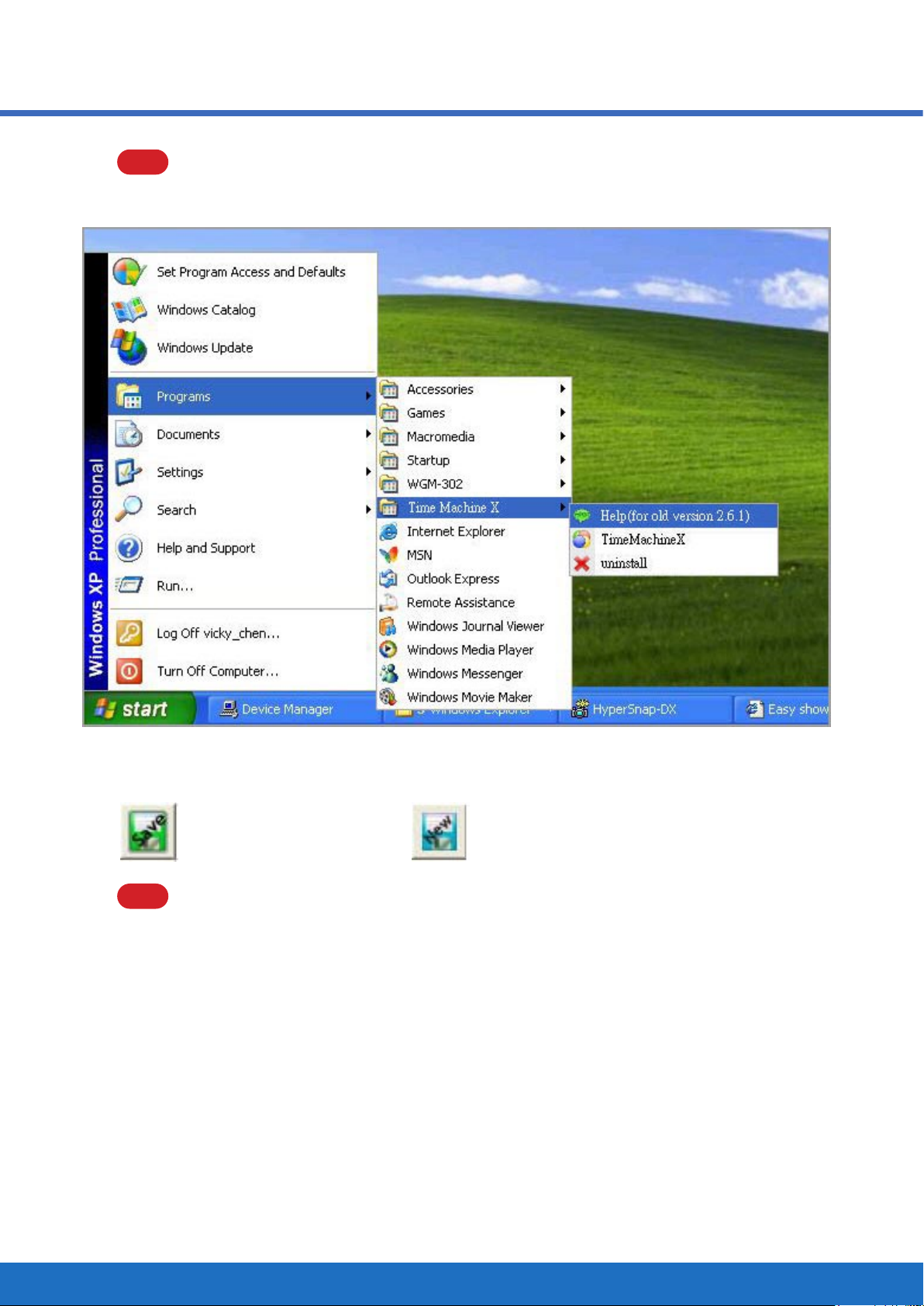

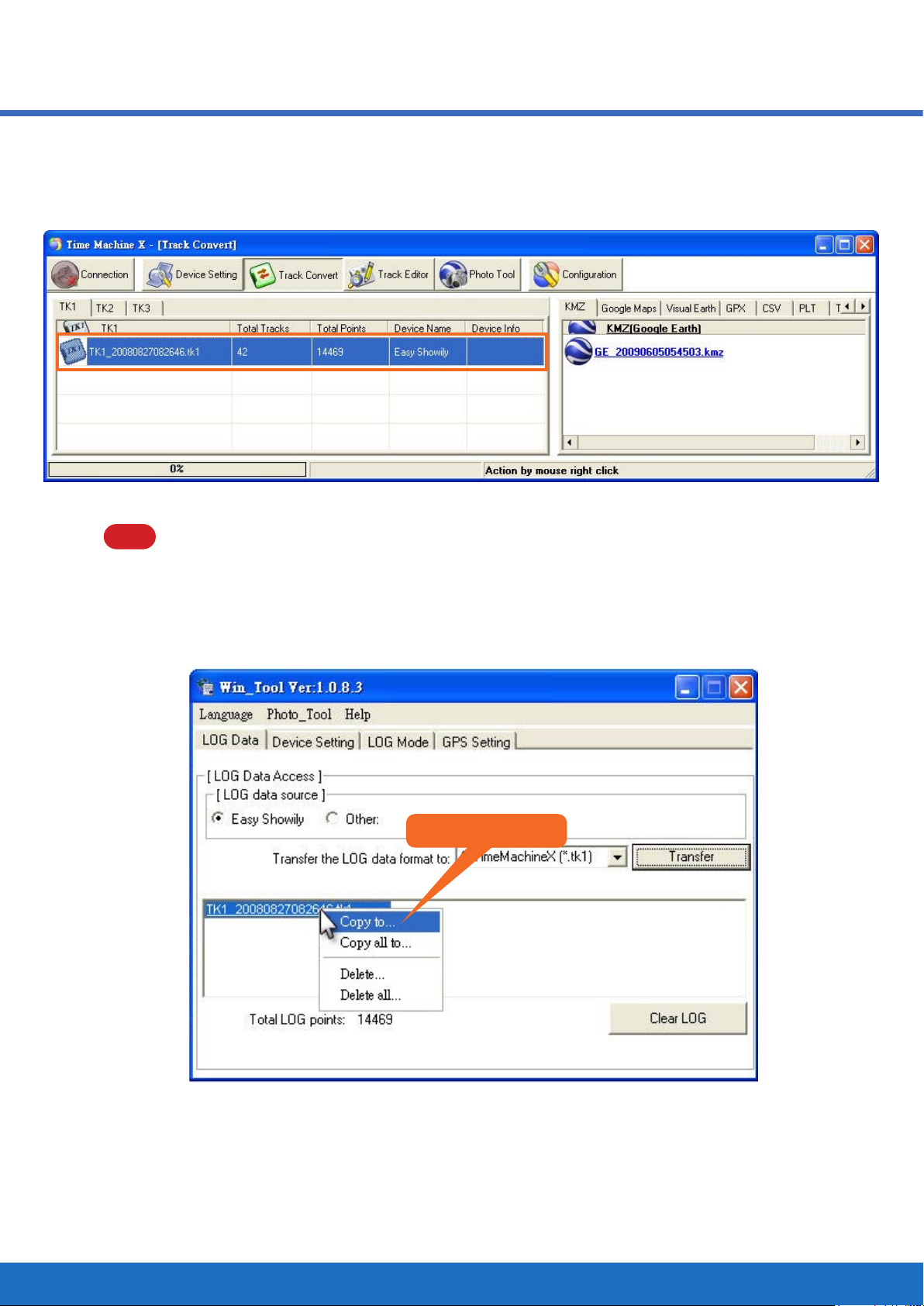

TRACK EDITING VIA TIMEMACHINEX
TROUBLE SHOOTING
1
FEATURES
Wintec WPL-2000, an auto-show track logger with a u-blox 5 GPS & GALILEO chipset, not
only provides extreme sensitivity to recode GPS data but supplies the a LCD display to show
real time information.
Use this unit and its inbuilt software (Win_Tool), you can:
Check the complete route where you ever been.
Ð
Recon rm the locations of where you took pictures on a trip.
Ð

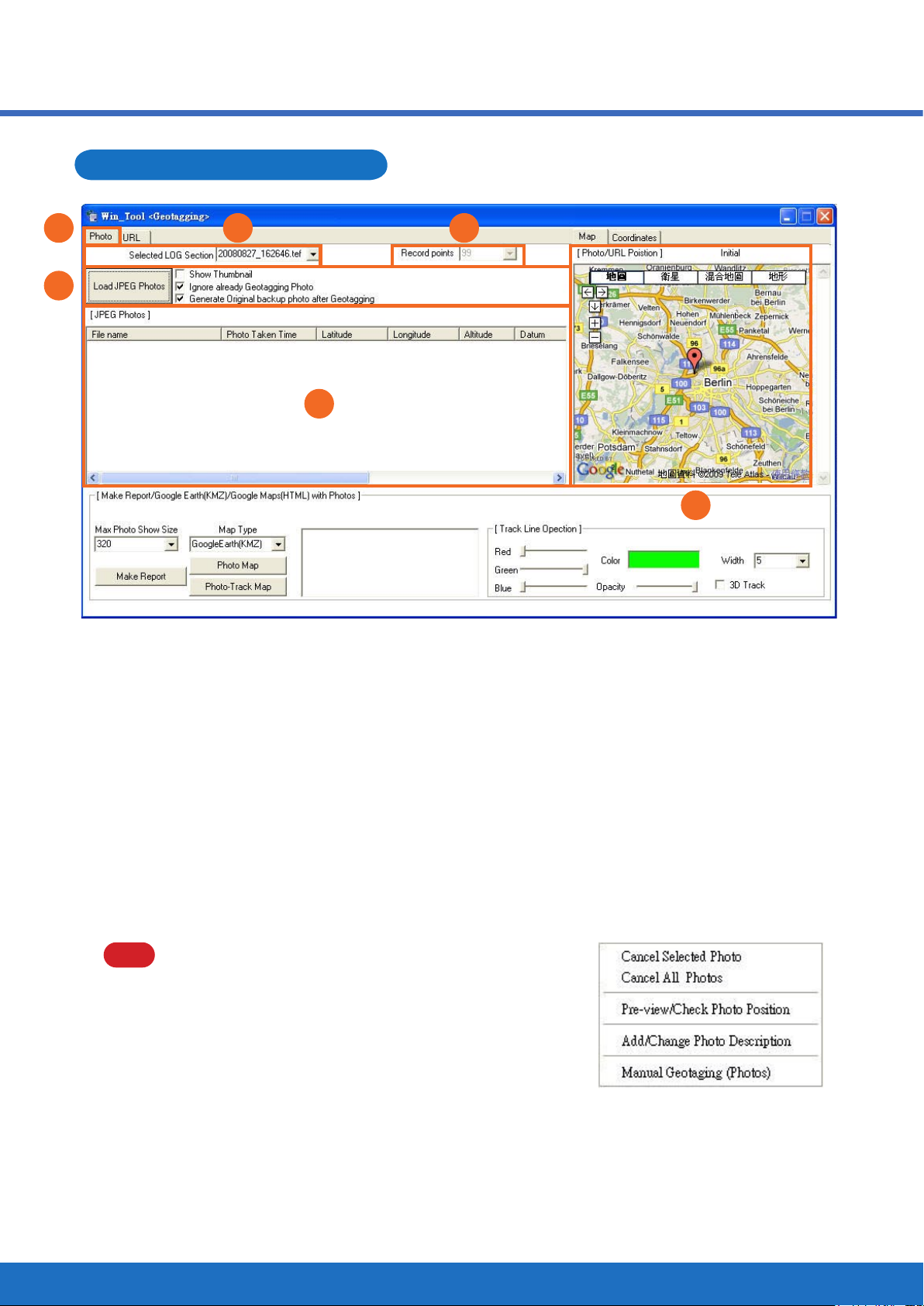

Apply geographic data to the pictures you took.
Ð
Start to record GPS log
Turn on WPL-2000 before you start your trip, make sure it gets acquisition, and take pictures
with your digital camera. The device records the GPS log after the power is turned on until
turned off.

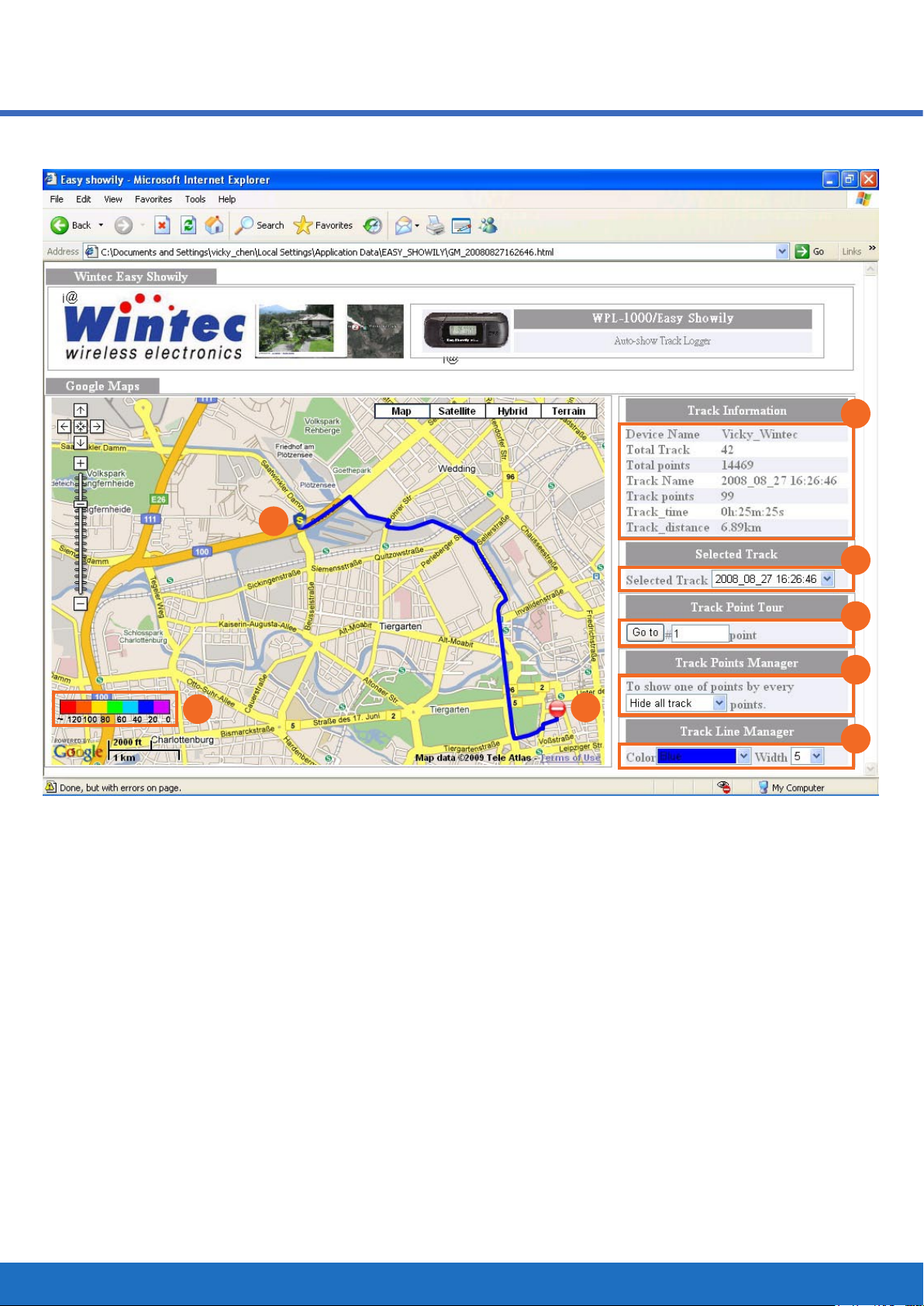

Plug & play, auto-show track on Google Maps
No need to install any driver or software.
Ð
Just connect WPL-2000 to your computer via USB interface, and then the GPS log (moving
Ð
route) will show on Google Maps automatically.
Easy Showily
GPS
FIX
H:
S:
150
100 km/h
°
Easy Showily
GPS
FIX
H:
S:
150
100 km/h
°
FIX
H:
S:
150
100 km/h
°
Useful & user-friendly inbuilt software

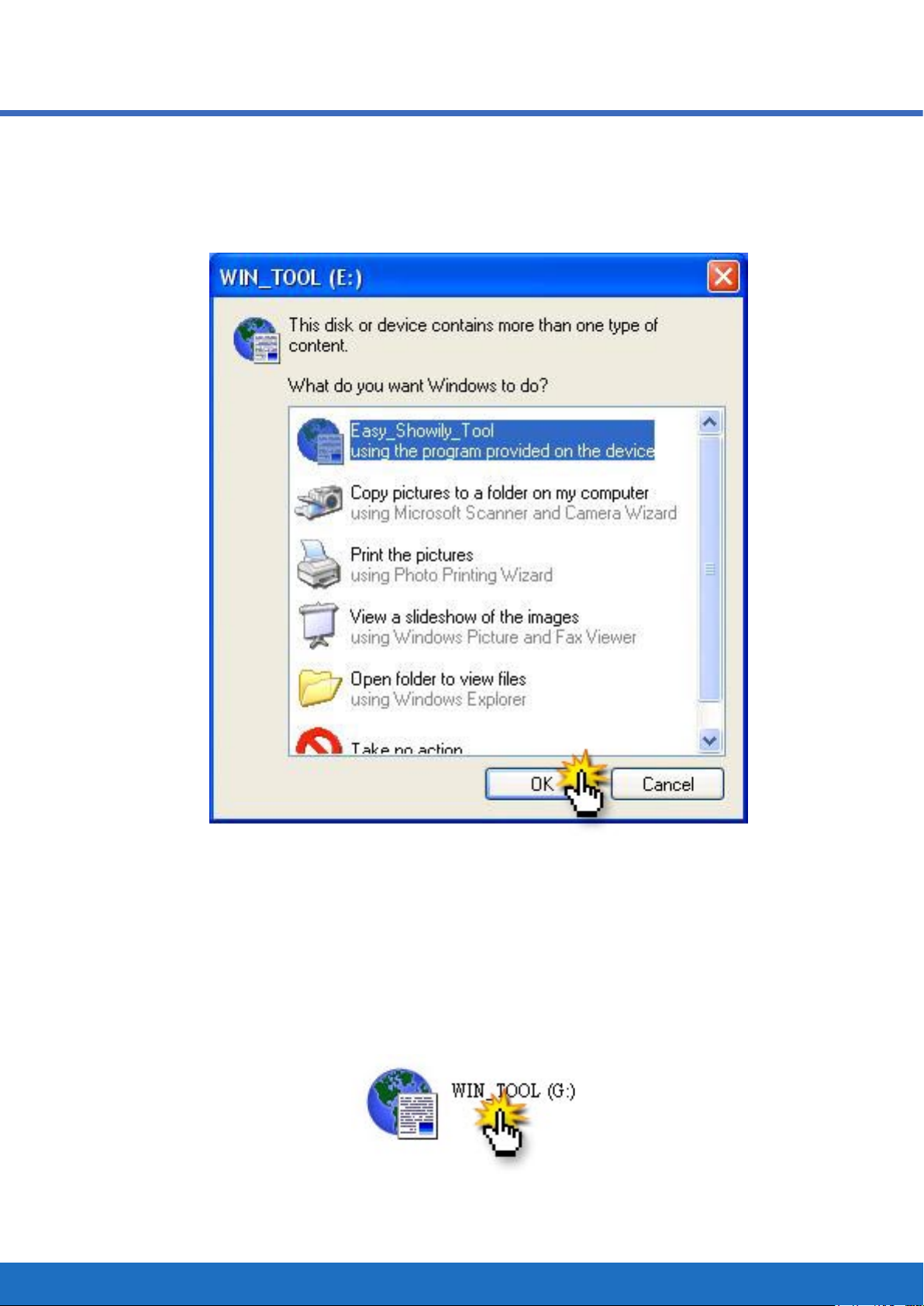

No need to install any extra software, the inbuilt one will pop up after connect WPL-2000 to
Ð
computer.
No matter GPS parameter setting, format converting Geo-tagging…etc. can be done via
Ð
the inbuilt software.
°
H:
150
S:
100 km/h
Easy Showily
FIX
GPS
2
PRODUCT OVERVIEW
Function button
Power button
1.LOG MODE
Bicycle
Easy Showily
Track button
GPS
LCD GPS Antenna Location
USB Cover USB Connector
H:
S:
Easy Showily
°
150
100 km/h
FIX
GPS
3
CONTENTS
Ð
1 x WPL-2000 / Auto-show Track Logger
Ð
1 x USB extended cable (15cm)
Ð
2 x AAA alkaline battery
Ð
1 x Lanyard
Ð
1 x Leather case
Ð
1 x Quick installation Guide
Before using the device, please make sure that all the accessories are included in the
package. In case any one is missing or damaged, please contact your dealer immediately.
1.LOG MODE
Bicycle
Easy Showily
GPS
+
WPL-2000 / Auto-show Track Logger
USB extended cable (15cm)
AAA alkaline battery
.tw
m
o
.c
c
te
in
.w
w
w
w
Lanyard
Leather case
Quick installation Guide
4
INSERTING BATTERIES
1.
Take off the USB cover.
2.
Slide the battery cover.
Insert batteries into the unit with correct direction.
(AAA 1.5v battery *2; Alkaline batteries are recommended.)
3.
4.
Close the battery cover.
5.
Put on the USB cover.
5
To remove batteries
Be sure WPL-2000 has been turned the power off before removing batteries. The abnormal
process may cause damage of log data.
NOTE
Replace new batteries immediately when the 1.
low battery icon pop up. Doing so can avoid
worse GPS performance and incomplete log
data.
Remove batteries when you do not use the 2.
unit for a long time. Otherwise, it may result in
leakage of batteries.
H:
S:
°
150
100 km/h
Battery icon
FIX
6
POWER ON & POWER OFF OPERATION
Power button
On / Off
1.LOG MODE
Bicycle
Easy Showily
Power On
GPS
Press and hold the power button for 3 seconds to turn
Ð
on the WPL-2000.
The LCD will show the main screen as following.
Ð
At this moment, antenna portion of the WPL-2000
Ð
should be pointing upwards to the sky in open sky
environments, and hold it for about a minute until
the “FIX” pop up in the upper right of main screen.
It indicates GPS acquisition is done and logging
function is in progress.
When it is difficult to get acquisition (see the “FIX”), direct the antenna portion of the
Ð
unit upward and wait for a while. Don’t put your had on or near the antenna area. If the
unit can not track even after waiting for five minutes, you may be in a location where
the radio signals from GPS satellites can not be reached. Change the location and try
again.
Power Off
H:
S:
H:
S:
°
0
0 km/h
°
150
100 km/h
FIX
FIX
Press and hold the power button for 3 seconds under any screen to turn the WPL-2000
Ð
off after using.
7
FUNCTION DESCRIPTION
Function button
Power button
Track button
1.LOG MODE
Bicycle
GPS
Easy Showily
The WPL-2000 includes two modes, the Main Mode and Setting Mode.
Main Mode
Ð
Heading & speed
H:
A:
150
°
FIX
1500 m
H:
A:
150
°
FIX
1500 ft
Go to Distance accumulated page.
Change speed information into altitude.
H:
S:
NOTE
Ð
Distance accumulated
This information will be updated only after getting acquisition.
°
150
100 km/h
120.5 km
Go to Counter accumulated page
Enter the process of distance reset.
DISTANCE
RESET?
NOTE
When the “DISTANCE RESET?” screen show up, press the function button
again to reset the data of distance accumulated and counter accumulated
simultaneously; otherwise, press the power button to switch to next information
screen, or ignore it for 5 seconds to skip the “RESET” process.
FIX
FIXDISTANCE
H:
150
S:
120.5 mi
°
100 mi/h
FIX
FIXDISTANCE
8
Ð
Counter accumulated
TOTAL T.
MOVE T.
STOP T.
Go to Average speed page.
Switch around information of Total Time, Move Time and Stop Time.
Ð
Average speed
AVG. SPD
Go to Latitude & Longitude page.
14h51m10s
10h30m35s
4h20m35s
FIX
8.2 km/h
Total Time accumulated.
Move Time accumulated.
Stop Time accumulated.
FIXAVG. SPD
8.2 mi/h
Ð
Latitude & longitude
N
24.99690
E
121.48633
°
24 59’49
°
121 29’10
°
24 59.82
°
121 29.16
0.00000
0.00000
NOTE
N
E
N
E
Go to Current time page.
Switch around different formats of latitude & longitude
Before GPS acquisition, the latest location data show up instead.1.
Below screen will show up under following situations.2.
N
E
ddd.ddddd
dddmmss
dddmm.mm
The rst time to use this device.•
After cold start but before acquisition.•
9
Ð
Current time
Back to Heading & speed page.
CLOCK
8:35:25
NOTE
The clock depends on the time zone set by user1.
Below screen will show up under following situations.2.
CLOCK
0:00:00
The rst time to use this device.•
After cold start but before acquisition.•
10
Setting Mode
Under main mode, press the function button
longer to enter the setting mode.
Ð
Press the power button
Ð
No operation more than 15 seconds.
(The setting changed won’t be saved)
Ð
Log Mode Setting
How to enter Setting Mode?
How to back Main Mode?
1.LOG MODE
Walk
Walk Mode Bicycle Mode
1.LOG MODE
Car
Car Mode User Mode
Conrm the option and back to Main Mode.
Conrm the option and Go to Shake Mode Setting.
Select Log Mode (Walk, Bicycle, Car, User).
NOTE
Ð
Shake Mode (power saving) Setting

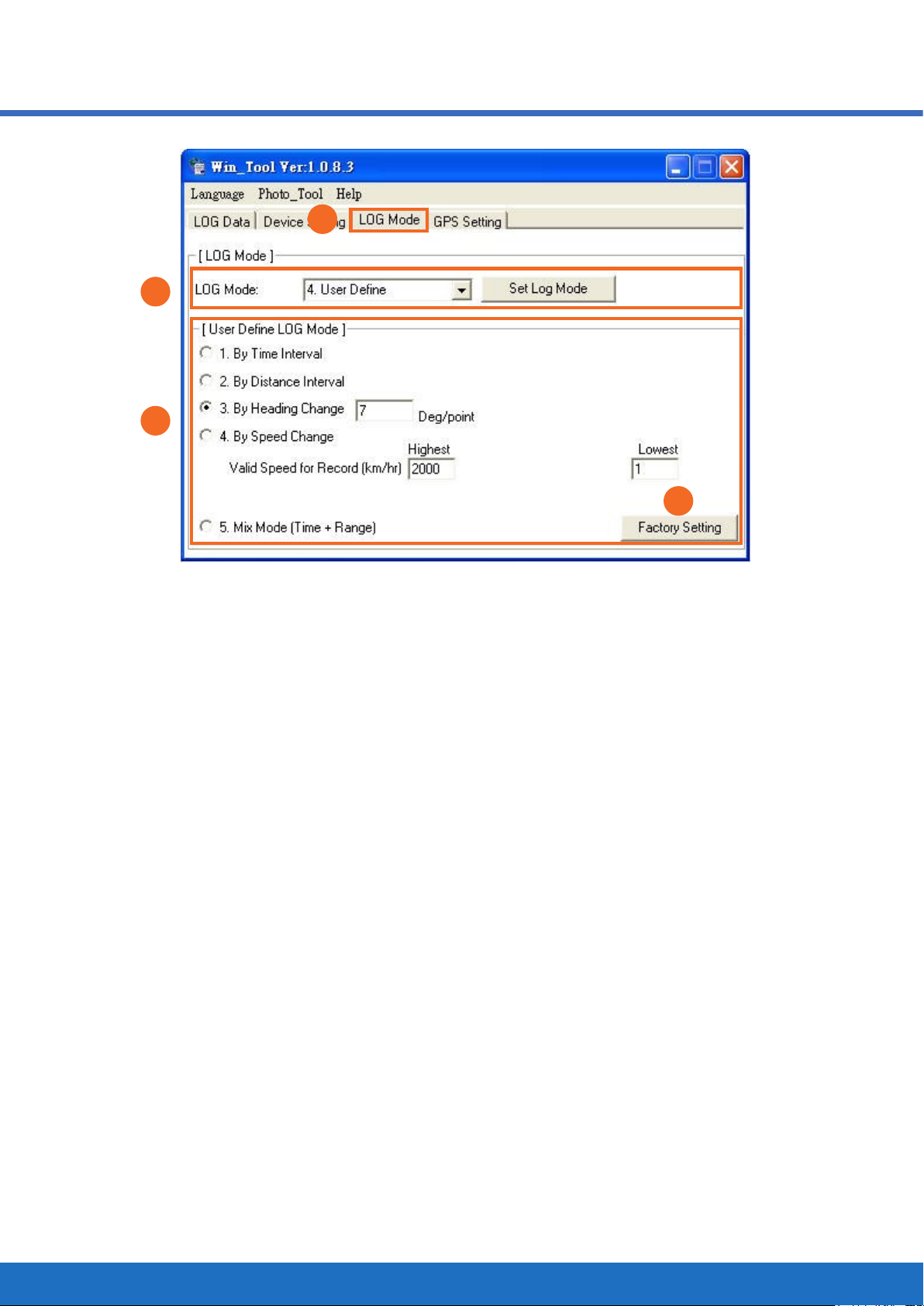

The detail of User Mode can be dened via inbuilt software - Win_Tool.
2.SHAKE MODE
On
1.LOG MODE
Bicycle
1.LOG MODE
User
2.SHAKE MODE
Off
NOTE
Shake Mode On Shake Mode Off
Conrm the option and back to Main Mode.
Conrm the option and Go to Usage capacity of log data page.
Enable(On) or disable (Off) the Shake Mode.
As Shake Mode On, the WPL-2000 will auto-shut off (sleep) if the device is
motionless over 5 minutes (default, the duration can be set via Win_Tool), and
then auto-wake up when it feels any vibration.
11
