Wintec LP-802 User Manual

USER MANUAL

PK EQ06-1 VER.1

www.wintec.com.tw

PROFESSIONAL FM TRANSCEIVER

LP-802

Recycle Marking

Features

Thank you for purchasing LP-802 two-way radio
manufactured by Wintec Co., Ltd. Based on the
ever-changing innovative technology, we have been able to
develop many different wireless products that have gained
widely consumers' affection. We even wish you to be
attentive to new product information. Please read through
the manual carefully to understand the features of this
model.

Wide frequency coverage.
128 programmable channels and 3 programmable
function keys variable filter design, providing excellent
anti-interference ability, high power output allows you to
speak smoothly in noisy environment.
Digitally designed to ensure stable quality.
Extra-small size in rugged case.
Power settings (5W/1W)
2-tone, 5-tone
High quality sound.
Independent TX / RX CTCSS / DCS.
Narrow band (2.5K) / Wide band (5K) programmable
options.
9 steps of VOX (voice-activated feature)
Multiple Programmable PRI / SCAN channel function.
Volume indicator.

‧
‧

‧
‧
‧
‧
‧
‧
‧

‧
‧
‧

Safety Information

Self-replacing or re-structuring of any parts by is legally
not permitted or will lose license.
Use is prohibited at restricted environment declared by
authority, during flight, highly-explosive area like near
mining areas.
Avoid storing in high temperature or humid place for long
time.
Turn to lowest volume if external Mic/Speaker is used,
then adjust appropriately.
If strange smell or smoke comes off from radio, dispatch
to service center immediately.
Never use other power sources for charging other than
the standard charger set designed for this radio model.
Take off battery pack if out of use for long Time.

1.

2.

3.

4.

5.

6.

7.

Safety Warning

Consumers need to have clear understanding of safety use
of this product.
Turn off power before fueling or parking at the gas station.

Low Battery Notice

When battery is low, you will hear a beep sound for
every transmission to remind user battery is low. At main
time, power output will automatically change to L level
automatically.
When battery is extremely low, you will hear twice beep
sounds for every transmission. At main time, power
output will automatically change to Level automatically.
When battery is used up, radio will automatically turn
OFF.

1.

2.

3.

Contents

Radio Controls / Functions........................................1

LCD Icons..................................................................2

Basic Operation.........................................................3

Function Settings and Operation...............................4

Low Battery Warning.................................................5

Introduction to Programmable Functions..................6

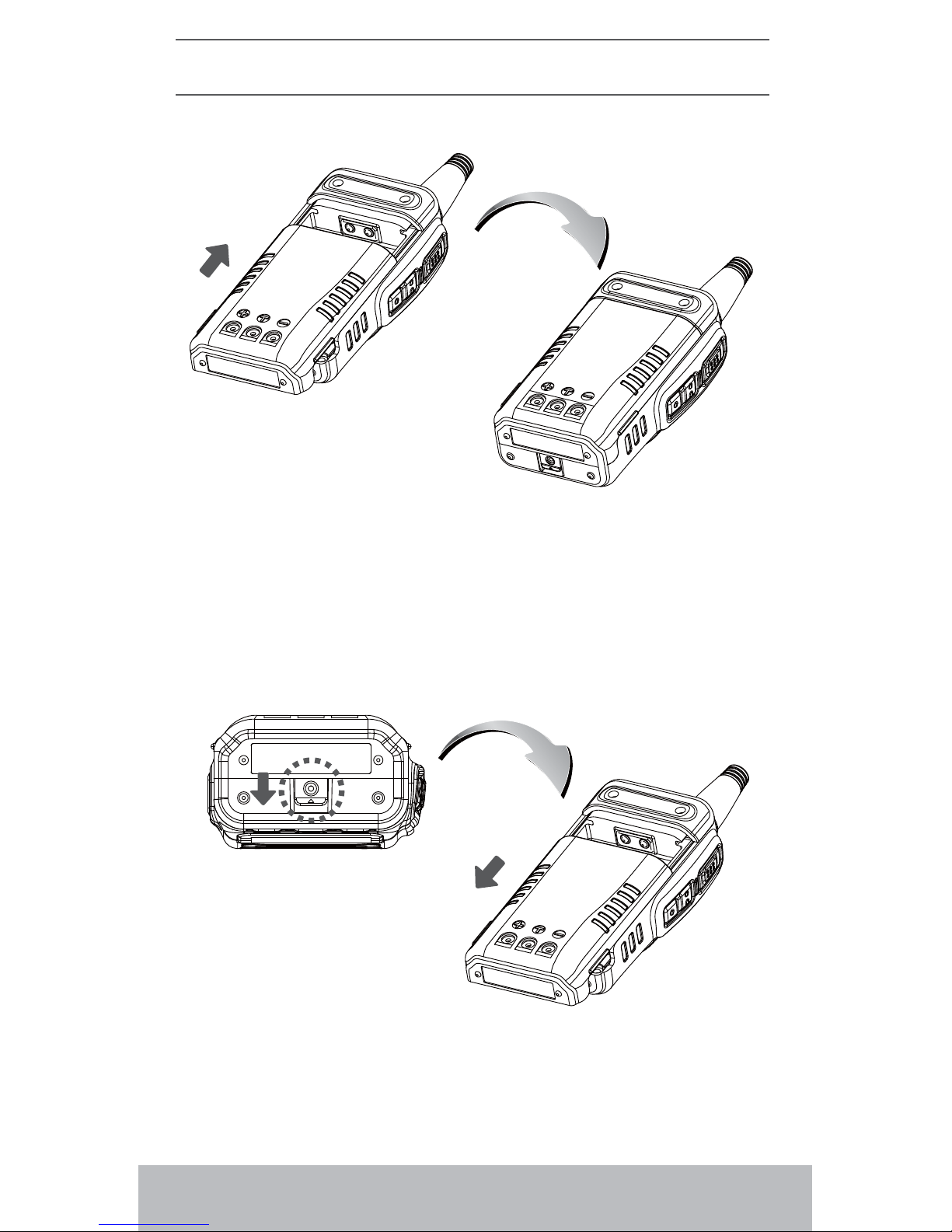

Installation on Battery..............................................10

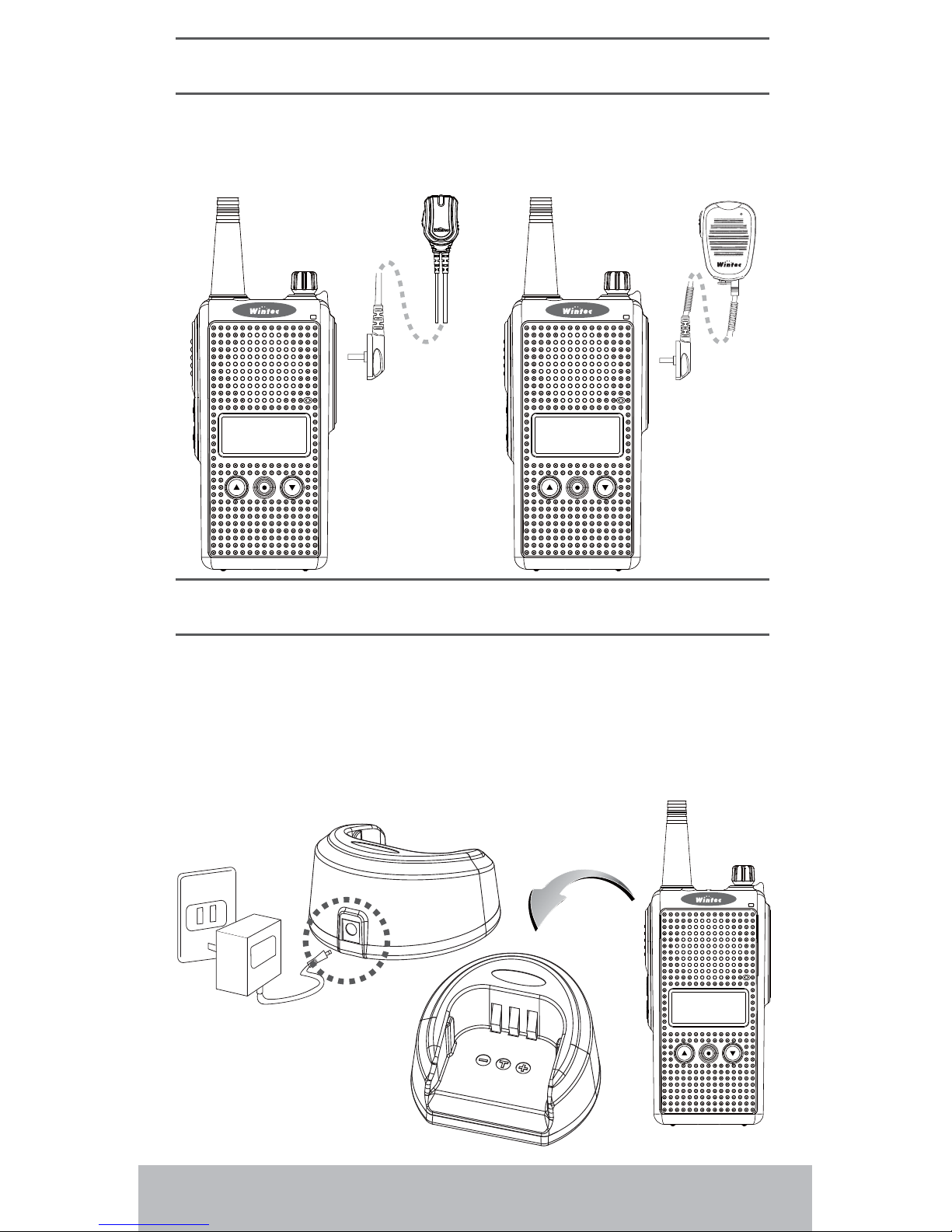

Connecting of External MIC / Speaker....................11

Charging of Battery.................................................11

Specifications..........................................................12

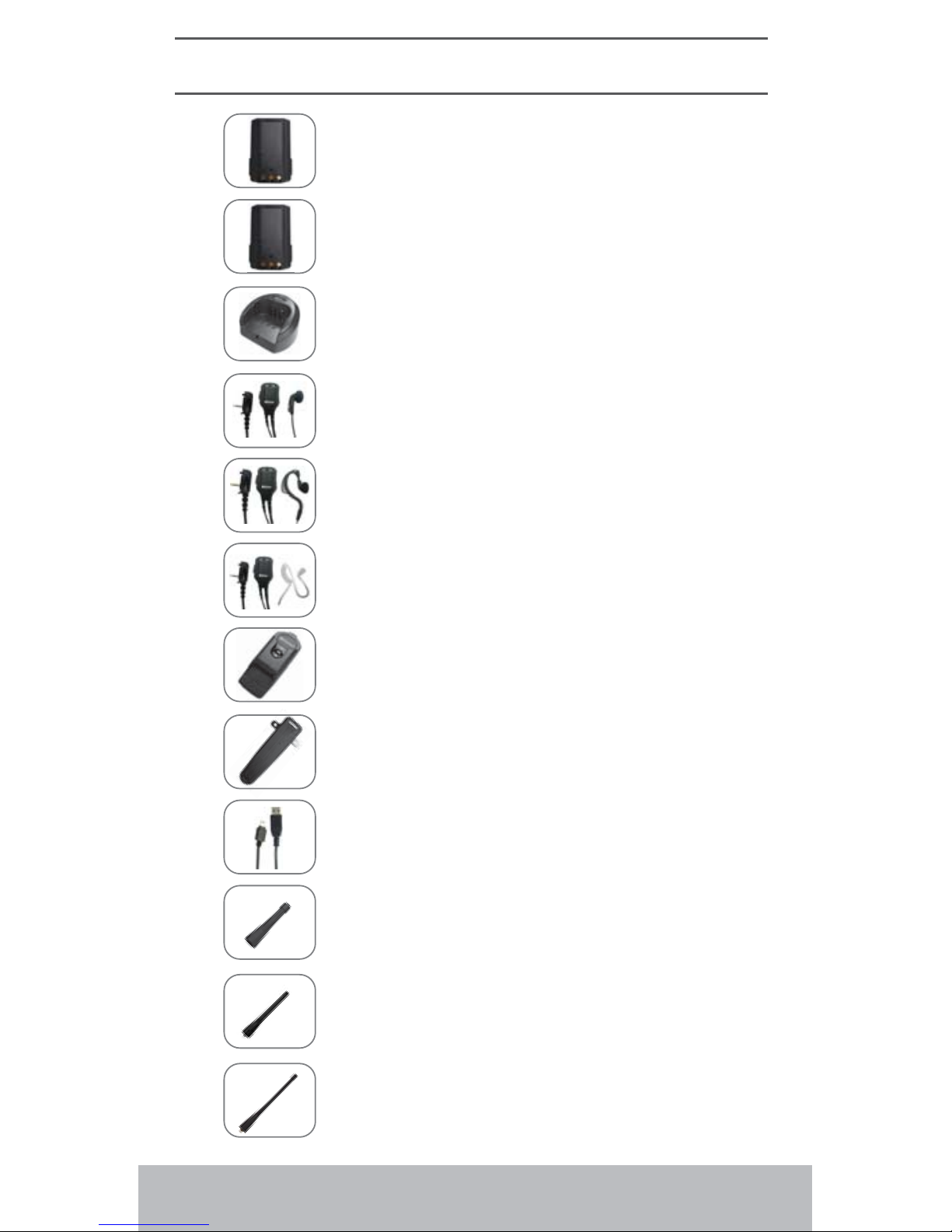

Accessories.............................................................13

1

8

2
3

4

5

6

7

10

9

11

12

13

14

1

15

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

Radio Controls / Functions

LED Indicator
External Speaker / Mic Jack
Programmable Jack
Speaker
Mic
LCD Monitor
Down Button
Set Keypad

Up Keypad
Programmable Keypad P1
Programmable Keypad P2
(Push-to-talk) PTT Button
Programmable Keypad P3
Antenna
Volume Control / Power Control

2

LCD Icons

Signal Strength Indicator

Output Power Indicator

VOX Indicator

Compandor

CTCSS / DCS Code

Scramble

BCLO

Talk Around

Dual Channel Watch

Noise Cancel Indicator

Keypad Lock

Power Saving Mode

Battery Power Level

3

Basic Operation

Power On / Off

Rotate the Power switch / volume control knob clockwise
to switch power ON. When the click sound of switch and
the melody is heard, the transceiver is powered.
Rotate the Power switch / Volume control knob
counterclockwise to switch power OFF. When the click
sound of switch is heard, transceiver's power is turned off.

1.

2.

Receiving / Transmitting

Rotate the Channel Control knob to the desired channel,
press and hold PTT button. The LED lamp turns red during
transmission. Talk to the microphone from a distance of 5
cm and speak in general volume.
Release PTT button for the transceiver for receiving.
During receiving, LED light turns on green. And you can
hear the sound from the transmission unit.

1.

2.

Channel Adjustment

Momentarily press or key to select channel.
Press PTT to set the selected channel.

Adjusting Volume

For the adjustment of volume, rotate the Power / Volume
control knob in clockwise direction to increase volume.
Rotate Power / Volume knob counterwise to decreases
volume.
Rotate the Power switch/Volume knob slowly to avoid
outburst of sound harmful to ears. Too low volume might
miss user’s attention. Adjust volume to an appropriate
level.

1.

2.

★ Adjust volume in low before connecting to the earphone
headset.

You need to program the frequencies on channels by software.

Keypad Lock

Press and hold keypad button to lock the keypad. The
screen will show icon. Press and hold button again to
disable it.

Temporarily press button to enter the function list menu.
When the icons are flashing on the sceen. Press button
in times to scroll over the functions. When enter the
selection. Momentarily press or key to change the
settings on the selection. Press PTT to enable it and return
to the main page.

The keypad lock function can be programmed
on button by software if needed.

4

TX Power Adjustment [TX POWER]

VOX ON

The Screen will indicate TX POWER and press or
down key to change the high or low power.
The screen displays TX POWER HIGH in High Power or
TX PWR LOW in Low Power.

1.

2.

Turn on VOX and LCD screen shows “VOX” words as
below: press or down key to change the VOX “OFF”
or sensitivities . VOX’s sensitivity: VOX’s sensitivity can be
selected from1-9 levels. VOX 1 is highest and 9 is the
lowest sensitivity. The smaller sensitivity means the easier
to trigger the transmission
There is a reminding icon display on the upper part
ofscreen when enable it

。

If the adjustment of VOX level is changed by the keypads
on the radio, the radio will temporarily stores the adjusted
setting. When the channel changes to another one then
return to the original, the VOX level will restore to original
programmed one on the channel. When Vox is continously
in transmitting mode, press PTT+ button can turn it off
or enable the Vox function again.

1.

2.

3.

★ If the adjustment of power is changed by the keypads on the
radio, the radio will temporarily stores the adjusted power
setting. When the channel changes to another one then return
to the original, the power level will restore to TX power
programmed on the channel.

★ The factory Default of VOX is OFF

Function Settings and Operation

5

TX Power Adjustment [TX POWER]

There will be shown on the screen when enabling the
Noise Cancel
Enable the Noise Cancel can elevate the efficiency on the
voice quality in communication by reducing the
background noise.

1.

2.

★ The factory default is ON.

Low Battery Warning

When battery is going to be exhausted, it will remind you
by flashing and the power output will automatically
change to low.
By the time battery is exhausted, radio will turn off it
selves.
Please change new battery or battery needs to be
charged.

1.

2.

3.

Programmable
Functions
on 128Channels

Explanation

Tx Power

TX power is selectable to LOW or
HIGH.

TOT

TIME OUT TIMER is selectable to be
OFF, 30, 60, 90, 180, 360 sec.

BCLO

BCLO is selectable to be OFF / BCL /
BTL.

VOX

VOX TX is selectable to be OFF or
SENSITIVITY from L0~L9.

Scrambler

Selectable from 0~9. the “0” means to
turn off this function.

Compandor

Setting compandor “On” can enhance
the quality of voice in communication.

6

Introduction to Programmable
Functions

Use WPS-800 software for programming.

Please advice the official dealers to receive an authorized file to perform
the programming software.

Channl Setting

Programmable
Functions
on 128Channels

Explanation

Alias

It can be programmed and named the
Channel by defining the Name in
English or by numbers.
When General setting to be selected
as Channel Name, you can see the
Name defined on Channels

Tx Frequency

The TX step-up freq at 5Khz within
frequency range.

Rx Frequency

The RX step-up freq at 5Khz within
frequency range.

Tx Tone

CTS/DCS ENC is programmable to
“OFF”
CTS(1~51+1User Define)
DCS Normal(83+1User Define)
DCS Invert (83+1User Define)

Rx Tone

CTS/DCS ENC is programmable to
“OFF”
CTS(1~51+1User Define)
DCS Normal(83+1User Define)
DCS Invert (83+1User Define)

W/N band

RX/TX is selectable to Narrow Band
(2.5KHz) Or Wide Band (5KHz)

7

General Setting

General
Programmable
Functions

Explanation

User Name

If the radio is conn ected to the PC b y
WPS-800(PC software), the device

name will appear on the software.
SQL The setting ranges from L0~L9.
Noise Cancel 0: Disable / 1:Normal / 2:Strong
Key Beep Selectable to be ON or OFF.

Roger Tone

Selectable to be ON or OFF.

If it is ON, it will send out beep sound

when finish the transmitting.
Disable
Function Menu

To select this function, the functions

cannot be changedby set button.
Call Tone

There are 9 types of call tone

selectable from 1 to 9.
Power Save

Selectable to be OFF / 1:1 / 1:2 / 1:3 /

1:4
APO

AUTO POWER OFF (APO) is

selectable to be 30, 60, and 120 mins
Show Type

You can set the channel in display on

names or frequencies.

Menu Time

Time Interval：OFF / 10 / 20 / 30 / 60

secs.

When the time interval you set is out,

the screen will return to the main

menu.
Backlight T i me

Setting at：0 / 10 / 20 / 30 / 60 / 120 /

300 secs.
Mic Sensibility

Selectable to be Low / Middle/ High

Sensitivity.

8

Scan Setting

Programmable Keypads Controls & Functions

Programmable Key P1 ~P3 functions are operable only by
dealers. It is not intended for use by general consumers.
The the functions for P1 ~P3 can be defined separately in
long or short press on the buttons.
The Factory Default on programmable keys:
P1in long press: No use, short press: Noise Cancel
P2 in long press: Monitor, short press: Backlight
P3 in long press: No use, short press: Low and High Power
Switch
The radio will send out "Do Re Mi" melody to remind you that
Noise Cancel is on and send out " Do" melody when the
Noise Cancel is off.

Scanning
Functions

Explanation

PriCh

1. Priority cannel number must be selected
before this function is activated for Priority
Scan and Dual Watch function.

2. When PRI Channel is activated, priority
channel will automatically be scanned on
the channel and transmission is done from
it.

Response

There are three kinds of scanning modes
BR / TR / HOLD
BR: The scanning process will pause
when signal comes in and perform
scanning again when signal discontinued.
TR: The scanning process will pause by 3,
5, 10 secs once signal comes in and
continue to perform scanning after time out
again even during the signal is receiving.
HOLD: The scanning process will stop
immediately and skip out when signal
comes in. It needs to be started again for
continuing the scanning.

Time TR time can be set by 3, 5, and 10 secs.
Group

There are totally 16 groups that can be set
by channels.

9

Function Button
P1~P3

Explanation

0. None Assign the buttons to be no use.

1. Backlight

Press the button to enable the
backlight and press it once to turn
off the backlight.

2. DW
(Dual Watch)

Press this button to switch the
present channel with priority
channel. Press it once to restore to
the present channel.

3. TA
(T alk Around)

The setting on transmission
channel will change to the same as
the receiving channel, including the
frequency.

4. Scan

Channel Scanning will perform to
scan the Pri channel if it is set in
advance. If not, the radio will
perform the general scanning on
channels.

5. Power Switch

It can temporarily switch t o High or
Low power when press this button.
The change on the channel will
restore to the factory setting.

6. GID (Group ID)
Switch

Select and switch to different
groups. (The functions is not
workable if the groups are not set
in advance )

7. Noise Cancel

NC function can elevate the quality
of voice in communication

8. Send Call Tone

Only long programmable keys can
set Send Call tone function.
Press the button longer to send out
the call tone. Release it to stop the
transmission.

9. Monitor

Only long programmable keys can
set Monitor function.
Press the button longer to enable
the monitor function, release the
button to stop in mon i tor i ng .

10

To Install

To Remove

Place battery pack into battery compartment, and push the
battery upward when the click sound of switch is heard, it
will lock into compartment.

Installation on Battery

Holding radio in one hand, push down battery latch on the
button.
Slide battery pack backwards until the battery is apart from
the radio unit.

1.

2.

11

Connecting of External MIC/Speaker

Charging of Battery

Power drop-in charger with standard AC/DC wall charger.
Drop in radio installed with battery into the battery-with-radio
slot. Spare battery pack into the battery-only slot. Each LED
light individually indicates charging slot in process. LED
flash in green when battery in slot is fully charged.

Remove accessory jack cover.
Insert accessory jack.
Fix accessory with the screws.

1.

2.

3.

135~175MHz, 400~480MHz

12.5/25.0KHz

128(16Group)

±1.5PPM

CTCSS / DCS

50Ω

BT 90LI 1350mAh

BT 90LI 2200mAh

7.4V

-30 ~ +70

℃

270g With Antenna & Battery

125(H)×53(W)×43(D)mm

without antenna

12

Specifications

General

Transmitter

Receiver

Frequency Range

Channel Spacing

Programmer Channel Number

Frequency Stability

Sub-Audio Type

Antenna Impedance

Battery Type

Power Voltage Range

Temperature Range

Weights

Dimensions

Max RF Power (@ DCV)

Modulation(W/N)

Spurious emissions

Sensitivity (12 dB SINAD)

Adjacent Channel Selectivity

Intermodulation

Spurious & image Rejection

Audio Power

5.00W(@7.4V)

16K0F3E, 11K0F3E

70dB

-120dBm

70/65dB

70/65dB

70dB

600mW@16Ω For 5% THD

13

Accessories

WI AL20
Programmable cables for programmable type

BT FR 90LIs

7.4V/1350m AhLi-ion battery

BT FR 90LI

7.4V/2200m AhLi-ion battery

LP-20A
Earphone headsets

LP-20B
Earphone headsets

LP-20C
Air-tube headsets

LP-10M
Belt clip swivel belt clip for best placement
and take-out the radio

LP-84L
Belt clip swivel belt clip for best placement
and take-out the radio

LP-CHG 90
Desktop rapid charger

ANT 80 UHF M
ANT 80 VHF M

ANT 80 UHF L
ANT 80 VHF L

ANT 80 UHF-LOW S
ANT 80 UHF-HIGH S
