Wintec LP-801, LP-202 User Manual

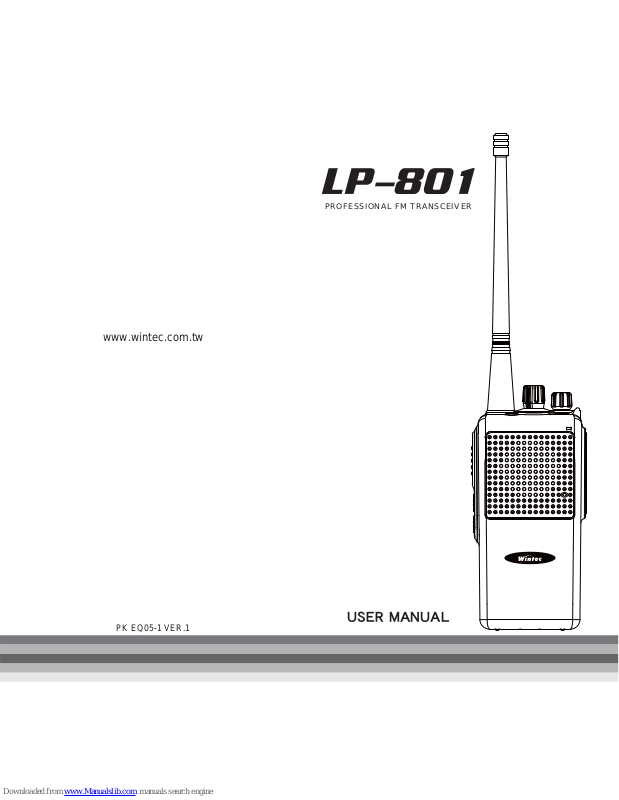

USER MANUAL

PK EQ05-1 VER.1

www.wintec.com.tw

PROFESSIONAL FM TRANSCEIVER

LP-801

Recycle Marking

Features

Thank you for purchasing LP-801 two-way radio
manufactured by Wintec Co., Ltd. Based on the
ever-changing innovative technology, we have been able to
develop many different wireless products that have gained
widely consumers' affection. We even wish you to be
attentive to new product information. Please read through
the manual carefully to understand the features of this
model.

High quality sound
Wide frequency coverage
16 programmable channels
3 programmable function keys
Independent settings on TX/RX frequencies CTCSS / DCS
Power settings (5W/1W)
Low battery alert
Muti scan mode
VOX 9 levels set
TOT/APO/BCLO
2-tone, 5-tone
Scrambler
PC programming

‧
‧
‧
‧
‧
‧
‧
‧
‧
‧
‧
‧
‧

Safety Information

Self-replacing or re-structuring of any parts by is legally
not permitted or will lose license.
Use is prohibited at restricted environment declared by
authority, during flight, highly-explosive area like near
mining areas.
Avoid storing in high temperature or humid place for long
time.
Turn to lowest volume if external Mic/Speaker is used,
then adjust appropriately.
If strange smell or smoke comes off from radio, dispatch
to service center immediately.
Never use other power sources for charging other than
the standard charger set designed for this radio model.
Take off battery pack if out of use for long Time.

1.

2.

3.

4.

5.

6.

7.

Safety Warning

Consumers need to have clear understanding of safety use
of this product.
Turn off power before fueling or parking at the gas station.

Low Battery Notice

When battery is low, you will hear a beep sound for
every transmission to remind user battery is low. At main
time, power output will automatically change to L level
automatically.
When battery is extremely low, you will hear twice beep
sounds for every transmission. At main time, power
output will automatically change to Level automatically.
When battery is used up, radio will automatically turn
OFF.

1.

2.

3.

Contents

Radio Controls / Functions..................................................1

Operation Guide..................................................................2

Programmable Functions................................................... 4

Installation of Battery...........................................................7

Connecting of External MIC / Speaker................................8

Charging of Battery.............................................................8

Specifications......................................................................9

Accessories.......................................................................10

1

Radio Controls / Functions

LED Indicator
External SP / MIC
USB Programming Port
Speaker
Mic
Programmable Keypad P1
Programmable Keypad P2
(Push-to-talk) PTT Button
Antenna

16 Programmable Channel Switch On / Off
Power Switch / Volume Control

Programmable Keypad P3

11

10

2
3

4

5

6

7

8

12

9

1

12

2

Operation Guide

Power On / Off

Rotate the Power switch / volume control knob clockwise
to switch power ON. When the click sound of switch and
the melody is heard, the transceiver is powered.
Rotate the Power switch / Volume control knob
counterclockwise to switch power OFF. When the click
sound of switch is heard, transceiver's power is turned
off.

1.

2.

Receiving / Transmitting

Rotate the channel control knob to the desired channel,
press and hold PTT button. The LED lamp turns red
during transmission. Talk to the speaker microphone
from a distance of 5 cm and speak in general volume.
Release PTT button for the transceiver for receiving.
During receiving, LED light turns on green. And you can
hear the sound from the transmission unit.

1.

2.

Adjusting Volume

For the adjustment of volume, rotate the Power /Volume
control knob in clockwise direction to increase volume.
Rotate Power/Volume knob counterwise to decreases
volume.
Rotate the Power switch/Volume knob slowly to avoid
outburst of sound harmful to ears. Too low volume might
miss users' attention. Adjust volume to an appropriate
level.

1.

2.

Assignment of Channels

There are channels 1 ~ 16 selectable by channel control
knob. All such 16 channels are dealer-programmable for
authorized use by consumers. In other words, if consumer
tries to adjust to any unauthorized channel, speaker sounds
beeps and LED lamp turn on orange.

Attention: adjust volume in low before connecting to the
earphone headset.

This function can only be programmed by the dealers.

3

Priority Channel Scanning

Low Battery Warning

There are speech sounds to remind you when battery is
low in English (Battery Low) or Chinese (

請充電

). The
battery needs to be charged immediately.
When battery is near to exhausted, it will remind you
every one second and the power output will lower. By the
time battery is exhausted, radio will turn off it selves.
Please change new battery or battery needs to be
charged.

1.

2.

During programming, assign a channel as "PRI.CH".
Transceiver will scan this channel in priority with others
interchangeably.
Ex: If channel 3 is assigned to be "PRI.CH", scan sequence
will be CH1, CH3(P), CH2, CH3(P), CH3, CH3(P), CH4,
CH3(P), …….. The scanning will continue until channel knob
is rotated (or) scan button is hold on. During scanning, if
busy channel is found, transceiver stops scanning to allow
radio-communication. It will continue scanning after 3
seconds from the end of reception or transmission.
If scanned-out channel is not priority channel, the transceiver
will leave it to priority channel for 3 seconds to channel the
signal and will stay standby on priority channel to check if
there is signal coming in. It will change to back to receiving
channel after 3 seconds from the end of reception or
radio-communication on priority channel. While there is no
signal and if PTT is pushed, transmission is done from
priority channel.

This dealer-programmable function can be activated
by the dealers by selecting PRI CH.

4

Programmable Functions

Introduction to programmable functions
(Use WPS-800 software for programming)

Please advice the official dealers to receive an
authorized file to perform the programming
software.

Channel Setting

Programmable
Functions on
16 Channels

Explanation

Alias

It can be programmed and named the
Channel by defining the Name in English or
by numbers.
When General setti ng to be sele cte d as
Channel Name, you can see the Name
defined on Channels.

Tx Frequency

The TX step-up freq at 5Khz within fre q uen c y
range.

Rx Frequency

The RX step-up freq at 5Khz within frequency
range.

Tx Tone Type

CTS/DCS ENC is programmable to "OFF"
CTS(1 ~51+1User )
DCS Normal(83+1User)
DCS Invert(83+1User)

Rx Tone T ype

CTS/DCS ENC is programmable to "OFF"
CTS(1 ~51+1User )
DCS Normal(83+1User)
DCS Invert(83+1User)

W/N band

RX/TX is selectable to Narrow Band (2.5KHz)
Or Wide Band (5KHz).

Tx Power TX power is selectable to LOW or HI.
TOT

TIME OUT TIMER is selectable to 30, 60, 90,
180, 360 sec.

BCLO BCLO is selectable to be OFF / BCL / BTL.
VOX

VOX TX is selectable OFF or ENSITIVITY
L0~L9.

Scrambler

Selectable from 0~9, the "0" means to turn off
this function.

Compandor

Setting compandor "ON" can enhance the
quality of voice in communication.

5

General Setting

Scan Setting

Scanning
Functions

Explanation

PriCh

1. Priority cannel number must be selected
before this function is activated for Priority
Scan and Dual Watch function.

2. When PRI Channel is activated, priority
channel will automatically be scanned on the
channel and transmission is done from it.

Response

There are three kinds of scanning modes BR /
TR / HOLD
BR: The scanning process will pause when
signal comes in and perform scanning again
when signal discontinued.
TR: The scanning process will pause by 3, 5,
10 secs once signal comes in and continue to
perform scanning after time out again even
during the signal is receiving.
HOLD: The scanning process will stop
immediately and skip out when signal comes
in. It needs to be started again for continuing
the scanning.

Time TR time can be set by 3, 5, and 10 secs.
Group

There are totally 16 groups that can be set by
channels.

General
Programmable
Functions

Explanation

User Name

If the radio is connected to the PC by
WPS-800 (PC software), the user name will
appear on the software.

SQL

The setting ranges from L0~L9
(Default at L3)

APO

AUTO POWER OFF (APO) is selectable to be
30, 60, and 120 mins (Def ault at OFF)

Noise Cancel

selectable to be
0:Disable / 1: Normal / 2:Strong

Roger Tone

selectable to be ON or OFF. If it is ON, it will
send out beep sound wh en finish the
transmitting. (Default at OFF)

Power Save

Selectable to be OFF / 1:1 / 1:2 / 1:3 /
1:4(Default at )

6

Programmable Key Setting

Programmable Key P1~P3 functions are operable only by
dealers. It is not intended for use by general consumers.
The the functions for P1~P3 can be defined separately in
long or short press on the buttons.
The Factory Default on programmable keys:
P1 in long press: No use, short press: Noise Cancel
P2 in long press: Monitor, short press: Backlight
P3 in long press: No use, short press: Low and High Power
Switch
The radio will send out "Do Re Mi" melody to remind you that
Noise Cancel is on and send out " Do" melody when the
Noise Cancel is off.

Function button
P1~P3

Explanation

0. None Assign the buttons to be no use.

1. T A
(T alk Around)

The setting on transmission channel will
change to the same as the receiving
channel, including the frequency.

2. Scan

Channel Scanning will perfo rm to sca n the
Pri channel if it is set in advance. If not, the
radio will perform the general sca nning on
channels.

3. Power Switch

It can temporarily switch to High or Low
power when press this button. The change
on the channel will restore to the factor y
setting.

4. Noise Cancel

NC function can elevate the quality of voice
in communication.

5. Key Lock

Press the button once to enable or disable
the keylock. When keylock is enabled, you
are not able to change the ch annels and
functions.

6. SendCall

Long Programmable Keys can set Send
Call tone function.
Press the button longer to send out the call
tone. Release it to stop the transmission.

7. Monitor

Long Programmable Keys can set Monitor
function.
Press the button longer to enable the
monitor function, release the butt o n to stop
in monitoring.

7

To Install

To Remove

Place battery pack into battery compartment, and push the
battery upward when the click sound of switch is heard, it
will lock into compartment.

Installation on Battery

Holding radio in one hand, push down battery latch on the
button.
Slide battery pack backwards until the battery is apart from
the radio unit.

1.

2.

8

Connecting of External MIC / Speaker

Charging of Battery

Power drop-in charger with standard AC/DC wall charger.
Drop in radio installed with battery into the battery-with-radio
slot. Spare battery pack into the battery-only slot. Single or
dual charging is possible. Each LED light individually
indicates charging slot in process. LED flash in grean when
battery in slot is fully charged.

Remove accessory jack cover.
Insert accessory jack.
Fix accessory with the screws.

1.

2.

3.

135~175MHz, 400~480MHz

12.5/25.0KHz

16CH

±1.5PPM

CTCSS / DCS

50Ω

BT 90LI 1350mAh

BT 90LI 2200mAh

7.4V

-30 ~ +70

℃

270g With Antenna & Battery

125(H)×53(W)×43(D)mm

Without Antenna

9

Specifications

General

Transmitter

Receiver

Frequency Range

Channel Spacing

Programmer Channel Number

Frequency Stability

Sub-Audio Type

Antenna Impedance

Battery Type

Power Voltage Range

Temperature Range

Weights

Dimensions

Max RF Power (@ DCV)

Modulation(W/N)

Spurious emissions

Sensitivity (12 dB SINAD)

Adjacent Channel Selectivity

Intermodulation

Spurious & image Rejection

Audio Power

5.00W(@7.4V)

16K0F3E, 11K0F3E

70dB

-120dBm

70/65dB

70/65dB

70dB

600mW@16Ω For 5% THD

10

Accessories

WI AL20
Programmable cables for programmable type

BT FR 90LIs

7.4V/1350m AhLi-ion battery

BT FR 90LI

7.4V/2200m AhLi-ion battery

LP-20A
Earphone headsets

LP-20B
Earphone headsets

LP-20C
Air-tube headsets

LP-10M
Belt clip swivel belt clip for best placement
and take-out the radio

LP-84L
Belt clip swivel belt clip for best placement
and take-out the radio

LP-CHG 90
Desktop rapid charger

ANT 80 UHF M
ANT 80 VHF M

ANT 80 UHF L
ANT 80 VHF L

ANT 80 UHF-LOW S
ANT 80 UHF-HIGH S
