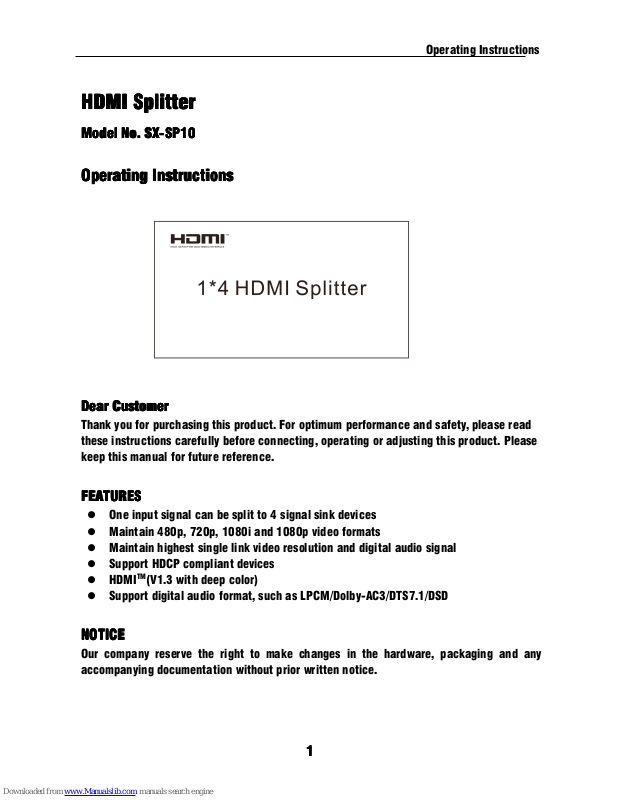

Page 1
Operating Instructions
HDMI
HDMI
HDMI
HDMI Splitter
Splitter
Splitter
Splitter
Model
Model
Model
Model No.
No.
No.
No. SX-SP10
SX-SP10
SX-SP10
SX-SP10
Operating
Operating
Operating
Operating Instructions
Instructions
Instructions
Instructions
Dear
Dear
Dear
Dear Customer
Customer
Customer
Customer
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please
keep this manual for future reference.
FEATURES
FEATURES
FEATURES
FEATURES
� One input signal can be split to 4 signal sink device s
� Maintain 480p, 720p, 1080i and 1080p video formats
� Maintain highest single link video resolution and digital audio signal
� Support HDCP compliant devices
� HDMITM(V1.3 with deep color)
� Support digital audio format, such as LPCM/Dolby-AC3/DTS7.1/DSD
NOTICE
NOTICE
NOTICE
NOTICE
Our company reserve the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
1
1
1
1
Page 2
Operating Instructions
TABLE
TABLE
TABLE
TABLE OF
OF
OF
OF CONTENTS
CONTENTS
CONTENTS
CONTENTS
Specifications
Package Contents
Panel Descriptions
Connecting and Operating
M aintenance
Product Service
Warranty
SPECIFICATIONS
SPECIFICATIONS
SPECIFICATIONS
SPECIFICATIONS
Operating Temperature R ange …………………………… .. -5 to +55 ℃ (-41 to +95 ℉ )
Operating Humidity R ange ……… . … .................... …… . 5 to 90%RH (No Condensation)
Video Amplifier Bandwidth.............................................................................. . 140mHz
Input Video S ignal ………………………………… . …… ................. … 0.5-1.0 Volts P-P
Single Link R ange ………………… .....................................................................1080p
Output Video ………………………………………………………… . HDMI 1.3 +HDCP 1.2
Vertical Frequency Range ……………… .............................. … ........................ … . 60Hz
Date T ransfer S peed ……………… .......... …………………… .............. … ... . 2.25 Gbps x3
Power S upply ……………………………… ..... …………… ............................... 5VDC ,2A
Dimension (L × W × H) ……………………………………… ....... ... .. ...........115 x 62 x 2 5mm
Net Weight …………………………………………………………………… .......... .. 2 10 g
Note: Specifications are subject to change without notice. Mass and dimensions are
approximate.
PACKING
PACKING
PACKING
PACKING CONTENTS
CONTENTS
CONTENTS
CONTENTS
1) Main Unit. 1x4 HDMI S plitter
2) DC5V 2A Power Supply
3) Operating Instructions
PANEL
PANEL
PANEL
PANEL DESCRIPTIONS
DESCRIPTIONS
DESCRIPTIONS
DESCRIPTIONS
Front Panel
① ② ③
2
2
2
2
Page 3
Operating Instruction s
Left Panel Rear Panel
④ ⑤ ⑥
① Indicator of power input ② Indicator of HDMI input
③ Indicator of HDMI output ④ HDMI input port
⑤ Power input port ⑥ HDMI o utput ports
CONNECT
CONNECT
CONNECT
CONNECT ING
ING
ING
ING AND
AND
AND
AND OPERAT
OPERAT
OPERAT
OPERAT ING
ING
ING
ING
1) Connect the HDMI signal sources (Such as PS3, STB etc) in to HDMI input.
2) Connect the HDMI display device ( S uch as HD-LCD, HD-DLP) into HDMI output.
3) Plug the 5VDC power supply into power input port and the unit is ready to use.
Attention: Insert/Extract cable s gently.
MAINTENANCE
MAINTENANCE
MAINTENANCE
MAINTENANCE
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean
this unit.
PRODUCT
PRODUCT
PRODUCT
PRODUCT SERVICE
SERVICE
SERVICE
SERVICE
1) Damage
Damage
Damage
Damage requiring
requiring
requiring
requiring service:
service:
service:
service:
The unit should be serviced by qualified service personnel if:
(a) The DC power supply cord or AC adaptor has been damaged;
(b) Objects or liquids have gotten into the unit;
(c) The unit has been exposed to rain;
(d) The unit does not operate normally or exhibits a marked change in performance;
(e) The unit has been dropped or the cabinet damaged.
2) Servicing
Servicing
Servicing
Servicing Personnel:
Personnel:
Personnel:
Personnel: Do not attempt to service the unit beyond that described in
these operating instructions.Refer all other servicing to authorized servicing personnel.
3) Replacement
Replacement
Replacement
Replacement parts:
parts:
parts:
parts: When parts need replacing ensure the servicer uses parts
specified by the manufacturer or parts that have the same characteristics as the
original parts. Unauthorized substitutes may result in fire, electric shock, or other
hazards.
4)
4)
4)
4) Safety
Safety
Safety
Safety check:
check:
check:
check: After repairs or service, ask the servicer to perform safety checks
to confirm that the unit is in proper working condition.
3
3
3
3
Page 4
Operating Instructions
WARRANTY
WARRANTY
WARRANTY
WARRANTY
If your product does not work properly because of a defect in material s or workmanship,
our Company (referred to as "the warrantor" ) will, for the length of the period indicated as
below, (Parts(1)Year,
(Parts(1)Year,
(Parts(1)Year,
(Parts(1)Year, Labor(90)
Labor(90)
Labor(90)
Labor(90) Days)
Days)
Days)
Days) which starts with the date of original purchase
("Limited Warranty period"), at its option either(a) repair your product with new or
refurbished parts, or (b) replace it with a new of a refurbished product. The decision to
repair or replace will be made by the warrantor.
During the "Labor" Limited Warranty period there will be no charge for labor.
During the "Parts" warranty period, there will be no charge for parts. You must mail-in your
product during the warranty period. This Limited Warranty is extended only to the original
purchaser and only covers product purchased as new. A purchase receipt or other proof of
original purchase date is required for Limited Warranty service.
M
M
M
M AIL
AIL
AIL
AIL -I
-I
-I
-I N
N
N
N S
S
S
S ERVICE
ERVICE
ERVICE
ERVICE
When shipping the unit carefully pack and send it prepaid, adequately insured and
preferably in the original carton. Include a letter detailing the complaint and provide a day
time phone and/or email address where you can be reached.
LIMITED
LIMITED
LIMITED
LIMITED WARRANTY
WARRANTY
WARRANTY
WARRANTY LIMITS
LIMITS
LIMITS
LIMITS AND
AND
AND
AND EXCLUSIONS
EXCLUSIONS
EXCLUSIONS
EXCLUSIONS
1) This Limited Warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage.
The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment,
or failures which are caused by products not supplied by warrantor, or failures which
result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration,
faulty installation, set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, or service by anyone other
than a Factory Service center or other Authorized Servicer, or damage that is attributable
to acts of God.
2) THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY
COVERAGE". THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OU T OF ANY BREACH
OF THIS WARRNTY. (As example s , this excludes damages for lost time, cost of having
someone remove or re-install an installed unit if applicable,
travel to and from the service, loss of or damage to media or image s , data or other
recorded content. The items listed are not exclusive, but are for illustration only.)
3) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE
YOUR RESPONSIBILITY.
4
4
4
4
