Wintal SW9000 Setup Guide

1

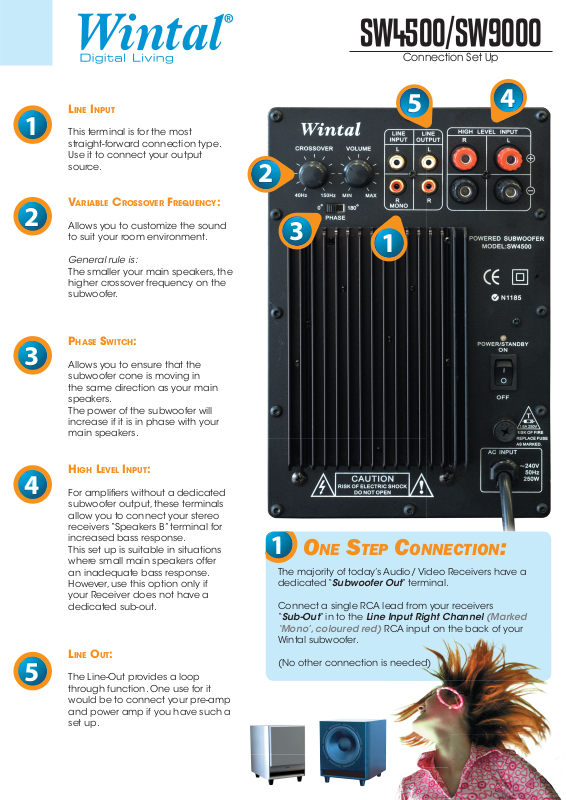

SW4500/SW9000

Connection Set Up

1

2

3

LINE INPUT

This terminal is for the most
straight-forward connection type.
Use it to connect your output
source.

VARIABLE CROSSOVER FREQUENCY:

Allows you to customize the sound
to suit your room environment.

General rule is:

The smaller your main speakers, the
higher crossover frequency on the
subwoofer.

PHASE SWITCH:

Allows you to ensure that the
subwoofer cone is moving in
the same direction as your main
speakers.
The power of the subwoofer will
increase if it is in phase with your
main speakers.

2

3

1

5

4

4

5

HIGH LEVEL INPUT:

For amplifi ers without a dedicated
subwoofer output, these terminals
allow you to connect your stereo
receivers “Speakers B” terminal for
increased bass response.
This set up is suitable in situations
where small main speakers offer
an inadequate bass response.
However, use this option only if
your Receiver does not have a
dedicated sub-out.

LINE OUT:

The Line-Out provides a loop
through function. One use for it
would be to connect your pre-amp
and power amp if you have such a
set up.

ONE STEP CONNECTION:

The majority of today’s Audio/ Video Receivers have a
dedicated “Subwoofer Out” terminal.

Connect a single RCA lead from your receivers
“Sub-Out” in to the Line Input Right Channel (Marked

‘Mono’, coloured red) RCA input on the back of your

Wintal subwoofer.

(No other connection is needed)
