Wintal STB1HD User Manual
Table of Contents
I. General Information........................................................................................... 3
1. Preface............................................................................................................ 3
2. Main Features ................................................................................................. 3
3. For Your Safety ............................................................................................... 4
4. Front Panel...................................................................................................... 4
5. Rear Panel ...................................................................................................... 5
6. Remote Control Unit........................................................................................ 6
II. Connection and Installation............................................................................. 9
1. System Connection ......................................................................................... 9
2. Quick Installation........................................................................................... 10
III. Main Menu ...................................................................................................... 12
1. Installation ..................................................................................................... 12
1.1 Auto Search ............................................................................................. 12
1.2 Manual Search ........................................................................................ 13
1.3 Channel Edit............................................................................................ 13
1.4 Factory Default ........................................................................................ 14
2. Program Guide.............................................................................................. 15
3. Program Manage ..........................................................................................15
3.1 Program Edit ........................................................................................... 15
3.2 Favorite Edit ............................................................................................ 16
1
4. Program Select .............................................................................................17
5. System Setting .............................................................................................. 17
5.1 Common Setup
5.2 Time Zone Adjust.........................................................................................17
5.3 System Information......................................................................................17
6. Shortcut Key Explanation.............................................................................. 18
IV. Technical Specification .................................................................................20
V. Trouble Shooting ............................................................................................ 21
............................................................................................17
2
I. General Information
1. Preface
This High definition television set-top receiver is designed to pick up free-to-air
digital broadcasts. It is fully compliant with the MPEG-2 and DVB-T standards. This
unit can receive digital terrestrial TV signals transmitted at the rate of
3.7~23.8Mb/S on specific frequencies within the VHF or UHF band. The unit also
provides a high quality digital video and audio connection, HDMI.
2. Main Features
Fully DVB-T & MPEG-2 compliant
Digital Reception covers VHF & UHF band
Multi Bandwidth selection: 6M & 7M & 8M
Multi demodulation selection: QPSK,QAM16, QAM64
MPEG-2 HD/SD decoding (MP@HL/ML)
Dolby AC-3 or MPEG-1 audio decoding
Down-mixes 5.1 AC3 to two channels encoded with Dolby Prologic Surround
YPbPr Output: supporting 1080i (high quality video output)
VGA output: supporting 1080i (high quality video output)
HMDI output: supporting 1080i (highest quality output- recommended where
available)
CVBS output: PAL (low quality video output –not recommended)
Conversion between SD programs and HD programs
Teletext (OSD output)
Subtitle (OSD output)
Aspect ratio: 4:3/16:9
Dolby 5.1 channel or PCM digital audio output (Bitstream)
Electronic program guide (EPG)
Software upgrade via RS232
32 bits true color on screen display (OSD)
Channel and Program editor
3
3. For Your Safety
Allow clear space around the receiver for sufficient ventilation
Do not cover the receiver ventilation slots or place it on a unit that emits heat
Use a soft cloth and mild washing solution to clean the case
Do not connect or modify cables when the receiver is plugged in
Do not remove the cover
Do not allow the unit to be exposed to extreme heat, cold or humid conditions
Never allow liquids, spray or other materials to come into contact with the
circuit boards inside.
4. Front Panel
STANDBY: Press to turn the receiver on/off.
CH : Press to adjust the volume when watching a program, or move the cursor left
or right in the menu
4

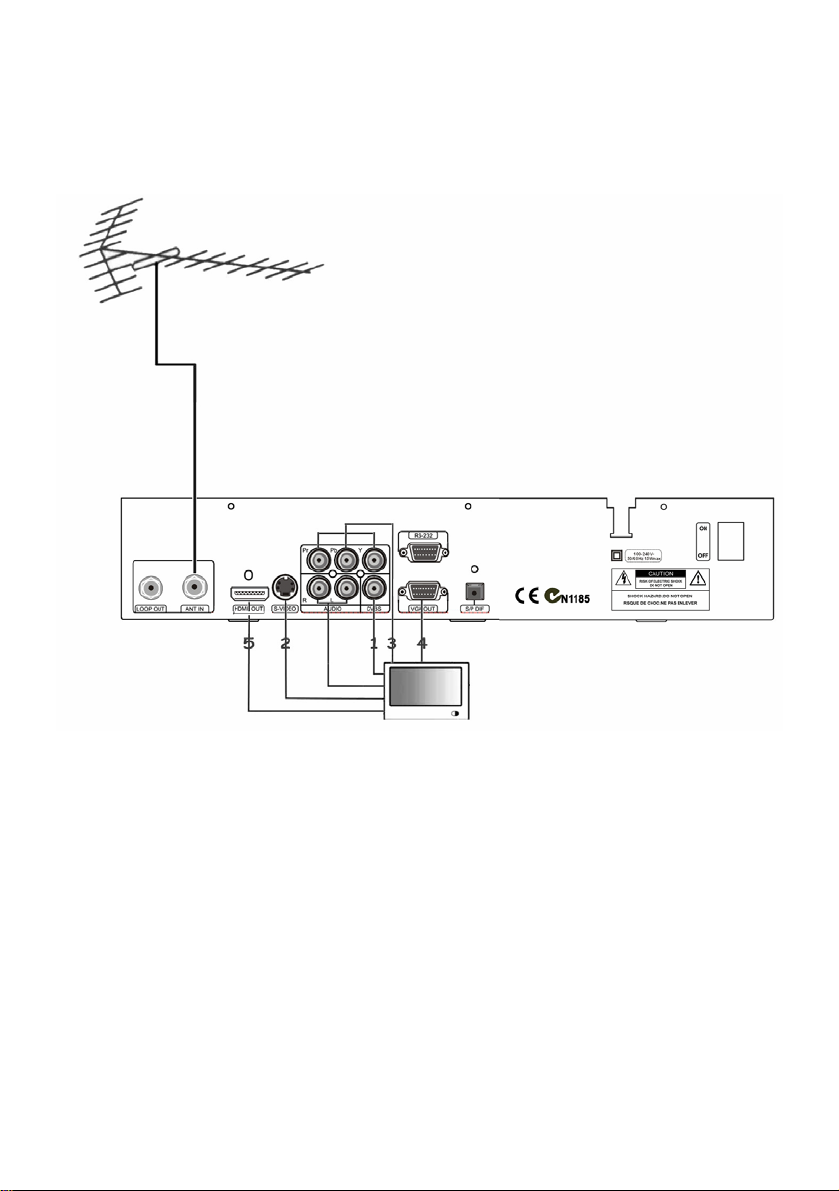

5. Rear Panel
LOOP OUT: RF output to other tuners, such as your TV’s antenna input
ANT IN: Connect to terrestrial antenna
HDMI OUT: HDMI audio/video output, connect to TV (recommended if
available)
S-VIDEO: Standard definition video output, connect to the TV or VCR (low
quality, not recommended unless necessary)
R-AUDIO/L-AUDIO: stereo audio output, connect to TV or audio amplifier
using RCA jack
CVBS: standard definition video output, connect to TV video input (low quality,
not recommended unless necessary)
VGA OUT: VGA video output available in high definition
S/P DIF: Digital audio output for connection to a Hi-Fi system (recommended
where available)
RS232: Connect to a PC for software upgrade
Y Pr Pb Component video output for in high definition signal output
5
6. Remote Control Unit
6
