Wintal PVR10 User Manual

USER MANUAL v1.0

SAFETY INSTRUCTIONS

Read following items carefully before operating this receiver.

INSTALL ATION

▪ This receiver should be installed horizontally. Unbalanced installation may cause damage.
▪ Install the receiver in a place with:

▪ good ventilation (leave space not less than 10cm around this receiver)
▪ no heat source (burning candle, radiator, heater, fireplace, amplifier, etc)
▪ suitable temperature
▪ against humidity (especially bathroom, kitchen, etc)
▪ no direct sunlight
▪ low vibration

MAINTENANCE

▪ Unplug this receiver from wall outlet before changing connections between this unit and other related

equipment.

▪ Don’t unplug or insert signal, audio and video cables when this receiver is turned on.
▪ To avoid the risk of lightning strike, unplug power adapter of the receiver from wall outlet in lightning storm.
▪ Unplug power adapter from wall outlet when the unit is not used for a long time or damaged accidentally.
▪ Turn off this unit first, after 1 to 2 hours turn it on when move this receiver from a cold environment to a hot

environment or vice versa.

▪ To avoid the risk of fire or electric shock, don’t expose this receiver to rain, splashing and don’t put object

with liquid on this unit.

▪ Do not cover vents of this receiver with newspaper, table cloth, curtain, etc.
▪ Don’t put heavy objects on this receiver.
▪ Unplug power adapter of this receiver from wall outlet before cleaning. To reduce damage, clean this unit with

dry cloth. Do not let liquid and spray flow into this device to avoid serious damage.

▪ There is dangerous voltage in product enclosure. Do not remove the cover (or back) to avoid the risk of fire or

electric shock.

POWER SOCKET AND POWER ADAPTER

▪ Power socket should be available near the receiver and well grounded.
▪ Do not insert or pull out power adapter with wet hands to avoid electric shock or fire.
▪ Do not use damaged power adapter. If power adapter is damaged, contact your local operator for

replacement to avoid risk of fire or electric shock.

▪ Do not excessively bend power adapter, and do not place heavy objects on it, which could cause damage,

electric shock or fire.

REMOTE CONTROL BATTERY

▪ Batteries should be installed in accordance with the polarity markings (+/-) on battery compartment.
▪ Remove batteries if you will not be using your remote for an extended period of time.
▪ Replace batteries if there is not enough power and dispose battery waste properly for environmental

protection.

OTHERS

▪ All-pole power switch of this receiver is on rear panel. Switch it to “I” to turn it on. Switch it to “O” to

completely disconnect power to your PVR10HD.

▪ Only use accessories specified by the manufacturer, as other unsupported accessories may cause damage to

the receiver.

2

WINTAL PVR10HD USER MANUAL

SYMBOLS ON THE RECEIVER

PART 1: WARNING MARK

This mark appears on rear panel of this receiver, painted prominently in
contrasting colour to background. It consists of two graphical symbols and
warning messages. The detailed specifications are as follows:

SHOCK H AZARD: DO NOT O PEN

RISQUE D E CHOC: NE PAS ENLEVER

PART 2: OTHER MARKS

This mark appears on front panel of this receiver, painted prominently in contrasting colour to background.

Warning: To reduce the risk of electric shock, don’t remove the cover
(or back). Equipment service and maintenance should be undertaken by
qualified personnel.

This symbol alerts user to the presence of uninsulated “dangerous voltage”
in product enclosure that sufficient magnitude will constitute risk to person.

This symbol reminds user of presence of important operation and
maintenance instructions in literature accompanying this receiver.

DOLBY

Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Please note: As software updates are issued to your PVR10HD, some parts of this manual may not reflect the
complete operation of your unit. Screenshots used may not represent what actually shows on your screen, and
there may be features added that are not mentioned in this manual. We therefore recommend that you check the
Wintal web site www.wintal.com.au in case there might be an updated manual.

3

CONTENTS

1. Before Using YoUr PVr10HD 6

1.1 IN thE Box 6

1.2 MAIN FEAtURE 6

1.3 FRoNt PANEL 6

1.4 REAR PANEL 7

1.5 REMotE CoNtRoL 7

1.5.2 REMOTE CONTROL - GENERAL K EYS 8

1.5.3 REMOTE CONTROL - PVR KE YS 9

1.5.4 REMOTE CONTROL - LEARNING KEYS 10

2. installation 11

2.1 CoNNECtING to YoUR tV 11

2.1.1 TV CONNECTION - HDMI 11

2.1.2 tV CoNNECtIoN - COMPONENT 12

2.1.3 tV CoNNECtIoN - S-VIDEO 13

2.1.4 tV CoNNECtIoN - COMPOSITE AV 14

2.2 Ex tERNAL CoNNECtIoNS 15

2.2.1 EXTERNAL AV IN 15

2.2.2 CONNECTING TO OTHER DEVICES 16

2.3 PowER oN 17

2.4 SEARCh ChANNEL 17

3. Basic oPeration 17

3.1 SwItChING ChANNELS 17

3.2 VoLUME CoNtRoL 17

3.3 ChANNEL INFoRMAtIoN BAR 18

3.4 ChANNEL LISt 18

3.4.1 FAVOURITE CHANNEL LIST 19

3.5 AUdIo SEttING 19

3.6 tELEtExt 19

3.7 CLoSEd CAPtIoNS 20

3.8 PICtURE-IN-PICtURE (PIP) 20

3.8.1 ACTIVATE PIP 20

3.8.2 SHOW/ HIDE PIP WINDOW 20

3.8.3 SWAP PIP WINDOW 20

3.8.4 CHANGE POSITION OF PIP 21

3.8.5 SWITCH PIP MAIN CHA NNEL 21

3.9 USING thE oN-SCREEN kEYBoARd 21

4. Personal ViDeo recorDing (PVr) featUres 22

4.1 BEFoRE YoU BEGIN 22

4.2 SEt StoRAGE dEVICE 22

4.3 PVR SEttINGS 22

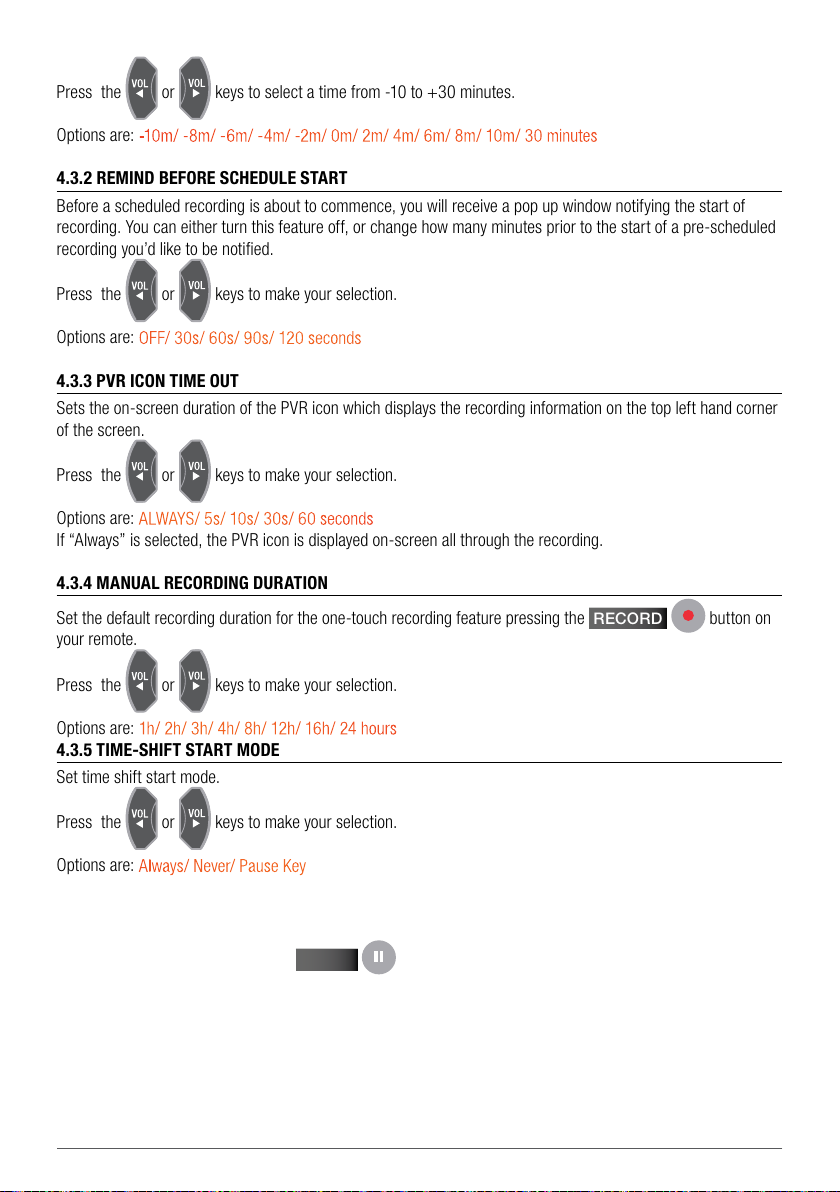

4.3.1 SCHEDULE START/STOP TIME OFFSET 22

4.3.2 REMIND BEFORE SCHEDULE START 23

4.3.3 PVR ICON TIME OU T 23

4.3.4 MANUAL RECORDING DURATION 23

4.3.5 TIME-SHIFT START MODE 23

4.4 QUICk RECoRdING 24

4.4.1 START RECORDING 24

4.4.2 STOP RECORDING 24

4.5 SChEdULE RECoRdING 24

4.5.1 ADD SCHEDULE 24

4.5.2 MODIFY SCHEDULE 25

4

WINTAL PVR10HD USER MANUAL

4.5.3 DELETE SCHEDULE 25

4.6 oPERAtIoN whILE RECoRdING 26

4.6.1 VIEW/ MODIFY RECORDING INFORMATION 26

4.6.2 SWITCHING CHANNELS WHILE RECORDING 27

4.6.3 PLAYBACK CURR ENT PROGR AM 27

4.7 PLAYBACk PRE-RECoRdEd FILES 27

4.7.1 PAUSE 27

4.7.2 REWIND/ FAST FORWARD 27

4.7.3 SLOW FORWARD 28

4.7.4 PLAYBACK PROGRESS BAR 28

4.7.5 SKIP BACK / SKIP FORWARD 28

4.7.6 BOOKMARKS 28

4.7.7 FILE EDITING (FILE CUT) 29

4.7.8 STOP PLAYBACK 29

4.8 FILE oPERAtIoNS 29

4.8.1 DELETE RECORDED FILES 30

4.8.2 GROUP RECORDED FILES 30

4.8.3 RENAME RECORDED FILE 31

4.8.4 LOCK RECORDED FILE 31

4.8.5 COPY FILE 32

4.9 tIME-ShIFt 32

5. UsB PlaYBacK 33

5.1 MP3 PLAYBACk 33

5.2 dIGItAL PhotoS 33

6. storage DeVice ManageMent 34

6.1 FoRMAt StoR AGE dEVICE 34

6.2 UNMoUNt USB dEVICE 35

7. tV gUiDe/ electronic PrograMMe gUiDe (ePg) 36

7.1 VIEw EPG INFoRMAtIoN 36

7.2 SChEdULE VIA EPG 37

8. cHannel searcH 37

8.1 MUx EdIt 37

8.1.1 ADD A TRANSPONDER 37

8.2 AUto SEARCh 38

8.3 MANUAL SEARCh 38

8.4 ChANNEL INFoRMAtIoN 38

9. eDit cHannel 39

9.1 LoCk ChANNEL 39

9.2 MoVE ChANNEL 39

9.3 dELEtE ChANNEL 40

9.4 EdIt FAVoURItES 40

10. settings 41

10.1 GENERAL SEttINGS 41

10.2 ChANGE PASSwoRd 42

10.3 PG LoCk (PARENtAL GUIdANCE) 42

10.4 NEtwoRk SEttINGS 43

10.5 FACtoRY RESEt 43

10.6 SoFtwARE UPdAtE 44

10.7 SYStEM INFoRMAtIoN 44

11. aPPenDix 45

11.1 tRoUBLEShootING 45

11.2 SPECIFICAtIoN 46

5

1. BEFORE USING YOUR PVR10HD

1.1 IN THE BOX

Once you have unpacked your PVR10HD, please ensure that the following has been included:

1. RF Cross over lead Switch between operation and standby modes

2. Composite AV lead Receive infrared remote control signal

3. 12V DC power supply Display status

4. Remote control Open the cover to reveal the front USB port

5. 2x ‘AAA’ batteries Pull down from the right edge to open cover

6. Customer Care info sheet

1.2 MAIN FEATURE

▪ 500GB Personal Video Recorder
▪ Time shift supported
▪ Dolby 5.1 supported
▪ PIP supported
▪ MP3 playing and photo browse
▪ Teletext/Closed Caption supported
▪ EPG supported
▪ Favourite channel groups

1.3 FRONT PANEL

▪ Support automatic and manual search
▪ Powerful channel editing function
▪ Parental control supported
▪ Software upgrade supported
▪ Standby with low power consumption
▪ HDMI output: support 1080p/1080i/720p/576p
▪ S/P DIF audio supported
▪ USB 2.0 interface supported

1 2 3

4 7

Label Function

1. STAND BY Switch between operation and standby modes

2/3. CH-/+ Switch channels or move cursor down/up

4. SENSOR Receive infrared remote control signal

5. DISPL AY Display status

6. FRONT USB Open the cover to reveal the front USB port

7. FRONT COVER Pull down from the right edge to open cover

6

5

6

WINTAL PVR10HD USER MANUAL

1.4 REAR PANEL

1 3 67 11

2 4 8

Label Function

1. ANT IN 1 Connect to your terrestrial antenna

2. LOOP OUT 1 Loop out RF signal to ANT IN 2 using the included cross over RF lead

3. ANT IN 2 Input RF signal from LOOP OUT 1 using the included cross over RF lead

4. LOOP OUT 2 Loop out RF signal to another receiver and/ or VCR

5. ETHERNET Connect to the internet

6-7- 8. Y Pb Pr

9. CVBS

10-11. L-R Stereo Left and Right audio oUtPUt

12. S-VIDEO Y/C (S-VHS) video signal oUtPUt

13-14-15. INPUT 1 Composite Audio/ Video signal INPU t from external source

16-17-18 . INPUT 2

19. USB

20. HDMI

21. S/P DIF (Sony/ Philips Digital Interface) Digital Audio oUtPUt to amplifier/ AV receiver

22. 12V 3.0A DC power supply

23. RS-232 Serial port for firmware upgrades

24. ON/ OFF Power switch

9 13 14 15 16 17 18 23 24

10 12 19 20 21 225

Component video oUtPUt (supports high definition video output)

CVBS (composite) video oUtPUt

Composite Audio/ Video signal INPU t from external source

Rear USB port INPUt for JPG photos, MP3 music

HDMI high definition video oUtPUt

1.5 REMOTE CONTROL

Insert the “AAA” batteries provided before using your remote control. Please make sure you observe the correct
polarity when inserting batteries.

7

1.5.2 REMOTE CONTROL - GENERAL KEYS

Button Label Function

PVR POWER

MUTE Mute/ Unmute audio

AUDIO Displays the AUDIO SELECT window

0 - 9 Switch channels or input numbers

TE XT/ P+ Display Teletext Information/ Page Up

CC/ P- Turn Closed Captions On or Off/ Page Down

RECALL Back to previously viewed channel

INFO Displays the channel information bar

CH Switch channel up/ move cursor up

CH Switch channel down/ move cursor down

Switches the PVR10HD between on and
stand-by

VOL

VOL



OK Displays channel list/ Confirm operation

MENU Display/ Exit from main menu

EPG Displays EPG (Electronic Programme Guide)

FAV Displays the favourites channel list

EXIT Back to previous menu/ Exit from operation

PIP Displays the PIP (Picture-In-Picture) window

P.SWA P Swaps PIP window with main screen

P.MO V E Change position of PIP window

Lower volume/ move cursor left

Increase volume/ move cursor right

8

WINTAL PVR10HD USER MANUAL

1.5.3 REMOTE CONTROL - PVR KEYS

Button Label Function

HDD LIST Displays the recorded file list

FIRST Skip backwards during playback

SET MARK Set a bookmark during playback

PL AY MA RK

END Skip forward during playback

PL AY

PAUSE Pause playback/ Initiate time shift

STOP Stop playback/ Stop recording

RECORD

REW Rewind (2x, 4x, 8x, 16x, 32x speed)

FF Fast Forward (2x, 4x, 8x, 16x, 32x speed)

SLOW Slow motion (1/2x, 1/4x, 1/8x speed)

TIMER
RECORD

Play and jump to next bookmark during
playback

Start playback/ Resume normal playback
speed

Record current program/ Display recording
information

Display schedule list window

Please note: Some keys may behave differently based on current operation and/ or what is displayed on the
screen. If required, please refer to the instructions on-screen to determine what key needs to be pressed to
complete an operation.

9

1.5.4 REMOTE CONTROL - LEARNING KEYS

The PVR10HD’s remote control has learning keys located on the
top left corner. These keys (except for the SET key) can be used to
memorize corresponding keys from an existing remote, such as your
TV or AV receiver.

With this feature you could easily turn your TV on and off, and adjust
the volume of your AV receiver using the PVR10HD’s remote control
without having to touch the remote for your TV or AV receiver.

Instructions on how to pair your PVR10HD remote with your
existing TV remote:

Please note: The basic principle outlined in the following instructions apply to other
devices as well.

1. Press and hold the SET key on the PVR10HD remote for a few

2. Press one of the four learning keys (such as TV POWER key).

TV

REMOTE

3. Aim your existing TV remote control at the “receiving window”

4. Repeat steps 2 and 3 to set other learning keys C1 (Custom

5. Once you’ve completed your set up press the SET key to exit.

seconds until the T V POWER button lights up bright red.

The red led indicator will be flashing rapidly.

of the PVR10HD remote, and press the corresponding key
on your TV remote (such as TV POWER key) to learn. The
indicator status changes from flashing to always bright, which
means the learning process has completed successfully.

1), C2 (Custom 2) and TV/AV in the same way.

10

Learning

Eye

TV POWER

MUTE AUDIO

C1 C2

TV/AV QZ-

ABC

1 2 3

SET

GHI

JKL MNO

4 5 6

TEXT

PRS TUV WXY

P+

7 8

CC RECALL INFO

P-

0

CH

OK

CH

MENU

EPG

FAV

P.SWAP P.MOVEPIP

HDD

LIST

PLAY MARK ENDSET MARKFIRST

STOP RECORDPAUSEPLAY

SLOW TIMER

FFREW

PVR10HD

REMOTE

POWER

VOLVOL

EXIT

RECORD

PVR

DEF

9

5cm

distance

If the operation fails, please repeat the steps above and try again.

Notes:

▪ During the pairing process, put the two remote controls on the

same horizontal surface and ensure there is a 5cm or less space
between the two remotes.

▪ If there is no activity for 15 seconds, your PVR10HD remote will

automatically exit from learning mode

▪ Some TV remotes may not support this function.

WINTAL PVR10HD USER MANUAL

2. INSTALLATION

Power Supply

Before you turn on your PVR10HD, please connect your TV and other devices first.

If you wish to watch and record two channels simultaneously you will need to make sure that you have
connected the LOOP OUT 1 output with the ANT IN 2 input using the supplied cross over RF cable!

2.1 CONNECTING TO YOUR TV

There are four ways to connect the PVR10HD to your TV.

2.1.1 tV CoNNECtIoN - HDMI

HDMI offers the best quality connection between your TV and PVR using a single digital cable to transmit audio
and video.

Use cross over

RF cable to

connect Loop Out

1 and ANT IN 2

RF CABLE

HDMI CABLE

▪ Use an RF cable to connect the TV antenna to the AN t IN 1 input on the PVR10HD.
▪ Using an HDMI lead, connect one end to the hdMI output on the PVR10HD and the other end to the HDMI

input on your TV.

▪ Switch to the HDMI source on your T V (refer to your TV manual if needed)

11

2.1.2 tV CoNNECtIoN - COMPONENT

RF CABLE

Power Supply

YPbPr CABLE

COMPONENT INPUT AUDIO

RCA CABLE

▪ Use an RF cable to connect the TV antenna to the AN t IN 1 input on the PVR10HD.
▪ Using a 3x RCA component lead, connect the green Y , the blue Pb and the red Pr connectors to the

corresponding ports on your PVR10HD and TV.

▪ For audio, using a 2x RCA lead, connect the left channel audio (WHITE) and the right channel audio (RED)

connectors to the L and R ports on your PVR10HD (next to the Y Pb Pr output ports) and the other end to
the corresponding ports on your T V.

▪ Switch to the Component source on your T V (refer to your TV manual if needed)

12

WINTAL PVR10HD USER MANUAL

2.1.3 tV CoNNECtIoN - S-VIDEO

RF CABLE

Power Supply

RCA CABLE

AUDIO S-VIDEO

S-VIDEO CABLE

▪ Use an RF cable to connect the TV antenna to the AN t IN 1 input on the PVR10HD.
▪ Using an S-VIDEO (S-VHS) lead, connect one end to the S-VIDEO output on your PVR10HD and the other

end to the S-VIDEO input on your TV.

▪ For audio, using a 2x RCA lead, connect the left channel audio (WHITE) and the right channel audio (RED)

connectors to the L and R ports on your PVR10HD (next to the Y Pb Pr output ports) and the other end to
the corresponding ports on your T V.

▪ Switch to the S-VIDEO (sometimes called S-VHS, YuV) source on your TV (refer to your T V manual if needed)

13

2.1.4 tV CoNNECtIoN - COMPOSITE AV

Use the included AV lead to make a connection between your TV and the PVR10HD.

Power Supply

RF CABLE

RCA CABLE

AV INPUT

▪ Use an RF cable to connect the TV antenna to the AN t IN 1 input on the PVR10HD.
▪ For video, connect the yellow end of the Composite AV lead to the CVBS input on the back of your PVR10HD

and to the VIDEO input on your TV.

▪ For audio, connect the left channel audio (WHITE) and the right channel audio (RED) connectors to the L and

ports on your PVR10HD ( just below the CVBS output) and the other end to the corresponding ports on your

R

TV.

▪ Switch to the VIDEO (sometimes called VIDEO 1, CVBS) source on your TV (refer to your TV manual if

needed)

14

WINTAL PVR10HD USER MANUAL

2.2 EXTERNAL CONNECTIONS

2.2.1 EXTERNAL AV IN

Your PVR10HD features two rear AV inputs that allow you to hook up any external AV source such as, another set
top box, DVD player, Blu-ray player etc.
You can view your external video sources directly from the channel list and choose to record to the internal hard
drive or an external hard drive attached via USB.
See the following diagram for connection options.

Power Supply

AV OUTPUT

RCA CABLE

AV INPUT

RCA CABLE

15

2.2.2 CONNECTING TO OTHER DEVICES

Your PVR10HD is able to connect to a variety of devices.

CABLE

NETWORK

Power Supply

RCA CABLE

RF CABLE

HDMI CABLE

S/P DIFF
CABLE

Please note:

Ethernet Port

The ethernet port located on your PVR10HD will allow it to receive MHEG-5 broadcasts once it becomes
available in Australia. We have included this to make your PVR10HD as future proof as possible.
MHEG-5 provides interactive/hybrid services beyond broadcast TV and also allows for EPG data to be
transmitted via the internet.

USB Port

The PVR10HD accepts USB flash drives, 2.5” portable HDDs, 3.5” HDDs as well as card readers connected via
the front and/ or rear USB ports. Refer to section 5. “USB Playback” on page 33 for more information.
If you are having problems with connecting USB devices, please ensure that your drives are formatted as FAT32.
Your PVR10HD can playback JPG photos and MP3 audio via USB, and can also record to your USB devices.

16

WINTAL PVR10HD USER MANUAL

2.3 POWER ON

Once you have completed all required connections, you may power on your PVR10HD.

▪ Connect one end of the power supply to the 12V 3A input on the PVR10HD
▪ Connect the other end of the power supply to the wall outlet
▪ Turn on your TV and switch it to the mode you have connected your PVR10HD to (ie. HDMI)
▪ Turn on your PVR10HD and wait for the system to initialise.

Make sure the PVR10H D is switched on at the back.

Note:

2.4 SEARCH CHANNEL

Once system initialization is complete, you should perform a channel search, if there is no channel stored in the
receiver. For more information on searching, please refer to section 8. “Channel Search” on page 37.

If there are pre-stored channels on your PVR10HD it will be displayed automatically with the channel number and
if available, channel name displayed on the front panel.

3. BASIC OPERATION

This section explains the basic operation and various features of your PVR10HD.

3.1 SWITCHING CHANNELS

There are a number of ways to switch channels:

▪ Channel Up and Channel Down

Using the channel up
the PVR10HD remote

▪ Numeric keypad

Directly entering the channel number on the remote using the number keys

▪ Channel List

Selecting a channel via the Channel list (press the OK button on your remote)
See section 3.4 for more information.

▪ Favourites List

Select a channel via the Favourite Channels list.
If you have pre-selected favourite channels, press the FAV key and press OK after having made a selection
with the
See section 3.4 for more information on how to set up favourite channels.

3.2 VOLUME CONTROL

Press the volume down

and keys.

or volume up keys to change the volume.

and channel down buttons on

17

3.3 CHANNEL INFORMATION BAR

The Channel Information bar displays basic and extended information on the currently watched program.

▪ Press the Info key once to display the current channel information
▪ Press the info key twice to display current program information

Note: Switching channels will also bring up the channel information bar.

[Channel Information Bar]

1

Detailed information of current program

2

Channel number and name

3

Current and next program information

4

Current audio mode

5

Audio decoding standard

6

Current time

7

Standard/ High Definition mode icon

3.4 CHANNEL LIST

The Channel list window allows you to quickly and easily browse the available channels. It also allows you to set
your favourite channels.

▪ Press the OK key on your remote to

bring up the channel list.

▪ Use or to switch between

different list types (Channel list/ Favourites)

▪ Use the and buttons to

select individual channels

▪ Press the P+ and P- buttons to page up or page down

▪ Press the key to confirm your selection

18

WINTAL PVR10HD USER MANUAL

3.4.1 FAVOURITE CHANNEL LIST

The favourites menu feature allows you to easily access your favourite and frequently watched channels. Press

FAV key on your remote to bring up the favourites list.

the

To add or remote channels from your favourite list:

▪ Press the to bring up the channel list
▪ Locate the channel you want to add to favourites using the and buttons
▪ Press the FAV key

You can confirm the operation if a heart has appeared next to the channel name.

Follow the above steps if you would like to remove a channel from your favourites list.

3.5 AUDIO SETTING

1. Press AUDIO

key to display audio

selection dialogue

2. Press the

and keys to

select an audio language and press key
to confirm

3. Press

or to select left, right or

stereo mode

4. Press the

Note: The currently streaming program must contain multiple audio tracks to be able to change the audio language.

EXIT key to save and exit

3.6 TELETEXT

Teletext works as an electronic newspaper in which you can browse multiple pages of information, such as
news, traffic, stock, weather, etc.

TEXT key to display Teletext

1. Press

information.

2. The first page shows the index. Browse

to your desired page by entering its page
number using the numeric keypad on your
remote. In the example on the right, keying
300 on your remote will take you to the
WE ATHE R page.

3. Press the

EXIT key to hide the Teletext

information.

Note: This function needs your local operator support.

19

3.7 CLOSED CAPTIONS

Closed Captions is an option to display text that provides additional or interpretive information no the currently
streaming program.
If you have set closed captions to “On” under General Setup, you can press the

CC key on your remote to turn

closed captions on or off.

Note: This function needs your local operator support.

3.8 PICTURE-IN-PICTURE (PIP)

PIP allows the display of two channels simultaneously. It is a useful feature where you may want to visually see
whether a program has returned from an ad break, or if you want to keep an eye out on a sports game while
watching another show.

3.8.1 ACTIVATE PIP

Before you can use the PIP function you must enable it in the settings.

MEnu  SEttING S  GENERAL SEttINGS and press the key to enter.

Select

1. Highlight “PIP” and press the

key to pop

up a drop-down list.

2. Select “On” and press the

key to

confirm.

3. Press the

EXIT key and a message box

pops up for confirmation.

4. Select “OK” and press the

key to
confirm, and a reboot prompt pops up on­screen.

5. Select “OK” and press key to reboot or

select “EXIT” and press OK key to cancel the operation.

Notes:

▪ This function is unavailable when cer tain screens are activated on the PV R10HD, such as the channel list screen, detailed information

window, etc. Just exit out to the main screen and try again.

▪ You can also press PIP key and activate PIP function when not in any menus.
▪ After making a change, please ensure you reboot the unit to have the PIP On or Of f settings take effect.

IM PORTA N T: PIP is not supported through Composite AV (CVBS) and S-VI DEO. Please make sure you connect via Component

or HDMI if you wish to use this feature.
If you have previously enabled PIP and connect your PVR10H D via composite or s-video, there will be no video output. If this is the
case, connect the receiver to a HDT V via YPbPr or HD MI and disable PIP following the instructions above.

3.8.2 SHOW/ HIDE PIP WINDOW

Press the

PIP key on your PVR10HD remote to show or hide the PIP window.

3.8.3 SWAP PIP WINDOW

Press the

P. S WA P key to switch the main window with the PIP window and vice versa.

20

WINTAL PVR10HD USER MANUAL

3.8.4 CHANGE POSITION OF PIP

Each time you press the

3.8.5 SWITCH PIP MAIN CHANNEL

Follow the instructions to change the main channel while PIP is active.

P.MOVE key, the PIP window changes position.

1. Press the

2. Use the

3. Press the again to confirm.

3.9 USING THE ON-SCREEN KEYBOARD

Your PVR10HD features an on-screen keyboard
that you will wish to use from time to time when
renaming files, groups etc.

Use the following guide to familiarise yourself
with the keyboard.

1. To select characters, use the directional keys

on your remote

2. Press the key to input the selected characters

3. CLEAR: Will clear the input field completely allowing you to start over.
CAPS ON/ OFF: Toggles between capital and lowercase letters.
BACK: Backspace key to delete the last character
OK: Confirm keyboard entry
CANCEL: Cancel name change

to display the channel list window.

and keys to select a channel

To enter a space, highlight the blank box and press .

21

4. PERSONAL VIDEO RECORDING (PVR) FEATURES

You can record programs on to the integrated hard drive or to an attached USB device. Your PVR10HD provides
a number of handy PVR functions such as one-touch quick recording, schedule recording, time shift and more.

4.1 BEFORE YOU BEGIN

▪ Radio programs cannot be recorded.
▪ For ideal performance, the capacity of the attached USB device should not be less than 8GB and should be

high speed USB2.0 or greater.

▪ If space on your storage device is insufficient, recording will stop automatically.
▪ Do not unplug the USB device while a recording is in place.
▪ Make sure you “Unmount USB” before unplugging your USB drive from the PVR10HD. For detailed

instructions please refer to 6.2 “Unmount USB Device” on page 35.

4.2 SET STORAGE DEVICE

Select the storage device to store your recordings.

Press the
 StoR AGE dEVICE and press key to enter.

Note:

You can also select

key to confirm.

4.3 PVR SETTINGS

If you don’t set any recording options, your
PVR10HD will record based on default settings.

To customize the recording settings, select

MEnu  PVR  PVR SEttING and press

key to enter.

4.3.1 SCHEDULE START/STOP TIME OFFSET

This feature allows you to decrease or increase
the start time of scheduled recordings. This
allows you to compensate for programs not starting at their pre-announced time.
For example, if scheduled start time for a particular show is “13:00” and the Schedule Start Time Offset has
been set to “-4 Min”, the recording will begin at 12:56.

MEnu key and navigate to SEt tIN GS

1. Press the
select a storage device.

2. Press the
list.

3. Select dEFA ULt StoR AGE and press the
key to confirm.

4. Press the EXIT key to save and exit.

and keys to

key to pop up a drop-down

MEnu  PVR  StoRAGE dEVICE and press the key to enter. Select a storage device and press the

22

WINTAL PVR10HD USER MANUAL

Press the or keys to select a time from -10 to +30 minutes.

Options are: -10m/ -8m/ -6m/ -4m/ -2m/ 0m/ 2m/ 4m/ 6m/ 8m/ 10m/ 30 minutes

4.3.2 REMIND BEFORE SCHEDULE START

Before a scheduled recording is about to commence, you will receive a pop up window notifying the start of
recording. You can either turn this feature off, or change how many minutes prior to the start of a pre-scheduled
recording you’d like to be notified.

Press the

Options are: OFF/ 30s/ 60s/ 90s/ 120 seconds

4.3.3 PVR ICON TIME OUT

Sets the on-screen duration of the PVR icon which displays the recording information on the top left hand corner
of the screen.

Press the

Options are: ALWAYS/ 5s/ 10s/ 30s/ 60 seconds
If “Always” is selected, the PVR icon is displayed on-screen all through the recording.

4.3.4 MANUAL RECORDING DURATION

Set the default recording duration for the one-touch recording feature pressing the
your remote.

Press the

Options are: 1h/ 2h/ 3h/ 4h/ 8h/ 12h/ 16h/ 24 hours

4.3.5 TIME-SHIFT START MODE

Set time shift start mode.

Press the

Options are: Always/ Never/ Pause Key

or keys to make your selection.

or keys to make your selection.

rECOrd button on

or keys to make your selection.

or keys to make your selection.

Always: Time Shift is always on. When you start watching a channel, the PVR10HD will automatically begin
recording in the background.

Pause Key: Start time shift with the
current program and start time-shift recording in the background.

Never: Disable time shift.

Note:

For detailed operations about time shift, please refer to section 4.9 “Time-Shift” on page 32.

PAuS E key. While watching live tv, this option will pause the

23

4.4 QUICK RECORDING

If you want to record current program instantly, you can use this function.

4.4.1 START RECORDING

When watching program, press the

rECOrd key to start recording. is displayed in top left corner

of screen indicating that a recording has begun.
To record a program from another channel, switch to your desired channel while a current recording is in
progress and press the rECOrd key again.

4.4.2 STOP RECORDING

After pressing the

STOP key when

recording, a list of currently ongoing recordings
will appear on-screen.

Select a recording and press the key to
stop.

Note: If you are playing back a pre-recorded program while

recording, pressing the STOP key will stop playback. To stop

recording, press the STOP key again.

4.5 SCHEDULE RECORDING

You can schedule to record future programs and at the set date and time, your PVR10HD will start recording
automatically. You can modify schedules and delete unwanted schedules.

To view and edit your scheduled recording list, select

Alternatively, you can press the

TIMEr rECOrd key to access the scheduled recording list when

MEnu  PVR  SC hEdU LE LISt and press key.

there’s no menu item on the screen.

Note: You can schedule recordings directly in the EPG ( Electronic Programme Guide) window. For detailed operations, please refer to section

7.2 “Schedule via E PG” on page 37.

4.5.1 ADD SCHEDULE

1. Once in the

key directly to display add schedule

window.

Note: If there is an existing schedule stored on your

PVR10HD, press

select Add and press

window.

24

SChE dULE L ISt menu, press the

to bring up a drop-down list,

to display the add schedule

WINTAL PVR10HD USER MANUAL

2. Set schedule parameters as follows:

Schedule Type: Press the

keys to select REC or PL AY .

Start Time: Press the nuMbEr kE yS to
set your schedule start date and time, or

press
Set your desired schedule start date and time
according to screen information.

End Time: Press nuMbEr kEyS to input end time.

Schedule Mode: Press

Channel Name: Press

press key to confirm.

3. Move cursor to ok and press to save the new schedule.

4.5.2 MODIFY SCHEDULE

1. To modify an existing scheduled recording, make sure you are in the

to display the calendar window.

to pop up the weekly window. Select one or more days with the and keys and press

to confirm. Highlight ok and press the key one last time to save and exit.

and keys to select the scheduled item you wish to modify.

or

or keys to select oNCE , dAILY or wEEkLY . If “Weekly” is selected, press

to display channel list, select a channel with the and keys and

SChE dULE L ISt menu and use the

2. Press the
menu.

3. Refer to the previous section on how to adjust the scheduled recording.

4.5.3 DELETE SCHEDULE

1. To delete an existing scheduled recording,

make sure you are in the
menu and use the
keys to select the scheduled item you wish
to delete.

2. Press the
which you can choose

to confirm and you will notice a red cross
indicating that the item has been marked for deletion.

If you would like to undo at this point, just press on the same item and choose CANCEL dEL .

key to bring up a menu from which you can choose ModIFY . Press again to enter the edit

SChE dULE L ISt

and

key to bring up a menu from

dELEtE . Press

25

3. To confirm your choices, press the E XIT key choose ok when prompted to delete the items that have been
flagged.

Note: You can also choose to Delete All which will flag all the items in your scheduled list for deletion.

4.6 OPERATION WHILE RECORDING

4.6.1 VIEW/ MODIFY RECORDING INFORMATION

While recording a program, you can view recording information, rename files and modify recording duration if
needed.

MEnu  PVR  RECoRdING INFo and press the key.

Select

Alternatively, if you are watching the program
that is currently being recorded, you can bring up
the Record Info screen by pressing the

rECOrd key.

The following explains the different options:

Index: Press

(Recording 1) or R2 (Recording 2) if active.

Mode: Displays the recording mode (Schedule or Quick; indicating whether it’s a pre-scheduled recording or a
one-touch recording).

Channel Name: Displays the channel name that is currently being recorded.

File Name: You can rename the file if needed. Press

as desired. For detailed instructions on how to use the on-screen keyboard, please refer to section 3.9 “Using
the On-screen Keyboard” on page 21.

Valid Record Time: Displays the valid record time. Valid recording dismisses signal lost and will display the
actual duration of successful recording.

Past Time: Displays how long the recording has been going for.

Duration: Press the

adjust the time in big jumps.

Pause: Select “Pause” and press

OK: Select “OK” and press to confirm your changes.

Cancel: Select “Cancel” and press key to cancel your changes.

or to select R1

to pop up the on-screen keyboard and rename the file

or key to adjust the recording duration in minutes. Press and hold the keys to

to pause recording. Select “Resume” to continue the recording.

26

WINTAL PVR10HD USER MANUAL

4.6.2 SWITCHING CHANNELS WHILE RECORDING

Because your PVR10HD has twin tuners, you are able to record two channels from two separate transponders
(such as Channel 9 and Channel 10). At the same time, you are also able to watch a third sub-channel for
Channel 9 or Channel 10 live.

For example, if you are recording Channel 9, and Channel 10 simultaneously, then you are able to watch a third
sub-channel from either the Channel 9 transponder, or the Channel 10 transponder (ie. you can watch ONEHD or
Channel 9’s GO! channel) but not SBS or channel 7 etc.

To see which channels you are able to switch to while two simultaneous recordings are going on, with nothing
displayed on the screen, press the

Filtered List which in the above example would display the sub-channels for 9 and 10 only.
If you attempt to switch to another channel from a third transponder, you will see a This operation is not available
message.

Note: You must stop at least one recording if you wish to watch another channel from a different transponder.

4.6.3 PLAYBACK CURRENT PROGRAM

You can start playing back the current program during recording. For detailed operations, please refer to section

4.9 “Time-Shift” on page 32.

4.7 PLAYBACK PRE-RECORDED FILES

To playback a pre-recorded file located on your
hard drive, press

press .

MEnu  REC FIL ES and

button to bring up the channel list. You will automatically be shown the

Alternatively, with no menu or dialogue box

showing on-screen, press the
your remote.

This brings up the Recorded Files list where you
can browse and select pre-recorded files from
the internal HDD or external USB drives. If present, you can also playback the currently recording files which are
indicated in red text. To playback a file:

1. Press the

2. Press to bring up a pop-up dialogue

3. Select PL AY and press to start playback.

Here are your options during playback;

4.7.1 PAU S E

To pause playback, press the

4.7.2 REWIND/ FAST FORWARD

To rewind playback use the

and keys to choose your file.

key on

PAuS E key. To resume playback press the P L Ay key.

rEW key // to fast forward playback use the FF key

27

Speed settings are: x2 - x4 - x8 - x16 - x32

Resume normal playback with the

4.7.3 SLOW FORWARD

Press the

Resume normal playback with the

4.7.4 PLAYBACK PROGRESS BAR

If you press the
bar.

1. File Name

2. Current progress (hh:mm:ss)

3. Operation help info

4.7.5 SKIP BACK/ SKIP FORWARD

This feature allows you to easily skip through a long recording in a very short amount of time.

SLOW key to activate slow motion. Speed settings are: x1/2 - x1/4 - x1/8

PL Ay key or the InFO key during playback, you can bring up the playback progress

PL Ay key.

PL Ay key.

4. Time bar

5. Total playback time

1. Press the INFO key to display the progress bar

2. Press the

Note: You can also skip back or forward in one minute intervals using the

4.7.6 BOOKMARKS

You can jump to a position directly by bookmark
function while playing back a pre-recorded file.

This feature allows you to easily tag important
bits of a recording or resume playback from a
previous viewing.

Add Bookmark

1. During playback, press the

display the progress bar.

FIrST or End key to skip back or forward in playback.

InFO key to

28

or keys during playback.

WINTAL PVR10HD USER MANUAL

2. Press the green SET M Ark key to add a bookmark at this point.

Note: You can set up to 20 bookmarks per recorded file.

Go to Bookmark

1. During playback, press the

2. Press the yellow

PLAy MArk key to jump to the next bookmark on the progress bar. Press the

PLAY MARK key again to jump through the available bookmarks (identified by the

InFO key to display the progress bar.

icon).

Delete Bookmark

1. During playback, press the

2. Press the

3. Press the green

PLAy MArk key to jump to the desired bookmark.

SET MArk key to remove the bookmark.

InFO key to display the progress bar.

4.7.7 FILE EDITING (FILE CUT)

You can cut out certain parts of your pre-recorded files. This is an ideal solution to get rid of ads, or to cut out
unwanted sections in a recording.

1. During playback, press the

2. Press

to enter file cut mode.

3. Mark a start point by pressing the

MArk key.

4. Press

5. Select

to complete the operation. A message box pops up for confirmation.

ok and press the key to confirm or select C ANCEL and press the key to cancel.

InFO key to display the progress bar.

SET MArk key and mark your end point by pressing the PL Ay

4.7.8 STOP PLAYBACK

To manually stop playback press the

STOP key.

4.8 FILE OPERATIONS

You can perform various operations on pre-recorded files such as

▪ Play
▪ Copy

▪ Delete
▪ Lock

▪ Group
▪ Rename

To bring up the file operation menu, first enter the RECoRdEd FILES list by pressing MEnu  REC FILES and

press

. Alternatively press the key on your remote.

29

4.8.1 DELETE RECORDED FILES

1. In the recorded files list use the

and

keys to choose your file.

2. Press

3. Select

to bring up a pop-up dialogue box

dELEtE and press

4. You will notice a red cross indicating that

the item has been marked for deletion.

If you would like to undo at this point, just

press

CANCEL dEL .

5. To confirm your choices, press the

on the same item and choose

EXIT key choose ok when prompted to delete the items that have been

flagged.

4.8.2 GROUP RECORDED FILES

The group feature allows you to easily categorize
your recordings and is ideal, for example, when
you’d like to put a particular TV show under its
own listing.

Once you have set up your groups, it will appear
on the left hand column in the Recorded Files
list.

Create a Group

Before you can use the group feature you will have to create a group.

1. In the recorded files list use the

2. Press

3. Select

to bring up a pop-up dialogue box

GRoUPMGR from the list and press

and keys to choose your file.

4. Press the green SET M Ark key to create a new group

5. Give your new group a name by using the on-screen keyboard (refer to section 3.9 “Using the On-screen

Keyboard” on page 21 for more information on using the keyboard)

6. When done, highlight OK on the on-screen keyboard and press

to confirm the operation

7. You will see your newly created group in the Group Edit window

8. Follow steps 4-7 to add more groups otherwise, if you want to add to the group you just created, make sure

the group is highlighted on the screen and press

9. The icon next to your group name will change from

A single recording can belong to multiple groups. Just select your desired group(s) and press to add or remove it.

Note:

.

to indicating that your file has been added.

Add to a Group

Follow steps 8 and 9 to add a file to an existing group

30

WINTAL PVR10HD USER MANUAL

Delete a Group

With the Group Edit window on-screen, press the

key to delete a group. Select

FIrST

ok on the warning dialogue box and press

to confirm your operation.

Rename a Group

Choose the group you wish to rename in the
Group Edit window and press the

PLAy MArk

key to bring up the on-screen keyboard. Refer to the instructions in section 3.9 “Using the On-screen

Keyboard” on page 21 for more information on how to use the on-screen keyboard.

When done renaming, highlight ok on the on-screen keyboard and press to confirm the operation.

4.8.3 RENAME RECORDED FILE

1. In the recorded files list use the

and

keys to choose your file.

2. Press

3. Select

to bring up a pop-up dialogue box.

RENAME and press to bring up

the on-screen keyboard.
Refer to the instructions in section 3.9 “Using
the On-screen Keyboard” on page 21 for
more information on how to use the on­screen keyboard.

4. When done renaming, highlight

There is a 15 character limit (including spaces) on names you can enter in the input field. Your PV R10HD will automatically accept file

Note:

names longer than 15 characters if the original recorded show name exceeds this limit, but you will not able to add to this.

ok on the on-screen keyboard and press to confirm the operation.

4.8.4 LOCK RECORDED FILE

Locking a file will prevent accidentally deleting a
recording that wasn’t intended to be deleted.
It will also prevent local playback unless the user
enters the local password (The default password

is

0000).

It’s an ideal solution to make sure you don’t lose
any recordings you wish to keep and protect
children from inappropriate content.

31

To lock a recorded file:

1. In the recorded files list use the

2. Press

3. Select

4. You will notice a lock symbol

just press on the same item and choose lock again. You will be prompted to enter the local password.

5. Press the EXIT key to save and exit.

4.8.5 COPY FILE

You can copy files between the internal hard
drive and attached USB storage devices as
well as between two USB storage devices
connected to the front and rear USB ports of your
PVR10HD.

1. In the recorded files list use the

2. Press

3. Select CoPY FILE and press

4. Choose the available copy destination from the list

5. Select

4.9 TIME-SHIFT

Your PVR10HD features a very handy time-shift function. And depending on your settings, time-shift records in
the background and allows you to pause and rewind live TV. The internal hard drive allocates space for up to an
hour of continuous time-shift recording.

Note:

By default, your PVR10HD has been set to “ALWAYS” record in the background. This lets you pause/play, rewind
and fast forward (pre-recorded) live TV. In summary, time-shift allows you to treat live TV as a pre-recorded file.
For detailed information on how to control playback, please refer to section 4.7 “Playback Pre-Recorded Files”
on page 27.
You can also press the InFO key to display the time-shift progress bar. It displays current channel information
and playback progress.

to bring up a pop-up dialogue box.

LoCk and press

keys to choose your file.

to bring up a pop-up dialogue box.

ok to confirm or select CANCEL and press the key to cancel the copy operation.

For time-shift set tings, please refer to section 4.3.5 “ Time-shift Start Mode” on page 23.

and keys to choose your file.

indicating that the file has been marked for locking. If you would like to undo

and

1. Channel Name

2. Total time (hh:mm:ss)

3. Operation help info

To stop playback of the time-shift recording and resume live TV, just press the STOP key.

32

4. Time bar

5. Playback progress

WINTAL PVR10HD USER MANUAL

5. USB PLAYBACK

Your PVR10HD is able to playback MP3 audio files and JPG photos from attached USB devices.

Notes:

▪ Your USB device should be connected to your PVR10HD before operation
▪ Do not abruptly unplug your USB device during playback!

▪ You should unmount your USB device before unplugging it from the PVR10HD. Please refer to section 6.2 “Unmount USB”

5.1 MP3 PLAYBACK

Insert a USB drive that contains MP3 audio files

to either the front or rear USB port.

MEnu  MULtIMEdIA  MP3 and

Select

press the

key.

1. Use the

and keys to

choose your file.

2. Press

pause and resume playback using the

to start music playback. You can

key.

Notes:

▪ Press the FAV key to switch between SINGLE PLAY | SEQUENCE PL AY | RA NdoM PLAY

▪ SINGLE PLAY: Repeats the currently playing song
▪ SEQUENCE PL AY: Plays the songs in listed order
▪ RANdoM PLAY: Plays songs in random order

▪ Use the or keys to adjust the playback volume.

5.2 DIGITAL PHOTOS

Insert a USB drive that contains photos to either

the front or rear USB port.

MEnu  MULtIMEdIA  dIGItAL Photo

Select

and press the

key.

1. Use the directional keys to select a thumbnail

2. Press to display the selected photo in full screen

3. Press the

or keys to skip to the previous or next photo

33

4. Press the key to bring up the SLIdEShow and ExIt menu.

SLIdEShow highlighted press to begin the slideshow.

With

ExI t and press to exit full screen mode and return to thumbnail view. Alternatively, press the

Highlight

EXIT key on your remote.

6. STORAGE DEVICE MANAGEMENT

6.1 FORMAT STORAGE DEVICE

IM PORTA N T: Formatting your storage device will result in deleting all files.

Please take care when choosing this option and make sure you back up any important data. Please refer to section 4.8.5 “COPY
FILES” on how to copy and back up files between from the internal hard drive to an external HDD.

Select MEnu  PVR  FoRMAt and press the key.

StoR AGE dEVICE highlighted press or the key to pop up a drop-down list of available storage

1. With

devices that can be formatted.

2. Use the

and keys to select the storage device you wish to format and press

3. Use to key to highlight ok and press to get to the password prompt.

4. Enter the local password (default password is 0000) to confirm.

Alternatively, you can also select

SEt UP  StoRAGE dEVICE and press the

MEnu 

key.

1. Enter the local password (default password is

0000) to confirm.

2. Use the

and keys to select

the storage device you wish to format and

press

3. Select FoRMAt and press , a warning box pops up for confirmation.

4. With ok highlighted press to complete the format operation. There will not password confirmation once

you press as you’ve already entered the password to enter this screen in the first place.

Note: In this screen you can verify free and used space for your storage device.

34

WINTAL PVR10HD USER MANUAL

6.2 UNMOUNT USB DEVICE

IM PORTA N T: Always make sure you unmount your USB device before unplugging it!

Failure to do so may result in cor rupt data, damage your USB device, or cause your PVR10HD to behave abnormally.

Select MEnu  PVR  UNMoUNt USB and press the key.

1. The right hand column lists your currently attached USB devices. If you have more than one USB device

attached, use the

key to bring up a pop-up menu to choose the USB drive you wish to unmount.

2. If you have only one USB device attached, you can use the key to highlight ok and press

3. A confirmation window will pop up, choose ok to confirm, or ExIt to cancel the operation.

Alternatively, you can also select

SEt UP  StoRAGE dEVICE and press the

MEnu 

key.

1. Enter the local password (default password is

0000) to confirm.

2. Use the

and keys to select

the USB storage device you wish to unmount

and press

3. Select UNMoUNt U SB and press , a warning box pops up for confirmation.

4. With ok highlighted press to complete the format operation. There will not password confirmation once

you press as you’ve already entered the password to enter this screen in the first place.

Note: In this screen you can verify free and used space for your storage device. You will not see the UNMOUNT USB option for the Internal

HDD.

35

7. TV GUIDE/ ELECTRONIC PROGRAMME GUIDE (EPG)

The built-in EPG functionality provides continuously updated scheduling information for current and upcoming
programming from all the available channels. You can view up to a weeks worth of programming via the EPG
menu as long as this information has been broadcast by he broadcaster.

To enter the EPG screen,

MEnu  EPG and press the key.

Select

Alternatively just press the

7.1 VIEW EPG INFORMATION

The EPG window:

1. Channel list

2. Preview window

3. Current time

4. Date table

5. Program list

6. Operation help info

Press the
between the channel list and program list.

In channel list:

In program list:

EPG key to toggle

▪ Use the and keys to select your channel

EPG information for the highlighted channel appears in the program list window

▪ Press to view the selected channel in full screen.

▪ Use the or keys to select the days of the week

EPG key on your remote when in non-menu mode.

▪ Use the and keys to select the program

▪ Press the InFO key for detailed information on selected program

▪ Press to play the selected program in full screen or to schedule for a future viewing/ recording

36

WINTAL PVR10HD USER MANUAL

7.2 SCHEDULE VIA EPG

You can easily schedule TV shows to be recorded
or played back in advance.

▪ While in the program list window, use the

and keys to highlight the

show you wish to record.

▪ Press to bring up the EPG SCh EdUL E

window.

▪ From here you can choose to RECORD or

PLAY the selected show, either once, daily, or weekly.
Refer to section 4.5.1 Add Schedule on page 24 for more information about the schedule options.

▪ Once you have confirmed your action you will notice a (RECORD) or (PLAY) icon based on your choice

to record or play the selected program.

▪ Press the EX IT key to save and exit.

Note: Based on your reminder settings, your PVR10HD may remind you prior to recording or switching to the chosen scheduled program.

See section 4.3.2 REMIN D BEFORE SCHEDU LE START on page 23.

8. CHANNEL SEARCH

IM PORTA N T: Do not switch off your PVR10HD while a channel search is in progress.

8.1 MUX EDIT

The MUX EDIT is for advanced users only. More often than not, you will not need to adjust any
settings in this window.

In Mux edit window you will find preset transponders (TPs) and their related parameters. You can add, modify
and delete TPs.

To enter the EPG screen,

MEnu  ChANNEL  MUx EdI t and press the key.

Select

8.1.1 ADD A TRANSPONDER

1. Press OK to bring up a pop up menu

2. Select “Add”

3. Input the Frequency (KHz) using the numeric

keypad and choose the required bandwidth
from the list.

4. EXIT out to save your selection

You can also modify and delete transponders
from this screen.

37

8.2 AUTO SEARCH

For most applications, AUTO SEARCH is the best
option to quickly set up your PVR10HD.

MEnu  ChANNEL  AUto SE ARCh

Select

and press the

As soon as you press the OK key your, PVR10HD
will automatically begin to search for all available
HD and SD digital channels as well as available
radio channels.

Once channel scan has completed the PVR10HD will exit from the AUTO SEARCH screen and display the first
available channel in full screen.

8.3 MANUAL SEARCH

If auto search is not finding a particular channel
and you know the frequency and bandwidth
details, then you may enter them in the Manual
Search window.

MEnu  ChANNEL  MANUAL SEARCh

Select

and press the

key.

key.

1. Use the

Frequency (KHz) field and input the numbers

using the numeric keypad on the remote.

2. When done, use the

appropriate bandwidth from the pop up menu.

3. Scroll down to the

4. Move up to

Once the search is complete you will be notified on-screen whether any channels were found.

8.4 CHANNEL INFORMATION

MEnu  ChANNEL  ChANNEL INFo

Select

This window displays information about current channel,
such as PID values, frequency, bandwidth, signal level and
signal quality. This information could be helpful to identify
and solve reception issues.

38

key to move down to the

key again to move down to the Bandwidth (M) field. Press and choose the

SEA RCh t YPE field and choose either SINGLE or NE twoRk .

BEGIN SEA RCh at the top of the window and press to begin the search.

WINTAL PVR10HD USER MANUAL

9. EDIT CHANNEL

The channel editing functionality in your PVR10HD makes it easy to organise the vast number of available
channels by allowing you to lock, move, delete and favourite channels.

To enter the channel edit menu,

MEnu  ChANNEL  ChAN NEL Ed It and press the key.

Select

Enter the local password if prompted (The default password is

9.1 LOCK CHANNEL

0000)

1. Use the

and keys to select

the channel you wish to lock

2. Use

3. Select

key to bring up the edit menu

LoCk and press

This will mark the channel with a

symbol

(Once you’ve chosen Lock from the edit

menu, you can now mark multiple channels

using the

4. Press

5. Press the

ok option highlighted to confirm your changes.

The local password is required to view programs of the locked channels.

Note:

key.)

again if you want to cancel the lock operation

EXIT key twice to exit out of the channel edit menu and press with the

9.2 MOVE CHANNEL

1. Use the

and keys to select

the channel you wish to move

2. Use

key to bring up the edit menu

3. Select

4. Use the

MoVE and press

This will mark the channel with a

and keys to move

symbol

the channel into a new position

5. Press

6. Press the

ok option highlighted to confirm your changes.

to lock the channel in position

EXIT key twice to exit out of the channel edit menu and press with the

39

To continue moving channels, just press to mark the channel with the symbol and follow the instructions

from 4-5 above.

9.3 DELETE CHANNEL

1. Use the

and keys to select

the channel you wish to delete

2. Use

3. Select

key to bring up the edit menu

dELEtE and press

This will mark the channel with a

symbol

(Once you’ve chosen Delete from the edit

menu, you can now mark multiple channels

using the

4. Press the

ok option highlighted to confirm your changes.

You will have to re-scan for channels that have been deleted. Refer to 8.2 Auto Search on page 38 for more information on how to

Note:

automatically scan channels. If you wish to delete all channels before you run a auto scan, you can do so by choosing dELEtE ALL at step 3
above.

key.)

EXIT key twice to exit out of the channel edit menu and press with the

9.4 EDIT FAVOURITES

1. Use the

and keys to select

the channel you wish to add to favourites

2. Use

key to bring up the edit menu

40

3. Select

FAVoURItE and press

This will mark the channel with a

symbol

(Once you’ve chosen Favourites from the edit

menu, you can now mark multiple channels using the

4. Press the

ok option highlighted to confirm your changes.

Note:

EXIT key twice to exit out of the channel edit menu and press with the

Refer to sec tion 3.4.1 Favourite Channel List on page 19 for more information about Channel Favourites

key.)

WINTAL PVR10HD USER MANUAL

10. SETTINGS

To enter the settings screen, select MEnu  SE ttINGS and press the key.

10.1 GENERAL SETTINGS

Use the

and keys to select

the setting you would like to change. Pressing

will bring up the options available for your

selection.

EXIT to save your changes.

Note:

Bold items are the default values.

ASPECt RAtIo

: The aspect ratio depends how the picture fits on your TV.

Options are:

1. Pan and Scan 4:3

2. Letterbox 4:3

RESoLUtIoN :

1. 576 p

2. 720p 50Hz

3. Default 4:3

4. Pan & Scan 16:9

3. 720p 60Hz

4. 1080i 50Hz

5. Letterbox 16:9

6. Default 16:9

5. 1080i 60Hz

6. 1080p 50Hz

7. 1080p 60Hz

Note: Ensure that you select the correct resolution for your T V. Refer to your T V’s manual if in doubt. Should you choose a wrong resolution

and the screen goes black, wait for 10 seconds without pressing any buttons and your PVR10HD will rever t to the previous working resolution.

tIME ZoNE SE t

1. VIC

2. NSW/ ACT

CLoSEd CAP tIoN : Closed captions are available only if it is being streamed by the broadcaster.

:

3. QLD

4. SA

5.WA

6. TA S

7. N T

See section 3.7 “Closed Captions” on page 20 for more information.

1. O n 2. Off

dAYLIGht SAVING t IME : Set it to on if you are observing DST.

1. O n 2. Off

MENU tRANSPARENCY : Set the opacity for the on-screen menu,

1. High 2. Middle 3. Low 4. Default

AUdIo dECodE : Sets the audio output via the rear S/PDIF port. If your AV receiver can decode Dolby Digital

signals set it to “Dolby Digital”. If not, set it to “PCM” to output the decoded signal.

1. Dolby Digital 2. PCM

Note: Dolby Digital surround sound is only available if it is streamed by the broadcaster.

: Enable or disable Picture-in-Picture. For more information on PIP, please refer to section 3.8 Picture-in-

PIP

Picture (PIP) on page 20.

1. O n 2. Off

41

10.2 CHANGE PASSWORD

IM PORTA N T: The default password is 0000. For security reasons, it is highly
recommended that you change this.

MEnu  SEttINGS  ChA NGE PASSwoR d and press the key.

The local password is required to change certain
settings, view and edit locked channels etc.

Input your existing password using the numeric
keypad on your remote under Existing
Password.
Enter your new password in the Input New

Password and enter the same password in
New Password Again.

10.3 PG LOCK (PARENtAL GUIdANCE)

MEnu  SEttINGS  PG LoCk and press the key.

Parental controls allow you to restrict
programming based on their classification.

The default setting has Parental Guidance turned
off. Enter the local password and choose your
restriction level if you wish to enable this feature.

Options are:

▪ P - Pre-school
▪ C - Children
▪ PG - Parental Guidance
▪ R - Restricted 18+

Once activated, any show that has a classification higher than what is chosen will be blocked from viewing. For
example, if you select PG above, shows that have a rating above PG will be locked from viewing.

You will have to input the local password to be able to view content that has been locked.

42

WINTAL PVR10HD USER MANUAL

10.4 NETWORK SETTINGS

MEnu  SEttINGS  NEt woRk and press the key.

The ethernet port located on your PVR10HD will
allow it to receive MHEG-5 broadcasts once it
becomes available in Australia. We have included
this to make your PVR10HD as future proof as
possible.
MHEG-5 provides interactive/hybrid services
beyond broadcast TV and also allows for EPG
data to be transmitted via the internet.

The default DHCP IP mode setting will
automatically configure your PVR10HD based
on your existing network settings. However, if required, you may choose StAtIC and enter the necessary
information.

10.5 FACTORY RESET

WARNING: Factory reset will revert all settings back to factory defaults and erase
all channels. Beware when choosing this option!

MEnu  SEttINGS  FACto RY RES Et

Press the

(The default password is

Use the

key.

Wait for the reset operation to complete. Your PVR10HD will prompt you to do a channel scan once it’s done.
Confirm it to initiate an auto channel search.

key and input the local password

0000).

key to highlight ok and press the

43

10.6 SOFTWARE UPDATE

WARNING: Make sure you do not abruptly switch off power to your PVR10HD during
the upgrade process as this may harm your unit.

MEnu  SEttINGS  SoFtwARE UPdAt E

Press the
(The default password is 0000).
You can upgrade your PVR10HD via the front or
back USB ports or via the RS-232 port.
For USB upgrades, make sure you have
downloaded the firmware file to the root of your
flash drive.
Press OK to initiate the upgrade process.

You will receive an on-screen prompt once the
upgrade process is complete and your PVR10HD will reboot itself.

10.7 SYSTEM INFORMATION

MEnu  SEttINGS  SYSt EM INF o

This window displays information specific to your PVR10HD such as hardware version, software version and
more.

key and input the local password

44

WINTAL PVR10HD USER MANUAL

11. APPENDIX

11.1 TROUBLESHOOTING

DISPLAY ON FRONT PANEL IS OFF

1. Power adapter is disconnected. Make sure power adapter is plugged into a proper power socket.

2. The receiver is turned off. Turn it on.

DISPLAY ON FRONT PANEL IS ON, BUT NO SOUND AND PICTURE ON TV SCREEN

The receiver is in stand-by mode. Press PVR POWER key on your remote to turn it on.

NO SIGNAL

1. Antenna cable is not conected. Make sure that there’s a connection between your aerial and the PVR10HD.

2. You haven’t performed a channel scan. See section 8. Channel Search on page 37.

NO SOUND

1. Audio cable is disconnected or incorrectly connected. See 2.1 “Connecting to your TV” on page 11.

2. The receiver is in mute mode. Press MUTE key on remote to restore sound.

3. Volume is set to minimum. Increase volume to a proper level using the remote.

4. Audio settings are incorrect. See section 3.5 “Audio Setting” on page 19 or “Audio Decode” under General
Settings in on page 41.

NO PICTURE

1. Video cable is disconnected or incorrectly connected. See 2.1 “Connecting to your TV” on page 11.

2. The receiver is in radio mode. Switch to TV mode if you need.

3. Your TV is not set to AV mode.

VIDEO AND AUDIO MISMATCH, OR SOUND OUT OF SYNC

Audio settings are incorrect. See section 3.5 “Audio Setting” on page 19 or “Audio Decode” under General
Settings in on page 41.

POOR QUALITY PICTURE

Weak signal. Ensure proper connection between your aerial and PVR10HD.

REMOTE CONTROL DOESN’T WORK

1. Flat batteries. Replace the batteries.

2. Remote is not aimed at the receiver. Aim remote at the receiver.

CANNOT RECORD PROGRAM

1. Not enough space on your internal and/ or external HDDs. Delete files and create space on the hard drives.

2. There’s a conflict with the current recording. Stop current recording or wait until the recording is finished.

CANNOT OPERATE TIME SHIFT

1. “Time-shift Start Mode” is set to “Never”. See section 4.3.5 on page 23.

2. The capacity of attached USB drive is less than 8GB.

Note: If you cannot solve the problems after referring to this trouble shooting, please contact us on
1800 337 366.

45

THIS WARRANTY CARD AND THE PURCHASE DOCKET

(OR SIMILAR PROOF OF PURCHASE)

SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES

TROUBLE SHOOTING HELP LINE

1300 662 946

C

U

S

T

O

M

E

R

C

A

R

E

C

E

N

T

R

E

CUSTOMER

CARE CENTRE

Customer Care Centre
562 Spencer Street, West Melbourne
VICTORIA 3003

THIS PRODUCT IS WARRANTED FOR 12 MONTHS FROM THE DATE OF PURCHASE.

Subject to the conditions of this warranty, the Customer Care Centre will perform
necessary service on the product without charge for parts, or labour if, in the
opinion of the manufacturer/ manufacturer’s agent, the product is found to be
faulty within the warranty period.

The warranties hereby conferred do not extend to any costs associated with the
delivery, handling, freighting or transportation of the product or any part thereof
or replacement of and do not extend to any damage or loss occurring during, or
associated with transit.

If warranty service is required you should:



Telephone the Customer Care Centre on 1300 662 946



Provide a copy of your purchase receipt that shows retailers identity and date
of purchase.



Send or bring the product to your Customer Care Centre. Please note that freight
to and/or from your Customer Care Centre must be arranged by you.

This warranty only applies if the product has been installed and used in accordance
with the manufacturer’s recommendations (as noted in the operating instructions)
under normal use and reasonable care. The warranty covers normal domestic use
only and does not cover damage, malfunction or failure resulting from use of
incorrect voltage, accident, misuse, neglect, build-up of dirt or dust, abuse, mis-
adjustment of customer controls, mains supply problems, thunderstorm activity,
infestation by insects or vermin, tampering or repair by unauthorised persons
(including unauthorised alterations), exposure to abnormally corrosive conditions
or any foreign object or matter having entered the product.

11.2 SPECIFICATION

TUNER

Input Frequency 47 ~ 858MHz

Loop out Frequency 47 ~ 858MHz

Input Level -25 ~ 20dBuV

Bandwidth 6M, 7M, 8M

Input Impedance 75

CHANNEL DECODING

Standard DMB-T EN300 744

Demodulation QPSK, 16 and 64QAM

AUDIO DECODING

Standard ISO/IEC 13818-3

Decoding MPEG-1 & MPEG-2 layer I and II, AC3

Audio Mode Left, Right and Stereo

VIDEO DECODING

Standard

Aspect Ratio 4:3, 16:9

Resolution 1920 × 1080p max.

HIGH DEFINITION OUTPUT

Output Format 1080p, 1080i, 720p

Output Connector HDMI, Y/Pb/Pr

POWER SUPPLY

Input Voltage 12 V 3A DC

PHYSICAL CHARACTERISTICS

Size 320mm (L) × 223mm (W) × 40mm (H)

Weight 1.4kg

ISO/IEC 13818-2, MPEG-2 MP@ML,
MPEG-4 AVC/ H.264 HP@L4

Operation Temperature 0° ~ 40° C

Storage Temperature -40° ~ 60° C

Storage Humidity ≤93%

46

WINTAL PVR10HD USER MANUAL

C

U

M

O

T

S

E

R

CUSTOMER

C

A

R

E

C

E

THIS PRODUCT IS WARRANTED FOR 12 MONTHS FROM THE DATE OF PURCHASE.

Subject to the conditions of this warranty, the Customer Care Centre will perform
necessary service on the product without charge for parts, or labour if, in the
opinion of the manufacturer/ manufacturer’s agent, the product is found to be
faulty within the warranty period.

This warranty only applies if the product has been installed and used in accordance
with the manufacturer’s recommendations (as noted in the operating instructions)
under normal use and reasonable care. The warranty covers normal domestic use
only and does not cover damage, malfunction or failure resulting from use of
incorrect voltage, accident, misuse, neglect, build-up of dirt or dust, abuse, mis­adjustment of customer controls, mains supply problems, thunderstorm activity,
infestation by insects or vermin, tampering or repair by unauthorised persons
(including unauthorised alterations), exposure to abnormally corrosive conditions
or any foreign object or matter having entered the product.

If warranty service is required you should:



Telephone the Customer Care Centre on 1300 662 946



Provide a copy of your purchase receipt that shows retailers identity and date
of purchase.



Send or bring the product to your Customer Care Centre. Please note that freight
to and/or from your Customer Care Centre must be arranged by you.

The warranties hereby conferred do not extend to any costs associated with the
delivery, handling, freighting or transportation of the product or any part thereof
or replacement of and do not extend to any damage or loss occurring during, or
associated with transit.

N

E

R

T

CARE CENTRE

THIS WARRANTY CARD AND THE PURCHASE DOCKET

(OR SIMILAR PROOF OF PURCHASE)

SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES

TROUBLE SHOOTING HELP LINE

1300 662 946

Customer Care Centre
562 Spencer Street, West Melbourne
VICTORIA 3003

WINTAL PVR10HD USER MANUAL
