Product Information
Get the best for your digital signage with the Wintal MICRO4PRO 4K media player� Compact and versatile, the
MICRO4PRO is a giant leap from previous models, not only now with 4K resolution, but with the added ability to
store content locally on the player itself�
Features
• Resolution: Up to 4K/60fps (3840x2160) decoding / 4K/30fps output
• Hardware Watchdog
Monitors for system crashes and brings the system back online!
• FTP file transfer & playback
• Quick Deployment
One key playback & auto-resume
• Advanced Player for scheduling playlists and creating custom layouts
• Remote IR extender
• On/Off timer feature
• RK3328 Quad-core 64bit CPU
• Quad-core Mali 450MP GPU
• 2GB RAM & 16GB in-built storage
• SDHC card slot for storage expansion
• Supports USB HDDs up to 4TB
• Supports a wide range of modern video, photo, audio & subtitle formats
• Compact size: 132 (W) x 83 (D) x 22 (H) mm
Connections:
• USB 3�0 host port
• USB 2�0 host port
• Card Reader: SD / SDHC
• HDMI 2�0 output
• S/PDIF (Optical) audio output
• 3�5mm composite AV out
(3�5mm to 3x RCA lead included)
• Remote (IR) input
• RJ-45 Ethernet port
• DC power: 5V DC / 2A
In the Box
• Micro4Pro
• Compact IR remote
• 3�5mm to 3x RCA composite lead
• IR extension cable
• 5V DC / 2A power supply
• Quick Start Guide
Wintal Micro4Pro User Manual 3 of 15
Page 4
Main Unit

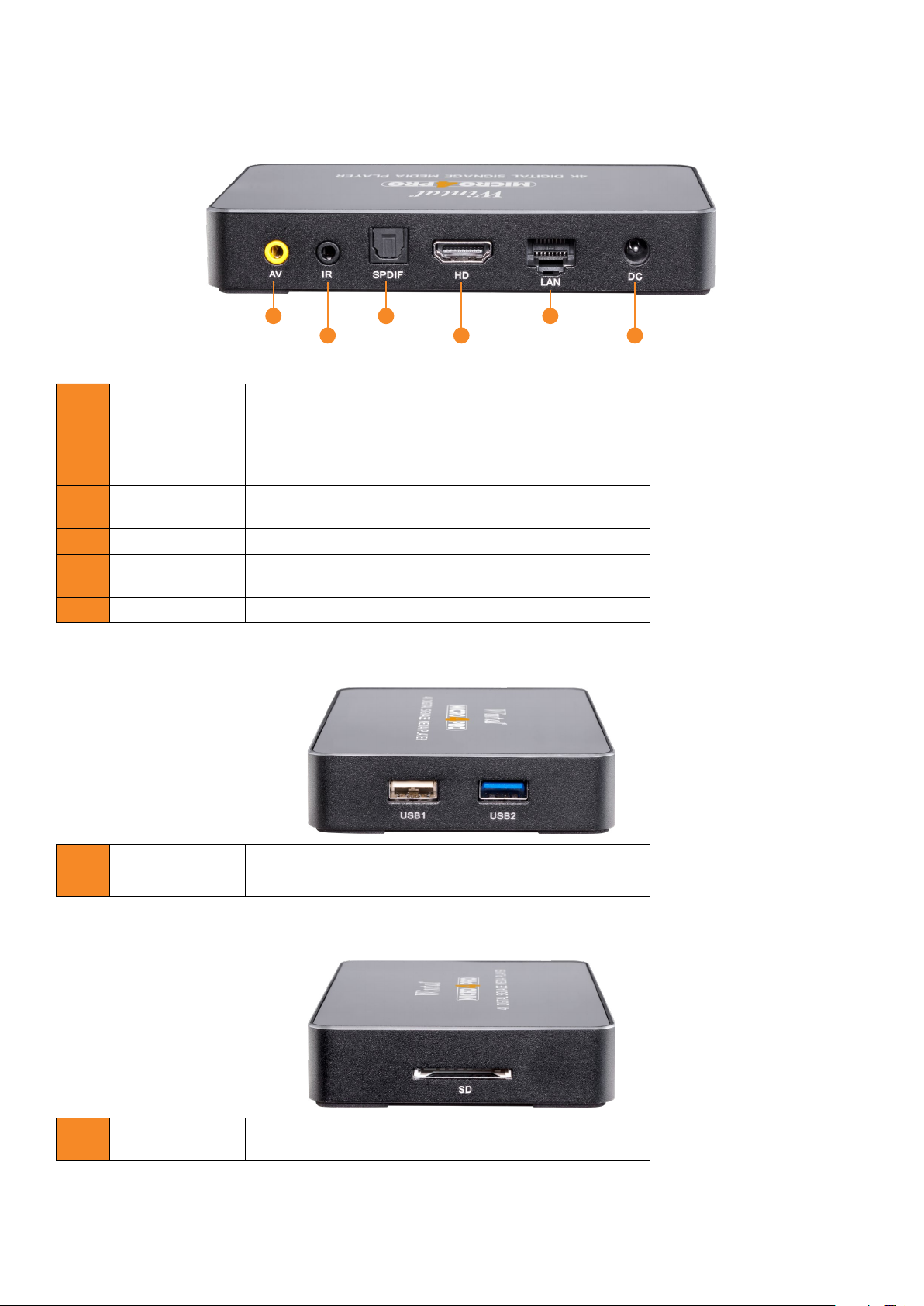

Rear View
1
2
1 3�5mm
Composite AV
Out
2 IR Input Connect the included IR receiver if you are hiding the
3 S/PDIF (Optical)
audio out
4 HDMI Output HDMI 2�0 for greater support
5 RJ-45 Ethernet
Port
6 2�1mm DC Input 5V 2A via included power supply
For older displays� You can find a 3�5mm to 3 x RCA lead
in the box�
Micro4Pro behind TV where IR signals can’t reach�
For the best digital audio connection to your TV or
speaker�
Wired connection to your local network
3 5
4 6
Right Side View
1 USB1 Port USB 2�0
2 USB2 Port USB 3�0
Left Side View
1 SD / SDHC
Reader
Wintal Micro4Pro User Manual 4 of 15
USB 2�0
Page 5
Mounting

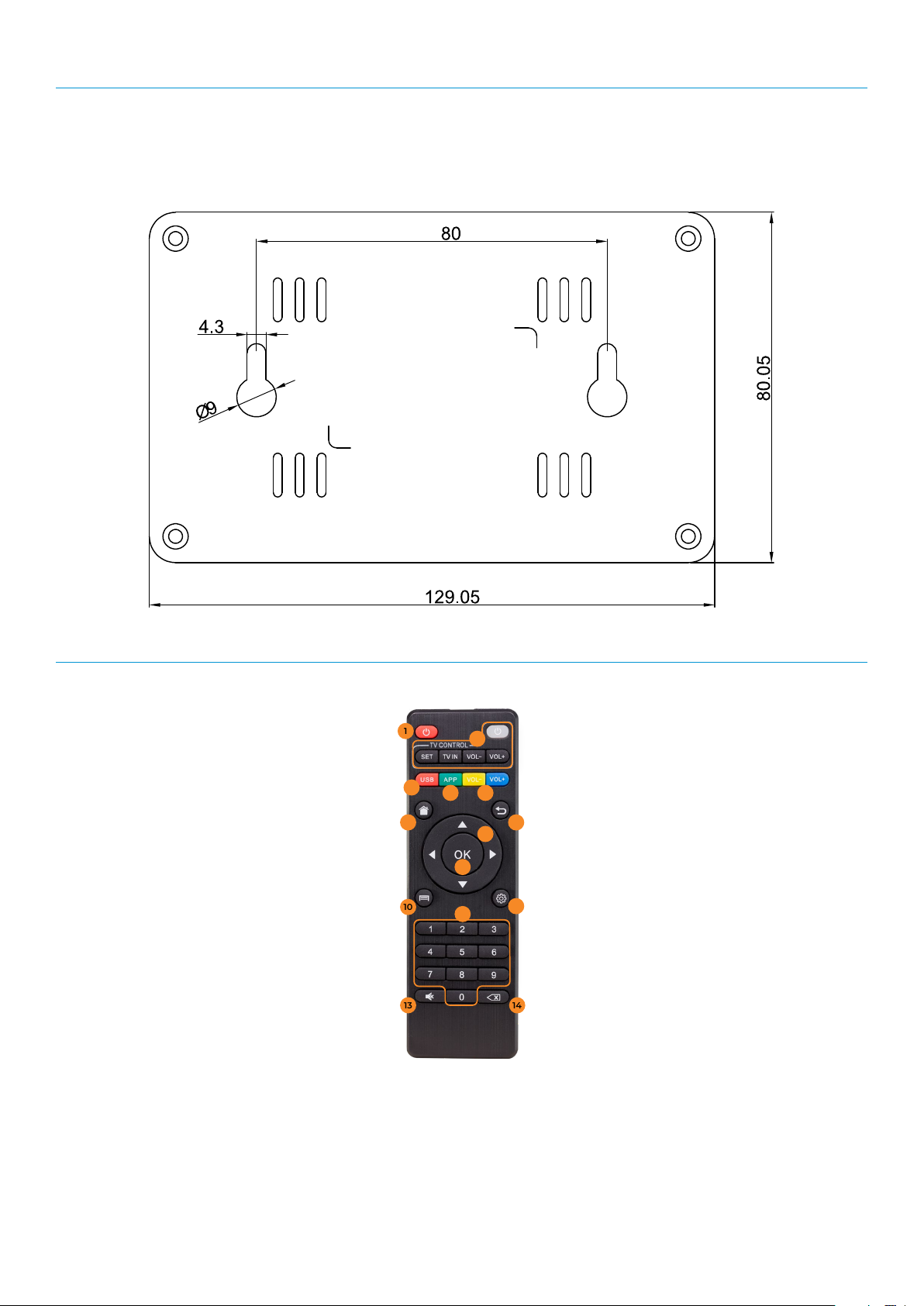

The Micro4Pro can be easily mounted on a wall� See below for the back plate hole dimensions�
Simply hook and slide it into any M6 sized screws�
Remote Control
1� Power
2� TV Control (Can be
programmed by
learning function)
3� USB Playback
4� Advanced Player
5� Volume +/-
6� Home
1
3
6
10
2
485
7
9
12
11
1413
7� Go Back
8� Navigation Direction
9� Select/Ok
10� Playback Menu
11� Settings
12� Number Buttons
13� Mute
14� Delete
Wintal Micro4Pro User Manual 5 of 15
Page 6
How setup the learning remote feature
The learning remote feature allows you to program your existing TV remote to be able to control the Micro4Pro and
the basic functions of your TV using the one remote�
To start the pairing process, make sure you have the Micro4Pro remote and your TV’s remote on hand�
1� Press and hold the top right Power button in the TV CONTROL section for 6 seconds
The LED will go from rapidly flashing to solid red�
2� Press the button you want to learn on the Micro4Pro remote
For example if you want to increase the volume on your TV, press the VOL+ button
The power button will start flashing red
3� Grab your original remote and make it is facing head-on with the Micro4Pro remote with about 5cm gap
4� Press the corresponding button on your original remote� If the learning process is successful, the Power button
will flash three times and turn off�
5� Repeat steps 2-4 for the remaining buttons�
6� To exit out of learning mode, simply hit any other button outside of the TV CONTROL section�
Things to keep in mind:
• Not every remote control is supported�
• You can add commands from multiple remotes� For example, power button for your TV, volume up and down
commands from your soundbar remote�
• If you wait too long, the Micro4Pro remote will automatically exit out of learning mode� Just start from step 1
above�
• You may have to try multiple times to teach a command from one remote to the other� Make sure you locate
the IR blaster section of your remote and that it is pointing to the IR section on the Micro4Pro remote�
Wintal Micro4Pro User Manual 6 of 15
Page 7
Connecting the Micro4Pro
Simple TV Connection

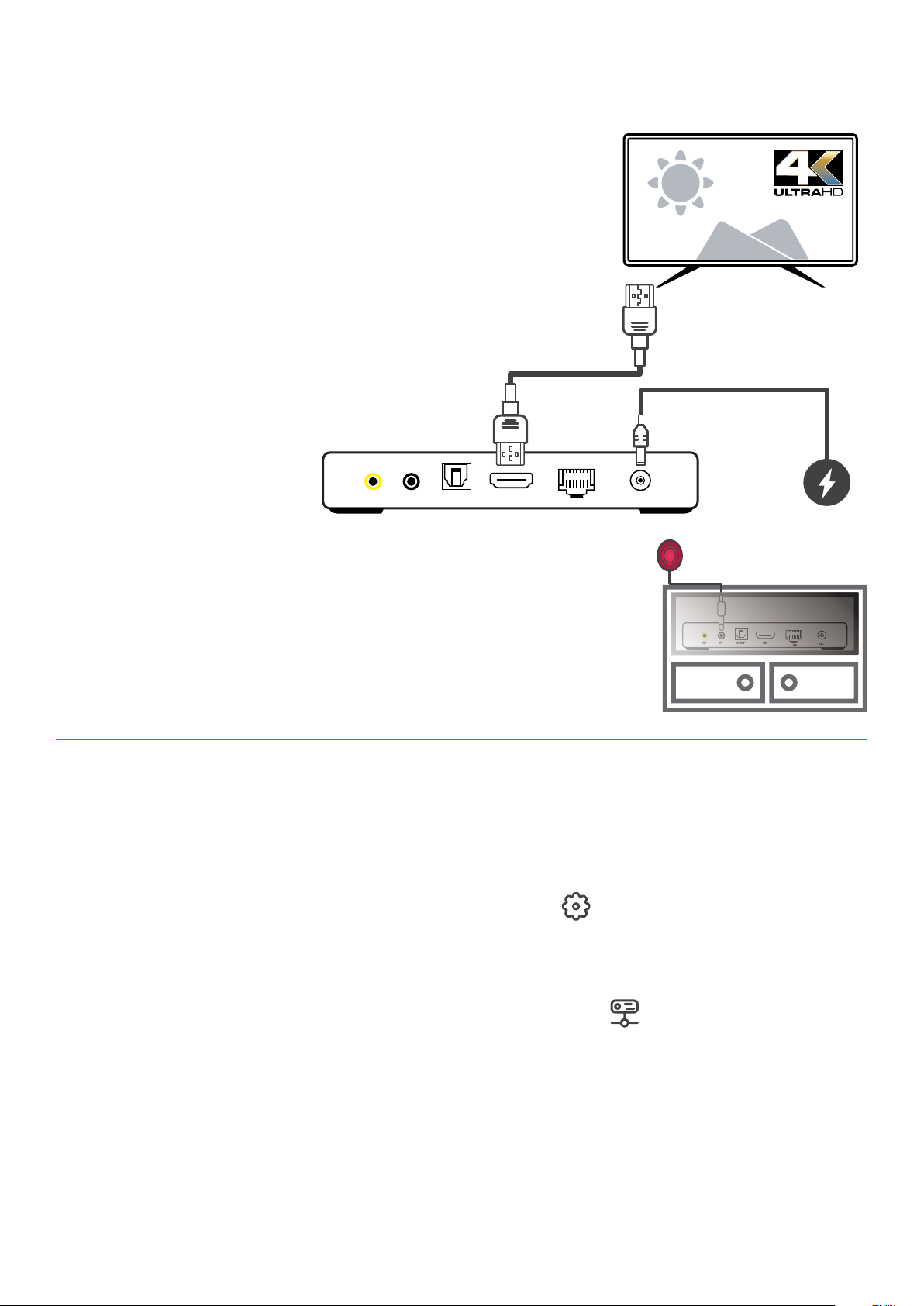

1� Connect a HDMI cable from the Micro4Pro to the HDMI input on your TV�
2� Connect the included power supply to your wall outlet and to the Micro4Pro�
3� The Micro4Pro will automatically turn on
4� Make sure you turn on your TV and switch to the correct HDMI source�
Refer to your TVs manual for instructions�
Using the included IR Extender
If you have the Micro4Pro hidden
behind your TV or in a cupboard,
out of sight, you can use the
included IR extender to allow it to
receive remote signals�
1� Connect the 3�5mm connector
to the IR input
2� Stick the IR receiver where it
can have a direct line sight with
the Micro4Pro remote
AV IR SPDIF HD
LAN
DC
Connecting the Micro4Pro to your network
You can connect the Micro4Pro via either wirelessly over wi-fi or wired using the ethernet port located on the back�
Wireless
1� Boot up the Micro4Pro
2� Using the remote control, click on the settings icon on the top right (
3� Scroll down to network and find your existing wireless network from the Available Networks section
4� Put in your Wi-Fi password and click NEXT to confirm
5� If successful you will see a Connected Successfully message
6� To confirm, you can go back to the home screen, click on the network icon (

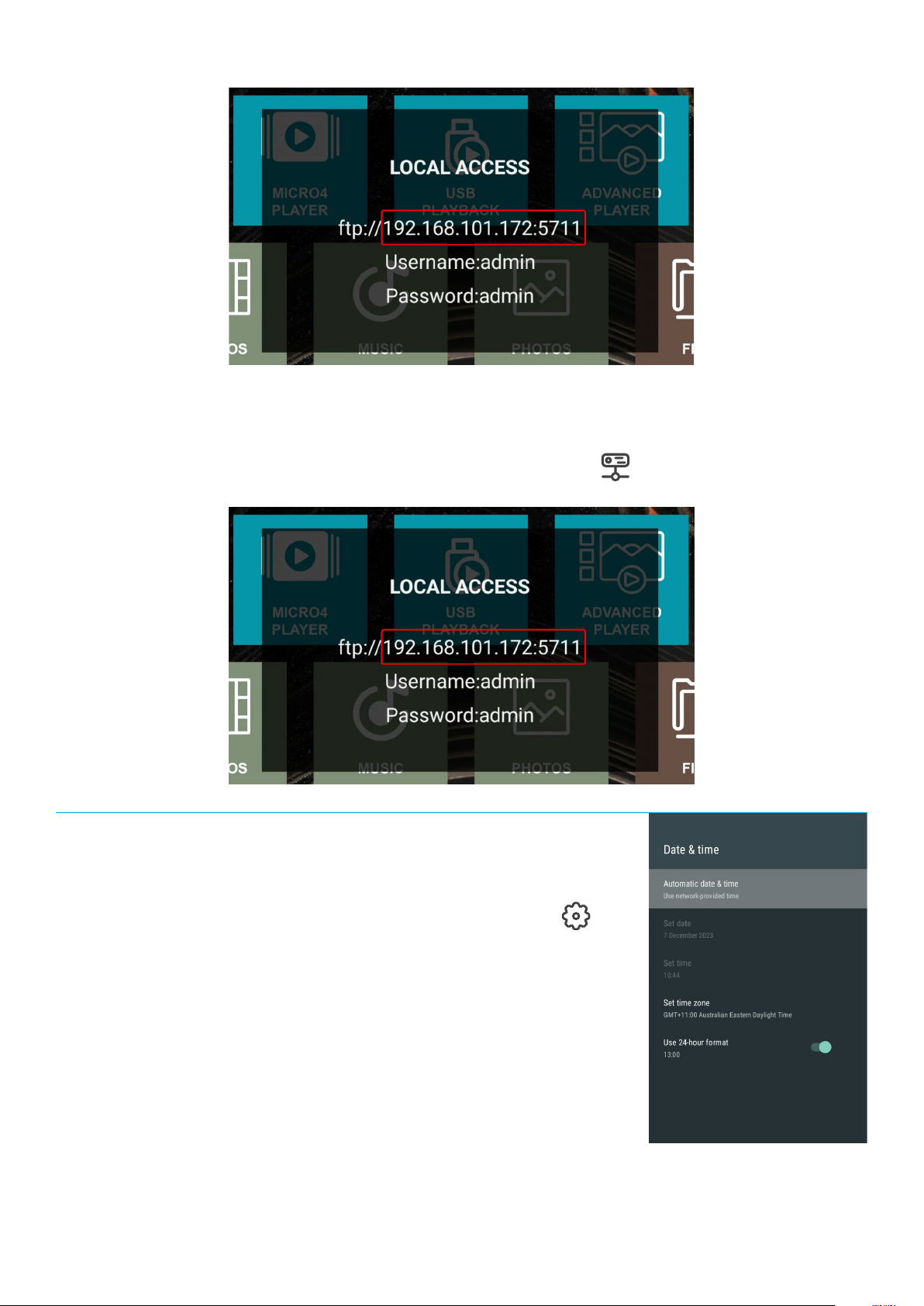

that gives you the FTP connection details� The IP should match your existing network setup�
)
) and you should get a pop up
Wintal Micro4Pro User Manual 7 of 15
Page 8
Wired Connection
1� Plug in an ethernet cable (Cat5e or Cat6 and above) to the back of the Micro4Pro and to your existing router
2� Wait for 10-15 seconds and on the home screen, click on the network icon (
that gives you the FTP connection details� The IP should match your existing network setup�
) and you should get a pop up
Setup Date and Time
If the date and time displayed on the bottom right of the homescreen is incorrect,
follow these steps to setup the correct date and time�
1� Using the remote control, click on the settings icon on the top right (
2� Scroll down to Preferences > Date & time
3� Ensure Automatic date & time is set to Use network-provided time
If you would like to manually adjust the date and time turn Automatic date & time
to Off and set your date and time values manually�
On this screen, you can also set your desired time zone and toggle between 24hour format�
)
Wintal Micro4Pro User Manual 8 of 15
Page 9
Playback
The Micro4Pro is equipped to playback media in a variety of ways�
Playback via USB
The simplest method is to populate a USB flash drive with your media� Micro4Pro is able to playback pretty much
any audio, video and image files you throw at it�
1� Copy your media to the root folder of your USB drive
2� Plug in the USB flash drive into either USB1 or USB2 port on the side of the Micro4Pro
3� Playback will begin automatically
4� If you end up on the home screen and want to restart playback, simply choose the USB Playback option on the
home screen�
Playback via the Internal Micro4 Player
The Micro4 Player relies only on the files located in the internal memory� You can either directly copy files to the
autoplay folder or follow the instructions under “Copy files from USB to internal storage” on page 13 to mirror
the contents of your USB drive to the internal storage�
Advanced Player
The Advanced Player is a free third-party app that has been added to the Micro4Pro for those who want better
control and advanced features like
• Multiple playlists
Wintal Micro4Pro User Manual 9 of 15
Page 10
• Schedules
• Advanced zone and screen layout controls
• Text message displays
• Display RSS feeds
• File synchronisation via web, FTP, and online storage services like Google Drive
The Slideshow developer has excellent tutorials and documentation on their website�

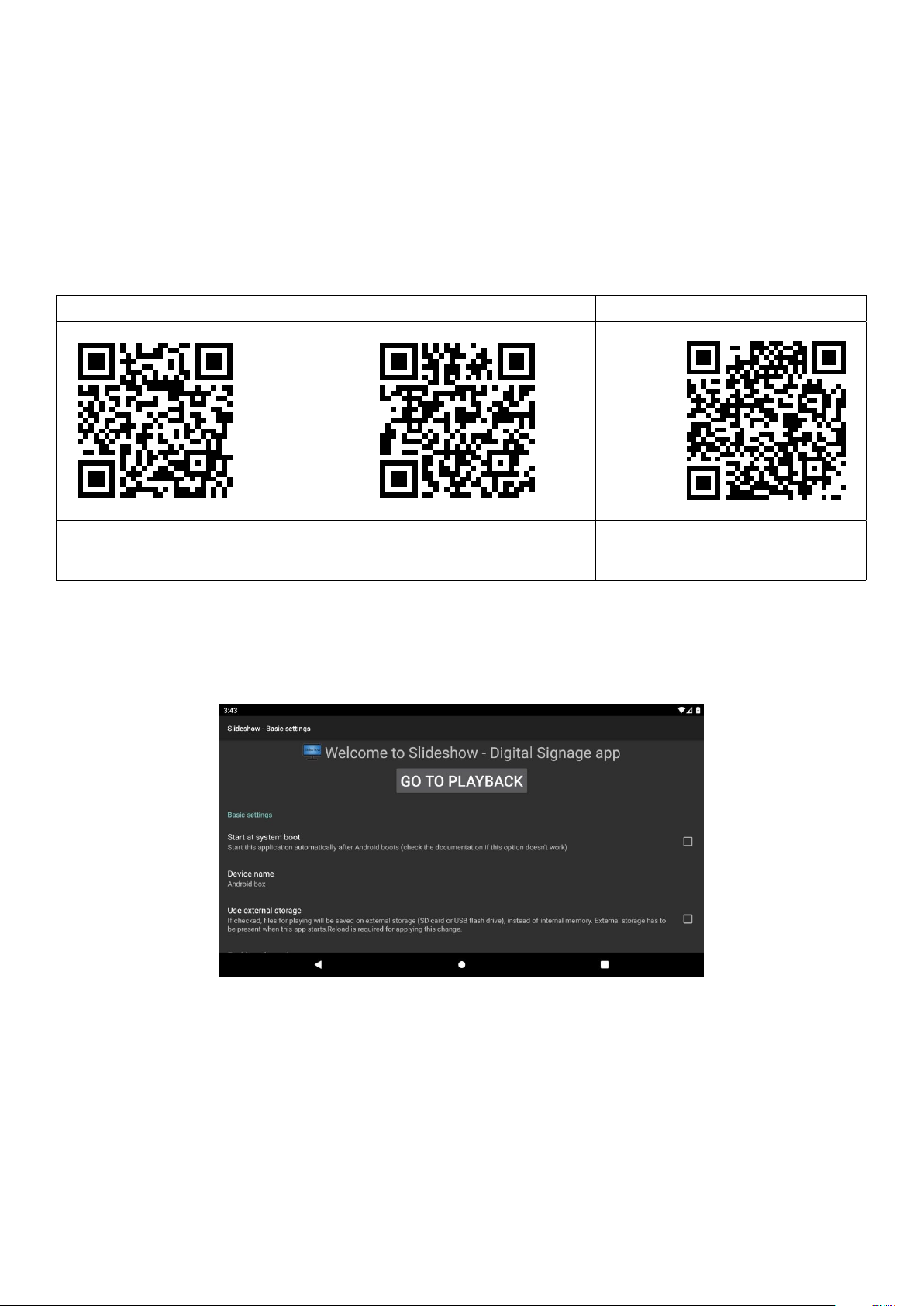

Just scan the following QR codes to get direct access:
Tutorial Documentation YouTube Videos
A quick start to get up and going
with the Advanced Player
Complete manual that deep
dives to the ins and outs of all the
Dedicated YouTube channel that has
a number of videos
capabilities

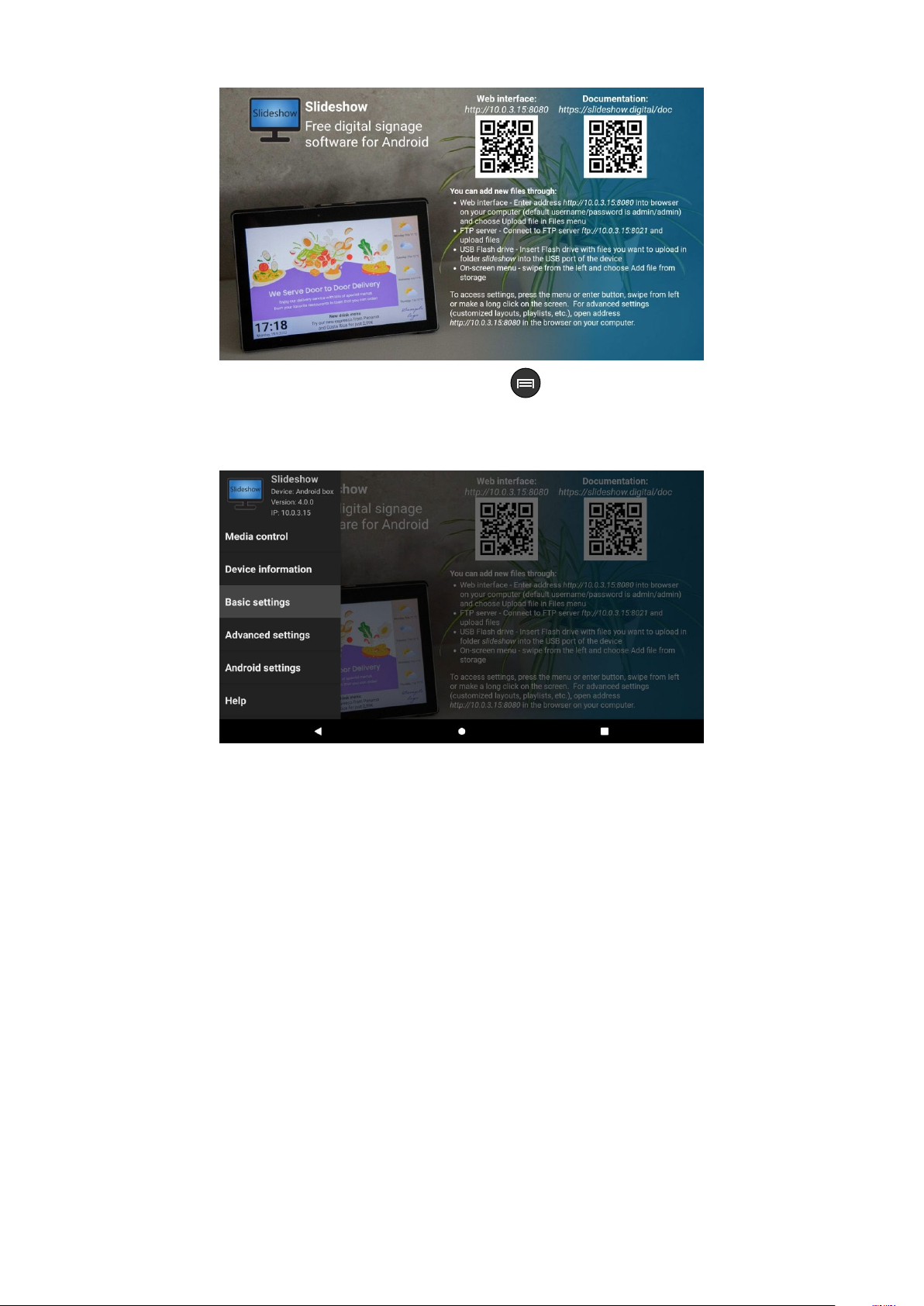

When you first launch the app, it will ask you to setup some initial configuration options�
After granting the necessary permissions you will get following screen with basic settings� Review them, adjust if
needed and press the Go to Playback button�
1� Following screen will be displayed� Slideshow is now ready to be used, you can upload first files using any of the
methods mentioned on the screen�
Wintal Micro4Pro User Manual 10 of 15
Page 11
2� If you want to access settings again, press the menu button [ ] on the remote control (and select Basic
settings� If you have a touchscreen monitor, you can open the menu also by swiping from the left side of the
screen or pressing Enter key on a connected USB keyboard�
3� If the Micro4Pro is connected to the local network (through WiFi or Ethernet cable), you can access Slideshow’s

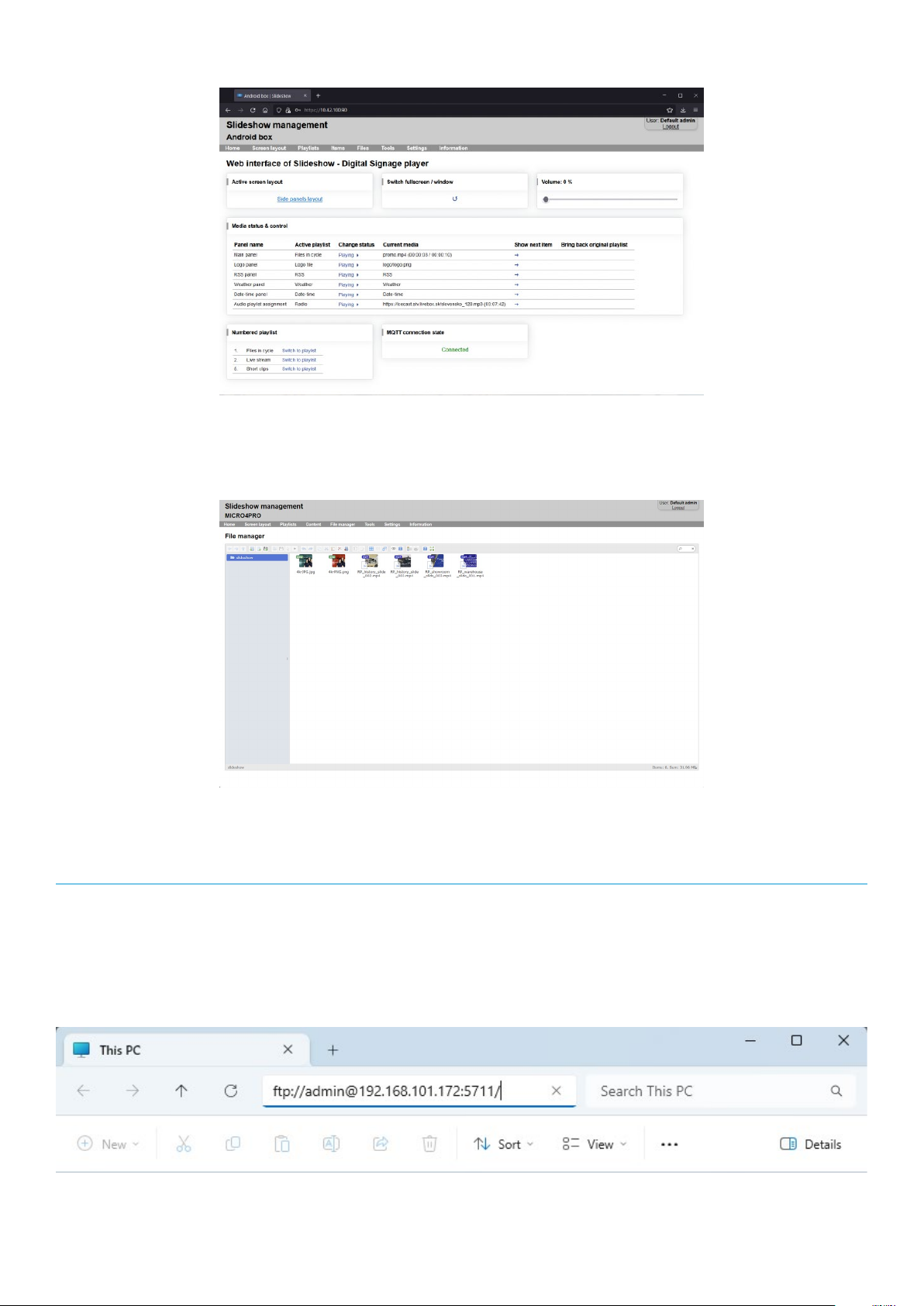

web interface through any browser on your computer� Just enter the URL address of the web interface displayed
on the screen (above the first QR code) to the browser on your computer� If Slideshow is already displaying
some other files, you can reopen the screen with URL address through the on-screen menu – Help, or using
keyboard shortcut “h” or “Space” if you have a USB keyboard connected�
The default username / password for the web interface is admin / admin� You can manage advanced
configuration and settings there, review statistics and check logs�
Wintal Micro4Pro User Manual 11 of 15
Page 12
4� You can upload new files through the web interface – menu File Manager� Add files which you would like to play
through Slideshow using drag & drop them from your computer to the File manager�
Once you add your files, you can then immediately start playback on the Micro4Pro by choosing the Advanced
Player icon on the home screen�
How to Copy Files via FTP
Once you connect the Micro4Pro to your network (see the section Connecting the Micro4Pro to your network) you
are able to upload files remotely�
Windows

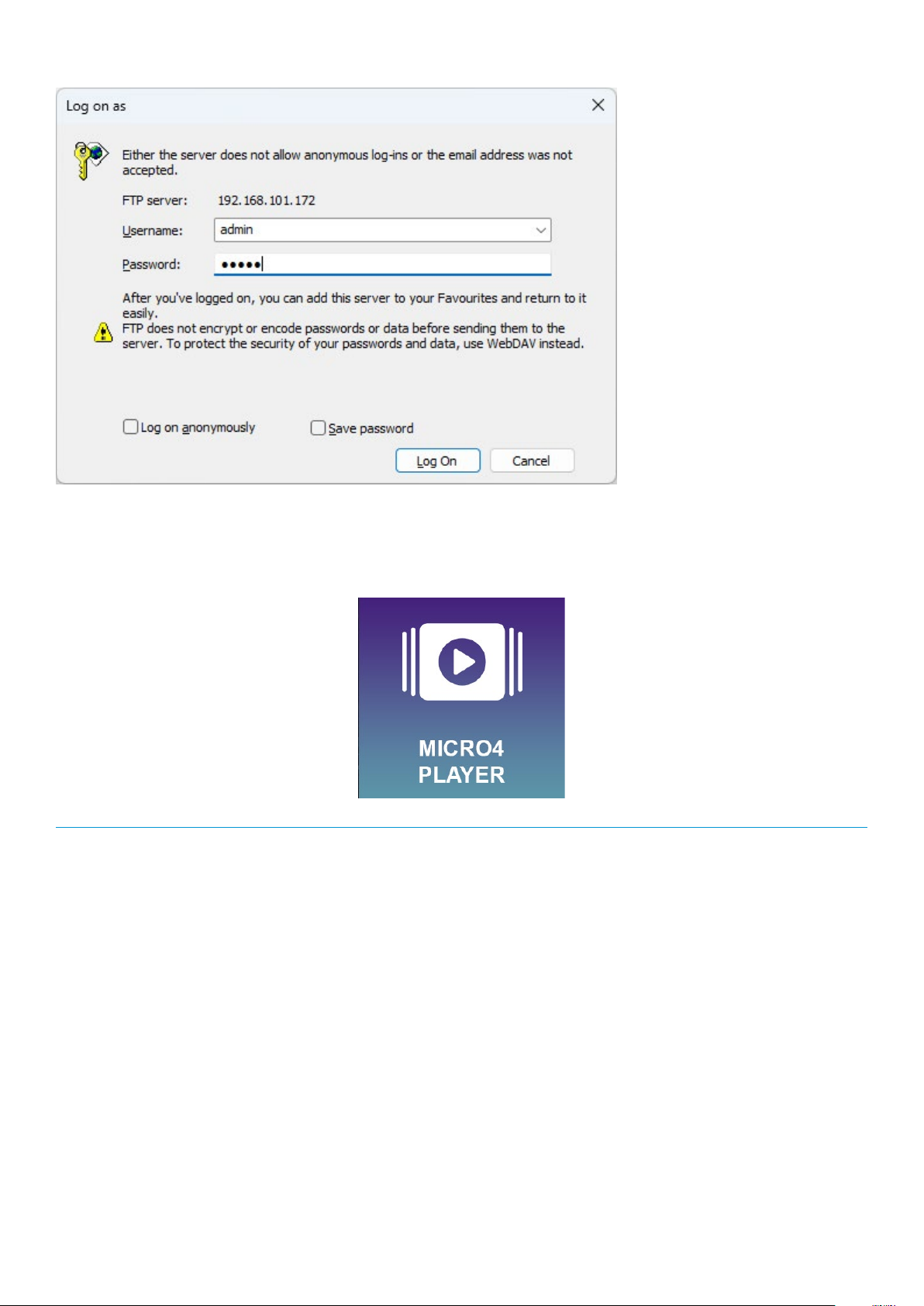

Open Windows File Explorer and paste in the Local Access details�
Enter admin and admin as the username and password
Wintal Micro4Pro User Manual 12 of 15
Page 13
You can paste all your media files into this folder�
Once the transfer is complete, you can initiate playback by choosing the Micro4 Player on the homescreen�
Copy files from USB to internal storage
1� On your computer, create a folder on your USB drive called autoplay and copy all your media files into this folder
2� Plug in the USB drive to the Micro4Pro�
3� You will see a Ready to copy message� The Micro4Pro will automatically copy all the media files to the internal
storage and will give you a File copied successfully! message and start playing back your media�
4� You can then remove the USB drive from the Micro4Pro�
Please note, this is a good way to batch deploy a slideshow across multiple Micro4Pros! Simply plug in the USB flash
drive to all the units you want to play the same digital signage files�
Wintal Micro4Pro User Manual 13 of 15
Page 14
File Browser
The Micro4Pro has a built-in browser to make easier to find different files stored on the Micro4Pro or any USB flash
drive connected�

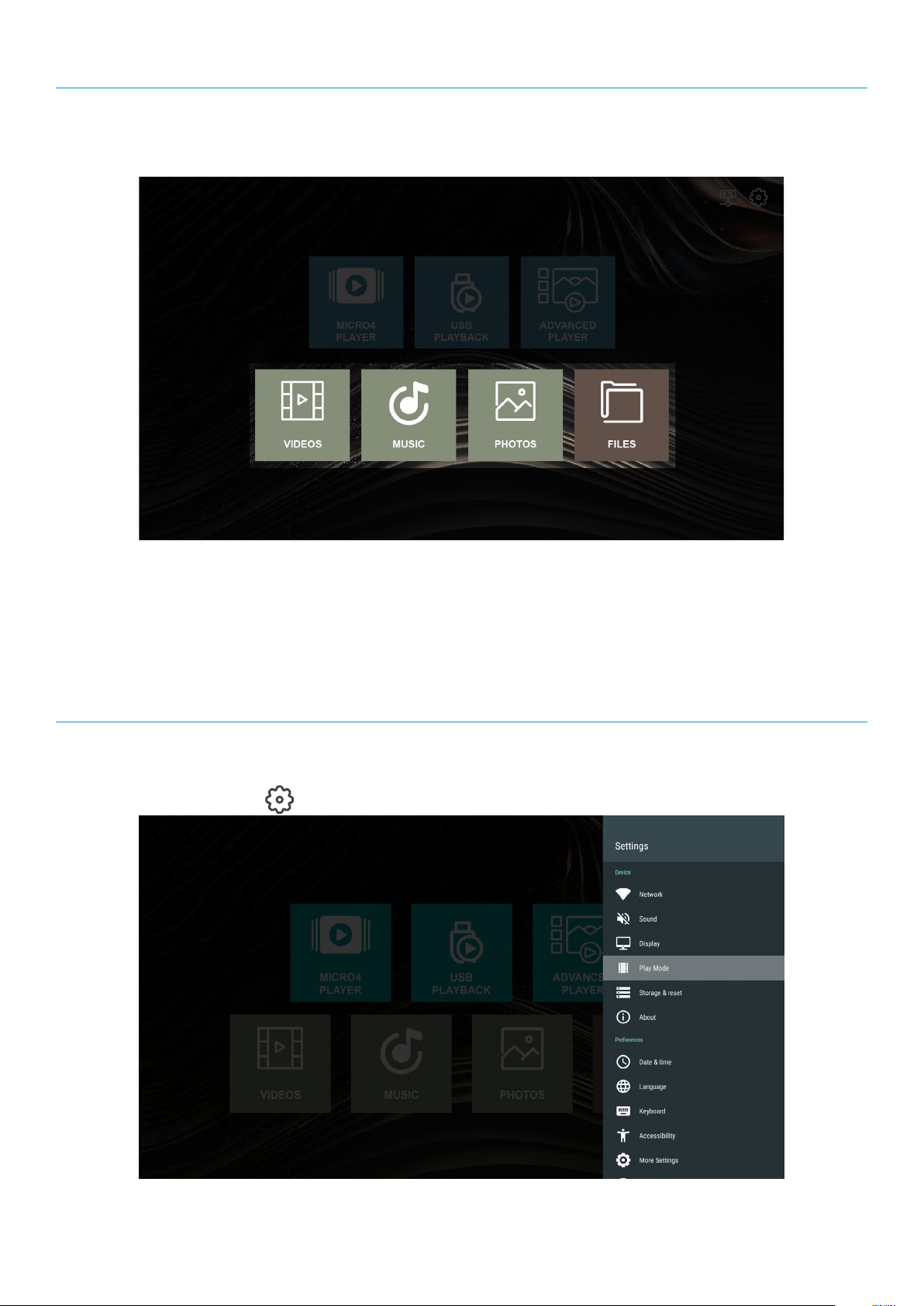

The bottom row of the home screen is dedicated to file browsing�
• The Videos icon launches the file browser to display only video files�
• The Music icon launches the file browser to display only audio files�
• The Photos icon launches the file browser to display only image files�
• The Files icon launches the file browser without any filtering and will show all files�
Micro4 Player Play Mode Options
You are able to completely customise the look and feel of the built-in player to suit your needs� Find these settings
by going to the Settings icon (
) and choosing Play Mode from the list�
Wintal Micro4Pro User Manual 14 of 15
Page 15
The available options include the following:
Screen Rotation
• 0 (Default landscape)
• 90 (Portrait)
• 180 (Reverse landscape)
• 270 (Reverse portrait)
Play Mode
• Single
Will play the first media file and exit to the home screen when playback finishes
• Repeat One
Will repeat the first media file in a loop
• Repeat All (Default Setting)
Will loop all the media files in file name order
• Random
Will loop all the media files in a random order
Power Schedule Settings
With the Power on/off Time settings you are able to program the Micro4Pro to turn on and off at set times�
1� Go to the Settings icon (
You are able to set up to 5 schedule groups�
2� Set your desired Power on time
3� Set your desired Power off time�
4� Ensure Enable is set to On�
5� Follow steps 2-4 for adding additional times under the other groups�
) and choose Power on/off Time at the bottom of the list�
How to Factory Reset
Follow these instructions to reset the Micro4Pro to default settings
1� Go to the Settings icon (
2� Scroll down to Factory data reset
3� Choose Factory data reset once more
4� Confirm by selecting Erase everything
5� The Micro4Pro will go through the factory data reset process and will boot up to the homescreen after
completion� This process may take a few minutes�
) and choose Storage & reset
Troubleshooting
Problem Solution
Only image playback, no video Check that you have the correct play mode set under
Settings > Play Mode > Auto Play File Type
Can’t playback from USB Please ensure that your media files are located on the
root folder of your USB drive and not in a subfolder�
Incorrect date and time See “Setup Date and Time” on page 8
Wintal Micro4Pro User Manual 15 of 15
Loading...
